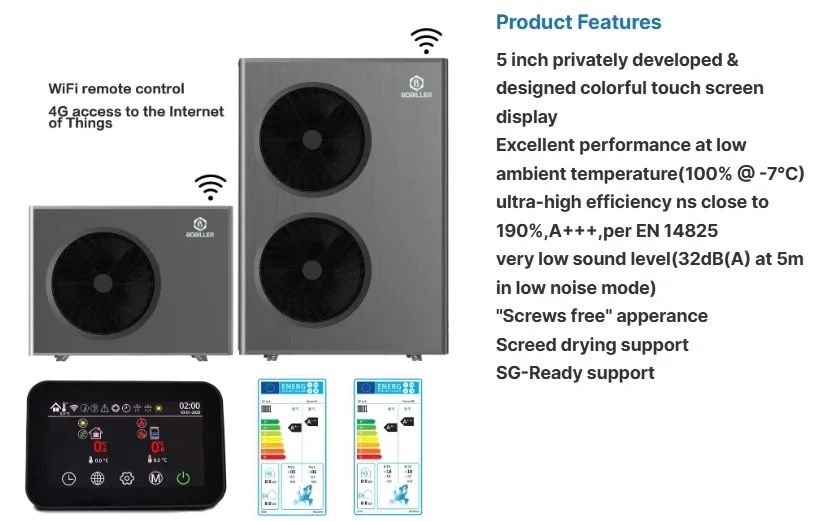

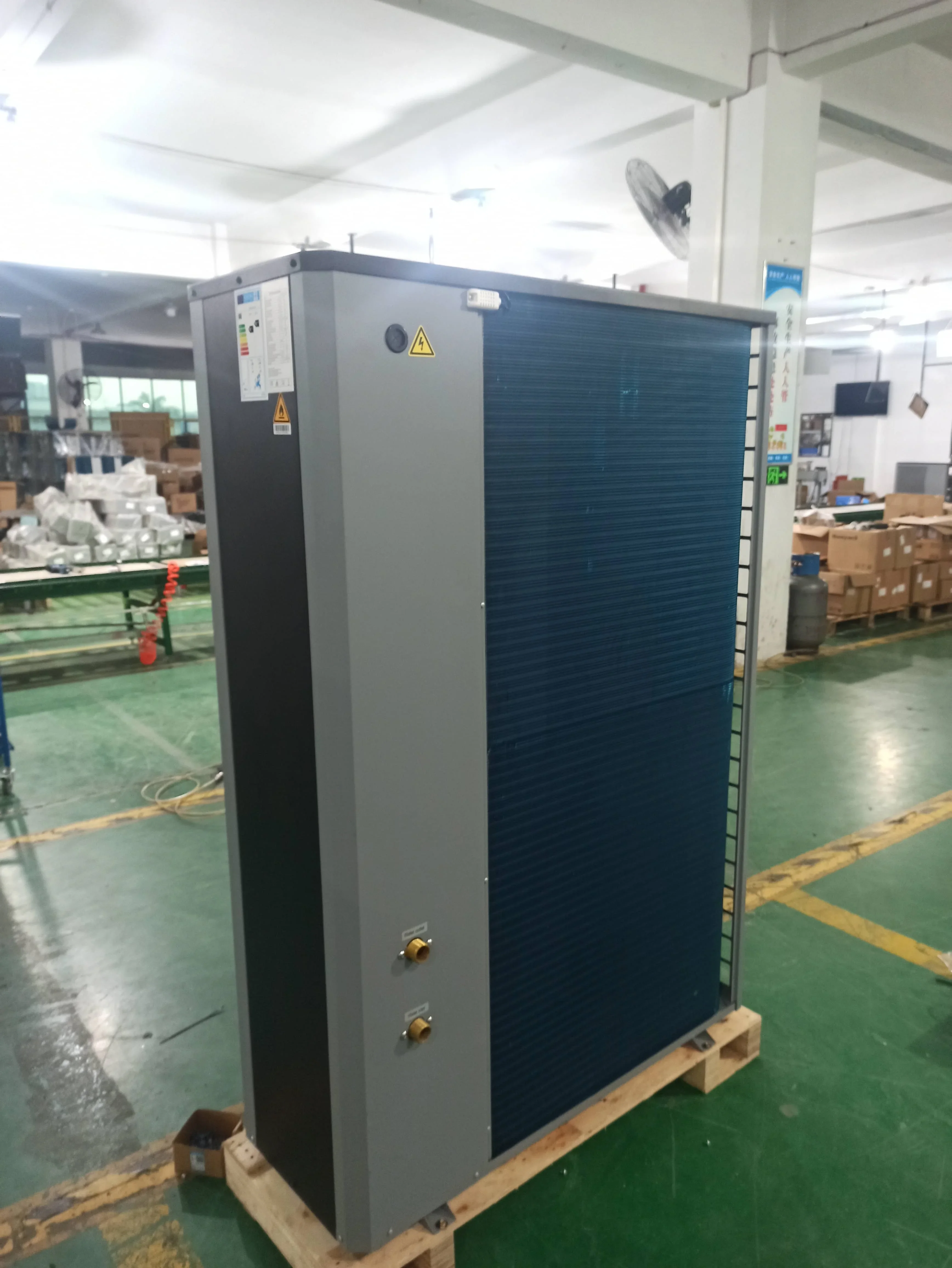

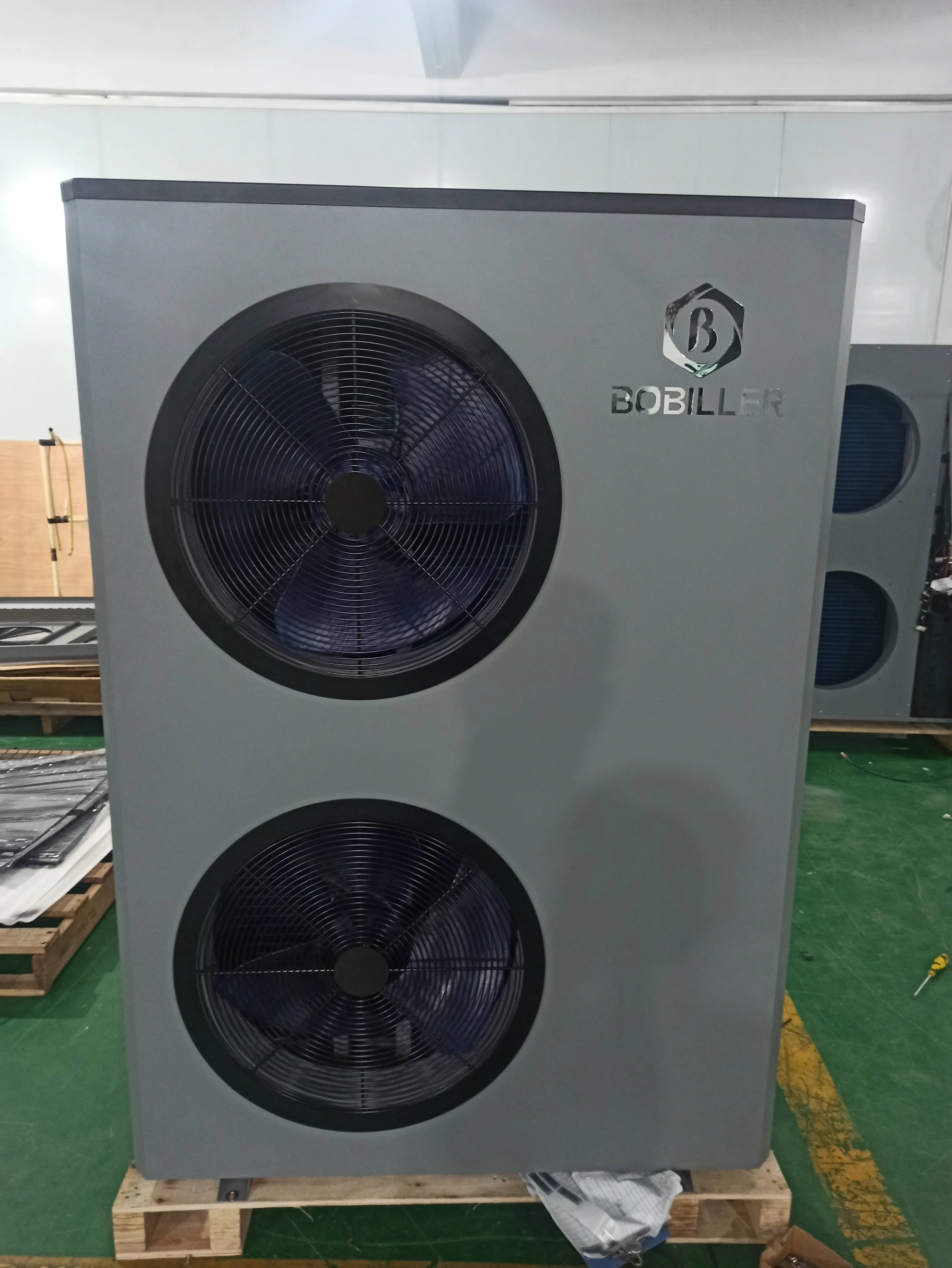

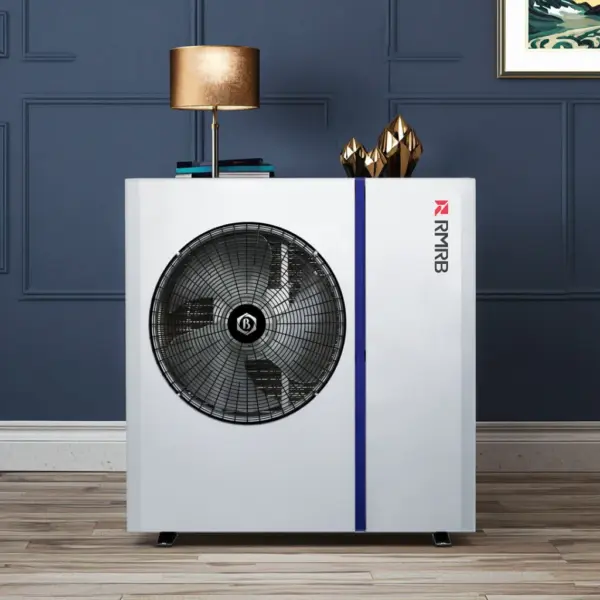

A monoblock heat pump keeps the entire refrigerant circuit inside the outdoor unit, so installation needs only water pipework and power — no refrigerant handling, no F-gas certified engineer, and no risk of a poorly made field joint leaking years later. On R290 propane at Class A+++ that combination is about as good as domestic heating gets. 10kW with scroll compressor, WiFi control and a two-year warranty.
Key Features of This R290 Monoblock Heat Pump
- Power Source: Electric
- Heating Capacity: 10 kW
- Refrigerant: R290
- Warranty: 2 Years
- Application: Household
- Feature: Easy Installation, Energy-Saving
Technical Specifications
| Heating Capacity | 10 kW |
|---|---|
| Type | Air Source Heat Pump |
| Energy Efficiency Rating | Class A+++ |
| Application | Household |
| Power Source | Electric |
| Storage / Tankless | Storage |

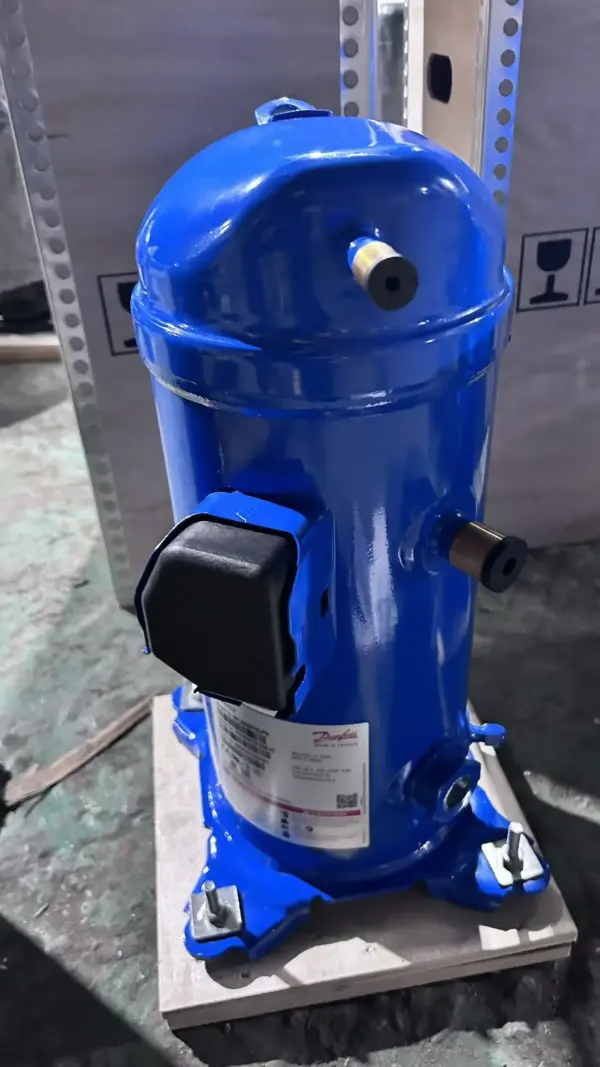

| Compressor | Scroll Compressor |
| Warranty | 2 Years |
| Refrigerant | R290 |
| Feature | Easy Installation, Energy-Saving |

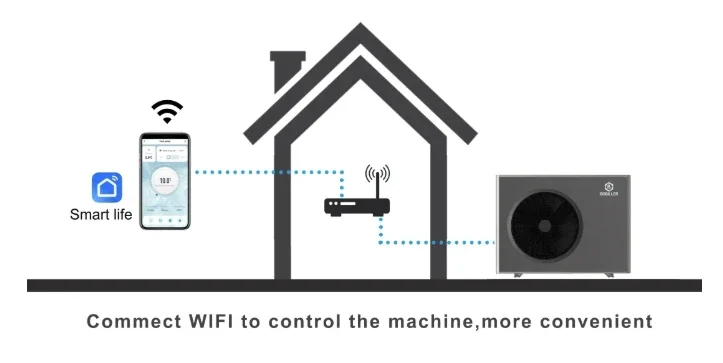

| App-Controlled | Yes |
| Operating Language | English |
| Selling Units | Single item |
3.Short heating time:hot water can be supplied in a short time within an hour.
|
Model：
|
Bobi plus 90
|
||||
|
Heating Capacity Range
|
kW
|
2-10
|
|||
|
Heating (A7/6℃,W30/35℃)
|
Heating Capacity
|
kW
|
9.2
|
||
|
Power Input
|
kW
|
2.02
|
|||
|
Current
|
A
|
8.83
|
|||
|
COP
|
W/W
|
4.55
|
|||
|
Heating (A7/6℃,W47/55℃)
|
Heating Capacity
|
kW
|
9.1
|
||
|
Power Input
|
kW
|
3.06
|
|||
|
COP
|
W/W
|
2.97
|
|||
|
Cooling (A35/24℃,W23/18℃)
|
Cooling Capacity
|
kW
|
9.0
|
||
|
Power Input
|
kW
|
2.33
|
|||
|
EER
|
W/W
|
3.86
|
|||
|
Rated water flow
|
m3/h
|
1.6
|
|||
|
Rated voltage /Frequency
|
V/Hz
|
220~240/50
|
|||
|
Maximum input power
|
kW
|
3.50
|
|||
|
Maximum input current
|
A
|
15.0
|
|||
|
High pressure value cut-off pressure
|
MPa
|
3.1
|
|||
|
Low pressure valve cut-off pressure
|
MPa
|
0.02
|
|||
|
Brand/Type of Compressor
|
/
|
GMCC/Rotary
|
|||
|
Brand of EEV
|
Sanhua
|
||||
|
Brand of 4-way valve
|
Sanhua
|
||||
|
Brand of Pressure sensor
|
Sanhua or Match-Well
|
||||
|
Refrigerant
|
/
|
R290
|
|||
|
Air flow
|
m3/h
|
4000
|
|||
|
Brand of Water pump
|
SHIMGE
|
||||
|
Plate exchanger
|
Danfoss
|
||||
|
Waterproof grade
|
/
|
IPX4
|
|||
|
Noise pressure ( at 1m/5m)
|
dB(A)
|
51/37
|
|||
|
Max water outlet temperature
|
°C
|
75
|
|||
|
Diameter of water connection
|
/
|
DN 25 (G1″)
|
|||
|
Internal pressure drop at rating water flow
|
kPa
|
20
|
|||
|
Min/Max outdoor air (heating mode )
|
°C
|
-25/45
|
|||
|
Min/Max outdoor air (cooling mode )
|
°C
|
15/45
|
|||
|
Net Dimensions ( L/W/H )
|
mm
|
1106/445/835
|
|||
|
Package Dimensions ( L/W/H )
|
mm
|
1150/455/913
|
|||
|
Net Weight
|
kg
|
90
|
|||
|
Gross Weight
|
kg
|
100
|
|||
|
Loading quantity 20GP/40GP,40HQ
|
pcs
|
48/104/104
|
|||
Frequently Asked Questions
What is the minimum order quantity for this r290 monoblock heat pump?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this r290 monoblock heat pump?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This r290 monoblock heat pump is produced by Bobiller (guangzhou) Refrigeration Equipment Co., Ltd.. Browse the full Bobiller (guangzhou) Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
