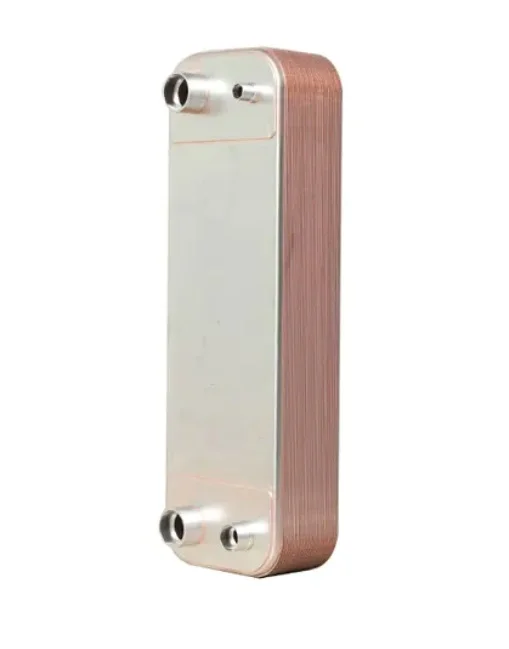

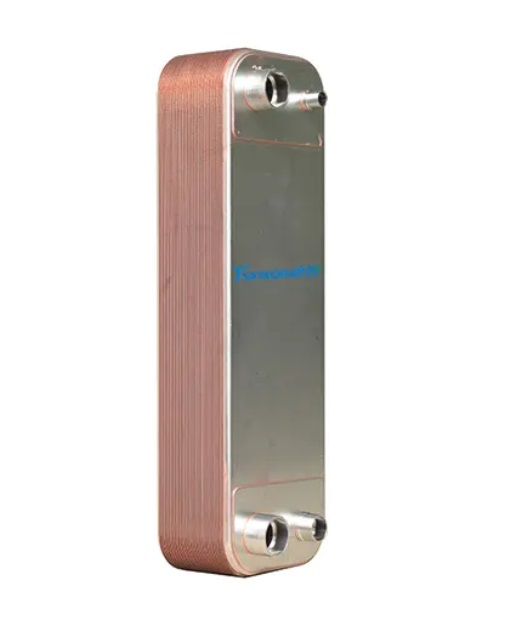

The FHC095FS plate heat exchanger uses copper-brazed stainless steel plates to move heat between two circuits in a fraction of the footprint a shell-and-tube unit needs. With a plate count up to 250 and a working range of -196C to 200C, it covers cryogenic duty at one end and high-temperature heating at the other. Typical applications are vehicle air conditioning, heat pump condensers and evaporators, and industrial refrigeration accessories.
Key Features of This Plate Heat Exchanger
- Voltage: /
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Heat Exchanger Type: Plate Heat Exchanger
- Single Package Size: 63X20X14 cm
Technical Specifications
| Material | Stainless Steel |
|---|---|
| Key Selling Points | High efficiency |
| Voltage | / |
| Heat Exchanger Type | Plate Heat Exchanger |
| Working Temperature Range | -196.0~200℃ |
| Core Components | Heat Exchanger |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Zhejiang, China |
| Weight (KG) | 24 |
| Brand Name | Forwon |
| Selling Units | Single item |
| Single Package Size | 63X20X14 cm |
| Single Gross Weight | 24.000 kg |
|

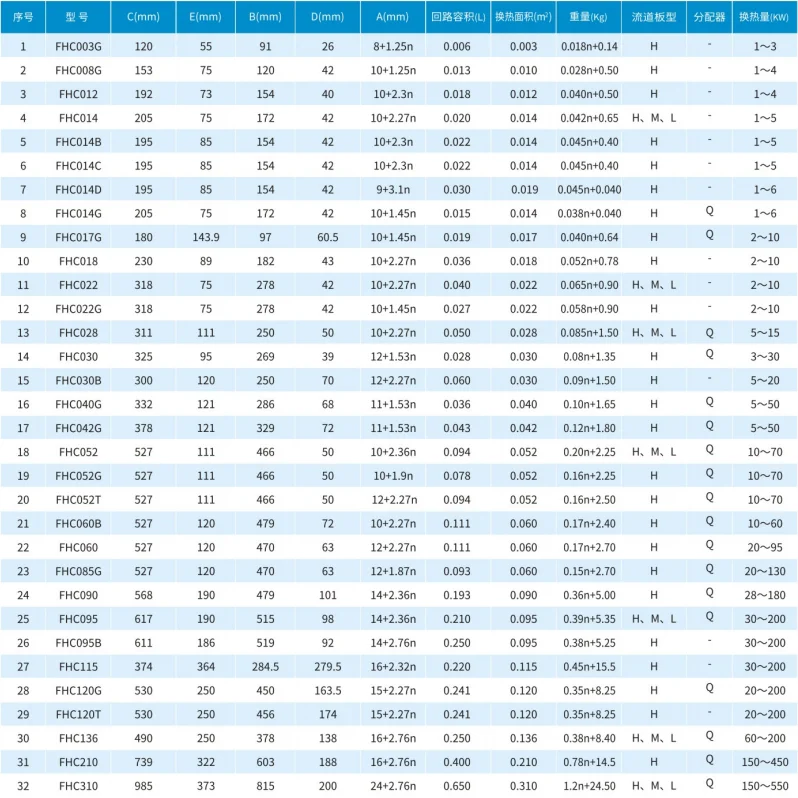

PRODUCT SPECIFICATIONS
|
||
|
FHC095FS
|
||
|
Plate Nos
|
N
|
|
|
Size A (mm)
|
18+1.82N
|
|
|
Weight (kg)
|
0.3N+7.2
|
|
|
Volume (L)F1F2 side/F3F4 side
|
0.165*N/2 , 0.135*(N-2)/2
|
|
|
Heat exchange area (m2)
|
(N-2)*0.095
|
|
|
Design pressure(Mpa)
|
3.0 / 4.5
|
|
|
Testing pressure(Mpa)
|
4.5 / 6.75
|
|
|
Design temperature(℃）
|
-196~200
|
|
|
Max flow
|
35m3/h
|
|
|
Max plate numbers
|
250
|
|
|
Max connection size
|
2″
|
|
|
Plate Material
|
SS304,SS316
|
|
|
Connection Material
|
SS304
|
|
|
Brazing Material
|
99.9% pure copper/Steel
|
|
|

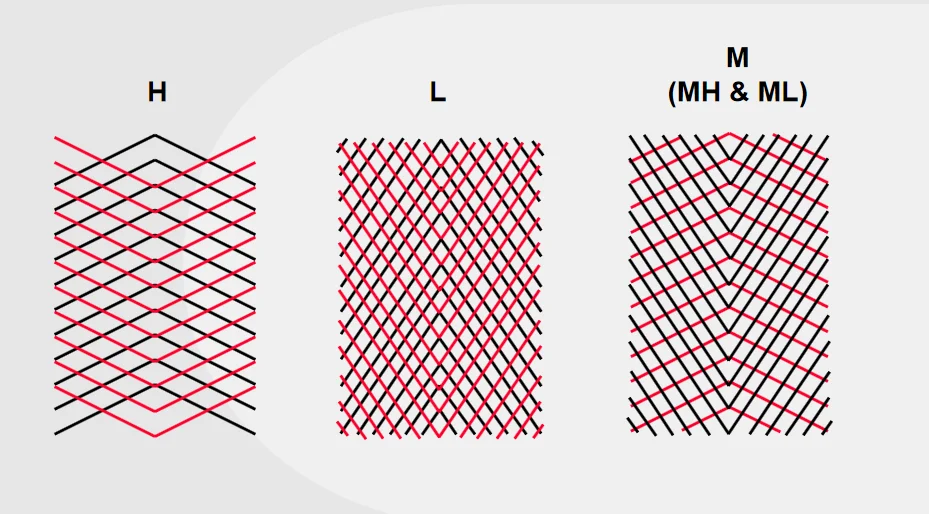

Plate type
|
H
|
|
|
Distributor
|
Q
|
|
|

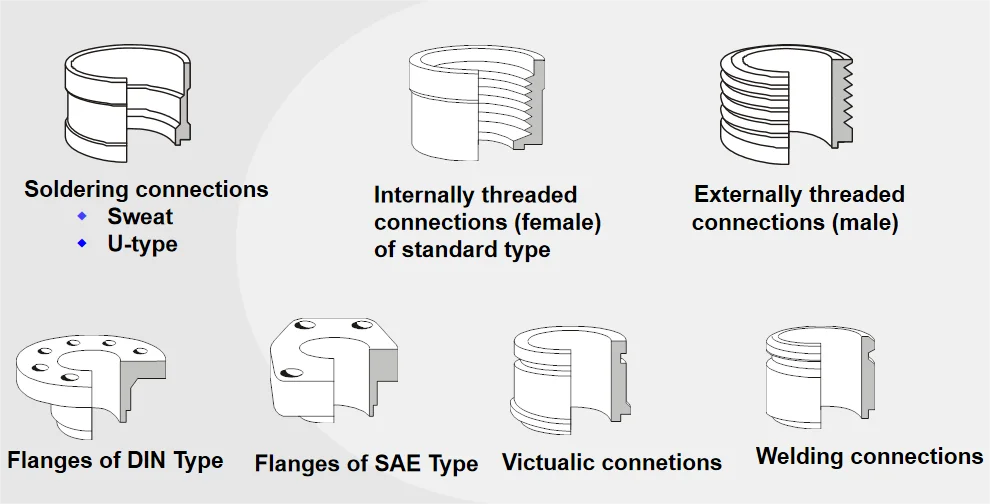

Connection type
|
Threaded, Solder, Flange
|
|
|
Approval
|
CE, UL, PED, ISO9001, ISO14001
|
|
|
Packing
|
EPE foam,carton or polywood case
|
|
|
Mounting Bracket(Optional)
|
Studs, bracket, feet
|
|
Frequently Asked Questions
What is the minimum order quantity for this plate heat exchanger?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this plate heat exchanger?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is /. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This plate heat exchanger is produced by Zhejiang Forwon Plate Heat Exchanger Co., Ltd.. Browse the full Zhejiang Forwon Plate Heat Exchanger Co., Ltd. range on HVACR Nexus.
