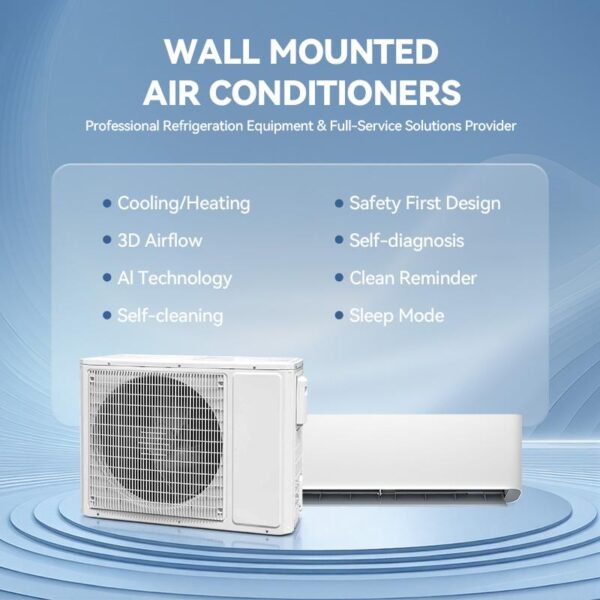

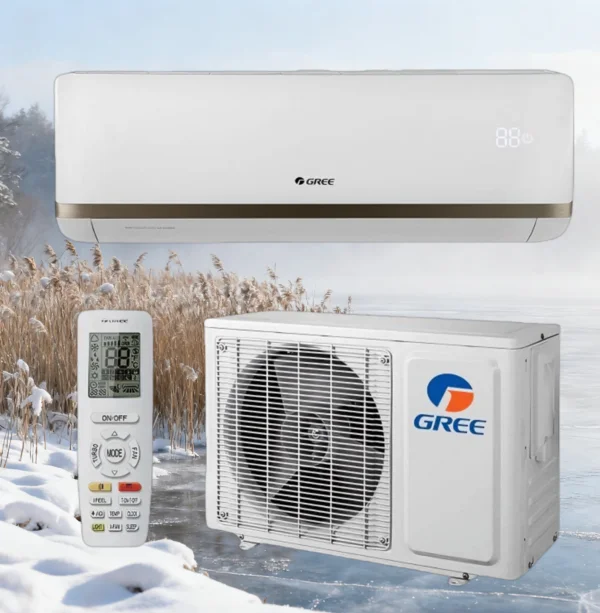

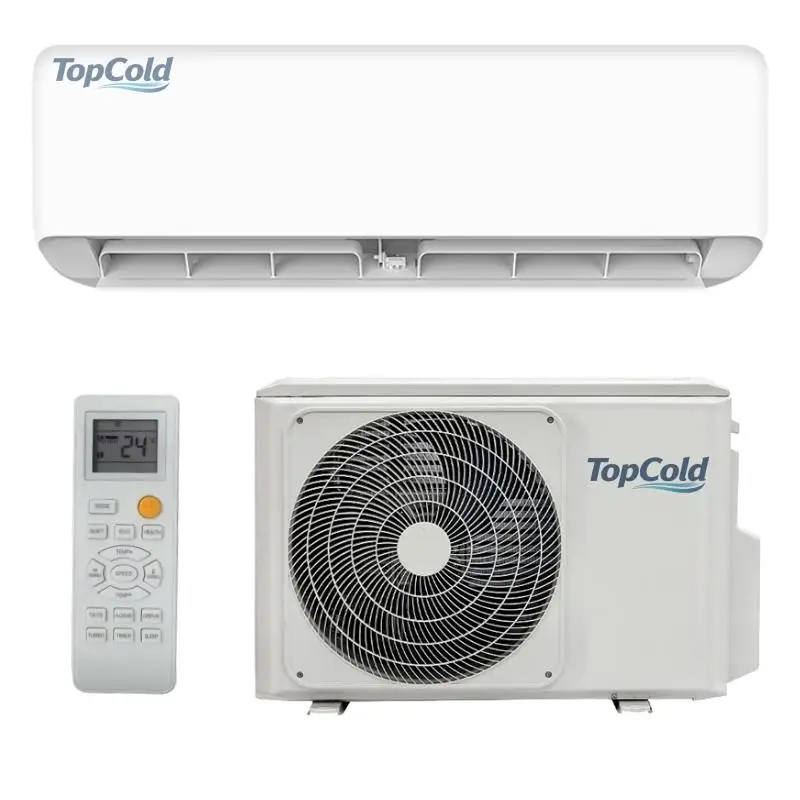

This mini split air conditioner carries the smart-control package outright — WiFi, app and voice control plus sleep mode — rather than treating it as a paid upgrade. In practice the scheduling that app control enables saves more energy than a marginal efficiency-class improvement would. Capacities from 9000 to 24000 BTU at 1640W input, running R410A for both cooling and heating, suitable for household, hotel, office and commercial installation.
Key Features of This Mini Split Air Conditioner
- Power (W): 1640 W
- Capacity (Btu): 9000-24000BTU
- Refrigerant: R410A
- Application: Car, Commercial, Garage, Hotel, Household, Office, Outdoor, RV
- Feature: Energy-Saving, Voice Control, Wifi, Remote Control, Sleep Mode, Humidity Adjustment, Air Purification Function
- Type: Split Wall Mounted Air Conditioners
Technical Specifications
| Type | Split Wall Mounted Air Conditioners |
|---|---|
| Cooling/Heating | Cooling/Heating |
| Capacity (Btu) | 9000-24000BTU |
| Power (W) | 1640 W |
| EER | 2-4 |
| Energy Efficiency Rating | Class A |
| Application | Car, Commercial, Garage, Hotel, Household, Office, Outdoor, RV |
| Refrigerant | R410A |
| Feature | Energy-Saving, Voice Control, Wifi, Remote Control, Sleep Mode, Humidity Adjustment, Air Purification Function |
| App-Controlled | Yes |
| Operating Language | English |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Selling Units | Single item |
| Single Package Size | 83X36X60 cm |
| Single Gross Weight | 38.500 kg |
|
MODEL
|
TopCold-9000
|
TopCold-12000
|
TopCold-18000
|
TopCold-24000
|
|
Function
|
Cooling
|
Cooling
|
Cooling
|
Cooling
|
|
Control type
|
Remote
|
Remote
|
Remote
|
Remote
|
|
Capacity-Cooling/BTU
|
8871.2
|
12000
|
17981
|
22000
|
|
EER(W/W)
|
3.52
|
3.5
|
3.48
|
3.46
|
|
Power Supply
|
1Ph-220-240V~50Hz
|
1Ph-220-240V~50Hz
|
1Ph-220-240V~50Hz
|
1Ph-220-240V~50Hz
|
|
Cooling Rated Power Input(W)
|
995
|
1600
|
2450
|
2550
|
|
Moisture Removal(Liters/h)
|
0.8
|
1.2
|
1.8
|
2
|
|
Cooling Capacity Power/W
|
2638
|
3517
|
5270
|
6450
|
|
Rated Current-Cooling/A
|
4.9
|
7.6
|
10.9
|
11.3
|
|
Airflow Volume-Indoor (m3/h)
|
480/420/330/270
|
540/500/430/300/
|
850/800/700/570
|
1300/1100/900/750
|
|
Sound Pressure Level-Indoor(dB(A))
|
40/37/32 /28
|
41/37/34/28/
|
48/43/39/35
|
49/45/41/37
|
|
Application Area(㎡)
|
12-18
|
16-24
|
23-34
|
27-42
|
|
Indoor unit Dimension(W*D*H)mm
|
744×256×185
|
819×256×185
|
970×300×224
|
1122×329×247
|
|
Indoor unit Packing (W*D*H)mm
|
793×330×260
|
868×330×260
|
1080×378×315
|
1193×410×350
|
|
Indoor unit Net/Gross weight (Kg)
|
8/9.5
|
8.5/10
|
13.5/16.5
|
17.5/21
|
|
Outdoor Unit Dimension-W*H*D/mm
|
782×540×320
|
782×540×320
|
899×596×378
|
912×646×373
|
|
Outdoor Unit Package Dimension-W*H*D/mm
|
823×358×595
|
823×358×595
|
948×420×645
|
963×411×695
|
|
Outdoor unit Net Weight/Gross Weight (kg)
|
26/28.5
|
26/28.5
|
39/42
|
42/45
|
|
Refrigerant
|
R410A
|
R410A
|
R410A
|
R410A
|
|
Ambient temperature(℃)
|
18~48
|
18～48
|
18～48
|
18～52
|
We specialize in a complete range of high-quality refrigeration and air conditioning equipment. Our main product categories
include:
Residential & Commercial AC:Household Split ACs, Portable ACs, DC Inverter VRF Systems.
Heating & Heat Pumps:Air Source Heat Pumps, High-Efficiency Air Energy Water Heaters, High-Temperature Heat Pump Drying Units.
2. Why should you choose us over other suppliers?
Choosing Zhengzhou Top Refrigeration means benefiting from three key advantages:
Expertise & Quality:We bring together a strong R&D and management team, utilizing state-of-the-art equipment and expert
craftsmanship to ensure superior product reliability.
Comprehensive Product Range:Our extensive portfolio allows us to provide the perfect solution for your specific needs, from
standard to specialized applications.
Robust Support Network:Backed by a widespread sales and service network across China, we are committed to delivering efficient, reliable, and comprehensive support.
3. What are your after-sales service and support policies?
We are dedicated to providing full support throughout our product’s lifecycle:
Warranty:All products come with a standard one-year warranty.
Continued Technical Support:We provide ongoing technical assistance even after the warranty period has expired.
24/7 Online Support:Our team is available online 24 hours a day to address your inquiries and provide timely technical help.
4. What are your accepted payment terms and delivery options?
We offer flexible transaction methods for our global clients’ ease of business.
Accepted Delivery Terms:FOB, CIF, EXW, CIP, DDP, DDU, Express Delivery.
Accepted Payment Currencies:USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF.
Accepted Payment Types:T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash.
5. What languages are spoken by your team?
To ensure smooth communication, our team can assist you in multiple languages,
Frequently Asked Questions
What is the minimum order quantity for this mini split air conditioner?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This mini split air conditioner is produced by Zhengzhou Top Refrigeration Equipment Co., Ltd.. Browse the full Zhengzhou Top Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
