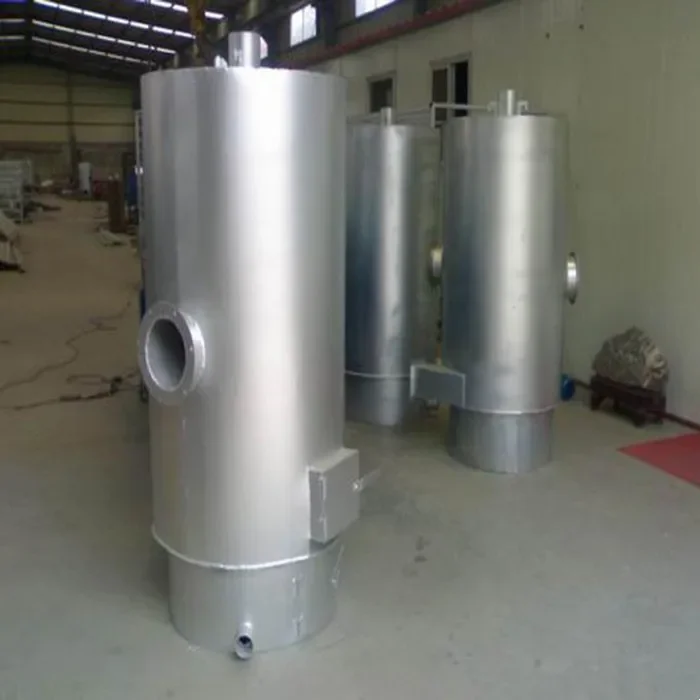

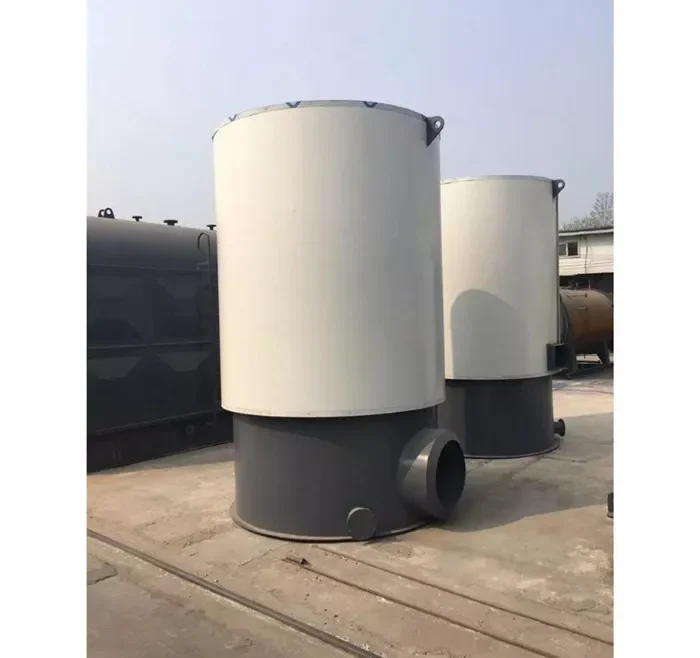

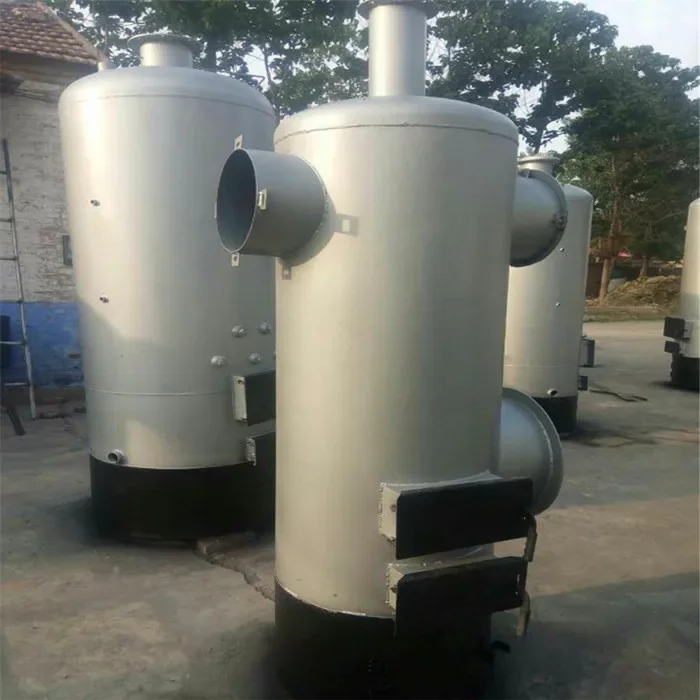

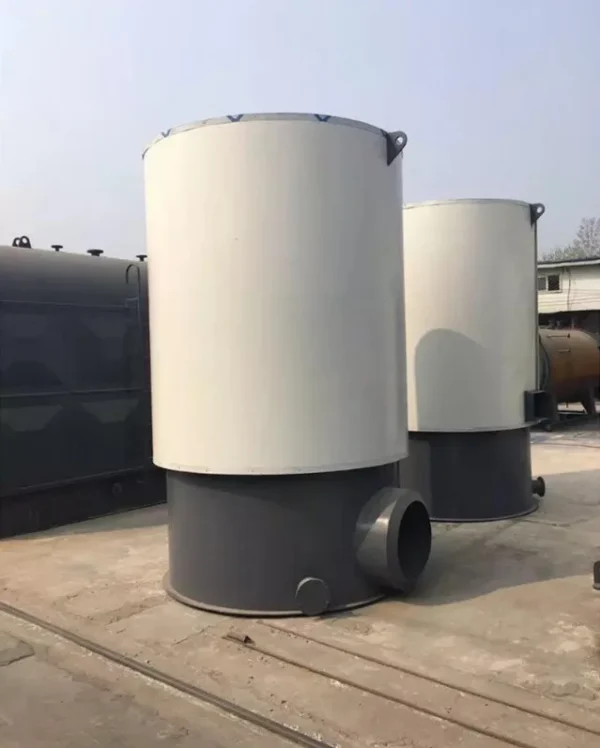

Vertical Biomass Immersion Heater, 0.24MW, Wood

This vertical biomass immersion heater is listed with the manufacturer’s full published specification — heating capacity 0.24MW, power source Wood/Paddy/Coal, material Special Boiler Steel Plate. It is produced by Henan Zhongde Environmental Protection Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Vertical Biomass Immersion Heater

• Power Source: Wood/Paddy/Coal
• Voltage: Other
• Heating Capacity: 0.24MW
• Material: Special Boiler Steel Plate
• Warranty: 2 Years
• Place Of Origin: Henan, China

Technical Specifications

Product Description

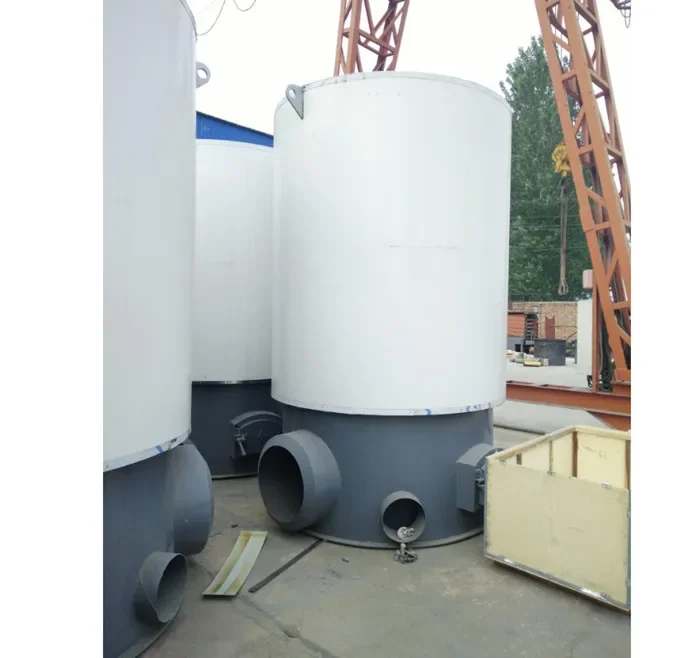

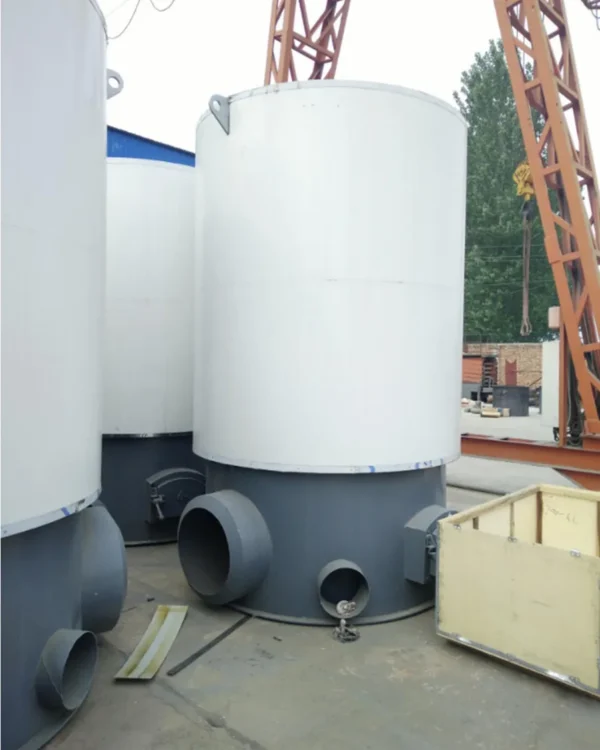

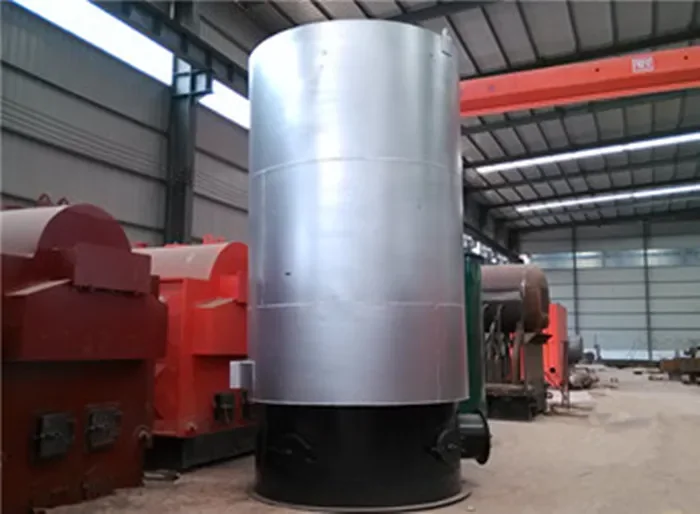

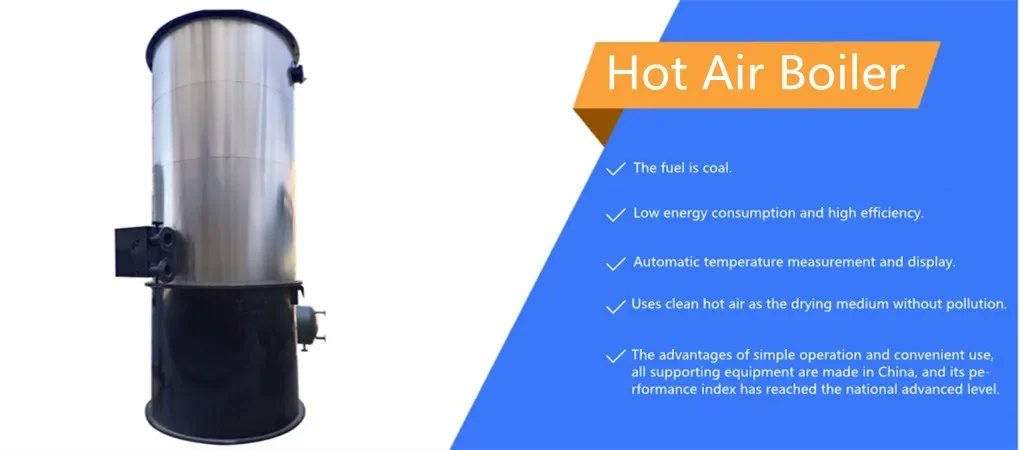

The combustion chamber and heat exchanger of the hot blast boiler are integrated, and the full steel plate multi-layer sleeve structure is adopted. The lower part of the furnace core is the combustion chamber, the upper part and surrounding are annular heat exchangers, and the air and flue gas are double return, with heat exchange in their own ways. In order to improve the heat efficiency, the multi head spiral groove heat exchange technology and turbulence principle are adopted to reduce the laminar flow thickness, so that the air and flue gas can continuously exchange the rotation direction during the travel, which greatly strengthens the heat exchange effect.

Specification

Model	ZLRF- 10	ZLRF- 20	ZLRF- 30	ZLRF- 40
Heating supplied (MW)	0.12	0.24	0.35	0.47
Air volume (Nm³/h)	3297-2198	3847-3572	5447-3912	6445-7513
Coal consumption (Kg/h)	27	54	85	108
Power consumption (KW)	7.2	9	11	22
Diameter (mm)	1220	1500	1750	1840
Height (mm)	2450	2740	3500	3790
Weight reference (t)	1.3	1.6	2.3	3.8

Model	ZLRF- 60	ZLRF- 80	ZLRF- 100	ZLRF- 120
Heating supplied (MW)	0.7	0.93	1.17	1.4
Air volume (Nm³/h)	6786-7532	7813-8685	8867-9984	10556-12370
Coal consumption (Kg/h)	162	211	260	320
Power consumption (KW)	24	24	30	37
Diameter (mm)	1850	2100	2340	2500
Height (mm)	4350	6395	6400	6800
Weight reference (t)	4.2	5.2	6.4	8
The data and pictures in the table are for reference only. Please contact to confirm the relevant data before prefabrication, reservation and boiler room design.

Boiler Characteristics

Packing & Delivery

Selling Units:Single item Single package size: Depends on the capacity Single gross weight:Depends on the capacity Package Type:customized

Company Profile

00:02

02:16

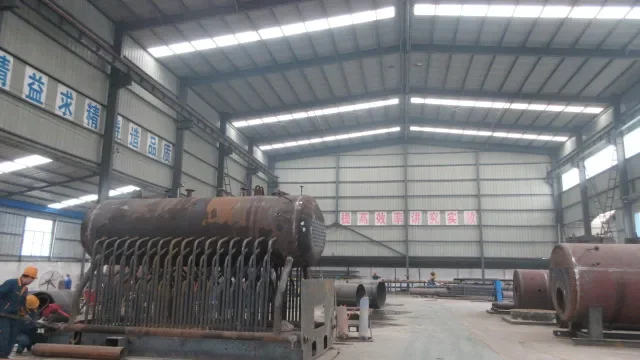

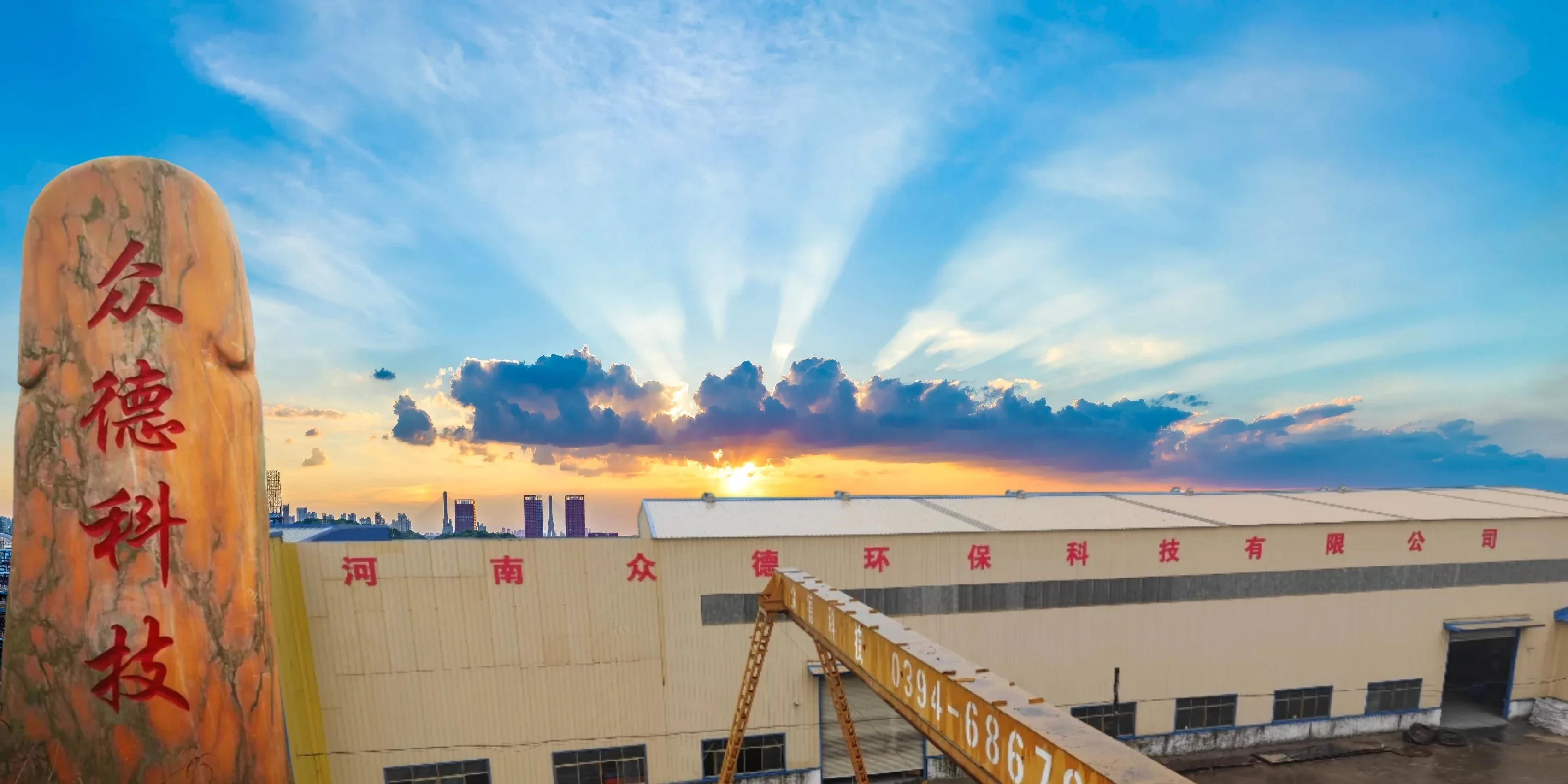

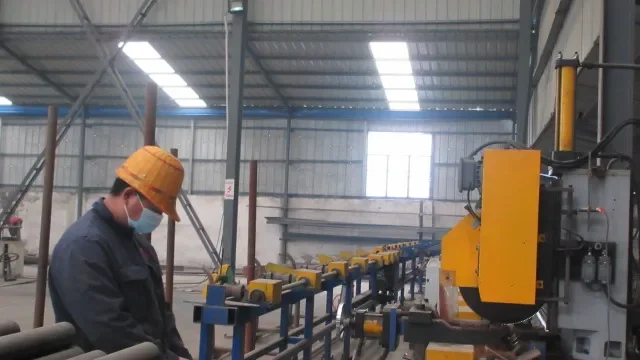

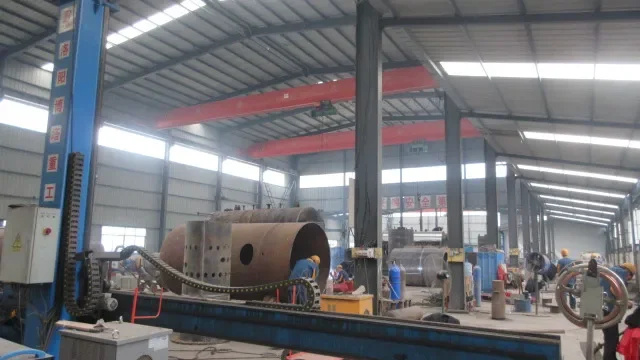

Henan Zhongde Environmental Protection Technology Co., Ltd. is located in the beautiful Fu Cao Lou Industrial Park, Taikang County, on the Eastern Henan Plain. The company has a plant area of 80,000 square meters and more than 100 employees. It mainly engages in the R&D, manufacturing and sales of hot water boilers, steam generators, electric heating boilers, oil-fired gas steam boilers, and high and medium temperature hot blast stoves. Based on the manufacture of hot water boilers and steam generators, the company has established an industrial system integrating product development, engineering project design, equipment manufacturing, engineering installation, system commissioning, pre-sales, in-sales, and after-sales services. The company’s products are not only sold in the domestic market, but also exported to more than 10 countries and regions including South Korea, Vietnam, Myanmar, Mongolia, the Philippines, and Indonesia. Excellent employees, advanced technology, sophisticated equipment, and strict management are the foundation for the company’s continuous development and expansion and the products that can win the dependence of users.

Recommended by seller

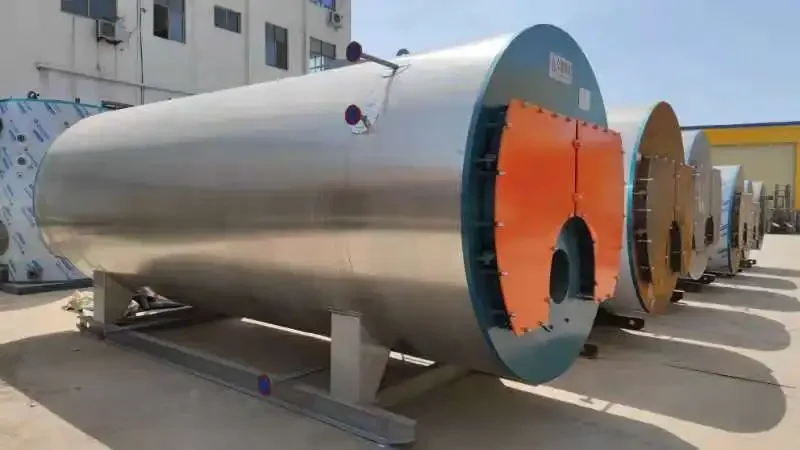

SZS Series Fully Automatic Water Tube Horizontal High Pressure Oil Gas Fired 2-35 T/h Industrial Steam Boiler

$9,600-9,800 / unit

1 unit

WDR Ldr Industrial Automatic Electric Electrical Central Heating Hot Water Steam Generator Boiler

$11,000-68,000 / unit

1 unit

Certifications

Our Survice

Pre-sale service:

1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.

On-Sale service:

24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.

After-sales service:

1.provide full range of original spare parts.

2.Provide engineers abroad installation and commissioning service.

3.Held online or site training for boiler workers to ensure the safe operation.

4.Free maintenance and repair for one year and lifelong service.

FAQ

Q1:How many shops you have on Alibaba?

A1:Only one, when you buy Zhongde Boiler, please confirm Zhongde boiler, 1976.

Q2:How many days will get boiler after payment?

A2:According to boiler capacity, usually 10-45 days.

Q3: How to buy a good boiler?

A3: a. Choose a good supplier, A grade boiler manufacturer. b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on c. Price is not the only problem, quality and service also important.

Q4: What is your main product?

A4:Steam boiler, hot water boiler, thermal oil boiler. Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler. Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler, power plant boiler,textile mill boiler, garment industry boiler and so on.

Q5:Will your company accept L/C payment

A5: Yes, customer bank should be meet national standard. and L/C type should be at sight.

Q6:Why choose us?

A6: 1) We have enthusiastic business personnel to provide you with 24-hour online service to solve your doubts. 2) We have professional designers and workers to design

and produce your boiler products. 3) We have a sound after-sales service system to ensure that you buy the most suitable boiler products for you

Other more questions please contact us.

Frequently Asked Questions

What is the minimum order quantity for this vertical biomass immersion heater?

Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.

What warranty covers this vertical biomass immersion heater?

A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.

Can it be built for my local voltage?

The standard specification is Other. Alternative voltage and frequency builds are available when confirmed at order stage.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.

How long is production and delivery?

Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.

About the Manufacturer

This vertical biomass immersion heater is produced by Henan Zhongde Environmental Protection Technology Co., Ltd.. Browse the full Henan Zhongde Environmental Protection Technology Co., Ltd. range on HVACR Nexus.
