This axial cooling fan is listed with the manufacturer’s full published specification — voltage 12/24/48V, blade material Plastic, model number YRD1751. It is produced by Shenzhen Yirongchuan Electronic Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Cooling Fan
- Model Number: YRD1751
- Voltage: 12/24/48V
- Blade Material: Plastic
- Warranty: 2 Years
- Place Of Origin: Guangdong, China
- Electric Current Type: DC
Technical Specifications
| Voltage | 12/24/48V |
|---|---|
| Electric Current Type | DC |
| Mounting Type | Free Standing |
| Warranty | 2 Years |
| Blade Material | Plastic |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | YRC |
| Model Number | YRD1751 |
| After-Sales Service Provided | online service provided |
| Bearing Type | sleeve/ ball bearing |
| Selling Units | Single item |
Product descriptions from the supplier

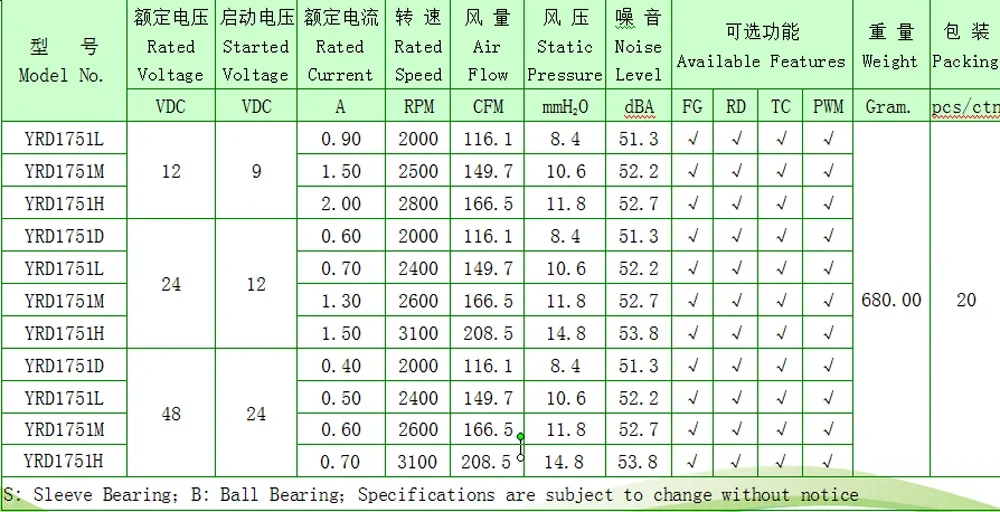

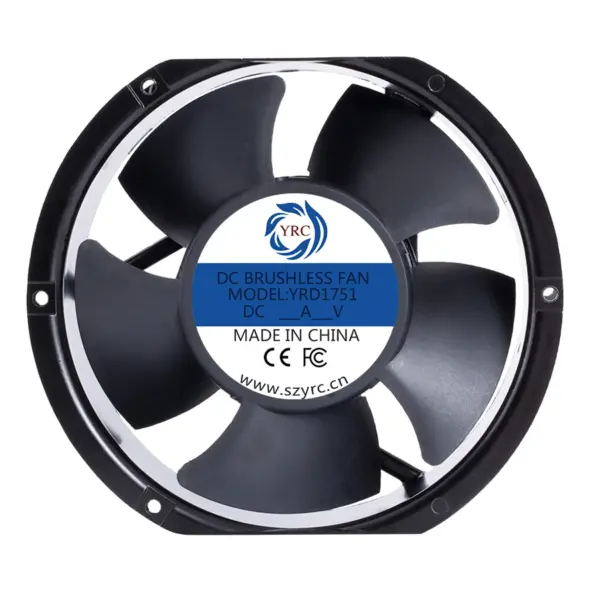

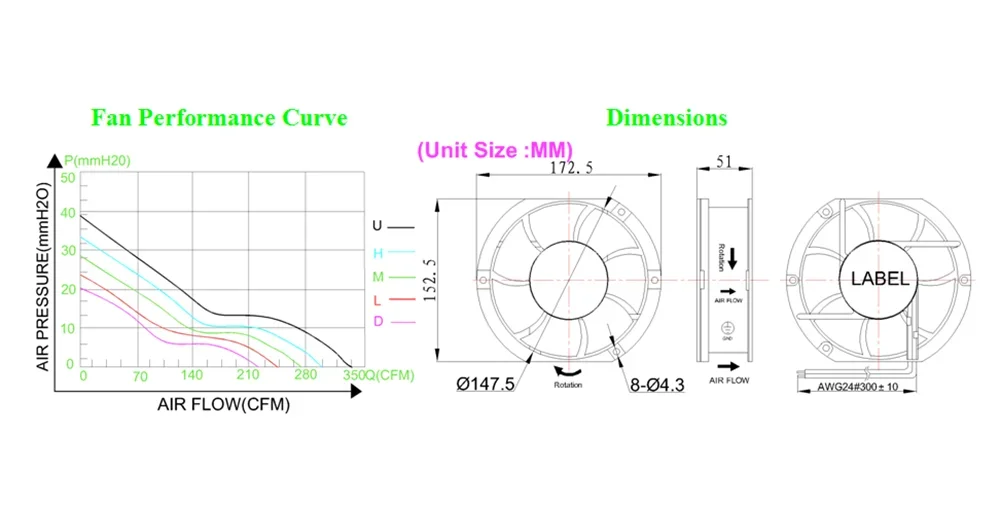

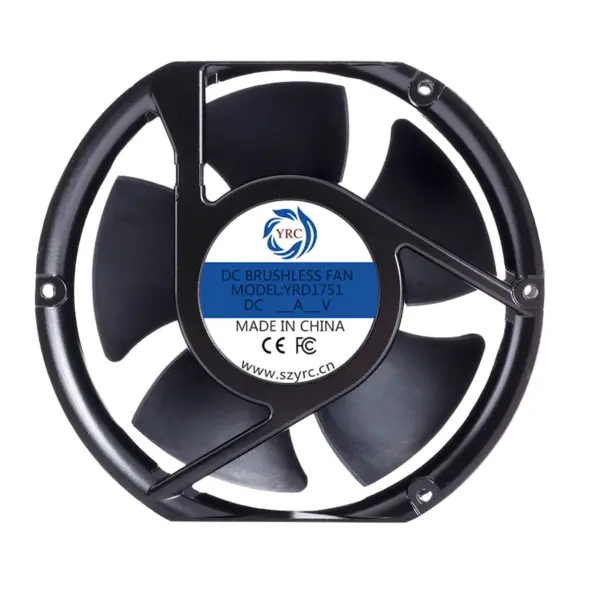

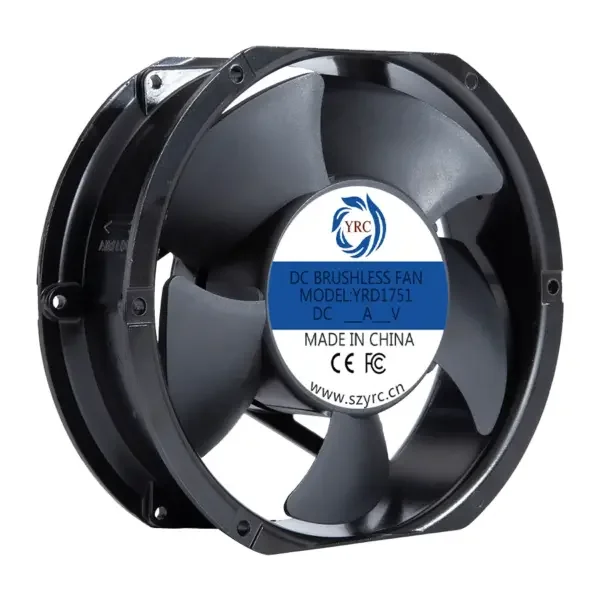

7 inch 17251 172*150*51mm high air flow AC DC axial cooling fan 170mm ventilation waterproof fan
1.DC axial fan5/12V/24V available.
2.FG/RD/TC/PWM function can be customized as customers requirement.
3.OEM&ODM service is acceptable
| Size | Air Volume | Size | Air Volume |
| 20*20*6mm | 0.77-1.41CFM | 60*60*15mm | 13.7-26.6CFM |
| 20*20*10mm | 0.62-1.24CFM | 60*60*25mm | 18.2-29.6CFM |
| 25*25*7mm | 1.3-2.3CFM | 60*60*38mm | 5.8-11.3CFM |
| 25*25*10mm | 1.5–3.1CFM | 70*70*10mm | 12-23.1CFM |
| 30*30*7mm | 2.16-3.41CFM | 70*70*15mm | 20.6-30.5CFM |
| 30*30*10mm | 3.2-5.2CFM | 70*70*20mm | 17.29-25.54CFM |
| 35*35*10mm | 3.1-6.1CFM | 70*70*25mm | 24.8-39.6CFM |
| 40*40*7mm | 3.2-5.4CFM | 80*80*10mm | 17.5-29.3CFM |
| 40*40*10mm | 5.1-7.9CFM | 80*80*15mm | 29.5-41.2CFM |
| 40*40*15mm | 3.7-5.6CFM | 80*80*20mm | 29-48.9CFM |
| 40*40*20mm | 4.9-8.4CFM | 80*80*25mm | 29.3-50.1CFM |
| 40*40*28mm | 9.8-15.7CFM | 90*90*25mm | 28.3-58.1CFM |
| 45*45*10mm | 4.5-7.22CFM | 92*92*25mm | 35.5-90.9CFM |
| 50*50*10mm | 5.5-10.9CFM | 120*120*25mm | 54.6-84.6CFM |
| 50*50*15mm | 7.1-10.1CFM | 120*120*32mm | 80.35-112.82CFM |
| 50*50*20mm | 12.6-18.9CFM | 120*120*38mm | 80.4-128.8CFM |
| 50*50*25mm | 8.6-16.1CFM | 120*120*38mm | 82.4-130.8 CFM |
| 60*60*10mm | 10.7-18.6CFM | 172*152*51mm | 116.1-166.5CFM |
| 60*60*20mm | 14.1-26.3CFM |

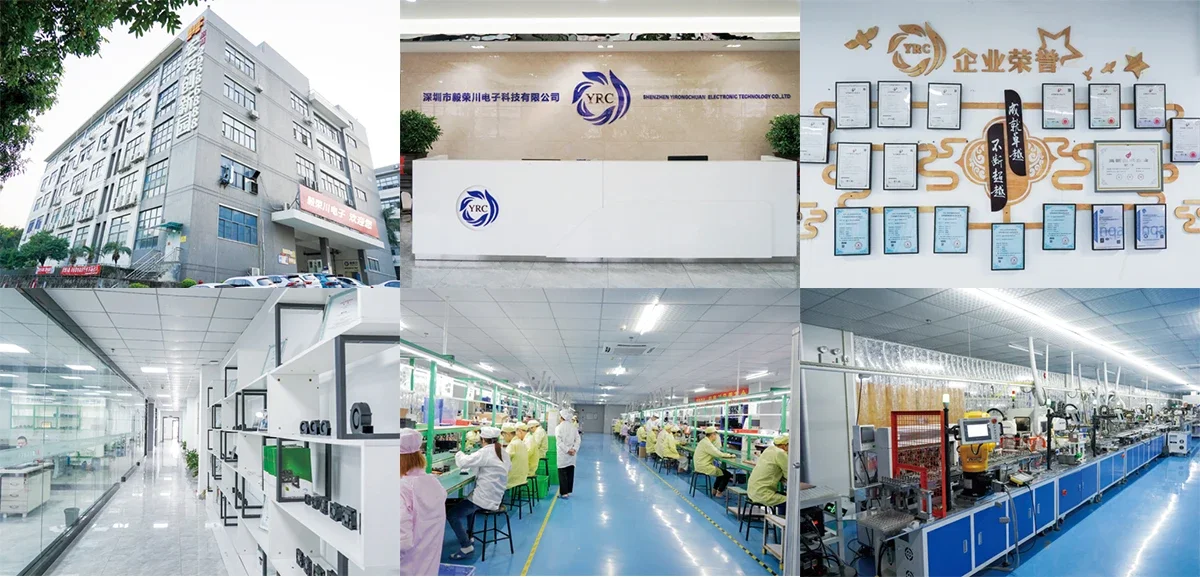

With professionalism and passion, Shenzhen YiRongChuan Electronic Tech. Co., Ltd. was founded in 2005 as a producing& sales company. We have specialized in cooling fans for more than 10 years. Our main products including DC fans, AC fans, AC centrifugal fans, Water-Proof/Dust-Proof fans, EC inverter fans, Brushless motor etc. We always focusing on the R&D, production for we wanted to give our client a good shopping experience. And we committed to being the first brand of cooling fan industry in China.

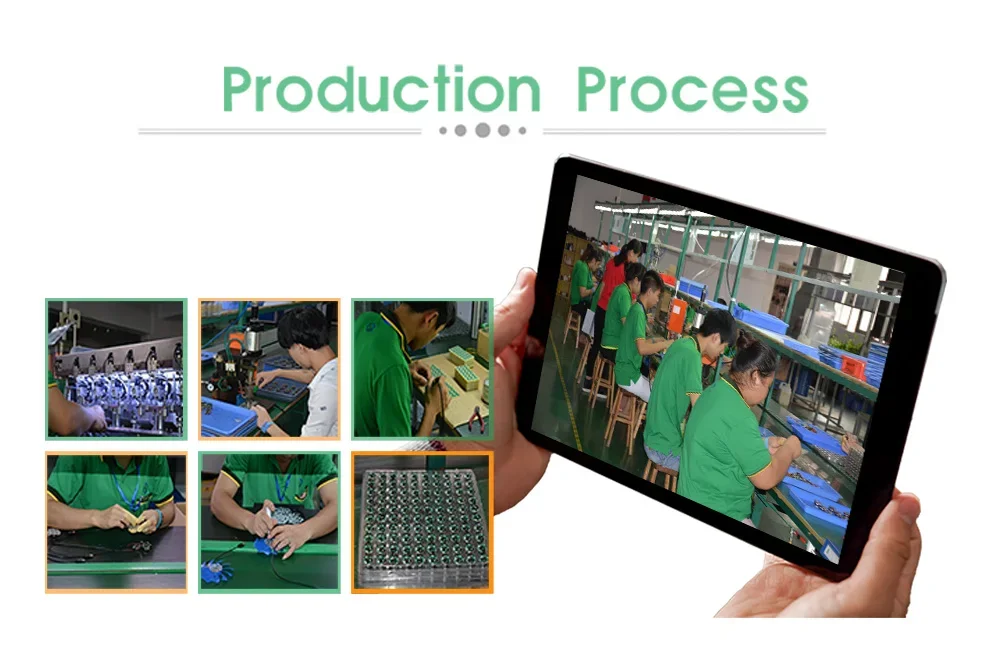

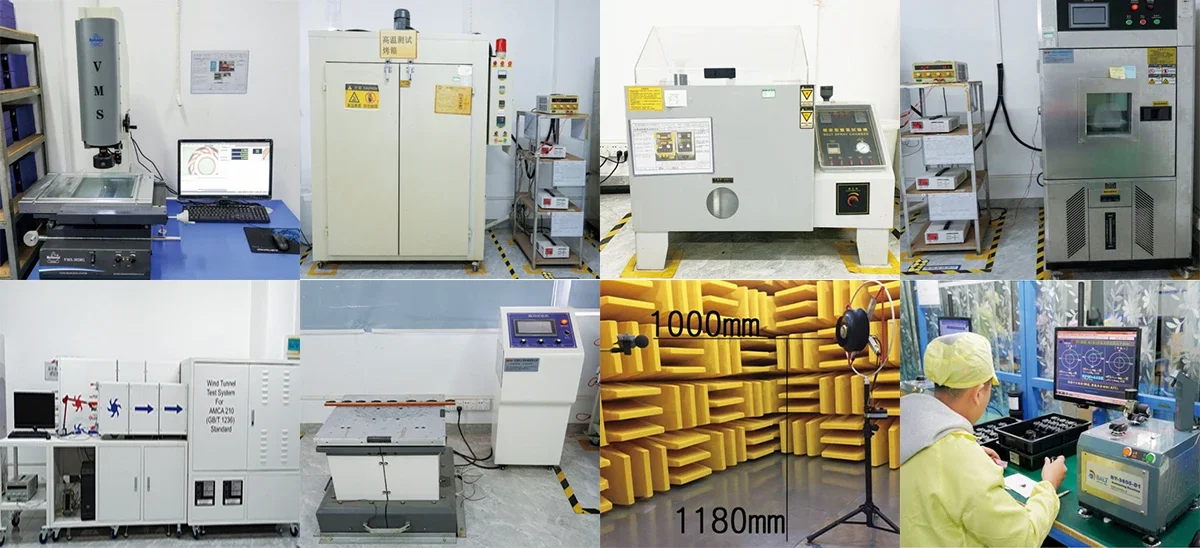

We had built up standard product R&D and production system, such as: Reliability Laboratory, Noise Testing Room, Air Flow& Pressure Testing System, High-precision Dynamic Balance Equipment and self-development Smart Production Management System; meanwhile, we passed the ISO9001,our company strictly produce the product under ISO9001 management system. We are looking forward to your visit.
1. Warranty: 1 years with YRC Brand and 5 years with NMB-QFC
2. Private Labelling: All of axial fans are able to be Private labeled.
3. Products Quality: 100% products inspection before delivery.
4. Customized Service: As we have our own molding department,
customized service can be provided.
5. Prompt customers Services: E-mail will be replied in 24 hours
6. Sample: available for you (low value sample is free, others is charged)
7. Finger protced cover or duct protect cover free for you with fans
1.How about the lifetime about fan?
Life Expectancy:
Dual Ball Bearing: 50000 hours
Sleeve Bearing: 30000 hours
Hydraulic Bearing: 30000 hours
2.What effects the quoted price for the fan?
The specification(size),bearing type and voltage.
3.Certification?
CE, ROHS,ISO9001 Approved.
4.Delivery time?
Sample lead time:3-5 days
Delivery lead time:2 weeks
5.Payments of terms ?
Payment by T/T or Paypal .
100% payment for sample orders .
30% deposit and 70% balance before shipment .
6.Delivery ways ?
FedEx, DHL ,UPS,TNT Door to Door service ,By Air ,By Sea ,etc.
Frequently Asked Questions
What is the minimum order quantity for this axial cooling fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial cooling fan?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 12/24/48V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
