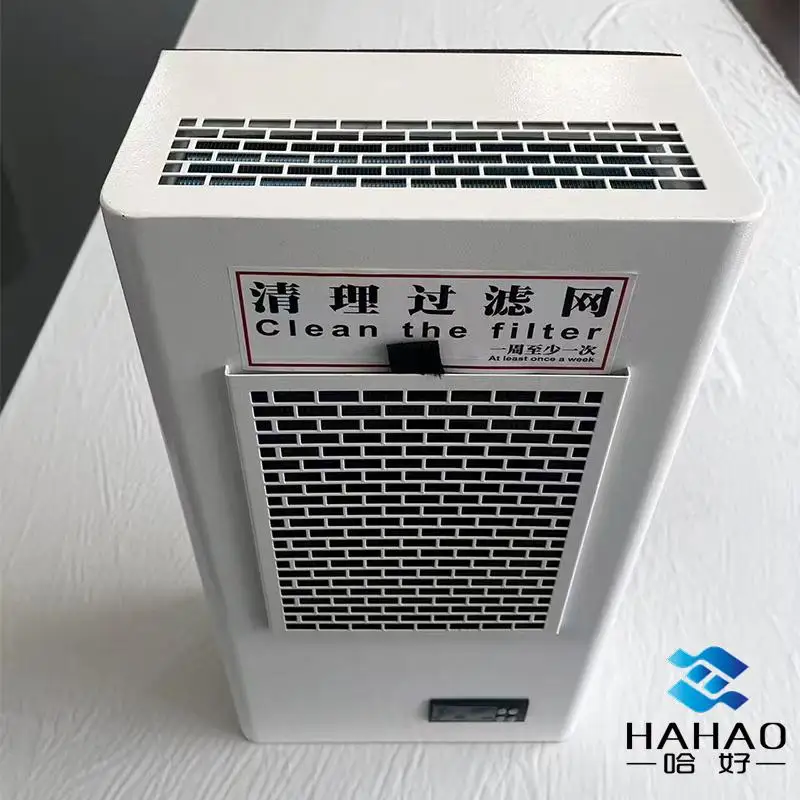

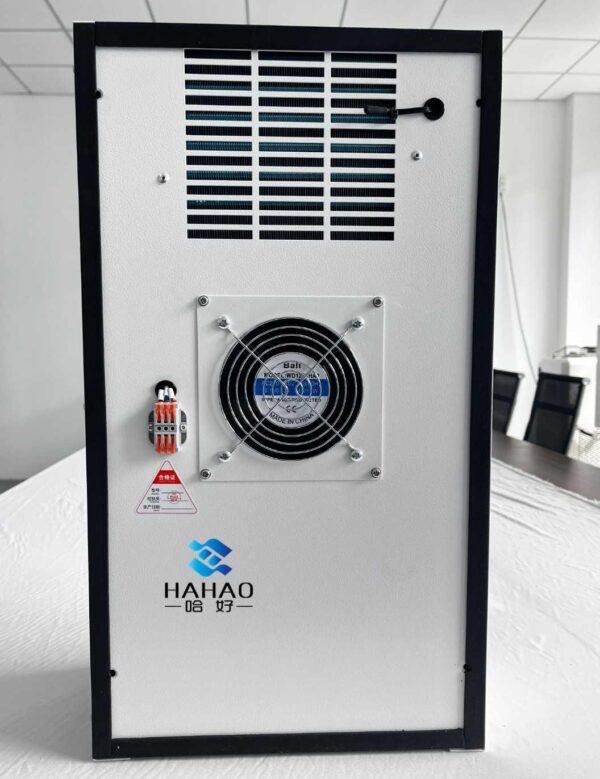

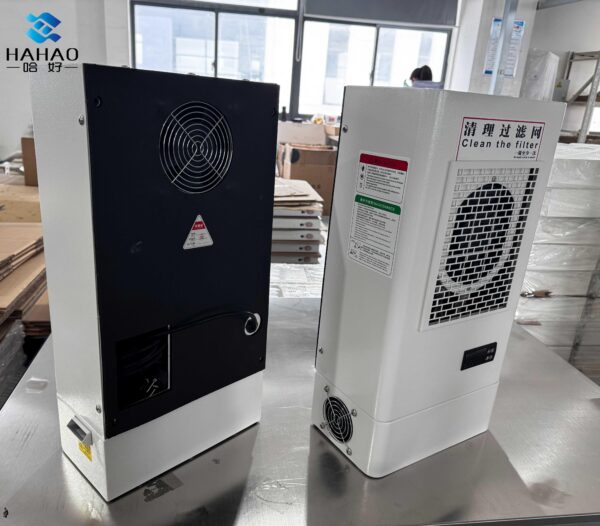

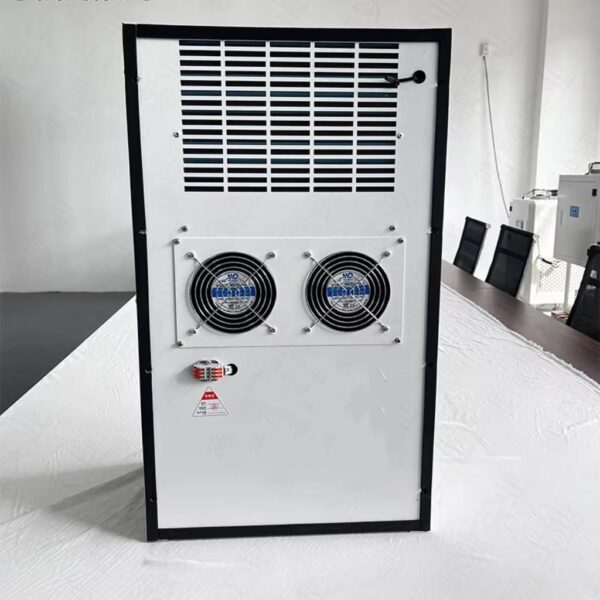

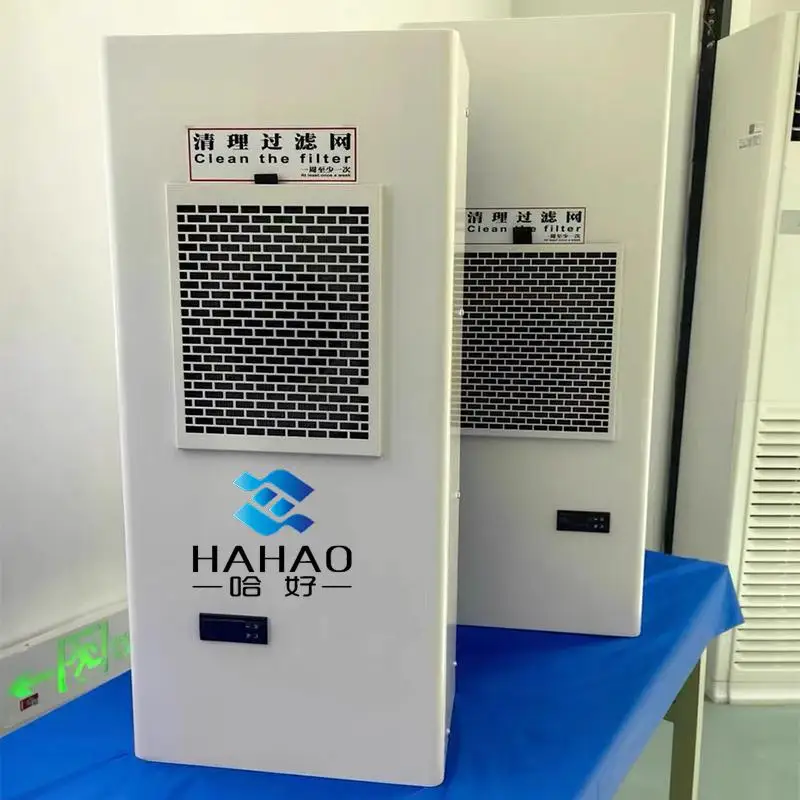

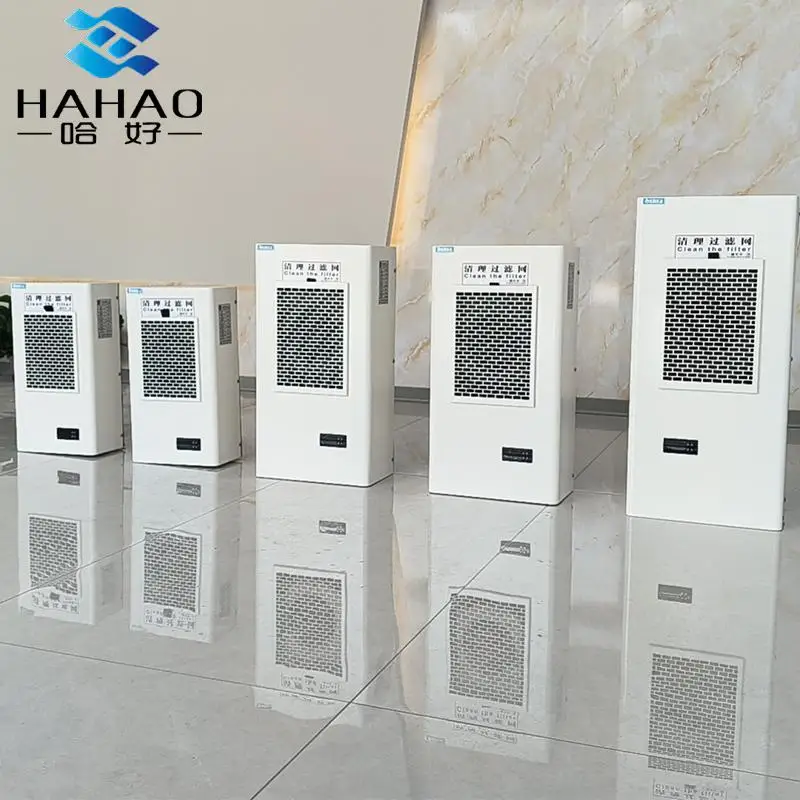

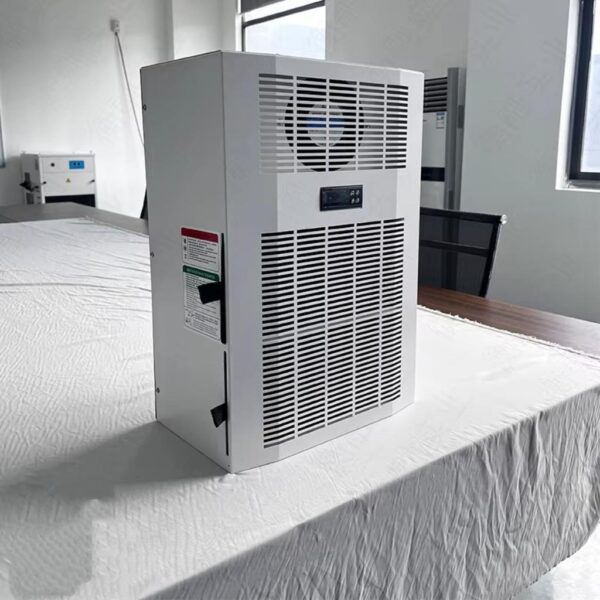

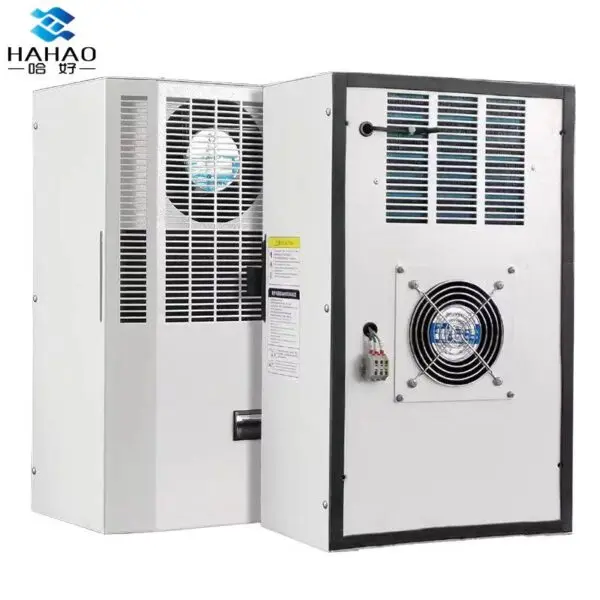

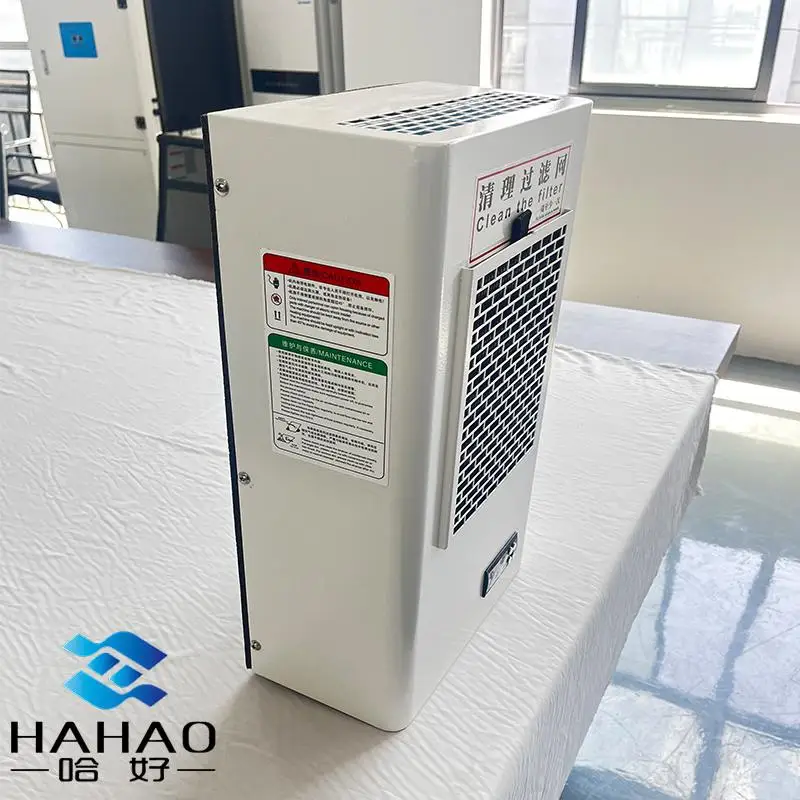

This cabinet air conditioner solves the problem that rules out most enclosure cooling in electrical rooms: condensate. A unit that drips water inside or below a control cabinet is a hazard, and this one is designed to discharge none. An 800W Hitachi compressor under PLC control on 220V handles the heat load of drives and controllers that a filter fan cannot touch. Side mounted, with machinery test report and video outgoing inspection provided.
Key Features of This Cabinet Air Conditioner
- Warranty: 1.5 year
- Place Of Origin: Shanghai, China
- Mounting Type: Side mounted
- Type: Cabinet Air Conditioner
- Fan Motors Type: AC
- Single Package Size: 62X40X25 cm
Technical Specifications
| Mounting Type | Side mounted |
|---|---|
| Type | Cabinet Air Conditioner |
| Compressor Brand | Hitachi |
| Fan Motors Type | AC |
| Key Selling Points | Easy To Operate |
| Core Components | PLC |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 21 |
| Brand Name | Hahao Electrical |
| Selling Units | Single item |
| Single Package Size | 62X40X25 cm |
| Single Gross Weight | 23.000 kg |
system is equipped with protection functions, greatly improving the stability of the air conditioner. Stainless steel sheet metal
can be customized according to customer needs, which can also improve the anti-corrosion ability of the air conditioner.We have the highest quality, discounted prices, and customer-oriented service, which will definitely bring you more beautiful experiences!
|
model
|
CAWS-800W
|
|||
|
Power Supply. V Hz
|
IP220V 50HZ
|
|||
|
Overall dimensions(mm)
|
width*height*depth
|
362*595*222
|
||
|
Refrigeration capacity
|
800W
|
|||
|
Input power
|
373W/813W
|
|||
|
Current
|
1.8A/3.8A
|
|||
|
Refrigerant
|
R134a
|
|||
|
Installation method
|
Side hanging
|
|||
|
protection grade
|
IP44
|
|||
|
Permissible temperature setting range inside the machine
|
25 ℃~38 ℃ (factory set at 30 ℃)
|
|||
|
Permissible ambient temperature range
|
-5℃～55℃
|
|||
|
Power connection method
|
3-core terminal
|
|||
|
weight
|
21kg (estimated)
|
|||
|
Appearance color
|
RAL9003A (white)
|
|||
|
Circulating air volume
|
Internal circulation
|
120m3/h
|
||
|
https://shhengrong.en.alibaba.com/contactinfo.html
|
External circulation
|
180m3/h
|
||
|

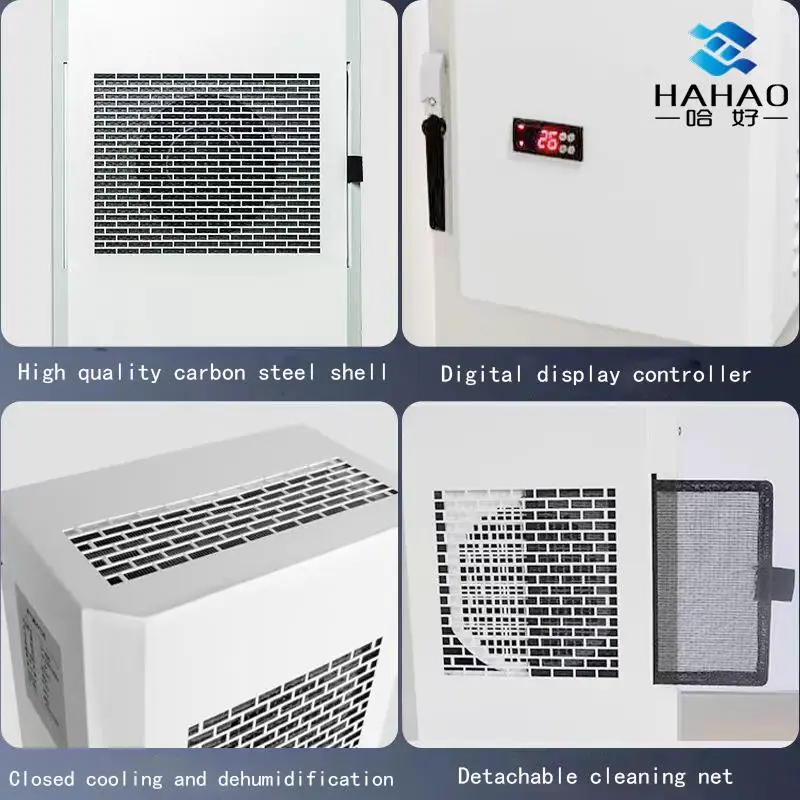

Temperature control method
|
Digital display temperature controller
|
|||
|
Test conditions: Dry bulb temperature inside the electric cabinet: 35 ℃, wet bulb temperature: 26 ℃, and dry bulb temperature
outside the electric cabinet: 35 ℃ |
||||
Frequently Asked Questions
What is the minimum order quantity for this cabinet air conditioner?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this cabinet air conditioner?
A 1.5 year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
