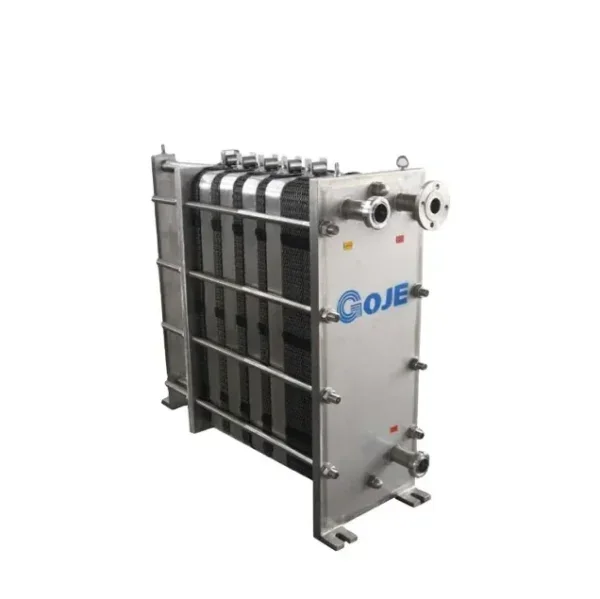

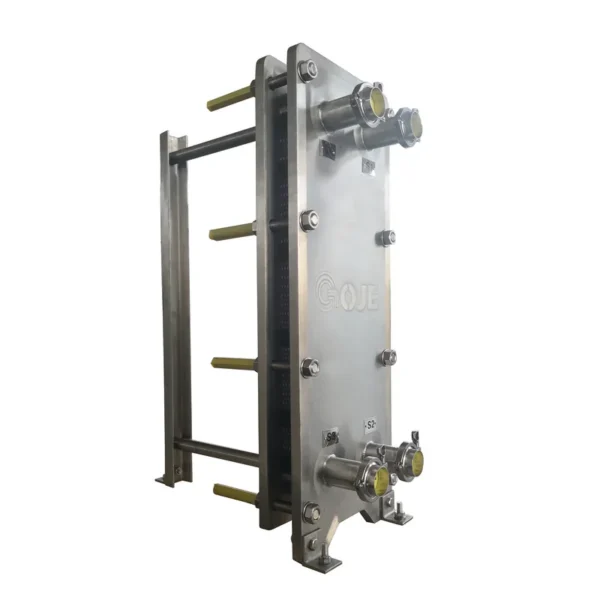

Stainless Steel Plate, 304, 316

This stainless steel plate is listed with the manufacturer’s full published specification — material Stainless Steel, heat exchanger type Plate Heat Exchanger, certification Ce/ISO9001:2008. It is produced by JIANGSU GAOJIE ENERGY SAVING EQUIPMENT GROUP CO., LTD., a verified supplier of 11 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Stainless Steel Plate

• Voltage: Customized
• Flow Capacity: Customized
• Material: Stainless Steel
• Plate Material: SS304/SS316/SS316L/Titanium
• Gasket Material: NBR/EPDM/FKM
• Frame Material: GS/SS

Technical Specifications

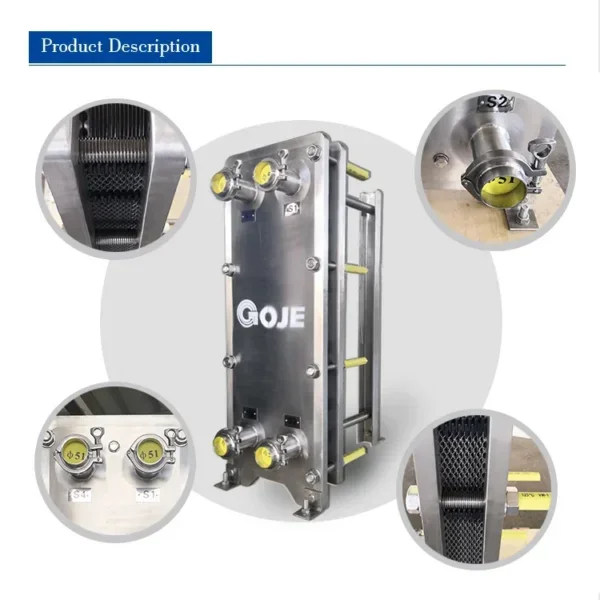

Product Details

Welcome To GOJE

More About Our PHEs

Normally Used Connections

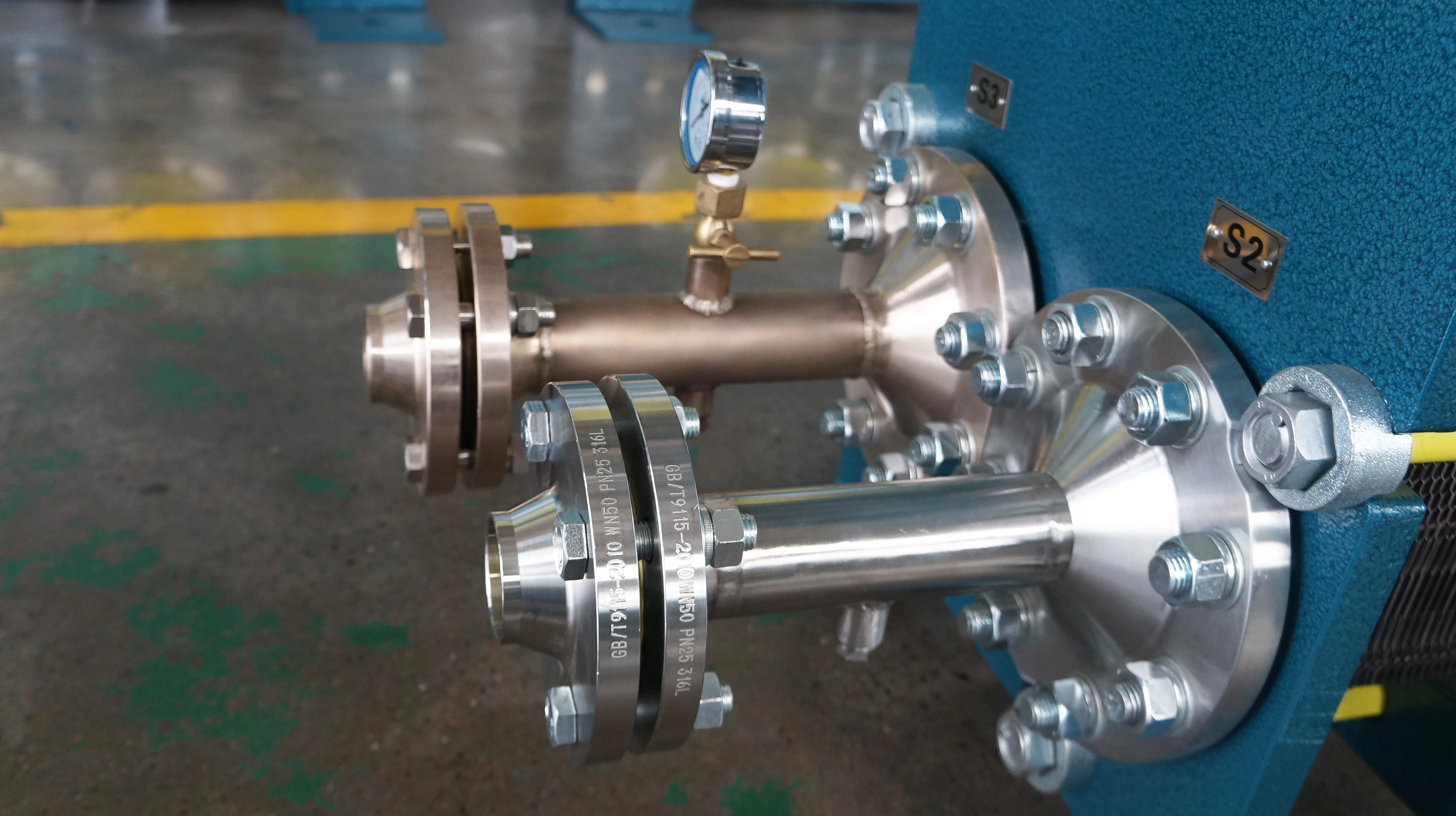

Flange Connection

Welding Flanger Connection

DIN or SMS Connection

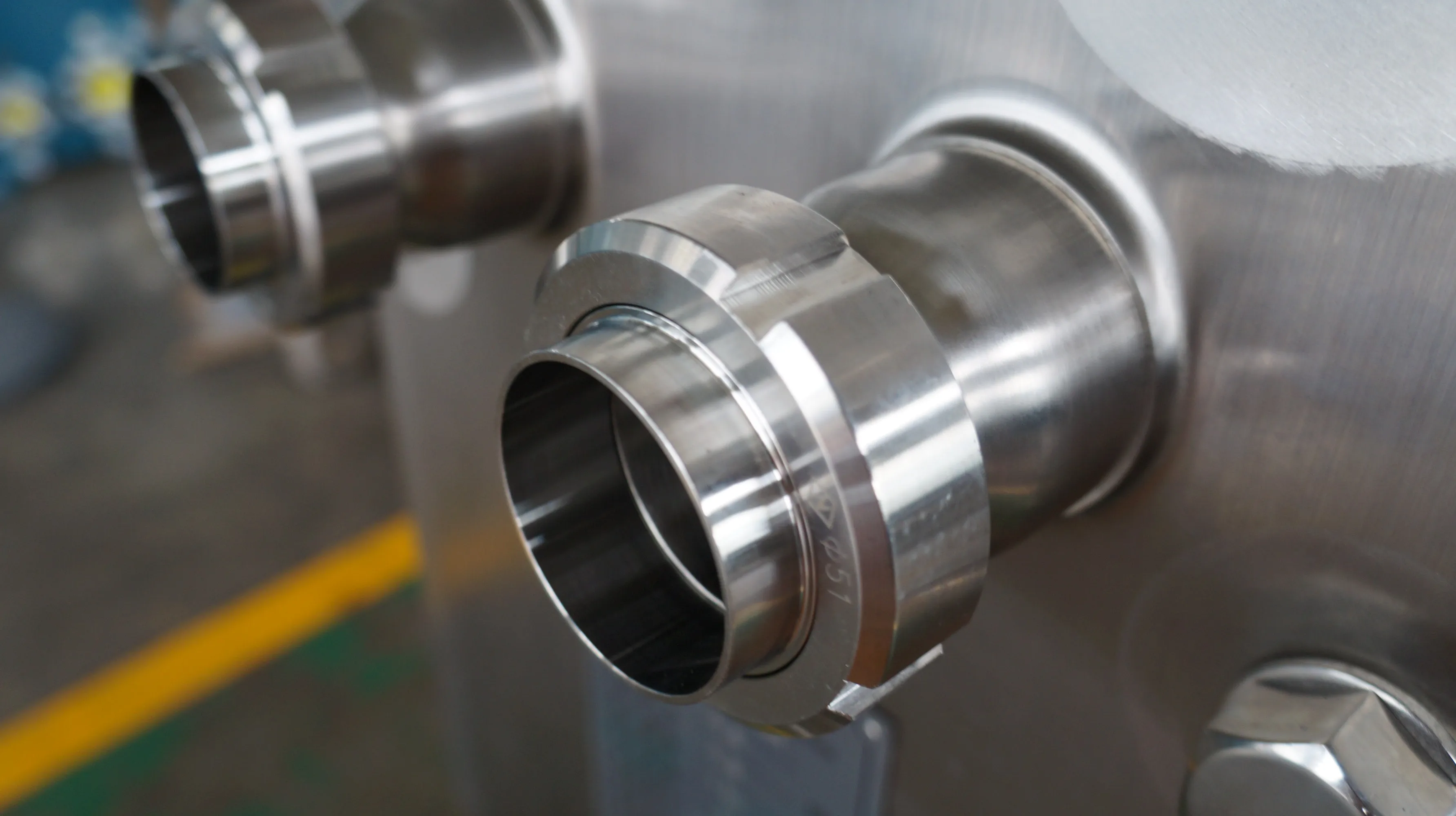

Tri-Clamp Connection

3. Materials

Plate Material Characteristics
Material	Application
SS304	Drink water, None Corrosive Liquid, Oils, Fresh Steam etc.
SS316L	Well water, river water, closed circulating water and other water with complex components, Dilute sulfuric acid with temperature ≤ 50 ℃ and concentration ≤ 10% etc.
Titanium	Liquid that contains chlorine iron, Sea water etc.
Titanium Palladium Alloy	Higher temperature and corrosion resistance than titanium.
Nickel 20	It is mainly used for caustic solution (NaOH, Koh, etc.) with high concentration (50% ~ 70%) and high temperature (boiling point).
Hastelloy C-276	It has good corrosion resistance, almost not affected by Cl -, excellent corrosion resistance to various concentrations of sulfuric acid, and is one of the few materials that can be used in hot concentrated sulfuric acid, widely used in organic acids (such as formic acid, acetic acid), high temperature HF acid and a certain concentration of hydrochloric acid (< 40%), phosphoric acid (< 50%); chloride, fluoride.

Gasket Material Charactristics
Material	Working Temperature	Working Enviroment
NBR	-25~120℃	Alkane, olefin and other non-polar media, all kinds of mineral oil, animal and vegetable oil, hot water, salt water, etc。
EPDM	-50~170℃	Superheated water, steam, atmospheric ozone, non petroleum based lubricating oil, weak acid, weak base, ketone alcohol, etc
HNBR	-25~150℃	Crude oil, sulfur-containing oil and organic sulfur compounds, some heat transfer oil, new refrigerant 134a, etc
Viton	-25~150℃	Nonpolar mineral oil, high temperature water vapor, sulfuric acid, chlorine water, phosphate with concentration above 98%

How To Order From Us

Its Easy to Order A Correct PHE!

You just need to provide the following information, then we will do the rest things for you:

1. Your application.

2. Hot side & cold side inlet/outlet temperaure range value.

3. Hot side & cold side inlet/outlet flow rate range value.

4. Medium name.

Normally we will take 1-2 hours to make quotation for your confirmation.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $500 / set
  • 10+ set: US $300 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this stainless steel plate?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this stainless steel plate carry?

It is supplied with Ce/ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the stainless steel plate be supplied for my local voltage?

The standard configuration is Customized. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by JIANGSU GAOJIE ENERGY SAVING EQUIPMENT GROUP CO., LTD., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full JIANGSU GAOJIE ENERGY SAVING EQUIPMENT GROUP CO., LTD. range on HVACR Nexus.
