A twin rotary compressor is the detail that separates a good small air to water heat pump from an average one: two offset rotors balance each other, which cuts vibration and lets the unit run at very low speed without the pulsation a single rotary produces. That is what makes low-load winter operation efficient. 3KW, 5KW and 7KW on R290 at Class A+++, galvanized housing with a two-year warranty.
Key Features of This Air To Water Heat Pump
- Power Source: Electric, Gas
- Heating Capacity: 4.7KW
- Housing Material: Galvanized metal + painting
- Refrigerant: R290 /R32
- Warranty: 2 Years
- Application: Commercial, Household, Outdoor
Technical Specifications
| Heating Capacity | 4.7KW |
|---|---|
| Type | Air Source Heat Pump |
| Energy Efficiency Rating | Class A+++ |
| Application | Commercial, Household, Outdoor |
| Power Source | Electric, Gas |
| Storage / Tankless | Storage |
| Compressor | DC Inverter twin rotary |
| Housing Material | Galvanized metal + painting |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Installation | Freestanding |
| Refrigerant | R290 /R32 |
| Selling Units | Single item |
| Single Package Size | 115X45X90 cm |
| Single Gross Weight | 80.000 kg |
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

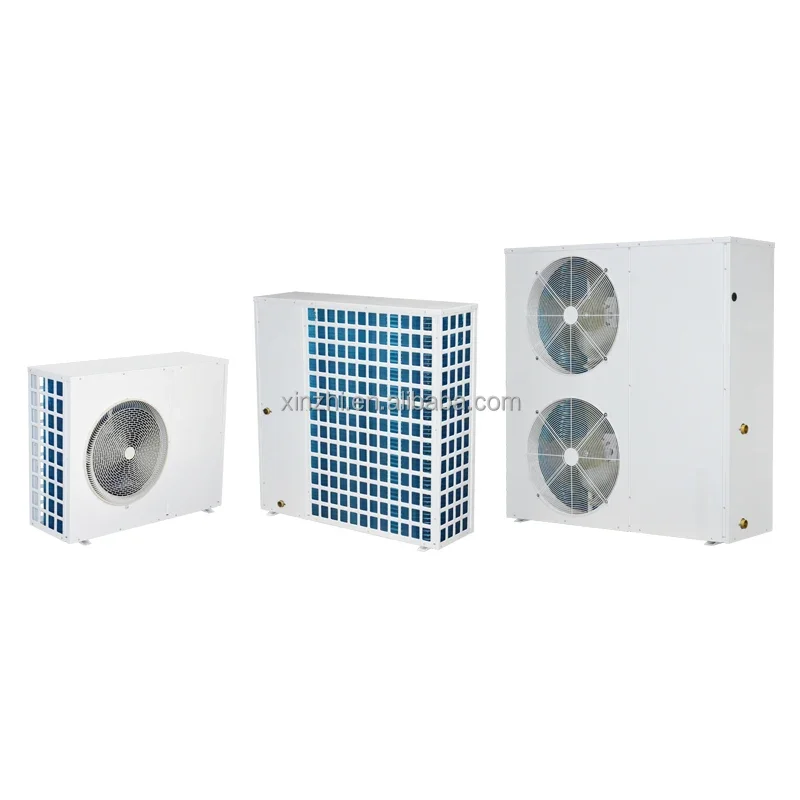

R290 Inverter Monoblock Air to Water Heat Pump with WIFI Control
Inverter monoblock heat pump is a high-efficiency heating/cooling device that combines inverter technology and a compact, all-in-one design. By intelligently adjusting compressor speed to match actual demand, it significantly improves energy efficiency (COP) and operational stability.
| Model | KP-50 |
| Power supply | 220V/50Hz/1P |
| Refrigerant | R32, R290 |
| Heating capacity | 4.7kW |
| Power input | 1.1kW |
| Noise level (1m) | 50 dB(A) |
| Water connection | G1” |
| Water flow switch | built-in |
| Circulation pump | built-in |
| 3 way water valve | optional |
Unit drawing:

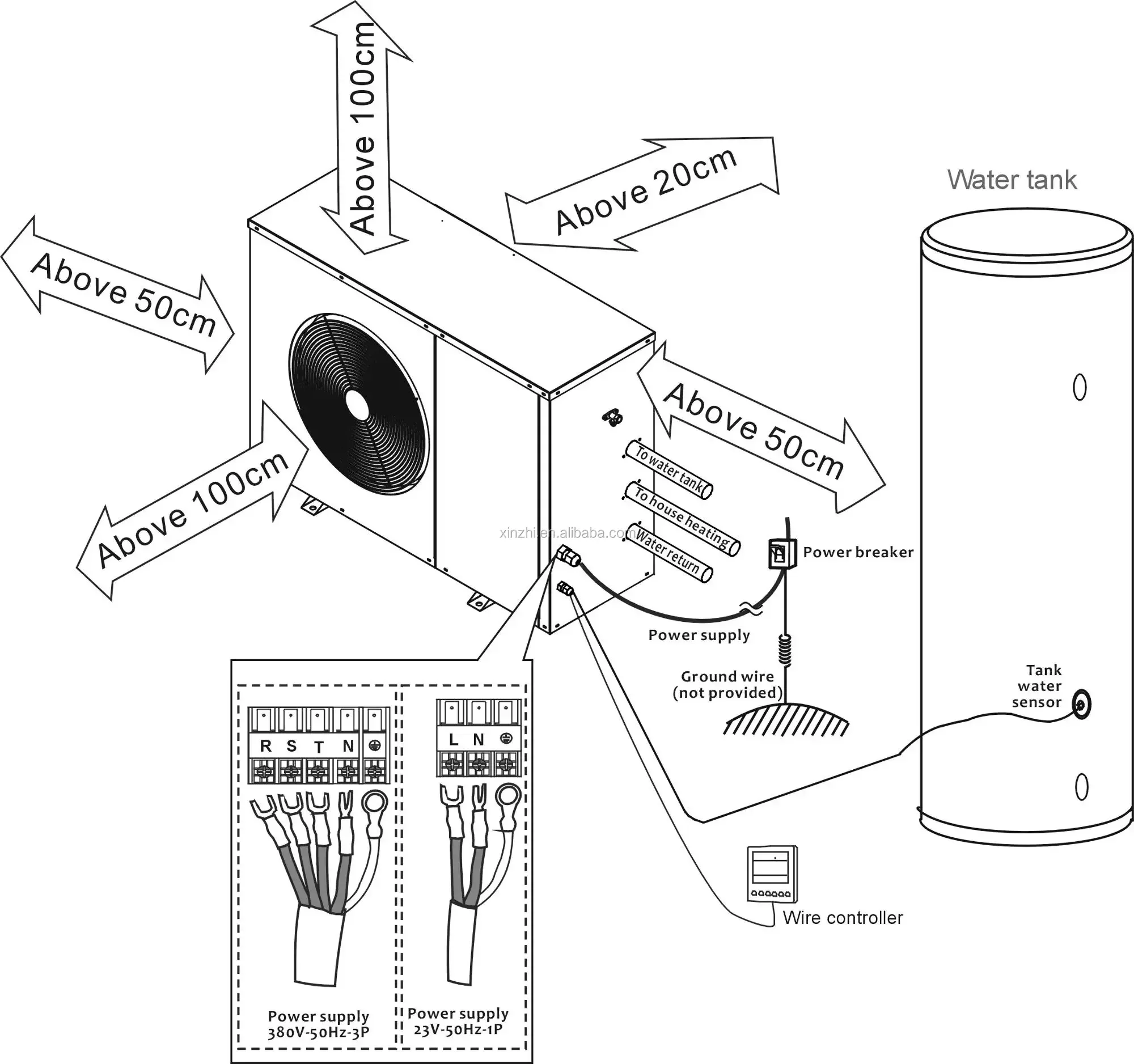

Installation
Frequently Asked Questions
What is the minimum order quantity for this air to water heat pump?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this air to water heat pump?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This air to water heat pump is produced by Shunde Suntree Electrical Appliance Co., Ltd.. Browse the full Shunde Suntree Electrical Appliance Co., Ltd. range on HVACR Nexus.
