Battery energy storage and data centre racks share a cooling problem: high, constant, concentrated heat that air alone cannot remove economically. A liquid cooling dry cooler with integrated pump and PLC arrives as a working loop rather than a coil that still needs a system built around it. SUS304 stainless construction in both V-type and flat-type formats, split mounted, with full test reporting.
Key Features of This Liquid Cooling Dry Cooler
- Warranty: 1 Year
- Place Of Origin: Shanghai,China
- Mounting Type: Split
- Type: Other
- Fan Motors Type: NO
- Single Package Size: 2000X2500X2500 cm

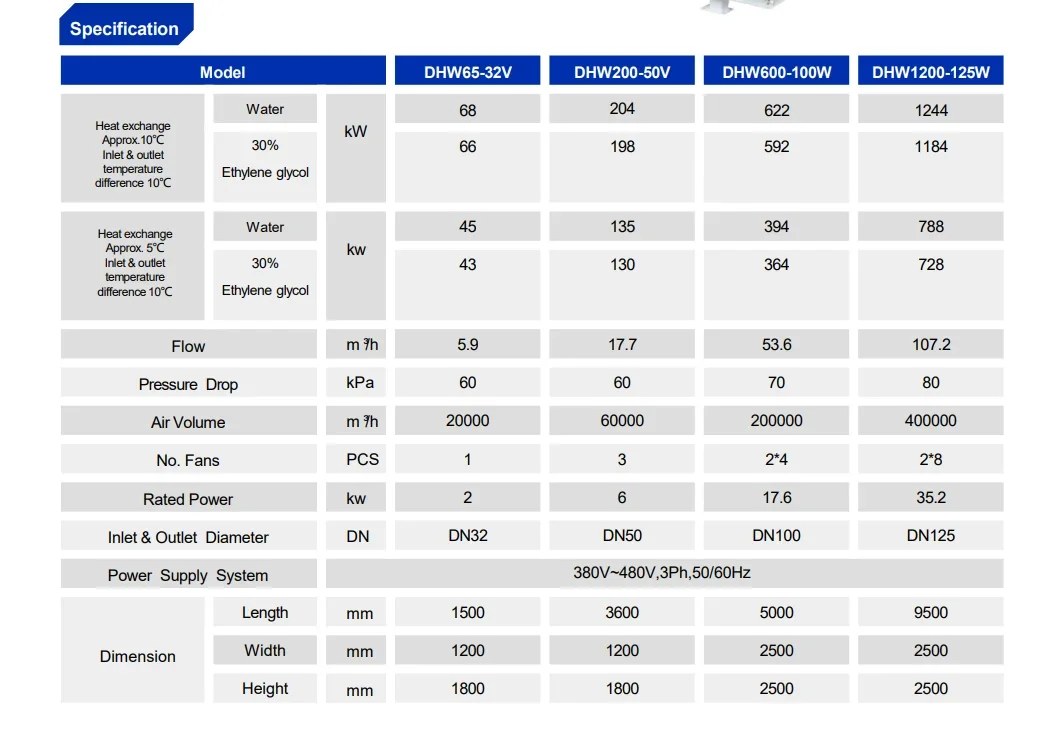

Technical Specifications
| Mounting Type | Split |
|---|---|
| Type | Other |
| Compressor Brand | NO |
| Fan Motors Type | NO |
| Key Selling Points | Heat Exchanger Liquid Cooling, SUS304 |
| Core Components | Pump, Engine, PLC, Other |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shanghai,China |
| Weight (Kg) | 240 |
| Brand Name | W-TEL |
| Selling Units | Single item |
| Single Package Size | 2000X2500X2500 cm |
| Single Gross Weight | 240.000 kg |
Product Description
W-TEL Dry Cooler System for Computer Room Energy Storage
Dry Cooler System Introduction:
1> The heat exchager tubes is SUS304, which is high-strength, corrosion-resistant, safe and reliable, and suitable for various heat exchange media..
2> The heat exchanger adopts anti-corrosion coated aluminum fins, which has good heat transfer and corrosion resistance.
3> EC axial flow fan, 10%~100% stepless speed regulation, precise temperature control.
4> Optional spray module available.
5> Optional PLC control system available.
6> Customizable according to customer requirements.

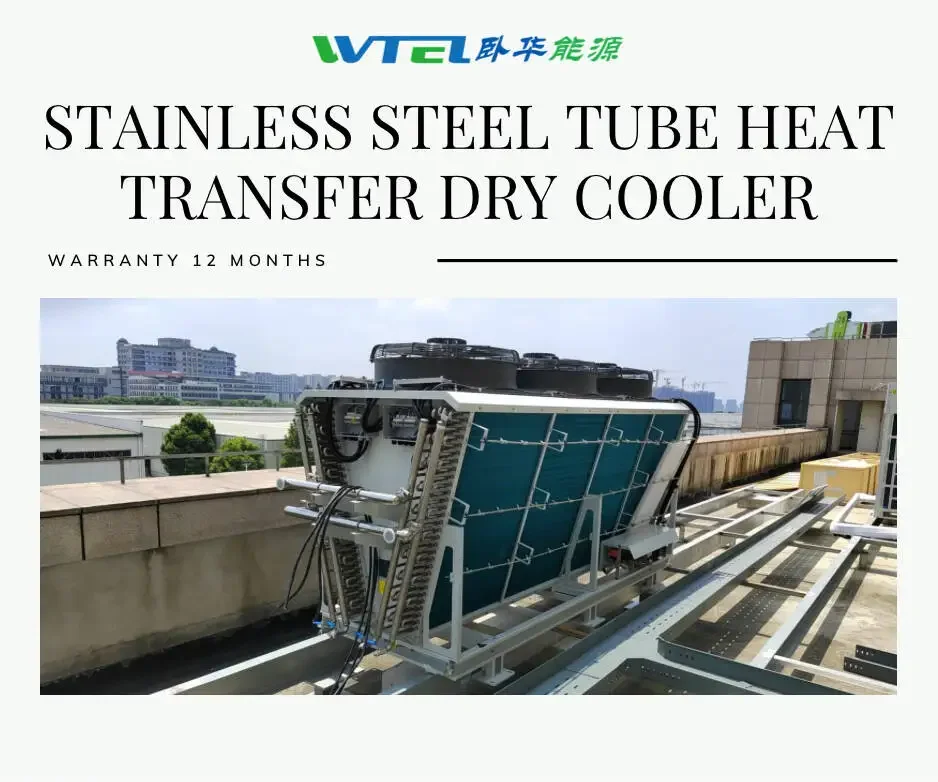

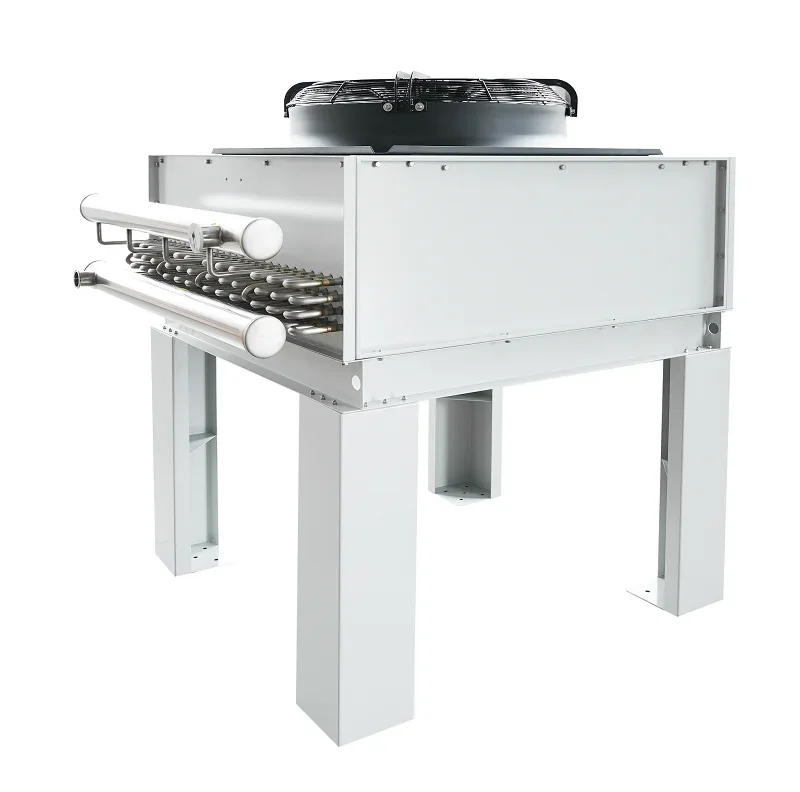

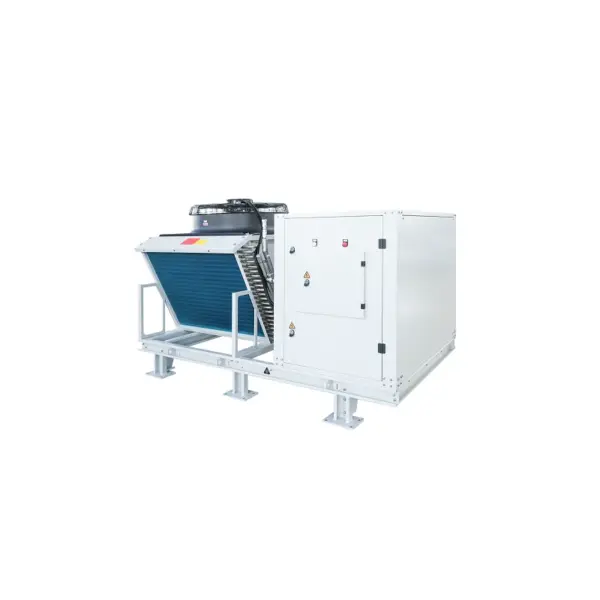

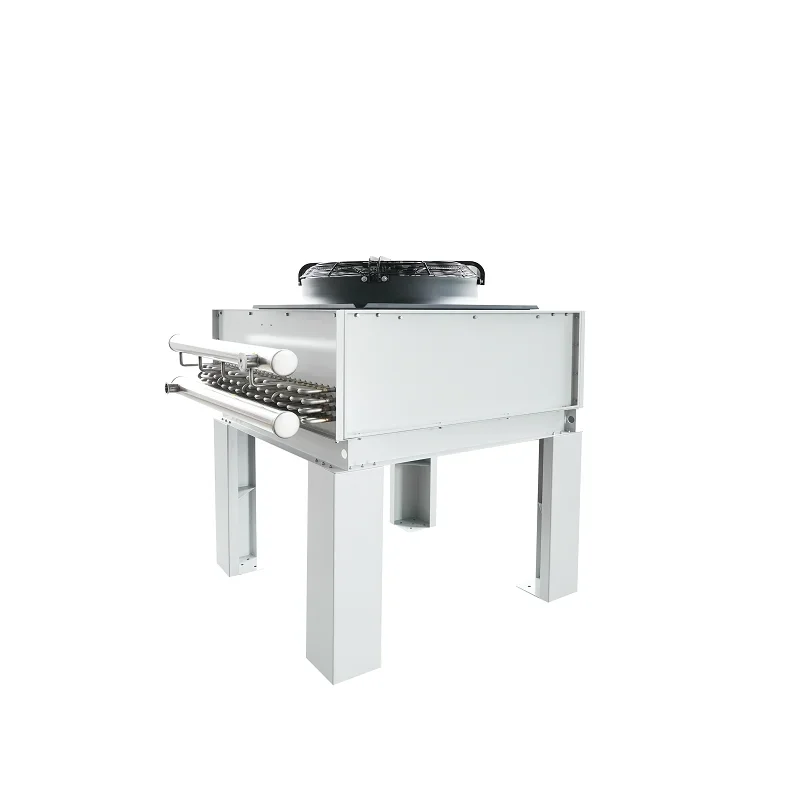

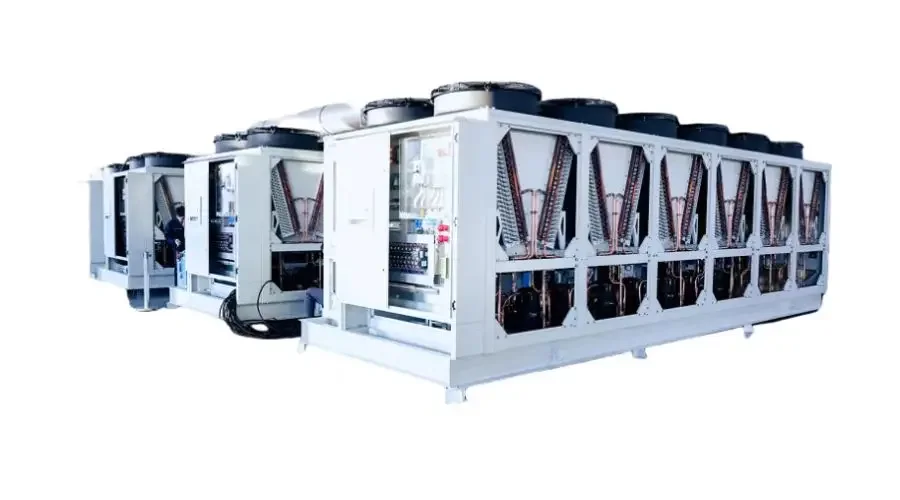

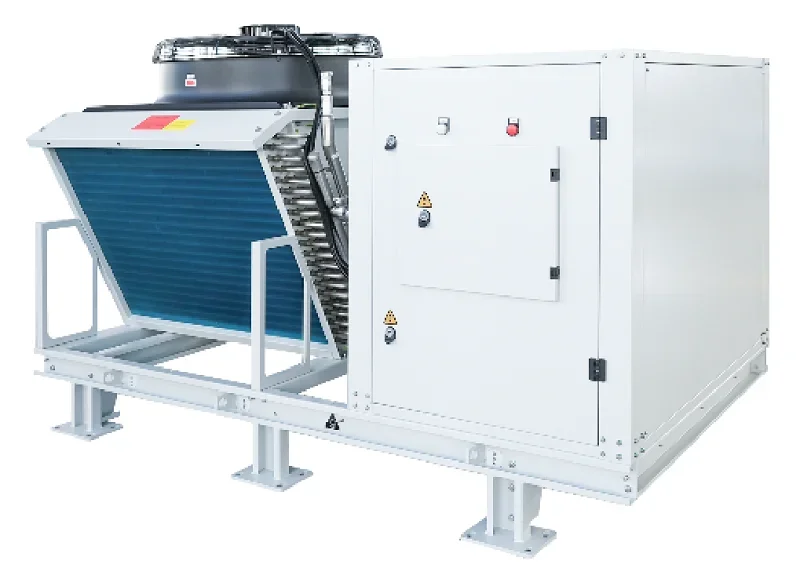

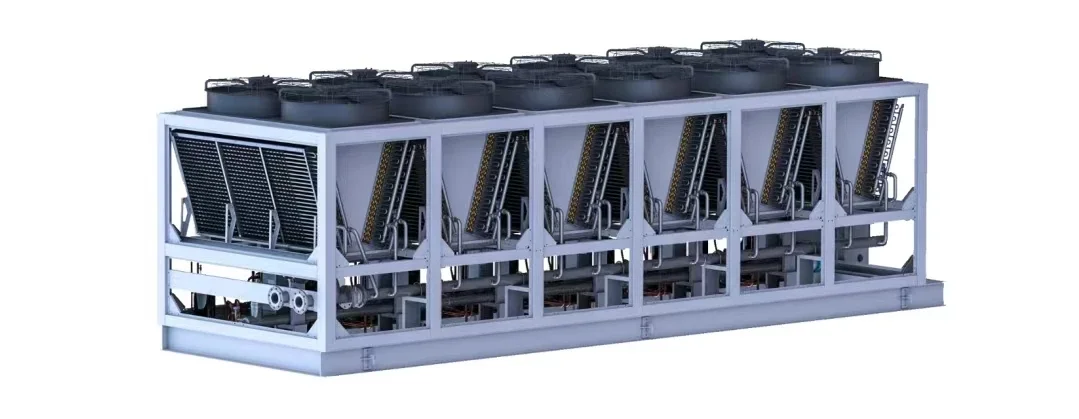

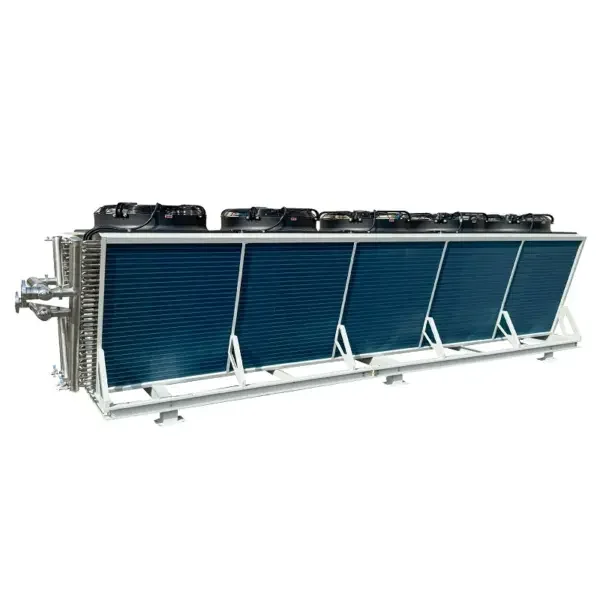

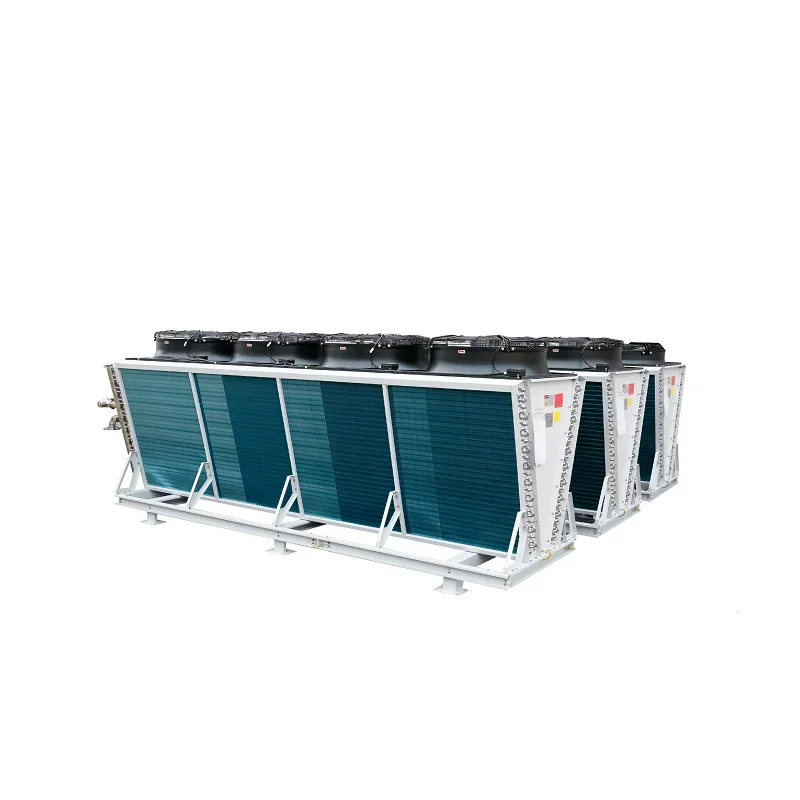

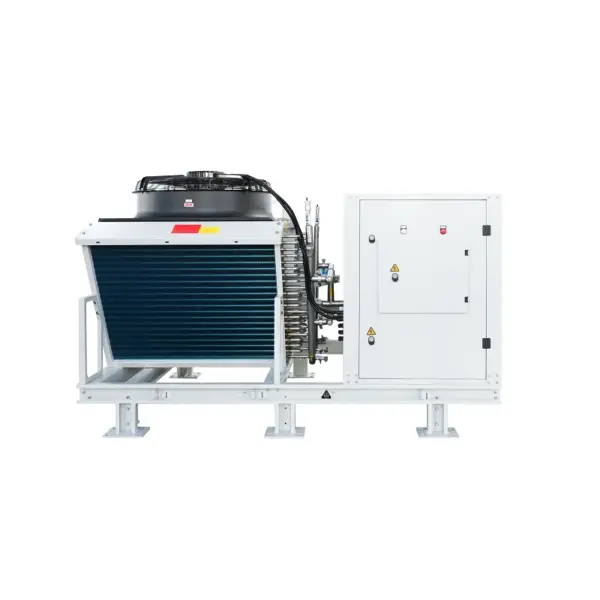

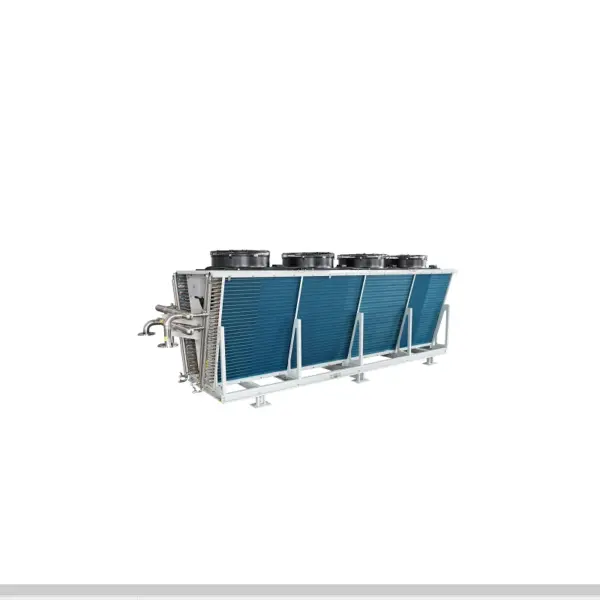

Dry Cooler Show

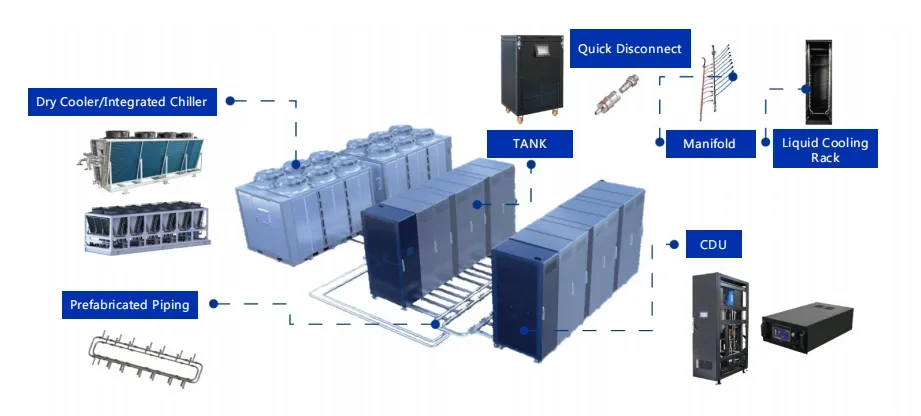

W-TEL Full Liquid Cooling Chain Solution

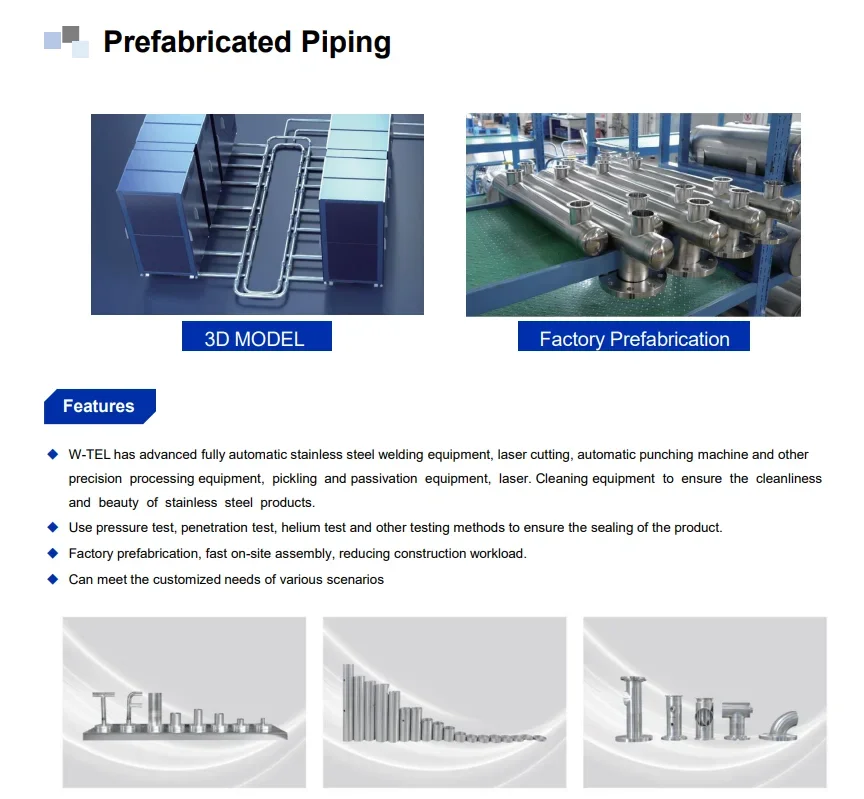

W-TEL focuses on the research and development and production of liquid cooling products for data centers, providing a full range of products from liquid cooling cabinets, CDUs, cold liquid distribution pipes Manifold, immersion liquid cooling tanks, prefabricated pipelines and outdoor cold sources to meet the cooling needs of different data centers. The dry cooler and supplementary cooling unit are integrated into one design, and the air cooling module and liquid cooling module share a set of cold water coils, which reduces costs, saves space, and facilitates on-site installation.

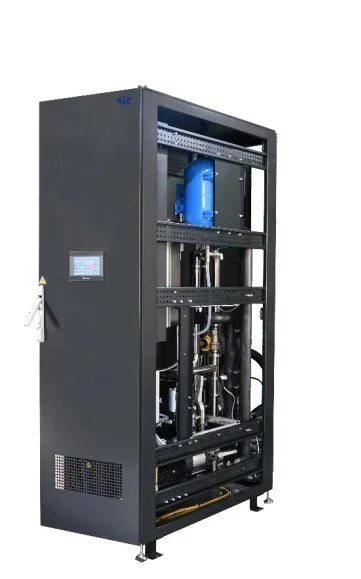

Some CDU Series Product Reference

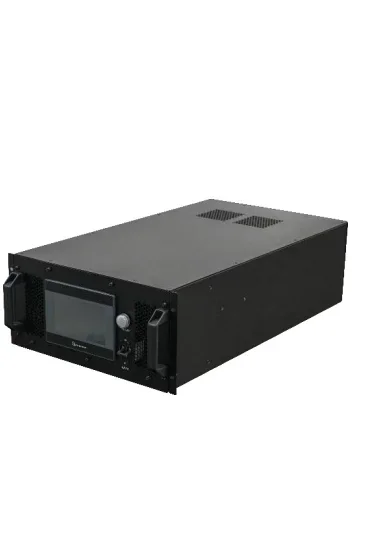

In Rack CDU
Cabinet(In row) CDU
Mini Fan Wall CDU

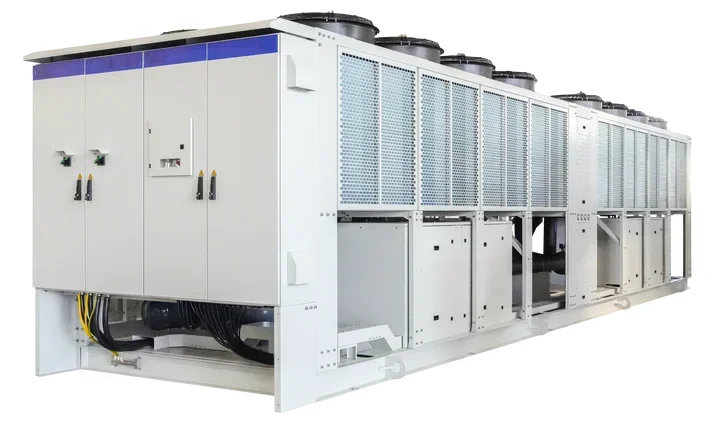

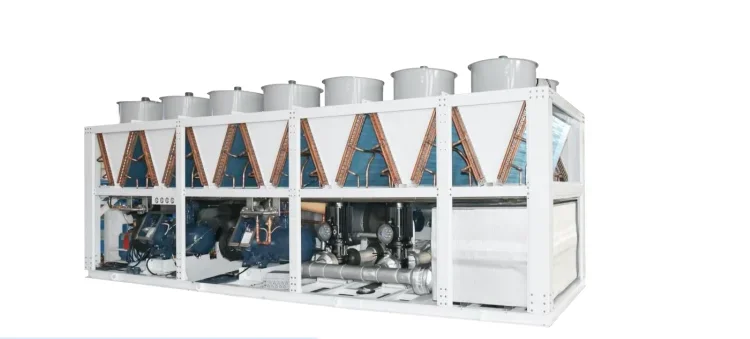

Integrated Chiller Station
High reliability
The dry cooler and supplementary cooling unit integrate a set of cold sources, which can adapt to various extreme weather conditions and ensure the outlet water temperature.
Flexible deployment
The integrated cold station can be put into use in stages to achieve flexible capacity expansion.
Extreme water saving
No water resources are consumed at all, avoiding the problem of ice and scaling in the spray system.
High energy efficiency ratio
The supplementary cooling unit adopts a high evaporation temperature system with a higher energy efficiency ratio.
|
Module
|
DCW-2000B
|
DCW-6000D
|
|||
|
Cooling Capacity
|
kW
|
200
|
600
|
||
|
Rated fluid temperature
|
℃
|
25
|
25
|
||
|
Ambient air inlet temperature
|
℃
|
35
|
35
|
||
|
Liquid flow rate
|
m³/h
|
42
|
90
|
||
|
Supply pressure
|
bar
|
2.3
|
4
|
||
|
Maximum fluid supply pressure
|
bar
|
4.8
|
4.3
|
||
|
Rated Power
|
kW
|
81.5
|
221.5
|
||
|
Pipeline interface
|
DN
|
DN80
|
DN100
|
||
|
Liquid supply temperature setting range
|
℃
|
7~35
|
|||
|
Power supply system
|
380V-415V/3Ph/50Hz 380V-415V/3Ph/60Hz 460V-480V/3Ph/60Hz
|
||||
|
Dimension
|
Length (mm)
|
4050
|
8000
|
||
|
Width（mm)
|
1900
|
2500
|
|||
|
Height (mm)
|
2750
|
2600
|
|||
Application

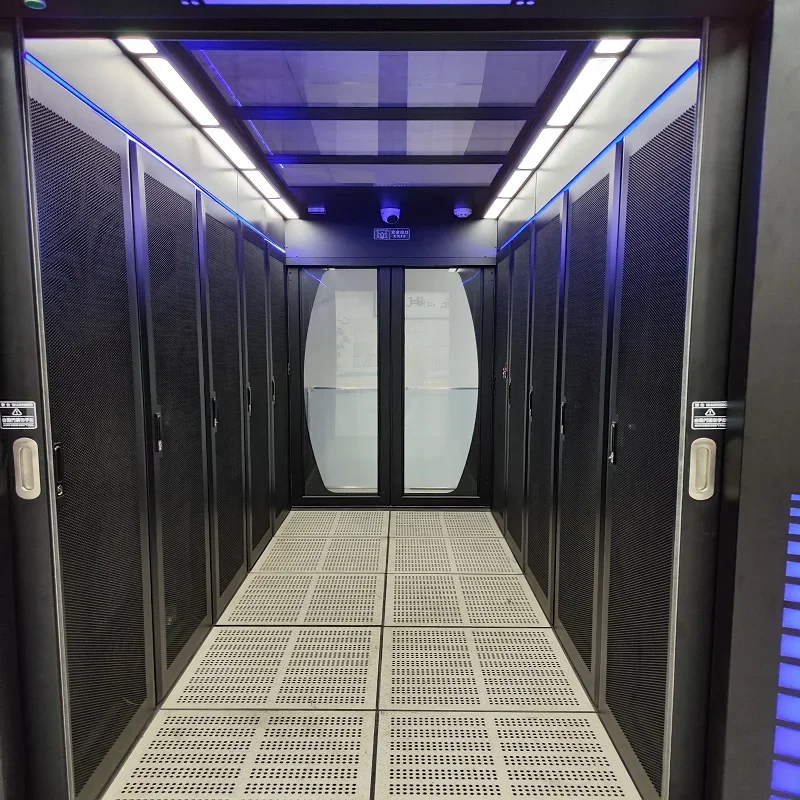

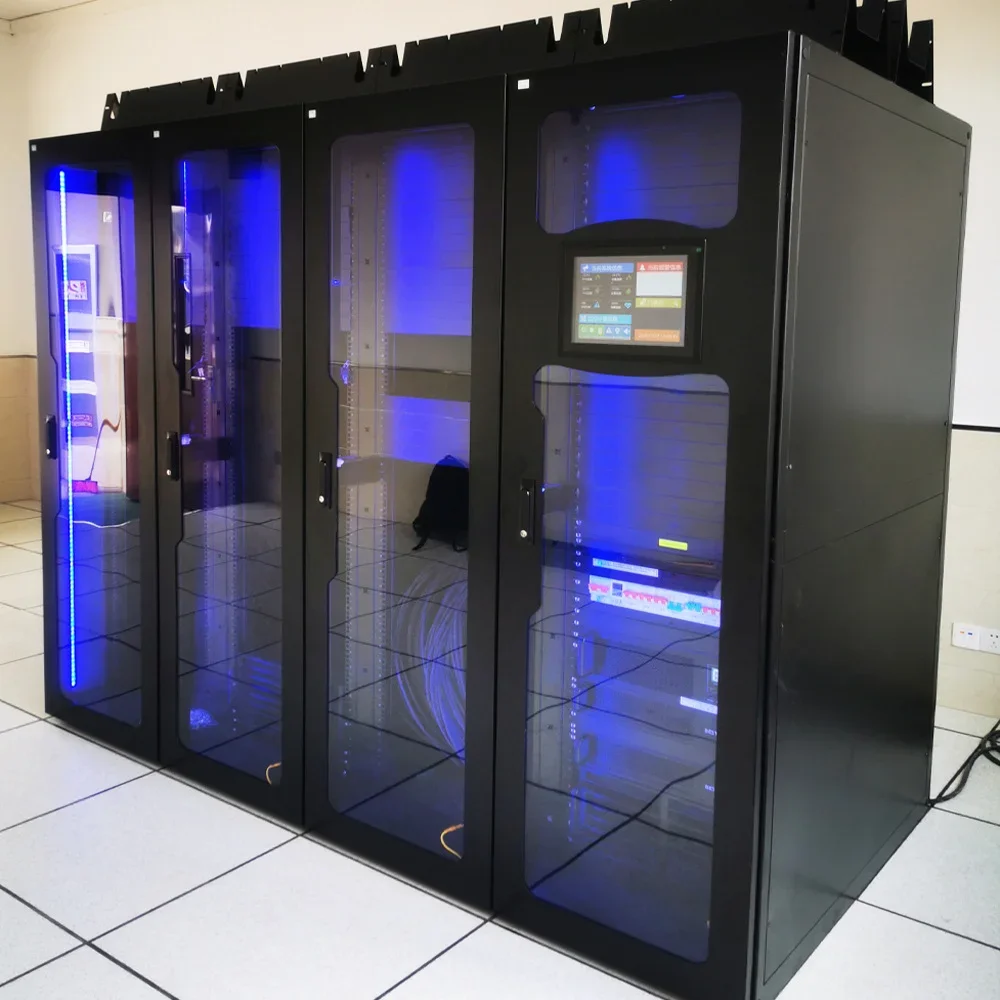

W-TEL Smart Micro Module Data Center System
Smart Modular Data Center integrates infrastructure units such as power supply, power distribution, cooling, racks, and environmental monitoring and management. All components can be prefabricated and fully inspected before arriving at the customer site. Which helps customer achieve rapid deployment, end-to-end one-stop delivery and remote digital management through Edge control level intelligent management and Digital operation and maintenance software.

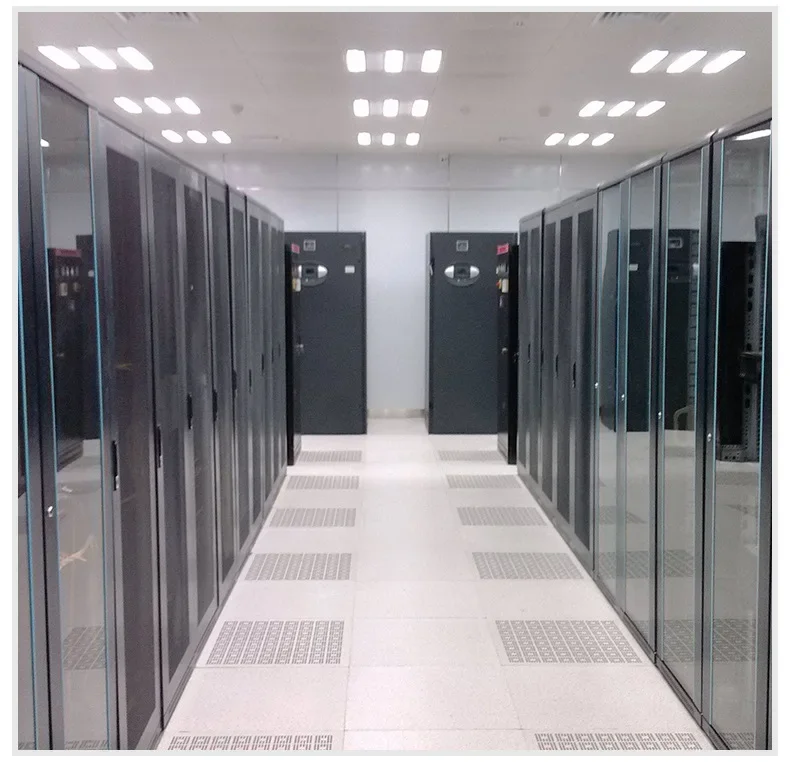

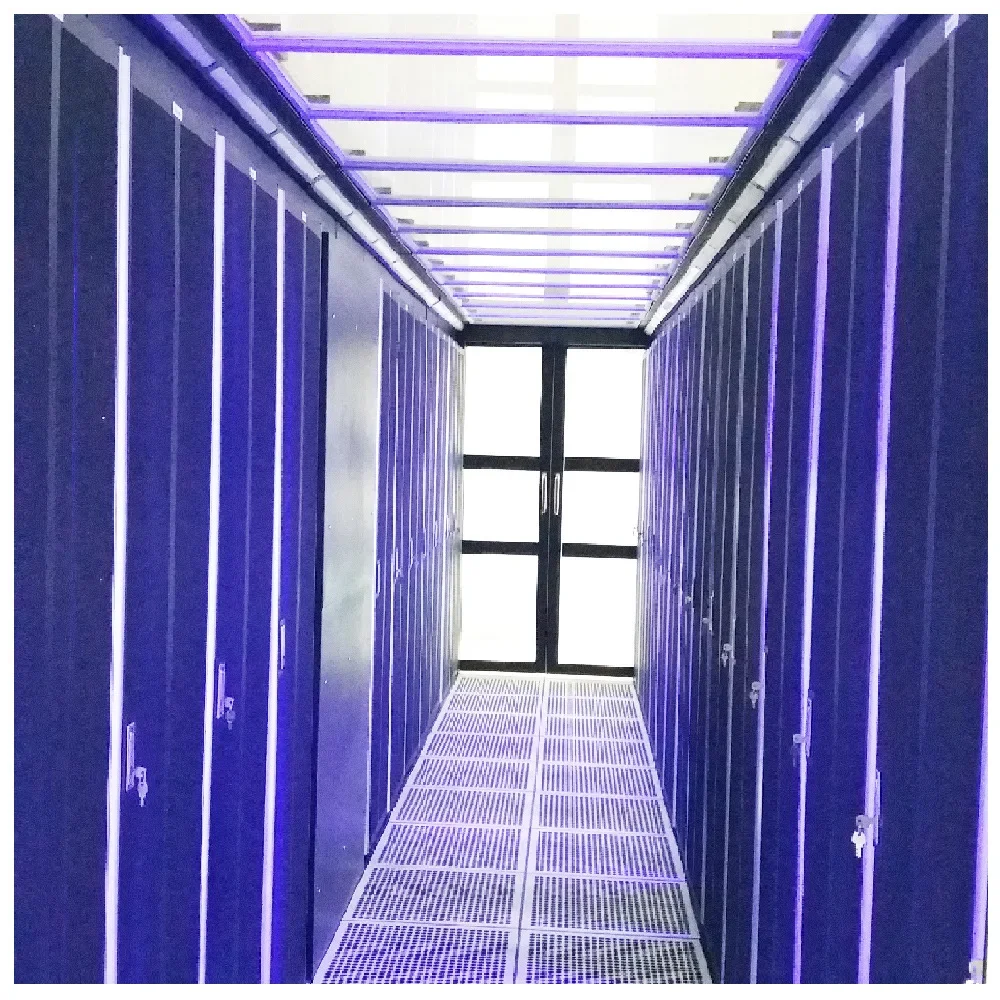

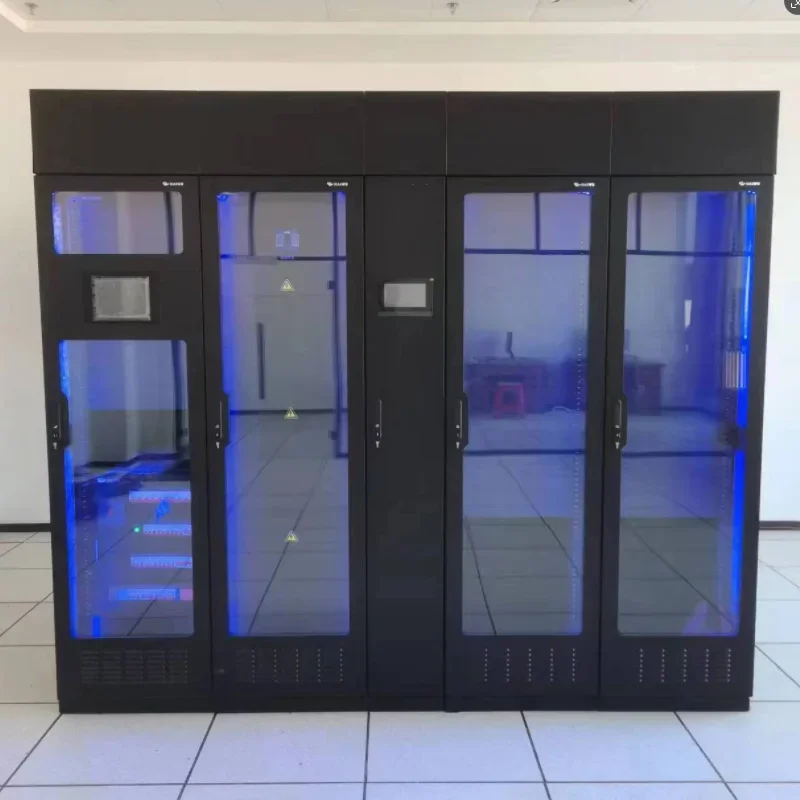

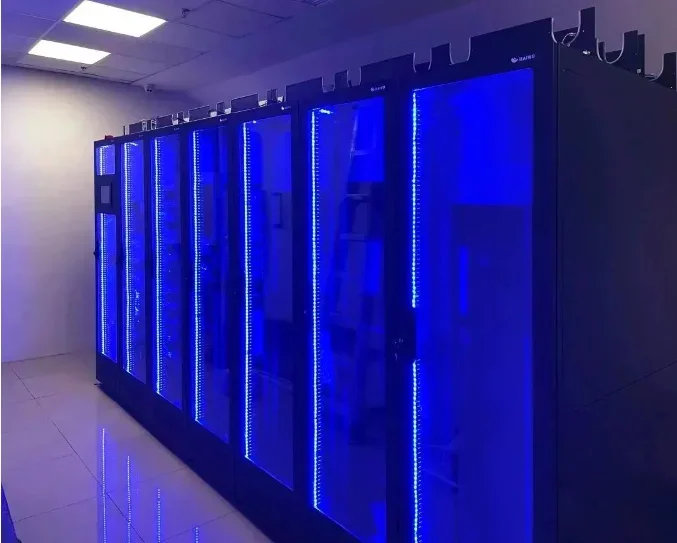

Double Row Data center

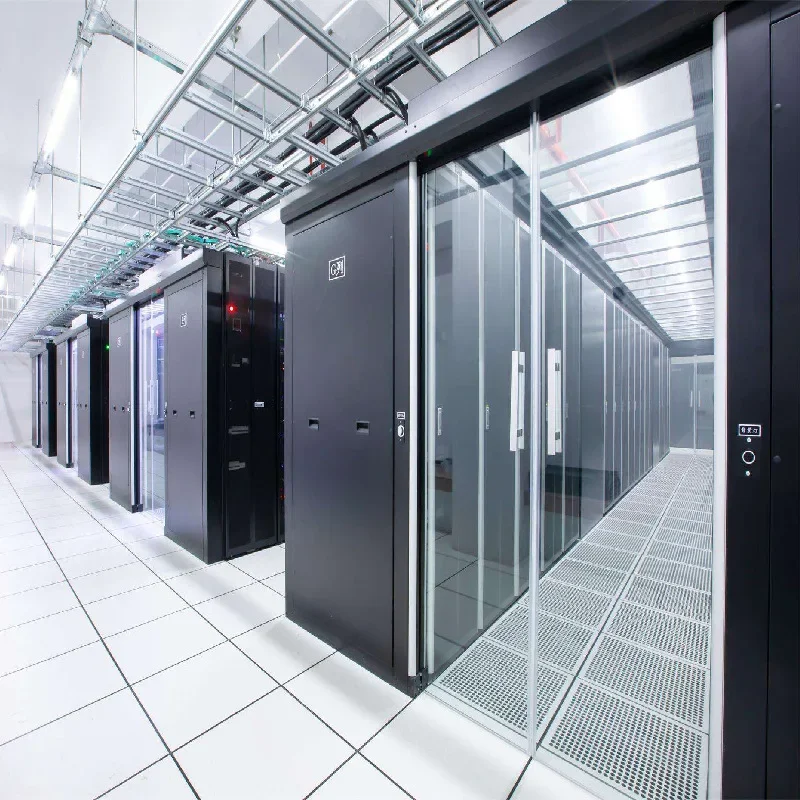

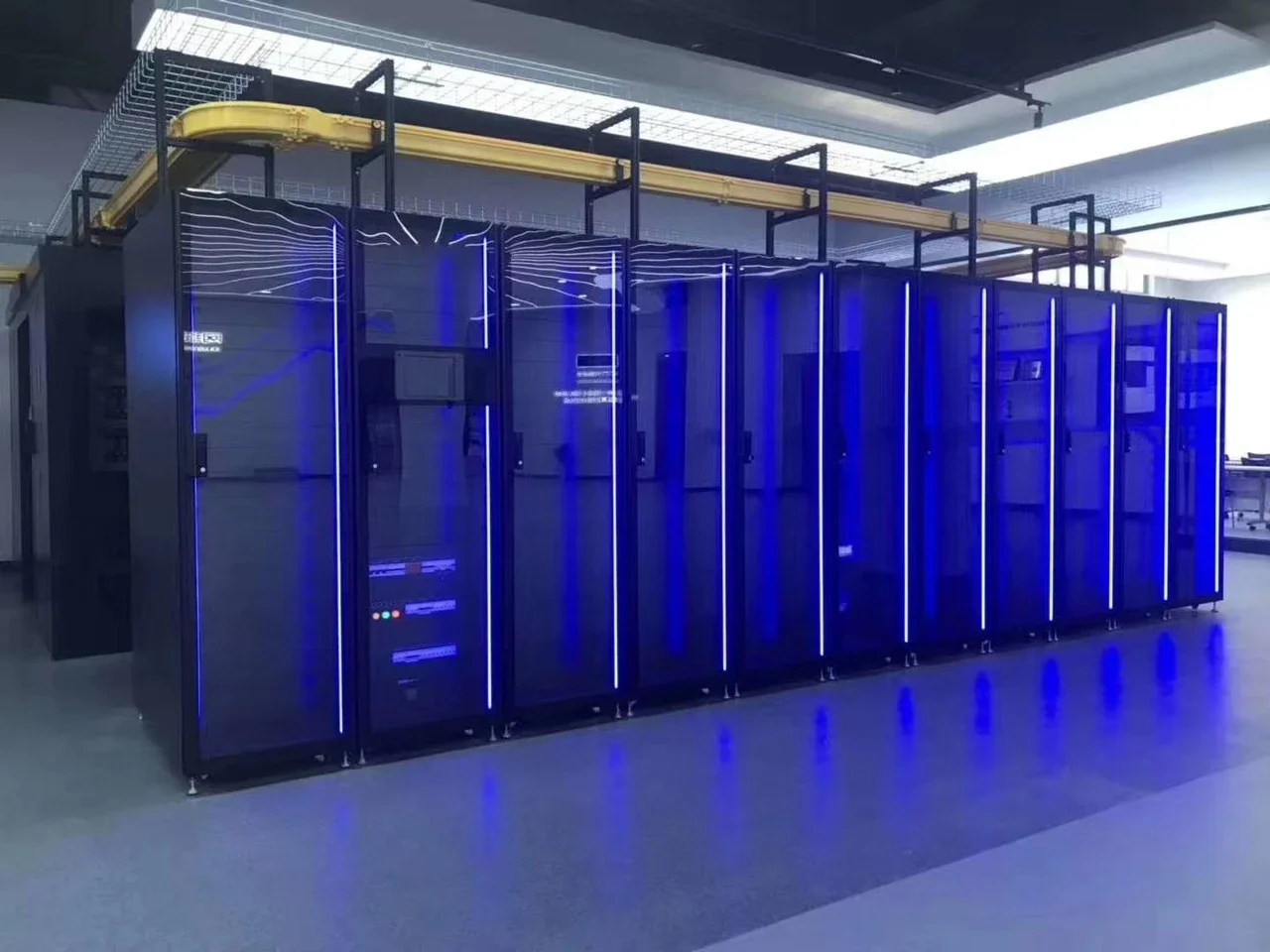

Single Row Data Center

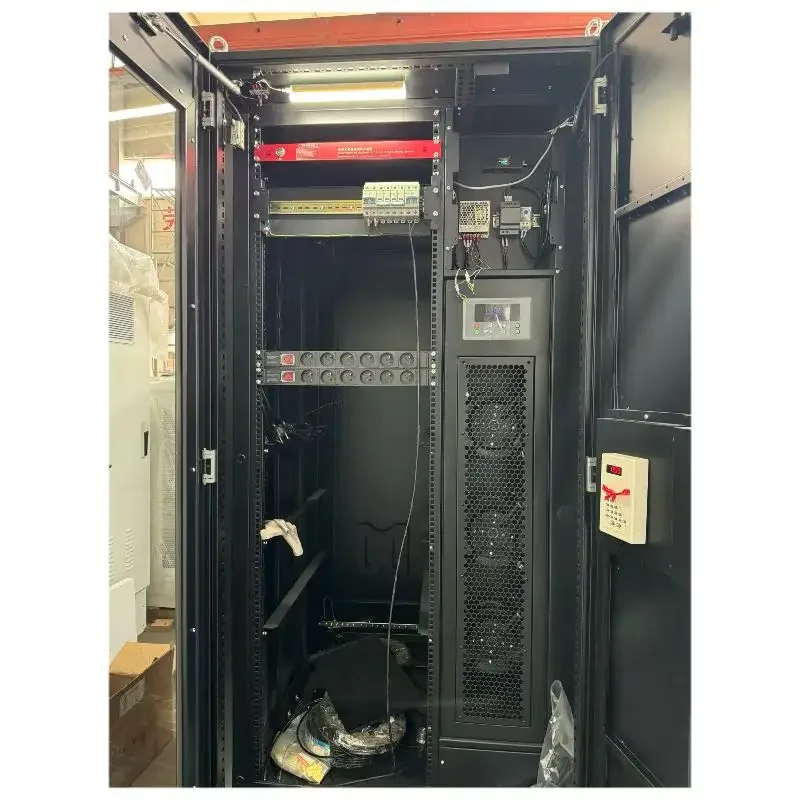

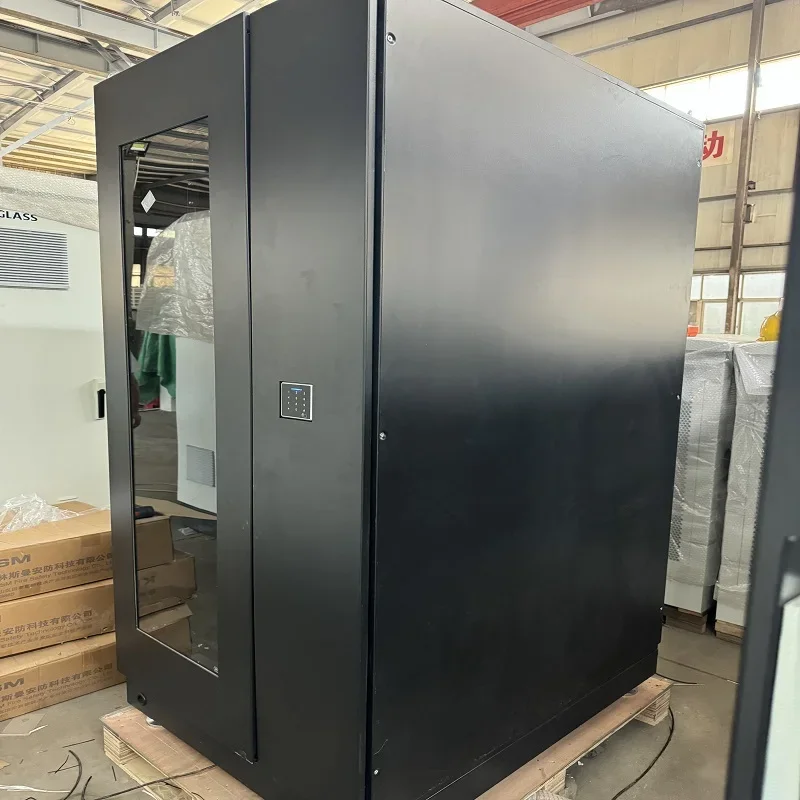

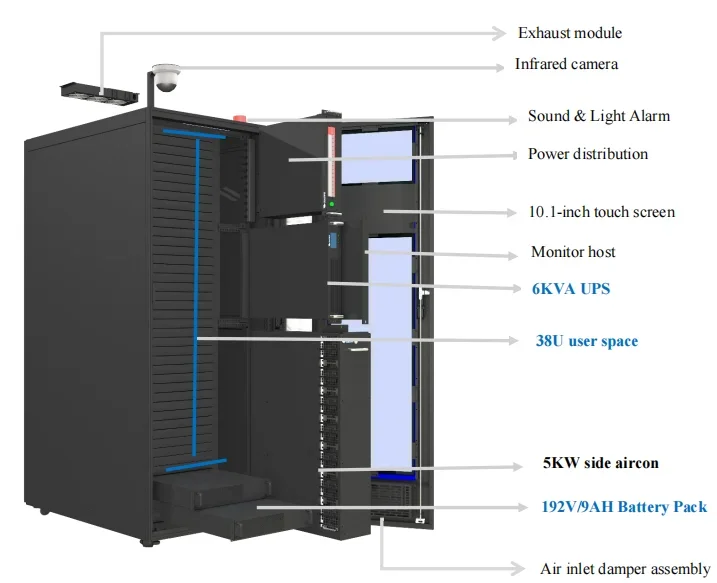

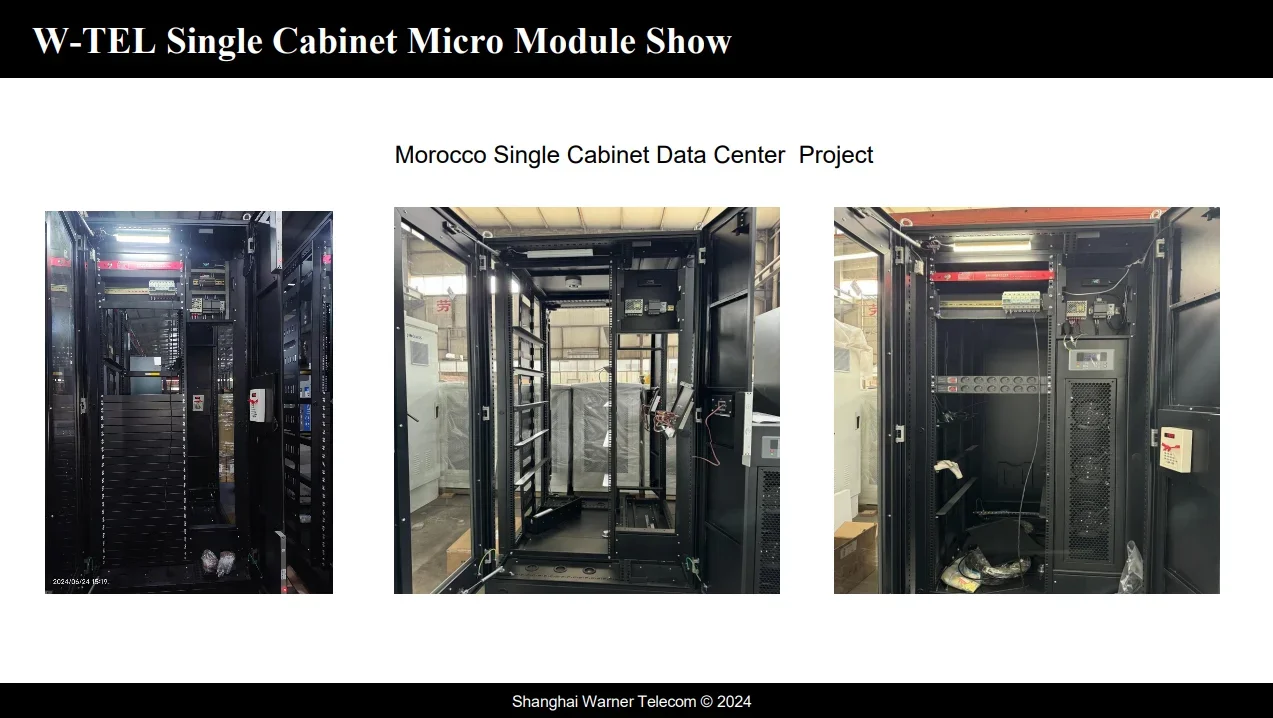

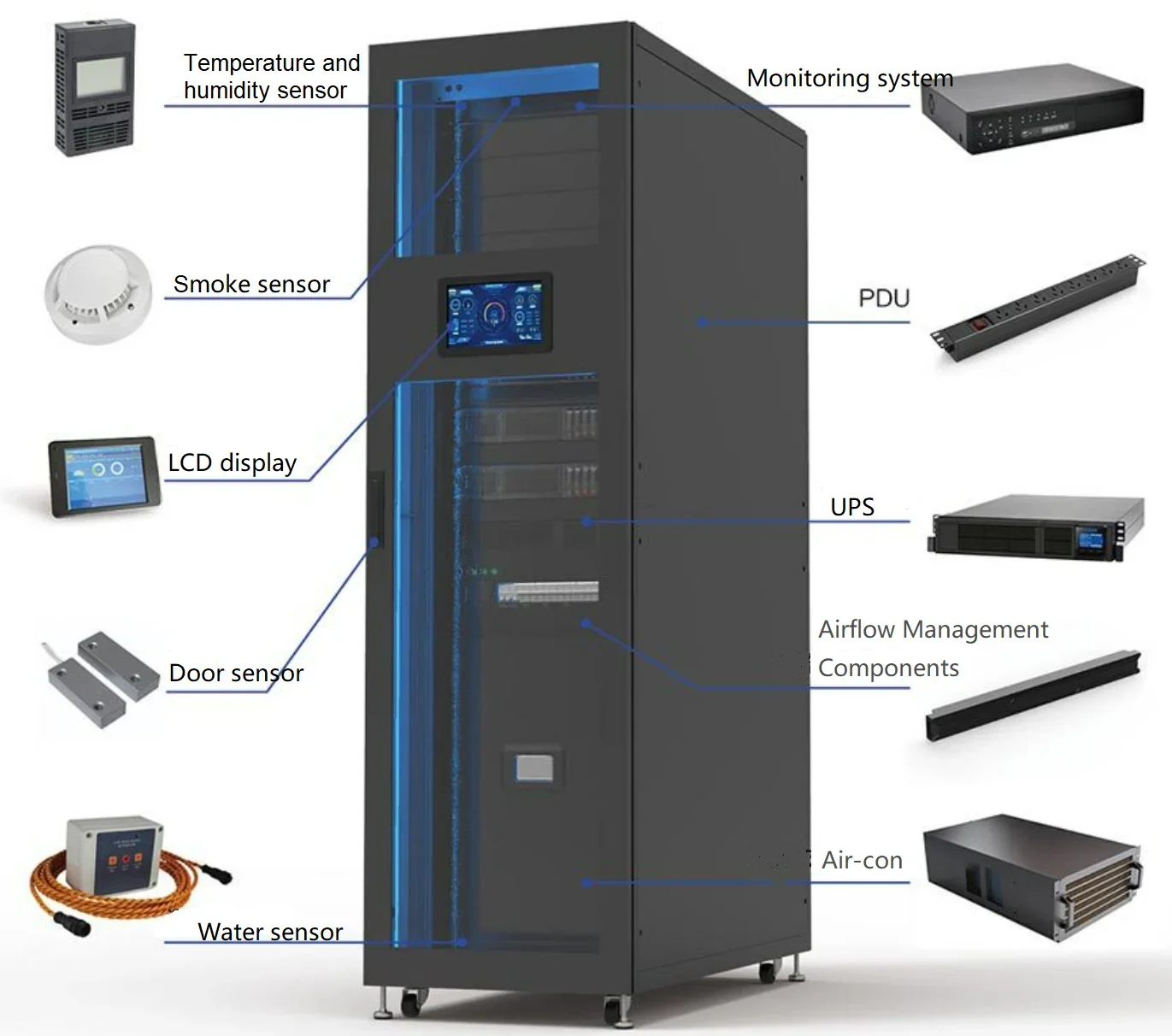

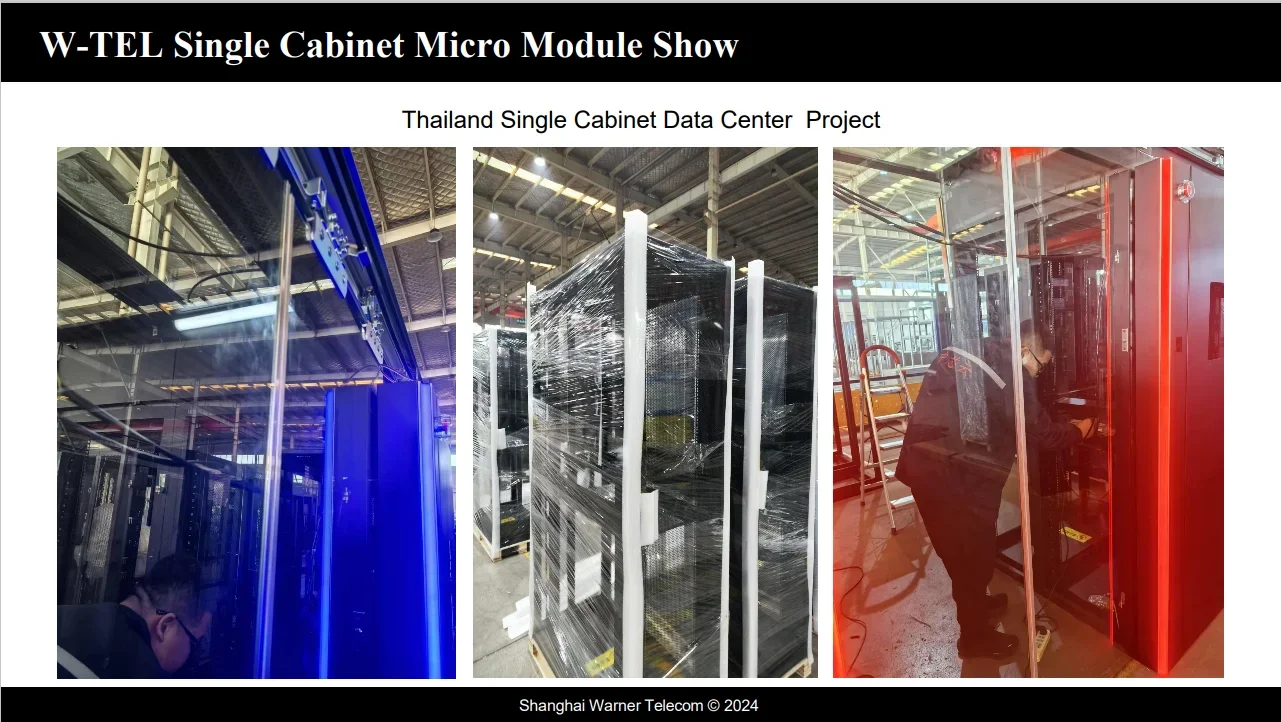

Single Cabinet Data Center

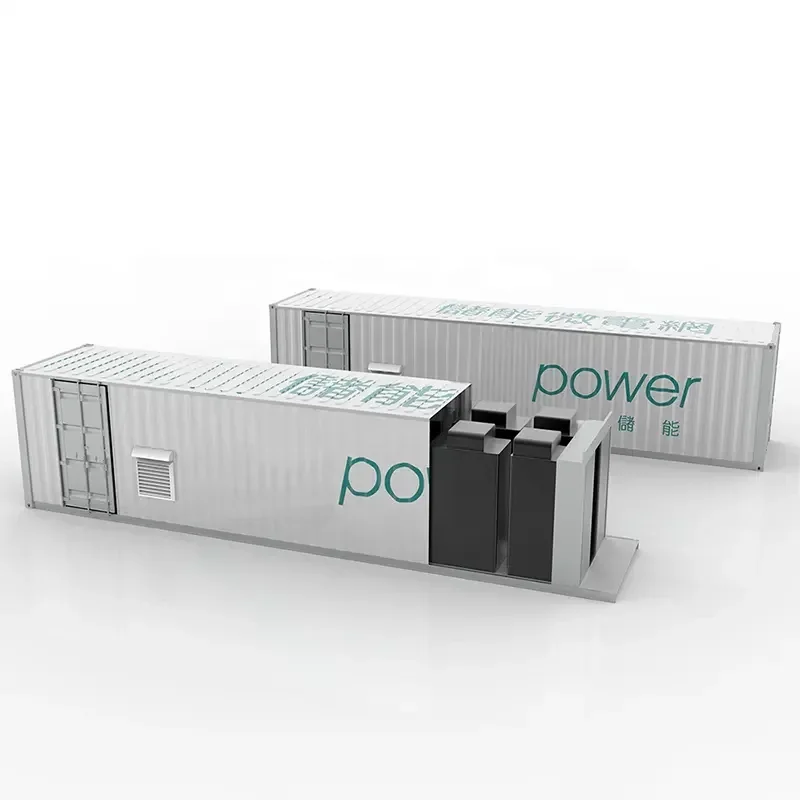

W-TEL Turn Key Solution for Energy Storage System
Certifcations
Projects Show

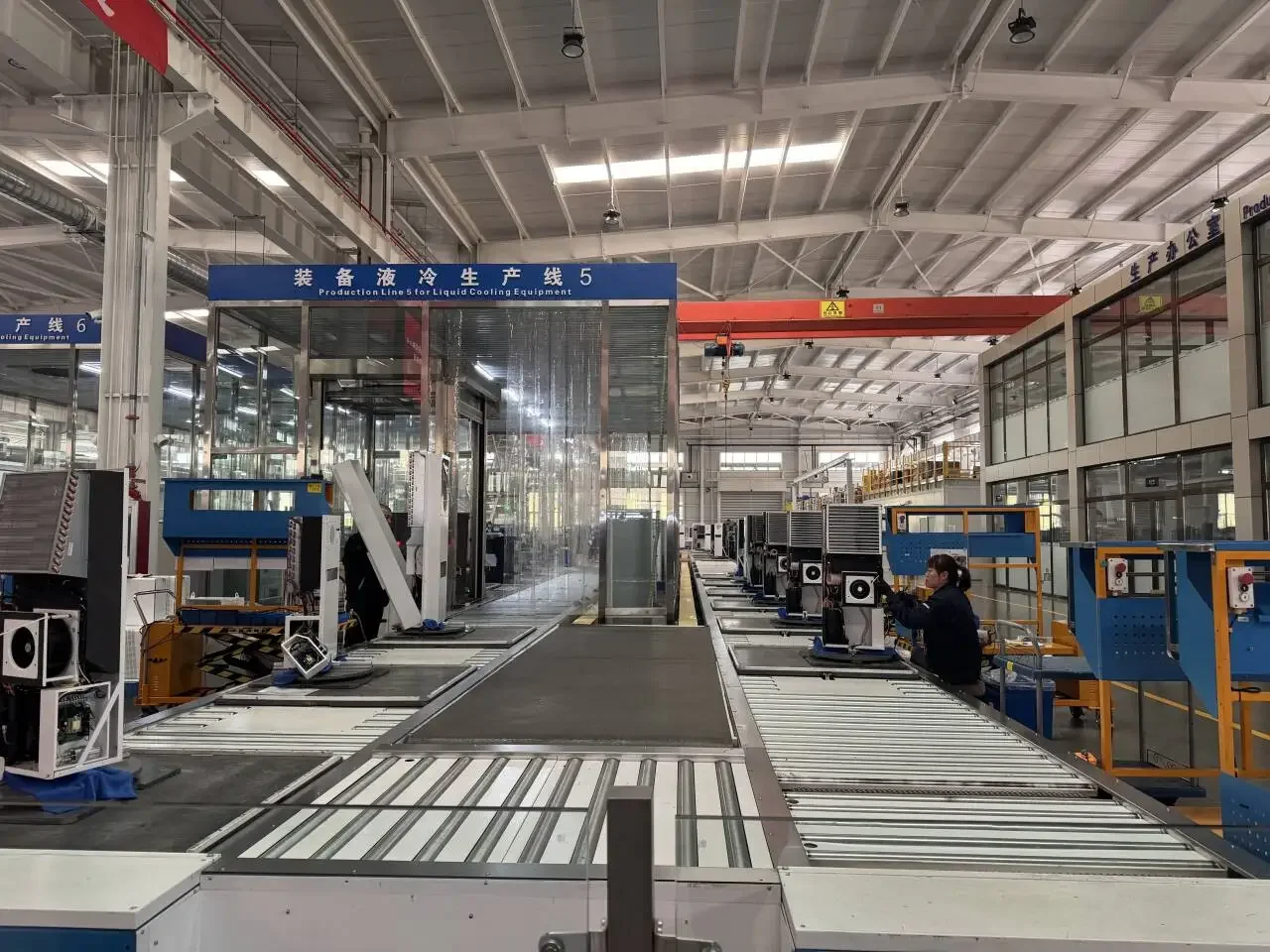

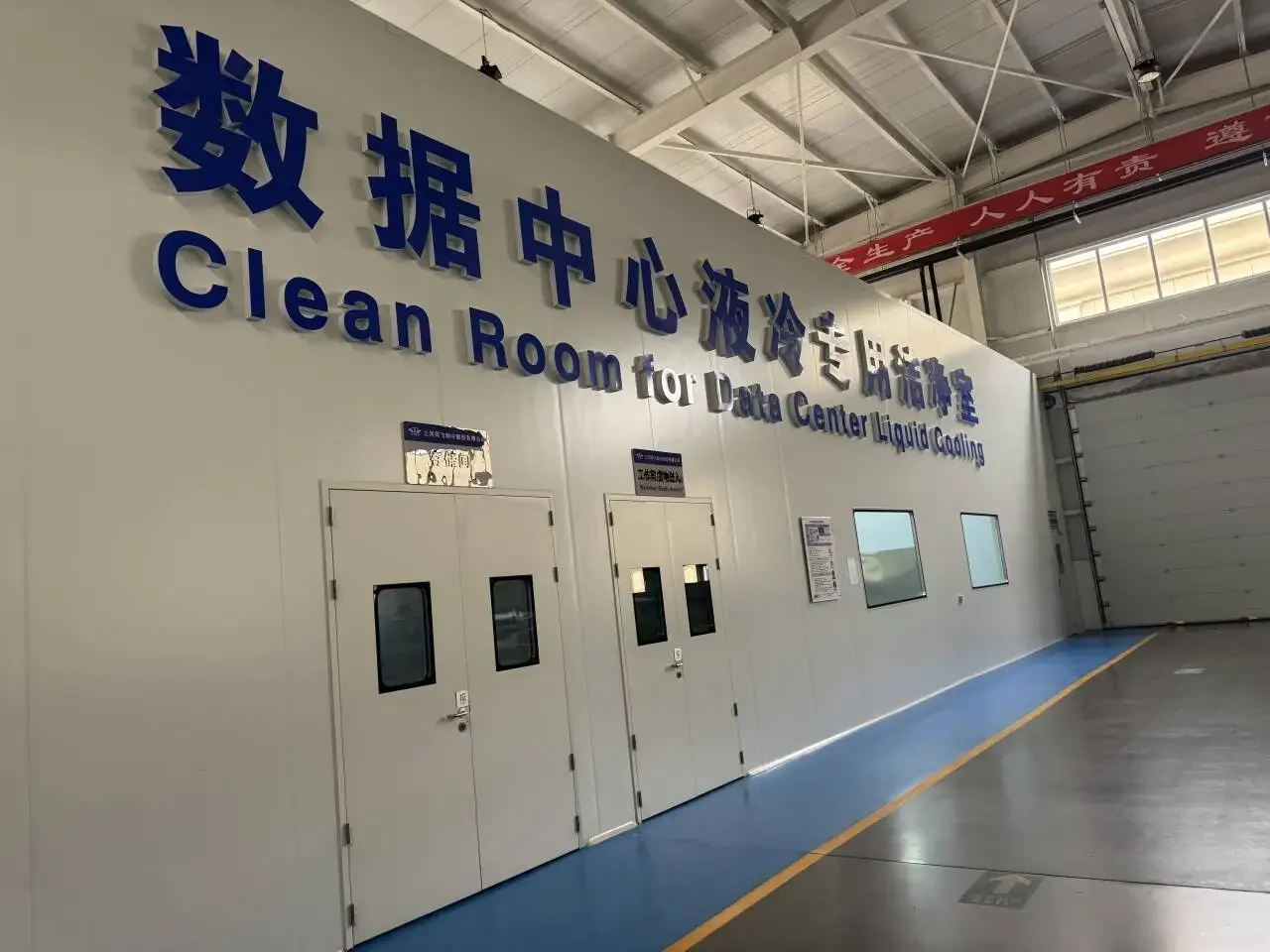

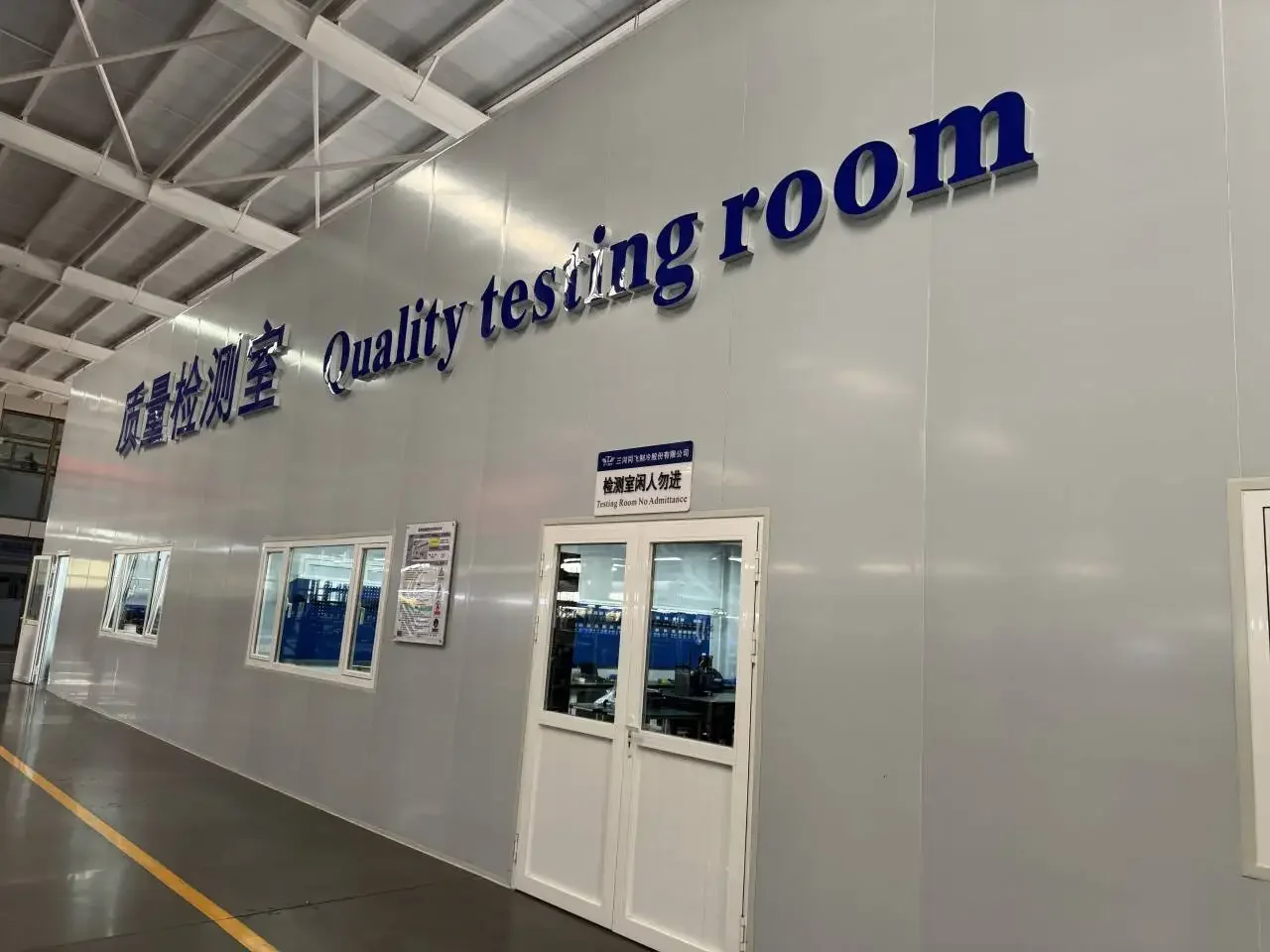

Exhibitions & Factory Visiting

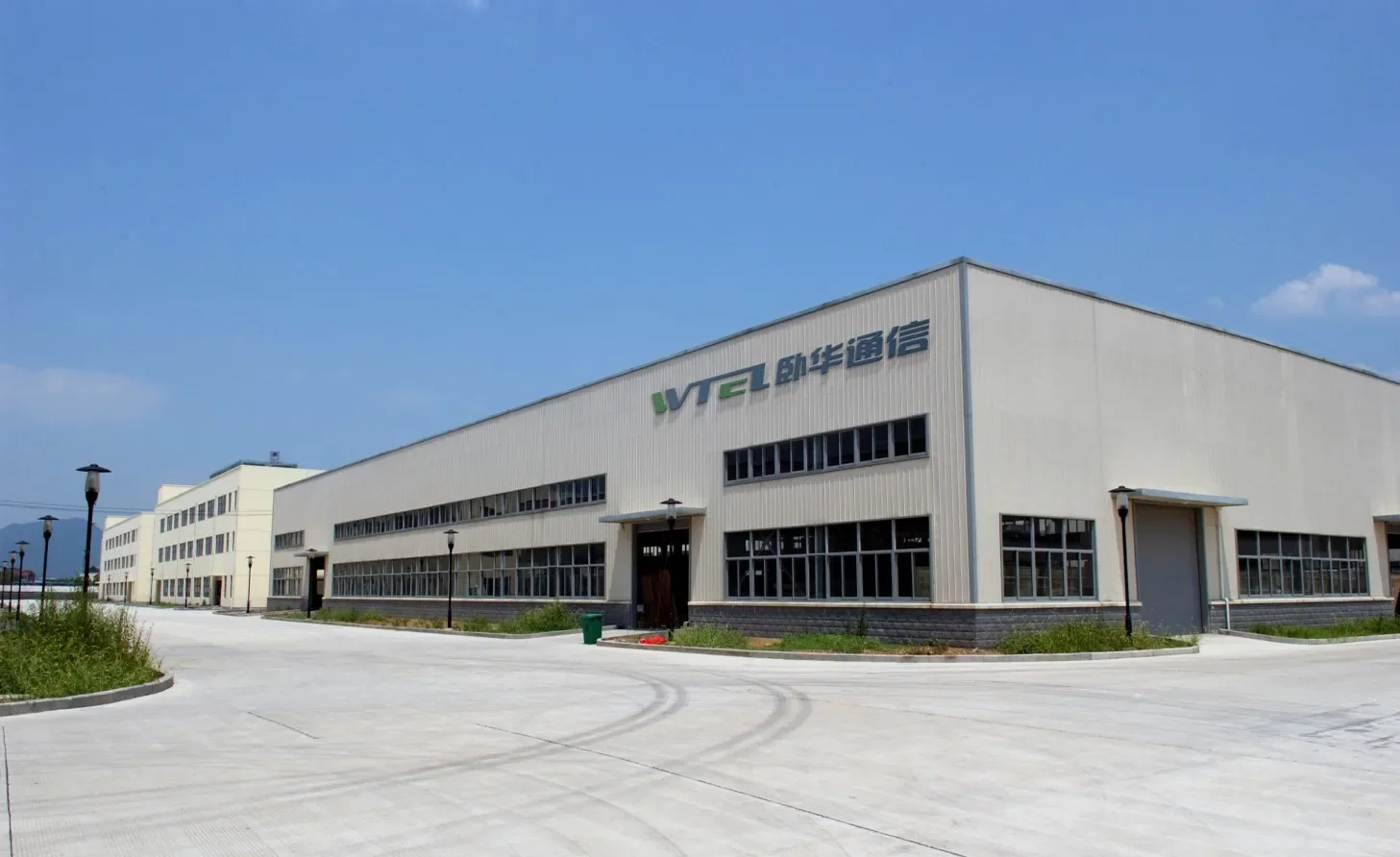

Company Profile
Shanghai Warner Telecom is a global leader in the manufacture and supply of telecommunications equipment,network solution and energy saving system. As a science & technology innovative company, we are dealing with the R&D, manufacture, distribution and after-sales services of optical network communication equipment, optical fiber cable distribution products, telecom shelters and outdoor telecommunication cabinets with it’s related power system ,control system ,cooling system ,battery system etc .Head of company located in shanghai ,3 branch factory : FTTX factory located in Hebei Province with an area of more than 8,000 square meters, power control factory located in Shenzhen and thermal control factory in Suzhou . Warner has a well-established team of experts who can meet customers’ specific needs accurately.
We are an ISO9001:2000 certified manufacturer and exporter, our products widely used in Telecom, Netcom, mobiles, underground projects, highways, airports and railways. China Telecom, China Mobile, China Unicom and huawei / ZTE as main customer domestically. Our products are widely exported to dozens of countries and regions, such as Russia, India, France, the USA, Australia, Malaysia and Singapore, used by SingTel, Turk Telecom, BSNL India, Viettel, Etisalat, Telestra, Mobily-Saudi Telecom,Rostelecom etc.
FAQ
Q: Are you a factory or a trading company only?
A: We are a manufacturer from Shanghai and support customization.
Q: Where can I get product & price information?
A: Send us an inquiry e-mail, we will contact you as we receive your mail.
Q: Do you offer the sample, and is the free sample available?
A: Yes, Sample available but not for free. However we will return sample charge for order in bulk.
Q: How does your factory do the quality control?
A: We have quality inspection department, each process has the corresponding quality control standards, each workshop is equipped with quality inspection personnel.
Q: How long is the delivery time?
A: It depends on the order quantity. 1 PCS: 7-10 days; 2-10 PCS: 14days; 11-50 PCS: 14+days.
Q: Can you supply OEM products with my brand, and my logo?
A: Yes, depend on annual volume ordered.
Q: Do you have the products in stock?
A: Yes. In addition, we provide customized solution.
Q: What is the payment method?
A: Payment: 30% in advance and 70% before shipping.
Q: How about the after sales service?
A: Free accessories replacement during warranty, certain fee will be charged according to the accessories beyond the warranty.
Frequently Asked Questions
What is the minimum order quantity for this liquid cooling dry cooler?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this liquid cooling dry cooler?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
