Key specification for this adiabatic dry cooler: 380 V, 220 V, 400 V, 1110cfm. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.

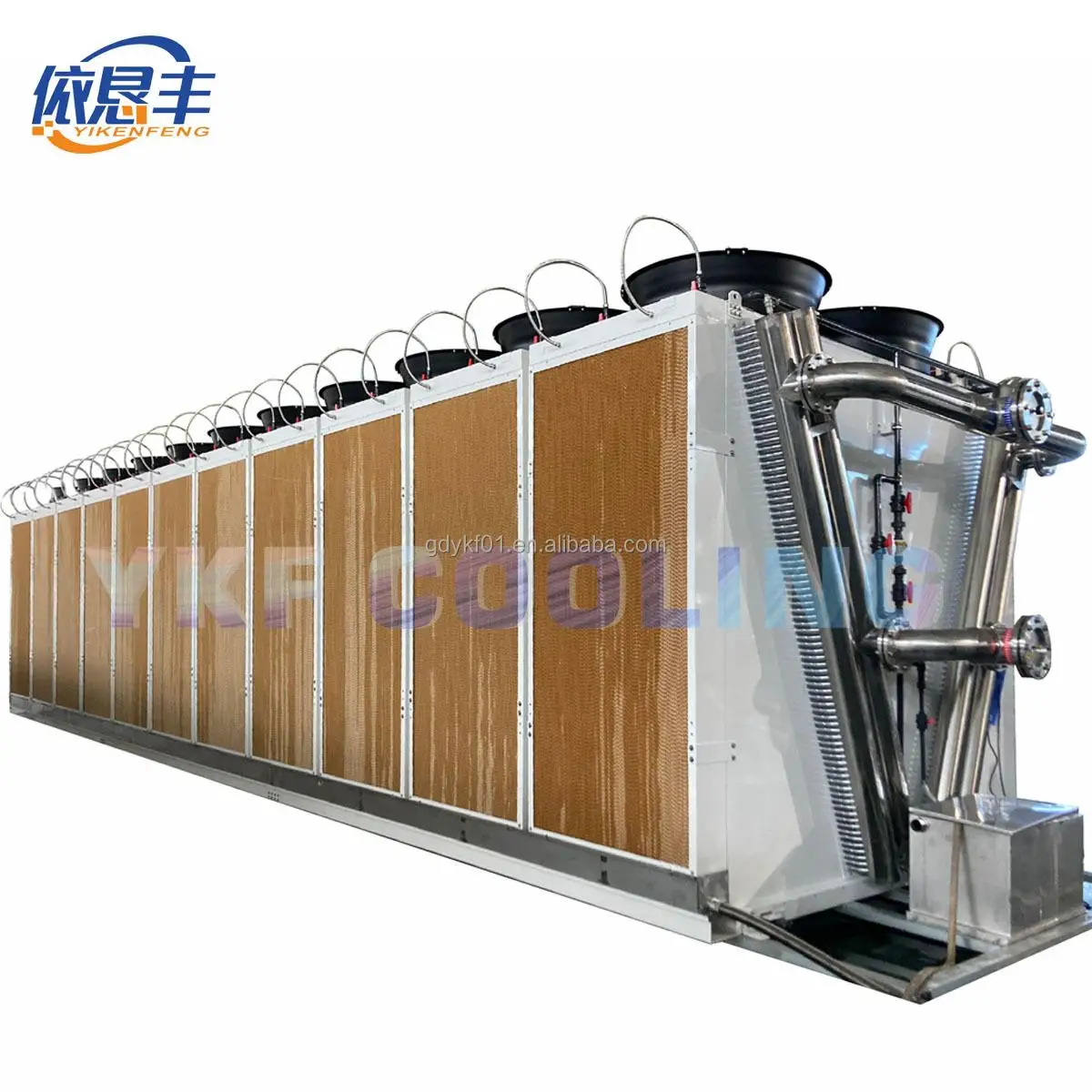

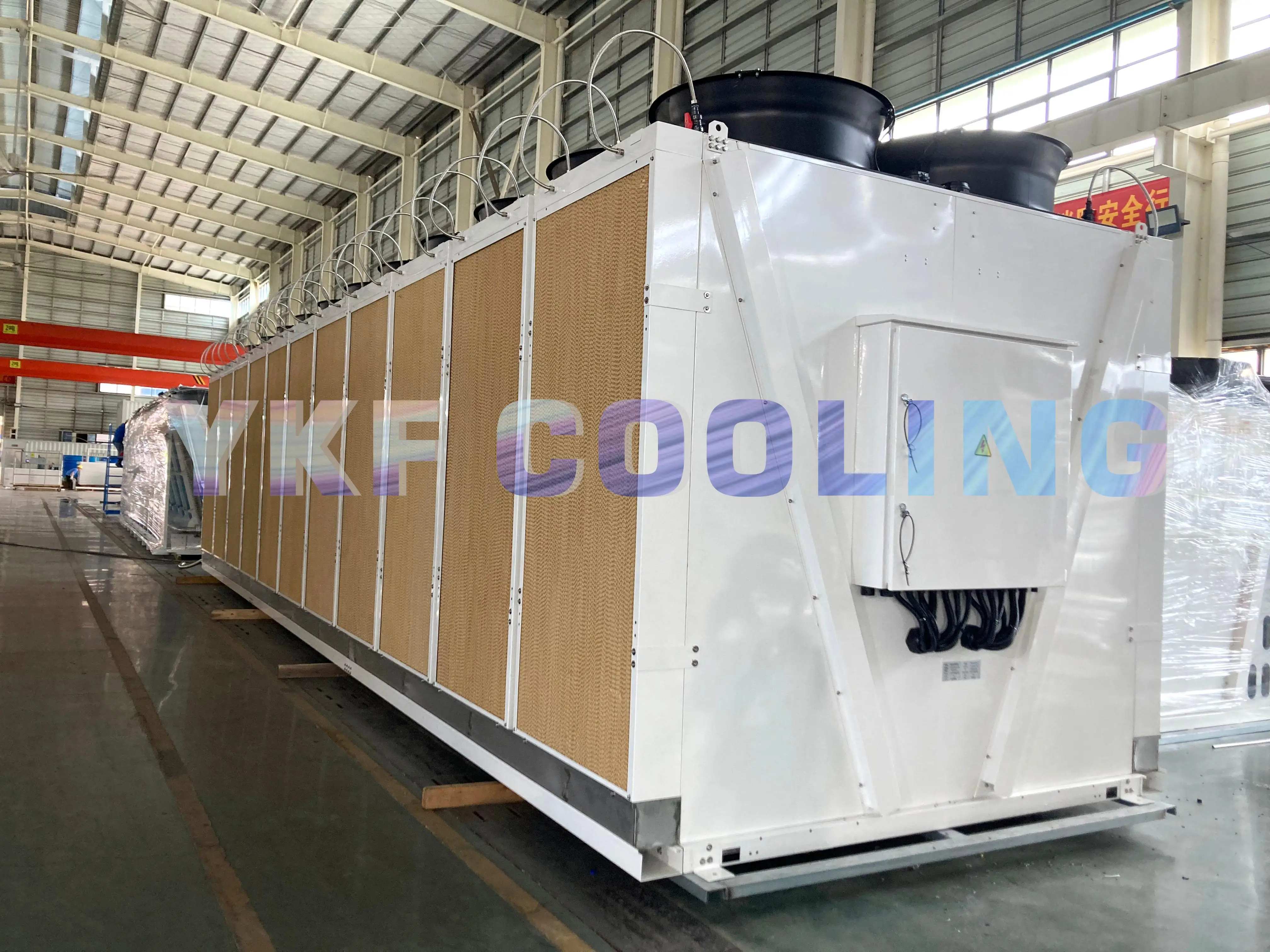

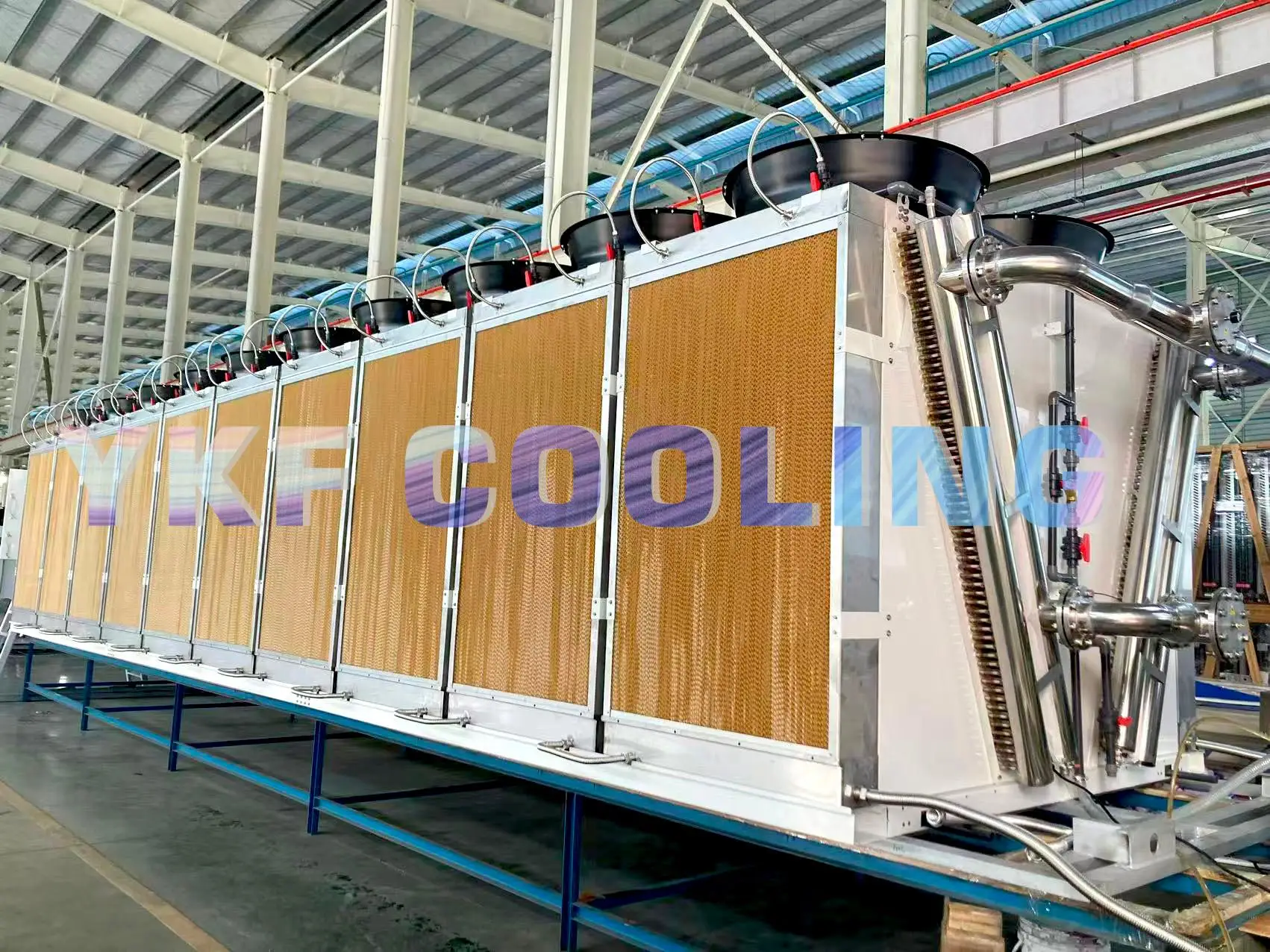

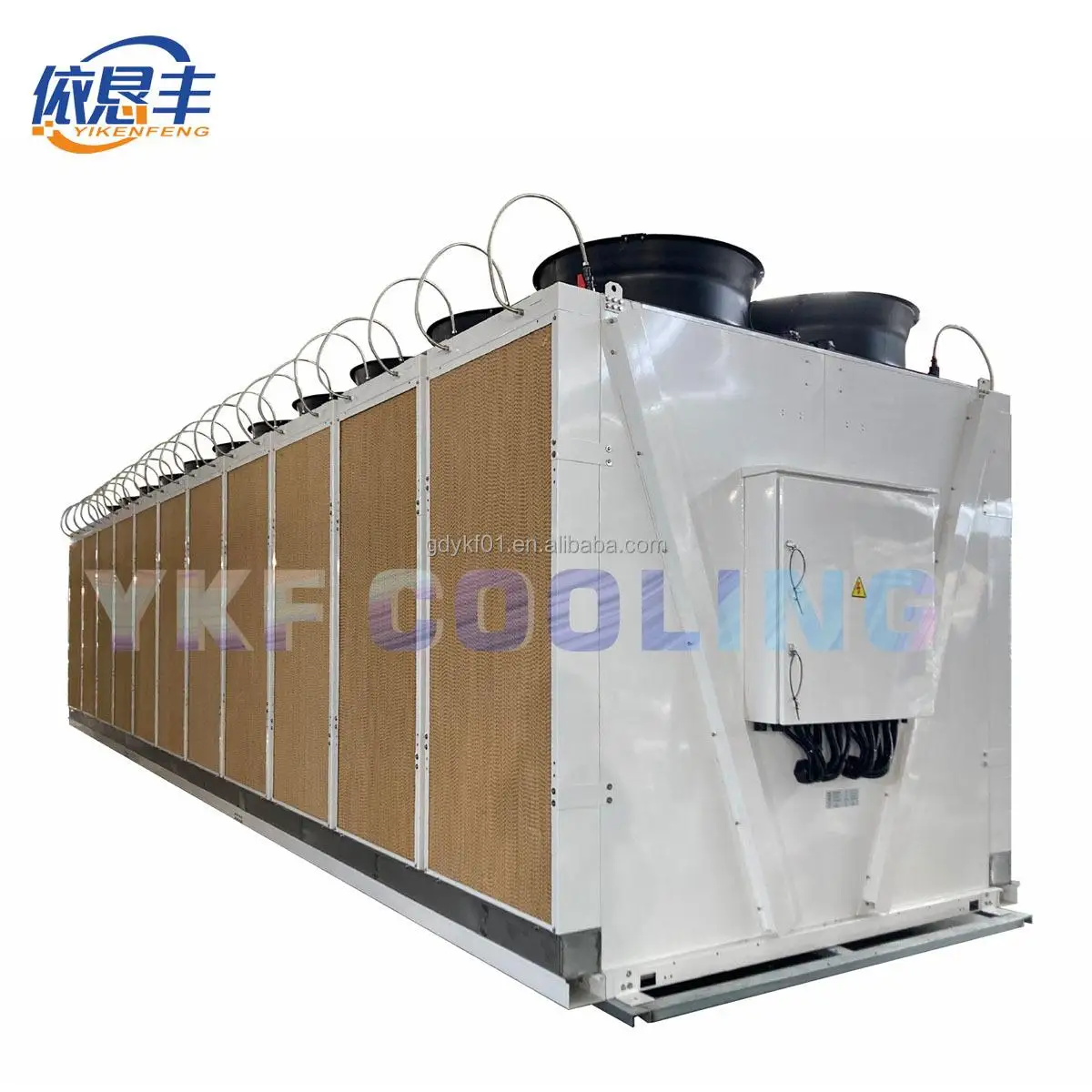

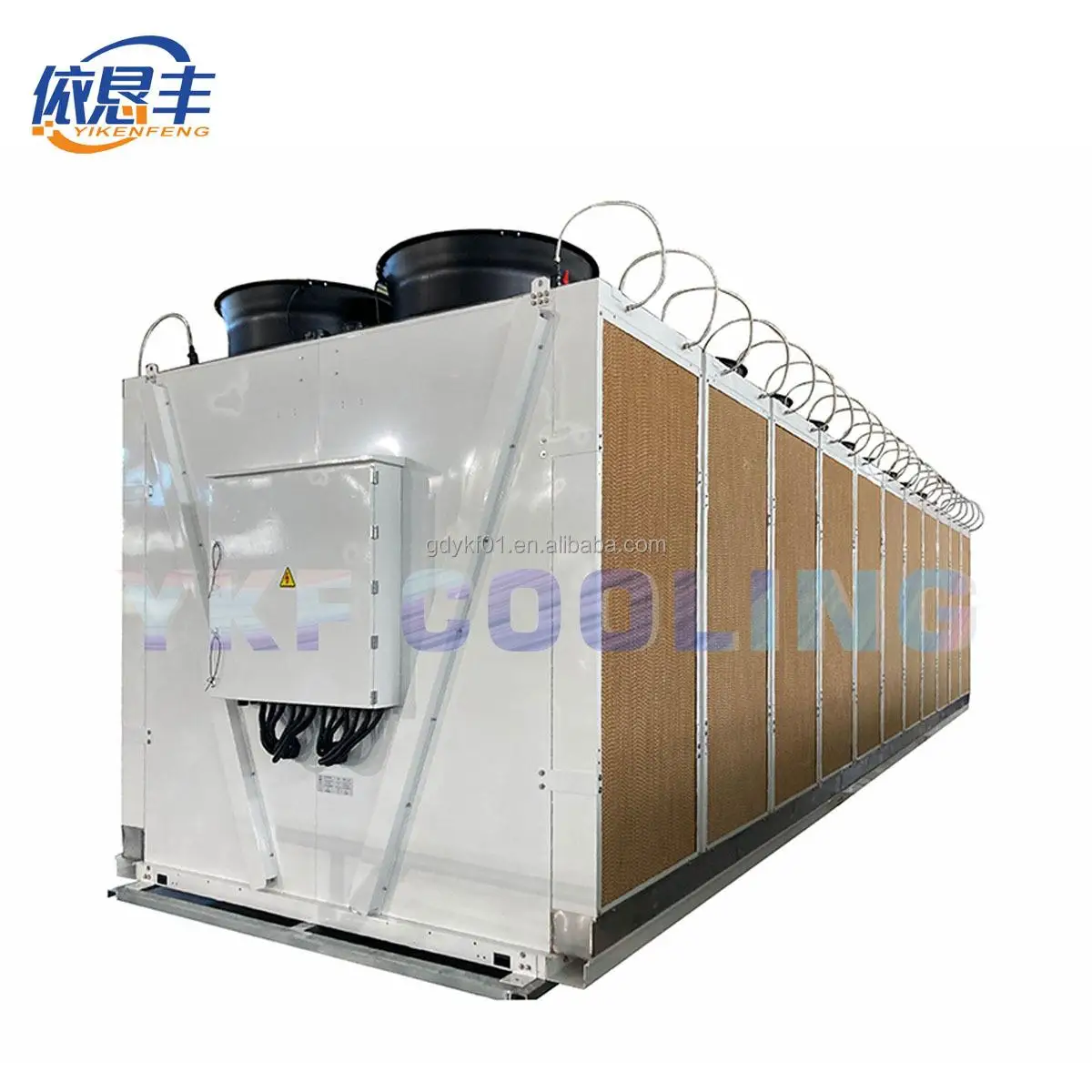

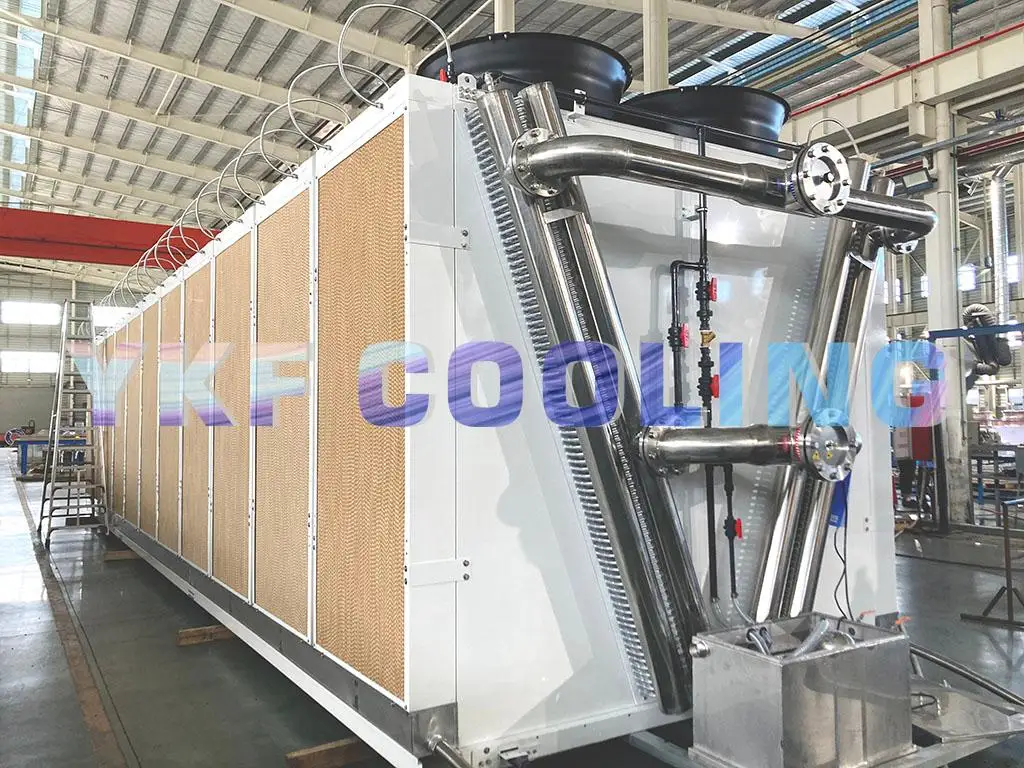

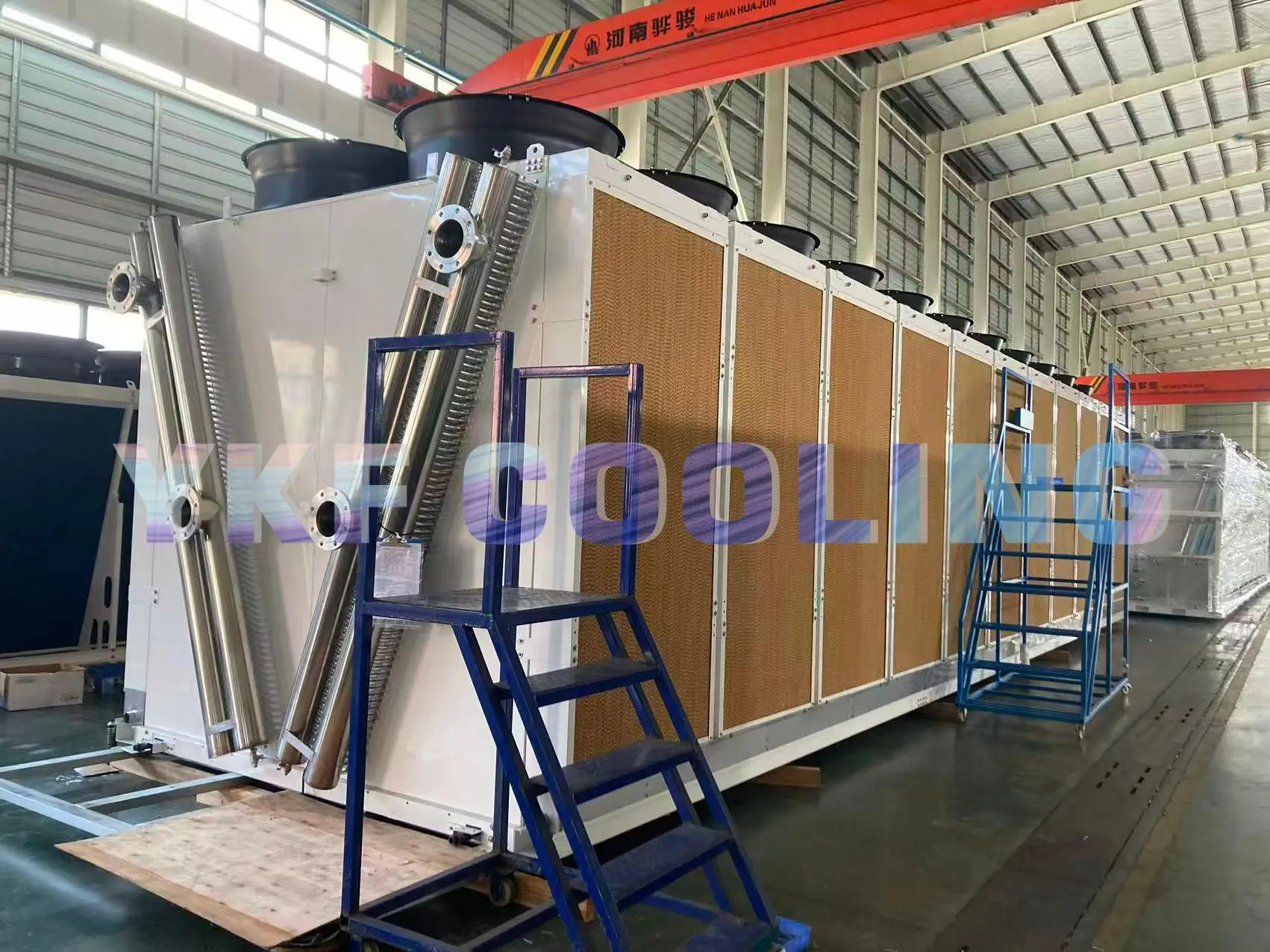

An adiabatic dry cooler pre-cools the incoming air through wet curtains before it reaches the coil, which recovers most of the capacity a conventional dry cooler loses when ambient temperature climbs — without the year-round water consumption and treatment of a full evaporative system. That trade-off is exactly right for hot regions with limited water. 800kW capacity with 1110cfm axial fans at 220V, 380V or 400V.
Key Features of This Adiabatic Dry Cooler
- Voltage: 380 V, 220 V, 400 V
- Cooling Capacity: 800Kw
- Maximum Airflow: 1110cfm
- Refrigerant: Water
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Fan Type | Axial Fan |
|---|---|
| Maximum Airflow | 1110cfm |
| Compressor Brand | N/A |
| Cooling Capacity | 800Kw |
| Refrigerant | Water |
| Temperature | -20-8c |
| Place Of Origin | Guangdong, China |
| Voltage | 380 V, 220 V, 400 V |
| Warranty | 1 Year |
| Weight (KG) | 5000 |
| Compressor Type | N/A |
| Brand Name | YKF/ OEM |
| Selling Units | Single item |
| Single Package Size | XX cm |
|

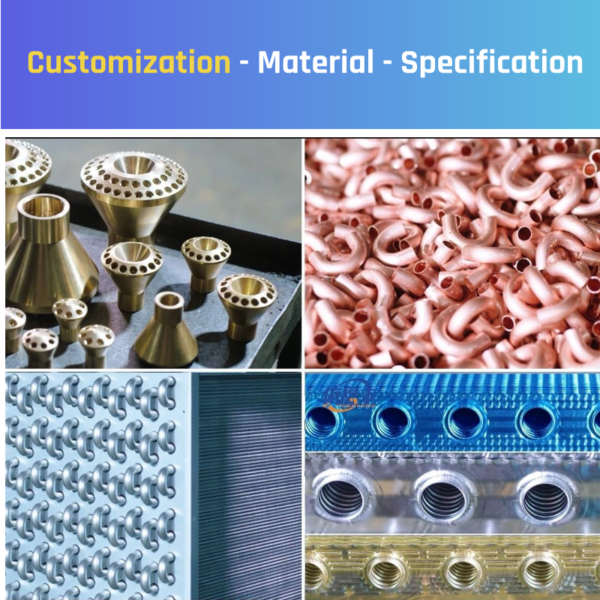

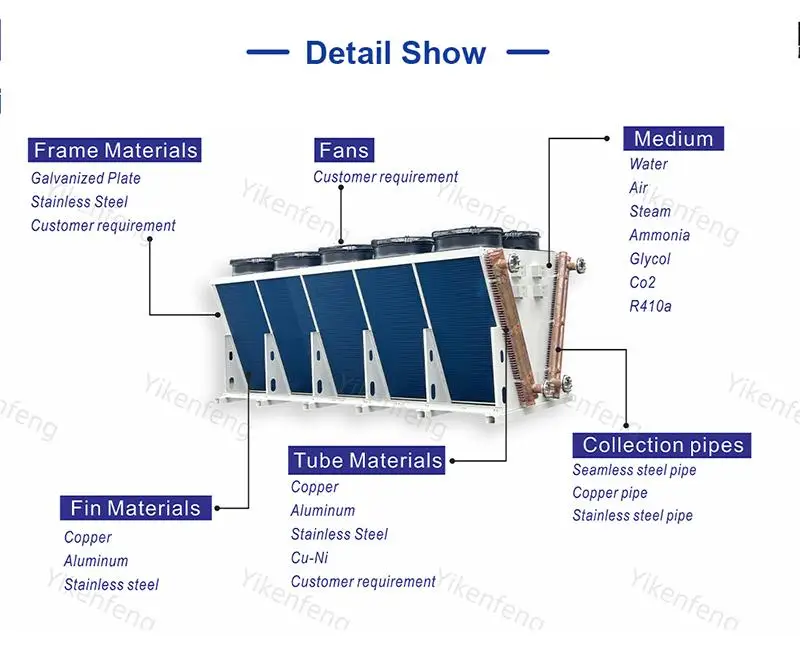

ITEMS
|
AVAILABLE SPEC FOR OEM
|
||||||
|
TUBES
|
Material
|
Copper, Stainless stell. Cu-ni
|
|||||
|
Dimension
|
7.00mm/ 9.52mm/ 12.7mm/ 15.88mm
|
||||||
|
Fins
|
Material
|
Aluminum, red copper, stainless steel
|
|||||
|
Mold specification
|
21*18.19mm/ 25*21.65mm / 25.4*22mm/ 31.75*27.5m
38.1*33mm/ 48*41.57mm /50*50mm
|
||||||
|
Frame
|
Material
|
Galvanized steel, stainless steel of 201/ 304/ 316
|
|||||
|
Thickness
|
1 -3 mm
|
||||||
|
COLLECTION PIPE
|
Material
|
Copper pipe, seamless steel pipe, stainless steel pipe
|
|||||
VR
Frequently Asked Questions
What is the minimum order quantity for this adiabatic dry cooler?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this adiabatic dry cooler?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380 V, 220 V, 400 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
