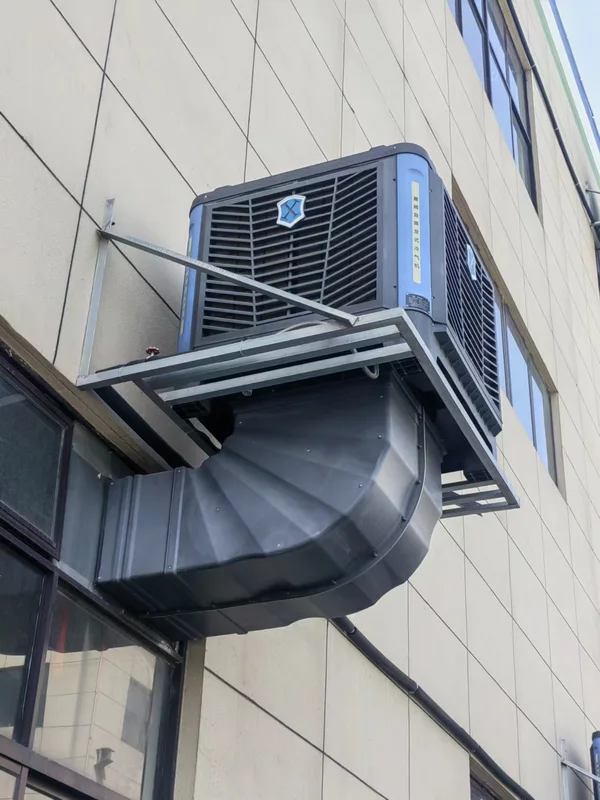

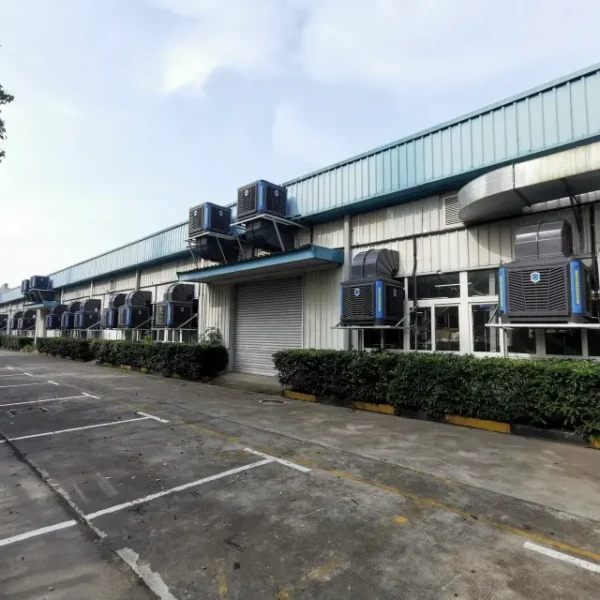

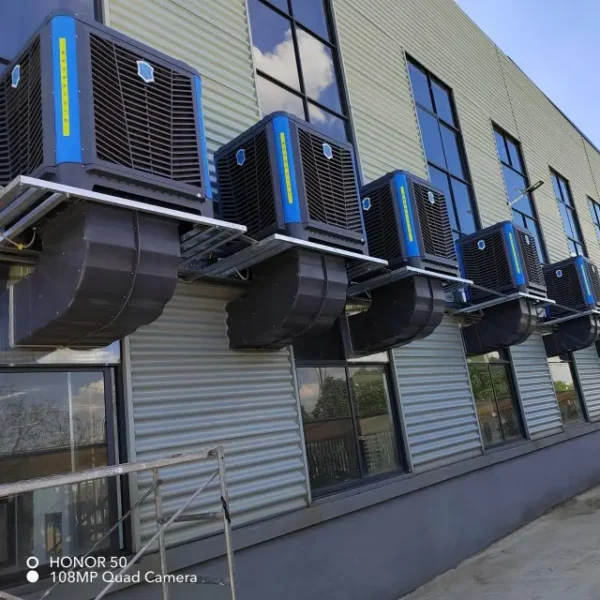

This wall-mounted air cooler is listed with the manufacturer’s full published specification — voltage 220V/380V/50HZ, power 1.1KW, type EVAPORATIVE AIR COOLER. It is produced by Jiangsu Lai Shi Environmental Protection Technology Co., Ltd., a verified supplier of 5 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Wall-Mounted Air Cooler
- Power: 1.1KW
- Voltage: 220V/380V/50HZ
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: Industrial Buildings
- Type: EVAPORATIVE AIR COOLER
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Mounting Type | Wall / Window Mount |
| Compressor Brand | none |
| Fan Motors Type | AC |
| Key Selling Points | Low Maintenance Cost, Easy To Operate, Competitive Price, Automatic, Remote Control, Long Service Life, Energy Saving, Low Noise Level, IOT |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 75 |
| Brand Name | Hawaii |
| Dimension(L*W*H) | 114*114*110(cm) |

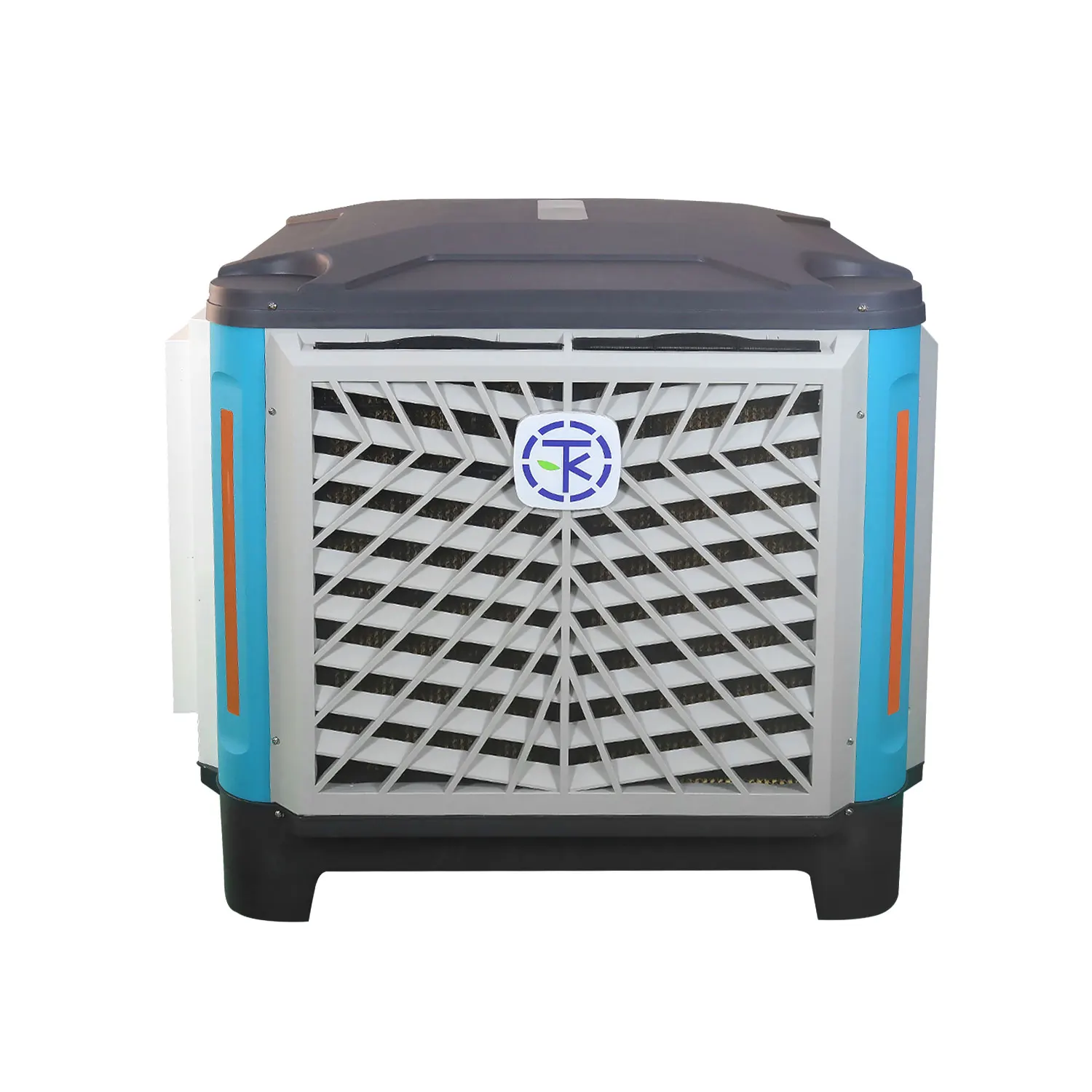

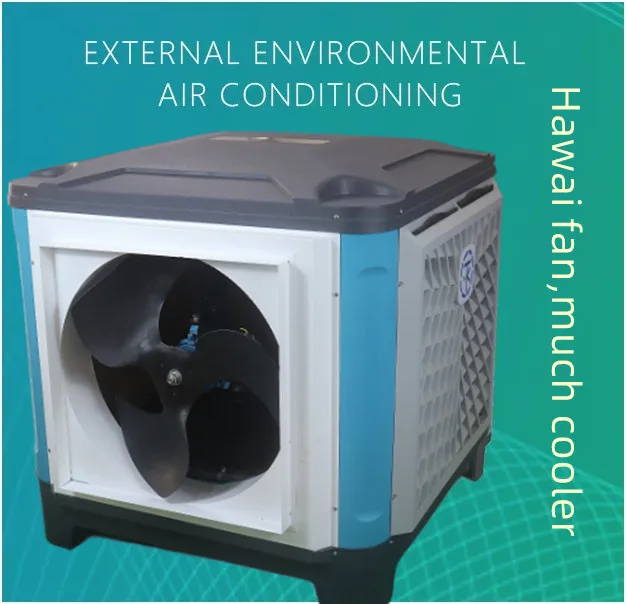

| Product Name | KT-20K OEM/ODM Air Cooler Evaporator |
| Application | Industrial Buildings |
| Function | Air Conditioning Ventilation |
| Voltage | 220V/380V/50HZ |
| Noise | ≤75dB |
| Outlet Size | 670x670mm |
| Air Volume | 20000m³/H |
| Power | 1.1KW |
| Vaporization | 75-85L/H |
| Shape Size | 1140x1140x1100mm |
| Selling Units | Single item |
| Single Package Size | 114X114X110 cm |
| Single Gross Weight | 75.0 kg |
Product Details
Product Description
Cooling Principle
Water evaporation absorbs heat. According to this principle, when water flows down from the upper part of wet curtain under the action of gravity, a water film will form on the surface of corrugated fiber material. When the flowing air passes through the wet curtain, the water in the water film will absorb the heat in the air and then evaporate, so as to take away a large amount of latent heat and reduce the temperature of the air passing through the wet curtain, so as to achieve the purpose of cooling, refrigeration and humidification.
2023 home hvac systems OEM/ODM Water Conditioning Big Water Cooler Desert Air Conditioner with cooling water dispensers
Shell fuselage features
The whole fuselage shell is made of new engineering materials with high strength and weatherability. Anti ultraviolet, anti aging, anti deformation, corrosion resistance, long service life and other characteristics, and has a dust filter screen template, evaporating wet curtain full edge, the frame fuselage adopts blue black color matching system, so that the equipment is more advanced. After installation, the overall image effect is more beautiful and texture, which is more in line with the requirements of high-end enterprises for the overall image of high quality.

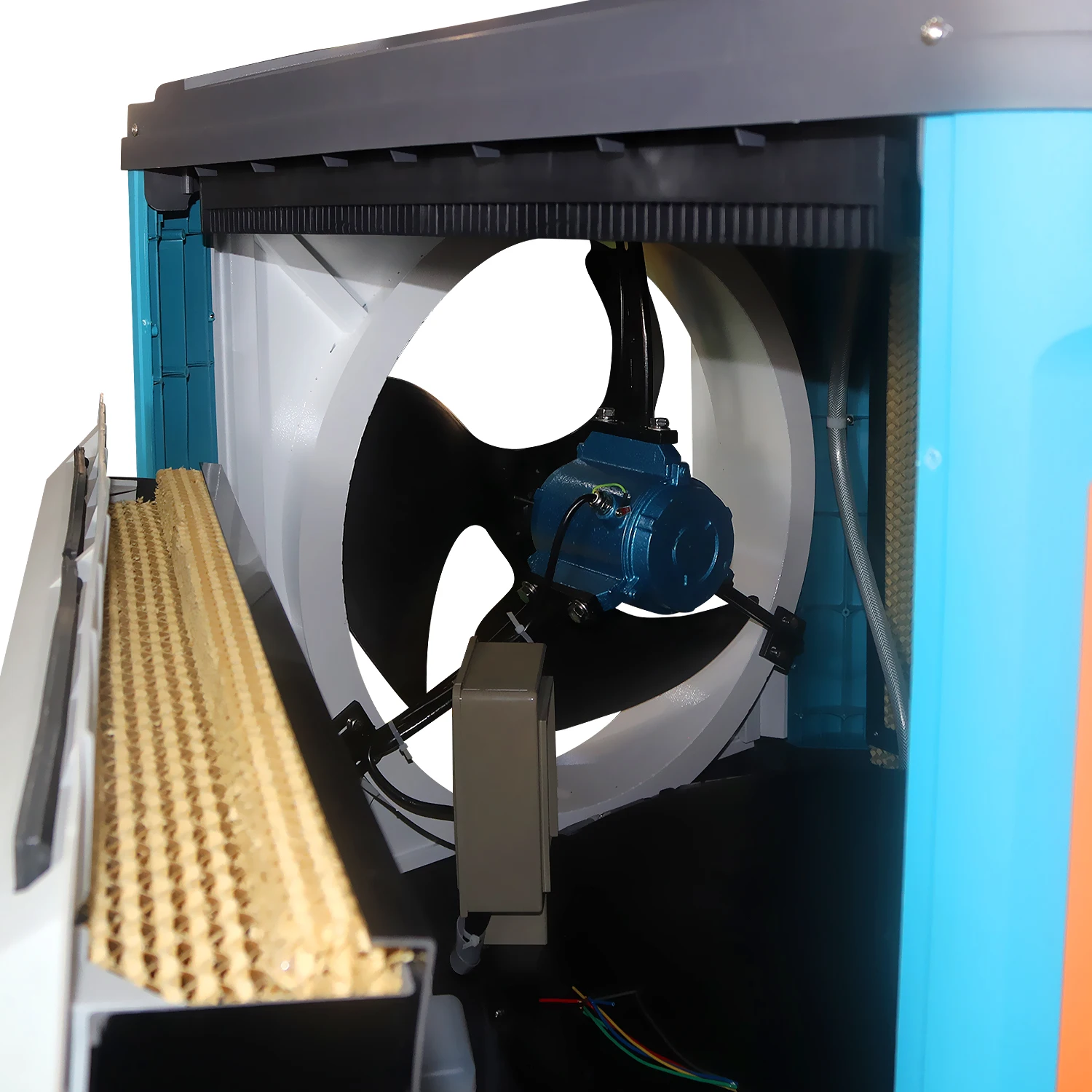

Power components
The core power component adopts cast iron / cast aluminum fully enclosed pure copper brand motor, with IP55 protection grade, waterproof and moisture-proof, F-class insulation protection, ensuring that the temperature rise of the motor is still stable under the continuous working state. Motor can be stepless frequency control (220 V / 380 V), to meet the needs of more working conditions.

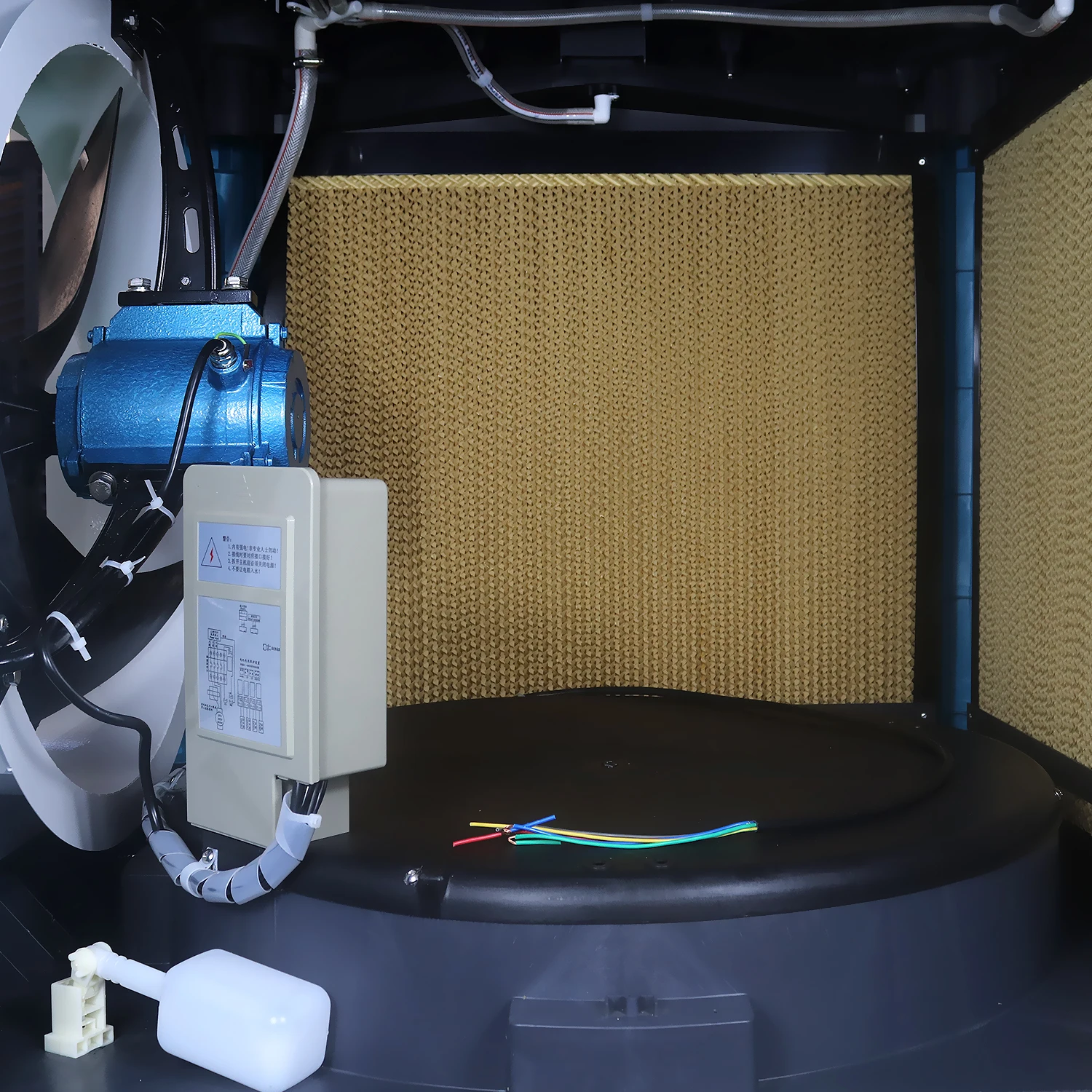

High efficiency evaporator
The environmental protection air conditioning evaporation wet curtain adopts high-quality base paper material, 5090 type has the characteristics of fine density, good water absorption, high wet stiffness, low shrinkage, no mildew and long service life. In the working process, it has the advantages of large evaporation area, more than 90% evaporation rate, high cooling efficiency and small pressure loss. It can also effectively remove dust particles in the air. The removal efficiency of PM10 is more than 90%, and that of PM25 is more than 40%
Specification
Product Number | KT-20K |
Product Name | Air Cooler Evaporator |
Type | Axial Flow |
OEM/ODM | Yes |
Operating Voltage | 220V/380V |
Mounting | Wall / Roof Mount |
Dimension(L*W*H) | 1140x1140x1100mm |
Air Volume | 20000m³/h |
Function | Air Conditioning Ventilation |
Voltage | 220V/380V/50HZ |
Noise | ≤75dB |
Outlet Size | 670x670mm |
Power | 1.1KW |
Water Consumption | 75-85L/H |
2023 electronic cooling water dispensers OEM/ODM Water Conditioning Big Water Cooler Desert Air Conditioner KT-20K OEM/ODM Air Cooler Evaporator provides you with 3 different directions of air outlets, you can choose according to your needs.

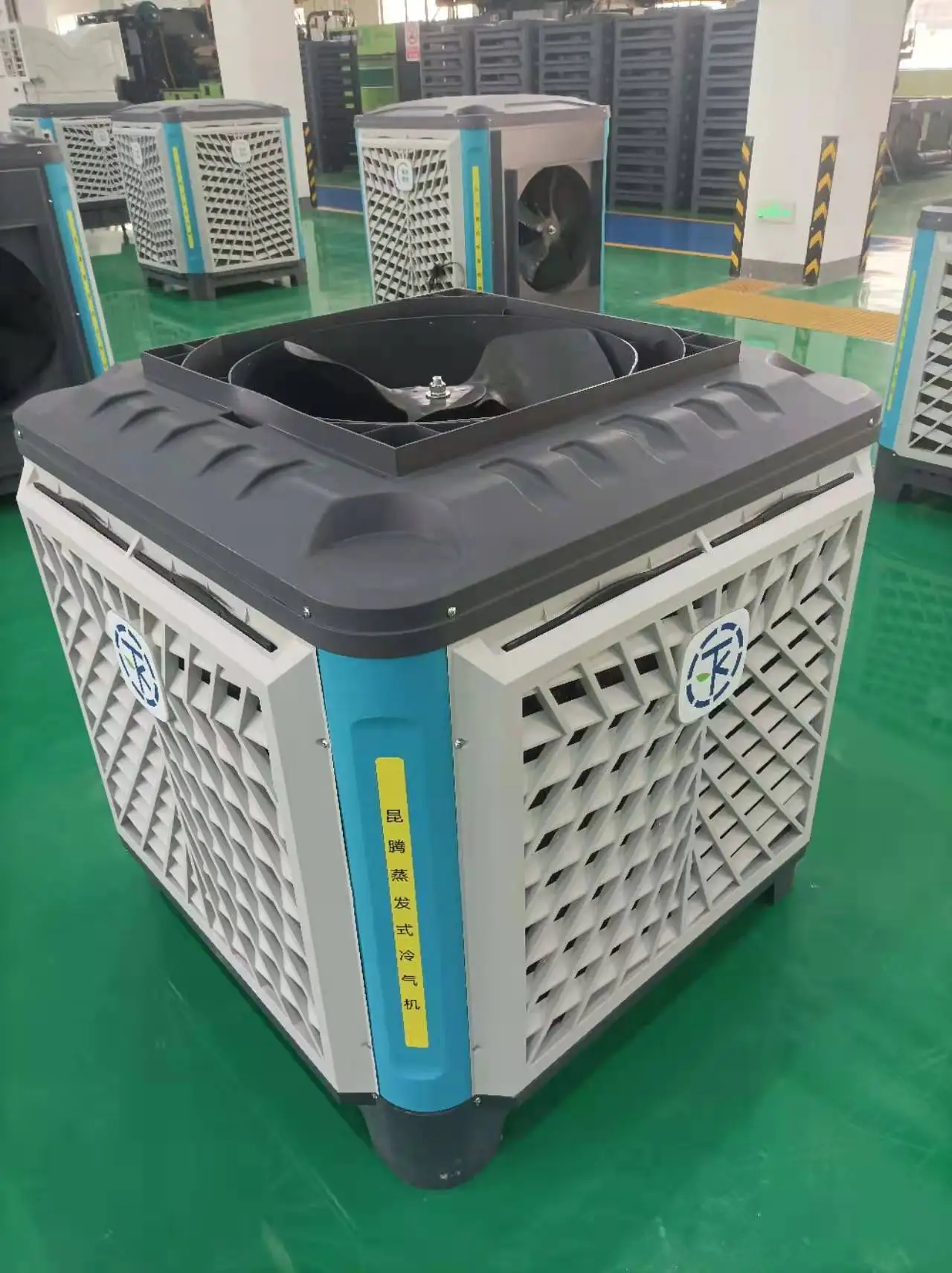

Type1-Upper Air Outlet (top discharge)

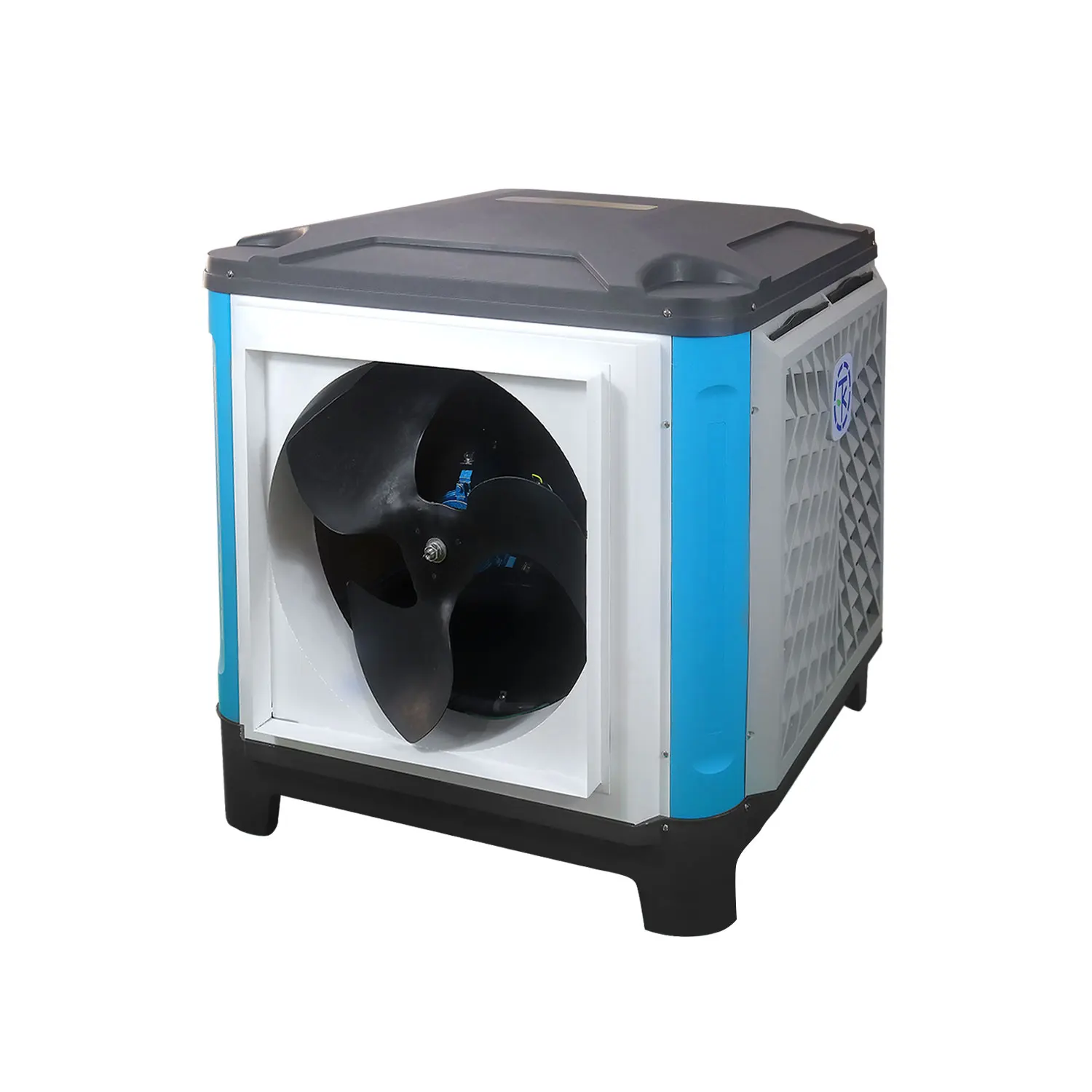

Type 2-Side Air Outlet (side discharge)
Type 3-Lower Air Outlet (bottom discharge)
2023 home hvac systems OEM/ODM Water Conditioning Big Water Cooler Desert Air Conditioner with cooling water dispensers Desert Air Conditioner We also have the following other models to choose from：
Model | Shape Size | Power | Outlet Size | Noise | Air Volume | Water Consumption |
KT-20K | 1140*1140*1100mm | 1.1kw | 670x670mm | ≤75dB | 20000m³/H | 75-85L/H |
KT-25K | 1140*1140*1358mm | 1.5kw | 670x670mm | ≤80dB | 25000m³/H | 75-90L/H |
KT-30K | 1350*1350*1260mm | 3kw | 760x760mm | ≤80dB | 30000m³/H | 80-100L/H |
KT-40K | 1350*1350*1260mm | 4kw | 760x760mm | ≤80dB | 40000m³/H | 95-120L/H |
2023 home hvac systems OEM/ODM Water Conditioning Big Water Cooler Desert Air Conditioner with cooling water dispensers
Company Profile
2023 home hvac systems OEM/ODM Water Conditioning Big Water Cooler Desert Air Conditioner with cooling water dispensers

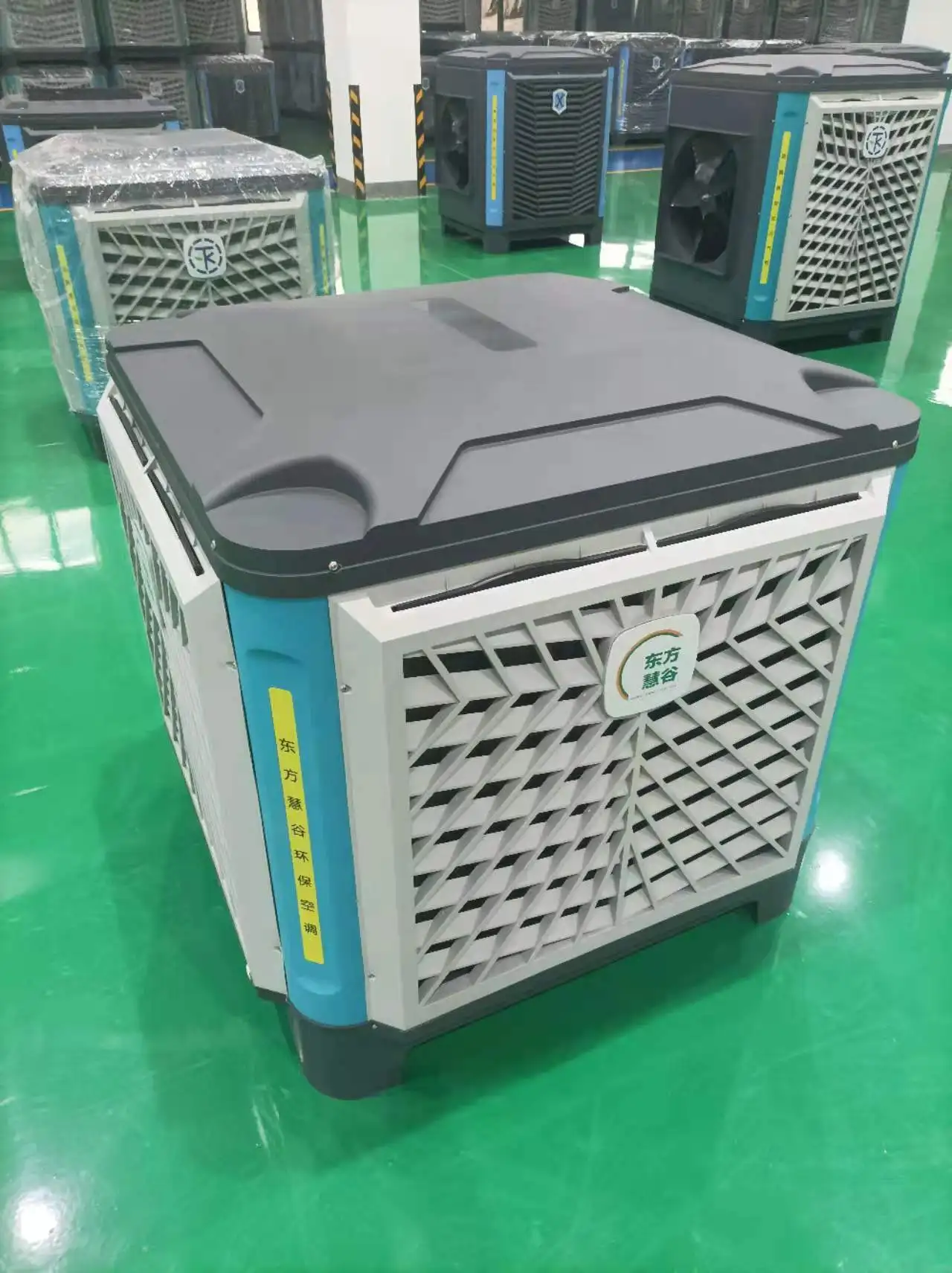

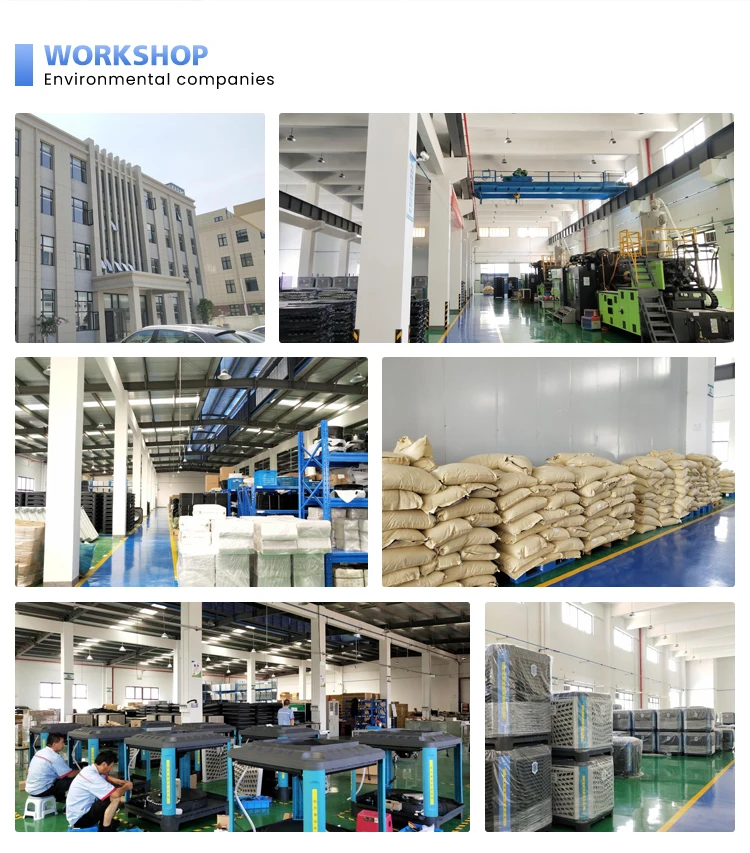

Workshop
Certifications
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.2023 heater water duct fan coil OEM/ODM Water Conditioning Big Water Cooler Desert Air Conditioner
FAQ
Q1: Is your company a manufacturer or a trading company? A: We are manufacturers, we have own trade company, we also have our own factory and design, sales team. Q2: Can I be your agent? A: Yes, welcome to deep cooperation. We have big promotion of LAISHI brand in the market now. For the details please contact with our overseas manager. Q3: What is the minimum order quantity? A: Usually, MOQ of exhaust fan, industrial ceiling fan, environmental protection air conditioner and air cooler is 10 sets. Small quantity we also can do, but the cost will be high. Q4: How to get samples to check the quality? How long can I get the samples? A: After the price is confirmed, samples can be provided for your evaluation, after confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, then arrive within 5-7days. Q5: What's your quality guarantee? A: We will offer client one year quality guarantee time. Q6: Do you have a discount? A: we will do our best to provide you with these services at the best price and quality service. Q7: What venue is suitable for installing industrial fans? A: Generally used in large workshops, warehouses, logistics transfer centers, livestock farms, etc. Q8: What are the benefits of installing industrial fans? A: The diameter of the ceiling fan in the industrial plant can reach 7.3m, and its unique streamlined fan blade can push a large amount of air to the ground at a low speed, thereby forming a breeze airflow. The human body feels a cooling of 3-5 degrees, which is as comfortable as natural wind. The traditional small fan will feel dizzy after blowing it for a long time. The energy-saving industrial fan solves this problem well.
2023 evaporative air cooler auto shutter Manufacturer OEM/ODM Water Conditioning Big Water Cooler Desert Air Conditioner
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $450 / set
- 10–99 set: US $390 / set
- 100+ set: US $340 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wall-mounted air cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the wall-mounted air cooler be supplied for my local voltage?
The standard configuration is 220V/380V/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Lai Shi Environmental Protection Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Lai Shi Environmental Protection Technology Co., Ltd. range on HVACR Nexus.
