Water Heat Pump, 10kw, 12kw, 16kw, R290

This water heat pump is listed with the manufacturer’s full published specification — power supply 220-240V/50Hz/1ph, heating capacity 8kw 10kw 12kw 14kw 16kw, power source Electric, Gas, Solar. It is produced by Qingdao Haier New Energy Electric Appliance Co., Ltd., a verified supplier of 4 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Water Heat Pump

• Model Number: HPM-Nd2
• Power Source: Electric, Gas, Solar
• Power Supply: 220-240V/50Hz/1ph
• Heating Capacity: 8kw 10kw 12kw 14kw 16kw
• Housing Material: Stainless Steel
• Refrigerant: R290

Technical Specifications

Product Details

PRODUCT HIGHLIGHTS

• A+++ High Efficiency: COP up to 5.1 | Max energy savings & lower utility costs
• Eco R290 Refrigerant: Natural, non-toxic, zero ozone depletion
• EVI DC Inverter Tech: Unfazed heating at -10°C | 75°C hot water at -15°C | Stable down to -30°C
• Full Inverter Technology: Significantly improves energy-saving effect by 15%

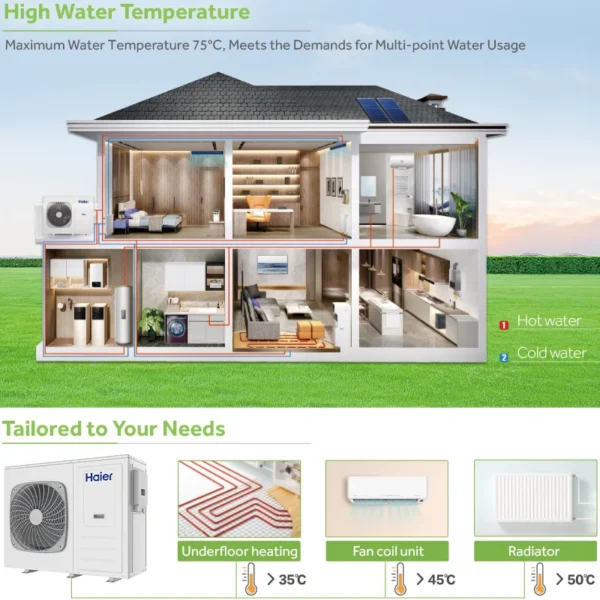

• High Water Temperature: Max 75°C Hot Water, meets diverse terminal heating needs
• Stable and Reliable: Haier ProWarm* delivers efficient heating, cooling, hot water in extreme cold
• Anti-freezing Protection: Auto heats to 15°C under ambient <2°C, water <7°C
• Smart Defrost: Multi-touch temp monitoring triggers smart defrost, more efficient than scheduled defrost
• Smartphone contro: Remote access anytime, anywhere for smart life
• Powerful and Money Savings: Combinable with other heat sources and save energy by saving mode
• Low Noise: Adopts multiple noise reduction technologies, min 66dB

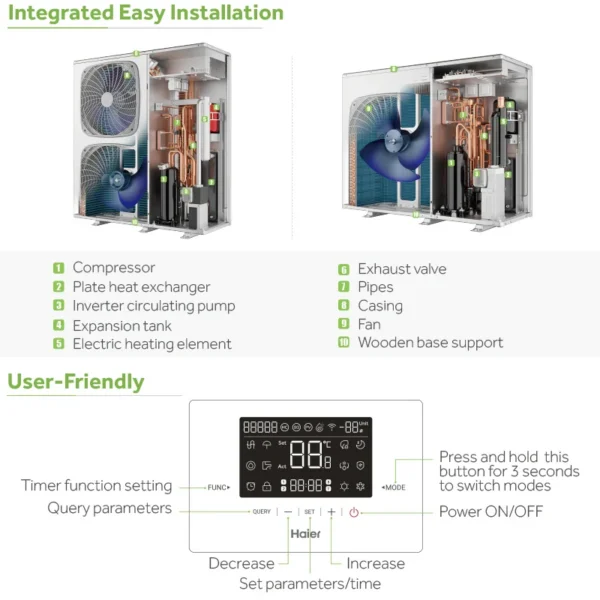

• Easy Installation: All-in-one design and easy installation

PRODUCT CATEGORIES

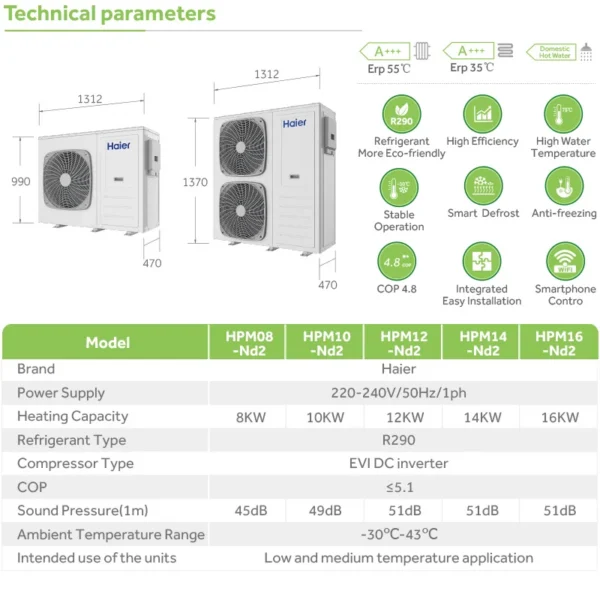

SPECIFICATIONS

China Wholesale Prices New Energy High Temperature High COP Household Domestic Hot Water EVI Full DC Inverter R290 Air Source Monoblock Air To Water Heat Pump For Heating And Cooling
Model					HPM08-ND2	HPM10-ND2	HPM12-ND2	HPM14-ND2	HPM16-ND2
Intended use of the units					Low and medium temperature application
Power supply			V/Ph/Hz	220-240/1/50
Heating (AT7/6, WT30/35)	Capacity	kW	8	10	12	14	16
		Rated power input	kW	1.62	2.08	2.45	2.74	3.25
		COP	kW/kW	4.95	4.8	4.9	5.11	4.92
Heating (AT7/6, WT30/35)	Capacity	kW	8	10	12	14	16
		Rated power input	kW	2.42	3.03	3.43	4.24	5
		COP	kW/kW	3.3	3.3	3.5	3.3	3.2
Heating (AT7/6, WT30/35)	Capacity	kW	8	10	11.4	14	16
		Rated power input	kW	1.63	2.15	2.78	2.74	3.33
		COP	kW/kW	4.9	4.65	4.1	5.11	4.8
Heating (AT7/6, WT30/35)	Capacity	kW	8	10	11.4	14	16
		Rated power input	kW	2.5	3.33	4.07	4.52	5.51
		COP	kW/kW	3.2	3	2.8	3.1	2.9
SCOP	Average climate	35°C	4.9	4.9	4.9	5.2	4.9
		Average climate	55°C	3.85	3.85	3.85	3.9	3.9
Season space heating energy efficiency class	Average climate	35°C	A+++
		Average climate	55°C	A+++
SEER	Fan coil application	7°C	4.5	4.5	4.5	5.1	5.1
		Cooling floor application	18°C	6.3	6.5	6.2	7	7
Refrigerant	Type	–	R290
		Charge	kg	1.3	1.3	1.35	1.95	1.95
E-Heater Backup			kW	3	3	3	6	6
Sound Pressure(1m)			dB	45	49	51	51	51
Water pump	Rated water flow	m3/h	1.38	1.72	2.06	2.41	2.75
		Total water head	m	12.5	12.3	12	11.5	11.1
		Available water head	m	9	8.8	8.5	8	7.6
Maximum working pressure of refrigerant			Mpa	0.85/3.2
Water side safety valve			Mpa	0.6
Water proof grade			/	IPX4
Water side connection			in	1
Net dimension	W*D*H	mm	1312x470x990			1312x470x1370
Package dimension	W*D*H	mm	1362x567x1167			1362x567x1560
Ambient temperature range	Cooling	°C	10~48
		Heating	°C	-30~35
		DHW	°C	-30~43
Leaving water temperature range	Cooling	°C	5~25
		Heating	°C	24~75
		DHW	°C	30~60

Natural, Non-toxic and Free of Ozone-depleting

R290 is a high-purity propane refrigerant with a global warming potential (GWP) of 3, which means it will not contribute to ozone depletion as much as other options. It meets the environmental regulations of multiple countries, making it an Eco-friendly choice.

Excellent Thermodynamic Performance

Moreover, R290 refrigerant offers excellent thermodynamic performance, enabling higher water temperatures to meet various application demands.

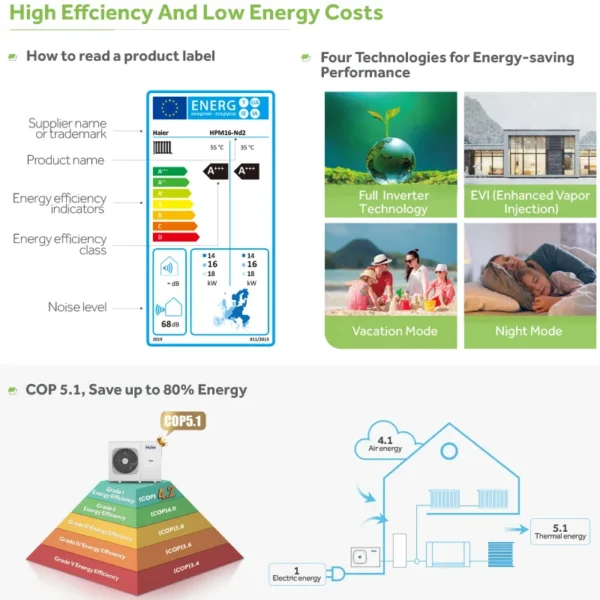

     FOUR TECHNOLOGIES FOR ENERGY-SAVING PERFORMANCE

The technologically advanced Haier ProWarm* takes a step ahead in efficiency and sustainability.

ABOUT THE SUPPLIERQingdao Haier New Energy Electric Appliance Co., Ltd., a comprehensive enterprise based in Qingdao, Shandong, specializes in the research, development, and manufacturing of solar energy systems, heat pumps, and refrigeration equipment, providing innovative and energy-efficient solutions for both domestic and international markets.

Our extensive production capabilities are supported by advanced facilities, including seven assembly lines and seven welding lines. Covering an area of 52,889 square meters, our factory employs 484 skilled professionals, among whom 40 are experienced R&D engineers holding postgraduate and undergraduate degrees, driving continuous innovation and technical excellence across all operations. We continuously drive innovation, introducing new products in just ten days to quickly meet evolving market demands. Our rigorous quality control system, carefully managed by a dedicated team of 10 experienced QA/QC inspectors, ensures every product meets the highest international standards.

Additionally, we offer comprehensive customization services, ranging from initial design to final packaging, which showcase our strong engineering expertise and commitment to providing flexible, tailored solutions that effectively cater to the diverse and specific needs of our global clients. Annually, we produce and sell large volumes of heat pump and refrigeration equipment, generating substantial revenue.

With over 11 years of export experience, we have successfully established a strong global presence, serving key markets in North America, Western Europe, and various other international regions worldwide. Our major clients consist of well-known retailers and leading brand businesses worldwide. We provide exceptional after-sales service to ensure complete customer satisfaction. Recognized for our excellence, we hold multiple prestigious

certifications including CE, CB, NF, and SOLAR KEYMARK, demonstrating our strong commitment to quality and industry standards.

CUSTOMIZATION CAPABILITIES

MORE

Over 11 Years Of Export Experience | Support OEM/ODM | Compliance And Quality Assurance | One-stop Service

PRODUCTION WORKFLOW

TRADE SHOW PARTICIPATION

PACKAGING & SHIPPING SPECIFICATIONS

CONTACT US

 FAQs

Who are we?

Established in 1984, Haier is the world's NO.1 major appliance brand. Qingdao Haier New Energy Electric Appliance Co, Ltd, established in June 2013, is a professional engaged in the research, development, sale and service of electric water heater, overseas heat pump, commercial heat pump and GEA water heater etc.

How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

What can you buy from us?

Heat pump water heater, air source heat pump, inverter heat pump, EVI heat pump, commercial heat pump water heater, commercial heat pump, instant electric water heater, storage electric water heater, solar water heater, gas water heater, etc.

Why should you buy from us not from other suppliers?

Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11global production base.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU;

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;

Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow;

Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian.

Ordering and Pricing

• Minimum order quantity: 2 piece
• Volume pricing:
  • 2–19 piece: US $2500 / piece
  • 20–49 piece: US $2200 / piece
  • 50–99 piece: US $2000 / piece
  • 100+ piece: US $1800 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water heat pump?

The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the water heat pump be supplied for my local voltage?

The standard configuration is 220-240V/50Hz/1ph. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingdao Haier New Energy Electric Appliance Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Haier New Energy Electric Appliance Co., Ltd. range on HVACR Nexus.
