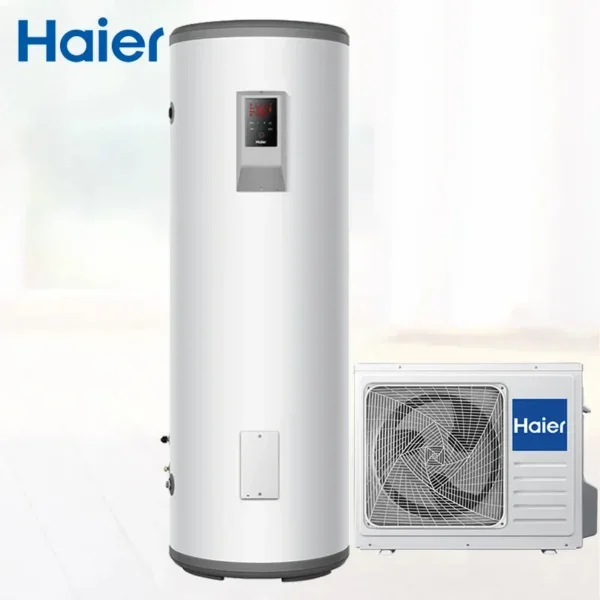

This and water heater is listed with the manufacturer’s full published specification — power supply 230v/50hz, power source Electric, refrigerant R134a. It is produced by Qingdao Haier New Energy Electric Appliance Co., Ltd., a verified supplier of 4 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This And Water Heater
- Model Number: HPWH-200/300S1
- Power Source: Electric
- Power Supply: 230v/50hz
- Housing Material: Stainless Steel
- Refrigerant: R134a
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A |
| Application | Hotel, Commercial, Household |
| Refrigerant | R134a |
| Storage / Tankless | Storage |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving, Safe, High Efficiency |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Onsite Installation, Return and Replacement, Field Maintenance and Repair Service, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Packaging Types | Corrugated Box, Color Box, Gift Box |
| Place Of Origin | Shandong, China |
| Brand | Haier or OEM |
| Model Number | HPWH-200/300S1 |
| Product Name | New Energy Air To Water Heat Pump Water Heaters |
| Keyword | Heat Pump Water Heaters |
| Function | House Heating Cooling Hot Water |
| Heat Exchanger | Titanium Heat Exchanger |
| Compressor | DC Inverter Compressor |
| Heat Source | Air Source 80%+electricity20% |
| Tank Volume | 195L/293L |
| Power Supply | 230v/50hz |
| Max Hot Water Temperature | 75C |
| Selling Units | Single item |
| Single Package Size | 67.6X63.6X192.7 cm |
| Single Gross Weight | 89.0 kg |
Product Details

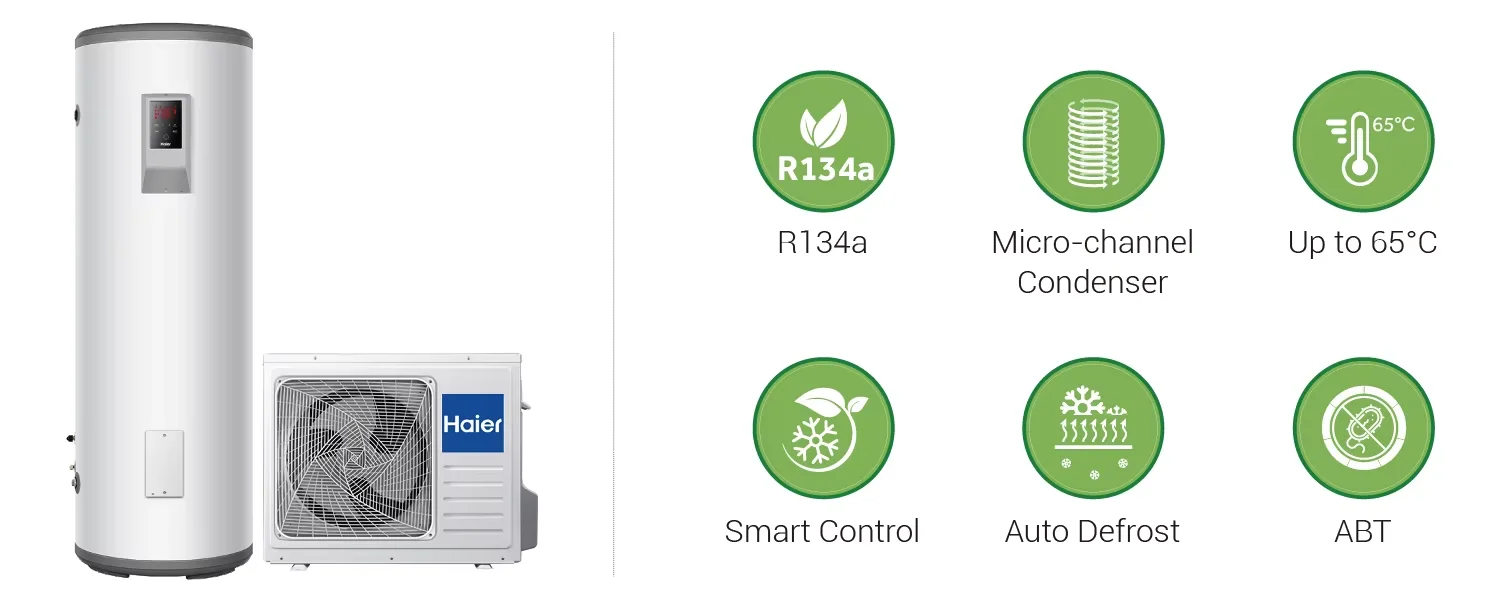

PRODUCT HIGHLIGHTS
- Class A+ High Efficiency: COP 3.8 and 78% for energy savings
- High Temperature: Provides hot water up to 75°C for efficient hot water
- R134A Refrigerant: Natural, non-toxic, zero ozone depletion

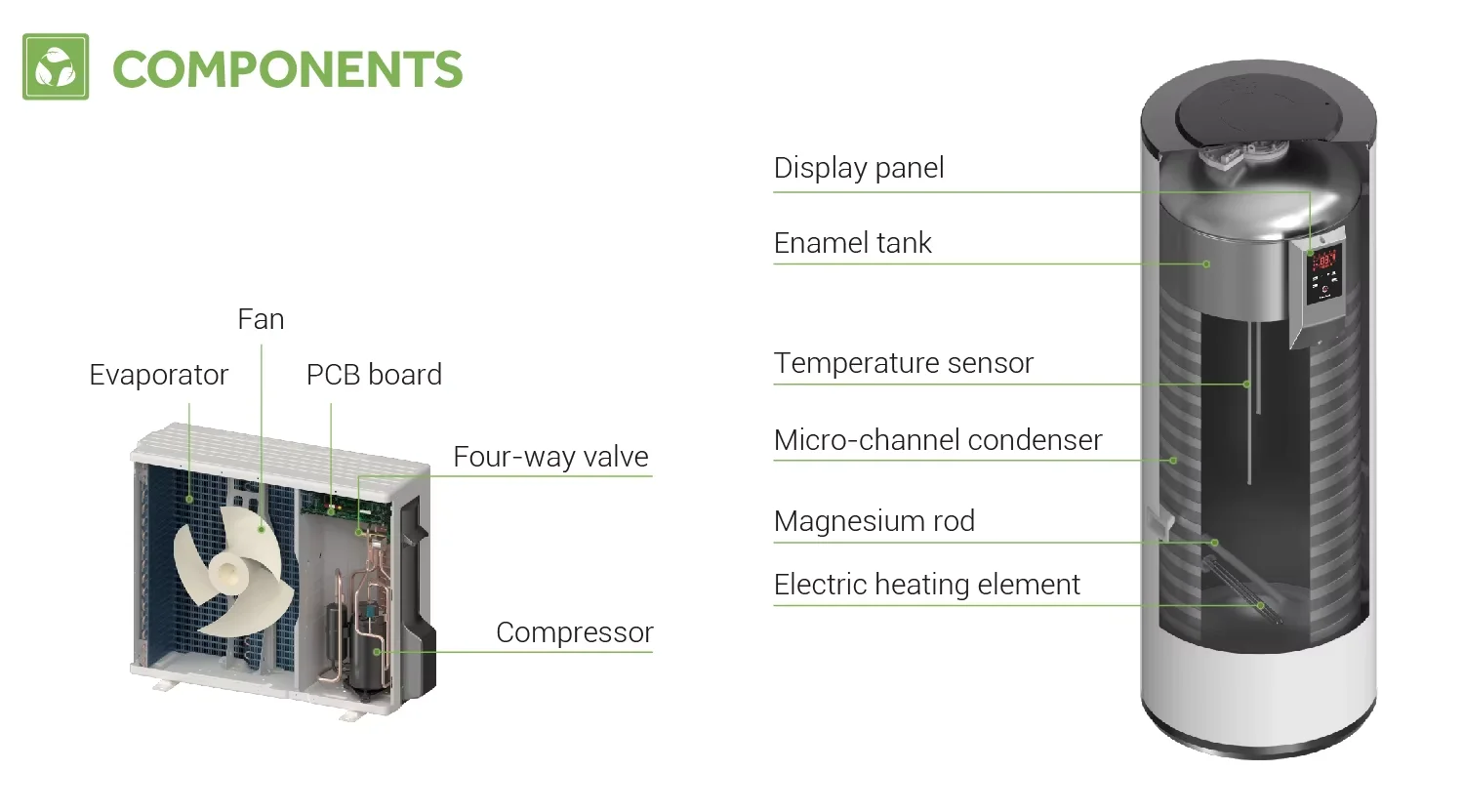

- High Quality Enamel Tank: Durable and resistant to corrosion for long-lasting performance
- Smart Control: Large screen display and various modes meet various water usage needs
- Smart Defrost: Sufficient defrosting, frost-resistant in low temperatures
- Micro-channel condenser: Improve performance and heat transfer efficiency. Reduce power consumption
- Comfortable and Low Noise: Inverter compressor & DC fan auto-adjust power for optimal efficiency and ultra-quiet performance
- Smart Sterilization: Auto tests & heats water to 65°C for sterilization every 7 days
- 230V Power Supply: Compatible with standard household voltage for seamless use

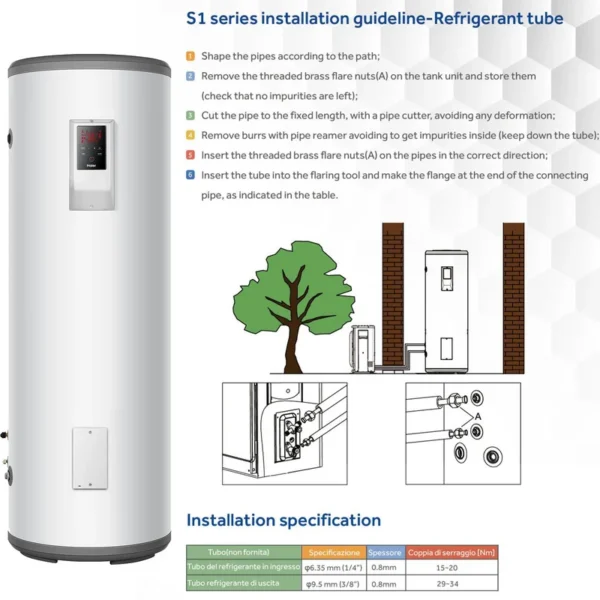

- Easy Installation: Simple installation with freestanding design and english instructions
- Multiple Models: 195L/200L/293L/300L tanks for diverse needs

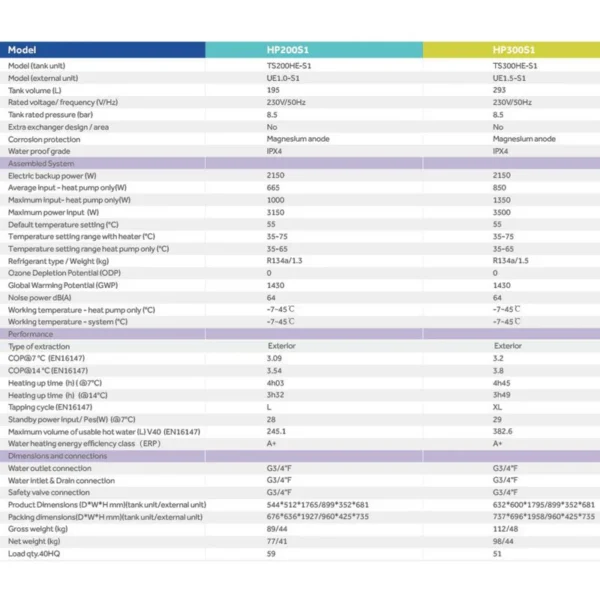

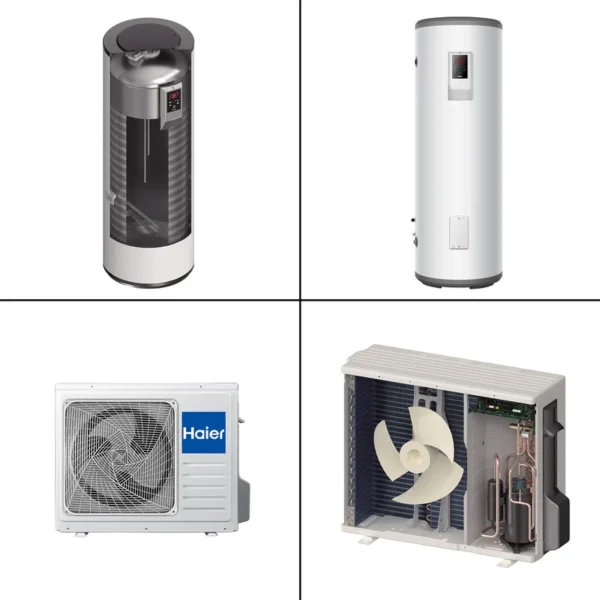

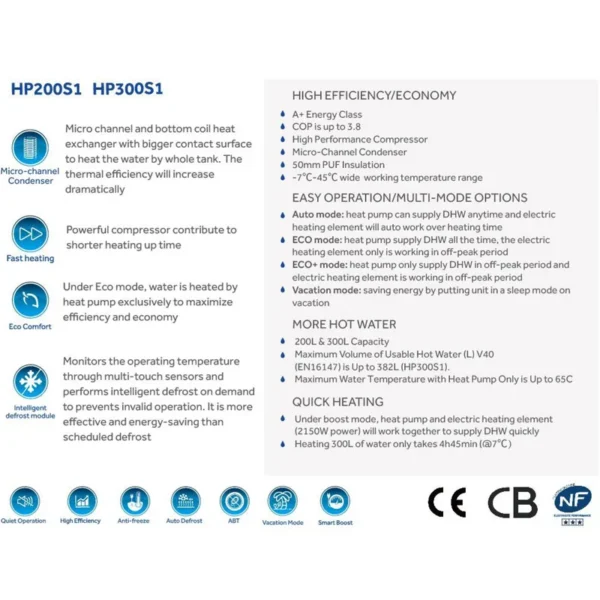

Model(system) | HP200S1 | HP300S1 | ||
Model(tank unit) | TS200HE-S1 | TS300HE-S1 | ||
Model(external unit) | UE1.0-S1 | UE1.5-S1 | ||
Tank volume(L) | 195 | 293 | ||
Rated voltage/frequency(V/Hz) | 230V/50Hz | 230V/50Hz | ||
Tank rated pressure(bar) | 8.5 | 8.5 | ||
Extra exchanger design/area | No | No | ||
Corrosion protection | Magnesium anode | Magnesium anode | ||
Water proof grade | IPX4 | IPX4 | ||
Performance | ||||
Type of extraction | Exterior | Exterior | ||
COP@7°C(EN16147) | 3.09 | 3.2 | ||
COP@14°C(EN16147) | 3.54 | 3.8 | ||
Heating up time (h)(@7°C) | 4h03 | 4h45 | ||
Heating up time (h)(@14°C) | 3h32 | 3h49 | ||
Tapping cycle (EN16147) | L | XL | ||
Standby power input/ Pes(W)(@7°C) | 28 | 29 | ||
Maximum volume of usable hot water(L)V40(EN16147) | 245.1 | 382.6 | ||
Water heating energy efficiency class (ERP) | A+ | A+ | ||
Assembled System | ||||
Electric backup power (W) | 2150 | 2150 | ||
Average input – heat pump only(W) | 665 | 850 | ||
Maximum input- heat pump only(W) | 1000 | 1350 | ||
Maximum power input (W) | 3150 | 3500 | ||
Default temperature setting(°C) | 55 | 55 | ||
Temperature setting range with heater(°C) | 35-75 | 35-75 | ||
Temperature setting range heat pump only(°C) | 35-65 | 35-65 | ||
Refrigerant type/Weight (kg) | R134A/1.3 | R134A/1.5 | ||
Ozone Depletion Potential(ODP) | 0 | 0 | ||
Global Warming Potential (GWP) | 1430 | 1430 | ||
Noise power dB(A) | 64 | 64 | ||
Working temperature-heat pump only(°C) | -7-45°C | -7-45°C | ||
Working temperature-system(°C) | -7-45°C | -7-45°C | ||
Dmensions and connections | ||||
Water outlet connection | G3/4"M | G3/4"M | ||
Water intlet & Drain connection | G3/4"M | G3/4"M | ||
Safety valve connection | G3/4"M | G3/4"M | ||

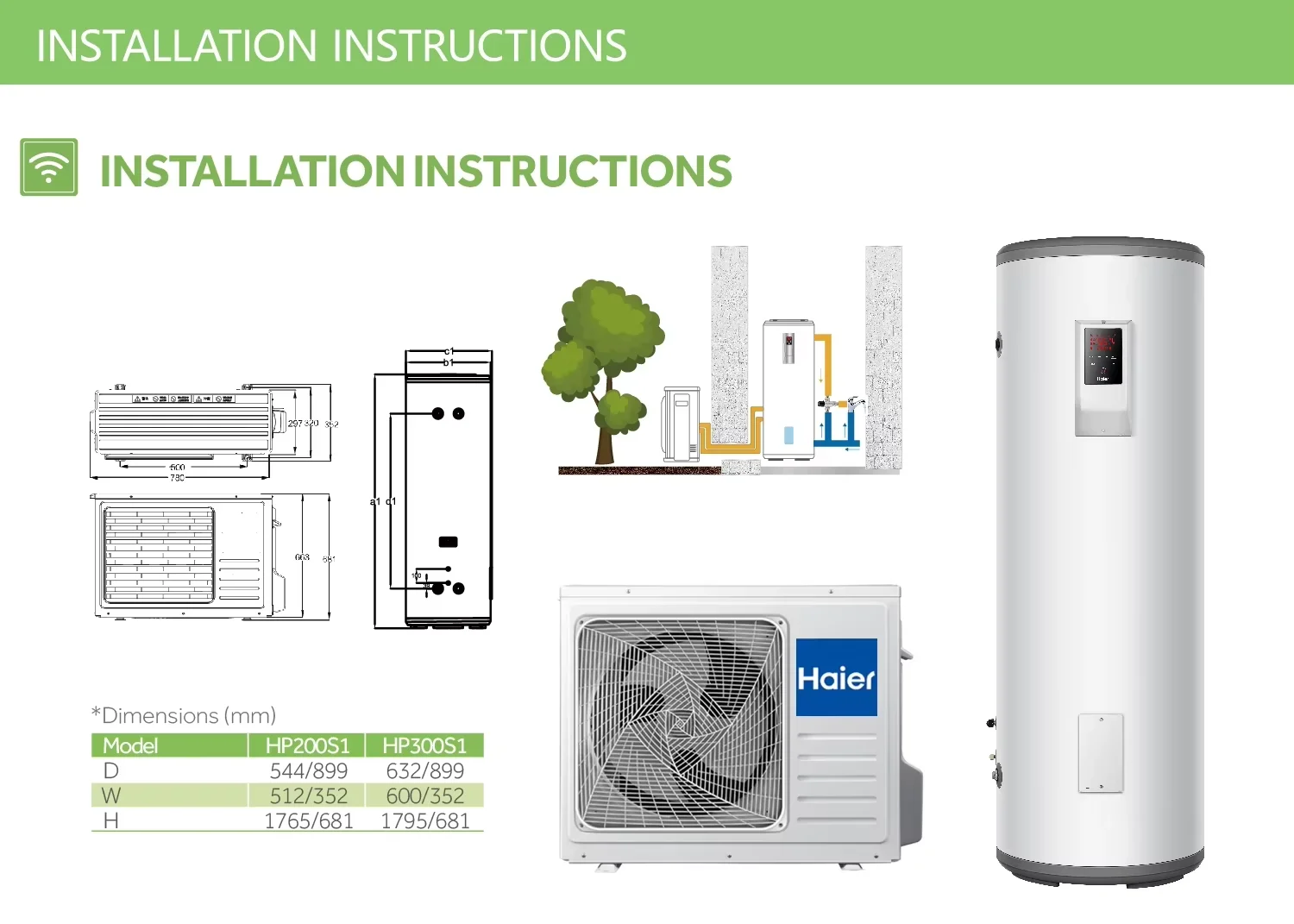

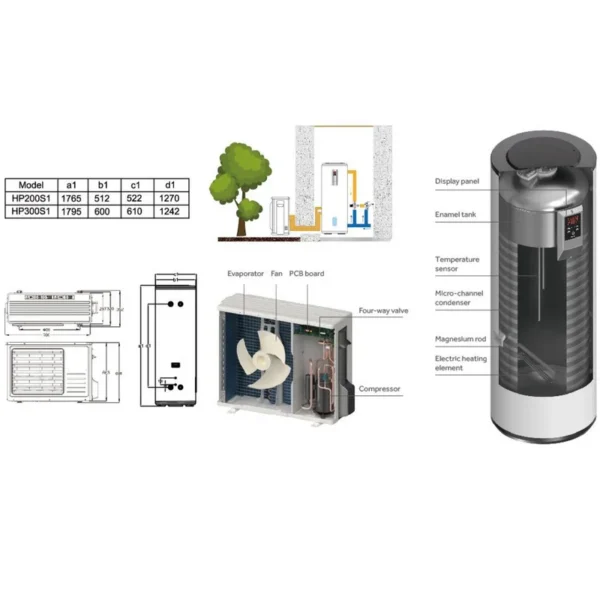

Product Dimensions (D*W*H mm)(tank unit/external unit) | 544*512*1765/899*352*681 | 632*600*1795/899*352*681 | ||
Packing Dimensions (D*W*H mm)(tank unit/external unit) | 676*636*1927/960*425*735 | 737*696*1958/960*425*735 | ||
Gross weight (kg)-Tank/external unit | 89/44 | 112/48 | ||
Net weight (kg)-Tank/external unit | 77/41 | 98/44 | ||
Load qty.40HQ | 60 | 51 | ||
*The COP and noise level data was tested in Haier lab. | ||||

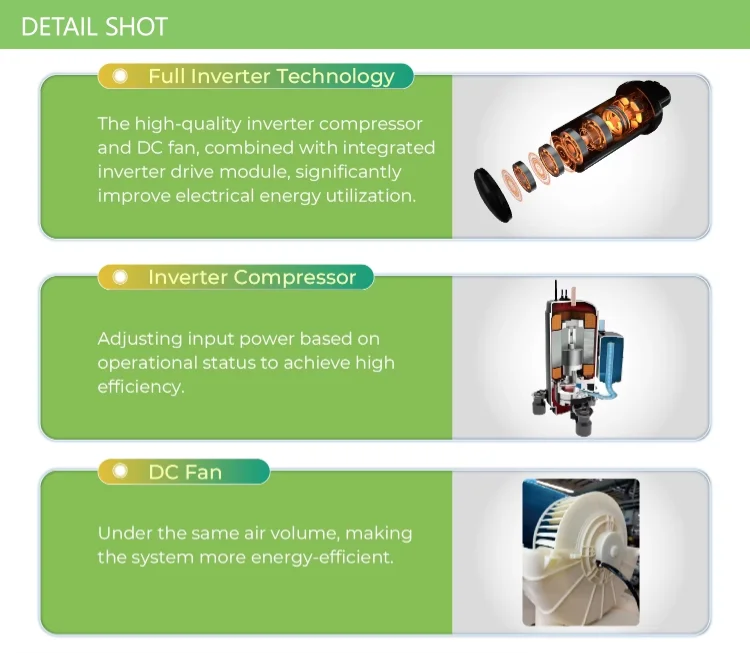

MORE
78% ENERGY SAVING
1.Full inverter technology, energy-saving with continuously variable
2.Inverter compressor adapts power input to pperational needs for maximum energy efficiency
3.DC fan lower than AC fan more energy-efficient
MORE
Over 11 Years Of Export Experience | Support OEM/ODM | Compliance And Quality Assurance | One-stop Service
FAQs
Who are we?
Established in 1984, Haier is the world's NO.1 major appliance brand. Qingdao Haier New Energy Electric Appliance Co, Ltd, established in June 2013, is a professional engaged in the research, development, sale and service of electric water heater, overseas heat pump, commercial heat pump and GEA water heater etc.
How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
What can you buy from us?
Heat pump water heater, air source heat pump, inverter heat pump, EVI heat pump, commercial heat pump water heater, instant electric water heater, storage electric water heater, solar water heater, gas water heater, etc.
Why should you buy from us not from other suppliers?
Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11global production base.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian.
Ordering and Pricing
- Minimum order quantity: 20 piece
- Volume pricing:
- 20–49 piece: US $659.45 / piece
- 50–199 piece: US $611.49 / piece
- 200–499 piece: US $587.51 / piece
- 500+ piece: US $563.53 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this and water heater?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the and water heater be supplied for my local voltage?
The standard configuration is 230v/50hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao Haier New Energy Electric Appliance Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Haier New Energy Electric Appliance Co., Ltd. range on HVACR Nexus.
