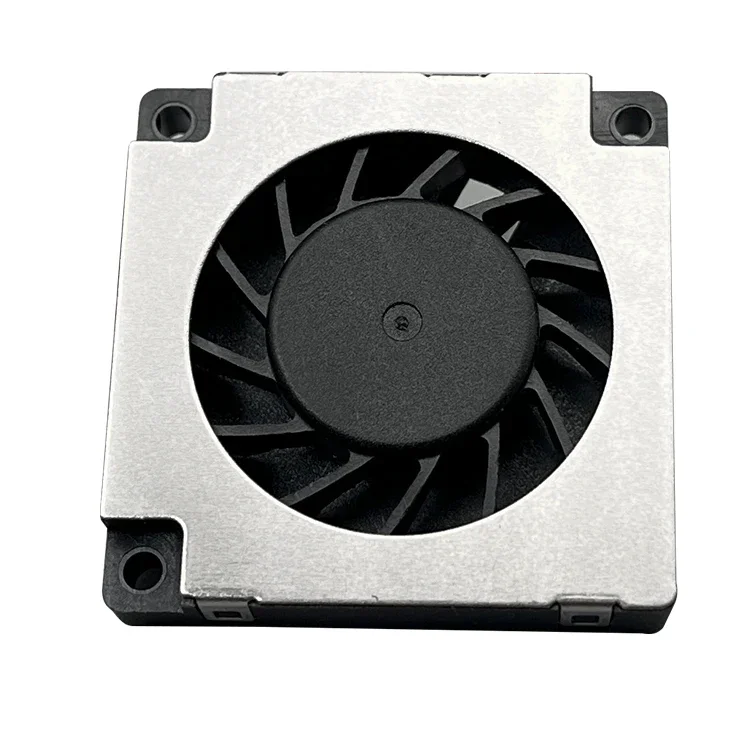

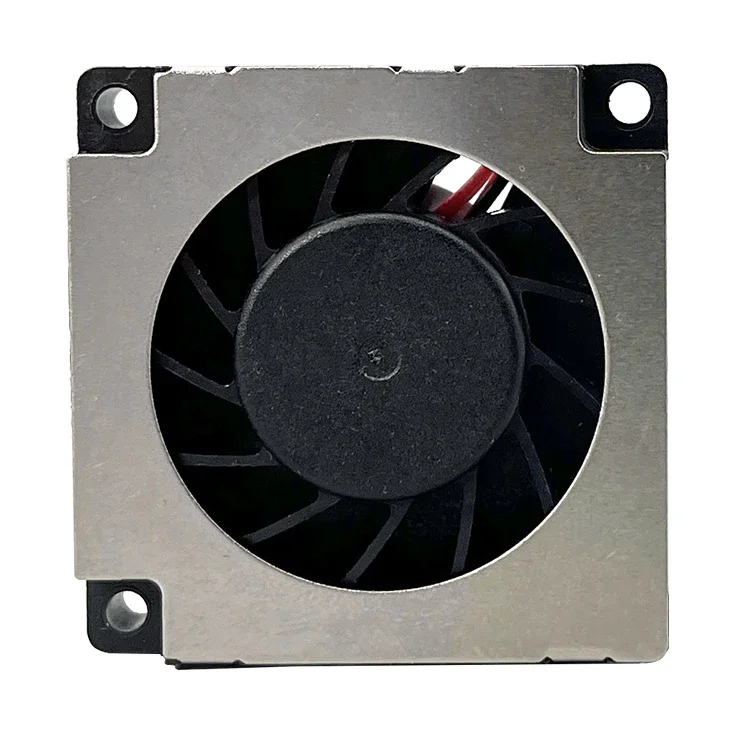

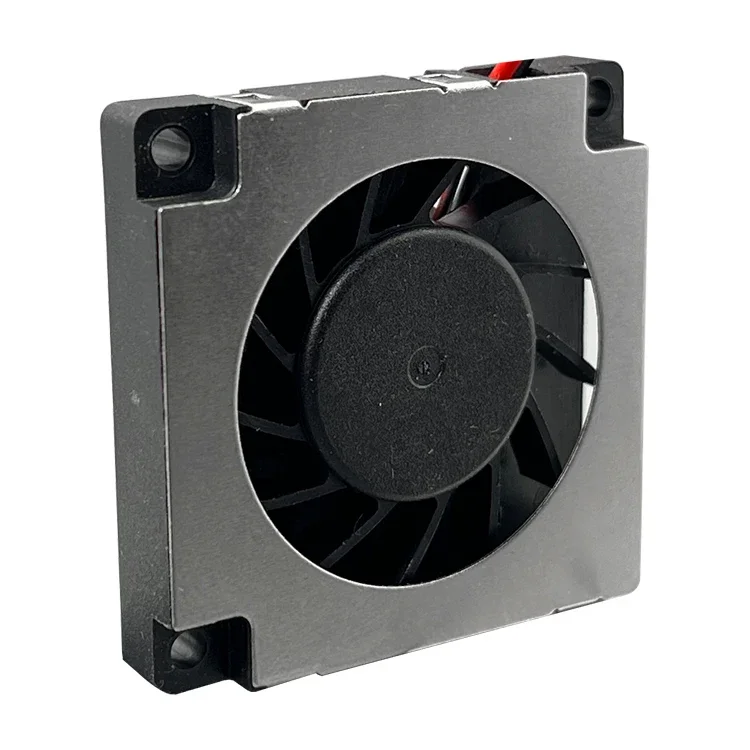

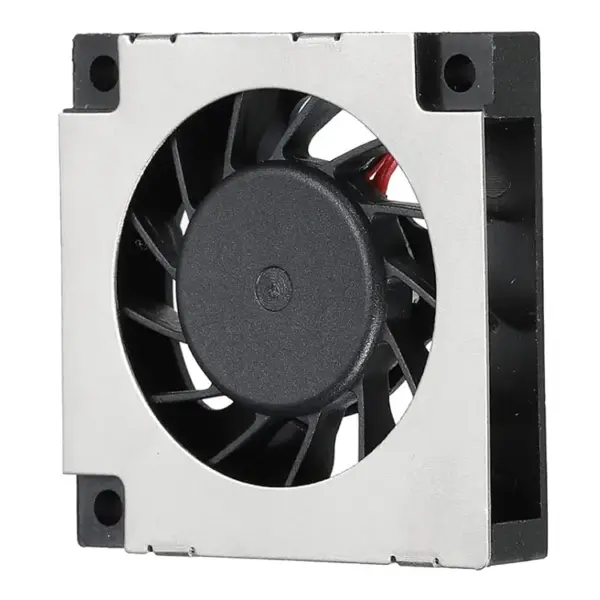

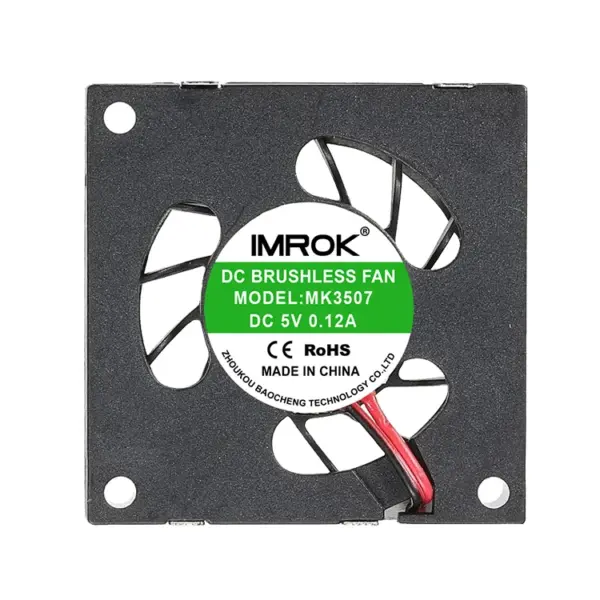

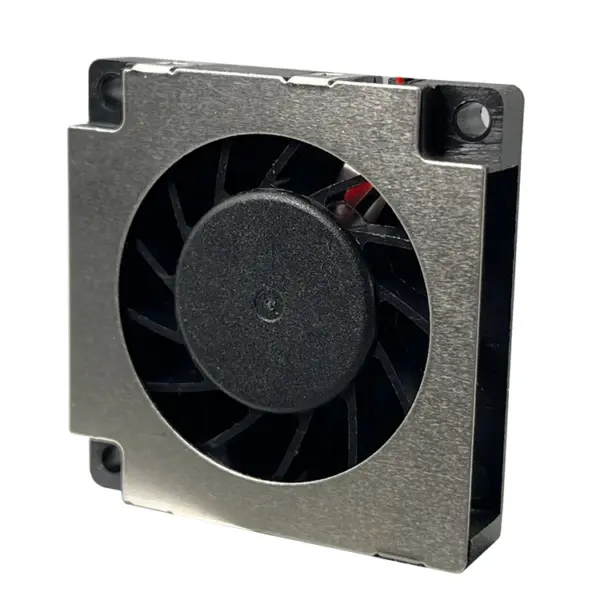

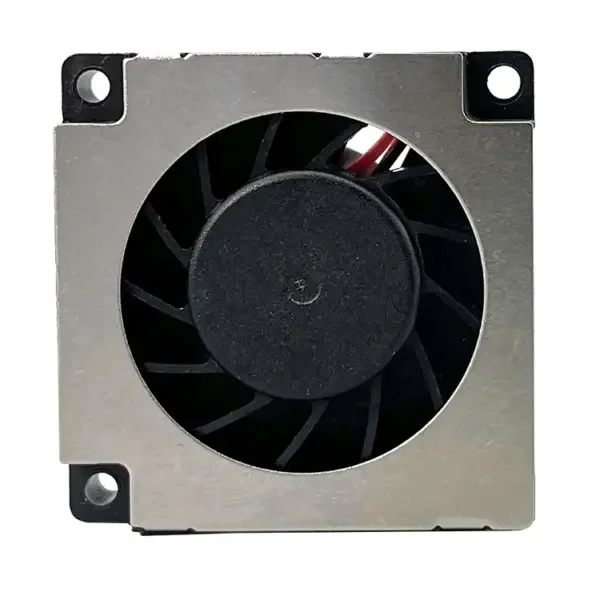

This fan is listed with the manufacturer’s full published specification — voltage 12V, 24V, blade material Plastic, model number MK3507. It is produced by Zhoukou Baocheng Electronic Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Fan
- Model Number: MK3507
- Voltage: 12V, 24V
- Blade Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Mounting Type: Free Standing
Technical Specifications
| Voltage | 12V, 24V |
|---|---|
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| Blade Material | Plastic |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Field installation, commissioning and training |
| Place Of Origin | Henan, China |
| Brand Name | IMROK |
| Model Number | MK3507 |
| Product Name | Centrifugal Fans Blowers |

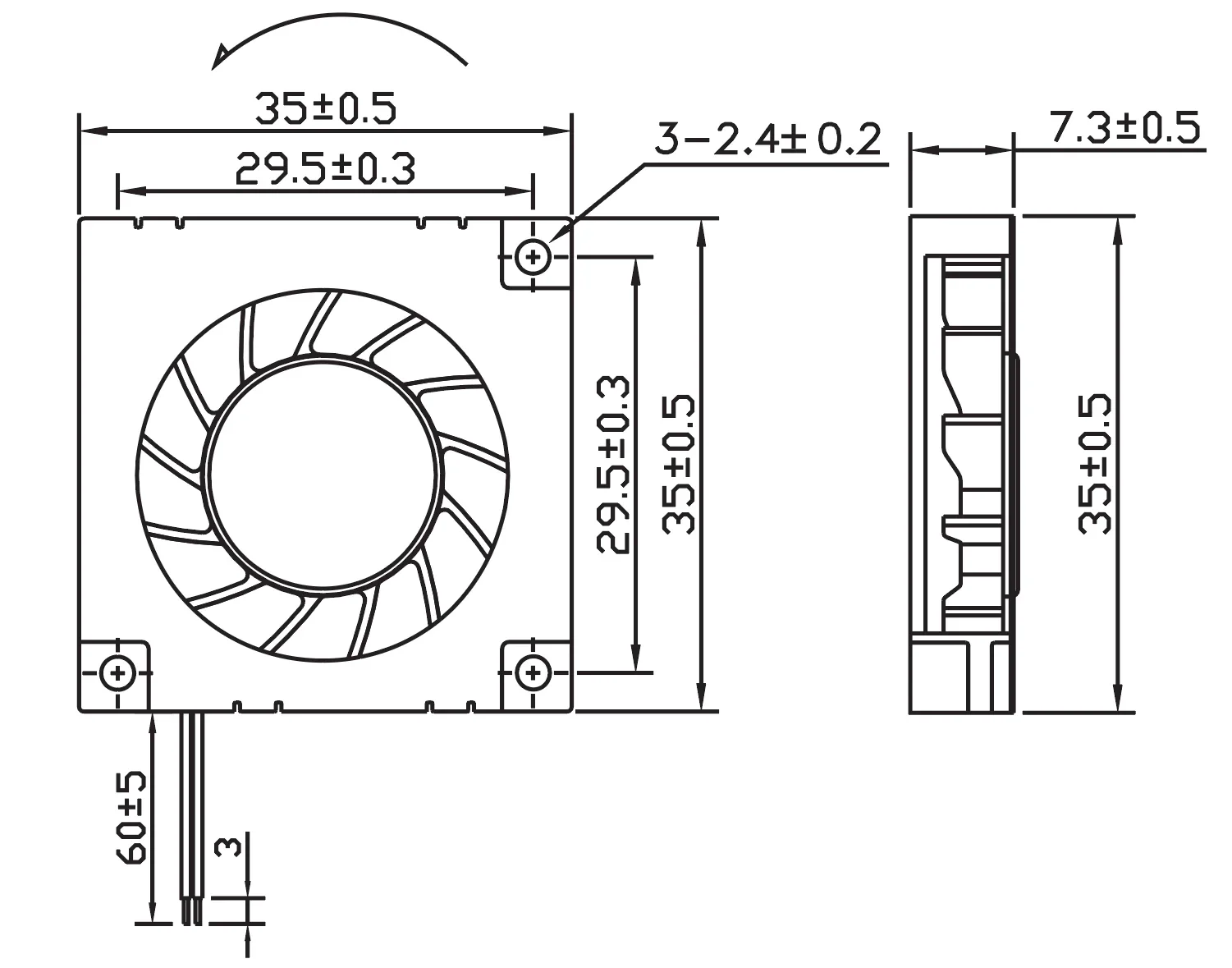

| Size | 35x35x7mm |
| Bearing Type | Sleeve Bearing/ 2ball Bearing |
| Selling Units | Single item |
|
Type
|
Blower DC Fan
|
||||||
|
Dimensions
|
35mm x 35mm x 7mm
|
||||||
|
Model
|
MK3507
|
||||||
|
Specifications options
|
AS,RD,FG,PWM,Temperature Control ,IP56,IP68
|
||||||
|
Norminal Diameter Ranges
|
25mm – 130mm ;
|
||||||
|
Certification
|
CE/ROHS
|
||||||
|
Norminal Voltage
|
DC5V( 4.0 – 5.5 VDC) ;DC12V( 6 – 13.8 VDC) ;DC24V (12 – 27.6VDC);DC48V(24 – 56VDC) ;
|
||||||
|
Applications
|
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Advertising Company, Other
|
||||||
Out Signal : FG RD LD
Insulation Resistance : 10 MΩ/500V DC ;
Dielectric Strength : 2Min/500V AC /5mA
|
Model
List
|
Bearing
Type
|
Rated
Voltage
|
Operationg Voltage Range
|
Rated Speed
|
Air Flow
CFM |
Air Pressure
MM-H2O |
Noise
DBA
|
Weight G
|
|
MK3507H
|
S/H
|
5
|
3-6
|
7500
|
1.39
|
9.84
|
32.2
|
10
|
|
MK3507M
|
S/H
|
5
|
3-6
|
6000
|
1.11
|
5.92
|
27.2
|
10
|
|
MK3507L
|
S/H
|
5
|
3-6
|
5000
|
0.84
|
4.08
|
23.9
|
10
|
|
MK3507H
|
S/H
|
12
|
7.5~13.5
|
7500
|
1.39
|
9.84
|
32.2
|
10
|
|
MK3507M
|
S/H
|
12
|
7.5~13.5
|
6000
|
1.11
|
5.92
|
27.2
|
10
|
|
MK3507L
|
S/H
|
12
|
7.5~13.5
|
5000
|
0.84
|
4.08
|
23.9
|
10
|
Fan Series ( 20X20X6MM~172X150X50MM)
|
Size (MM)
|
Air Flow ( CFM)
|
Size (MM)
|
Air Flow ( CFM)
|
|
20X20X6
|
0.33~0.82
|
60X60X28
|
16.23~24.35
|
|
20X20X10
|
0.55~1.56
|
60X60X38
|
36.73~50.15
|
|
25X25X7
|
1.54~3.09
|
70X70X10
|
14.56~24.27
|
|
25X25X10
|
1.35~2.51
|
70X70X15
|
16.24~27.06
|
|
30X30X7
|
1.98~3.64
|
70X70X20
|
25.92~43.20
|
|
30X30X10
|
2.52~4.10
|
70X70X25
|
26.94~44.90
|
|
35X35X10
|
3.93~5.90
|
80X80X10
|
14.49~21.74
|
|
38X38X28
|
8.44~22.05
|
80X80X15
|
23.23~46.47
|
|
40X40X7
|
3.13~4.38
|
80X80X20
|
24.52~53.94
|
|
40X40X10
|
4.22~6.67
|
80X80X25
|
30.92~68.02
|
|
40X40X15
|
4.80~8.00
|
80X80X38
|
37.06~92.66
|
|
40X40X20
|
4.38~13.76
|
92X92X25
|
33.42~58.48
|
|
40X40X28
|
7.79~20.26
|
92X92X38
|
57.65~105.69
|
|
45X45X10
|
5.37~10.73
|
120X120X25
|
48.48~96.95
|
|
50X50X10
|
6.45~11.82
|
120X120X38
|
100.71~146.90
|
|
50X50X15
|
6.61~12.27
|
140X140X25
|
60.34~86.20
|
|
50X50X20
|
8.09~16.18
|
150X150X50
|
171.73~274.76
|
|
60X60X10
|
10.28~17.13
|
172X150X50
|
171.73~274.76
|
|
60X60X15
|
11.01~28.62
|
||
|
60X60X20
|
11.43~19.05
|
||
|
60X60X25
|
16.76~43.10
|

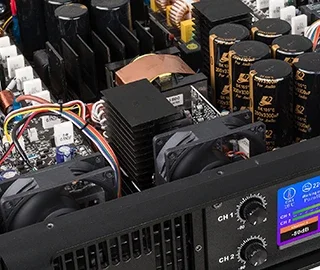

3D printers, Stage lighting, VR equipment, Intelligent Manicure machine,Projector, High-speed camera, Head mounted display Automotive industry, Cabinet industry, Power industry, UAV application, Electric forklift, LED lighting industry, Hand held air detector, Charging machine,Nebulizer. Electromagnetic oven, Humidifier, Smart toilet, Intelligent household lampblack machine,Air purifier, Car GPS, Car LED lamp, Aromatherapy machine.CPU cooler, Case.
Trevor Zhou
Zhoukou Baocheng Electronic Technology Co., Ltd
TEL/WECHAT/WHATSAPP:+8615238462426
Frequently Asked Questions
What is the minimum order quantity for this fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 12V, 24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This fan is produced by Zhoukou Baocheng Electronic Technology Co., Ltd.. Browse the full Zhoukou Baocheng Electronic Technology Co., Ltd. range on HVACR Nexus.
