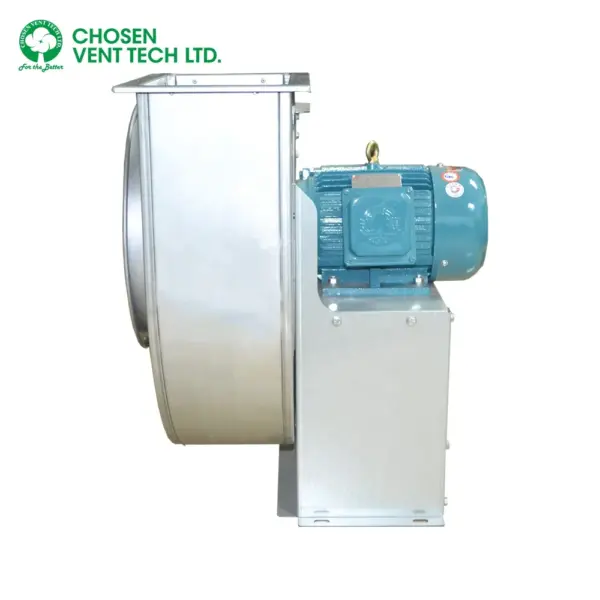

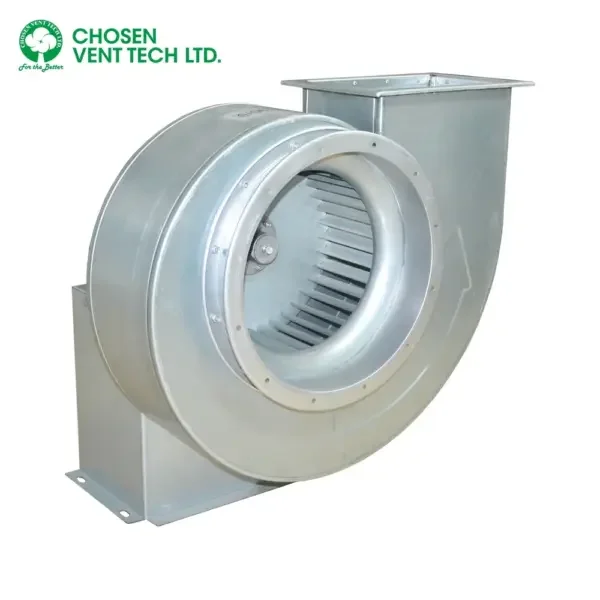

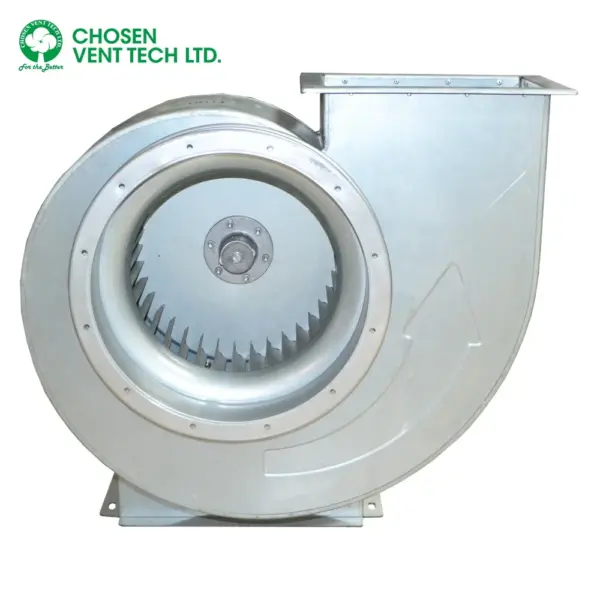

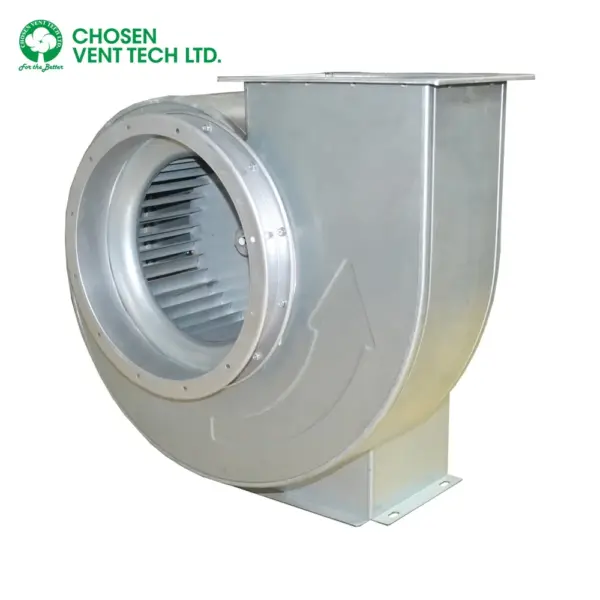

Centrifugal Fan, 220V, Galvanized

This centrifugal fan is listed with the manufacturer’s full published specification — voltage 220V / 380V, blade material Galvanized / Aluminum / Stainless Steel, model number FSW270. It is produced by Foshan Chosen Vent Tech Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Centrifugal Fan

• Model Number: FSW270
• Voltage: 220V / 380V
• Blade Material: Galvanized / Aluminum / Stainless Steel
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Electric Current Type: AC

Technical Specifications

Product descriptions from the supplier

 Advantages



· The Fan with Compact structure.
· The impeller will do by dynamic balancing tests. It greatly improves the stability of the impeller operation, and reduces the vibration and noise.
· The Fan with advantages of small volume, light weight, angle adjustable and convenient for installation and maintenance.
· Transportation gas temperature at -20℃ ~ 200℃.
· The fan performance be test by airway or AMCA both available, the fan performance data is truth and reliable.
· Fan Material is optional according to your need.
· Customzation is acceptable.

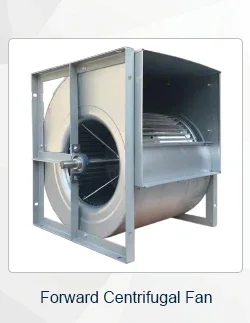

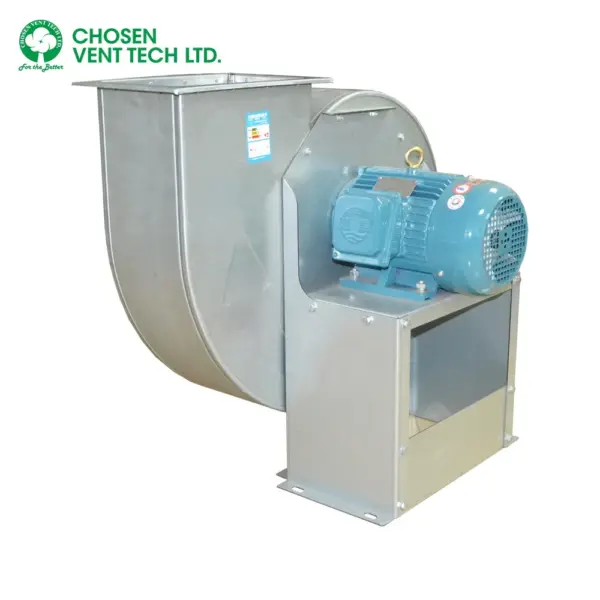

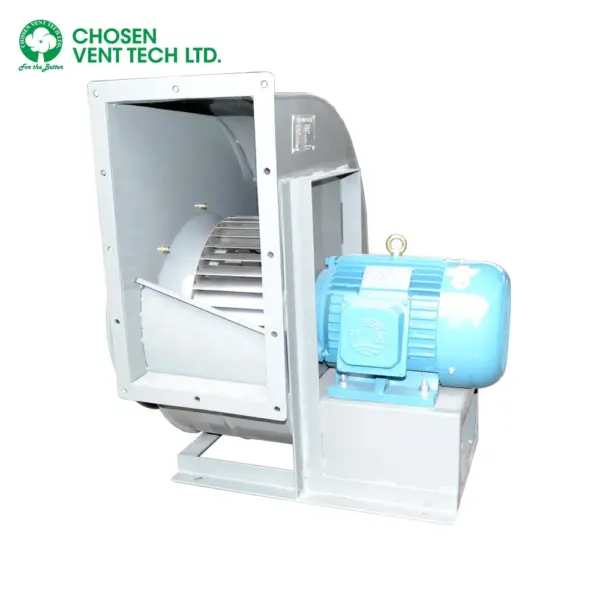

Forward Centrifugal Fan – SWSI – FSW
Item	Impeller Dia	Voltage	Power	Speed	Air Flow	Air Pressure
	mm	V	W	rpm	CMH	Pa
FSW75	75	220	25	2850	110-135	128-70
FSW100	100	220	40	2850	140-180	200-110
FSW125	125	220	90	2850	350-410	340-300
FSW150	150	220/380	200	2850	700-900	400-200
FSW160	160	220/380	250	2850	800-1080	900-700
FSW175	175	220/380	550	2850	1200-1300	930-700
FSW190	190	220/380	750/1100	2850	1800-2100	840-760
FSW190	190	220/380	180	1400	900-1080	280-210
FSW230	230	220/380	1500	2850	2200-3000	1230-1000
FSW230	230	220/380	370	1400	1000-1600	360-200
FSW250	250	220/380	2200	2850	3000-3800	1471-1275
FSW250	250	220/380	750	1400	2200-2500	450-380
FSW270	270	220/380	750	1400	1800-3200	590-430
FSW300	300	380	1500	1400	4000-4500	750-600
FSW350	350	380	3000	1400	5100-7000	1200-1000
FSW400	400	380	4000	1400	7500-8500	1400-1200
FSW400L	400	380	2200	960	9000-10000	610-530
FSW450	450	380	7500	1400	9000-12000	1500-1300
FSW500	500	380	5500	960	10000-12000	960-900
FSW550	550	380	7500	960	13000-15000	1200-1100
FSW600	600	380	7500	960	11000-13000	1400-1250
FSW600	600	380	11000	960	13000-16000	1250-1100
Click here for more product parameters.





Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.

What warranty covers this centrifugal fan?

A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.

Can it be built for my local voltage?

The standard specification is 220V / 380V. Alternative voltage and frequency builds are available when confirmed at order stage.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.

How long is production and delivery?

Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.

About the Manufacturer

This centrifugal fan is produced by Foshan Chosen Vent Tech Ltd.. Browse the full Foshan Chosen Vent Tech Ltd. range on HVACR Nexus.
