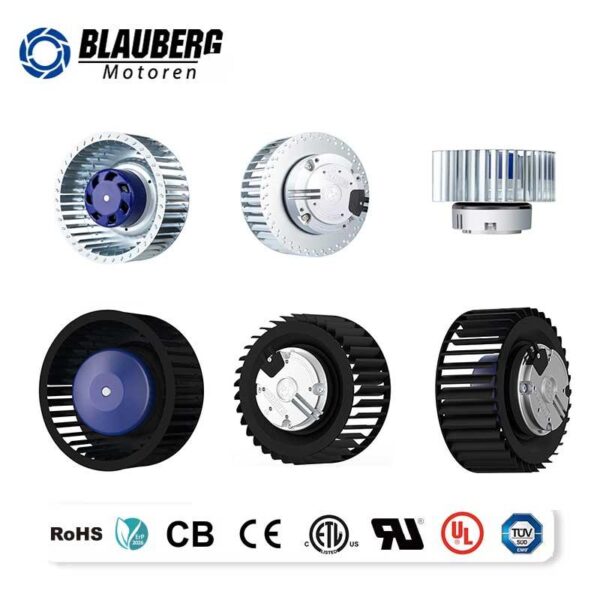

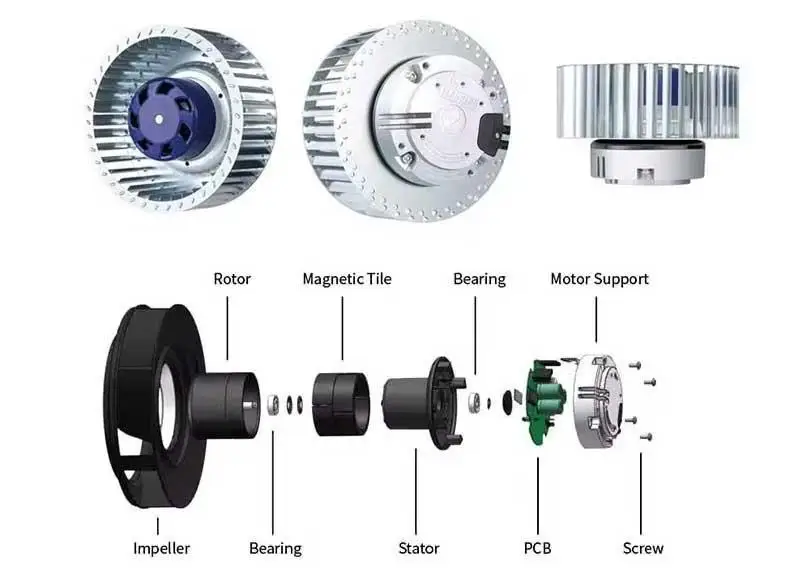

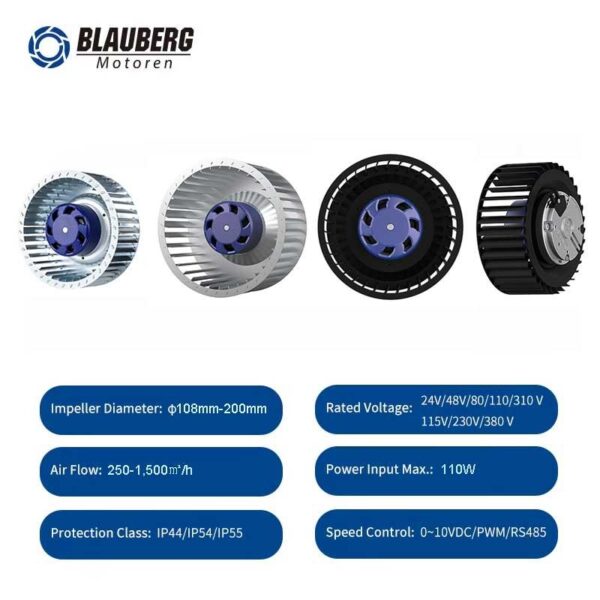

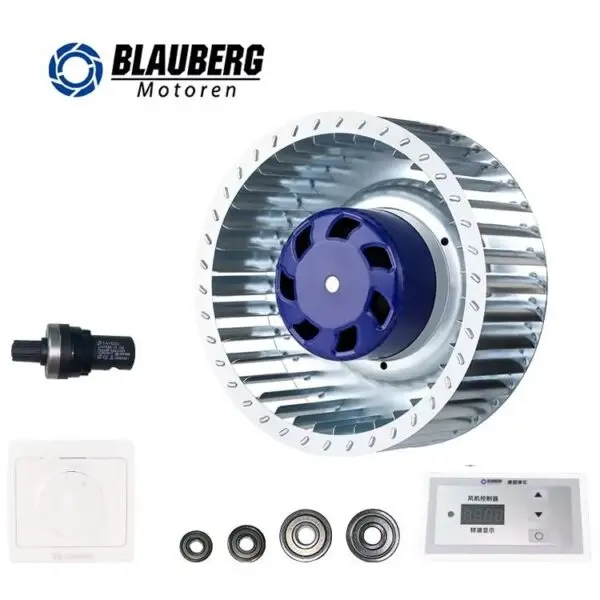

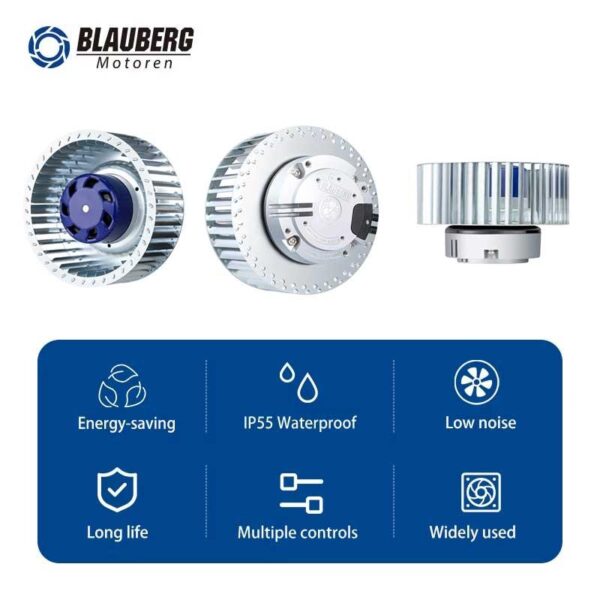

This Blauberg EC radial fan uses an electronically commutated motor, which is what lets speed be varied electronically without the efficiency collapse an AC motor suffers under voltage throttling. The 160mm forward-curved aluminium alloy impeller gives high air volume for its frame size, suiting industrial ventilation and air handling sections. Ceiling mounting on 230V with a two-year warranty, and OEM, ODM or OBM production available from Suzhou.
Key Features of This Ec Radial Fan
- Model Number: BL-F160C-EC-01
- Voltage: 230V
- Blade Material: Aluminum Alloy
- Warranty: 2 Years
- Place Of Origin: Jiangsu
- Type: EC Forward Centrifugal Fan
Technical Specifications
| Voltage | 230V |
|---|---|
| Blade Material | Aluminum Alloy |
| Mounting | Ceiling Fan |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Online support |
| Warranty | 2 Years |
| Place Of Origin | Jiangsu |
| Brand Name | Blauberg |
| Model Number | BL-F160C-EC-01 |
| Type | EC Forward Centrifugal Fan |

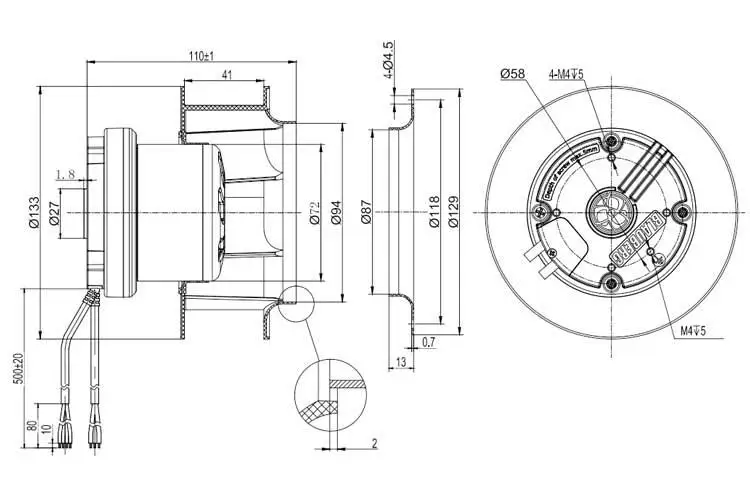

| Size | 160*160*98mm |
| Protection Class | IP55 |
| Selling Units | Single item |
| Single Package Size | 35X35X20 cm |
| Single Gross Weight | 8.000 kg |
|
Type
|
BL-F160C-EC-01
|
Nominal Speed
|
1900±5%RPM
|
|
|
Motor
|
EC072AC230V170W
|
Max. Input Power
|
150W
|
|
|
Phase
|
1~
|
Max. Input Current
|
0.9A
|
|
|
Nominal Voltage
|
230VAC
|
Sound level
|
68dB(A)
|
|
|
Nominal Voltage Range
|
184~276VAC
|
Min.Ambient Temperature
|
-25℃
|
|
|
Frequency
|
50/60 Hz
|
Max.Ambient Temperature
|
60℃
|
|
|
Method of Obtaining Data
|
FA
|
ML=Max. load ME=Max, effciency FA=Free Air
|
||
|
Model
|
Nominal voltage[VAC]
|
Frequency[Hz]
|
Speed (RPM)
|
Power input max(W)
|
Current max(A)
|
Sound pres level[dB(A)]
|
|
BL-F108A-EC-00
|
230
|
50/60
|
1550
|
50
|
0.35
|
57
|
|
BL-F120B-EC-00
|
230
|
50/60
|
2600
|
70
|
0.5
|
67
|
|
BL-F120B-EC-02
|
230
|
50/60
|
3000
|
110
|
0.8
|
70
|
|
BL-F140B-EC-00
|
230
|
50/60
|
1700
|
85
|
0.6
|
69
|
|
BL-F140B-EC-02
|
230
|
50/60
|
2200
|
110
|
0.7
|
69
|
Deep Customization
Various Support
Frequently Asked Questions
What is the minimum order quantity for this ec radial fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this ec radial fan?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 230V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.

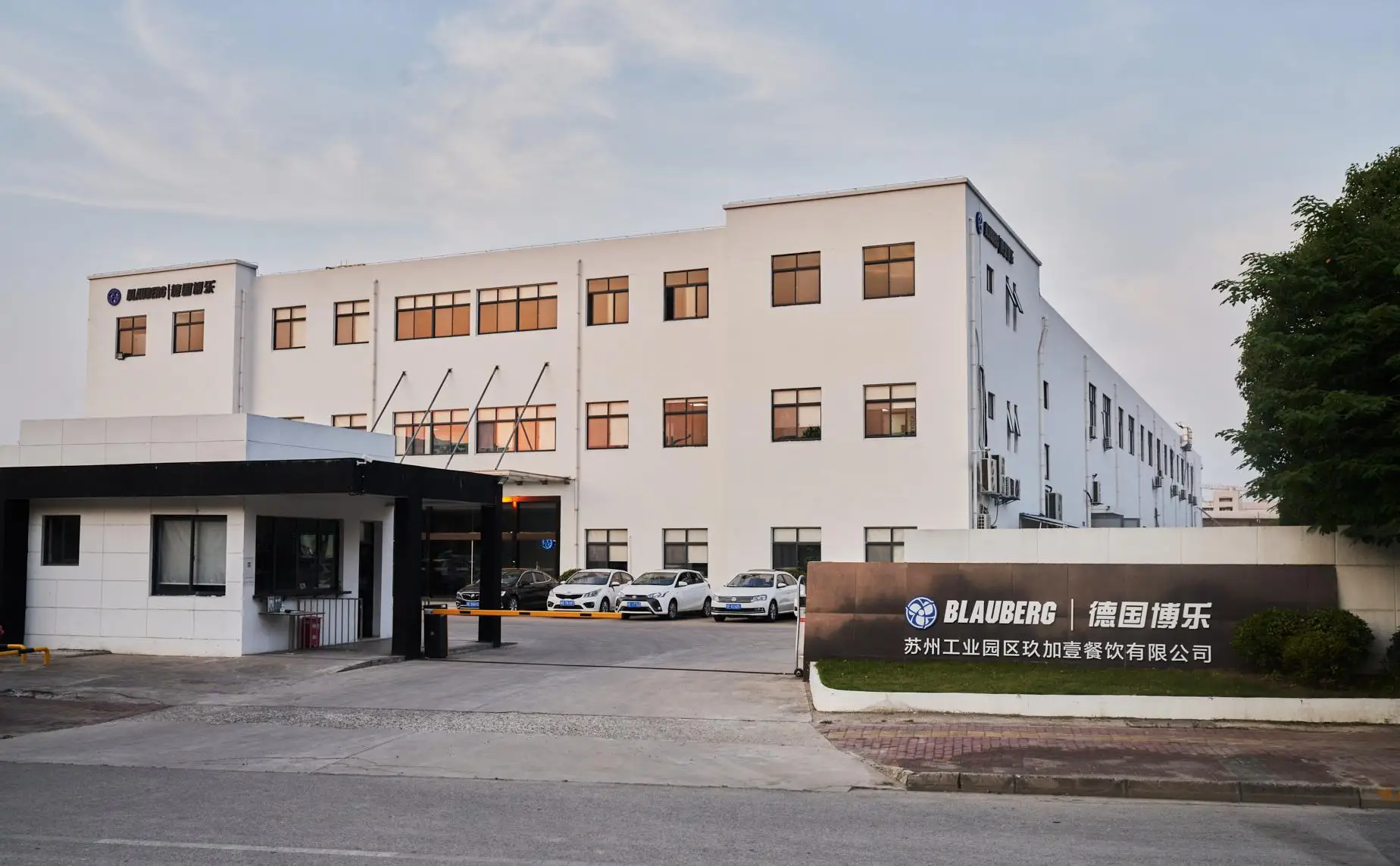

About the Manufacturer
