This fan is published with the manufacturer’s full specification — 220 V, blade material PA66+FG. For a binding price and lead time, send the volume you need and where it ships to.

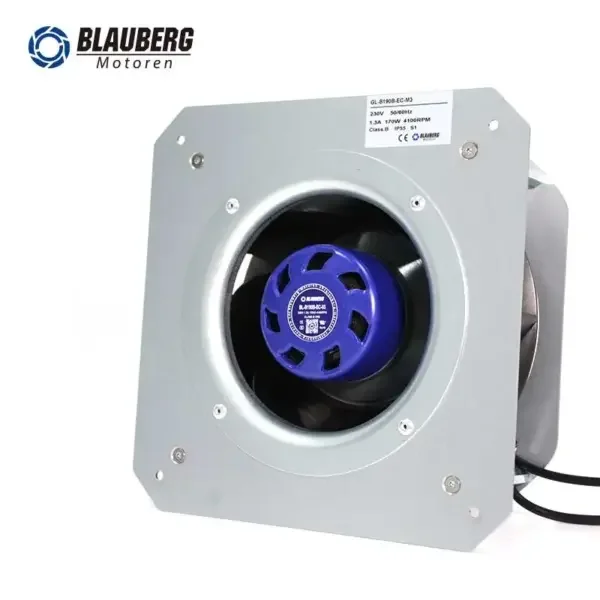

This fan is listed with the manufacturer’s full published specification — voltage 220 V, blade material PA66+FG, model number GL-B133B-EC-M3. It is produced by Suzhou Blauberg Motoren Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Fan
- Model Number: GL-B133B-EC-M3
- Voltage: 220 V
- Blade Material: PA66+FG
- Warranty: 2 Years
- Place Of Origin: Jiangsu, China
- Application: General Machinery
Technical Specifications
| Mounting | galvanized steel |
|---|---|
| Voltage | 220 V |
| Blade Material | PA66+FG |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Model Number | GL-B133B-EC-M3 |
| Place Of Origin | Jiangsu, China |
| Brand Name | Blauberg |
| Product Name | Blauberg fan |
| Application | General Machinery |
| Color | Picture |
| Usage | Electric Tool |
| Selling Units | Single item |
| Single Package Size | 60X60X25 cm |
| Single Gross Weight | 8.000 kg |
|
Type
|
GL-B133B-EC-M3
|
Nominal Speed
|
4000+5%RPM
|
|
|
Motor
|
EC059AC230V040W
|
Max. Input Power
|
30W
|
|
|
Phase
|
1~
|
Max. Input Current
|
0.2A
|
|
|
Nominal Voltage
|
230VAC
|
Sound level
|
65dB(A)
|
|
|
Nominal Voltage Range
|
184~276VAC
|
Min.Ambient Temperature
|
-25℃
|
|
|
Frequency
|
50/60 Hz
|
Max.Ambient Temperature
|
60℃
|
|
|
Method of Obtaining Data
|
FA
|
ML=Max. load ME=Max, effciency FA=Free Air
|
||
|
Model
Part No.
|
Rated Voltage
VAC
|
Air Flow
m³/h
|
Rated Speed
RPM
|
Power Input
W
|
Sound Level
dB(A)
|
|
GL-B250D-EC-F05
|
230
|
2400
|
3900
|
400
|
82
|
|
GL-B250E-EC-05
|
230
|
2800
|
3450
|
520
|
86
|
|
GL-B250E-EC-H5
|
230
|
3200
|
3150
|
750
|
86
|
|
GY-B250E-EC-05
|
380
|
3400
|
3900
|
750
|
92
|
Deep Customization
Various Support
Frequently Asked Questions
What is the minimum order quantity for this fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this fan?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.

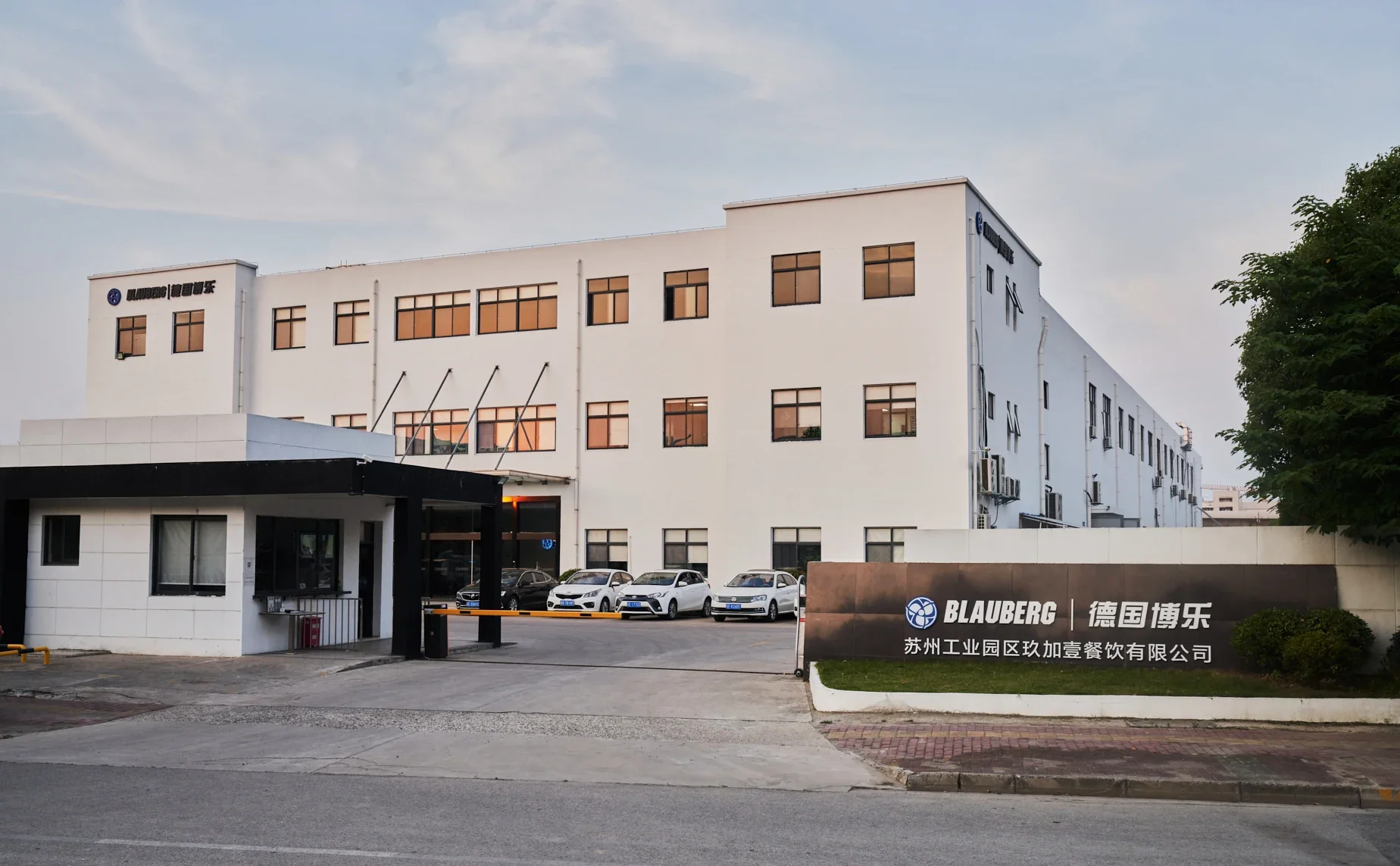

About the Manufacturer
