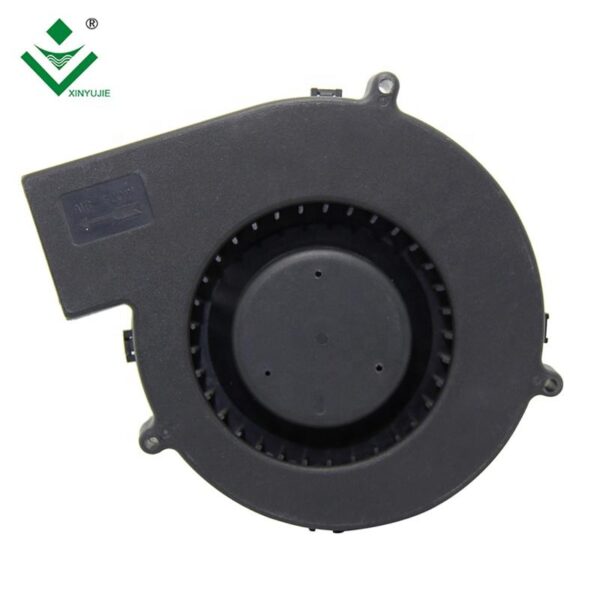

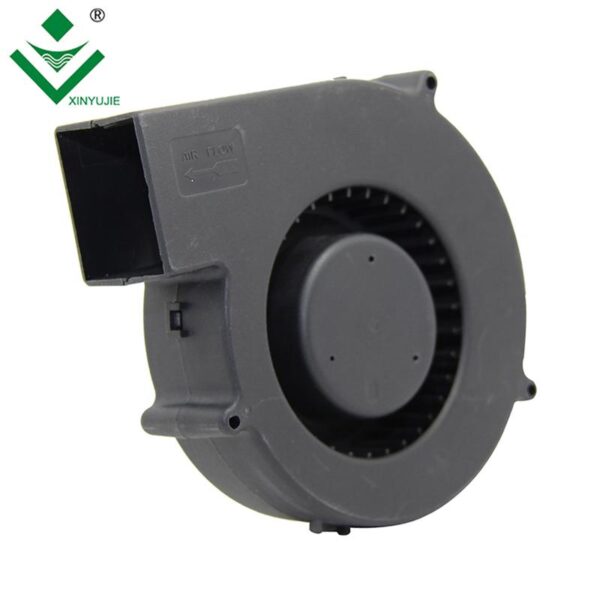

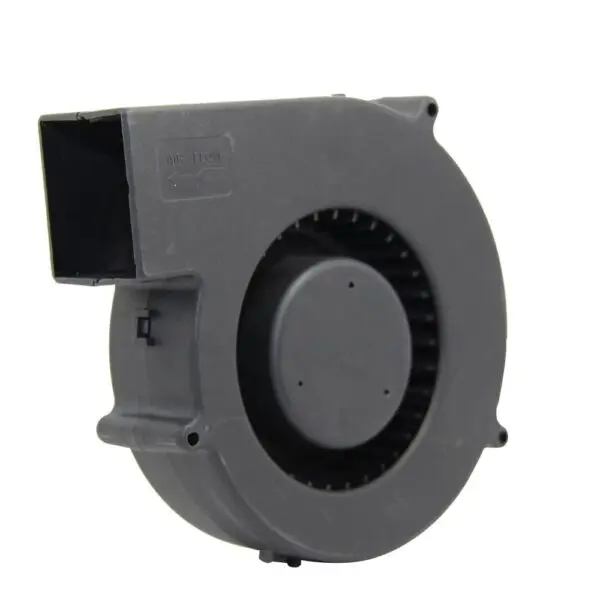

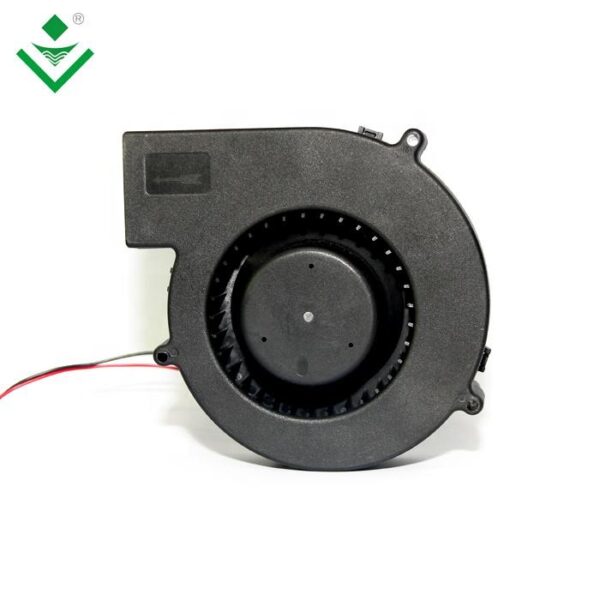

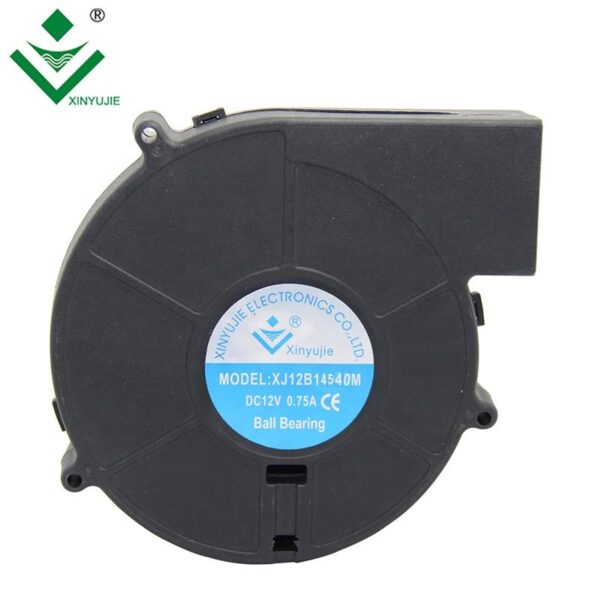

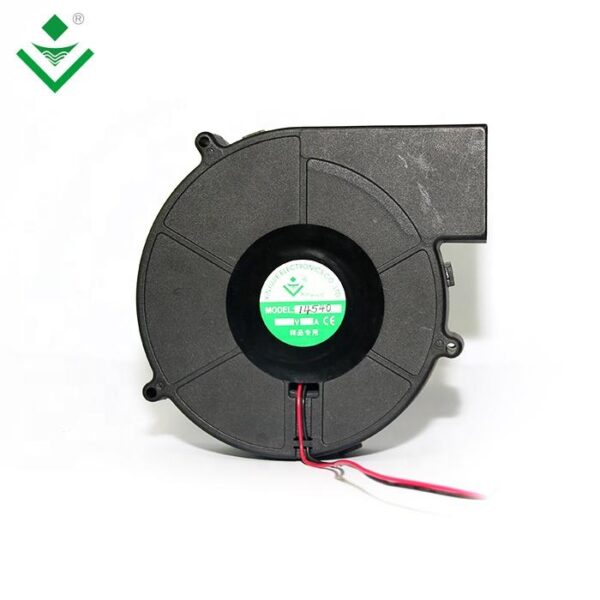

This centrifugal turbine blower is built for equipment integration rather than shelf sale, which is why it comes in 12V, 24V and 48V with two, three and four wire variants — the host board decides whether it needs simple power, tacho feedback or PWM control. Sterilizers are the main application: forcing air through a chamber against real back pressure is turbine blower territory, not axial fan territory. Frame size is 145x136x40mm, with OEM, ODM and OBM production.
Key Features of This Centrifugal Turbine Blower
- Model Number: XYJ12S14540H, XYJ24S14540H, XYJ12B14540H, XYJ24B14540H
- Voltage: 12V/24V
- Blade Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Electric Current Type: DC
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 12V/24V |
| Blade Material | Plastic |
| Electric Current Type | DC |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Model Number | XYJ12S14540H, XYJ24S14540H, XYJ12B14540H, XYJ24B14540H |
| Place Of Origin | Guangdong, China |

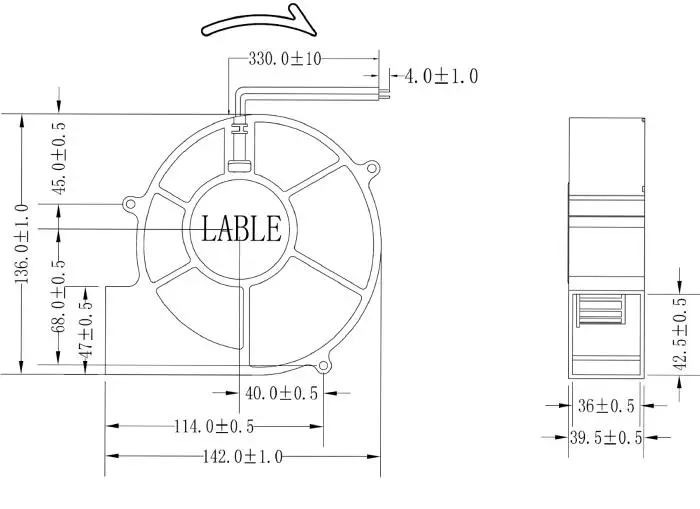

| Size | 145X136X40MM |
| Brand Name | XINYUJIE |
| Selling Units | Single item |
| Single Package Size | 14.5X14.5X4 cm |
| Single Gross Weight | 0.400 kg |
|

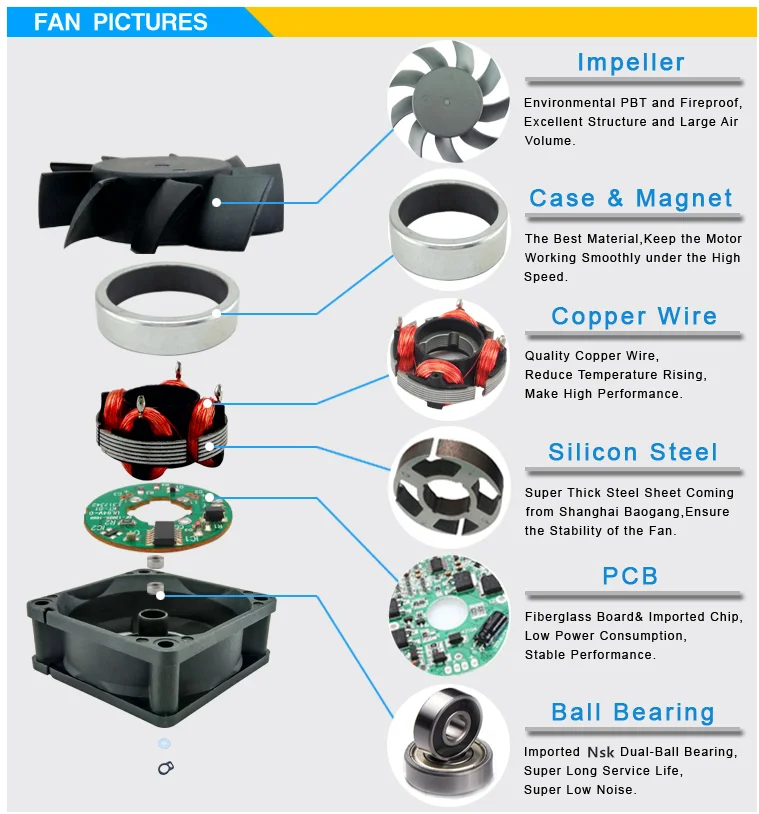

Frame
|
Thermal Plastic , Environmental
Protection&Fireproof
|
|
Impeller
|
Thermal Plastic , Environmental
Protection&Fireproof
|
|

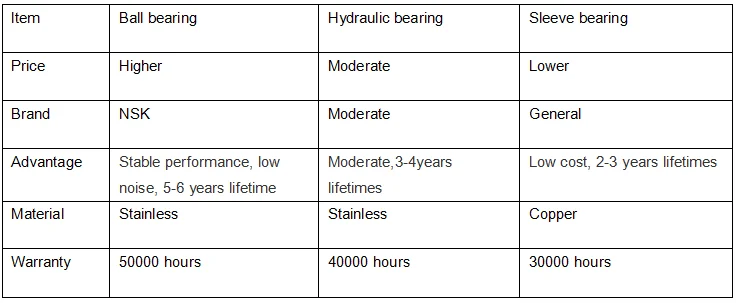

Bearing Type
|
Ball Bearings & Sleeve Bearing
|
|
Lead Wires
|
1571 26AWG Red+Black
|
|
Motor Protection
|
Impedance protected; Reverse polarity protected; Automatic Restart
|
|
Operating Voltage
|
3.5~6.5V 6~13.8V 12~26.5V
|
|
Operating Temperature/
Humidity
|
-10℃~70℃ 35%~85%RH
|
|
Size
|
Model
|
Rated Voltage
(VDC)
|
Startup Voltage
(VDC)
|
Current Amp
(A)
|
Speed
(RPM)
|
Air flow
(CFM)
|

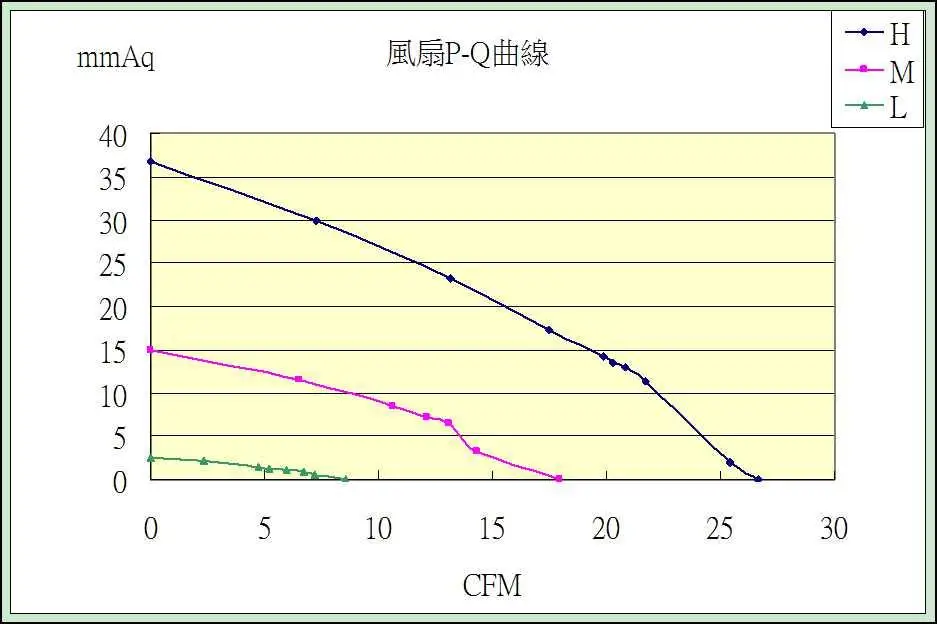

Static Pressure
(mmH20)
|
Noise Level
(dB-A)
|
|
145x136x40mm |
XJ12B14540L
|
12
|
6
|
0.16
|
1300
|
21.38
|
6.70
|
38.2
|
|

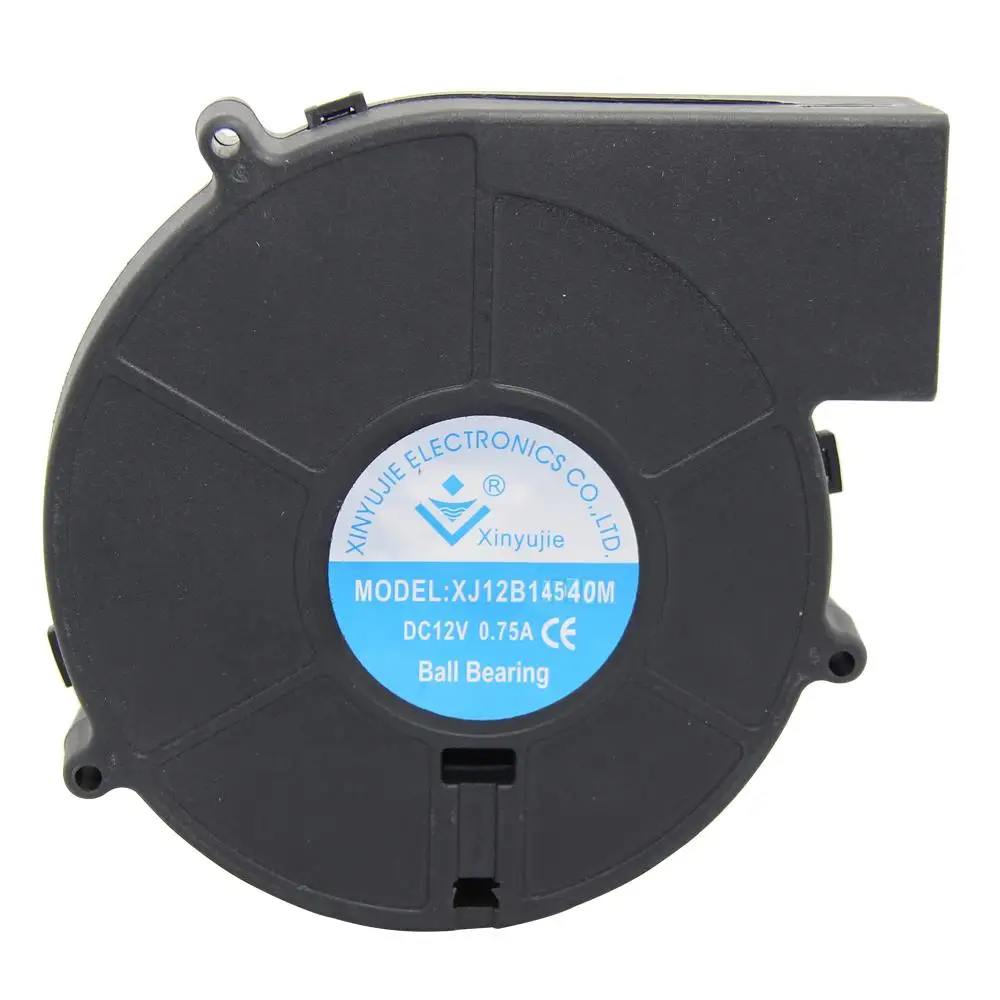

XJ12B14540M
|
12
|
6
|
0.60
|
2100
|
34.75
|
21.70
|
47.8
|
|
|
XJ12B14540H
|
12
|
6
|
1.10
|
2600
|
43.57
|
37.07
|
54.5
|
|
|
XJ24B14540L
|
24
|
12
|
0.10
|
1300
|
21.38
|
6.70
|
38.2
|
|
|
XJ24B14540M
|
24
|
12
|
0.32
|
2100
|
34.75
|
21.70
|
47.8
|
|
|
XJ24B14540H
|
24
|
12
|
0.54
|
2600
|
43.57
|
37.07
|
54.5
|

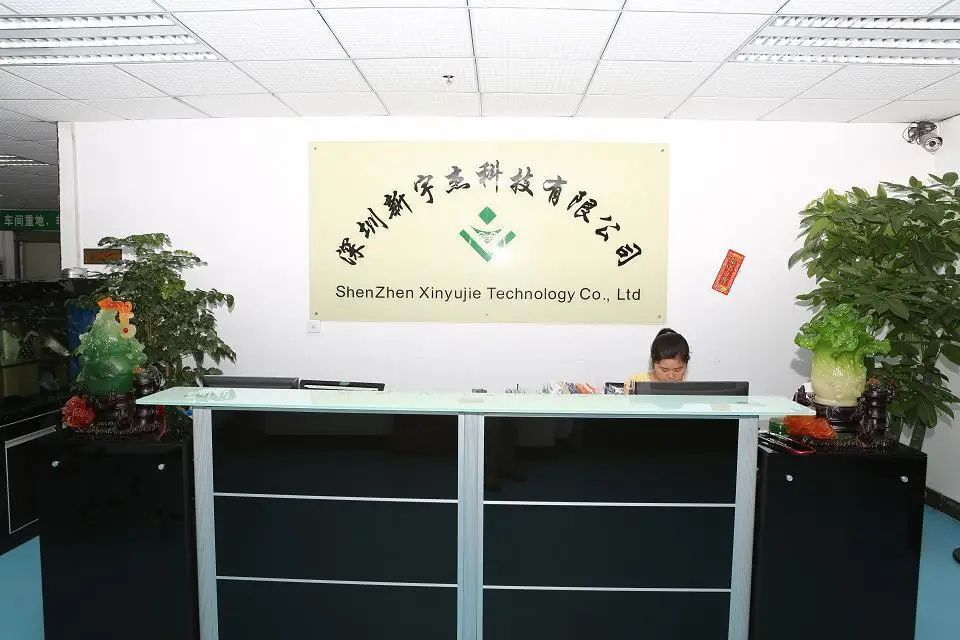

company profile
Xinyujie technology co., LTD., for the development and expansion of domestic trade;Xinyujie technology has been established for
more than 10 years has been specialized in the production of cooling fans.
Base display

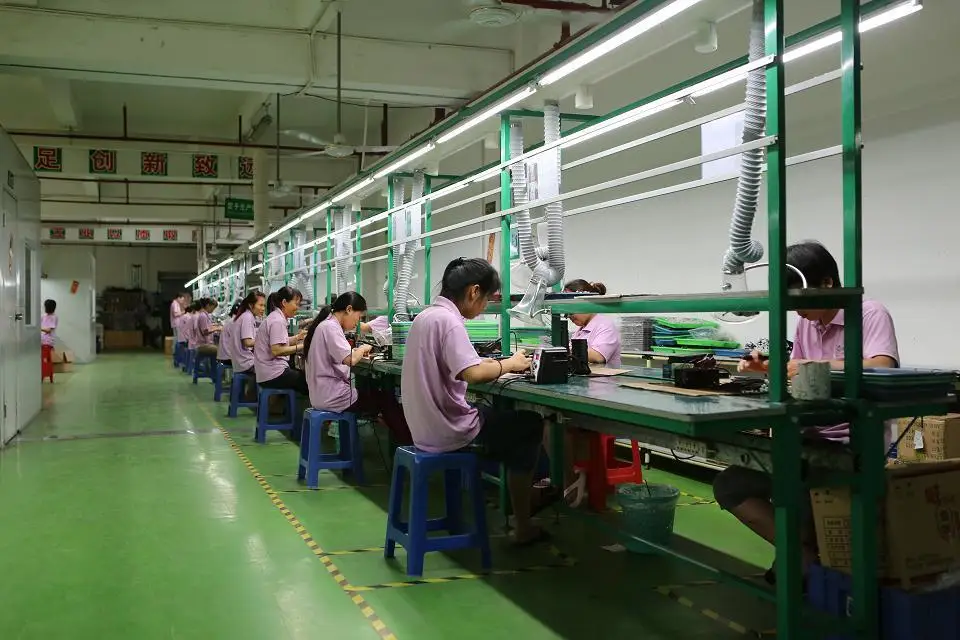

At present, our factory covers an area of 3,000 square meters, has more than 200 employees, six production lines, and the monthly
output is up to 1.2 million units.

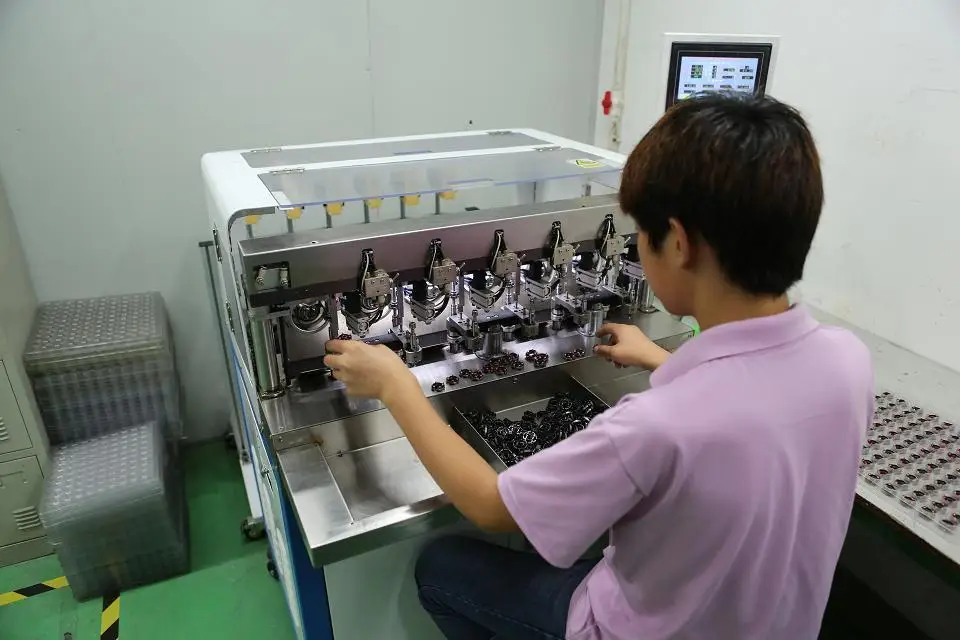

Production and development of products
Since its inception in 2007, we have been focusing on the production and development of fans.Products include: dc cooling fan, dc
blower, ac fan, EC fan, can be customized according to customer requirements fan current, voltage, speed, air volume, bearing,
wire and connector outlet.
The product involves the domain
Our products are used in many fields, such as 3D printer, automobile, LED lamp, inverter, kitchen electricity, humidifier and
other electronic products such as server.
*We provide DC cooling fan,DC blower fan,AC cooling fan and EC cooling fan.
2. What kind of function can we choose for fan?

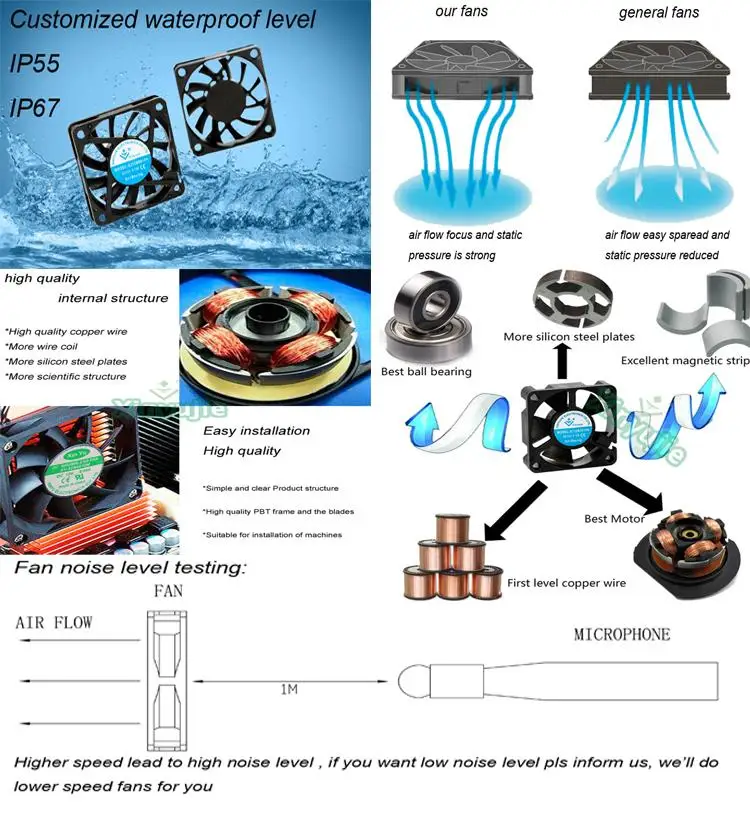

*Auto-restart ,Speed detection,Stop Alarm,Waterproof(IP20-IP68 optional), PWM function etc.
3. How long can your wire length be?
* The wire length and terminal could be customized as your request.
* Show the picture of connector and rank of wires for confirm.(Default wire length is 200mm)
4. What’s your MOQ and delivery date?
* MOQ 200PCS
* Sample lead time:5 working days
* Mass production:15 working days
* Waterproof fans need 1 more week.
5. What’s your payment terms ?
* We accept Payment by T/T,Western Union, Paypal ,L/C and advocate Credit Insurance Payment on Alibaba.
* 100% payment for sample orders ,30% prepayment and Balance before shipment.
6.What kind of transportation can we choose?
* Express:DHL,EMS,Fedex,UPS,IATA,TNT,China AIR Express,Iceland express etc.
* Sea transportation as you request.
7. What’s your packaging?
* Knife card packing,carton package
* normal carton size 43X28X43CM,different model will lead to carton size different.
8. What information should be provided before place an order?
* Fan dimension
* Rated voltage , such as 12v/24v/48V.
* Speed or current amp
* Sleeve or ball bearing
* Leading wire length(default 200mm)
* 2 wire leading or 3/4 wire leading

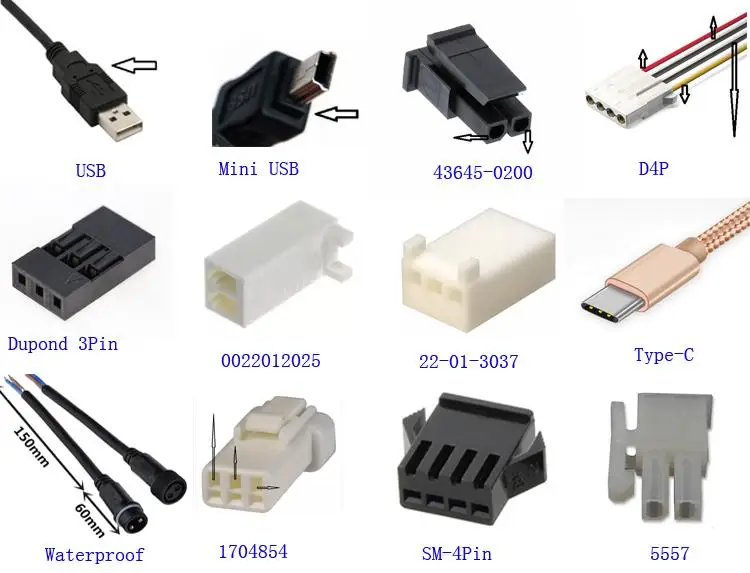

* With terminal or not.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal turbine blower?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this centrifugal turbine blower?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 12V/24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
