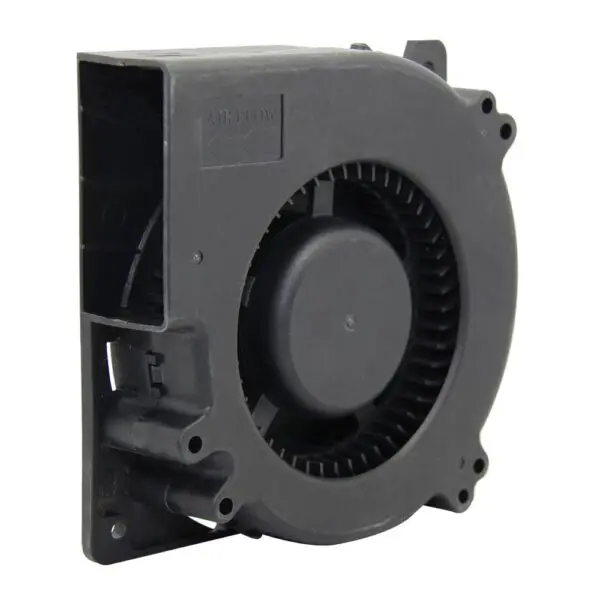

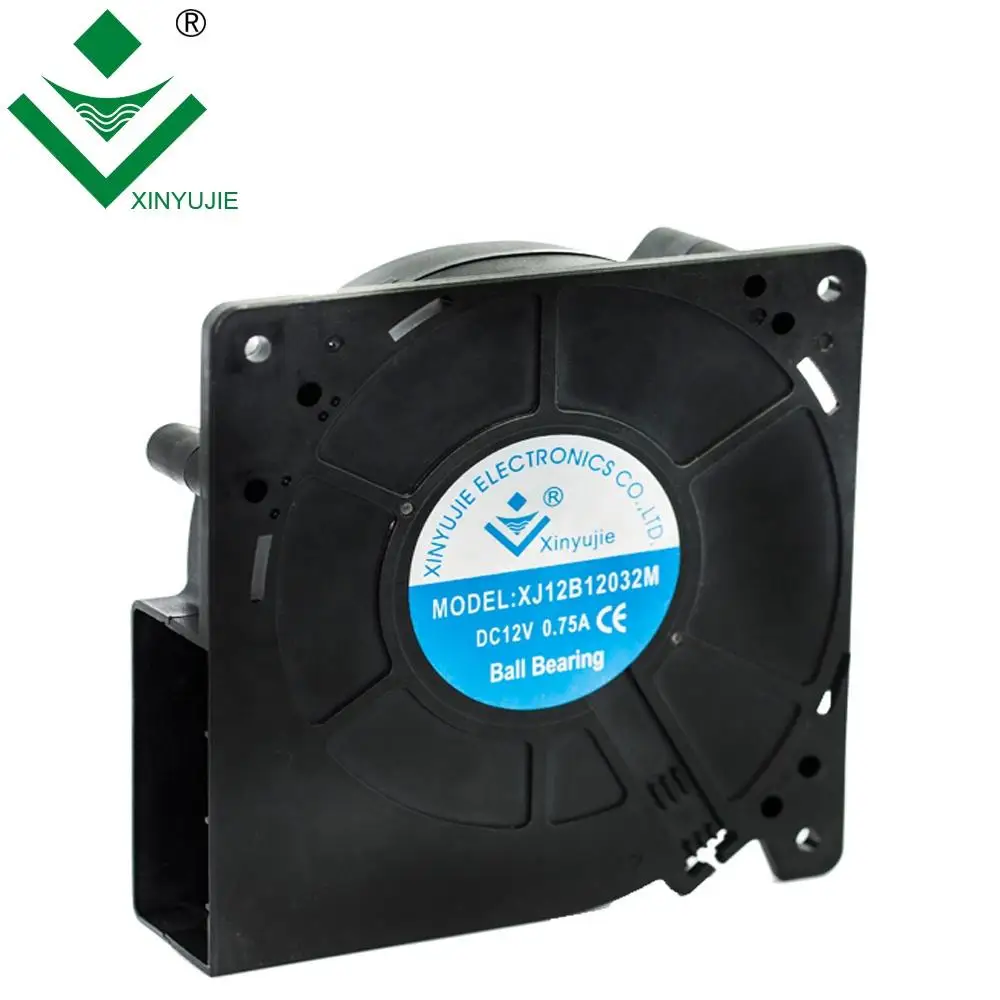

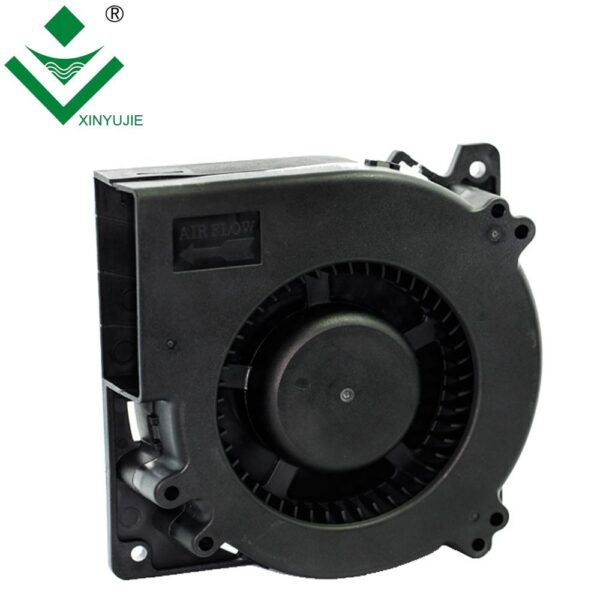

This DC blower fan is sized at 120x120x32mm, the frame that air purifier and burn oven designers reach for when a smaller blower cannot shift enough air through a dense filter or heat exchanger. At 3600rpm it develops real static pressure rather than just moving free air. The 48V option is worth noting: it halves current draw against 24V for the same power, simplifying wiring in larger equipment. OEM, ODM and OBM all supported.
Key Features of This Dc Blower Fan

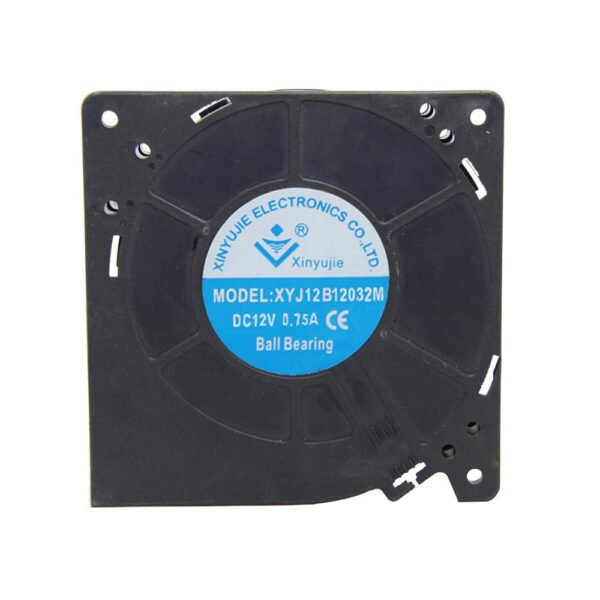

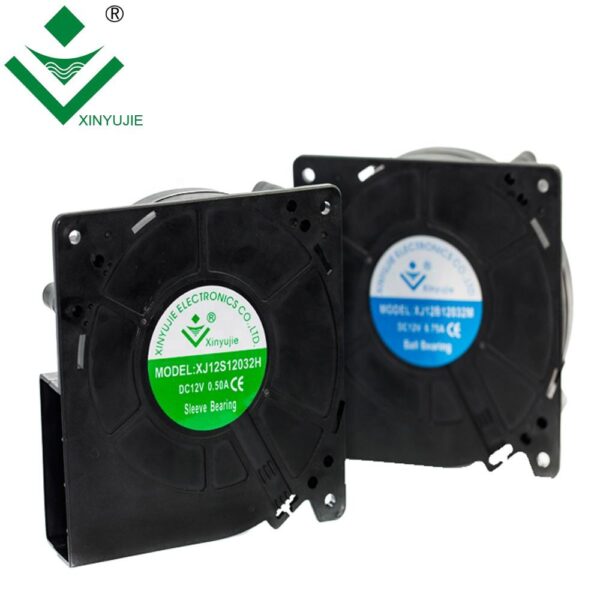

- Model Number: XXJ12S12032L XYJ12S12032M XYJ24S12032L XYJ24S12032M XYJ48S12032L XYJ48S12032M
- Voltage: 12V/24V
- Blade Material: Plastic
- Noise Level: 40-51dB-a
- Warranty: 1 Year
- Place Of Origin: Guangdong, China

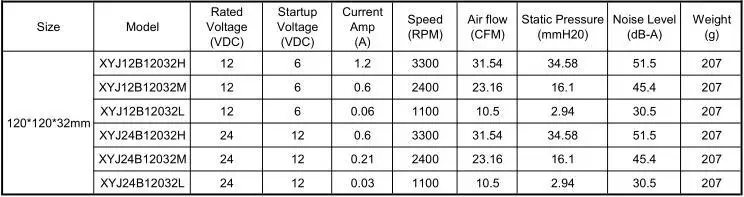

Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 12V/24V |
| Blade Material | Plastic |
| Electric Current Type | DC |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Model Number | XXJ12S12032L XYJ12S12032M XYJ24S12032L XYJ24S12032M XYJ48S12032L XYJ48S12032M |
| Place Of Origin | Guangdong, China |
| Brand Name | XINYUJIE |
| Current AMP | 0.13-0.68A |
| Noise Level | 40-51dB-a |
| Packaging Details | In seaworthy cartons or customized. |
| Selling Units | Single item |
| Single Package Size | 12X12X3.2 cm |
| Single Gross Weight | 0.220 kg |
| Packaging Examples |
|

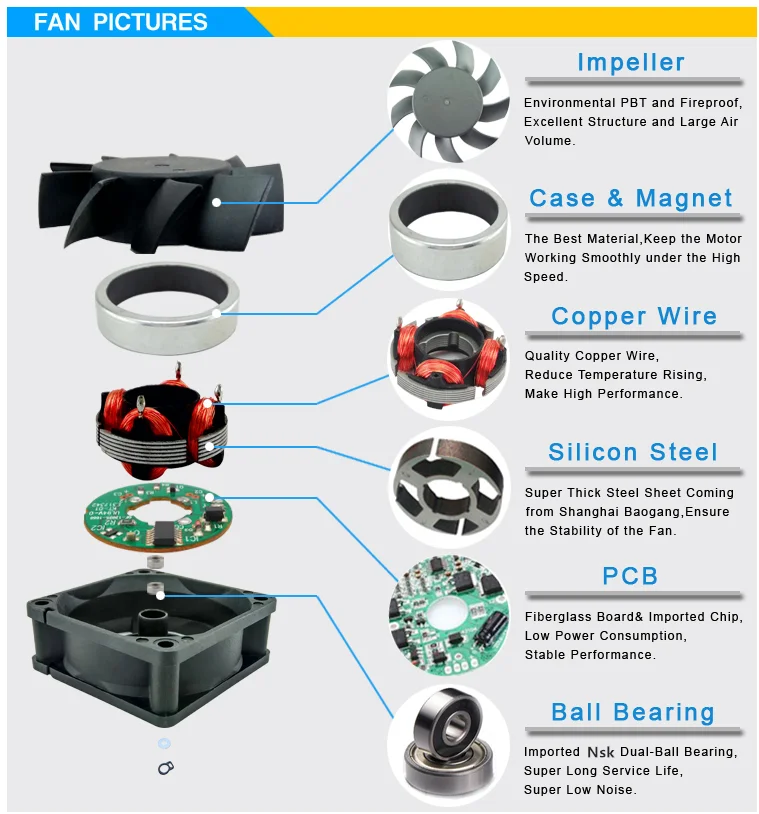

Frame
|
Thermal Plastic , Environmental
Protection&Fireproof
|
|
Impeller
|
Thermal Plastic , Environmental
Protection&Fireproof
|
|
Bearing Type
|
Ball Bearings & Sleeve Bearing
|
|
Lead Wires
|
1007 24AWG Red+Black
|
|
Motor Protection
|
Impedance protected; Reverse polarity protected; Automatic Restart
|
|
Operating Voltage
|
3.5~6.5V 6~13.8V 12~26.5V
|
|
Operating Temperature/
Humidity
|
-10℃~70℃ 35%~85%RH
|

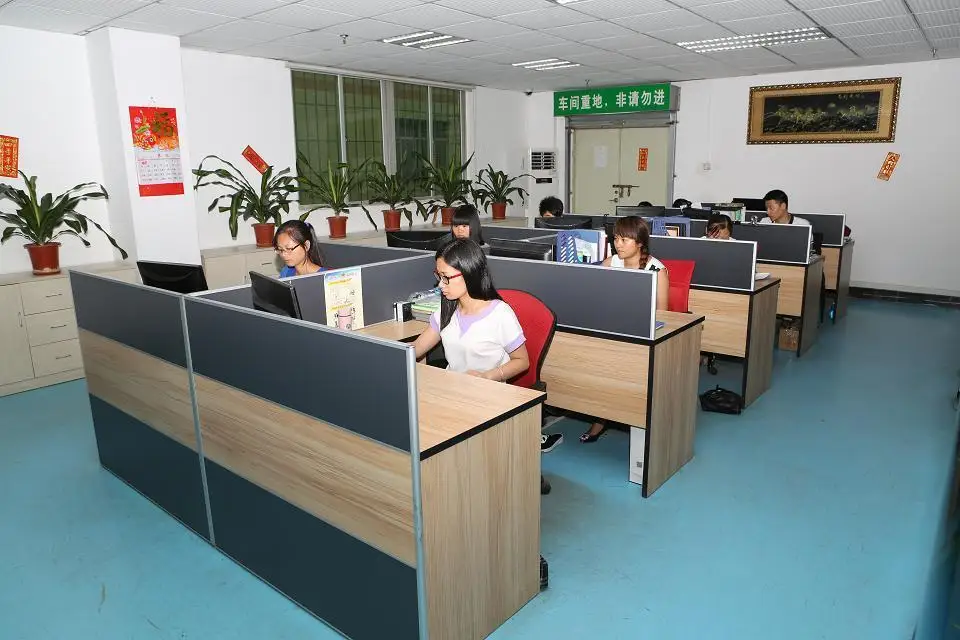

company profile
Xinyujie technology co., LTD., for the development and expansion of domestic trade;Xinyujie technology has been established for
more than 10 years has been specialized in the production of cooling fans.

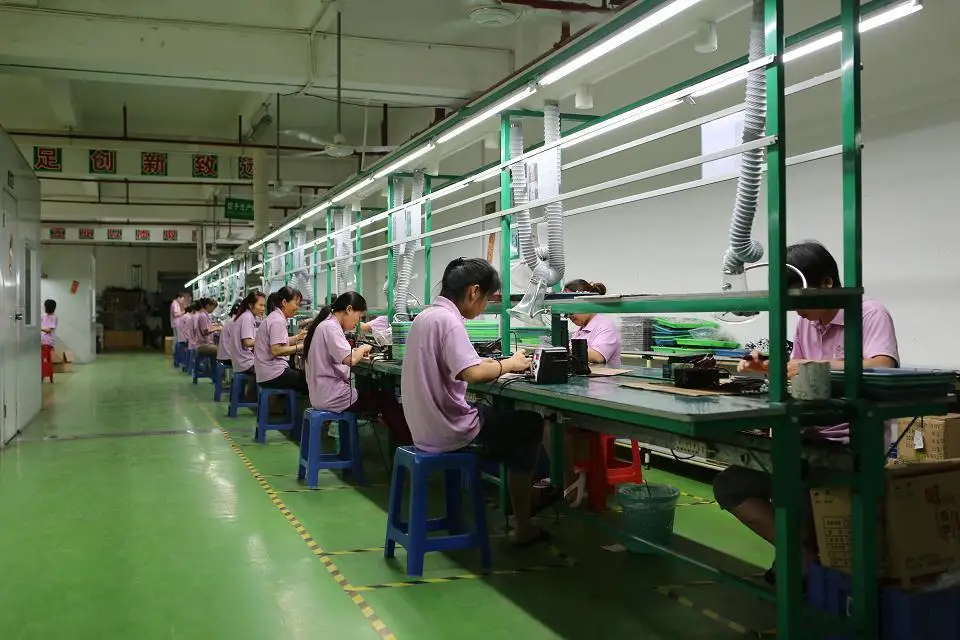

Base display
At present, our factory covers an area of 3,000 square meters, has more than 200 employees, six production lines, and the monthly
output is up to 1.2 million units.

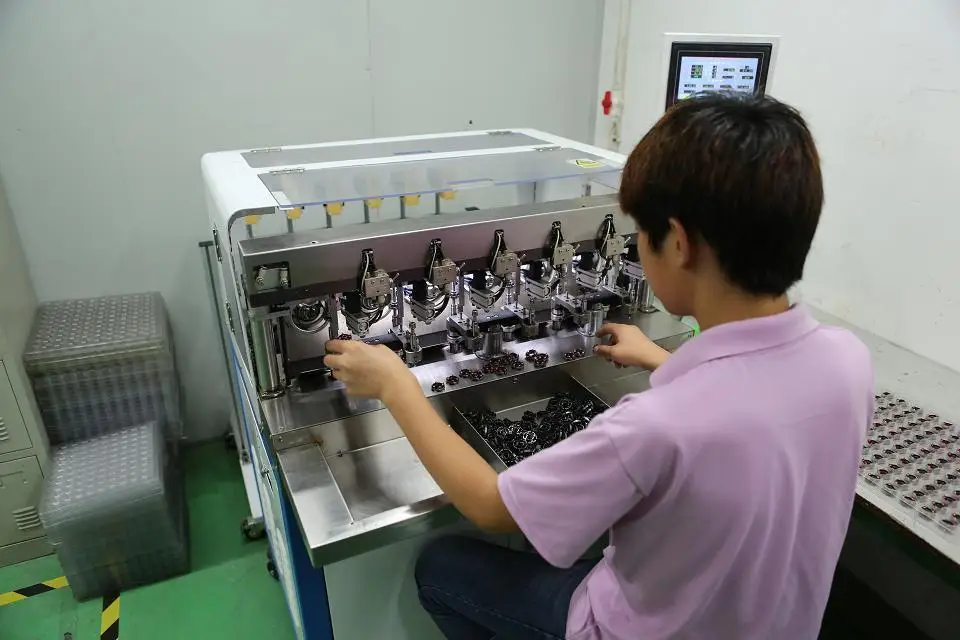

Production and development of products
Since its inception in 2007, we have been focusing on the production and development of fans.Products include: dc cooling fan, dc

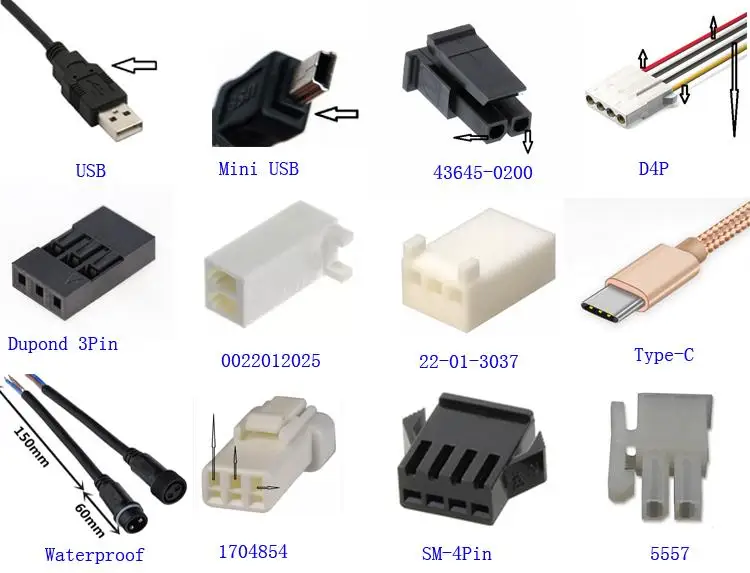

blower, ac fan, EC fan, can be customized according to customer requirements fan current, voltage, speed, air volume, bearing,
wire and connector outlet.
The product involves the domain
Our products are used in many fields, such as 3D printer, automobile, LED lamp, inverter, kitchen electricity, humidifier and
other electronic products such as server.
Frequently Asked Questions
What is the minimum order quantity for this dc blower fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this dc blower fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 12V/24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
