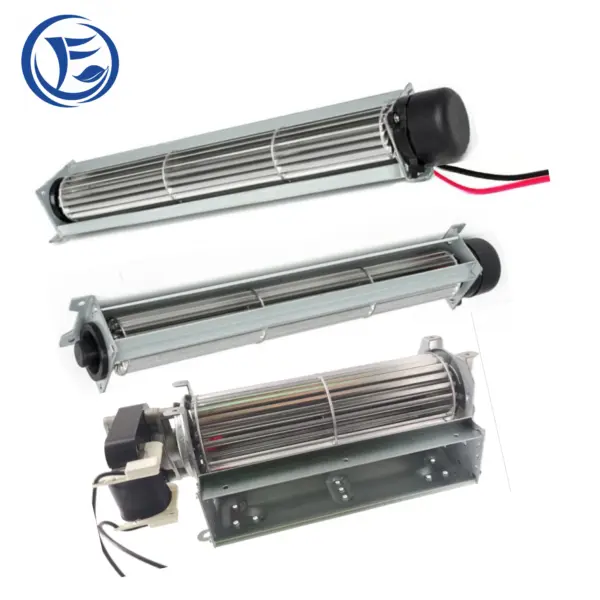

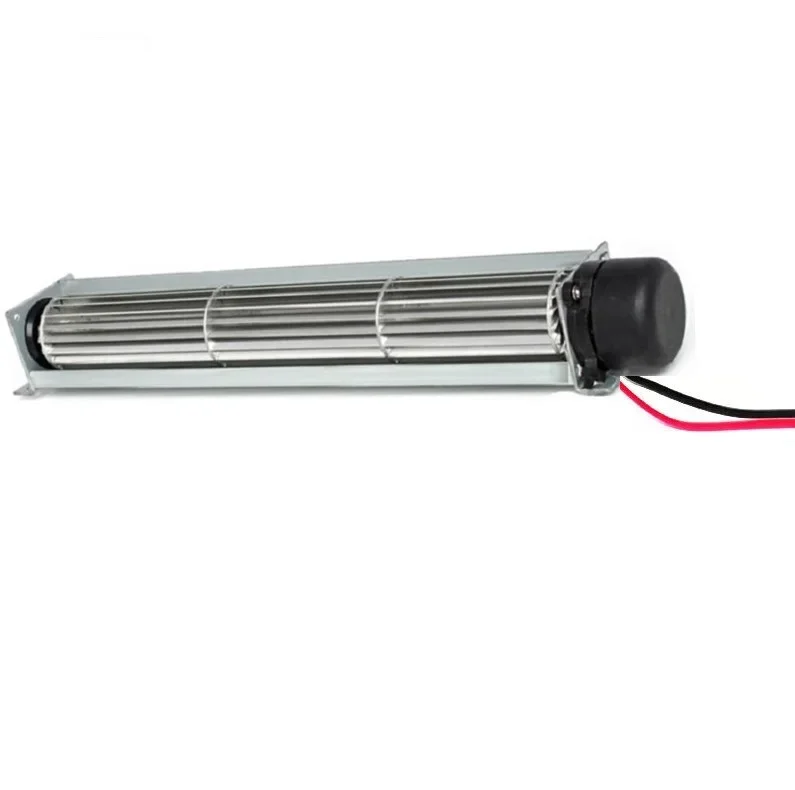

This cross flow fan is listed with the manufacturer’s full published specification — voltage 12V, blade material Aluminum Alloy, model number FH25250CFH1. It is produced by Shenzhen Feng Huishun Technology Development Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: FH25250CFH1
- Voltage: 12V
- Blade Material: Aluminum Alloy
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Bearing Type: Dual Ball Bearing
Technical Specifications
| Blade Material | Aluminum Alloy |
|---|---|
| Mounting | Free Standing |
| Place Of Origin | Guangdong, China |
| Voltage | 12V |
| Customized Support | OEM, ODM, OBM |
| Brand Name | FH/ODM/OEM |
| Model Number | FH25250CFH1 |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Product Name | DC Cross Flow Fan |
| Size | 340 x 30 x35mm |
| Bearing Type | Dual Ball Bearing |
| Selling Units | Single item |
| Single Package Size | 55X30X15 cm |
| Single Gross Weight | 1.000 kg |
|

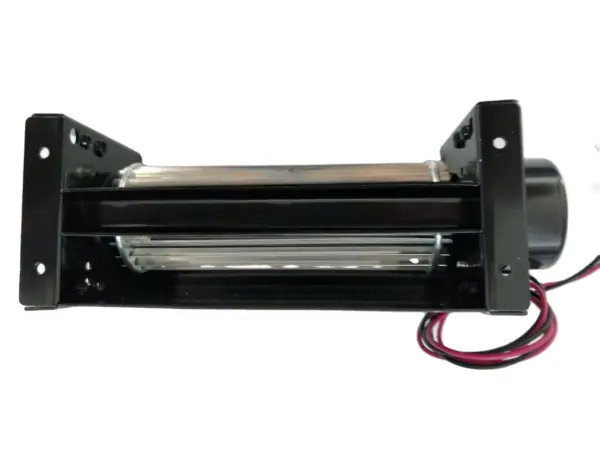

Product Name
|
DC Cross Flow Fan/DC tangential fan
|
|
Series
|
25 MM Impeller diameter series
|
|
Bearing type
|
Ball bearing
|
|
Material
|
Impeller:Aluminum Alloy , Frame:Steel +Aluminum Alloy
|
|
Voltage
|
DC 12V
|
|

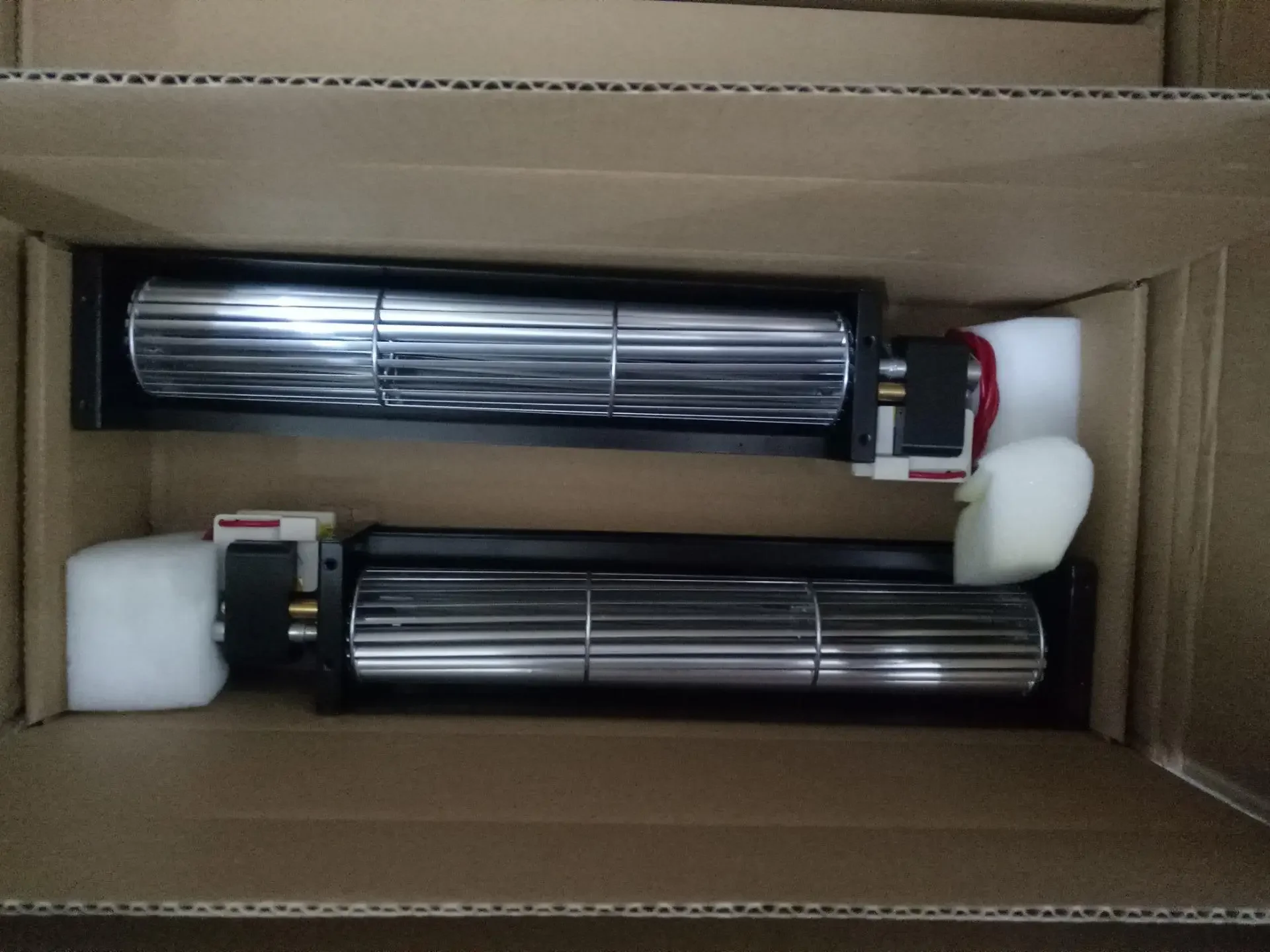

Package
|
Carton box,we can also according to the requirements of customers.
|
-

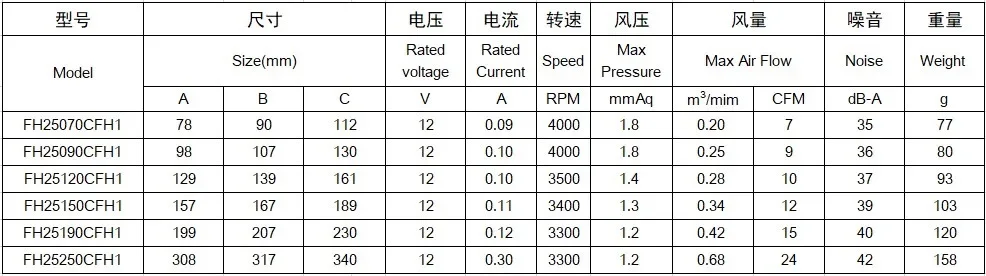

Product description:

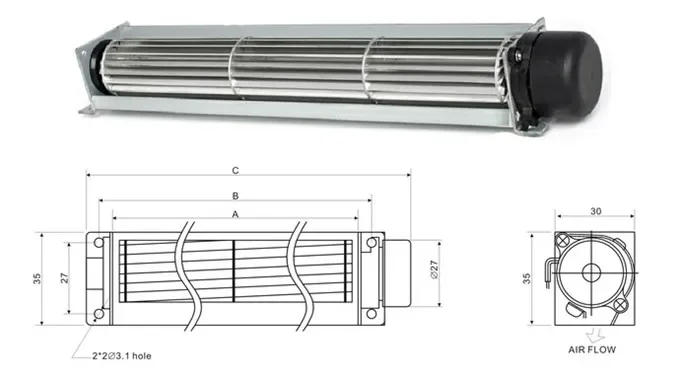

Product dimension: 340 x 30 x 35 mm
Fan voltage: dc 12V
Fan speed: 3300 RPM
Fan air flow rate: 24CFM
Rated current: 0.30A
Fan air pressure: 1.2mmAq
Noise level: 42 dB-A
Optional functions: tachometer output or locked rotor alarm signal; PWM speed control
Storage temperature range : -40~+70 C°
Operating temperature range : -10~ +70 C°
Life time : above 50000hours for ball bearing

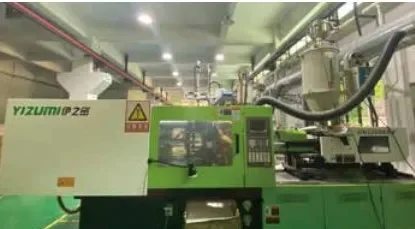

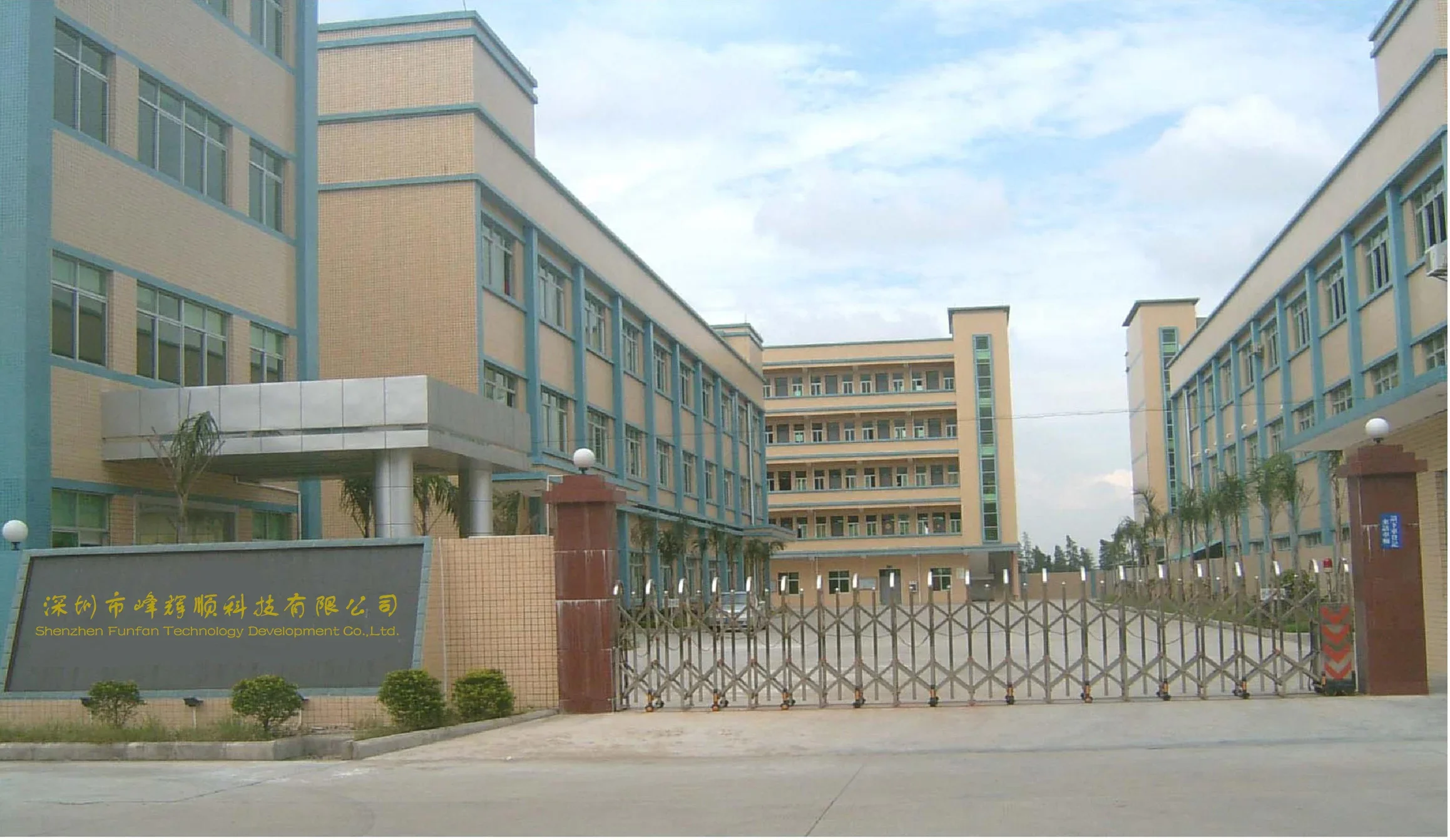

Factory
Sales department

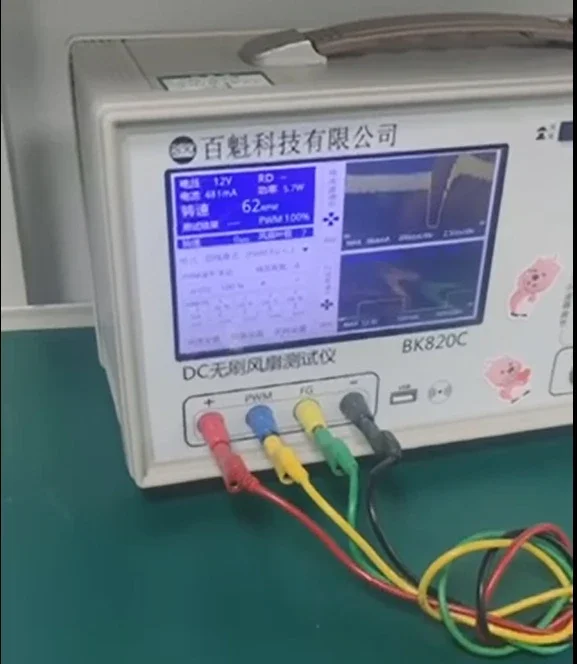

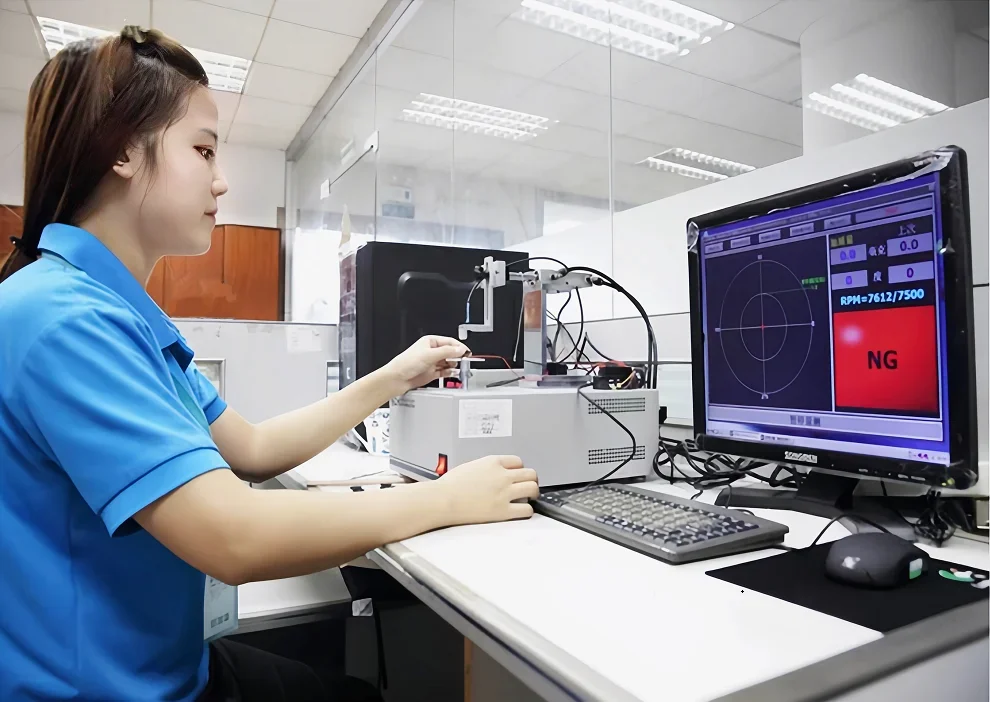

Workshop Quality control

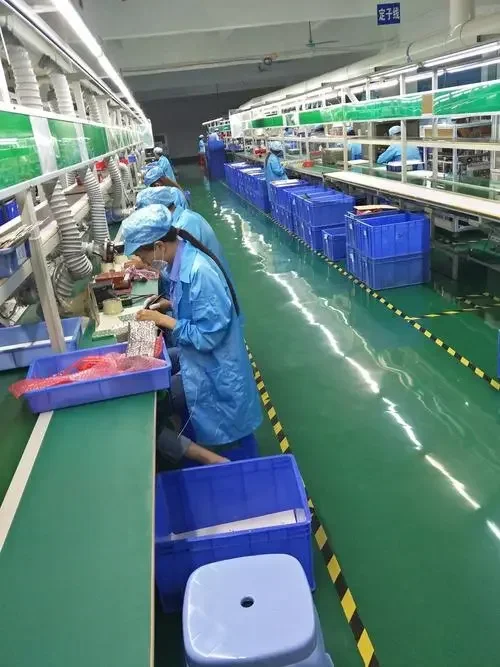

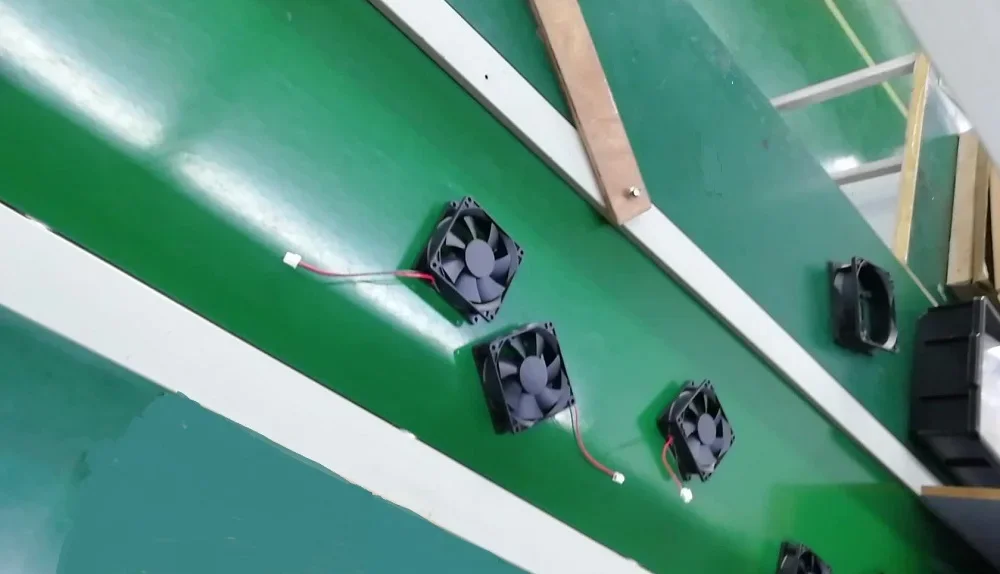

Assembly line 1
Assembly line 2
Wind Tunnel

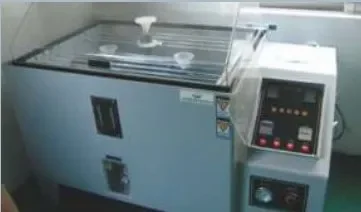

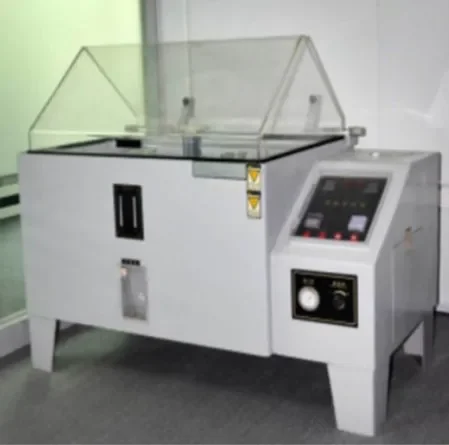

Salt Spray Machine

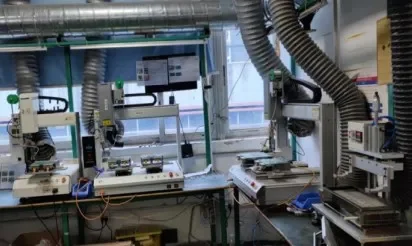

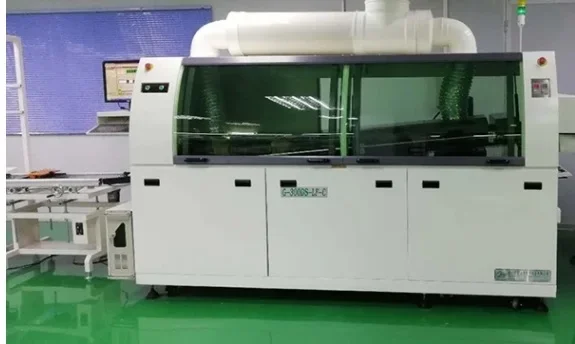

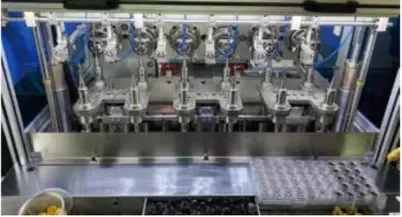

Automatic Welding Machine

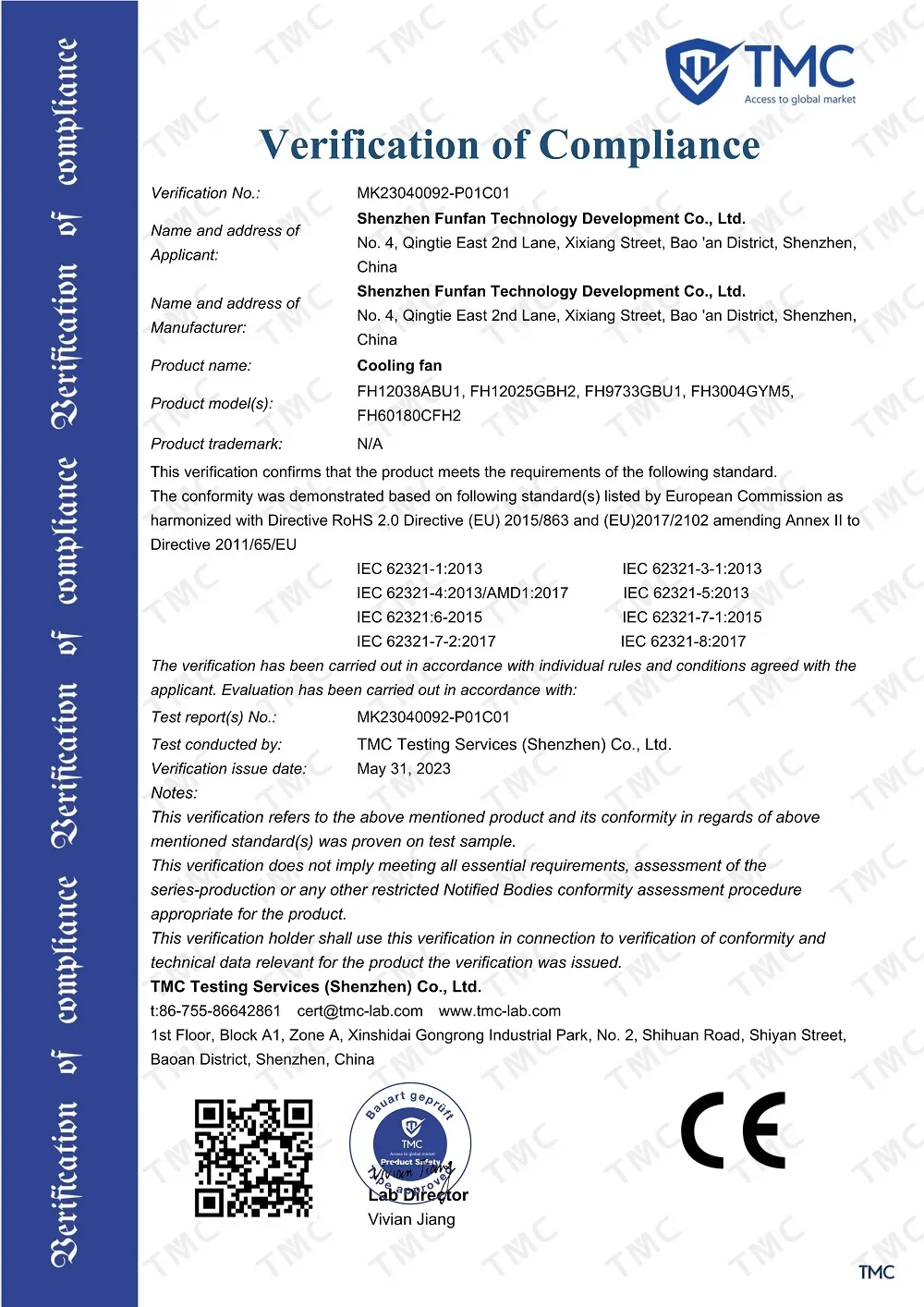

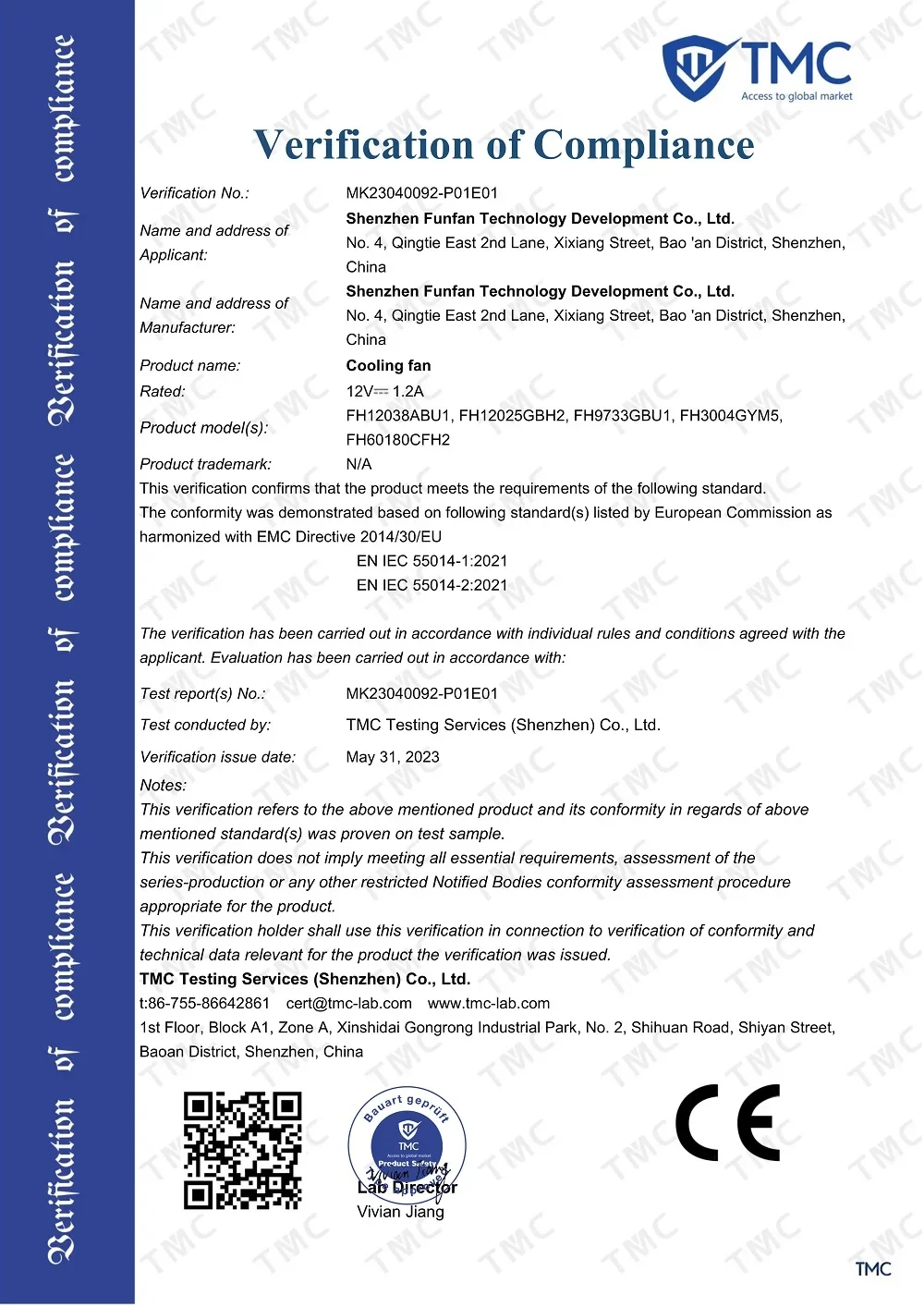

Certification
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this cross flow fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 12V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
