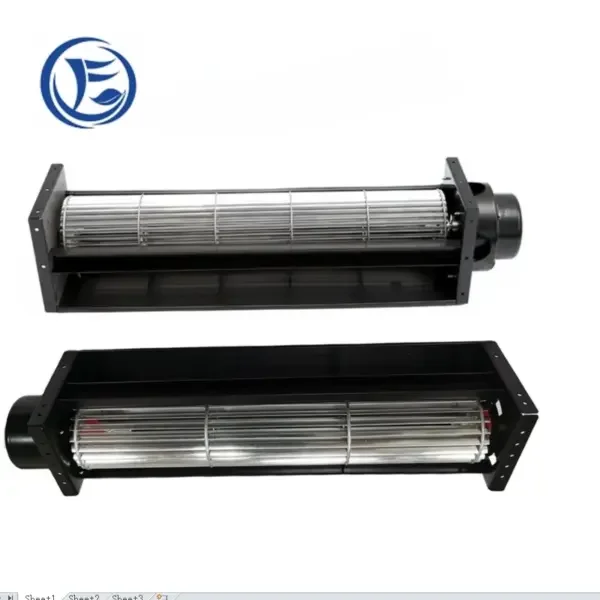

This flow type elevator blower is listed with the manufacturer’s full published specification — voltage 220/240V, blade material Aluminum Alloy, model number FH100380CFH22. It is produced by Shenzhen Feng Huishun Technology Development Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Flow Type Elevator Blower
- Model Number: FH100380CFH22
- Voltage: 220/240V
- Blade Material: Aluminum Alloy
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Electric Current Type: DC
Technical Specifications
| Blade Material | Aluminum Alloy |
|---|---|
| Mounting | Free Standing |
| Electric Current Type | DC |
| Place Of Origin | Guangdong, China |
| Voltage | 220/240V |
| Customized Support | OEM, ODM |
| Brand Name | FH |
| Model Number | FH100380CFH22 |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |

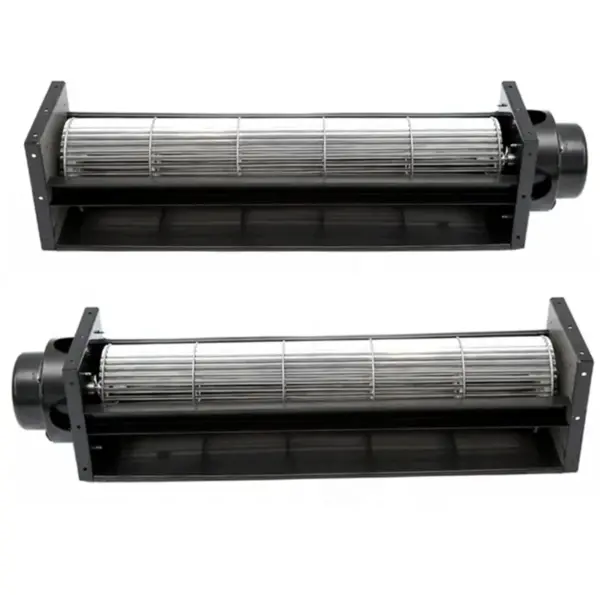

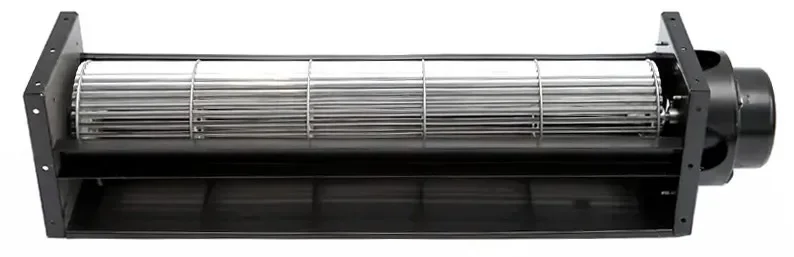

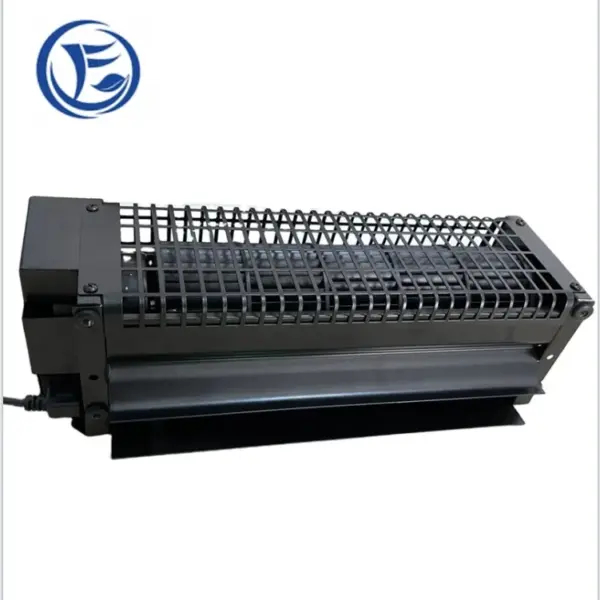

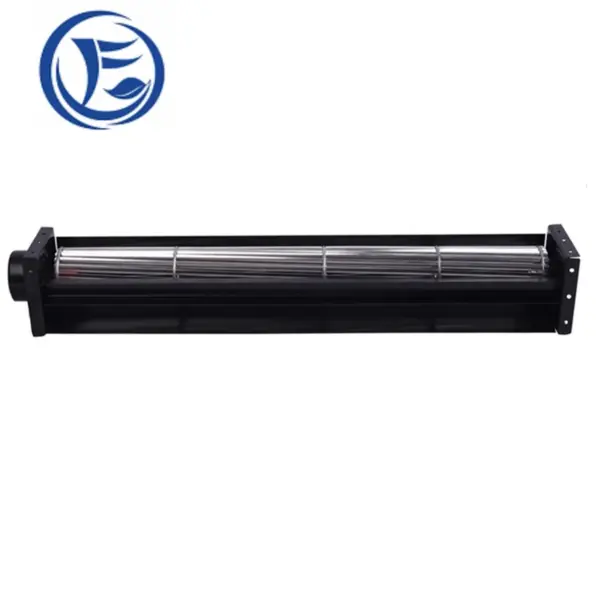

| Product Name | AC Cross Flow Fan |
| Bearing Type | Dual Ball Bearing |
| Selling Units | Single item |

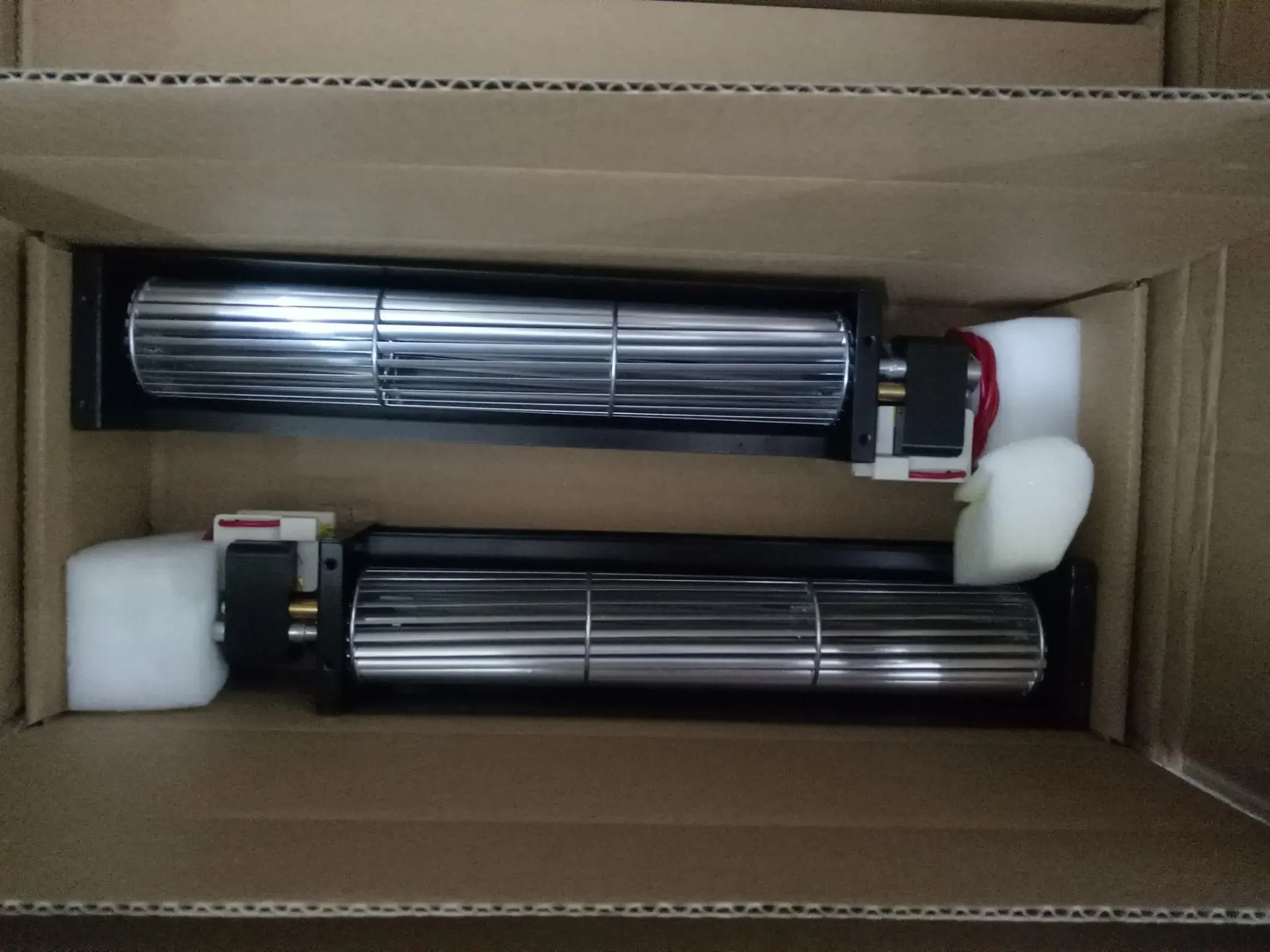

| Single Package Size | 35X20X15 cm |
| Single Gross Weight | 2.500 kg |
|
Product Name
|
AC Cross Flow Fan/AC tangential fan
|
|

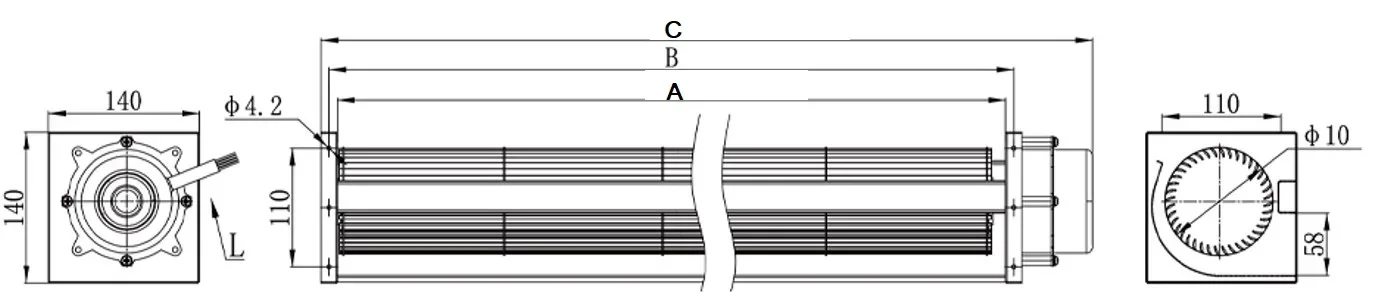

Diameter ( Series)
|
100 MM Impeller diameter series
|
|
Material
|
Impeller:Aluminum Alloy , Frame:Steel +Aluminum Alloy
|
|
Rated Voltage
|
220V
|
|
Frequency
|
50/60 Hz
|
|

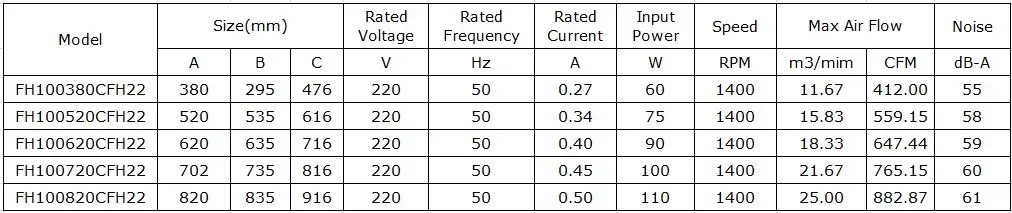

Max Speed
|
1400RPM
|
|
Max Airflow
|
412-882CFM
|
|
Max.ambient Temp
|
-25℃～ +60℃
|
|
Electronic Protection
|
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
|
|
Working & Storage |
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m |
|
Mainly Applications |
Floor Heating,Air Curtain,Server Cooling & Ventilation, Bus / Caravan Heater, Food Warmer / Hot Cupboad, Cooling System, Air Conditioner, Data
Center Load Banks, Air Purifier,Grow Tent, Equipments Cooling,,etc. |
Frequently Asked Questions
What is the minimum order quantity for this flow type elevator blower?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this flow type elevator blower?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220/240V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
