This operation heat sink fan is listed with the manufacturer’s full published specification — voltage 12V, 24V, 48V, power source Electric, material Plastic. It is produced by Guangzhou Mega Technology Limited Company. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Operation Heat Sink Fan
- Power Source: Electric
- Voltage: 12V, 24V, 48V
- Material: Plastic
- Blade Material: Plastic
- Speed: 11000RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 12V, 24V, 48V |
|---|---|
| Material | Plastic |
| Speed | 11000RPM |
| Mounting Type | Free Standing |
| Type | Duct Axial Fan |
| Warranty | 1 Year |
| Blade Diameter | 3.35 in |
| Power Source | Electric |
| Blade Material | Plastic |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Video Technical Support |
| Selling Units | Single item |
| Single Package Size | 9.2X9.2X3.8 cm |
| Single Gross Weight | 0.738 kg |

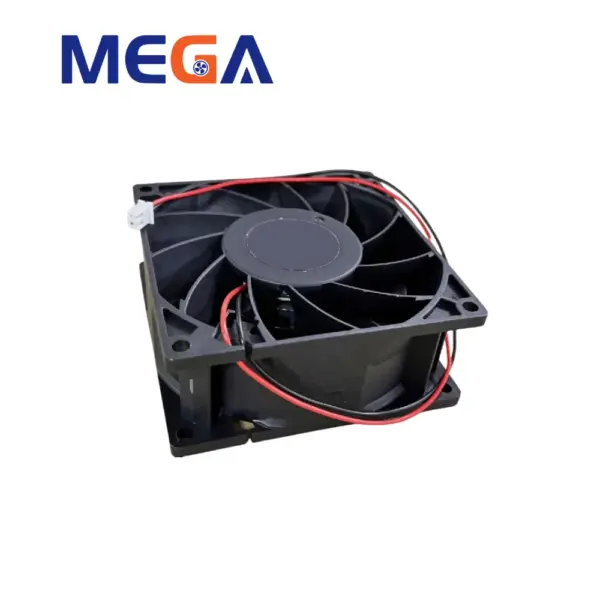

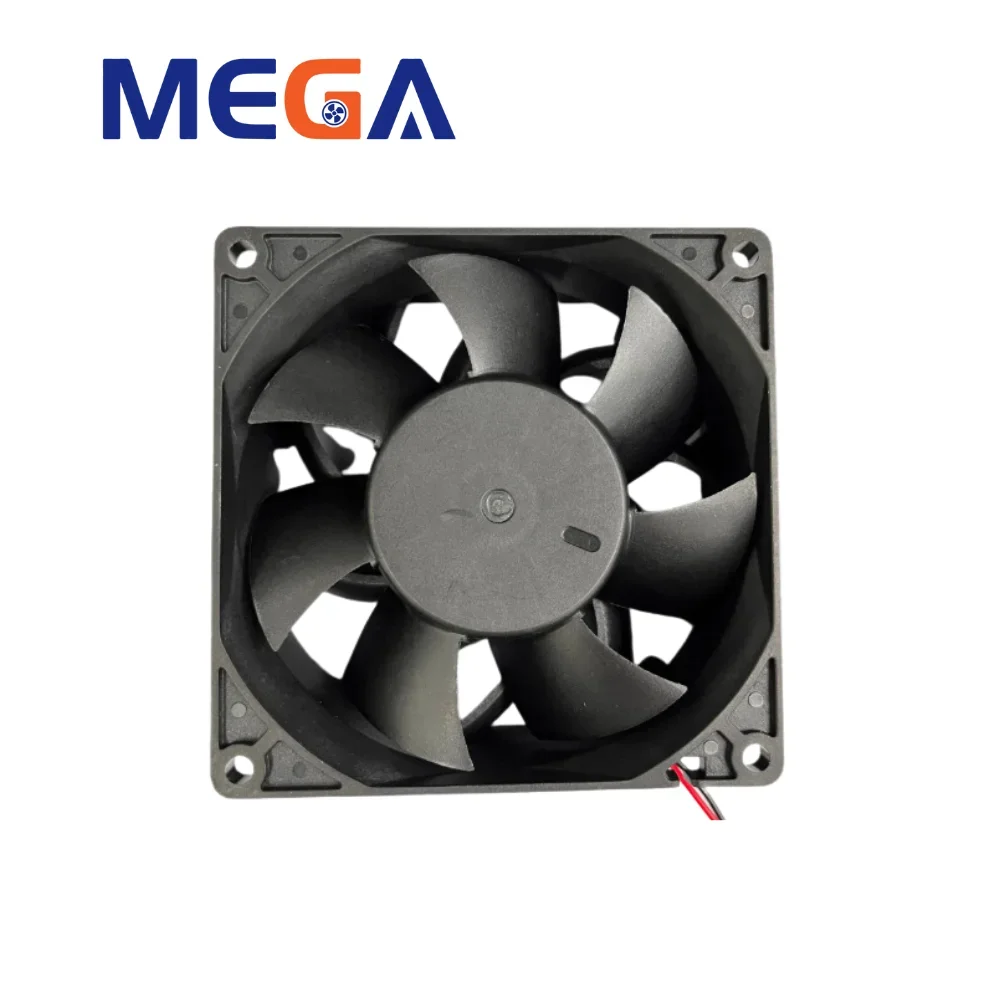

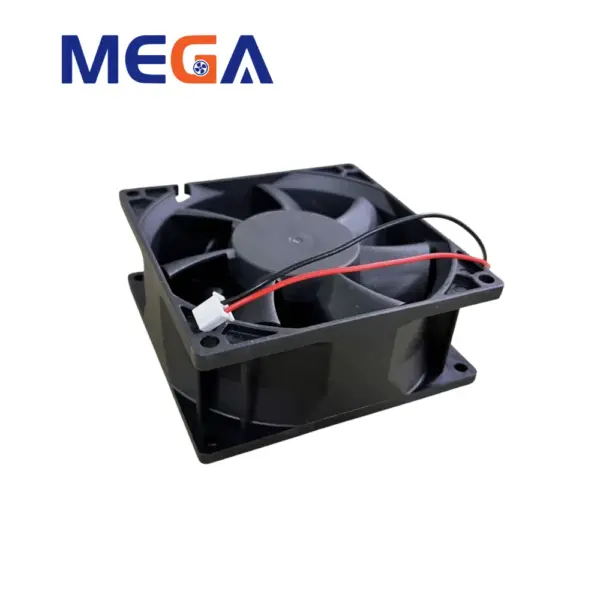

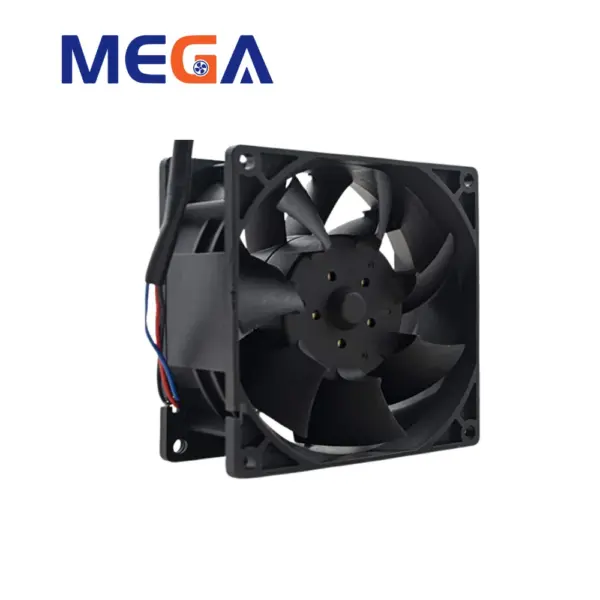

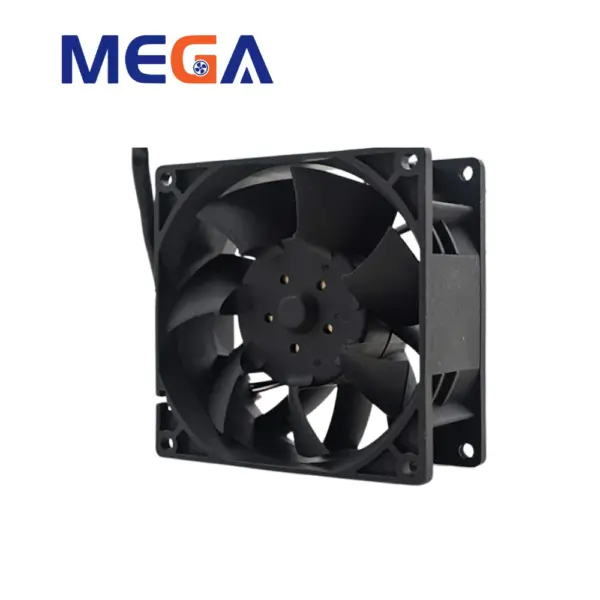

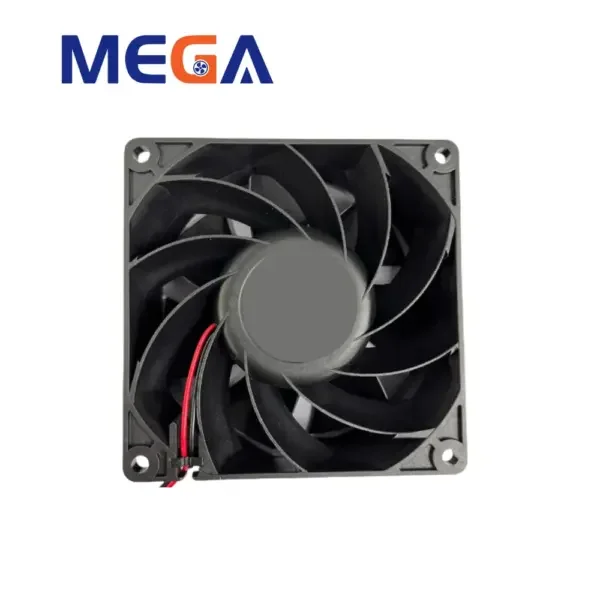

High Airflow Quiet Operation Heat Sink Fan 92x92x38mm 11000RPM 12V for Electronics and LED Lighting
www.cnmegatech.com
We can custom all kinds of famous brand fan, some data replacement fan, please feel free to contact
lisa@cnmegatech.com
whatsapp: 86-13570567086
Product Description
Product Overview
The product is a DC frameless fan 92x92x38mm type, manufactured by Guangzhou Mega Technology Co., Ltd. It is a type of fan that is designed to be used in a computer case. The fan is made of plastic and has four blades. The blades are arranged in a circular pattern, which helps to circulate the air around the fan.
ParameterValue
size 92x92x38mm
Rated voltage 12V, 24V, 48V (optional)
Operating voltage range 7.5-13.5V (12V), 18.0-26.5V (24V)，36-54V (48V)
Rated current 0.875-3.5A
Rated input power 42W
Speed 11000RPM
Air flow 184.2CFM
Maximum air pressure 71.9mmH2O
Maximum noise level 70.5dB(A)
Bearing type Sleeve, ball, hydraulic (optional)
Frame material Plastic (UL94V-0)
Impeller material Plastic (UL94V-0)
Weight 238g
The product is a DC frameless fan 92x92x38mm type, manufactured by Guangzhou Mega Technology Co., Ltd. It is a type of fan that is designed to be used in a computer case. The fan is made of plastic and has four blades. The blades are arranged in a circular pattern, which helps to circulate the air around the fan.
ParameterValue
size 92x92x38mm
Rated voltage 12V, 24V, 48V (optional)
Operating voltage range 7.5-13.5V (12V), 18.0-26.5V (24V)，36-54V (48V)
Rated current 0.875-3.5A
Rated input power 42W
Speed 11000RPM
Air flow 184.2CFM
Maximum air pressure 71.9mmH2O
Maximum noise level 70.5dB(A)
Bearing type Sleeve, ball, hydraulic (optional)
Frame material Plastic (UL94V-0)
Impeller material Plastic (UL94V-0)
Weight 238g

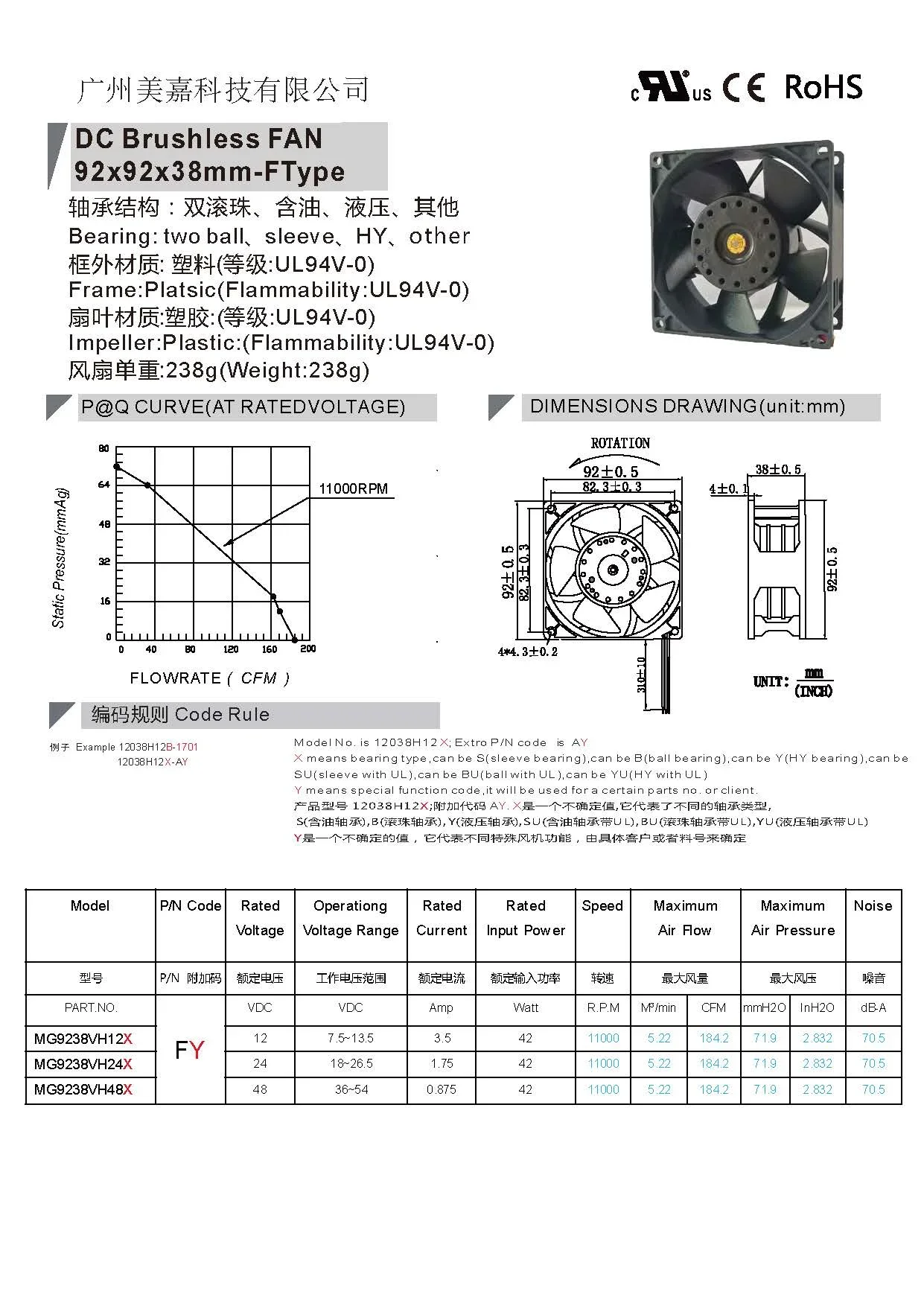

Product Parameters
|
Model
|
Rated Voltage
|
Operationg Voltage Range
|
Rated Current
|
Rated Input Power
|
Speed
|
Maximum Air Flow
|
Maximum Air Pressure
|
Noise
|
|
PART.NO.
|
VDC
|
VDC
|
Amp
|
Watt
|
R.P.M
|
CFM
|
mmH2O
|
dB-A
|
|
MG9238VH12X
|
12
|
7.5~13.5
|
3.5
|
42
|
11000
|
184.2
|
71.9
|
70.5
|
|
MG9238VH24X
|
24
|
18~26.5
|
1.75
|
42
|
11000
|
184.2
|
71.9
|
70.5
|
|
MG9238VH48X
|
48
|
36~54
|
0.875
|
42
|
11000
|
184.2
|
71.9
|
70.5
|
Product Advantages
Benefits
1. High efficiency: The brushless DC motor is energy efficient and provides a long lifespan.
2. Low noise: The fan is relatively quiet, making it suitable for use in noise-sensitive environments.
3. Durability: The metal frame and plastic blades make the fan durable and resistant to corrosion.
Advantages
1. Brushless motor: Brushless motors are more efficient and reliable than traditional brushed motors. They also produce less noise and vibration.
2. Metal frame: The metal frame makes the fan more durable and resistant to damage.
3. Plastic blades: The plastic blades are lightweight and efficient. They are also less likely to break than metal blades.
4. Wide range of voltages: The fan is available in a variety of voltages to meet the needs of different applications.
Benefits
1. High efficiency: The brushless DC motor is energy efficient and provides a long lifespan.
2. Low noise: The fan is relatively quiet, making it suitable for use in noise-sensitive environments.
3. Durability: The metal frame and plastic blades make the fan durable and resistant to corrosion.
Advantages
1. Brushless motor: Brushless motors are more efficient and reliable than traditional brushed motors. They also produce less noise and vibration.
2. Metal frame: The metal frame makes the fan more durable and resistant to damage.
3. Plastic blades: The plastic blades are lightweight and efficient. They are also less likely to break than metal blades.
4. Wide range of voltages: The fan is available in a variety of voltages to meet the needs of different applications.
Product Applications
1. Computers: The fan can be used to cool the CPU, GPU, and other components in a computer. This can help to improve the performance and stability of the computer and extend its lifespan.
2. Electronics: The fan can be used to cool electronics such as routers, modems, and power supplies. This can help to prevent them from overheating and malfunctioning.
3. Telecommunications equipment: The fan can be used to cool telecommunications equipment such as switches and routers. This can help to ensure that the equipment is operating reliably and efficiently.
4. Medical equipment: The fan can be used to cool medical equipment such as MRI machines and lasers. This can help to ensure that the equipment is operating safely and effectively.
5. ndustrial machinery: The fan can be used to cool industrial machinery such as motors, generators, and transformers. This can help to prevent them from overheating and damaging themselves or other equipment.
1. Computers: The fan can be used to cool the CPU, GPU, and other components in a computer. This can help to improve the performance and stability of the computer and extend its lifespan.
2. Electronics: The fan can be used to cool electronics such as routers, modems, and power supplies. This can help to prevent them from overheating and malfunctioning.
3. Telecommunications equipment: The fan can be used to cool telecommunications equipment such as switches and routers. This can help to ensure that the equipment is operating reliably and efficiently.
4. Medical equipment: The fan can be used to cool medical equipment such as MRI machines and lasers. This can help to ensure that the equipment is operating safely and effectively.
5. ndustrial machinery: The fan can be used to cool industrial machinery such as motors, generators, and transformers. This can help to prevent them from overheating and damaging themselves or other equipment.
Our advantage
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers’ performance at significantly lower prices.
We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers’ performance at significantly lower prices.
We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
Application
|
Automotive
|
Computers and laptops
|
Drones
|

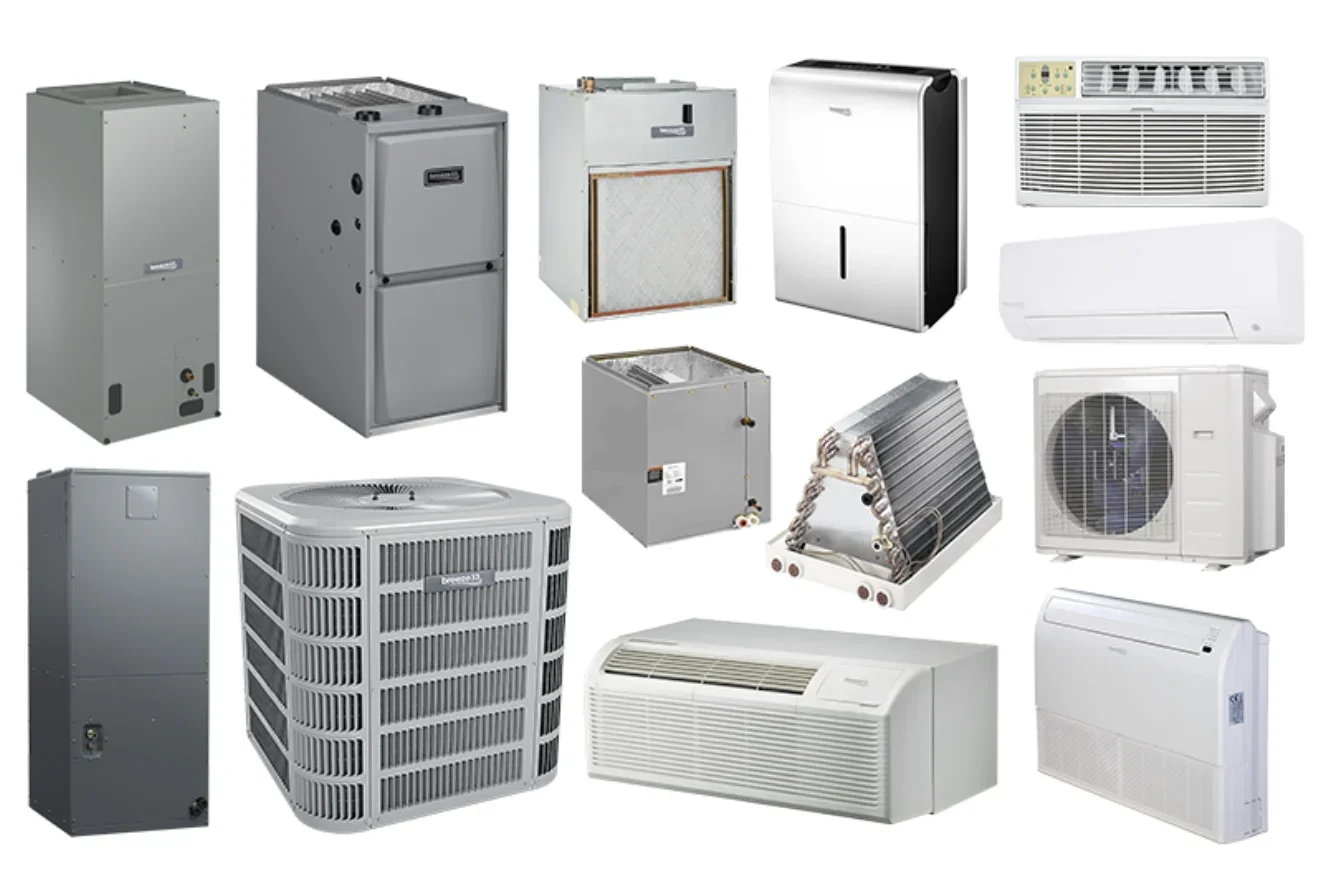

HVAC equipment
|
|
Telecommunications
|
Consumer appliances
|

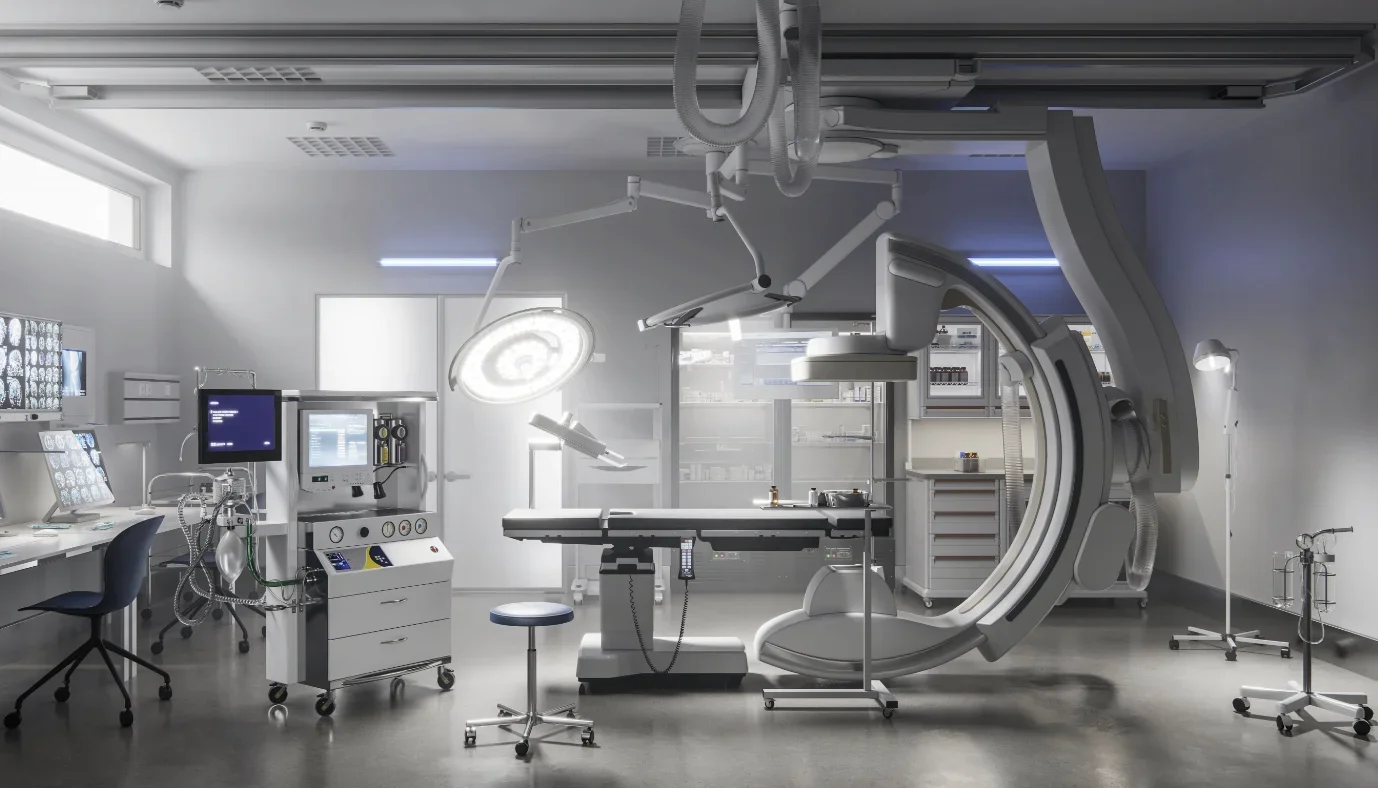

Medical devices
|

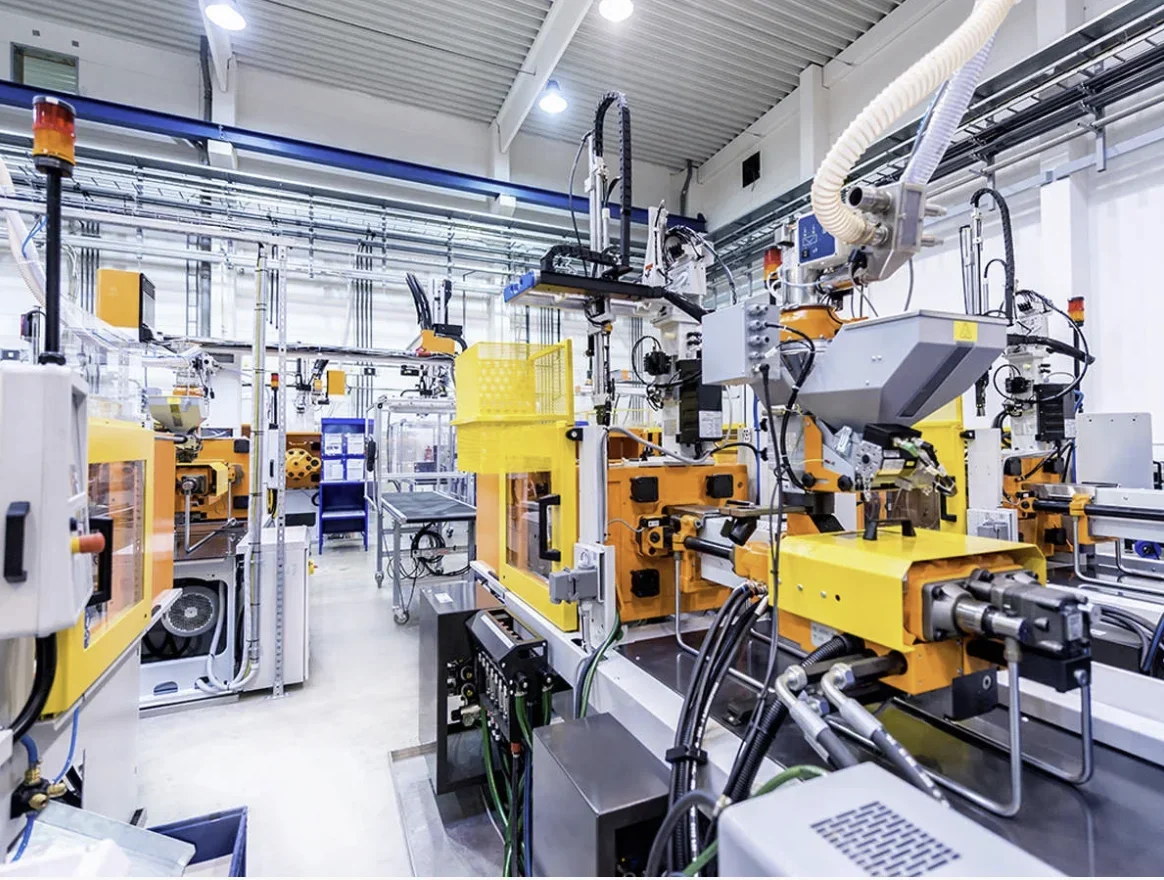

Industrial machinery
|
|
Medical diagnostic
|

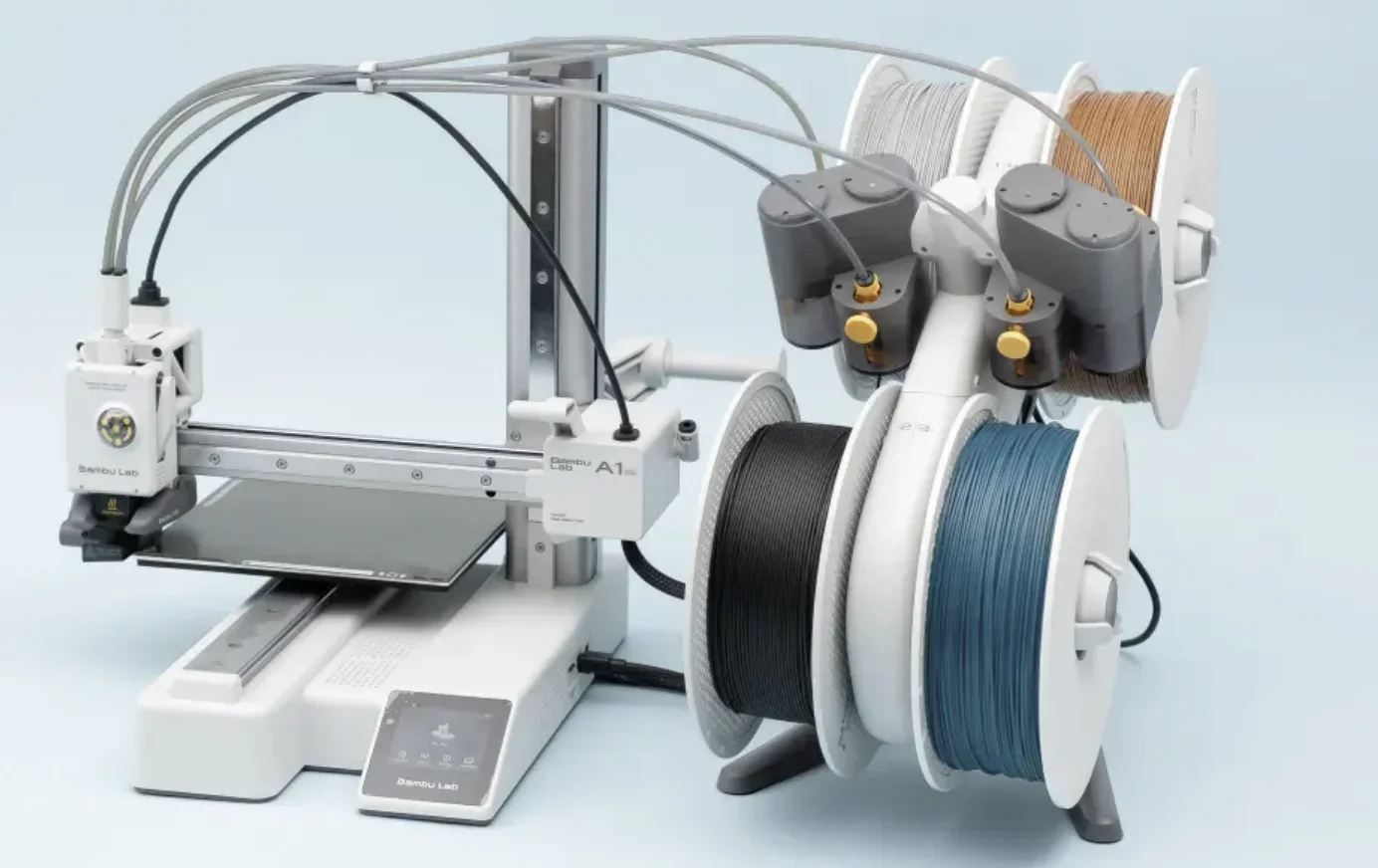

3d Printers
|
Refrigerator
|
Solar Photovoltaic
|
Company Profile
Guangzhou Mega technology Co.,LTD
*Established in 2008, specializes in the R&D and production of DC/AC cooling fans, blowers.
*Products are customized according to Clients’ application.
*Sample Available, Small Quanity 0rder Available, Quick Delivery
*Our products are mainly used for equipment ventilation heat dissipation in the fields such as computers, home appliances, cars, medical equipment, industrial controls, electrical power, printing, electric welding machines and instrument panels.
*Our monthly capacity is 0.8 million to 1.0 million pieces, we not only guarantee on time delivery on big quantity order, but alsohave special production line to support clients with small quantity order.
* Your Satisfaction Is Our Aim. Feel free to contact us !
* Your Satisfaction Is Our Aim. Feel free to contact us !

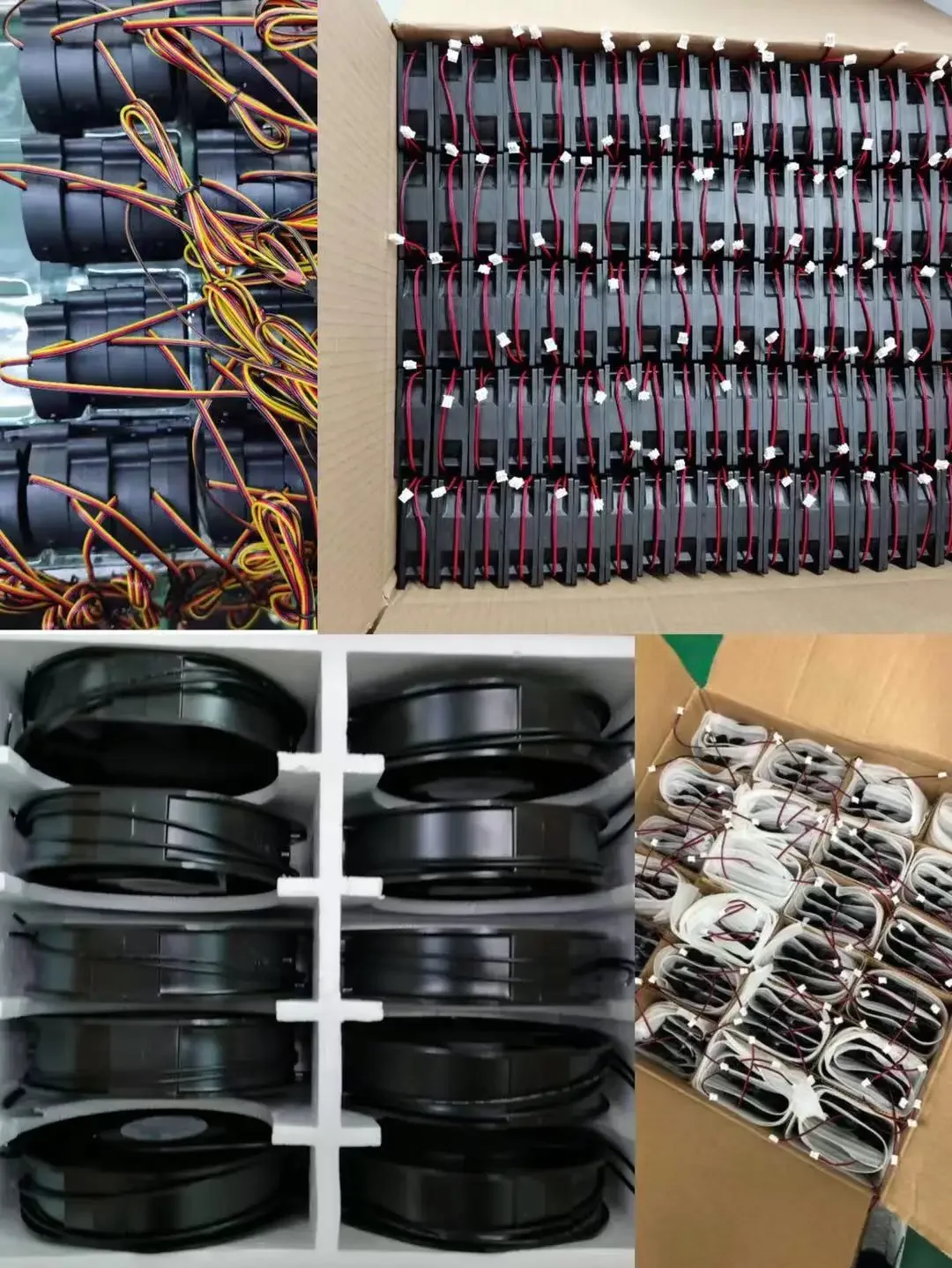

Product packaging
Packing And Deliver are all according to Client’s requirement
Why Choose Us
Always Give Customer Best
* Experienced Staff * Guarantee/Warranty
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted

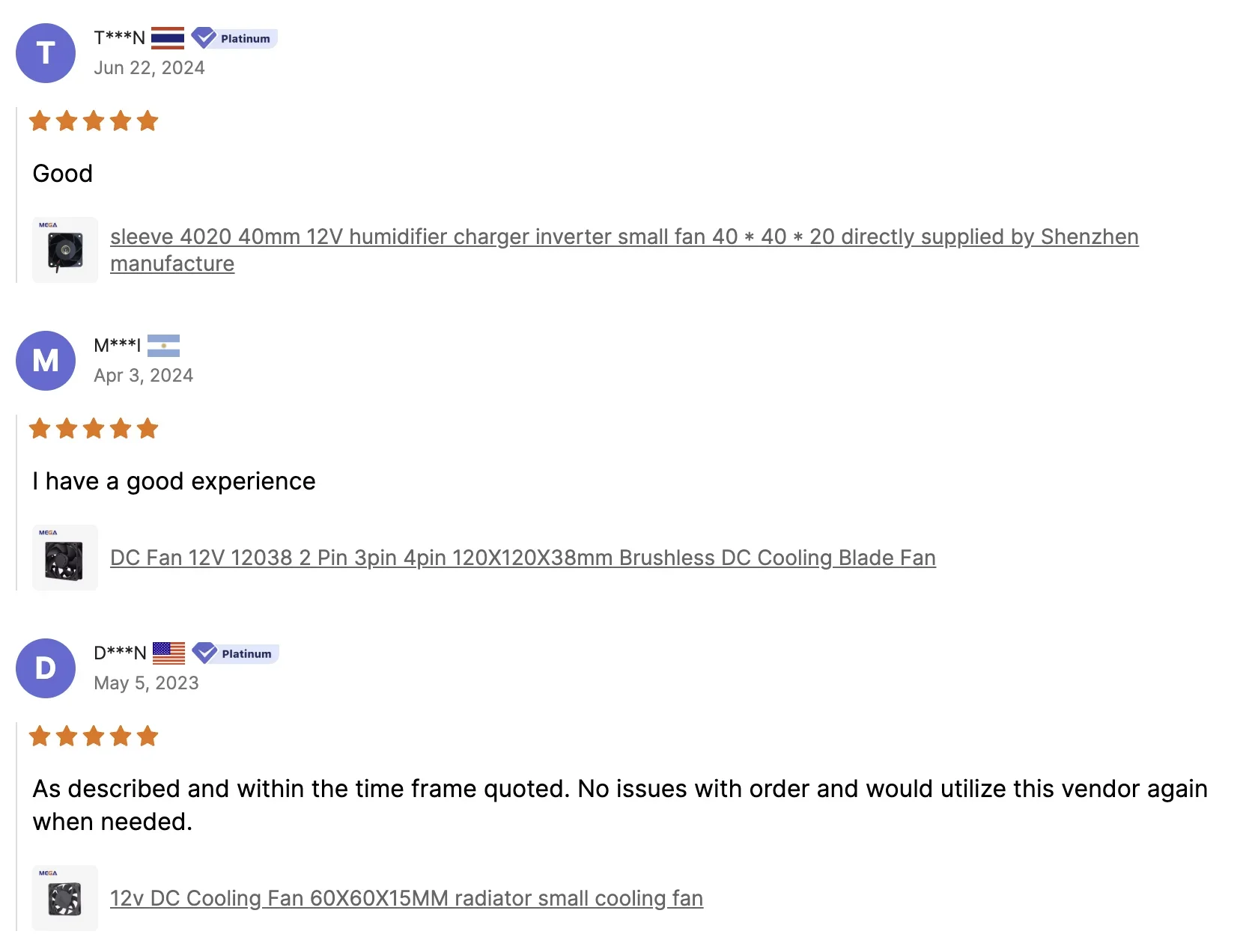

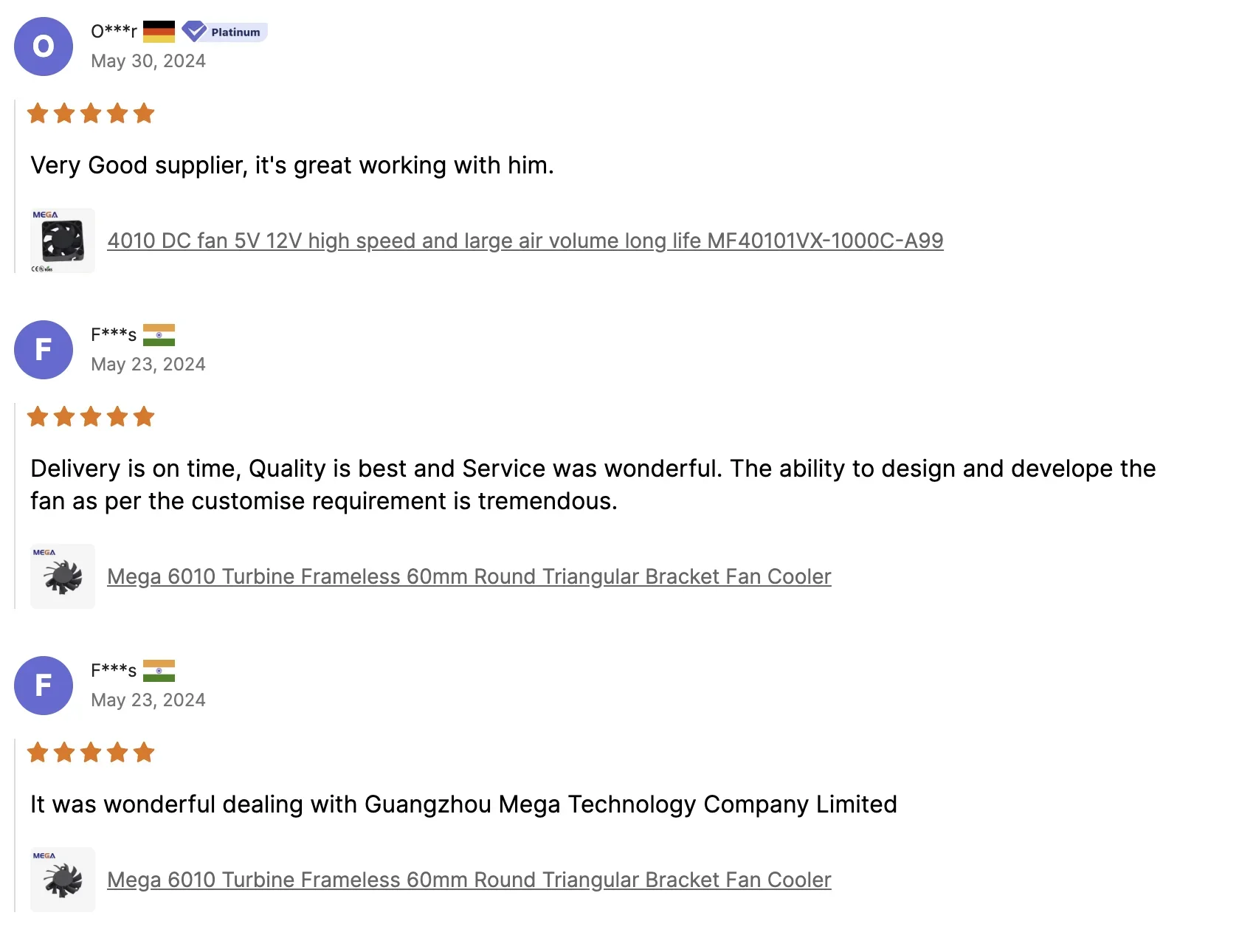

Customer Satisfaction
FAQ
1. What is a bearing?
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
One is testing during production
Another is 100% testing before packing.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.
5. What’s your MOQ and delivery date ?
We don’t have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
We don’t have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
Home
Frequently Asked Questions
What is the minimum order quantity for this operation heat sink fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this operation heat sink fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 12V, 24V, 48V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
