This gasoline-powered centrifugal exhaust fan is listed with the manufacturer’s full published specification — voltage 120 V, 110V, 220V, 380V, 415V, 480V, power source Gasoline, blade material Cast Iron. It is produced by Dongguan Minxin Industry Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Gasoline-Powered Centrifugal Exhaust Fan
- Model Number: 1530mm, 1380mm, 1220mm, 1100mm, 1000mm
- Power Source: Gasoline
- Voltage: 120 V, 110V, 220V, 380V, 415V, 480V
- Blade Material: Cast Iron
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 120 V, 110V, 220V, 380V, 415V, 480V |
|---|---|
| Mounting Type | Wall Fan |
| Type | Wall-Mounted Axial Fan |
| Warranty | 1 Year |
| Power Source | Gasoline |
| Blade Material | Cast Iron |
| Bearing Type | DUAL BALL BEARING |
| Customized Support | OEM, ODM, OBM, Private Labeling |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Guangdong, China |
| Brand Name | MINXIN |
| Model Number | 1530mm, 1380mm, 1220mm, 1100mm, 1000mm |
| Selling Units | Single item |
| Single Package Size | 138X138X45 cm |
| Single Gross Weight | 65.000 kg |
Related Products
Product Description

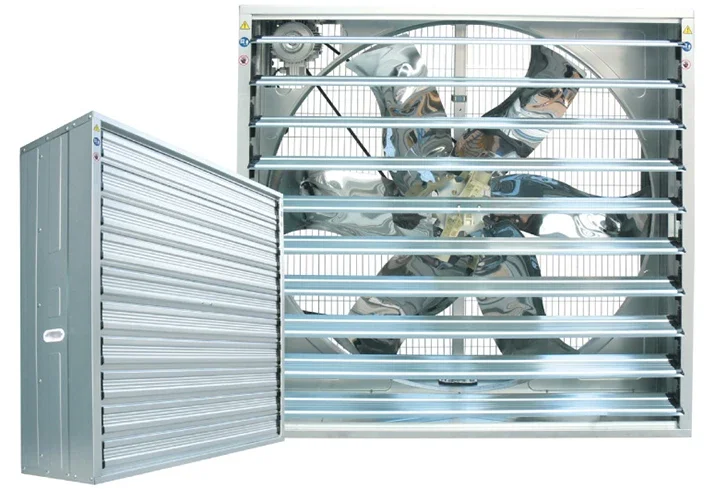

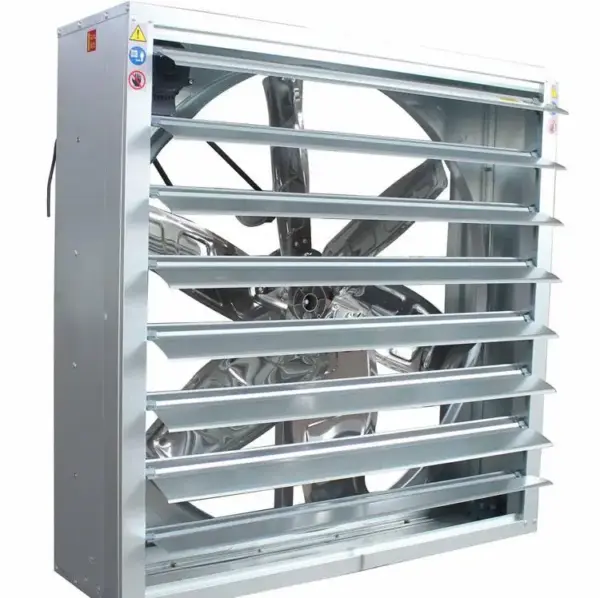

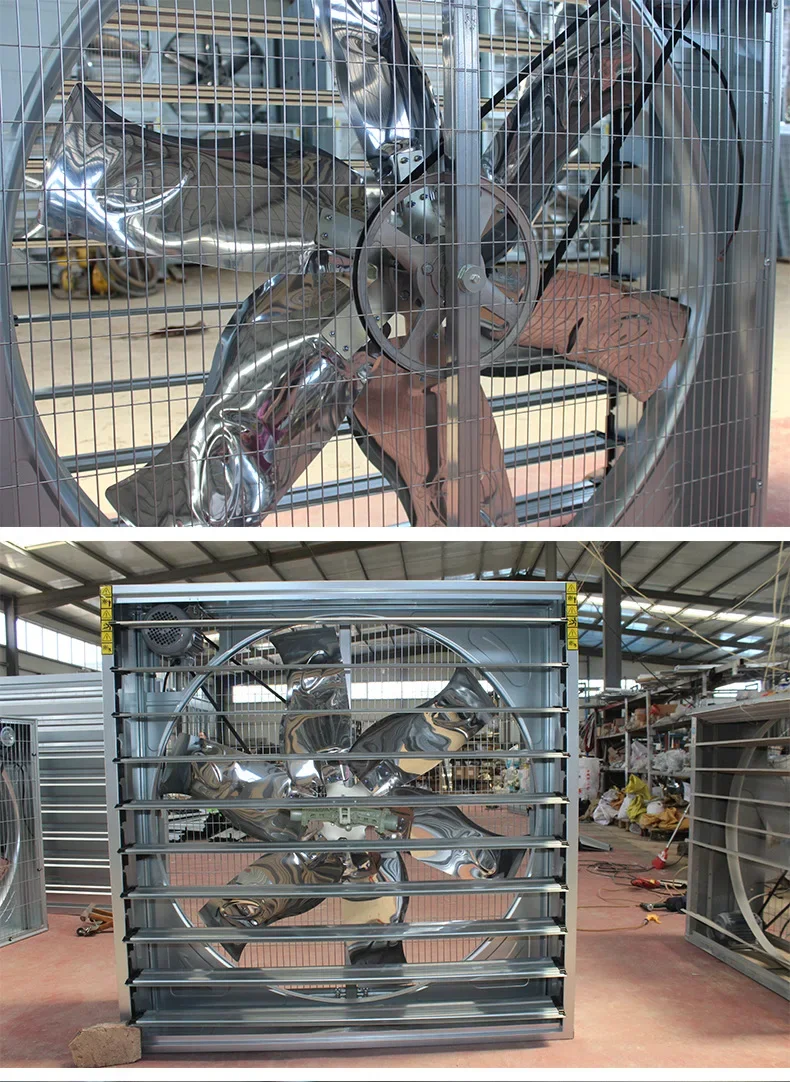

The shutters of 1380mm push pull industrial wall window exhaust fan ventilation and centrifugal system push pull extractor fan with swung drop hammer, which can be tightly closed to keep out light, rain or dust, through-wall mount type, clean and tidy or wide open for ventilation purposes in winter.
AC Motor High Speed Centrifugal Exhaust Fan with Shutter Extractor Cooling Fan with Centrifugal System Technical Details
|
Type
|
Standard
|
OEM
|
|
Fan Size
|
1380mmx1380mmx450mm (56″x 56″x18″)
|
Any size
|
|
Blade diameter (mm)
|
1270(50in)
|
1270(50in)
|
|
Fan Color
|
Silver
|
Painted or coating in any color
|
|
Fan Blade Material
|
1mm galvanized steel
|
as per customers’ requirements
|
|
Fan Frame Material
|
0.6mm galvanized steel
|
0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel
|
Details Images

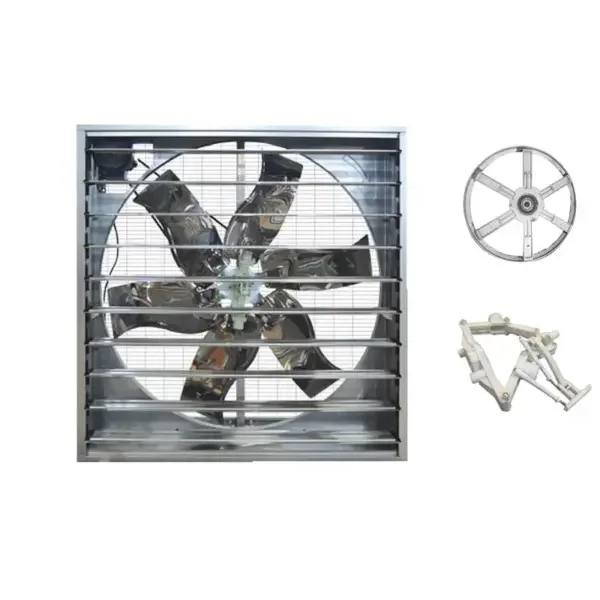

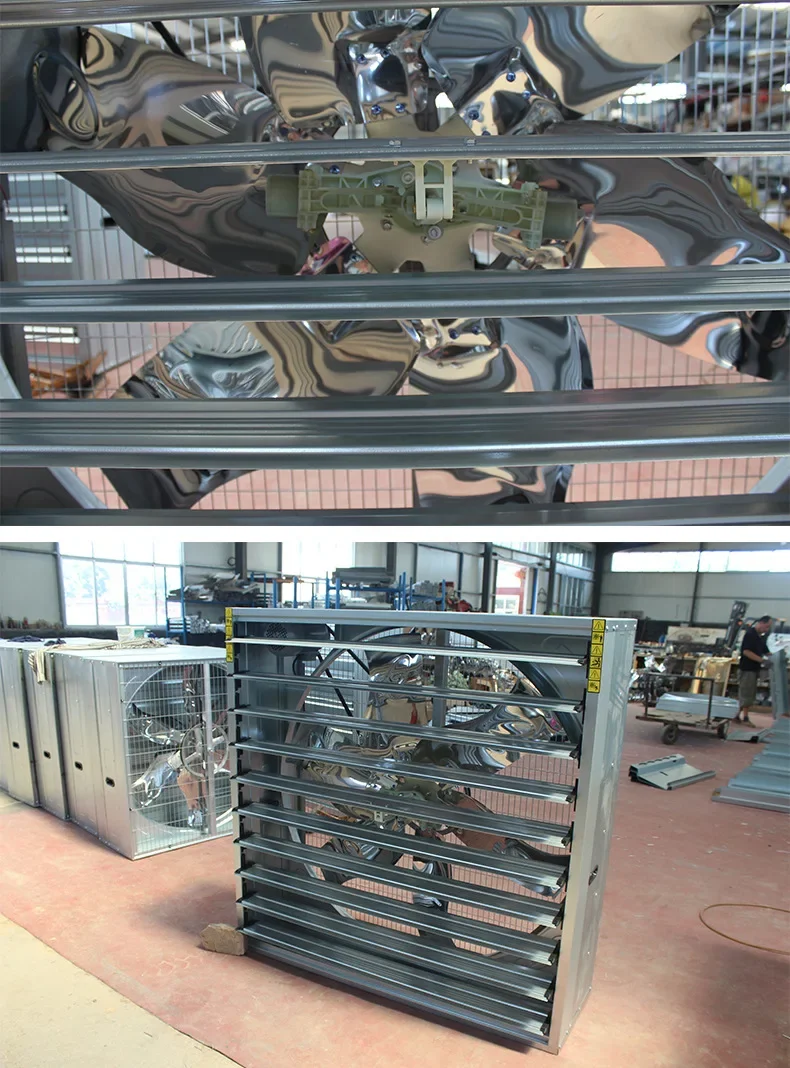

Special centrifugal push-pull shutter exhaust fan can open and close shutter automatically.
Stainless steel (Galvanized steel) blade uses a stamping molding process, durable, high-precision balance testing revision
charcteristics, avoiding being deformed and cracked, working smoothly, reducing the noise and effectively improving the service life.
Unique concave handling design of exhaust fan not only helps avoid inconvenience occurred inthe transport, but also keep favorable installation and beautiful exterior.
Stainless steel (Galvanized steel) blade uses a stamping molding process, durable, high-precision balance testing revision
charcteristics, avoiding being deformed and cracked, working smoothly, reducing the noise and effectively improving the service life.
Unique concave handling design of exhaust fan not only helps avoid inconvenience occurred inthe transport, but also keep favorable installation and beautiful exterior.

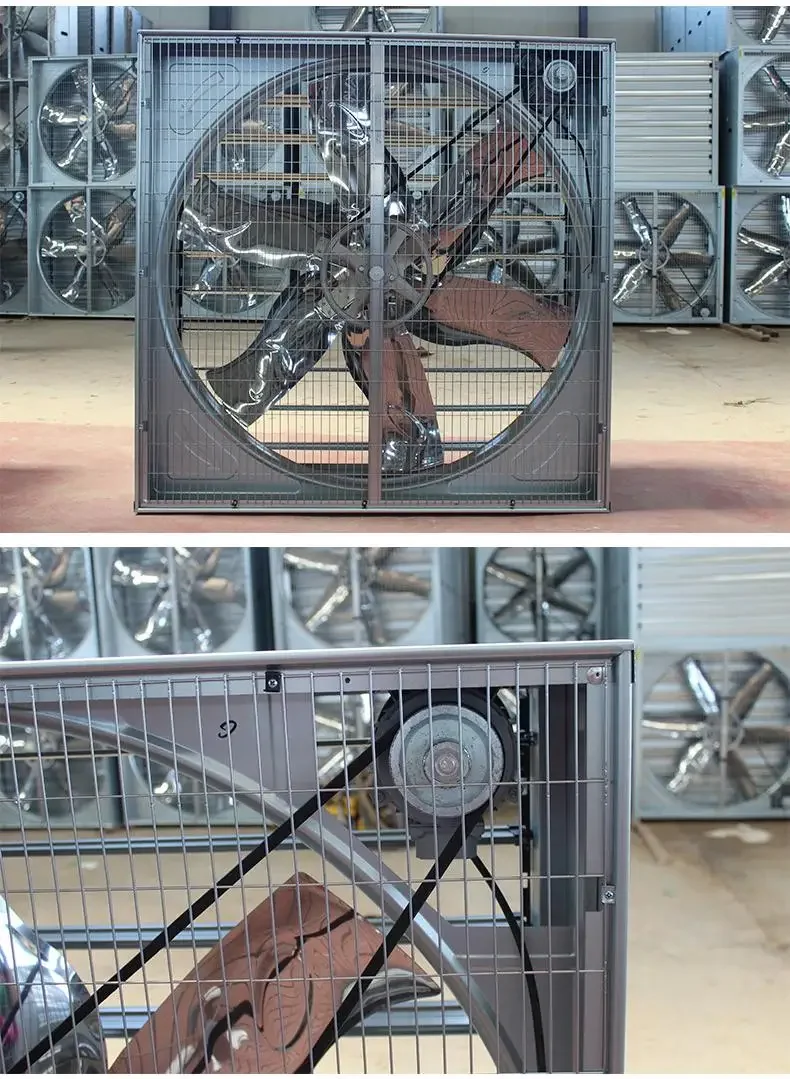

A-belt or B-belt,can be customized according to the sales condition of agents to meet different customers needs.
Equipped with efficient and energy-saving motor with CCC certification.
Protection level: IP55. Insulation level:F.
Guide rod-embedded steel is installed on the impeller,enhancing the reliability, and effectively avoid shift during the process of nylon production.

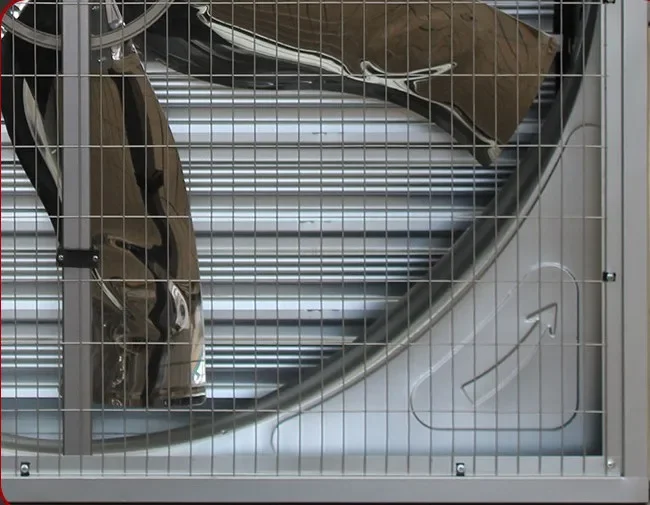

Wind Collector
Push-pull type fan wind device made in 1.0mm/1.2mm no spangles galvanized sheet, it also can be customized
according to customers needs.
Push-pull type fan wind device made in 1.0mm/1.2mm no spangles galvanized sheet, it also can be customized
according to customers needs.

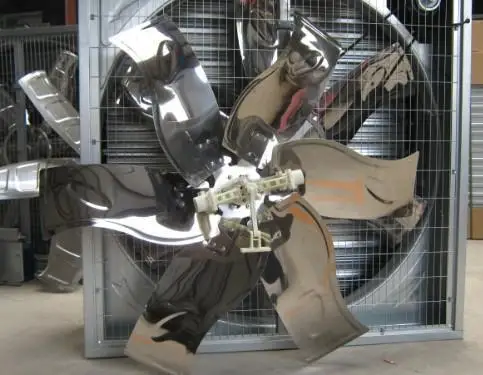

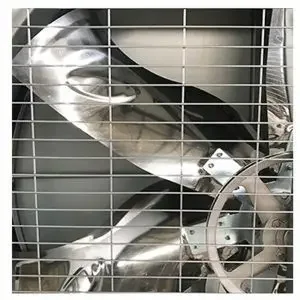

Fan Blade
One-step forming process,strong and reliable,and ensures the service life.
Fan Blade
Fan blade is special designed for the biggest efficiency which made of stainless steel by punch forming. Large air volume, no
deformation, no broken, no dust, surable, thickness 1.2mm.
Fan blade is special designed for the biggest efficiency which made of stainless steel by punch forming. Large air volume, no
deformation, no broken, no dust, surable, thickness 1.2mm.
Push-Pull Alumium Wheel
Made from die-casting molding high strength aluminum and magnesium alloy qualitative light,and intensity
tall.
tall.

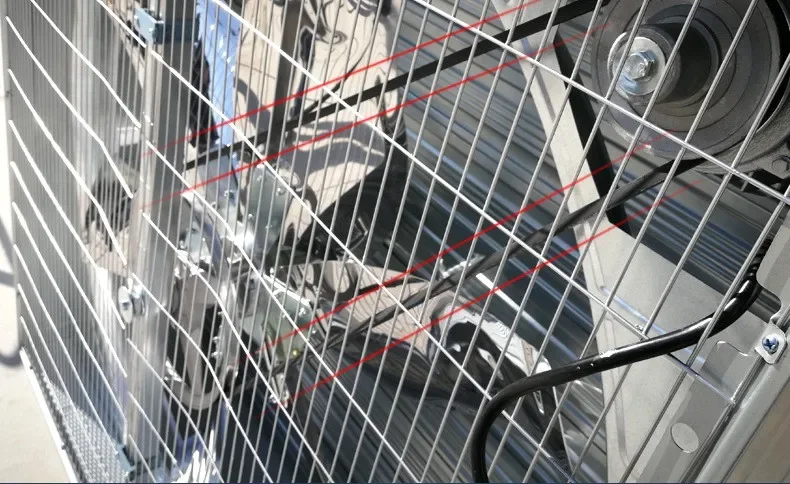

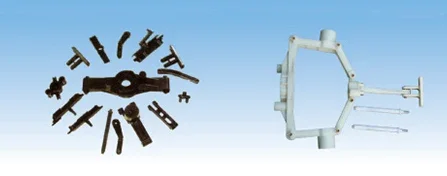

Centrifugal System
centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume.When close,

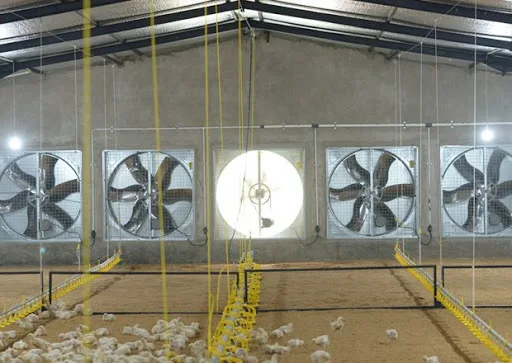

the sealing can effciently block light and wind into the poultry farm house. As the first one adopt high quality nylon to ensure
the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible. Guide rod
is made of 304 stainless steel, ensure the high strength, no rust, reduce friction
the sealing can effciently block light and wind into the poultry farm house. As the first one adopt high quality nylon to ensure
the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible. Guide rod
is made of 304 stainless steel, ensure the high strength, no rust, reduce friction

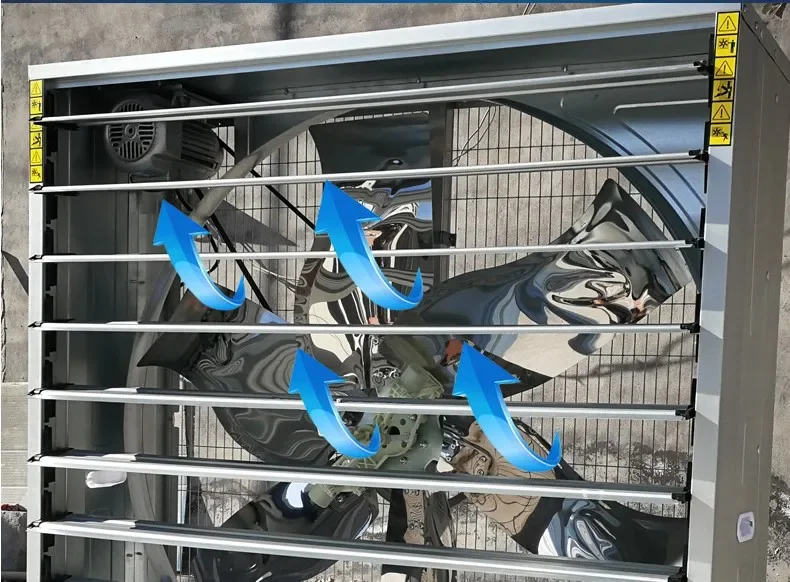

Automatic closed to protect from pest, dust and rain
High-quality wear-resistant and anti-aging rubber belt，long service life
Galvanized sheet shell, no rust, corrosion resistance

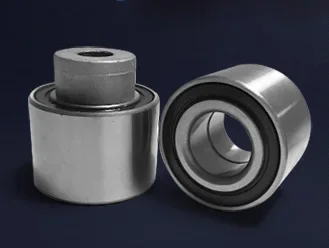

One Piece Durable Automotive Bearing

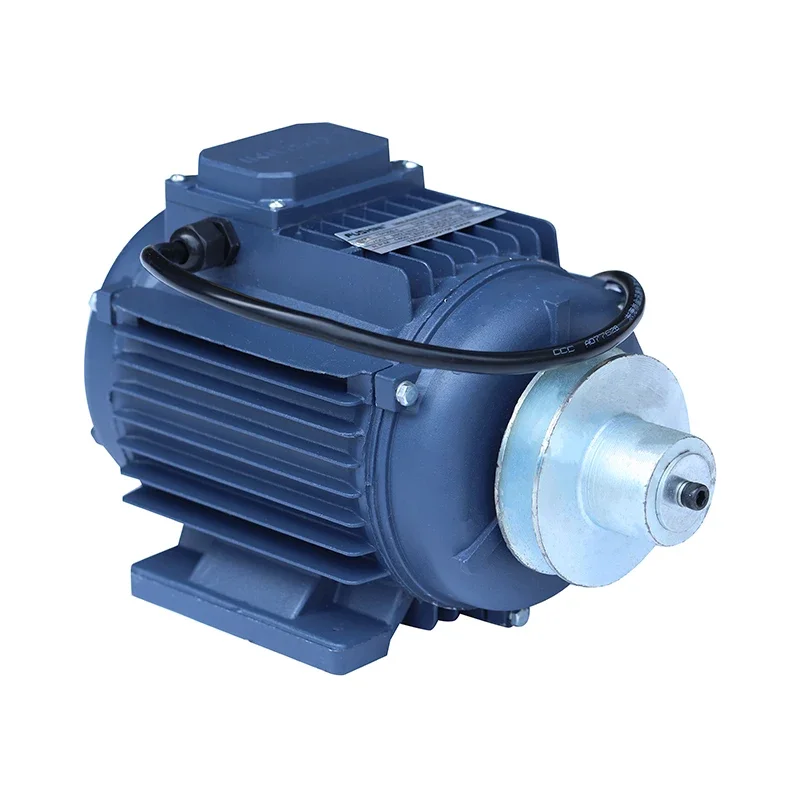

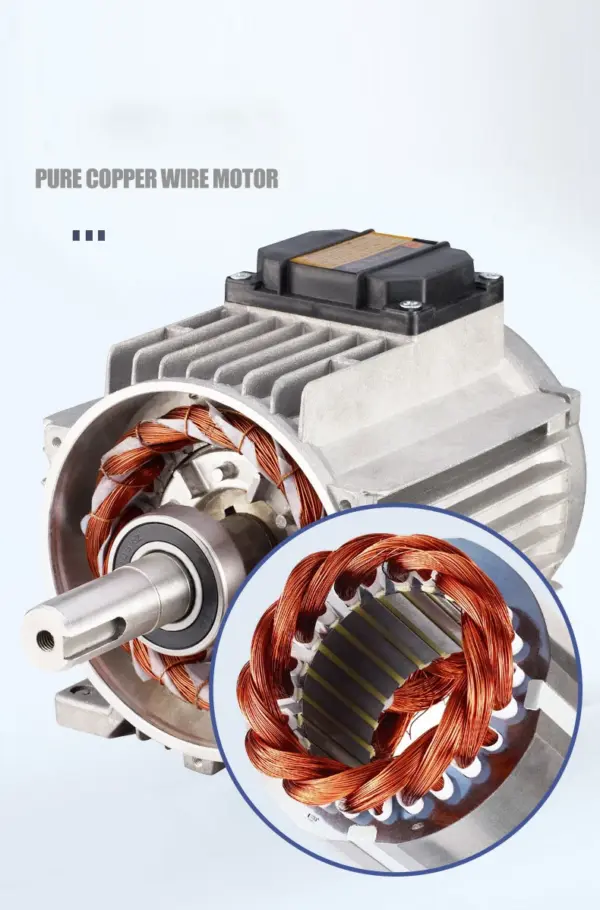

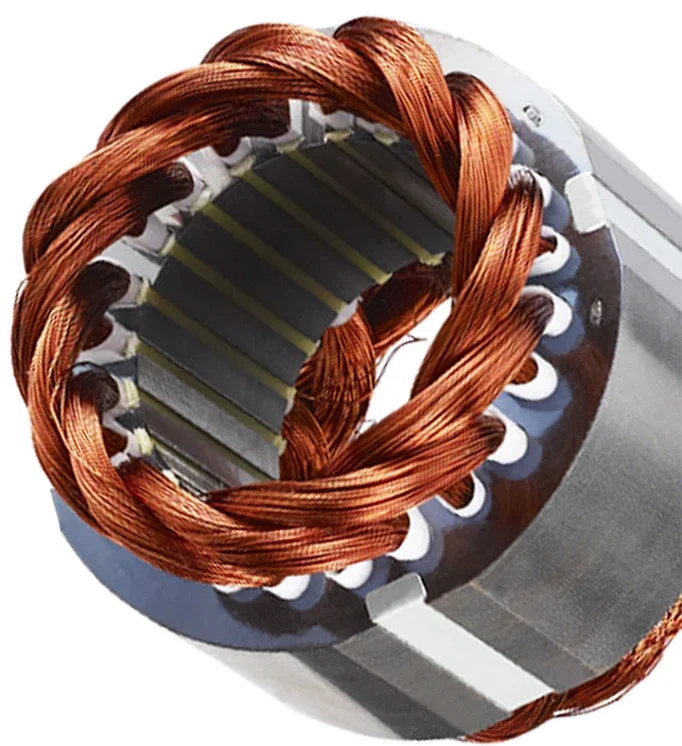

High Efficiency 100% Copper Motor
Durable and Heat-Resistant Motor
Size Information
|
Model
|
Dimensions
|
Blade Diameter (mm)
|
Power
|
Workable Areas
|
Fan Speed
|
Noise
|
|
MX-P1000
|
1000mmx1000mmx450mm
|
890(36in)
|
550 W
|
90~100㎡
|
458rpm
|
<60db
|
|
MX-P1100
|
1100mmx1100mmx450mm
|
1000(50in)
|
550 W
|
110~130㎡
|
470rpm
|
<60db
|
|
MX-P1220
|
1220mmx1220mmx450mm
|
1110(50in)
|
750 W
|
120~140㎡
|
480rpm
|
<60db
|
|
MX-P1380
|
1380mmx1380mmx450mm
|
1270(50in)
|
1100 W
|
140~160㎡
|
500rpm
|
<64db
|
|
MX-P1530
|
1530mmx1530mmx450mm
|
1400(55in)
|
1500W
|
160~200㎡
|
520rpm
|
<64db
|
Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.
Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.

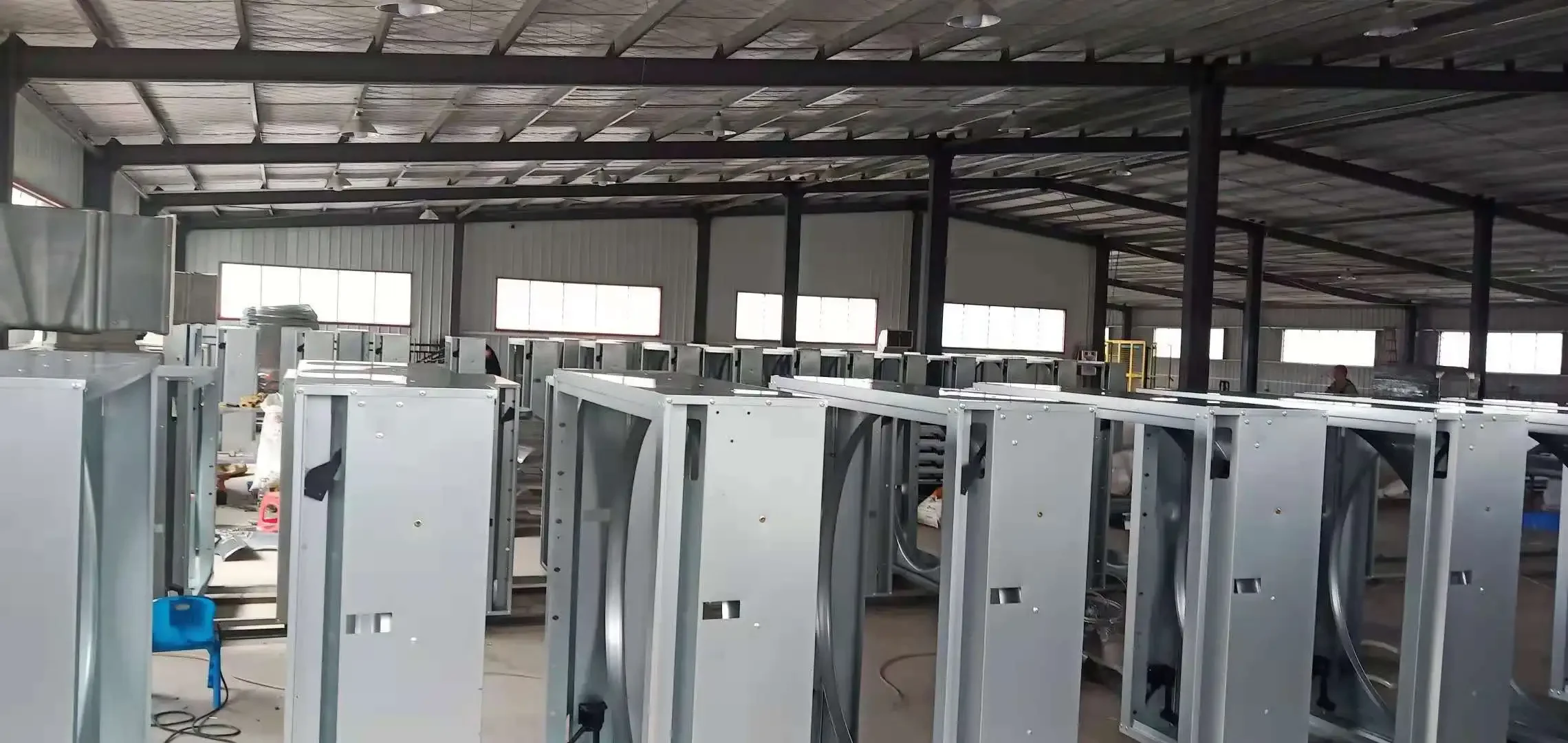

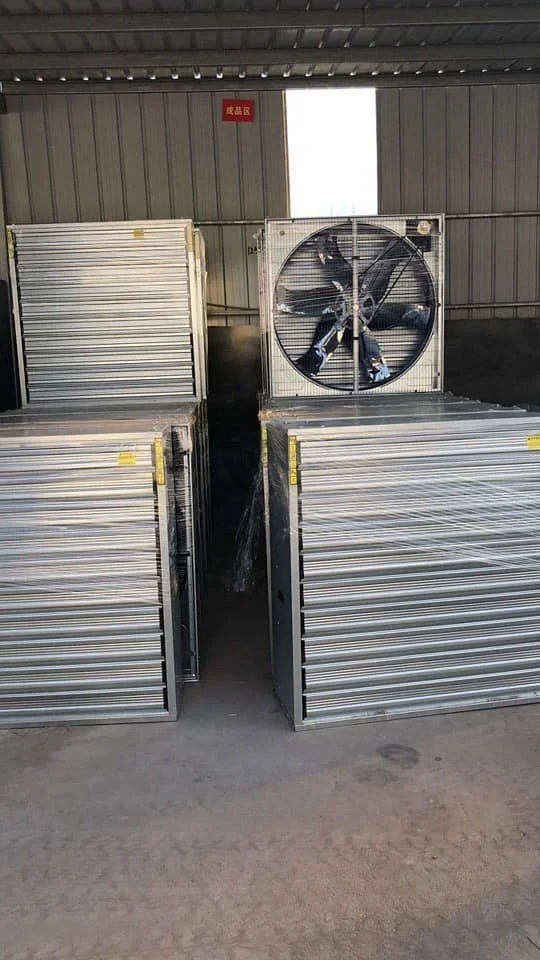

Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
After Sales Service
One Year Warranty, Lifetime Aftersale Service
We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.
Why Chose Us
Long Standing History
10 years’ OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers.
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.

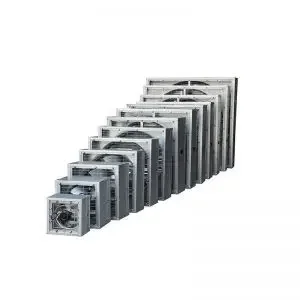

Most Complete Fan Sizes
10 years’ OEM experience of industrial exhaust fans. Cone fans sizes range from1000 to 1530mm, ventilation capacity ranges from 13800CFM to 30000CFM
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the exhaust fans
the exhaust fans
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler

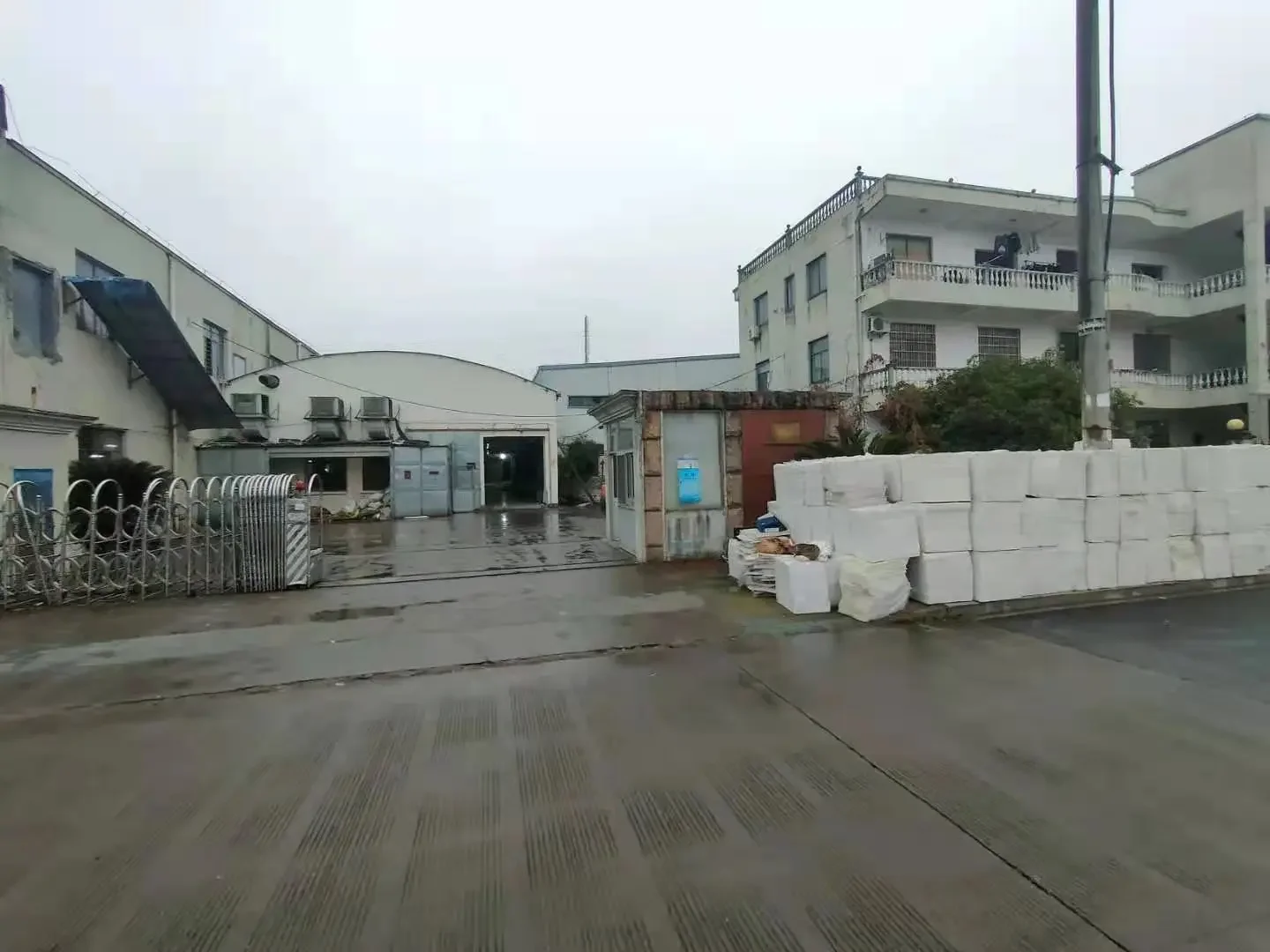

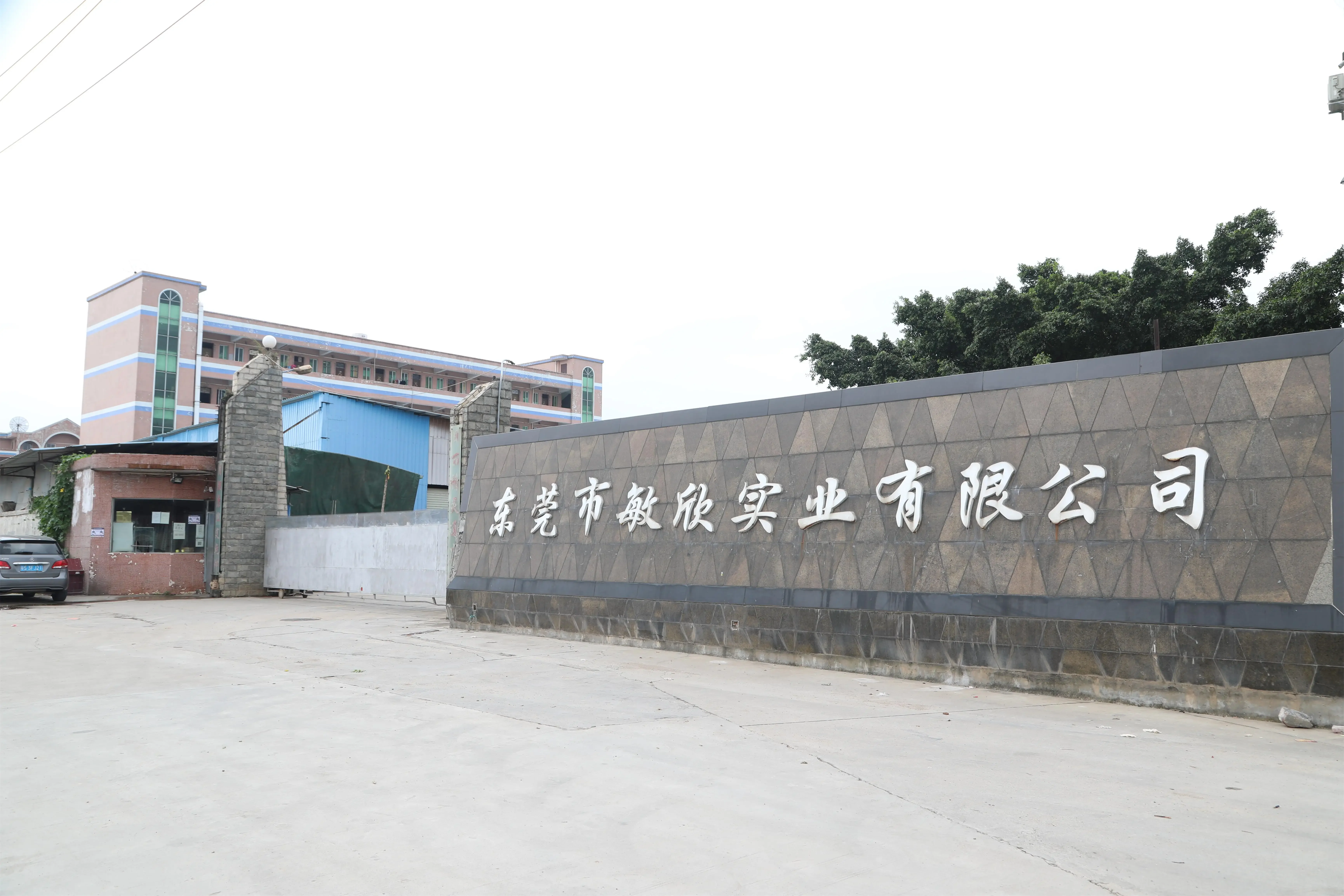

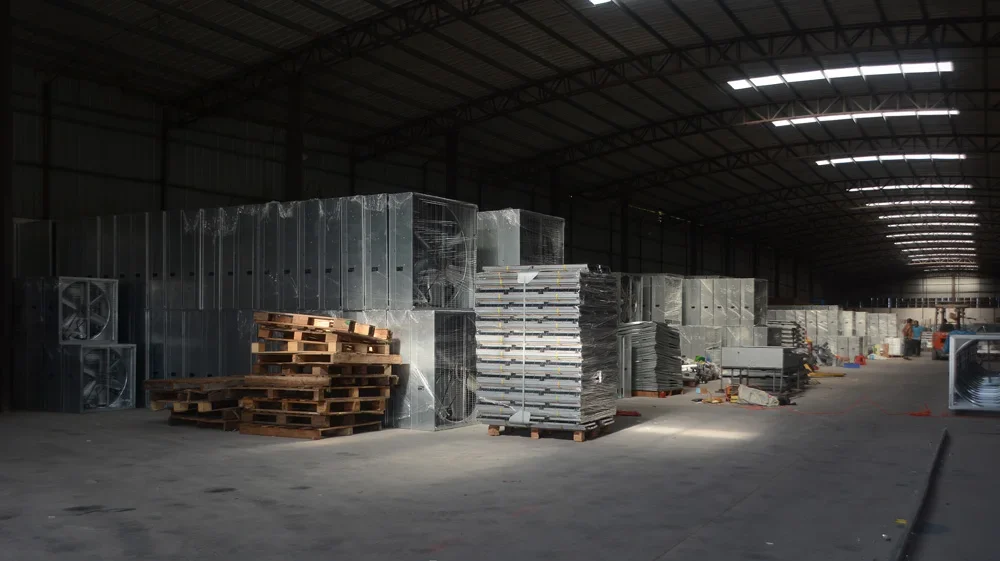

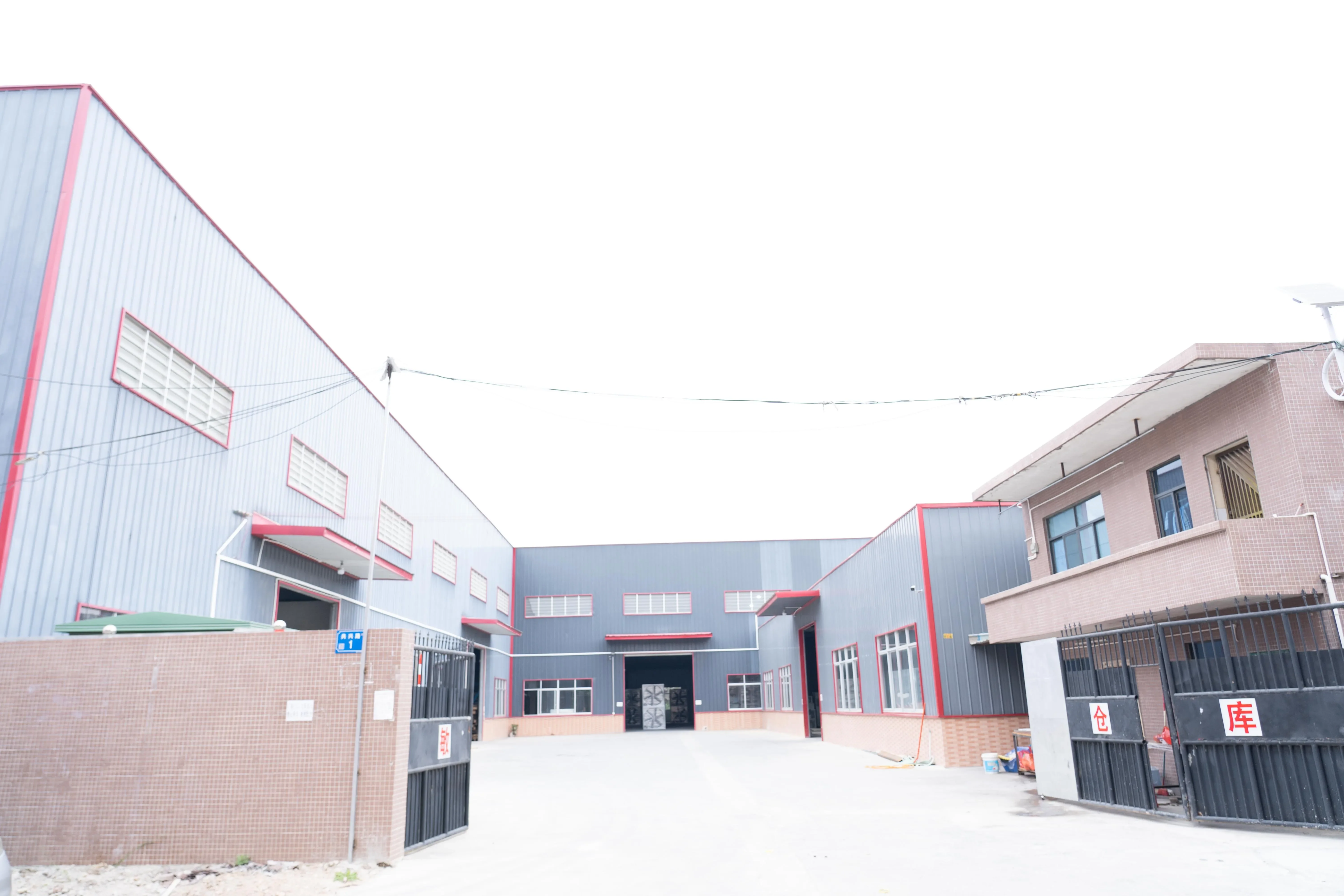

MINXIN Headquater
Space: 20,000㎡
Production: Fan parts production, motor production

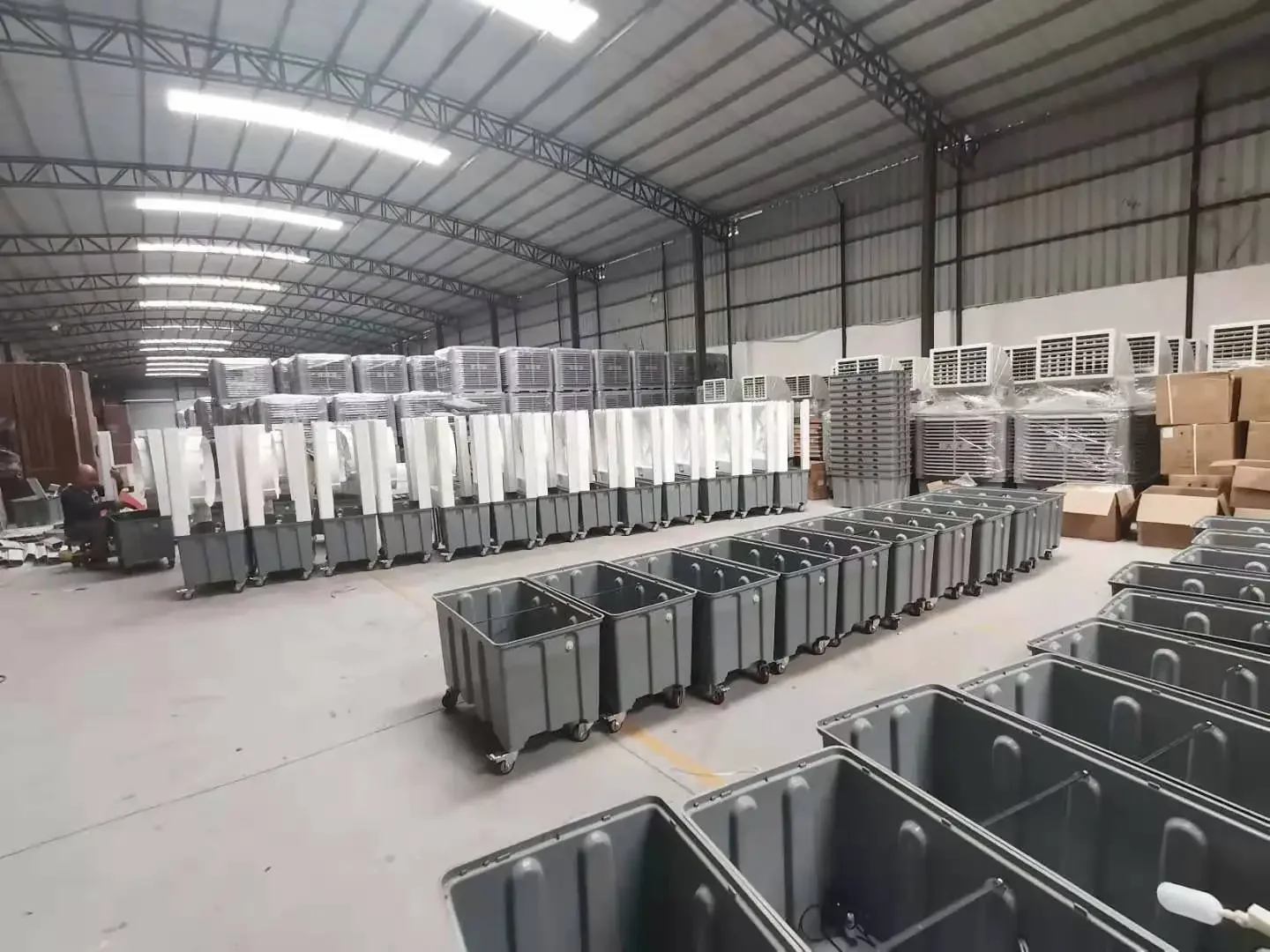

MINXIN Plant 2
Space: 6,000㎡
Production: Air cooler and cooling pad production and assembly
MINXIN Plant 3
Space: 6,000㎡
Production: Exhaust fan and circulation fan assembly
MINXIN Plant 4
Space: 5,000㎡
Production: Exhaust fan and circulation fan assembly

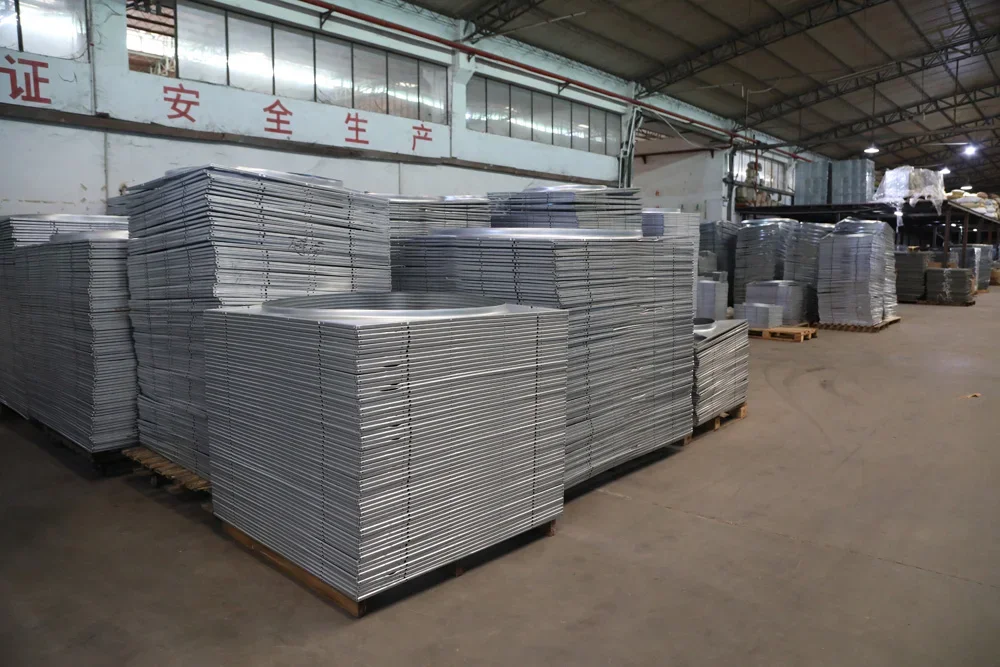

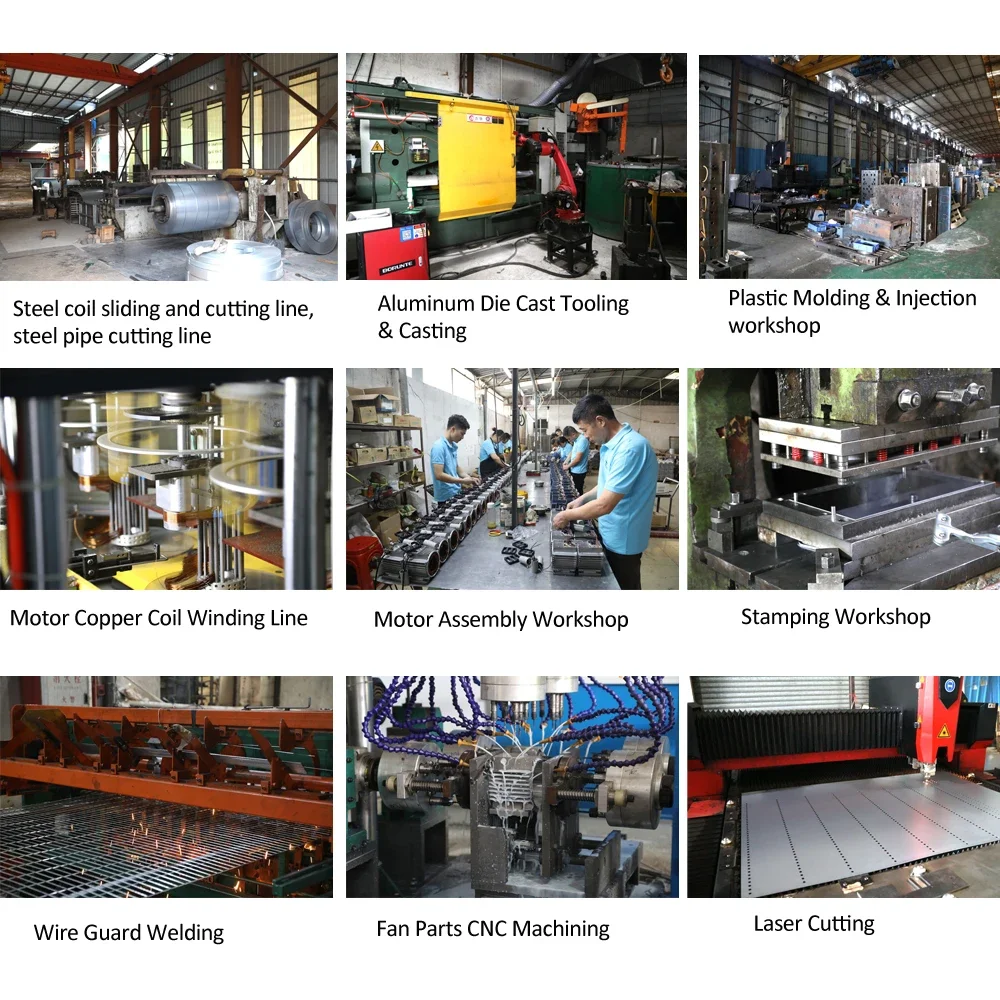

Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
Frequently Asked Questions
What is the minimum order quantity for this gasoline-powered centrifugal exhaust fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this gasoline-powered centrifugal exhaust fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 120 V, 110V, 220V, 380V, 415V, 480V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
