This electric power source fan is listed with the manufacturer’s full published specification — voltage 110-120V, power source Electric, material Plastic. It is produced by Guangzhou Yuexiu District Weikeheng Electronic Firm. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Electric Power Source Fan
- Power Source: Electric
- Voltage: 110-120V
- Material: Plastic
- Blade Material: Plastic
- Speed: 2700RPM/3175RPM
- Warranty: 1 year
Technical Specifications
| Voltage | 110-120V |
|---|---|
| Material | Plastic |
| Speed | 2700RPM/3175RPM |
| Mounting Type | Wall mount |
| Type | Axial flow fan |
| Warranty | 1 year |
| Power Source | Electric |
| Blade Material | Plastic |
| Bearing Type | Ball Bearing |
| Customized Support | Odm |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Selling Units | Single item |
| Single Package Size | 16.5X16.5X5 cm |
| Single Gross Weight | 0.764 kg |
|
Parameter
|
Details (50Hz/60Hz)
|
|

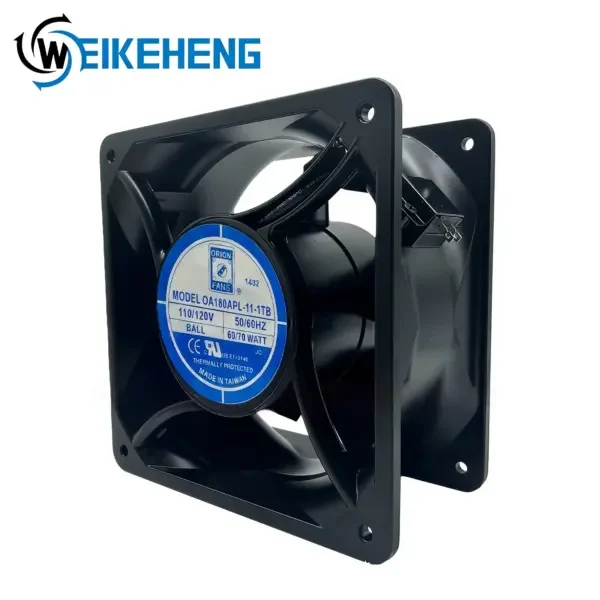

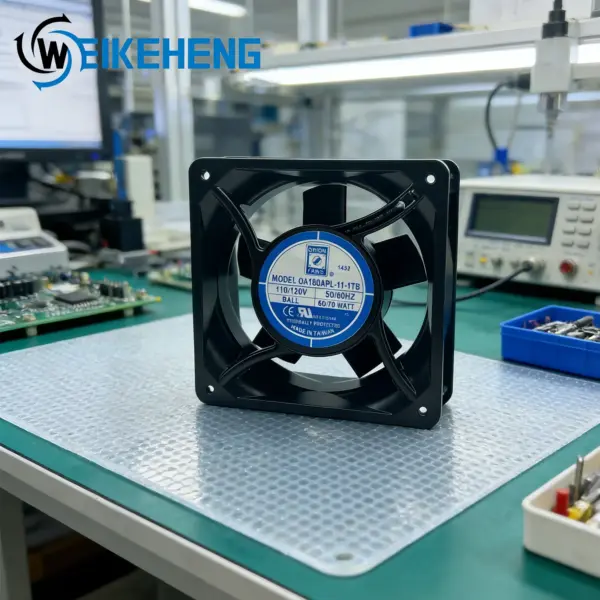

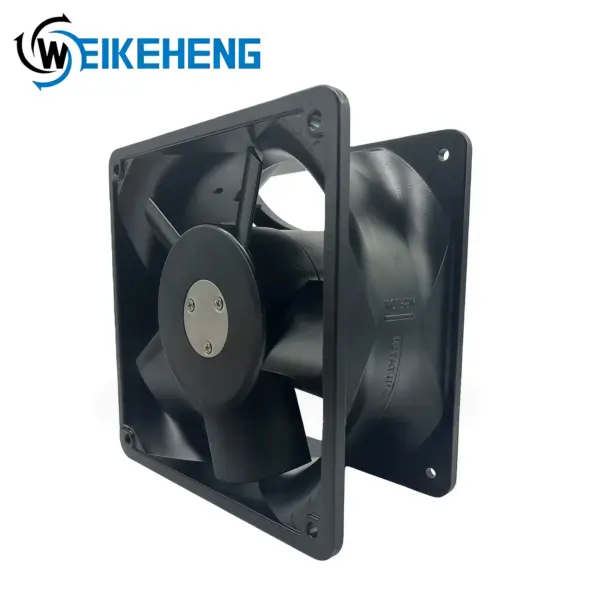

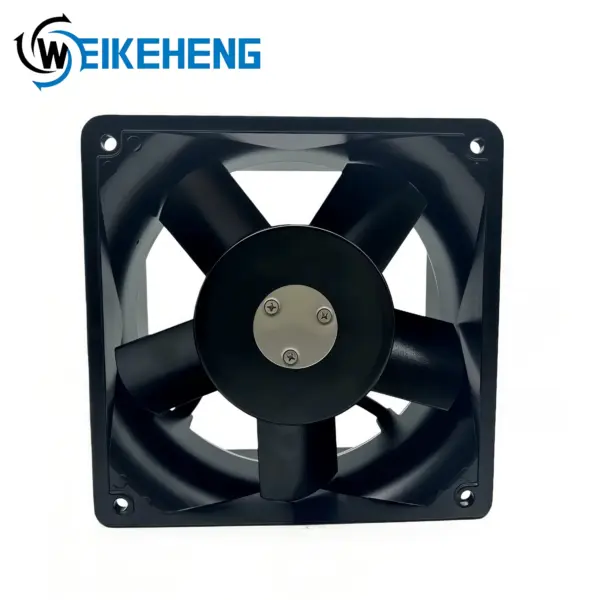

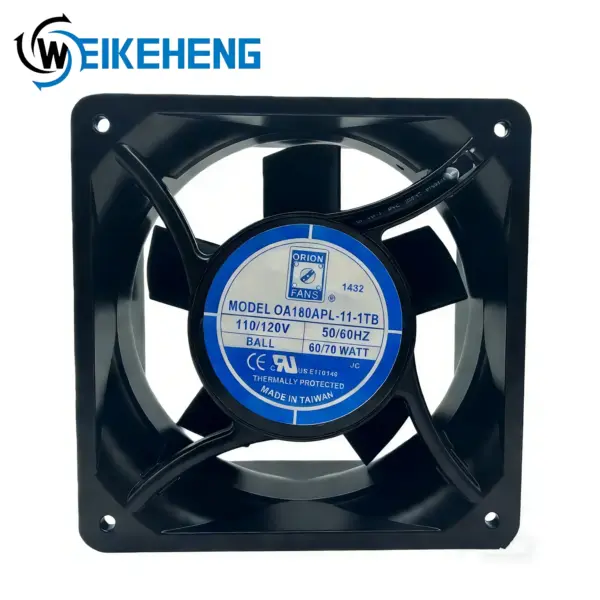

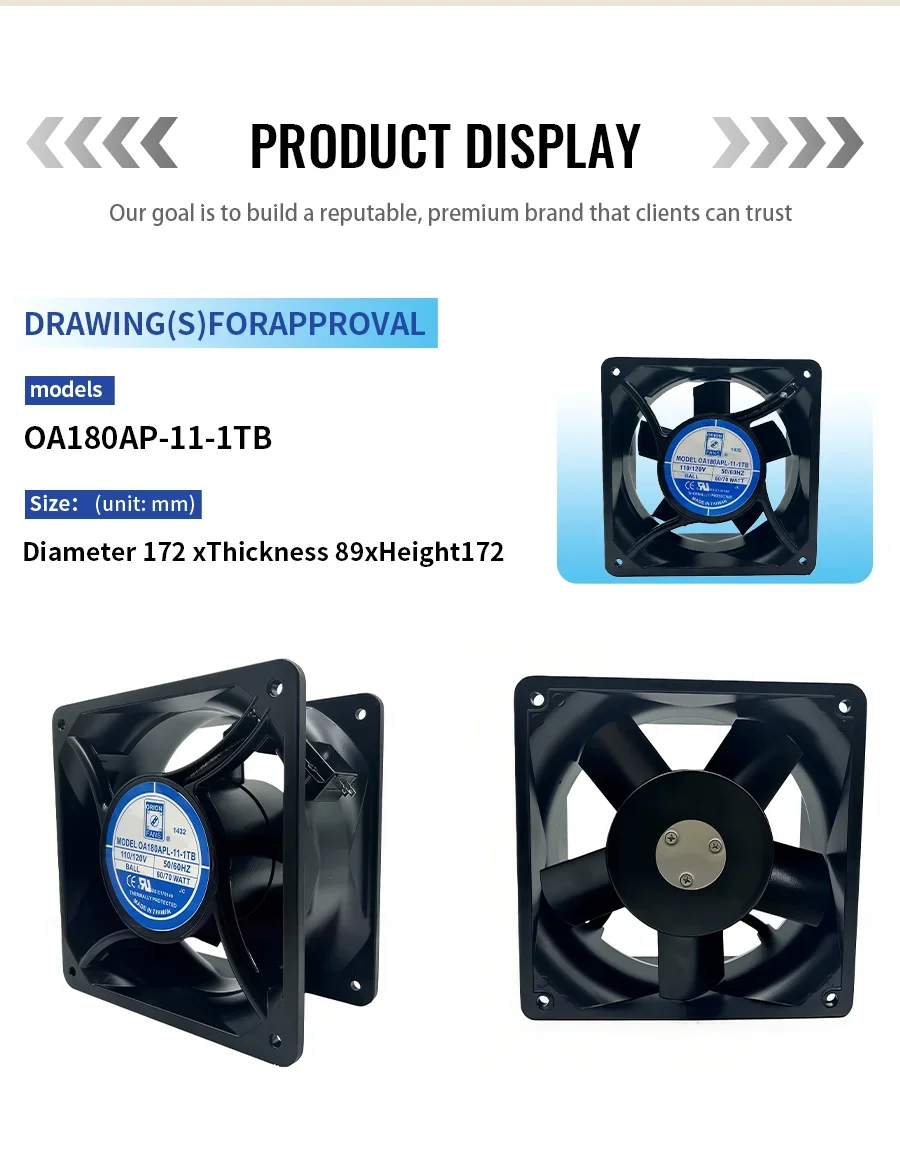

Model
|
OA180AP-11-1TB
|
|
Type
|

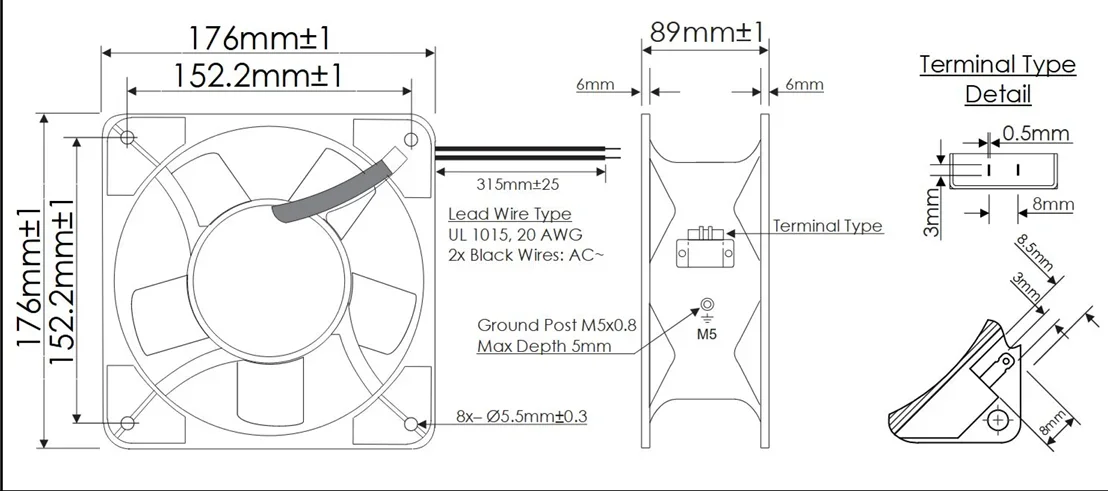

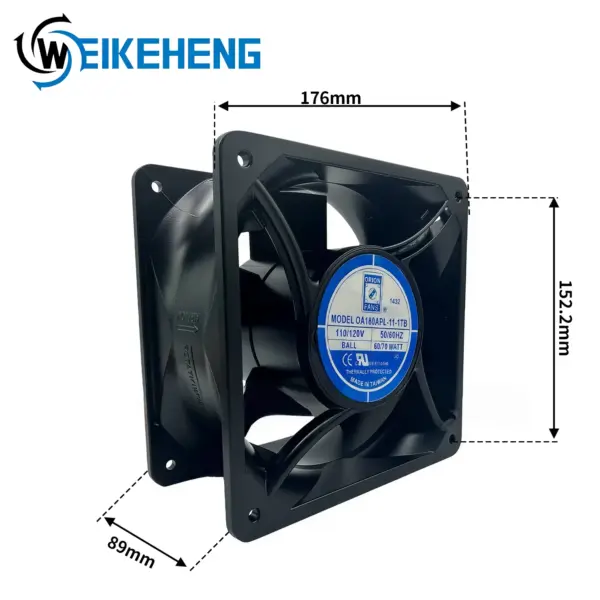

AC Axial Fan (180×180×89mm)
|
|
Rated Voltage
|
110/120V AC (Voltage Range: 100~120V AC)
|
|
Frequency
|
50/60Hz
|
|
Rated Power
|
60W/70W
|
|
Rated Speed
|
2700RPM/3175RPM
|
|

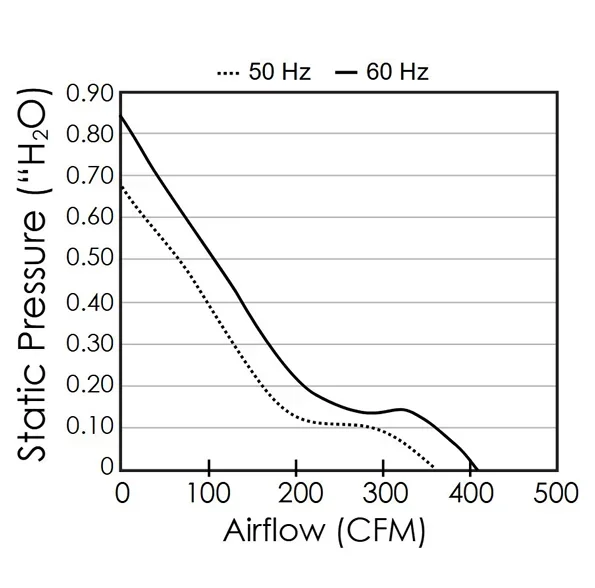

Airflow
|
361CFM (≈613m³/h)/409CFM (≈700m³/h)
|
|
Max. Static Pressure
|
0.67inH₂O (≈167Pa)/0.84inH₂O (≈209Pa)
|
|
Noise Level
|
62dB(A)
|
|
Motor Type
|
Capacitor Drive, Thermally Protected
|
|
Bearing System
|
Dual Ball Bearings
|
|
Connection
|
2x Lead Wires (20 AWG) or Terminals
|
|
Insulation Class
|
B
|
|
Dielectric Strength
|
1500V AC/min, ≤1mA
|
|
Insulation Resistance
|
>100MΩ (500VDC, leadwires-frame)
|
|
Operating Temperature
|
-10°C~60°C
|
|
Storage Temperature
|
-40°C~85°C
|
|
Weight
|
Approx. 1.8kg (≈4.0 lbs)
|
|
Frame Material
|
Aluminum
|
|
Blade Material
|
PBT (UL94 V-0)
|
Frequently Asked Questions
What is the minimum order quantity for this electric power source fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this electric power source fan?
A 1 year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 110-120V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
