Other Home Heater, 8kw/12kw/20kw, 220V, Electric

This other home heater is listed with the manufacturer’s full published specification — voltage 220V/380V, 50hz/60hz, power source Electric, material Thick metal casing. It is produced by Zhongshan Chongde Electric Co., Ltd., a verified supplier of 10 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Other Home Heater

• Model Number: CD12
• Power Source: Electric
• Power Range: 8kw to 20kw
• Voltage: 220V/380V, 50hz/60hz
• Material: Thick metal casing
• Warranty: 1 Year

Technical Specifications

Product Details

Product Description

Model	Home Heating Electric boiler CD12
Power Rang	6kW – 20kw, 220V/380V, 50Hz/60Hz
Power	8KW 220V	10KW 220V	12KW 380V	16KW 380V	20KW 380V
Current	36.36A	45.45A	18.18A	24.24A	30.30A
Power cable	3x6mm²	3x10mm²	5×2.5mm²	5x4mm²	5x6mm²
Heating Area( м²)	＜80м²	＜100м²	＜120м²	＜160м²	＜200м²
Material	Thicker metal
Heating element	Cast Aluminum Heating Element
Temp. setting	25℃-75℃ / 77℉-167℉
Thermal Cut-out	90℃/194℉
Anti-freezing	Level 1: 5℃/41℉, Level 2: 2℃/35.6℉
Water pressure	Closed installation: 0.05-0.3Mpa / 7.3-43.5 Psi

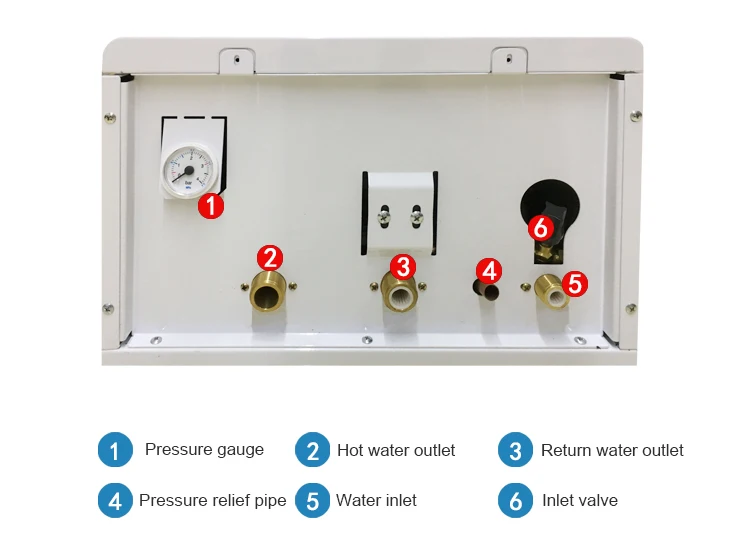

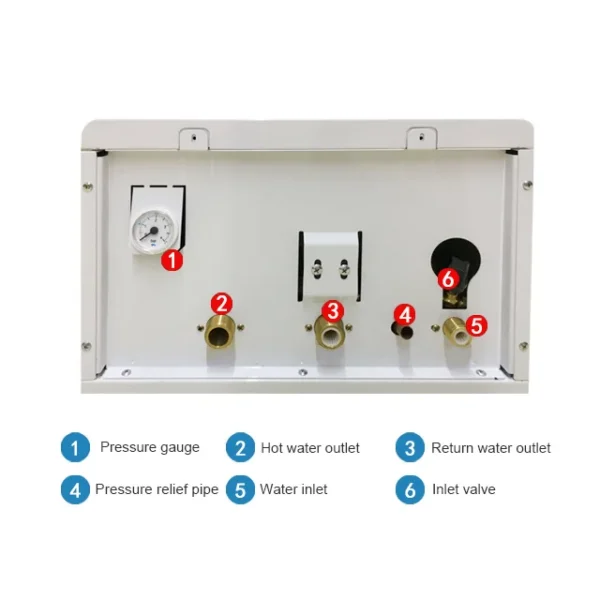

Inlet/Outlet	G3/4
Feature	WIFI Timing Setting, Small Size And Easy To Operate

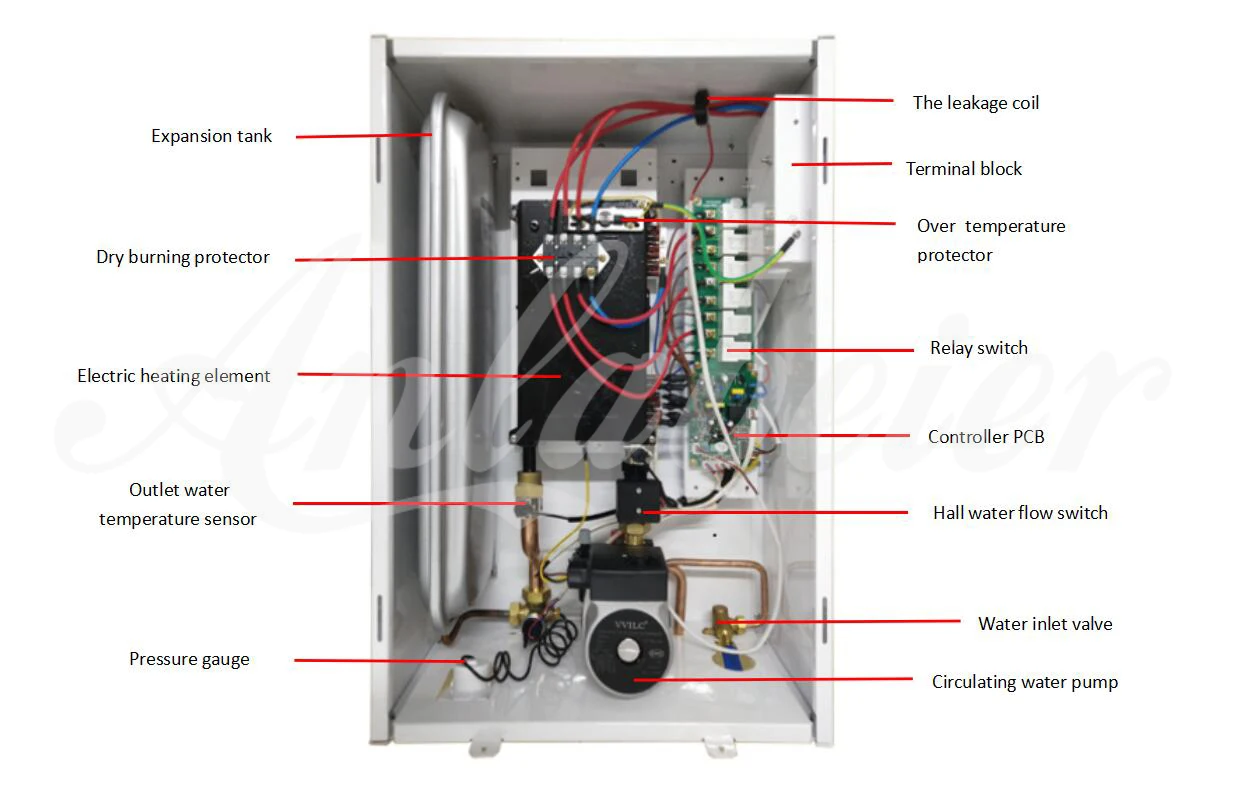

House central electric heating boiler * 6KW-12KW 220Volt single phase, 12KW-20KW 380Volt three phase. * Timing setting and intelligent wifi control. * Built-in a water pump and expand tank. * LED Multi-function touch control screen optional ten modes. * Multiple smart safety devices to ensure user safety.

Bolier with water pump and 5L expansion tank,No additional installation.

Compared the ordinary boilers need to install an external water tanks and water pumps. But the water is easy to evaporate during heating, so it is necessary to add water frequently.

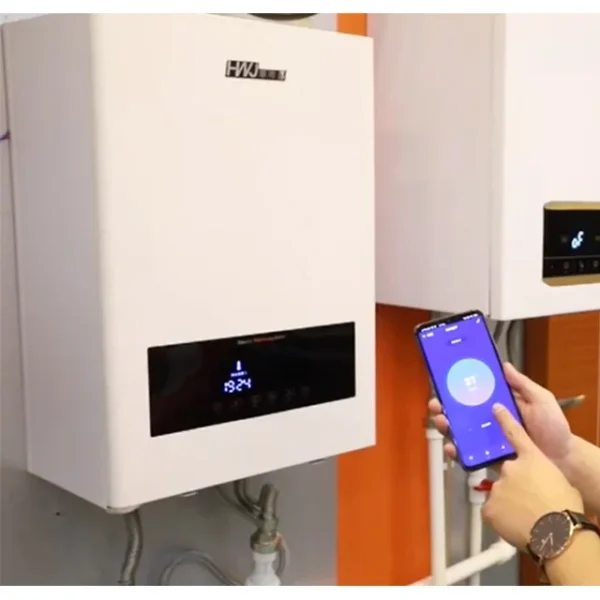

Remote timing control by mobile phone or handheld controller makes you feel warm in advance no matter where you are.

Six Safety Protection Systems

Anti-dry Protection

Automatically cut off the power supply under over temperature.

Prevent Freezing

Prevent the water pipe from breaking at low temperatures.

Hydroelectric Separation

Water and circuit are separate to ensure safety

Leakage Protection

Connect the ground wire to prevent current through the human body.

Water Shortage Protection

The water pump protection will be turned on at water shortage.

Automatic Detection of Faults

Display fault code for easy judgment and maintenance.

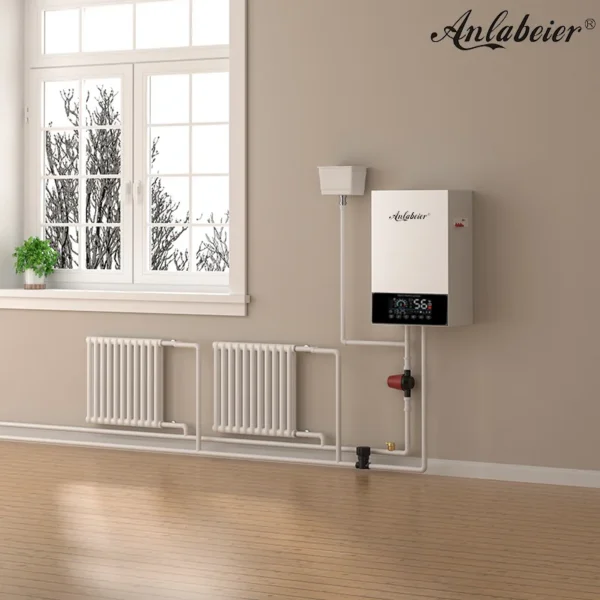

Two Way to Heating:Floor Heating and Radiator for Heating

Power	8kW	12kW	20kW
Heating Area	80m2	120m2	200m2

Detailed Images

Packing&Shipping

Packaging

EPE plastic bag +Pearl cotton+ neutral package box,

1 pcs per carton: 74*50*38cm/29"*18.9"*15", G.W: 26KG,

20ft can load 199pcs, 40GPcan load 380pcs, 40HQ can load 480pcs.

If you want to get other house electric boiler , please contact me! Trading Conditions: 1) Payment: T/T, L/C, Online Transfer, Credit Card, Western Union Etc. 2) Quickly delivery: Samples will be delivered within 5-10 days. 3) High efficient producing, production lead time: small order 7-15days, bulk order 30-35 days. 4) MOQ: 50 Units (OEM ODM accepted) 5) Discounts are offered based on the quantities.

Company Introduction

Established in 2006,Anlabeier is professional factory with 4,000 square meters.Under the ISO9001: 2018 international quality certification system,We have more than 100 patents.

All products by 100% tested: Semi-finished product test , Key Component Aging Test, General Testing, Linear Testing, Integrated Test, Finished goods Inspection, Transportation Vibration Test ect. Warranty: Heating element (3 years), Complete machine (1 year)

FAQ

Q 1. How long can i get the feedback after we sent the enquiry? A. We will reply to you within three miutes in working days. Q 2. How can i get some samples? A. We are pleased to offer you samples, the delivery time is about 5-10 days. Q 3. Are you a factory? A. Yes,we are factory, located in Zhongshan city Guangdong province,China. Q 4. What is the delivery time? A. The delivery time normally 35 days,detail delivery date should depend on the production season and order quantity. Q 5. Is there any extra charges if we want you to print our logo or company name on your products or the packaging? A. There is no extra charges,please offer us the LOGO flies,we will make it well on your product.

Ordering and Pricing

• Minimum order quantity: 5 piece
• Volume pricing:
  • 5–99 piece: US $230 / piece
  • 100–999 piece: US $222 / piece
  • 1000–2999 piece: US $212 / piece
  • 3000+ piece: US $199 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this other home heater?

The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the other home heater be supplied for my local voltage?

The standard configuration is 220V/380V, 50hz/60hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Zhongshan Chongde Electric Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhongshan Chongde Electric Co., Ltd. range on HVACR Nexus.
