This ventilation fan is listed with the manufacturer’s full published specification — voltage DC5V, DC12V, power source Electric, material Metal. It is produced by Shenzhen Minxin Industry Co., Ltd., a verified supplier of 4 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Ventilation Fan
- Model Number: U10T8025JG(0-60℃)
- Power Source: Electric
- Voltage: DC5V, DC12V
- Material: Metal
- Blade Material: Plastic
- Speed: 2600RPM
Technical Specifications
| Voltage | DC5V, DC12V |
|---|---|
| Speed | 2600RPM |
| Type | Cooling Fan |
| Material | Metal |
| Blade Material | Plastic |
| Mounting Type | Screw fixing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | Minxin |
| Model Number | U10T8025JG(0-60℃) |
| Motor Type | Efficient 5V/12V RV Fan |
| Application | TV cabinet, DVR cabinet, tool sheds cabinet,caravan,pet houses |
| Fan Features | Silent, high cfm, USB charging, Speed control,durable |
| Fan Type | Daisy-Chainable Smart Thermostat + Speed Control Fan |
| Fan Size | 80x80x25mm |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Life Span | over 50,000 hours |
| Installation | Screw fixing, vertical or horizontal |
| Functions | Ventilate the heat from cabinets or other confined place,Purifying air |

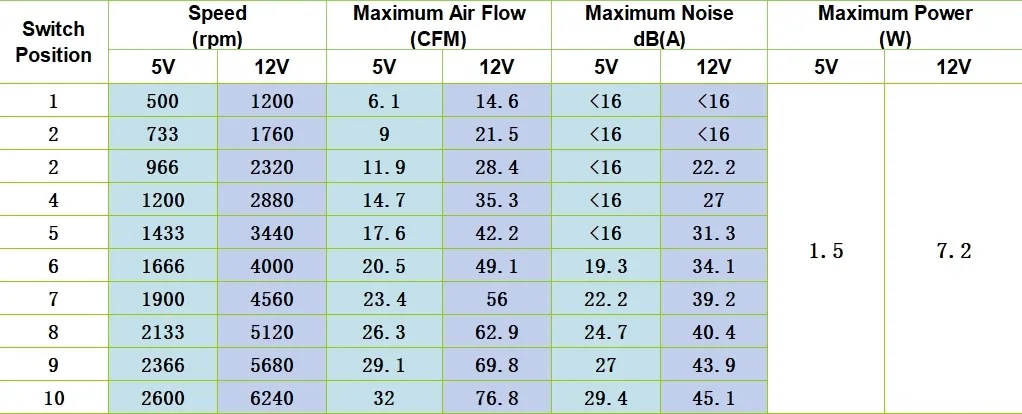

| Control System | 10-speed control |
| Selling Units | Single item |
| Single Package Size | 18X18X6 cm |
| Single Gross Weight | 0.432 kg |
Product Details
Product Name | RV Ventilation Fan |
Fan Size | 80x80x25mm |
Grill Material | Steel |
Fan Impeller Material | PBT (UL94V-0), flame-retardant |
Wire | USB connector |
Voltage | DC5V/12V, with adapter working with EU, UK, US, and AU plugs |

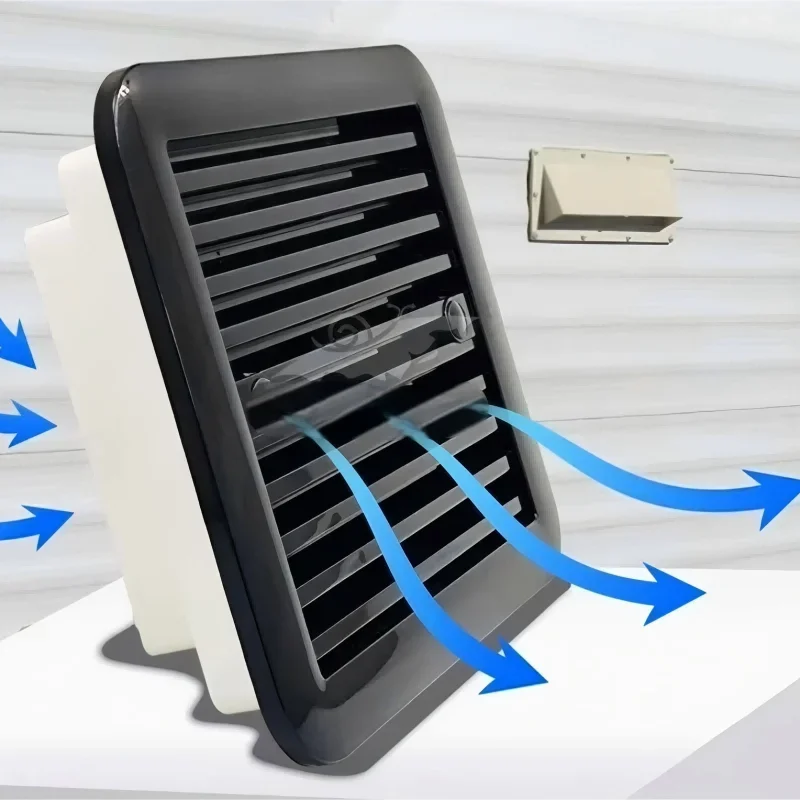

Features | Adopts high quality material, durable to use; This is Caravan Side Exhaust Outlet Unidirectional Dust proof Ventilation Fan; Built in mosquito net to prevent mosquitoes from entering |
Applications | Fits for RV, camper, motorhome, trailer, boat, yacht,etc. |

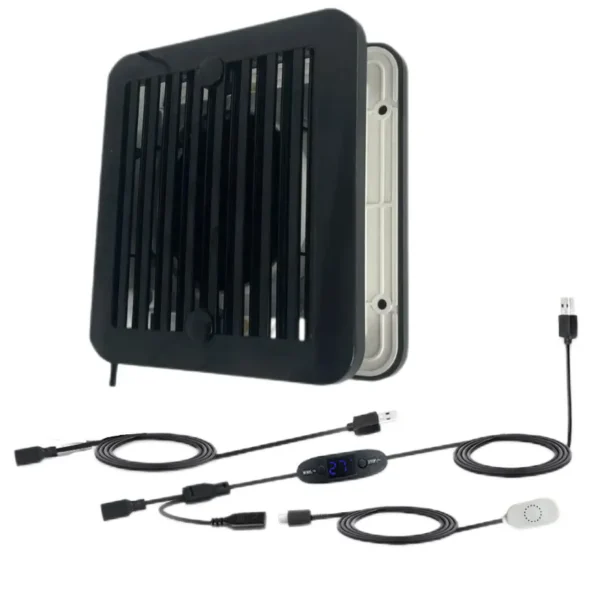

Package Includes | *1 x 80x80x25mm Fan *1 x 1800mm USB Cable *1 x 1000 Temperature control and speed control cable *1 x 2000 temperature sensor cable(cable length customizable) *2 x fan grill |
3. Beautifully designed faceplate to match any type of cabinets
Q: What connector does the cooling fan come with?
A: It can come with any type of connectors you require, be it a multi-pin connector, or a USB connector, or a plug, just let us know your requirements and we will customize for you.
Q: I am looking for this fan size but with higher static pressure or airflow, can you make it?
A: Of course we can! Just let us know your desired static pressure, airflow or noise level for your application, and we will customize the fan as close to your requirements as possible.
Q：Is there a thermostat available for the cooling fan?
A: Yes it can come with built-in thermostat, however, it is advisable that you use a external thermostat and controller for easier and more flexible control
Q: Can this cooling fan withstand high humidity?
A: It is IP53 rating by default, but if you are using it in a high humidity environment, we will have to add a procedure in production of this cooling fan to make it weatherproof, IP67 rating or even IP68 rating, you name it.
Q: Do you have an alternative that runs on 230V?
A: Besides those voltages which are states on the product description, these cooling fans can be built for 5V DC & 12V DC & 24V DC & 48V DC & 117VAC & 220V AC & 240V AC, just let us know the voltage you use and we shall be happy to customize for you.
Q: Can it come with a variable speed control?
A: Yes it can be custom made with speed control functions with a speed controller ,even the controller with on/off switch.
Q: Can I order just one or several fans?
A: well, we don’t really do retail at the moment, we are mainly focused on OEM and ODM. But if you are looking for samples for your project, we shall be happy to customize the samples for you, the sampling normally takes no more than 5 workdays.
Q: Can it run almost constantly?
A: Yes the cooling fans are supposed to work 24/7, however, The temp and cleanliness will make a big difference.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $22.38 / piece
- 500–999 piece: US $19.88 / piece
- 1000–4999 piece: US $19.38 / piece
- 5000+ piece: US $17.88 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ventilation fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ventilation fan be supplied for my local voltage?
The standard configuration is DC5V, DC12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
