This DC centrifugal blower squeezes real static pressure into a 50x50x20mm footprint, which is why it turns up inside air purifiers and dehumidifiers where the airflow has to be forced through a dense HEPA or carbon filter. An axial fan of the same size would stall against that resistance. Available at 5V, 12V and 24V for battery, USB and automotive platforms, with screw mounting and a two-year warranty.
Key Features of This Dc Centrifugal Blower

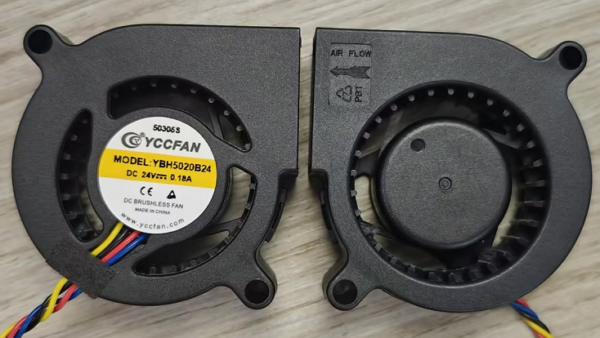

- Model Number: YBH5020B12
- Voltage: 5V 12V 24VDC
- Blade Material: Plastic
- Material: PBT UL94-V0
- Warranty: 2 Years
- Place Of Origin: Guangdong, China
Technical Specifications
| Mounting | screw mounting fan |
|---|---|
| Voltage | 5V 12V 24VDC |
| Blade Material | Plastic |
| Customized Support | OEM, ODM, OBM |
| Warranty | 2 Years |
| After-Sales Service Provided | Video Technical Support |
| Model Number | YBH5020B12 |
| Place Of Origin | Guangdong, China |
| Brand Name | YCCFAN |
| Application | air purifier/car / dehumidifer / household appliance |
| Name | mini air blower fan |
| Material | PBT UL94-V0 |
| Selling Units | Single item |
| Single Package Size | 6X6X3 cm |
| Single Gross Weight | 0.040 kg |
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

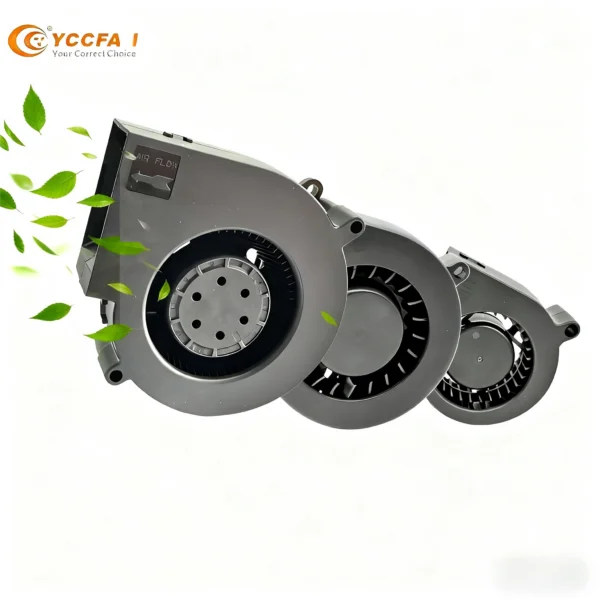

YCCFAN 5V 12V Air Purifier DC Blower Fan 50*50*20mm Centrifugal Fan

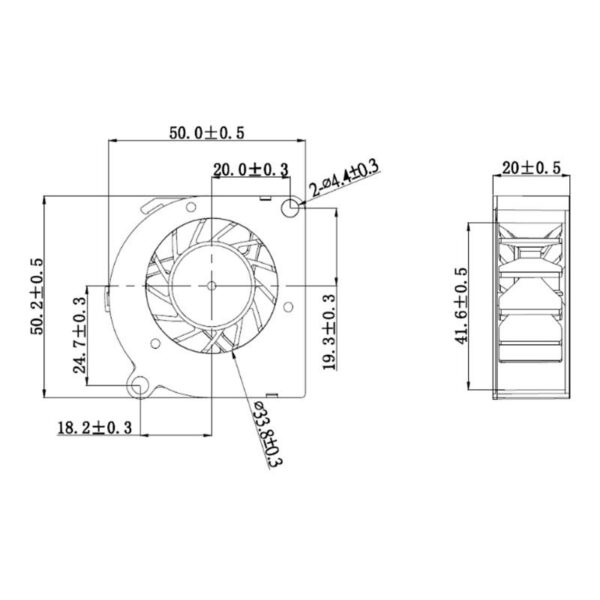

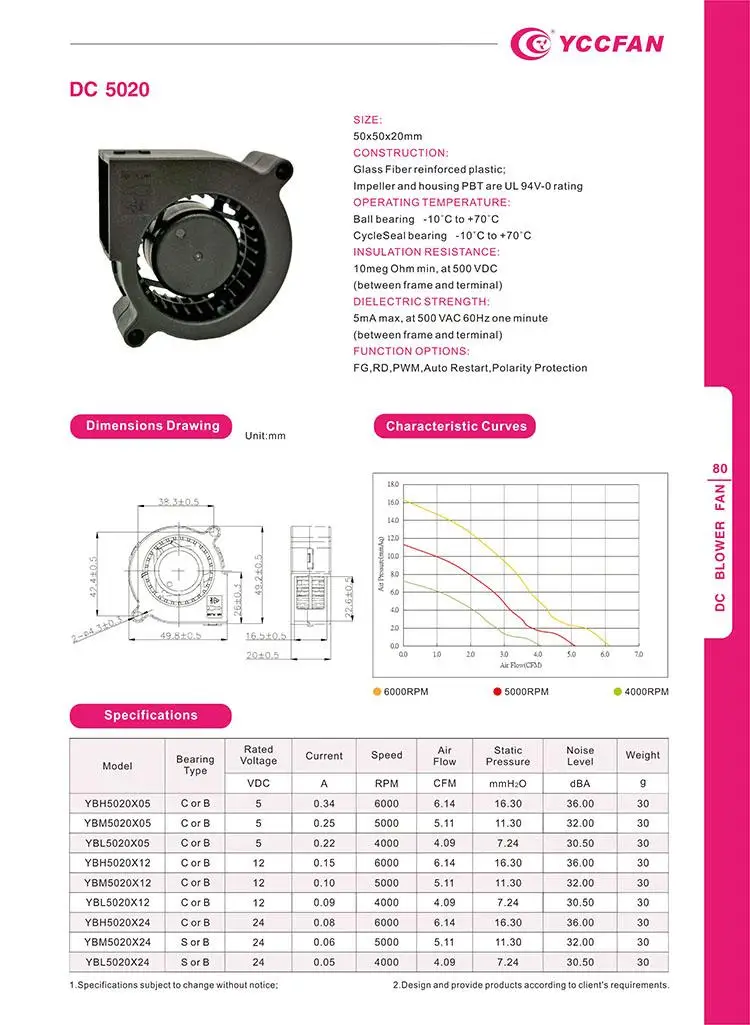

50x50x20mm fan specifications
Rated voltage: 5v 9v 12v 14v 24v according to customer’s requirement

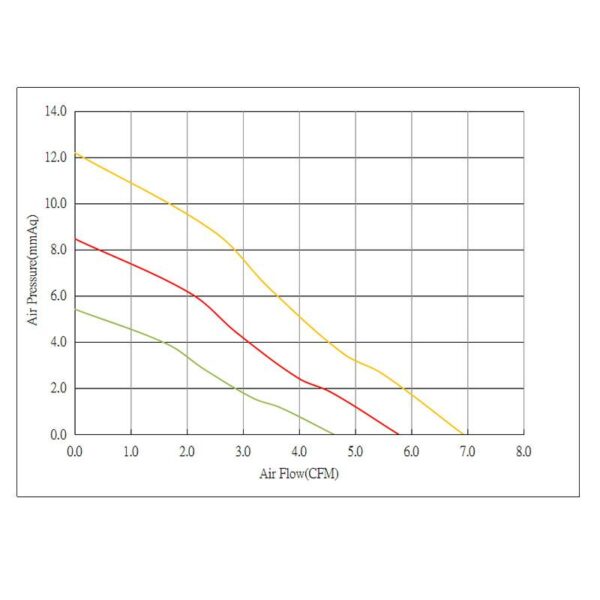

Air flow, air pressure, speed and rated voltage can be customized based on customer’s requirement
Bearing: Sleeve or Ball ( sleeve working time for 30,000 hours, ball working time for 50,000 hours)
Yccfan ball bearing is Minebea NMB brand, it is imported from Japan

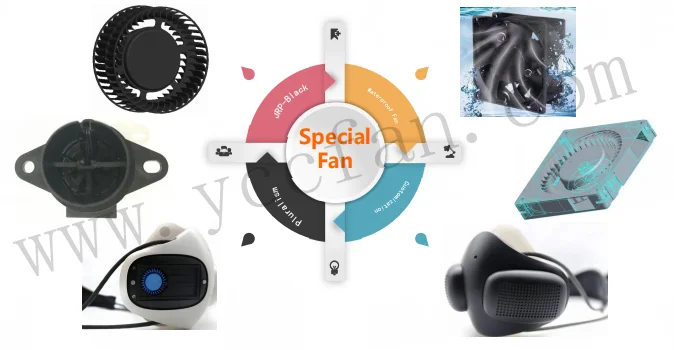

1 : Customized Fan
YCCFAN provide cooling solution for cusomter’s special product and requirement.

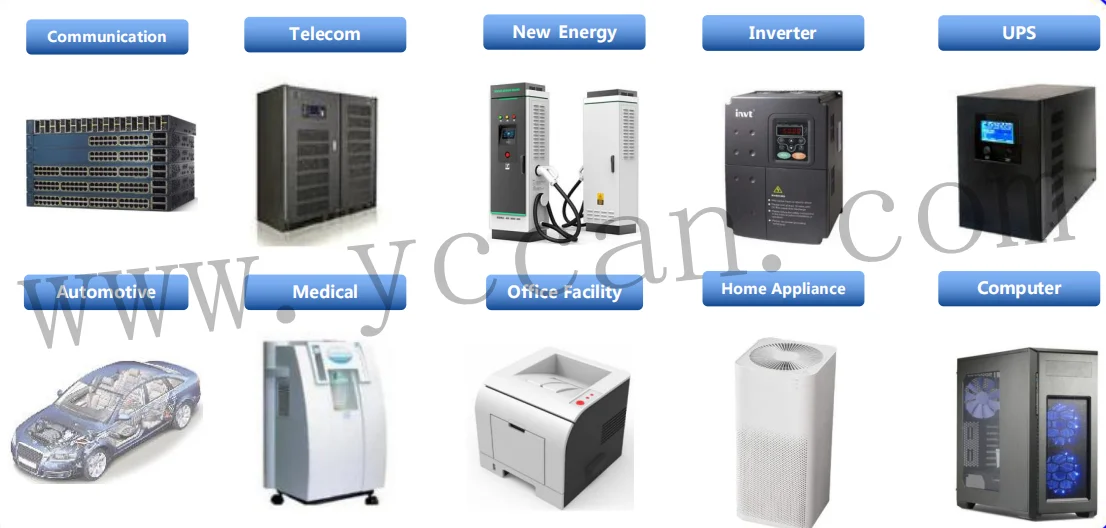

Application industry :
Thanks for all customers support,we will do better.
Panasonic , Sony , Mitsubishi , Fuji , Midea, HYUNDRI,SENSICA, PLANTOWER, KSTAR , INVT ,INFY POWER etc.

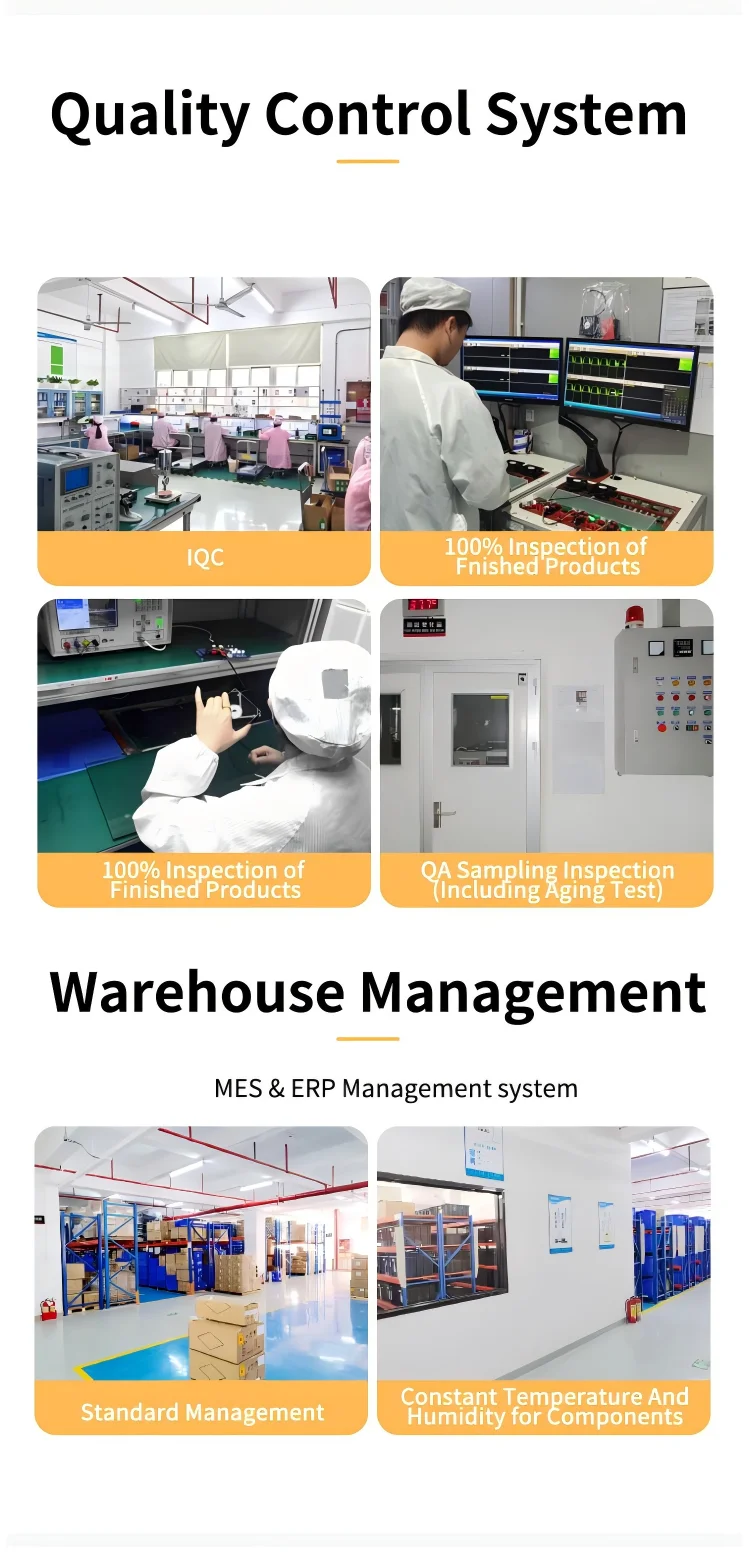

2 : Quality Assurance
a : 100 % testing before the fan leave our factory
b. Good after services to every customer
c.Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.
d.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan
Packing: carton box or as customer’s requirements
Shipping:
1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agnet have perfect discount with these express company.
2. Large Measure are shipped by ship or by air as customer’s requirements.
3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
YCCFAN 5V 12V Air Purifier DC Blower Fan 50*50*20mm Centrifugal Fan
A1: Consider main point:size,voltage,speed/airflow,lifespan
B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.

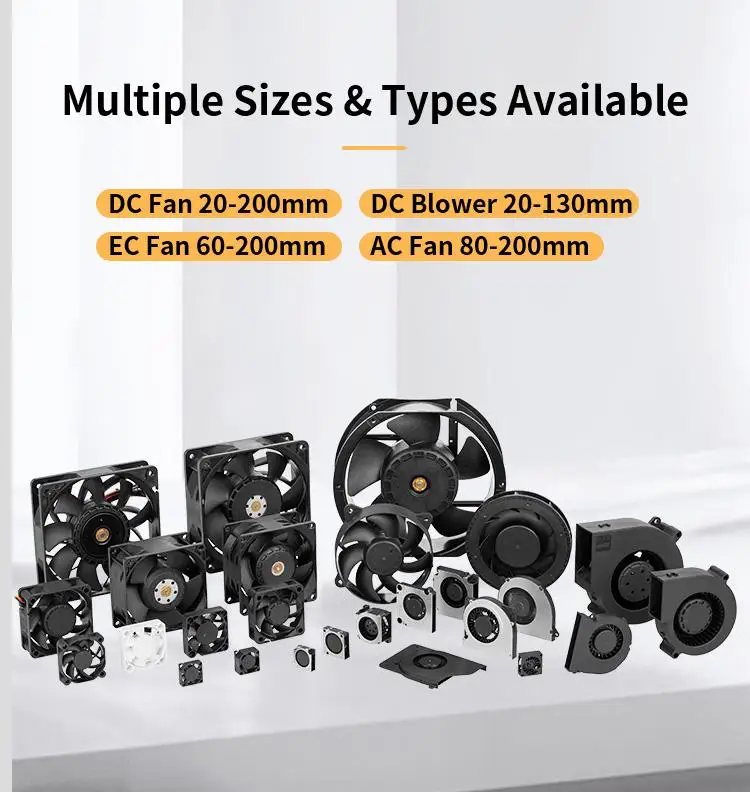

Q2: Can you tell me the normal DC fan Model?
A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm
30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm
50*50*10mm 50*50*15mm 50*50*20mm
60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm
80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm
120*120*25mm 120*120*38mm
150*150*51mm 172*150*51mm 172*51mm
We have more model,just e-mail me to get details…
Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.
Q4: Can I get samples before order?
A4:Definely,that’s our suggestion too.when mass production,performance is compliance to sample checked.
Frequently Asked Questions
What is the minimum order quantity for this dc centrifugal blower?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this dc centrifugal blower?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 5V 12V 24VDC. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
