This inline duct fan is published with the manufacturer’s full specification — voltage 110-240V, type Centrifugal Fan. For a binding price and lead time, send the volume you need and where it ships to.

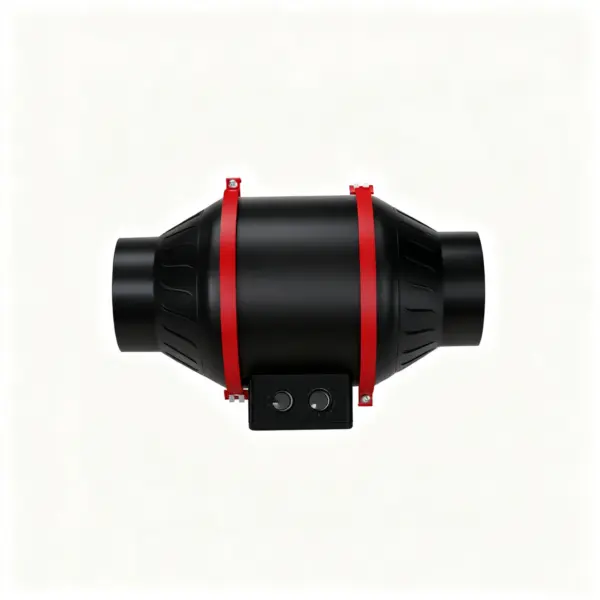

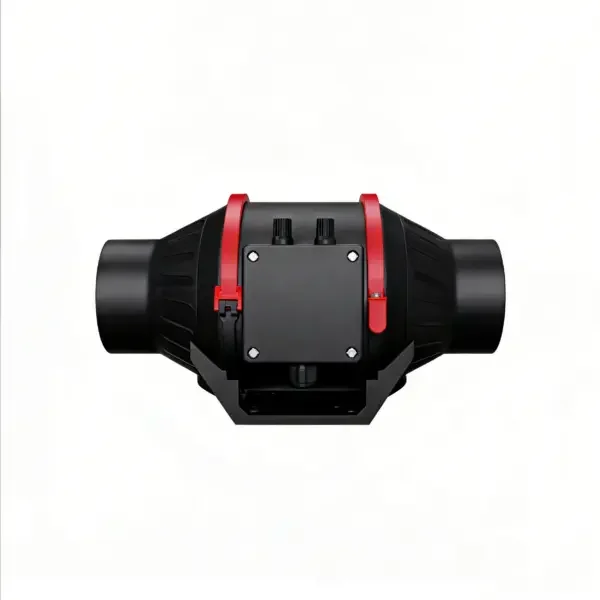

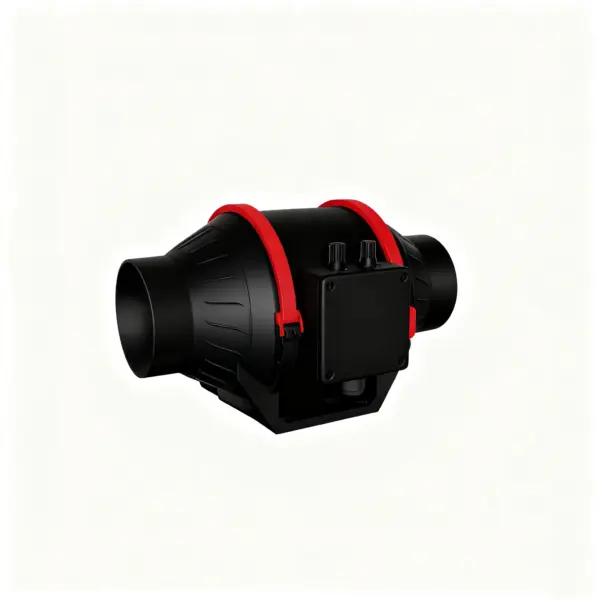

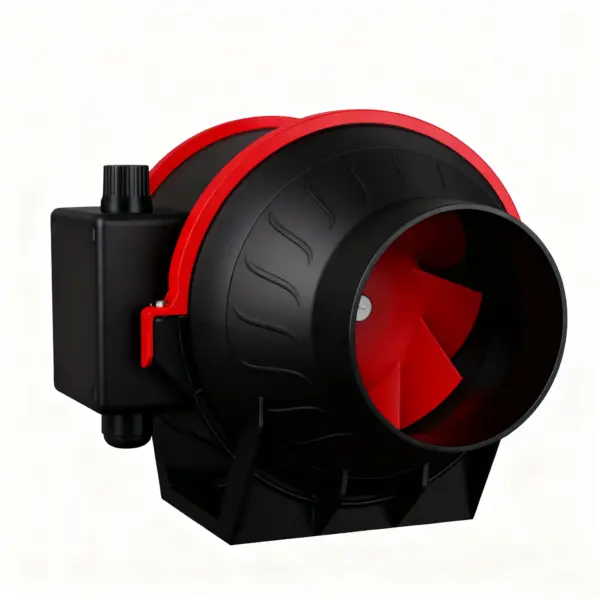

This inline duct fan gives you two controls most units in its class leave out: a speed knob and a run-on delay timer. The delay keeps the fan running after the switch is off, which is what actually clears residual moisture or fumes from a room rather than trapping them in the duct. Centrifugal construction sustains airflow through long runs. Wide 110-240V input covers export markets on a single build, with OEM and ODM available.
Key Features of This Inline Duct Fan
- Voltage: 110-240V
- Blade Material: /
- Warranty: Other
- Place Of Origin: Zhejiang, China
- Type: Centrifugal Fan
- Single Package Size: 40X35X30 cm
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 110-240V |
| Blade Material | / |
| Customized Support | OEM, ODM |
| Warranty | Other |
| After-Sales Service Provided | Video Technical Support |
| Place Of Origin | Zhejiang, China |
| Brand Name | Biote |
| Product Name | Inline Duct Fan |
| Type | Centrifugal Fan |
| Selling Units | Single item |
| Single Package Size | 40X35X30 cm |
| Single Gross Weight | 4.000 kg |
|

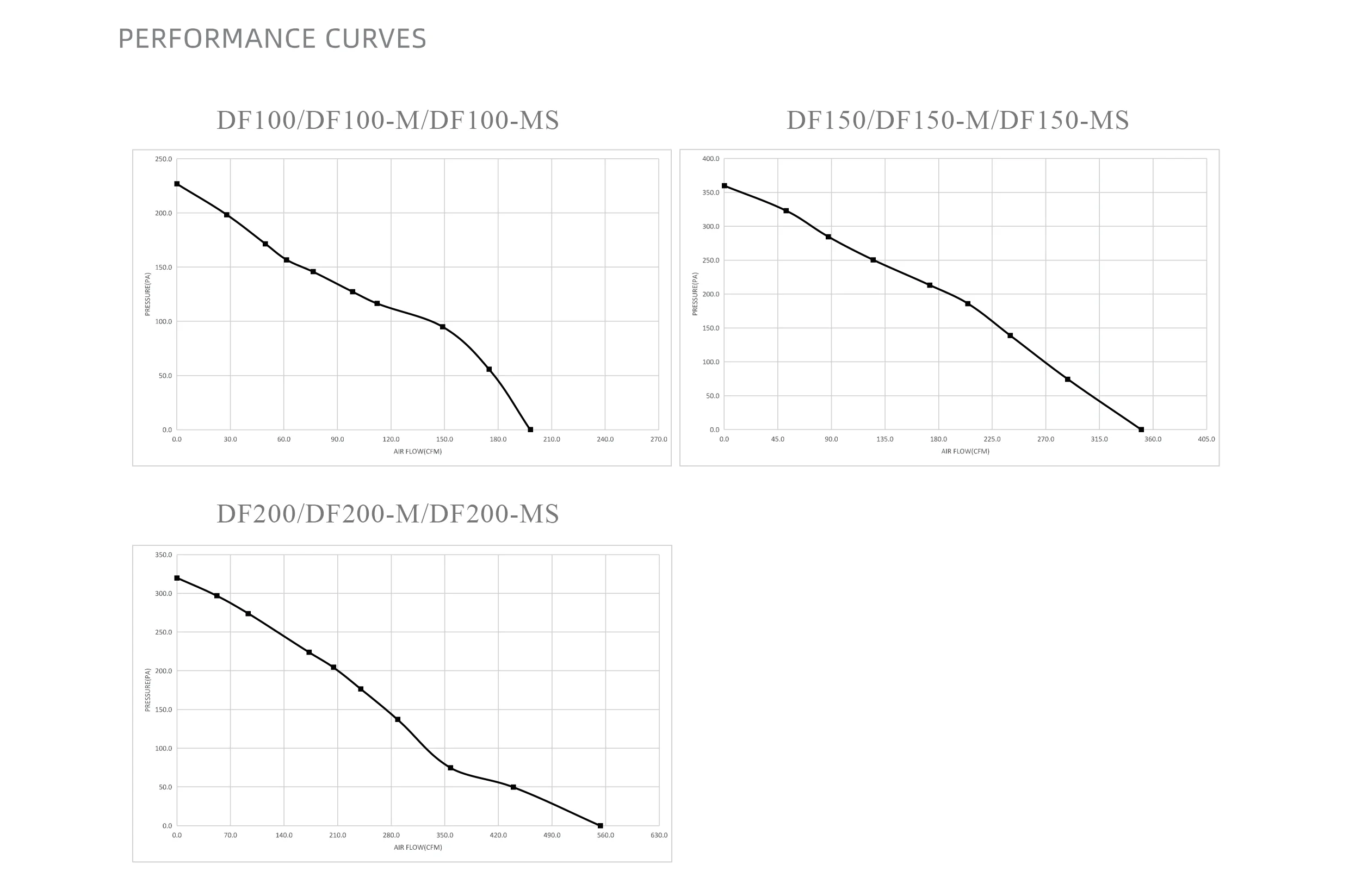

Model
|
Voltage（V）
|
Power（W）
|
Air flow (CFM)
|
Noise (dBA)
|
RPM
|
|
DF100/DF100-M/DF100-MS
|
110-240
|
40
|
205
|
28
|
2600
|
|
DF150/DF150-M/DF150-MS
|
110-240
|
50
|
350
|
32
|
2500
|
|
DF200/DF200-M/DF200-MS
|
110-240
|
70
|
553
|
42
|
2000
|
|

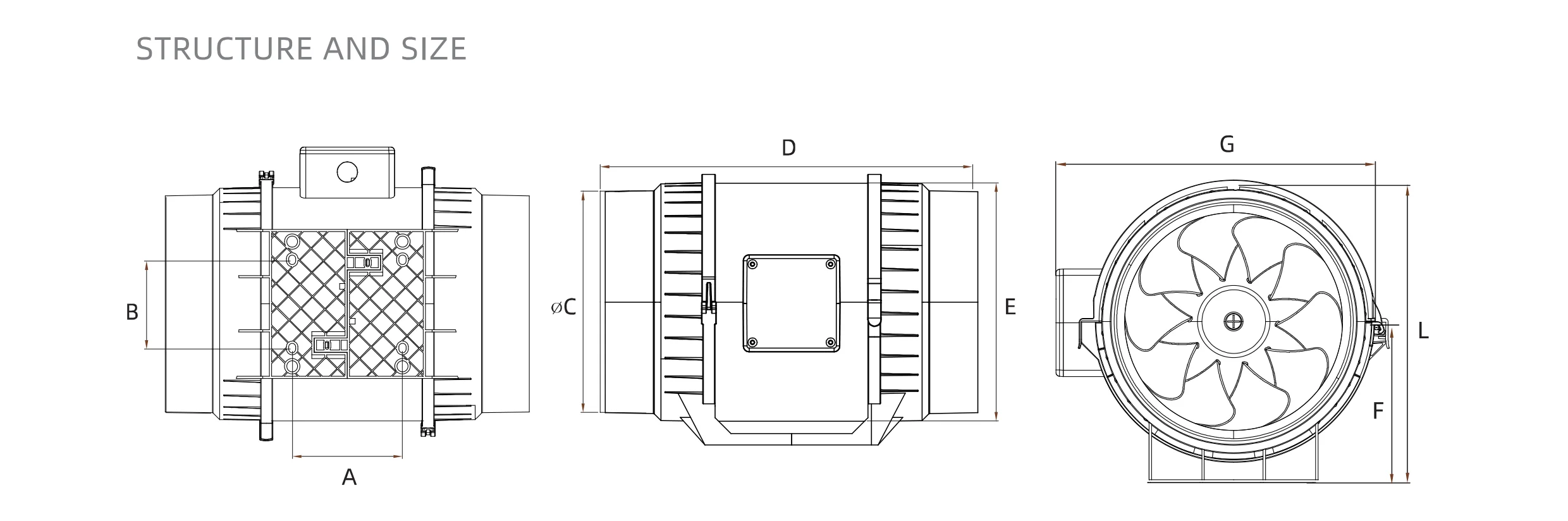

Model
|
A
|
B
|
ØC
|
D
|
E
|
F
|
G
|
L
|
|
DF100/DF100-M/DF100-MS
|
81
|
100
|
97
|
303
|
163
|
100
|
214
|
188
|
|
DF150/DF150-M/DF150-MS
|
62
|
96
|
145
|
315
|
187
|
107
|
238
|
208
|
|
DF200/DF200-M/DF200-MS
|
100
|
113
|
196
|
330
|
210
|
126
|
266
|
240
|
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this inline duct fan?
A Other warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 110-240V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This inline duct fan is produced by Ningbo Biote Mechanical Electrical Co., Ltd.. Browse the full Ningbo Biote Mechanical Electrical Co., Ltd. range on HVACR Nexus.
