This axial flow fan is listed with the manufacturer’s full published specification — power source Electric, material Aluminum Alloy, type Air Circulation Fan. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Power Source: Electric
- Voltage: Customized
- Material: Aluminum Alloy
- Blade Material: Aluminum
- Speed: 1400rpm
- Warranty: 1 Year
Technical Specifications
| Voltage | Customized |
|---|---|
| Material | Aluminum Alloy |
| Speed | 1400rpm |
| Mounting Type | hanging fan |
| Type | Air Circulation Fan |
| Warranty | 1 Year |
| Blade Diameter | 500mm |
| Power Source | Electric |
| Blade Material | Aluminum |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Selling Units | Single item |
| Single Package Size | 65X65X50 cm |
| Single Gross Weight | 60.000 kg |
|
Model
|
Blades Diameter
(mm)
|
Voltage
(V)
|
Frequency
(HZ)
|
Power
(W)
|
Rotational Speed
(rpm)
|
Air volume
(m³/h)
|
|
RF-300
|
300
|
220/380
|
50
|
150
|
1400
|
2880
|
|
RF-400
|
400
|
220/380
|
50
|
250
|
1400
|
4180
|
|
RF-500
|
500
|
220/380
|
50
|
250
|
1400
|
5300
|
|
RF-600
|
600
|
220/380
|
50
|
370
|
1400
|
6500
|

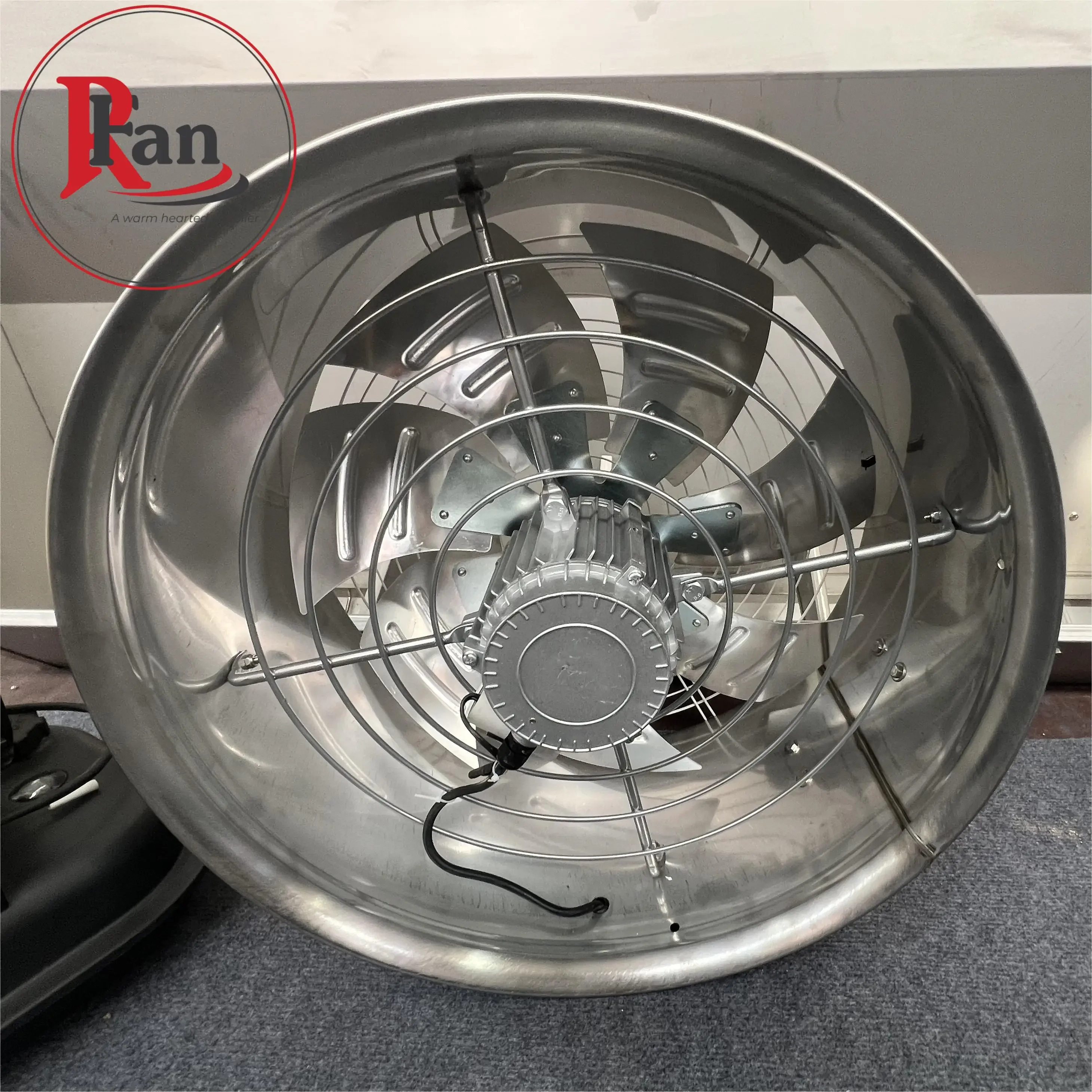

Frame is made of high quality stainless steel by stretching forming,attractive appearance,no rust.

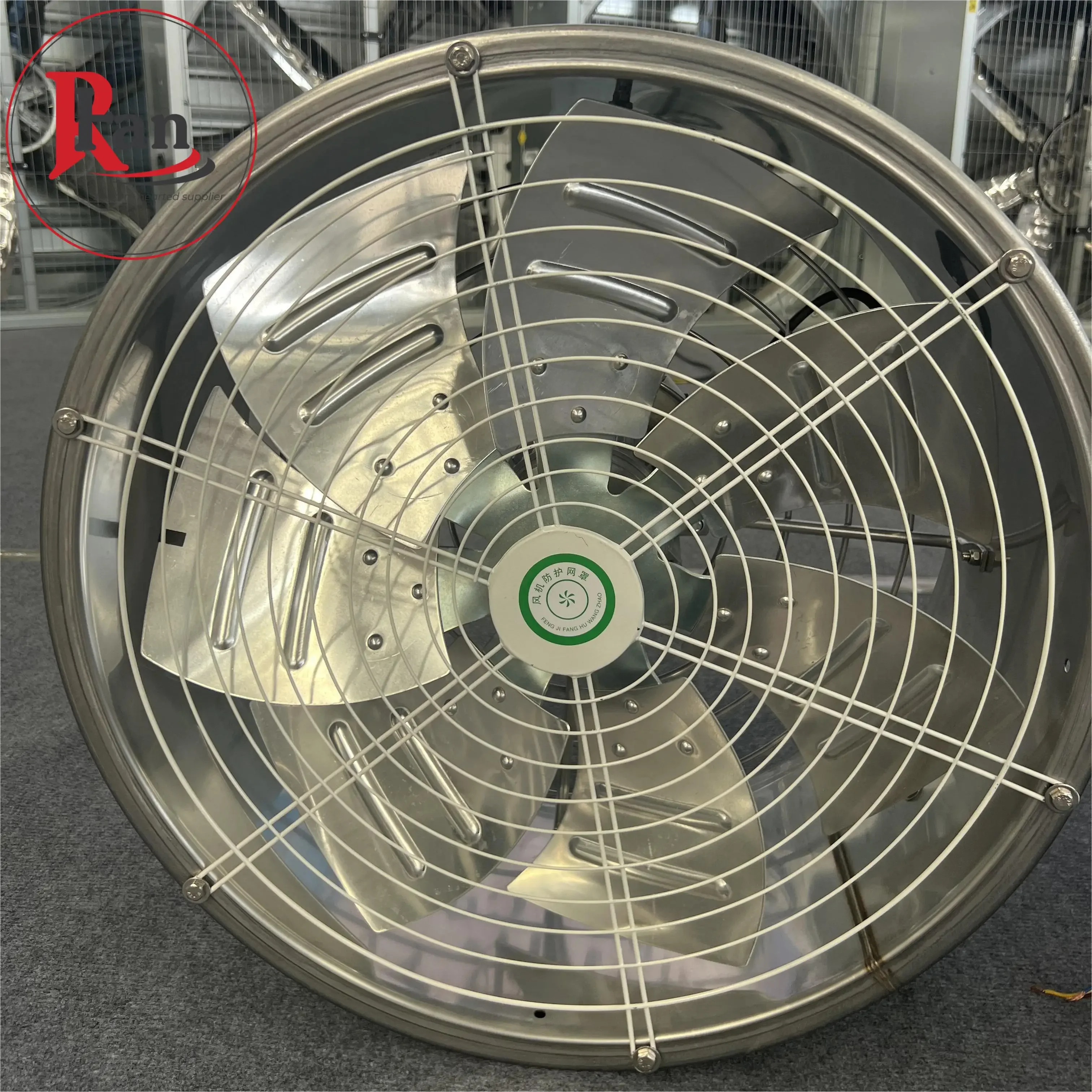

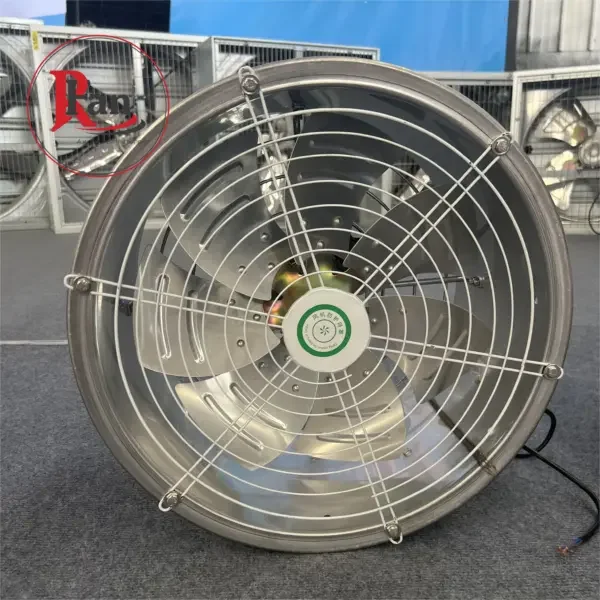

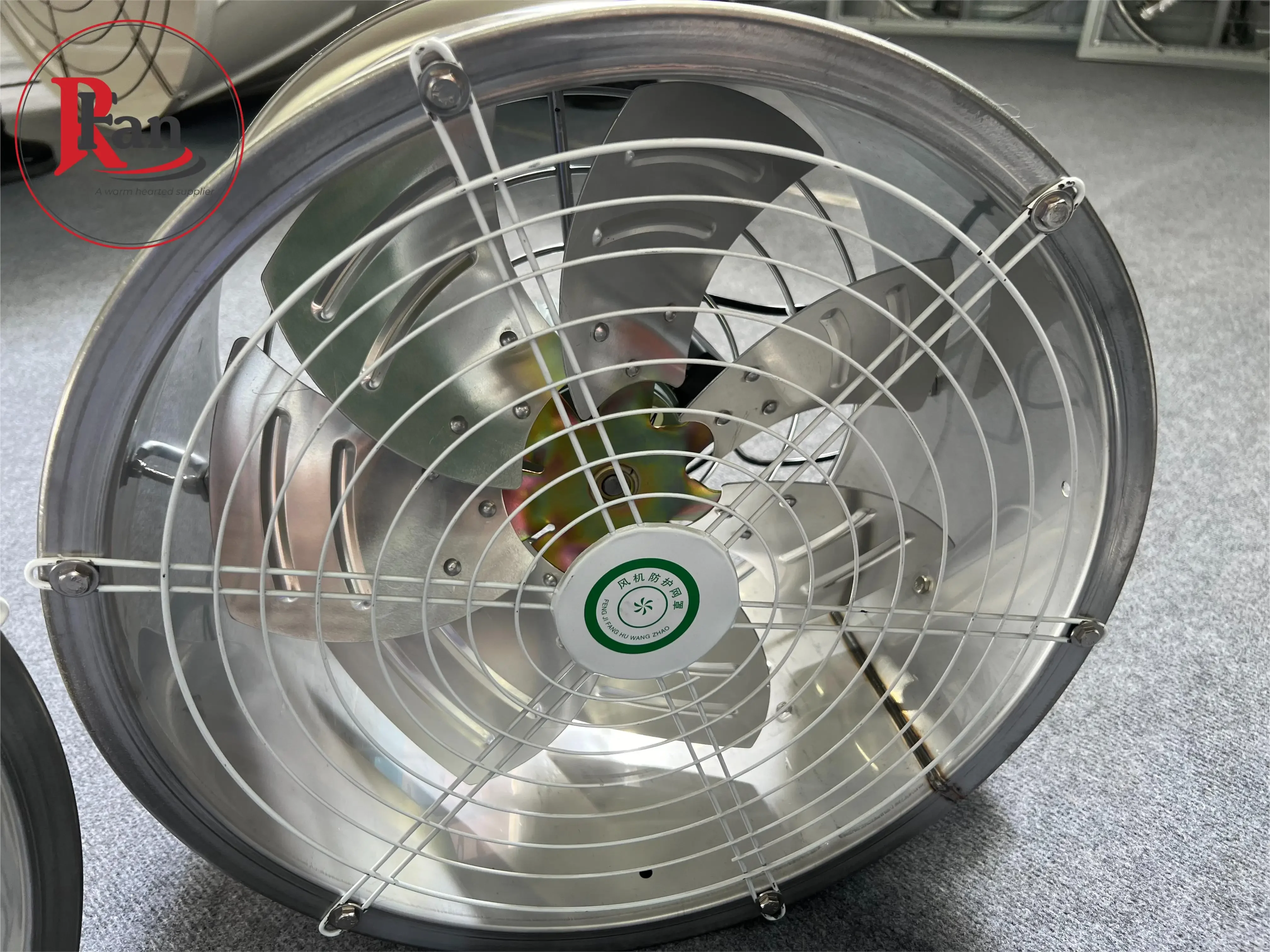

Fan blades are all adopt aluminum sheet by punch forming,attractive appearance,light weight,large air volume,low vibration.

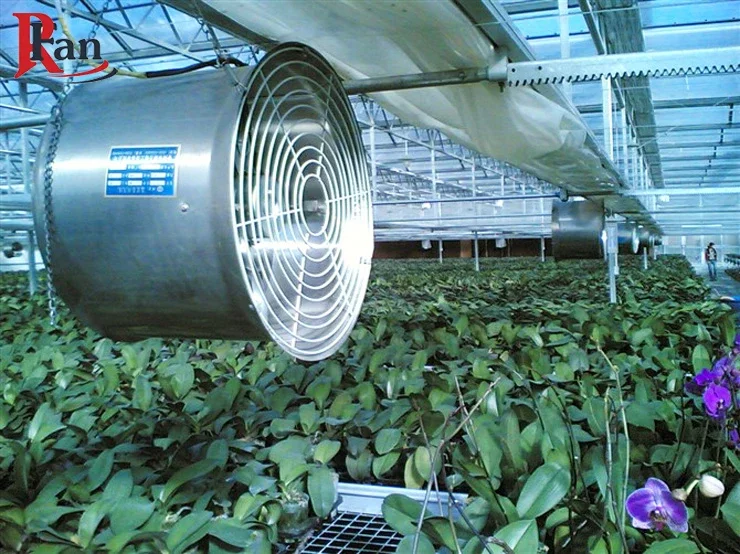

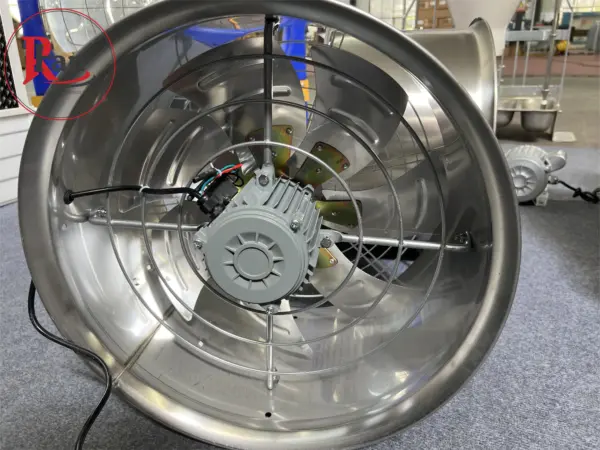

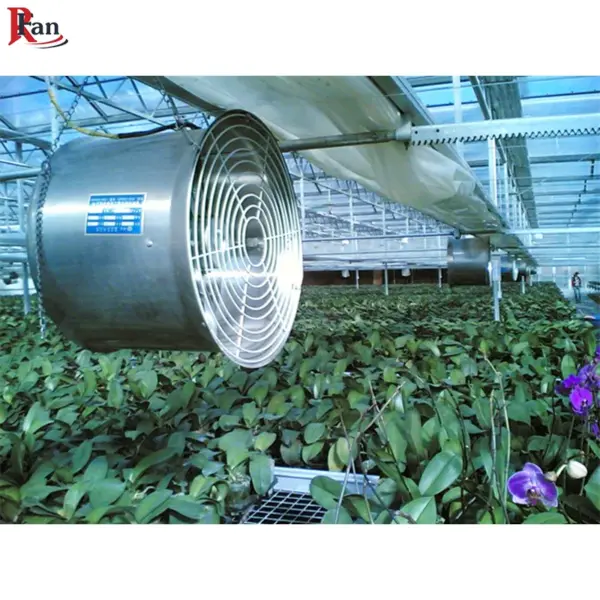

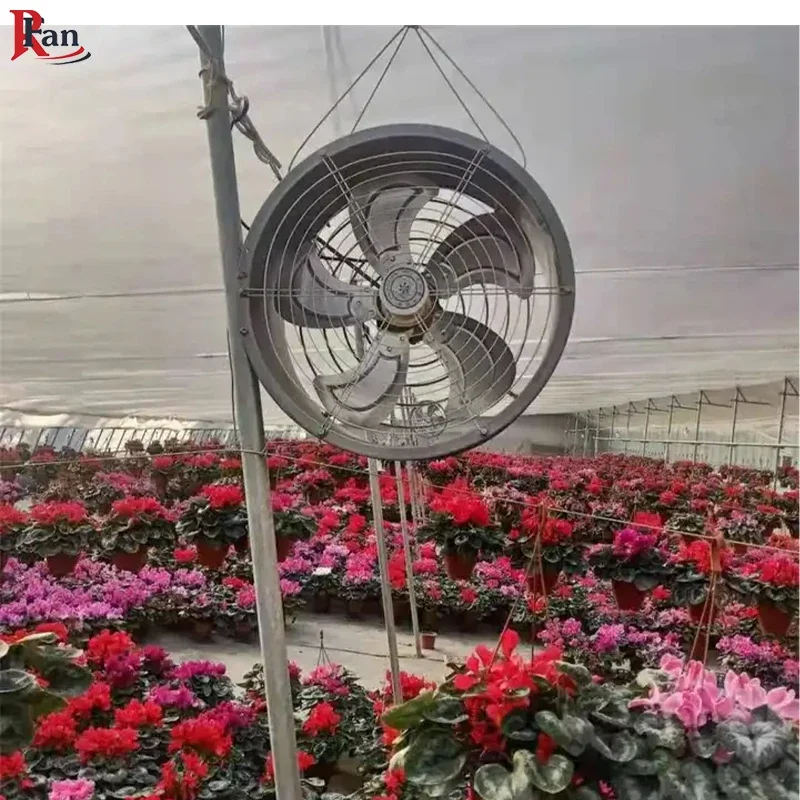

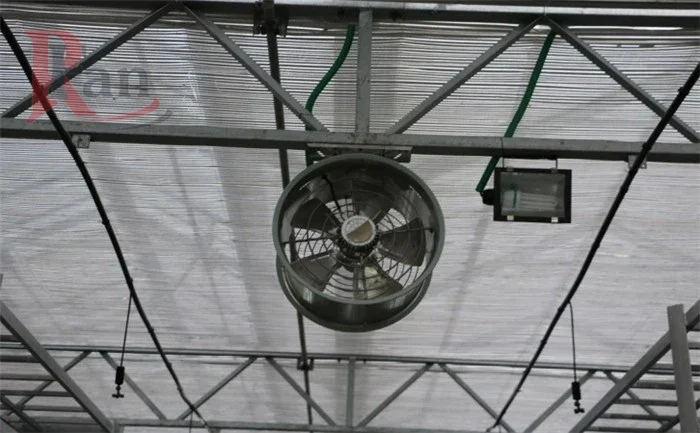

According to high temperature and humidity in greenhouse,adopt individually customized high quality totally enclosed GB motor,to ensure excellent performance.

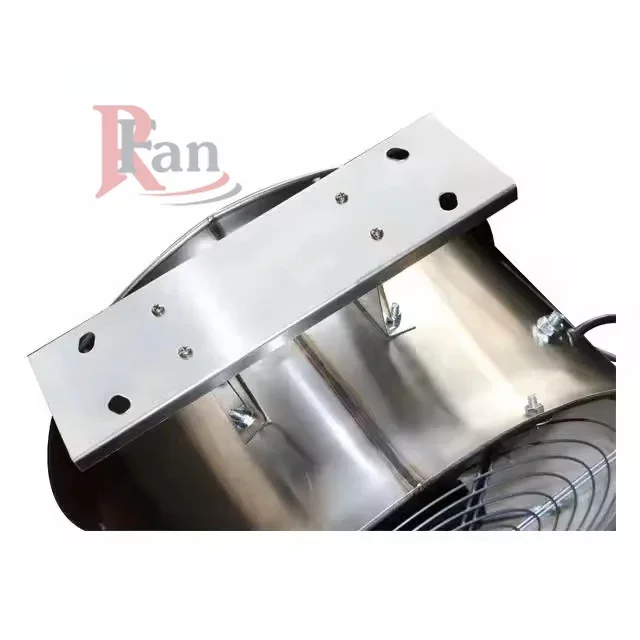

The fixed bracket with special adjustable angle design which could change air direction as per requirement.Firmly fixed,stable operation,no swing when start.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial flow fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is Customized. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
