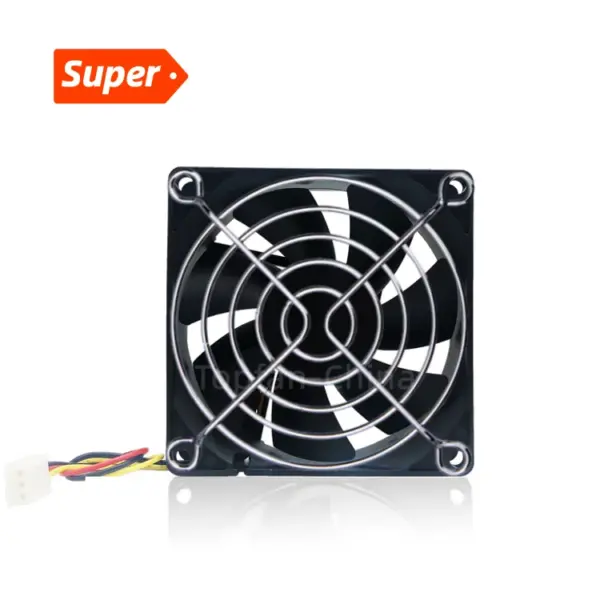

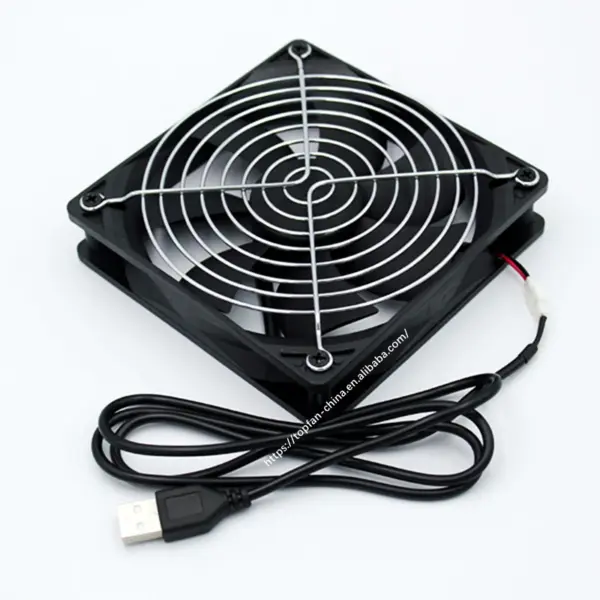

This axial flow fan is listed with the manufacturer’s full published specification — voltage Other, DC 12V/24V/48V, blade material Plastic, model number MX12038ABD1. It is produced by Shenzhen Topfan Technology Development Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Model Number: MX12038ABD1
- Voltage: Other, DC 12V/24V/48V
- Blade Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: air conditioner, air cooler
Technical Specifications
| Voltage | Other, DC 12V/24V/48V |
|---|---|
| Electric Current Type | DC |
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| Blade Material | Plastic |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | TOPFAN |
| Model Number | MX12038ABD1 |

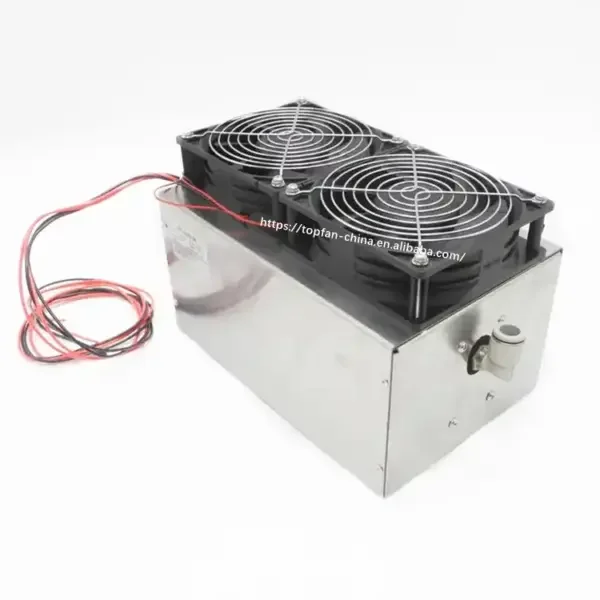

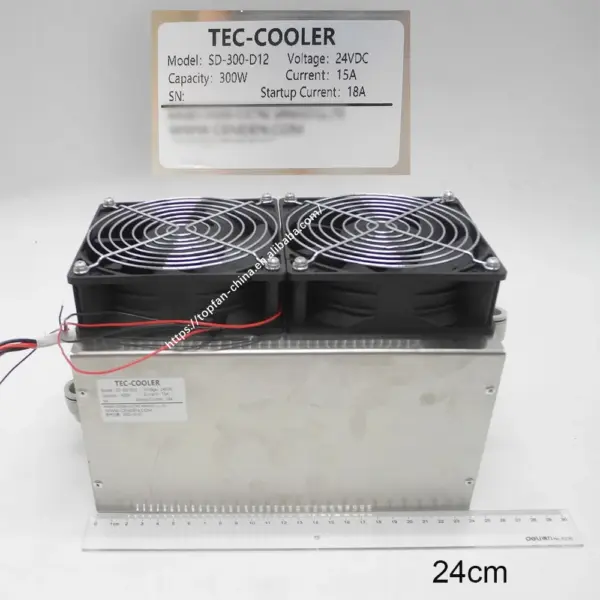

| Product Name | TEC-COOLER Fan |
| Application | air conditioner, air cooler |
| Packaging Details | Inner packing use foam or cardboard and other protective materials to packaging and to be separated, the outer packing use cardboard cartons. could also use other ways to packing according to the customer request. |
| Selling Units | Single item |
| Single Package Size | 13X13X4.5 cm |
| Single Gross Weight | 0.700 kg |
| Packaging Examples | |
| Supply Ability | 20000 pieces per Day |
|
Model
|
Bearing
Type
|
Rated Volt
|
Operating Volt
|
Rated Current
|
Input Power
|
Speed
|
Max. Airflow
|
Max. Static Pressure
|
Noise Level
|
||||||||
|
Part No.
|
S B Y
|
VDC
|
VDC
|
AMP
|
Watt
|
RPM
|
CFM
|
Pa
|
dB-A
|
||||||||
|
MX12038ZBL1
|
B
|
12
|
6.0-13.8
|
2.7
|
32.4
|
6000
|
217.6
|
290.6
|
63.5
|
||||||||
|
MX12038ZBD1
|
B
|
12
|
6.0-13.8
|
2.1
|
25.2
|
5500
|
192.6
|
265
|
60
|
||||||||
|
MX12038ABM1
|
B
|
12
|
6.0-13.8
|
2.5
|
30
|
4000
|
193.5
|
167.7
|
60
|
||||||||
|
MX12038ABL1
|
B
|
12
|
6.0-13.8
|
1.6
|
19.2
|
3500
|
173.3
|
134.4
|
55
|
||||||||
|
MX12038ABD1
|
B
|
12
|
6.0-13.8
|
1
|
12
|
3000
|
146
|
97.8
|
50
|
||||||||
|
More Models
|
Other RPM/CFM/Voltage/Current…please contact us see the specification for more details.
|
||||||||||||||||
|

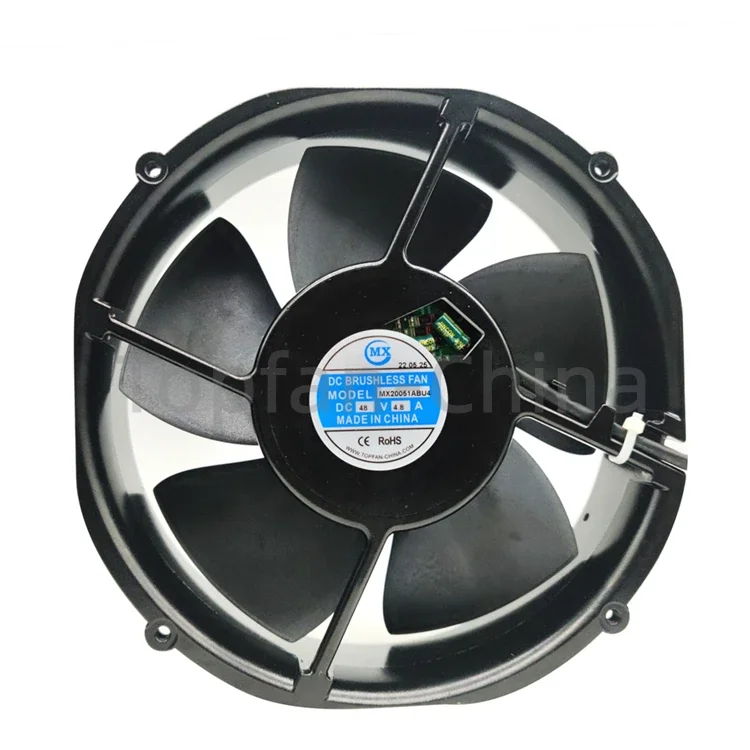

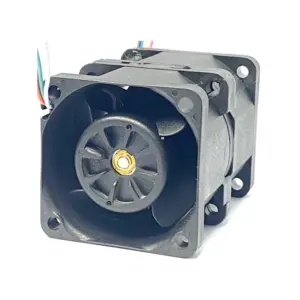

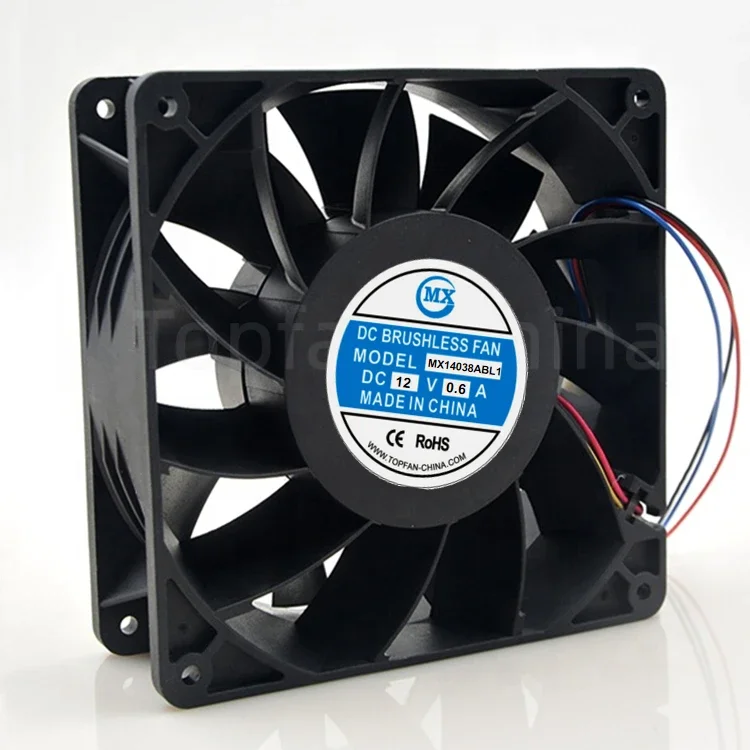

Product Name
|

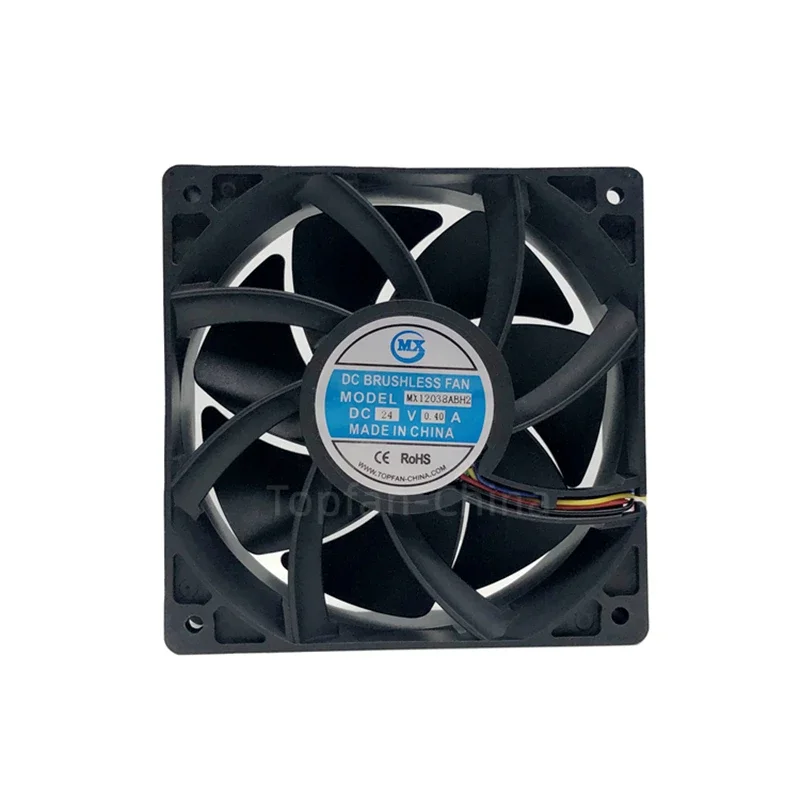

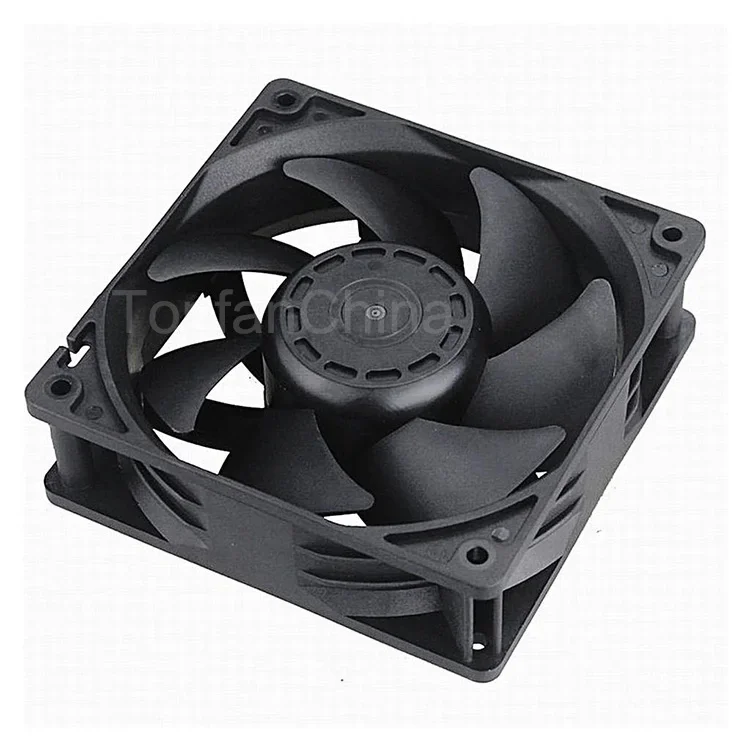

DC Axial Fan
|
|
Brand
|
MX topfan/OEM/ODM
|
|
Frame and Impeller
|
Plastic(94V-0)，PBT
|
|
Bearing Type
|
Sleeve bearing&Ball Bearing
|
|
Function Range
|
PWM FG RD IP58 IP68
|
|
Leadwire
|
Red Wire Positive(+)，Black Wire Negative(-)
|
|
Rated Voltage
|
5V 12V 24V 48V …
|
|
Operating Tempetature
|
-30℃ to +80℃
|
|
Product Applications
|
Household Appliances/Machine/Aeronautical/Power equipment, etc
|
|

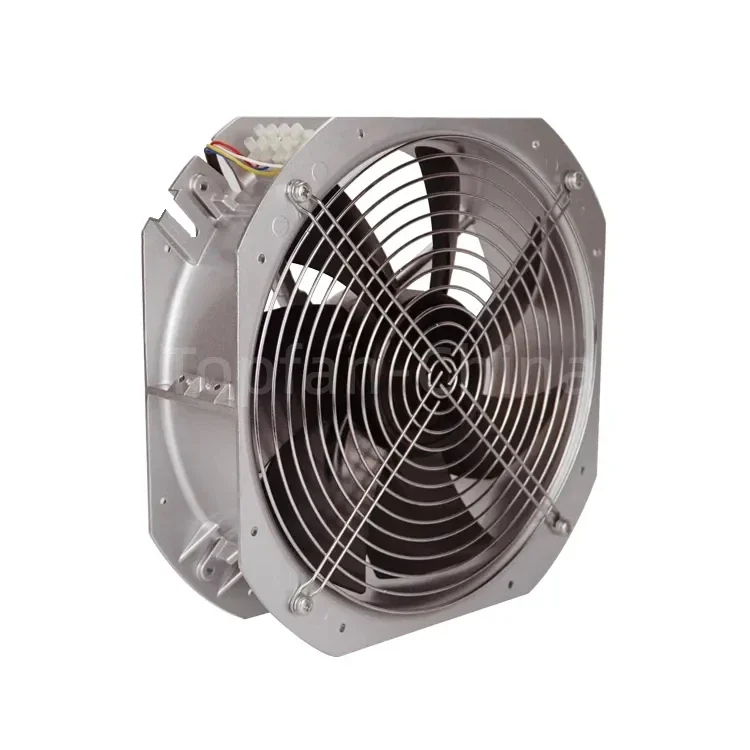

Product Name
|
DC AC EC Axial Fan
|
|

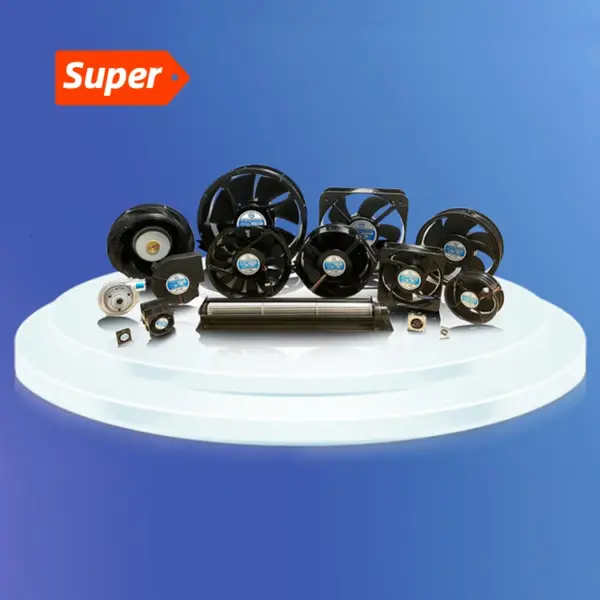

More Sizes
|
15mm 17mm 18mm 20mm 25mm 30mm 35mm 36mm 38mm 40mm 45mm 50mm 52mm 60mm 70mm 80mm 92mm 120mm 125mm 127mm 136mm 140mm 150mm 160mm 172mm 200mm 220mm 225mm 254mm 280mm ……
|
|
Material
|
Metal & Plastic
|
|
Bearing Type
|
Ball Bearing & Hydraulic Bearing & Sleeve Bearing
|
|
Voltage
|
DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V…
|
|
Function Range
|
PWM FG RD IP58 IP68
|
|
Applications
|
Household Appliances/Machine/Aeronautical/Power equipment, etc
|
|

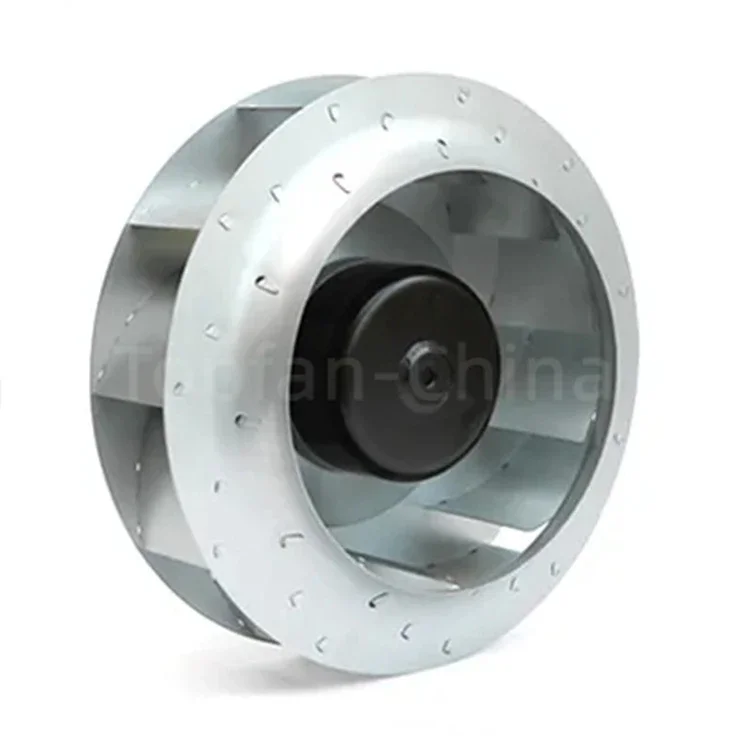

Product Name
|

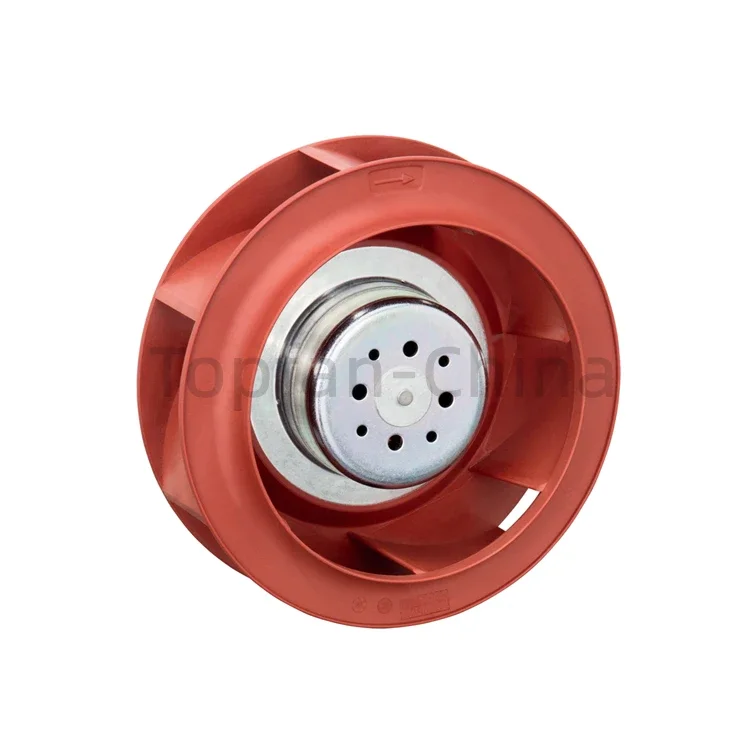

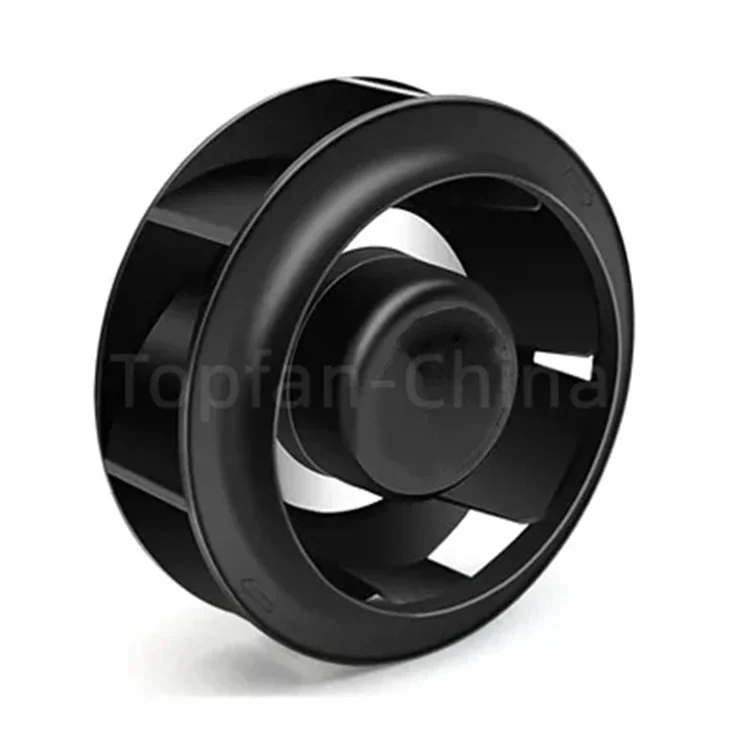

Backward Curved Centrifugal Fan
|
|
More Sizes
|
70mm 100mm 133mm 150mm 175mm 190mm 225mm 250mm 280mm ……
|
|
Impeller Material
|
PA6 + GF / Aluminum Alloy / Plastic
|
|
Voltage
|
DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V…
|
|
Mode Of Operation
|
S1
|
|
Protection Class
|
IP55 / IP54 / IP44 PWM FG RD IP58 IP68
|
|
Insulation Class
|
F
|
|
Operation Temperature
|
-30℃ to +80℃
|
|
Techniacal Feature
|
Control input 0-10VDC / PWM, Tech ouput , Locked-rotor protection . Reverse Polarity Over-voltage protection Soft Start Protection
|
|

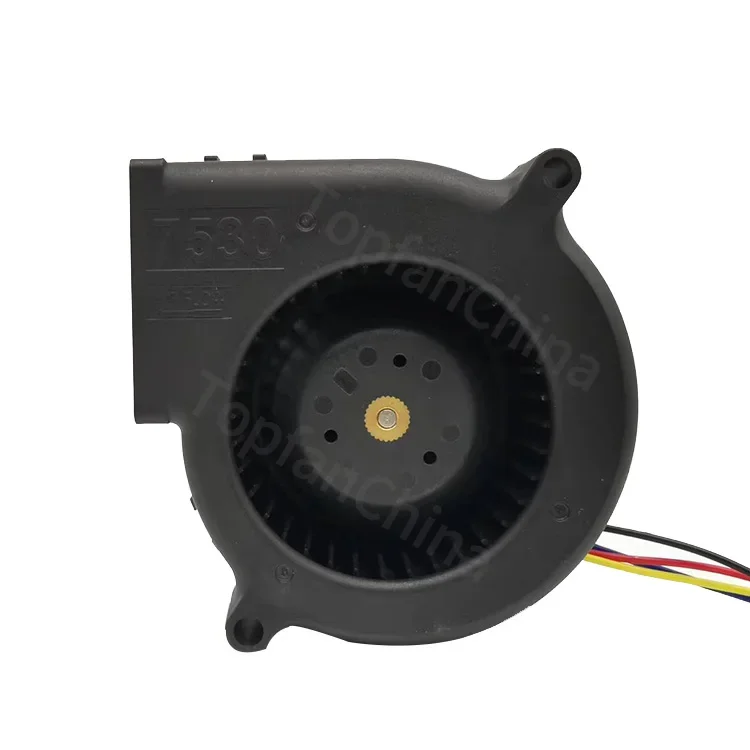

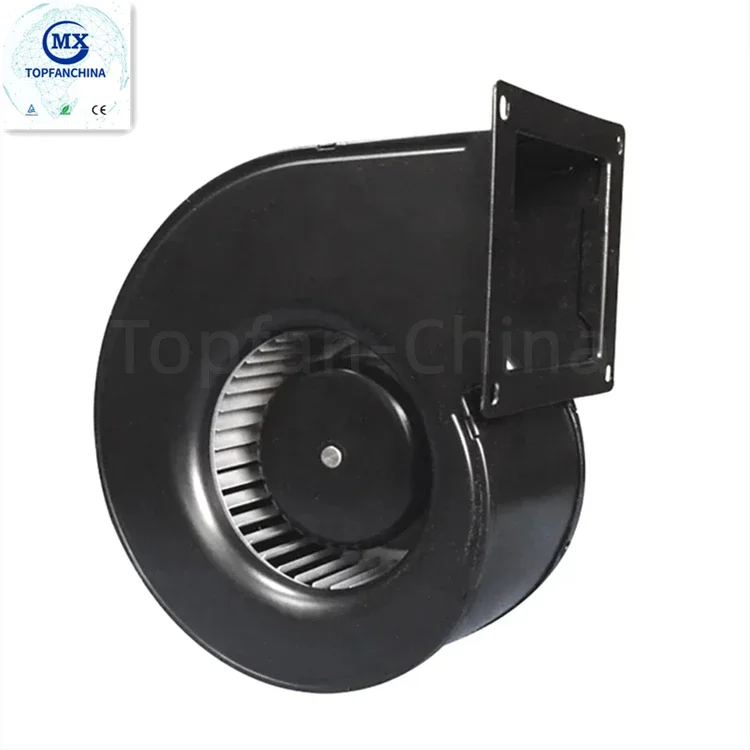

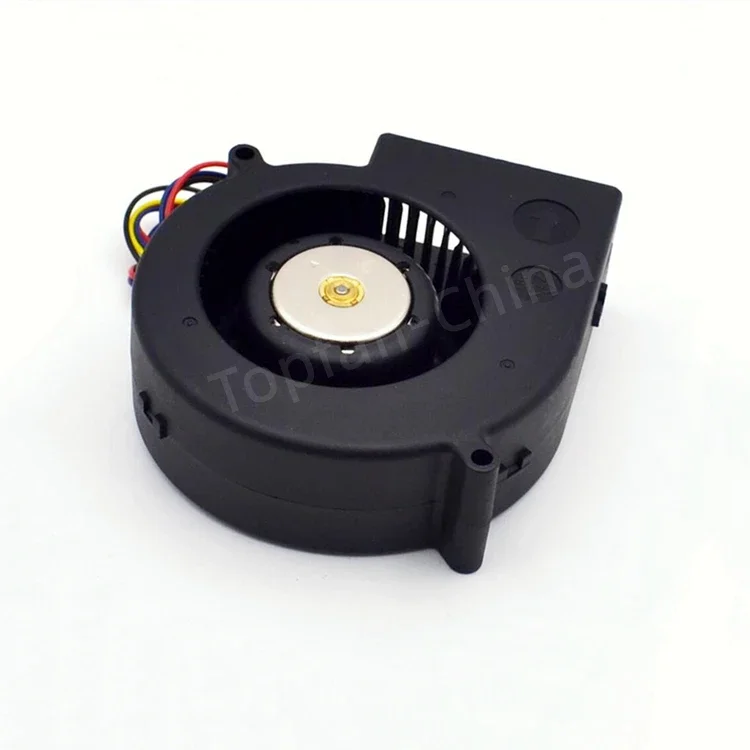

Product Name
|
DC AC EC Centrifugal Blower
|
|
More Sizes
|
18mm 20mm 25mm 30mm 35mm 40mm 50mm 51mm 52mm 60mm 75mm 77mm 81mm 85mm 93mm 97mm 120mm 140mm ……
|
|
Material
|
Housing – Galvanized Metal Impeller – Galvanized Metal & Plastic
|
|
Motor Type
|
AC Capacitor Motor , DC/EC brushless external rotor motor
|
|
Voltage
|
DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V…
|
|
Function Range
|
PWM FG RD IP58 IP68
|
|
Applications
|
split air conditioner , air curtains , cooling, etc
|
|

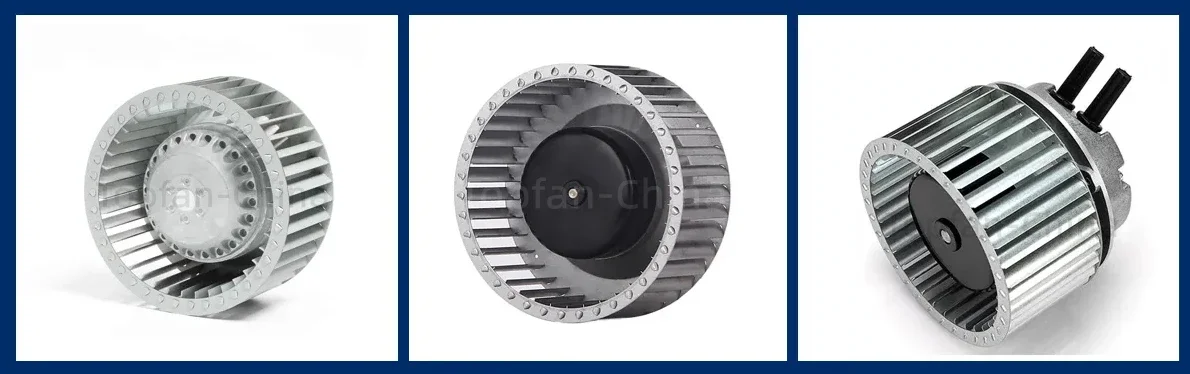

Product Name
|
Forward Centrifugal Fan-single inlet without housing
|
|
Diameter of impeller:
|
150mm 160mm 180mm 200mm 246mm ……
|
|
Material
|
Housing – Galvanized Metal Impeller – Galvanized Metal
|
|
Voltage
|
DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V…
|
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial flow fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is Other, DC 12V/24V/48V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
