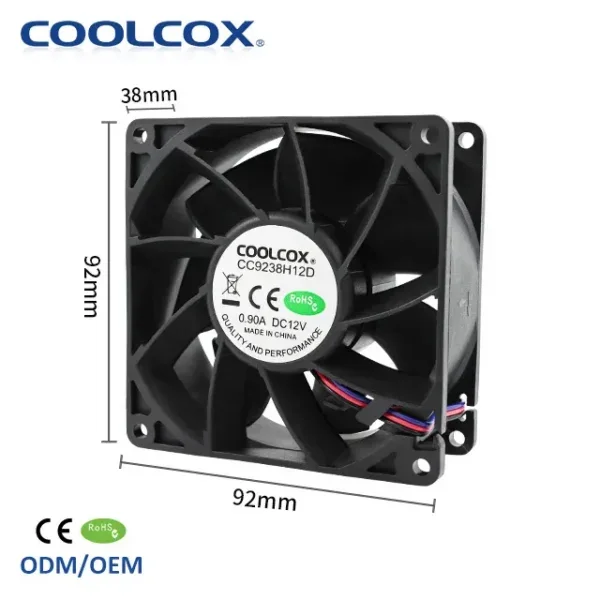

Axial Cooling Fan, 92x92x38mm, 12V, 24V

This axial cooling fan is listed with the manufacturer’s full published specification — voltage 12V, 24V, power source Electric, blade material Plastic. It is produced by Dongguan Coolcox Electronic Technology Co., Ltd., a verified supplier of 10 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Axial Cooling Fan

• Model Number: CC9238
• Power Source: Electric
• Voltage: 12V, 24V
• Blade Material: Plastic
• Warranty: 1 Year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

Product Description

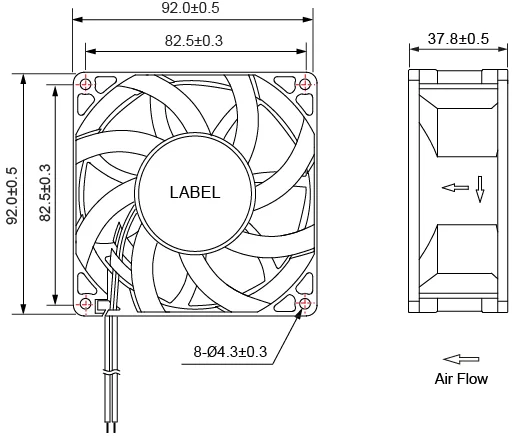

Dimensions:





Parameters:







Parts Specs:		P&Q Curve
Bearing type:Sleeve,2-Ball Material: Frame & Impeler:PBT Lead wire: UL2468 AWG #26 or equivalent Red Wire Positive (+)  Black Wire Negative (-) FG,PWM,RD,Protection functions are optional   5V,12V,24V are available





Electrical  Specifications:

Insulation Resistance	10MΩ/between unshackled wire and frame at 500VDC/min
Dielectric Strength	5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
Rotating Direction	Anti-Clockwise
Polarity Protect	Circuit is protected when VCC&GND are exchanged
No. of pole	4Poles





Environmental Specifications

Operating Temp  Range	Temperature:-10℃~+70℃  Humidity:35%~85%RH
Store Temperature	Temperature:-40℃~+70℃  Humidity:35%~85%RH
Thermal Shock	Standard:MIL-STD 202F Method 107D,Condition D
Insulation Shock	UL:Class A





Testing Equipments





Workshop:







Certifications

CoolCox implements ISO9001,ISO14001,IATF16949 ,QC080000 management systems; and the products comply with safety regulations such as UL,TUV,CE.





Packaging & Shipping

FCL Shipment		LCL Shipment





 Air shipment:





FAQ

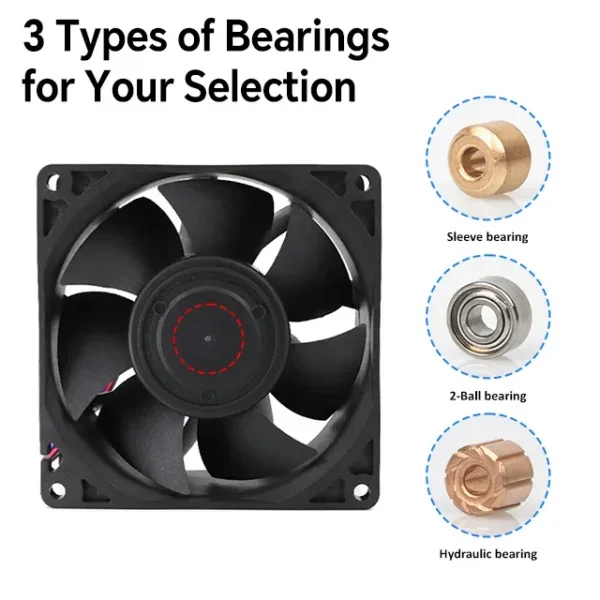

1.What is the lifetime for the different bearings?

30,000 hours for sleeve bearing
40,000 hours for hydraulic bearing
60,000 hours for FDB bearing
70,000 hours for 2-Ball bearing



2.What's the MOQ and lead time?
MOQ 2000 PCS
Lead time for samples:about 1 week
Lead tiem for mass orders:about 4 weeks



3.What functions are optional for the fans?
Auto-restart
FG,Tachometer signal output
RD, Alarm signal output
PWM Control
Waterproof



4.Why do choose CoolCox?
Professional team
Standard management
High level of automation
Quality assurance system
High customization ability
Prompt delivery ability

Ordering and Pricing

• Minimum order quantity: 100 piece
• Volume pricing:
  • 100–999 piece: US $2.5 / piece
  • 1000–2999 piece: US $2.2 / piece
  • 3000–4999 piece: US $1.9 / piece
  • 5000+ piece: US $1.6 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this axial cooling fan?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the axial cooling fan be supplied for my local voltage?

The standard configuration is 12V, 24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Dongguan Coolcox Electronic Technology Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Coolcox Electronic Technology Co., Ltd. range on HVACR Nexus.
