Fixed frequency is a deliberate choice in this wall split air conditioner, not a compromise. Inverter units cost more and their electronics are the first thing to fail in areas with unstable mains, whereas a fixed-speed compressor keeps running. SEER 16-26 is still respectable for the class. Capacities from 9000 to 36000 BTU cover rooms up to 298 square feet, on R410A with timer, remote and app control and a three-year warranty.
Key Features of This Wall Split Air Conditioner
- Power Source: Electric
- Capacity (Btu): 9000, 12000, 18000, 24000, 30000, 36000
- Refrigerant: R410A
- Warranty: 3 years
- Feature: Energy Saving, Dehumidifier, Air Purification, Self-Cleaning, Quiet Mode
- Recommended Room Size（Square Feet）: up to 298 sq. ft
Technical Specifications
| Capacity (Btu) | 9000, 12000, 18000, 24000, 30000, 36000 |
|---|---|
| Timer | Yes |
| Remote Control | Yes |
| App-Controlled | Yes |
| Refrigerant | R410A |
| Recommended Room Size（Square Feet） | up to 298 sq. ft |
| Power Source | Electric |
| Fixed Frequency/Variable Frequency | Fixed Frequency |
| Warranty | 3 years |
| Energy Efficiency Rating | SEER16-26 |
| Cooling/Heating | Cooling/Heating |
| Feature | Energy Saving, Dehumidifier, Air Purification, Self-Cleaning, Quiet Mode |
| Selling Units | Single item |
| Single Package Size | 764X325X459 cm |
| Single Gross Weight | 30.500 kg |
|
Model
|
9000BTU
|
12000BTU
|
18000BTU
|
24000BTU
|
||||
|
Type
|
Cooling only
|
Cooling only
|
Cooling only
|
Cooling only
|
||||
|
Control type
|
Remote
|
Remote
|
Remote
|
Remote
|
||||
|
Power supply
|
Ph-V-Hz
|
1Ph-220-240V~50Hz/60hz
|
1Ph-220-240V~50Hz/60hz
|
1Ph-220-240V~50Hz/60hz
|
1Ph-220-240V~50Hz/60hz
|
|||
|
Voltage Range
|
V
|
198~264
|
198~264
|
198~264
|
165~265
|
|||
|
Cooling
|
Capacity
|
Btu/h
|
9000
|
12000
|
18000
|
24000(5120~24900)
|
||
|
Capacity
|
W
|
2640
|
3520
|
5275
|
7034(1500~5715)
|
|||
|
Rated power Input
|
W
|
812
|
1080
|
1620
|
2100(350~2800)
|
|||
|
Rated current
|
A
|
3.7
|
4.9
|
7.5
|
9.54(1.5~13.5)
|
|||
|
EER
|
W/W
|
3.25
|
3.25
|
3.25
|
3.35
|
|||
|
Max power Input
|
W
|
1140
|
1512
|
2268
|
2800
|
|||
|
Max current
|
A
|
6.5
|
7.5
|
10.5
|
13.5
|
|||
|
Moisture removal
|
Liters/h
|
1
|
1.2
|
1.8
|
2.5
|
|||
|
Indoor noise level
|
dB(A)
|
44
|
46
|
46
|
49
|
|||
|
Outdoor noise level
|
dB(A)
|
51
|
53
|
53
|
55
|
|||
|
Indoor air flow (Hi/Mi/Lo)
|
m3/h
|
530
|
570
|
800
|
1350
|
|||
|

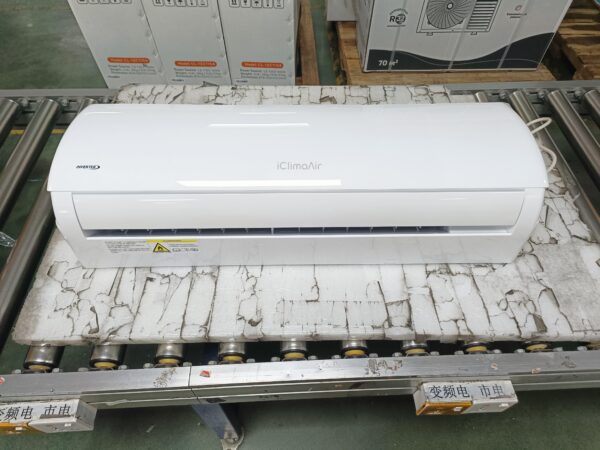

Indoor unit
|
Dimension(W*D*H)
|
mm
|
788×275×192
|
788×275×192
|
920×306×195
|
1100×333×222
|
||
|
Packing (W*D*H)
|
mm
|
860×345×265
|
860×345×265
|
990×380×265
|
1165×405×295
|
|||
|
Net/Gross weight
|
Kg
|
7/9.5
|
7/9.5
|
10/13
|
14/16
|
|||
|

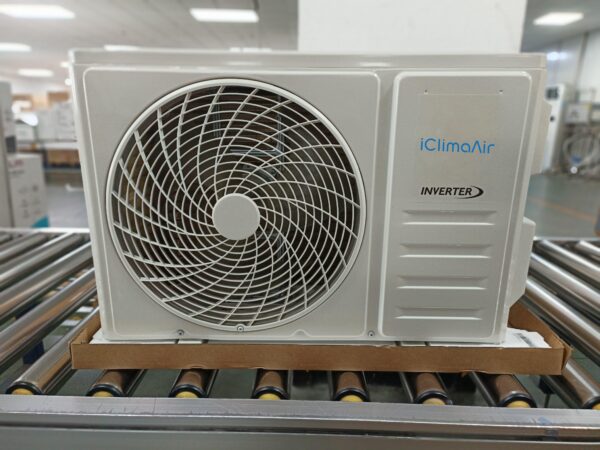

Outdoor unit
|
Dimension(W*D*H)
|
mm
|
722×276×459
|
787×290×498
|
795×305×549
|
853×349×602
|
||
|
Packing (W*D*H)
|
mm
|
765×310×478
|
818×325×520
|
835×328×575
|
890×385×628
|
|||
|
Net/Gross weight
|
Kg
|
22/26
|
25/29
|
29/32
|
28/33
|
|||
|
Refrigerant
|
R410A/0.39kg
|
R410A/0.47kg
|
R410A/0.76kg
|
R410A/910g
|
||||
|
Ambient temperature
|
℃
|
7~43
|
7~43
|
7~43
|
7~43
|
|||
|
Suitable area
|
m2
|
9~16
|
12~15
|
20~35
|
30~50
|
|||
|
Connecting Wiring
|
Size x Core number
|
3×1.0mm²×3.8m
|
3×1.0mm²×3.8m
|
3×1.5mm²
|
4×0.75mm2
|
|||
|
Power supply cord
|
1.0mm²
|
1.0mm²
|
1.5mm2 H05VV-F
|
1.5mm²
|
||||
|
Qty 40’HQ
|
350
|
308
|
245
|
189
|
||||
Q: Can you provide OEM service?
Q: What kind of delivery for the product?
Q: How can I get some samples?
Q: What’s the delivery time?
Q: What are the terms of payment?
Q: Would you help me to manage the transportation to my country?
Q: How is your after-sales service?
Frequently Asked Questions
What is the minimum order quantity for this wall split air conditioner?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this wall split air conditioner?
A 3 years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
