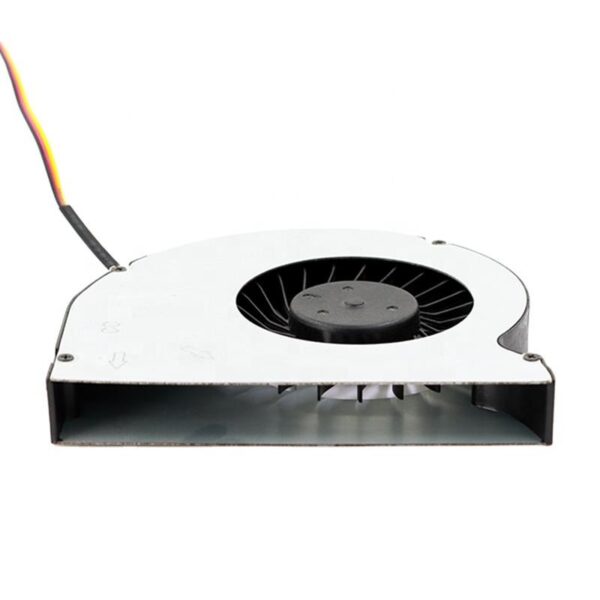

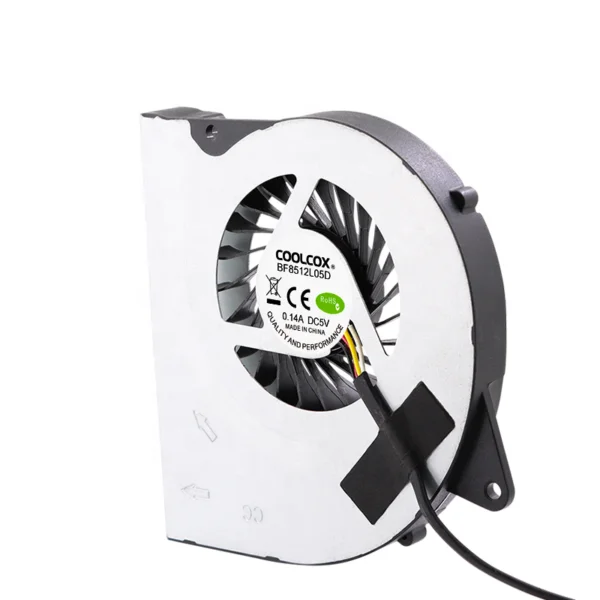

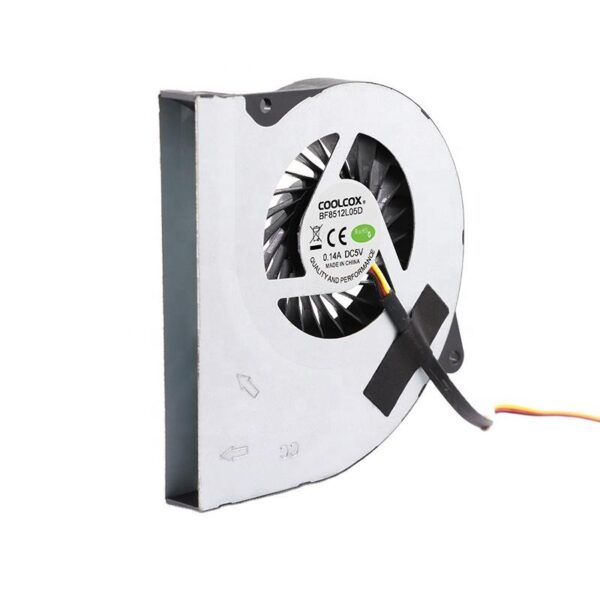

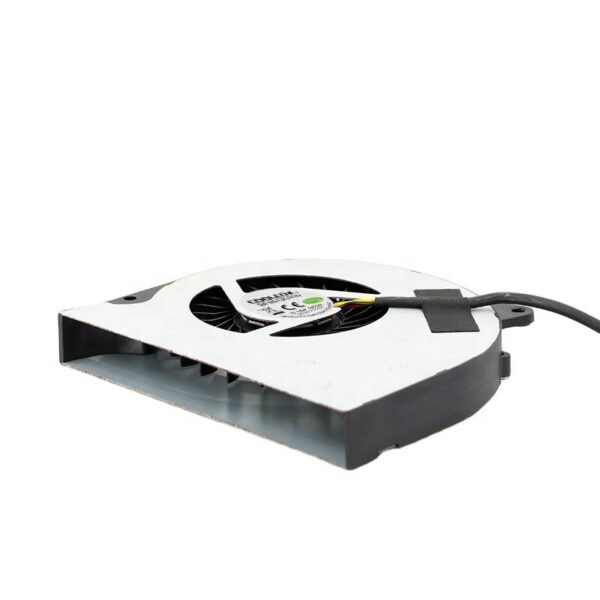

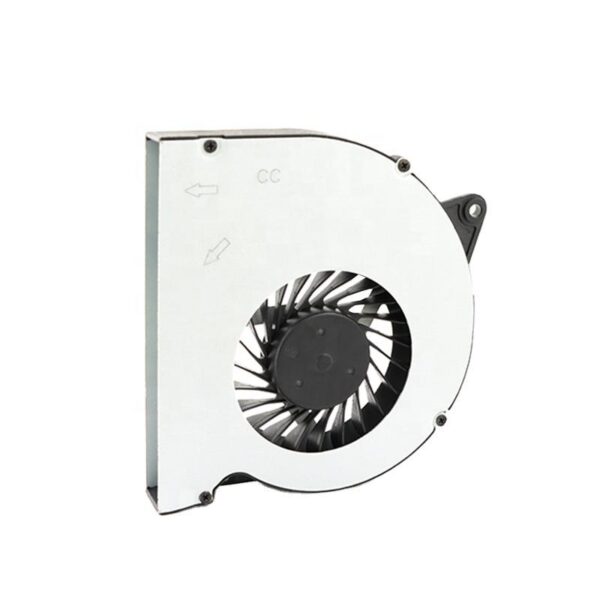

This DC centrifugal blower fan is specified into projectors and thermal modules, where the air has to be forced across a dense heatsink fin stack rather than simply moved. The bearing choice is worth thinking about: hydraulic bearings run quieter for consumer equipment, dual-ball last far longer where the fan mounts horizontally or runs hot. Available at 5V, 12V and 24V with screw mounting, plus free spare parts support and OEM or ODM branding.
Key Features of This Dc Centrifugal Blower Fan
- Model Number: BF8512
- Voltage: 5V/12V/24V
- Blade Material: Plastic
- Noise Level: 29.2~33.5dBA
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Mounting | Mounting by screws |
|---|---|
| Voltage | 5V/12V/24V |
| Blade Material | Plastic |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Model Number | BF8512 |
| Place Of Origin | Guangdong, China |
| Brand Name | COOLCOX |
| Bearing Type | Hydraulic or 2-ball |
| Size | 85×77.6x12mm |
| Noise Level | 29.2~33.5dBA |
| Selling Units | Single item |
| Single Package Size | 25X25X15 cm |
| Single Gross Weight | 2.000 kg |

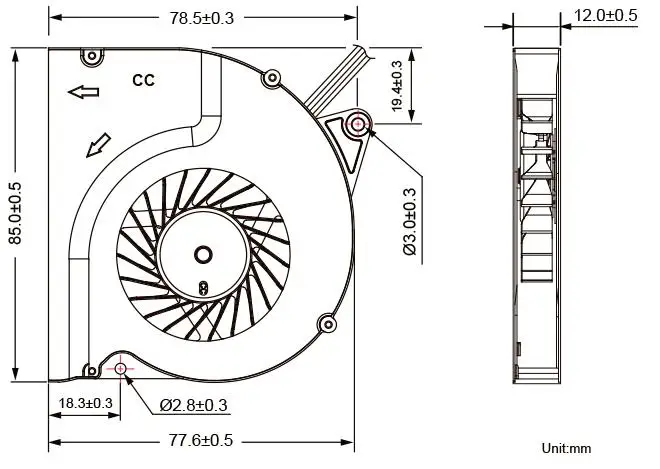

Dimensions:

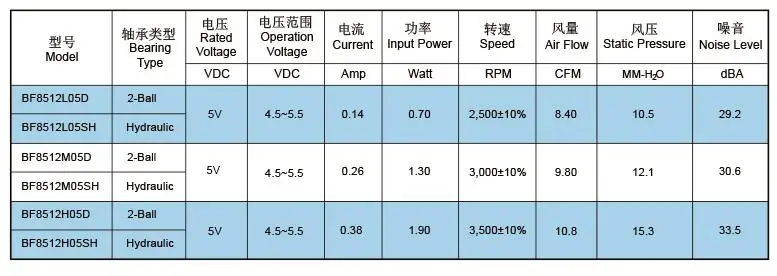

Parameters:
|
Parts Specs: |

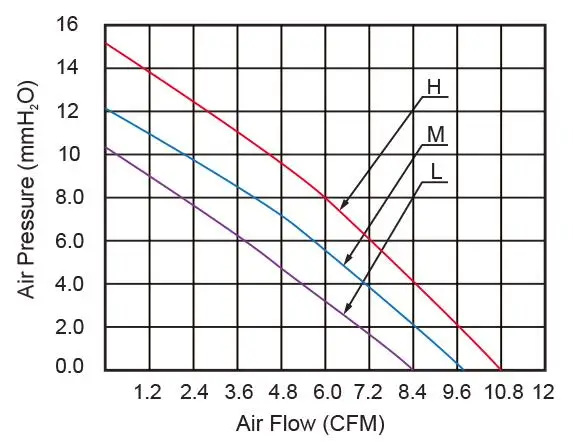

P&Q Curve | |
|
Bearing type:Hydraulic,2-Ball Material: Frame:SECC Impeler:PBT Lead wire: FG,PWM,RD,Protection functions are optional 5V,12V,24V are available |
|
Electrical Specifications:
| Insulation Resistance | 10MΩ/between unshackled wire and frame at 500VDC/min |
| Dielectric Strength | 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min |
| Rotating Direction | Anti-Clockwise |
| Polarity Protect | Circuit is protected when VCC&GND are exchanged |
| No. of pole | 4Poles |
Environmental Specifications
| Operating Temp Range | Temperature:-10℃~+70℃ Humidity:35%~85%RH |
| Store Temperature | Temperature:-40℃~+70℃ Humidity:35%~85%RH |
| Thermal Shock | Standard:MIL-STD 202F Method 107D,Condition D |
| Insulation Shock | UL:Class A |

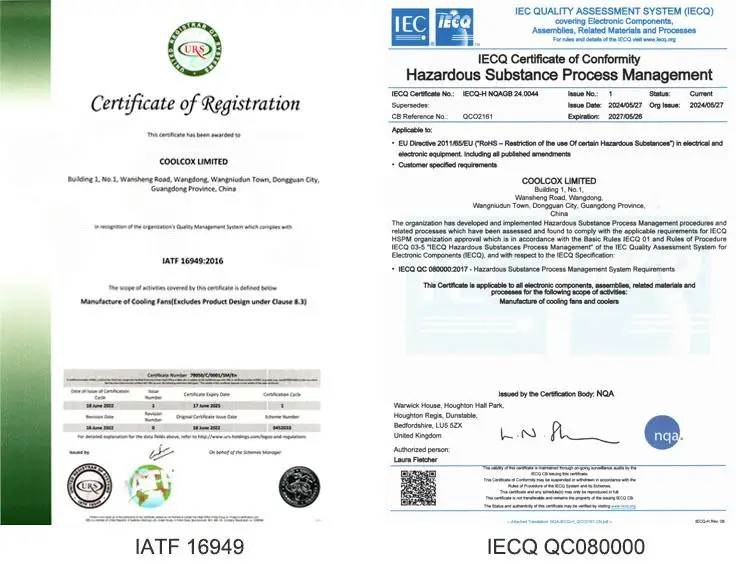

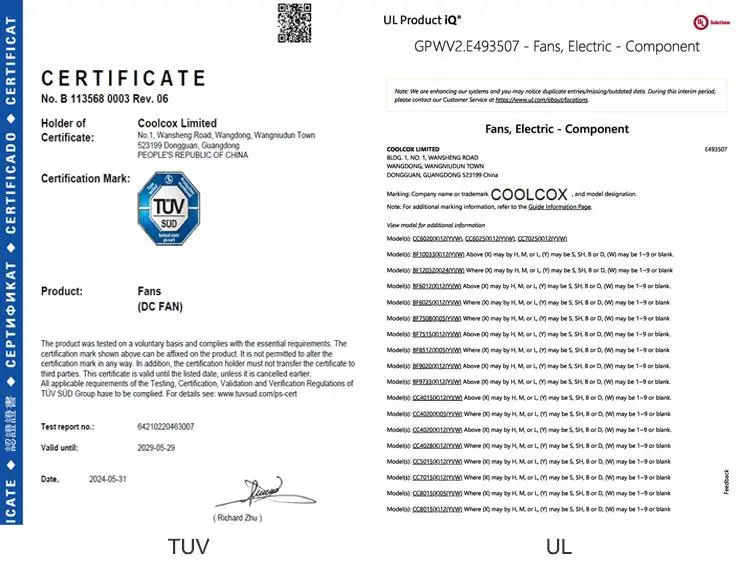

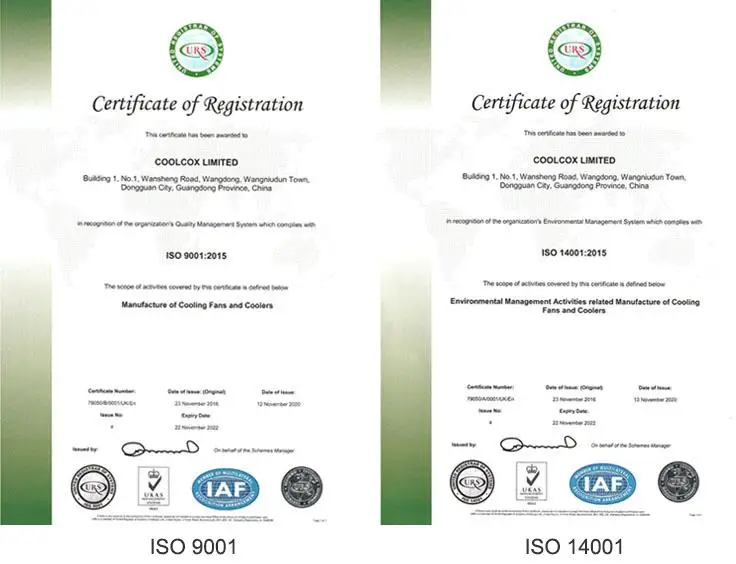

CoolCox implements ISO9001,ISO14001,IATF16949 ,QC080000 management systems; and the products comply with safety regulations such as UL,TUV,CE.
| FCL Shipment | LCL Shipment | |
 |
 |
Air shipment:
1.What is the lifetime for the different bearings?
30,000 hours for sleeve bearing
40,000 hours for hydraulic bearing
60,000 hours for FDB bearing
70,000 hours for 2-Ball bearing
2.What’s the MOQ and lead time?
MOQ 2000 PCS
Lead time for samples:about 1 week
Lead tiem for mass orders:about 4 weeks
3.What functions are optional for the fans?
Auto-restart
FG,Tachometer signal output
RD, Alarm signal output
PWM Control
Waterproof
4.Why do choose CoolCox?
Professional team
Standard management
High level of automation
Quality assurance system
High customization ability
Prompt delivery ability
Frequently Asked Questions
What is the minimum order quantity for this dc centrifugal blower fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this dc centrifugal blower fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 5V/12V/24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This dc centrifugal blower fan is produced by Dongguan Coolcox Electronic Technology Co., Ltd.. Browse the full Dongguan Coolcox Electronic Technology Co., Ltd. range on HVACR Nexus.
