This axial flow fan is listed with the manufacturer’s full published specification — voltage Other, DC12V, DC24V, DC48V, DC5V, power source Electric, material Plastic. It is produced by Shenzhen Minxin Industry Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Power Source: Electric
- Voltage: Other, DC12V, DC24V, DC48V, DC5V
- Material: Plastic
- Blade Material: Plastic
- Speed: 21000rpm
- Warranty: 1 Year
Technical Specifications
| Voltage | Other, DC12V, DC24V, DC48V, DC5V |
|---|---|
| Material | Plastic |
| Speed | 21000rpm |
| Mounting Type | Screw fixing |
| Type | DC Axial Fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | Plastic |

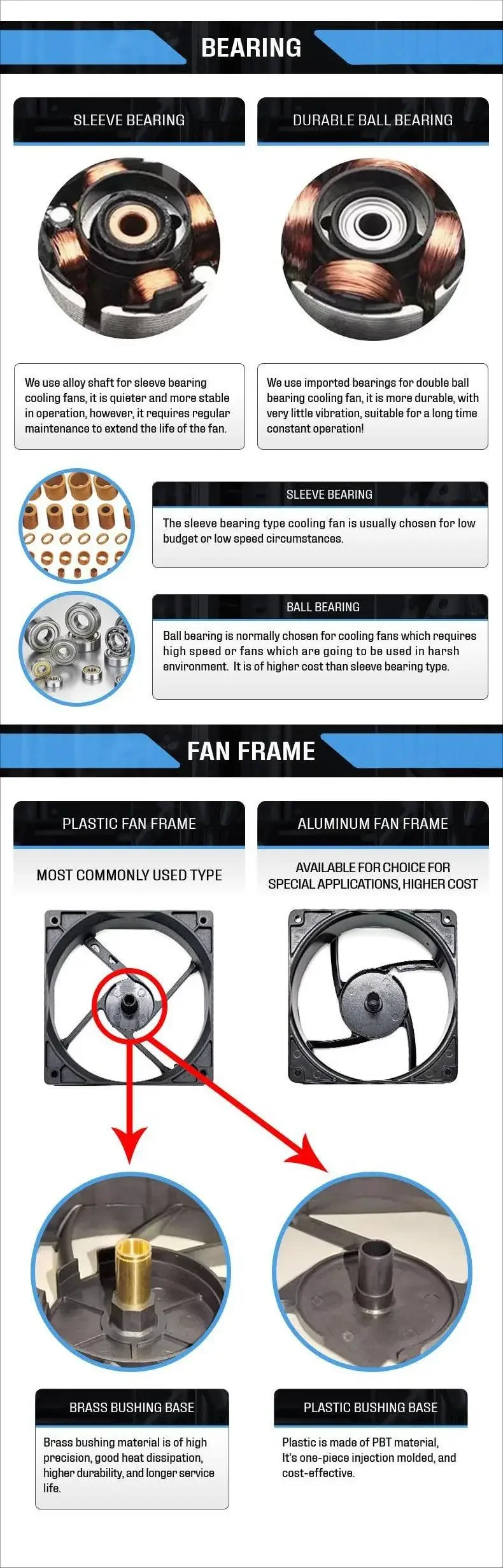

| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Selling Units | Single item |
| Single Package Size | 7X7X5.8 cm |
| Single Gross Weight | 0.074 kg |
|
Product Name
|

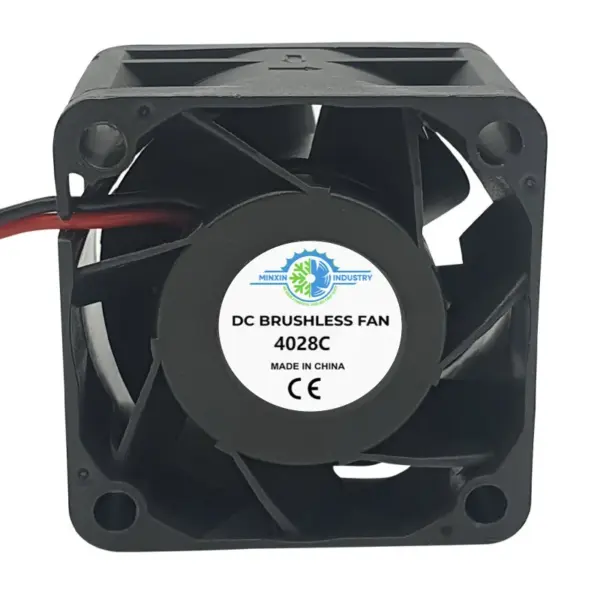

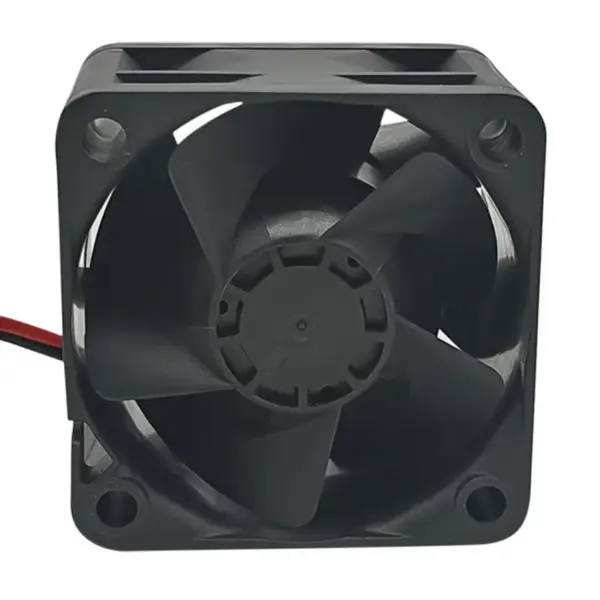

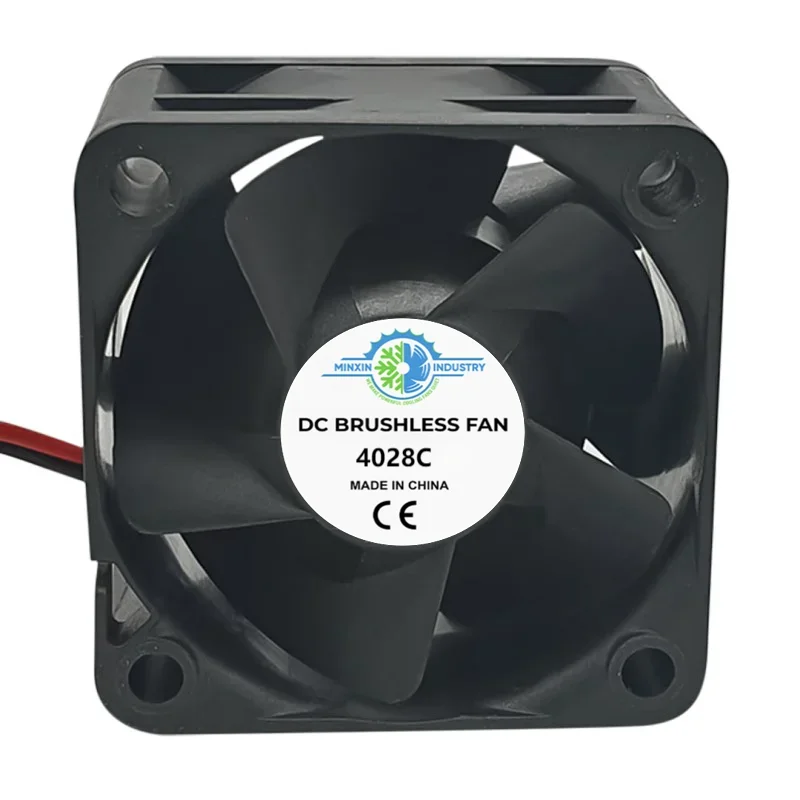

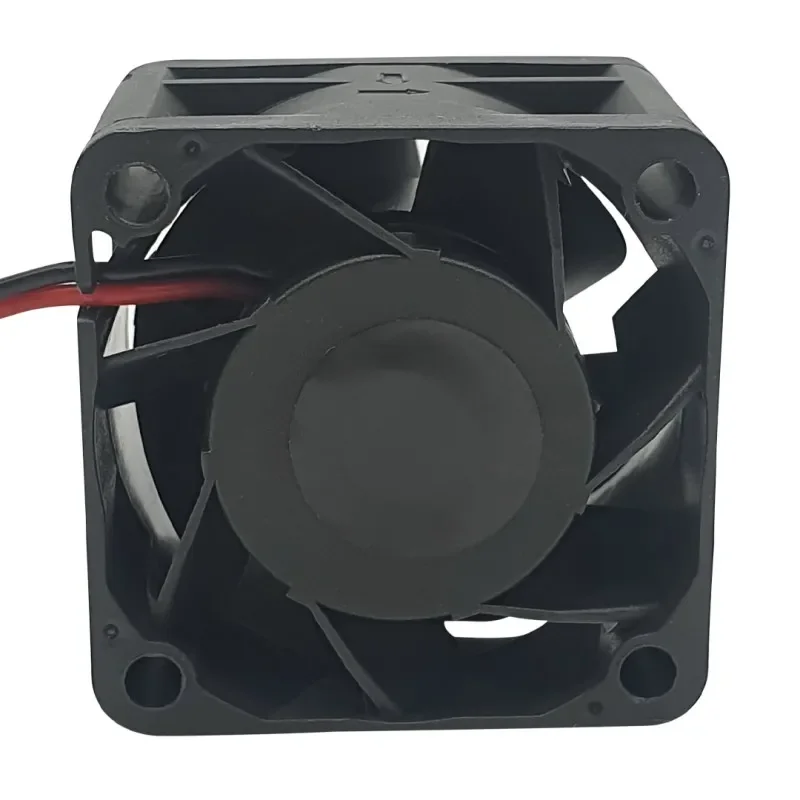

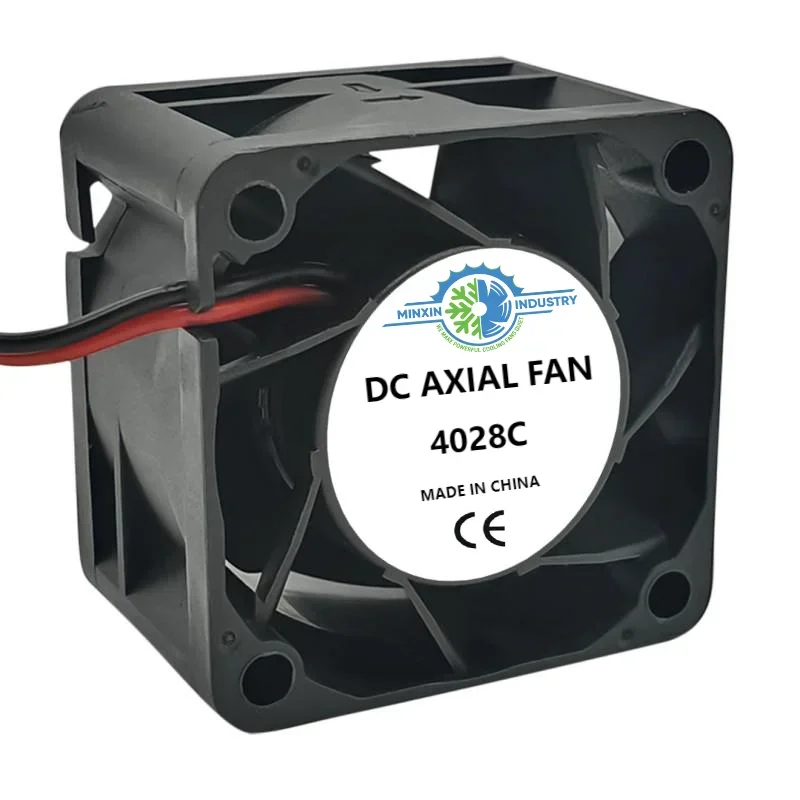

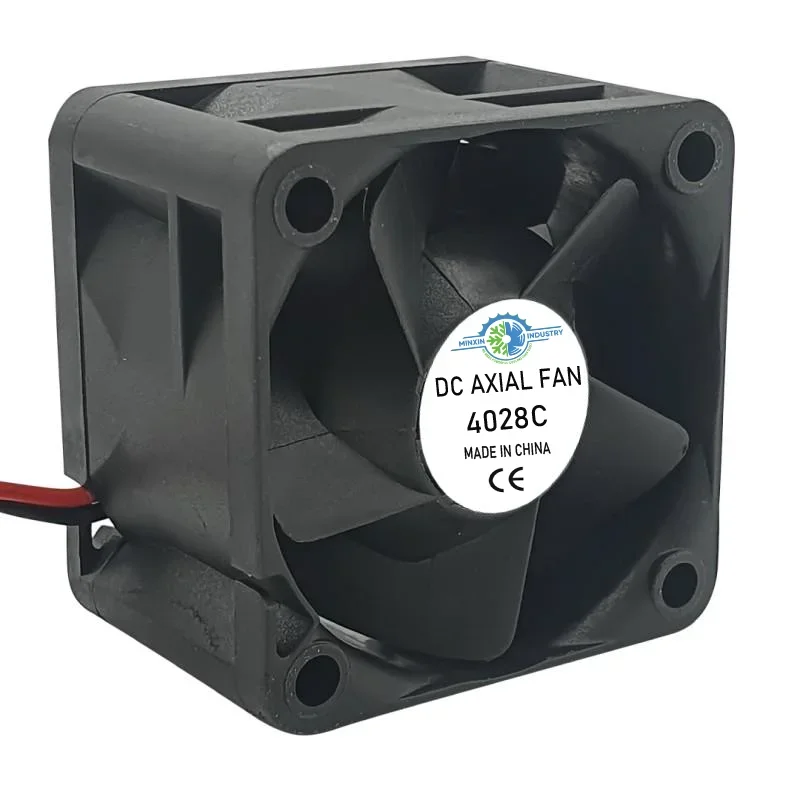

DC12V 40*40*28mm Industrial Ventilation Fan Noiseless Axial Flow Fan Plastic Blade for Farm Industries OEM/ODM Support Direct
|
|
Fan Size
|
40x40x28mm
|
|
Fan Frame Material
|
PBT (UL94V-0)
|
|
Fan Impeller Material
|
PBT (UL94V-0)
|
|
Wire
|
2 pin, 3pin or 4pin with Customized connector
|
|
Voltage
|
DC 12V, 24V, 48V etc, fully customizable
|
|
Applications
|
Widely used for microelectronic devices, switches, mini-cases, routers, DIY devices, HVAC, mining farm power supply units, compact electronics, medical devices, industrial automation, aerospace & defense, and automotive products.
|
-
Product Features
3. The rame and blades are constructed of PBT plastic have a high resistance to flammability.
4. Operating Temperature: 14℉ to 167 ℉

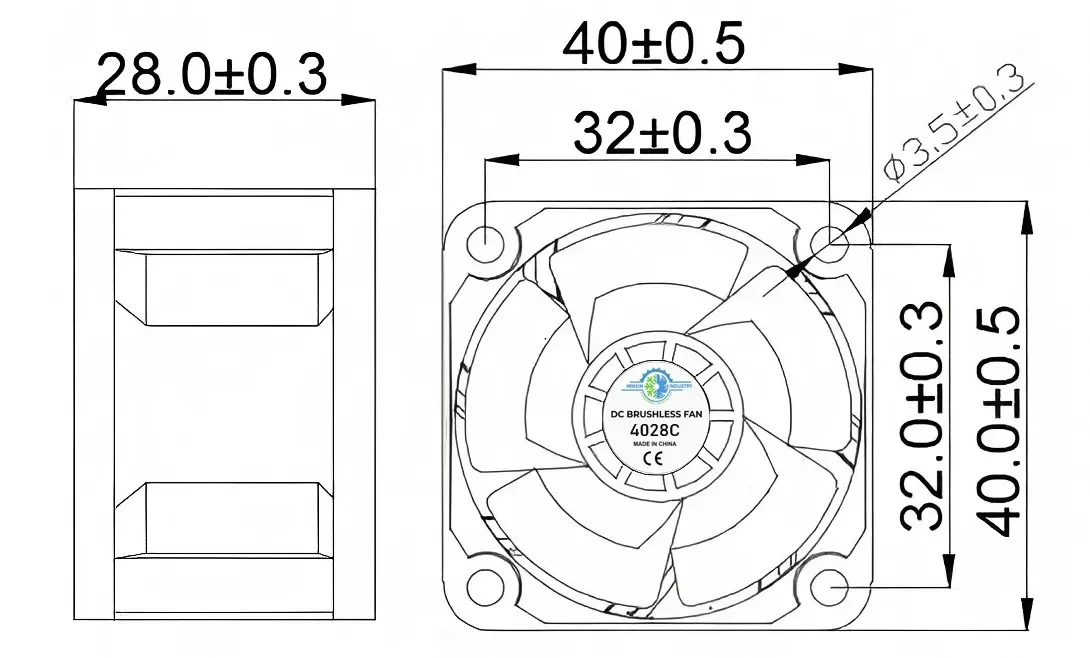

Dimensions

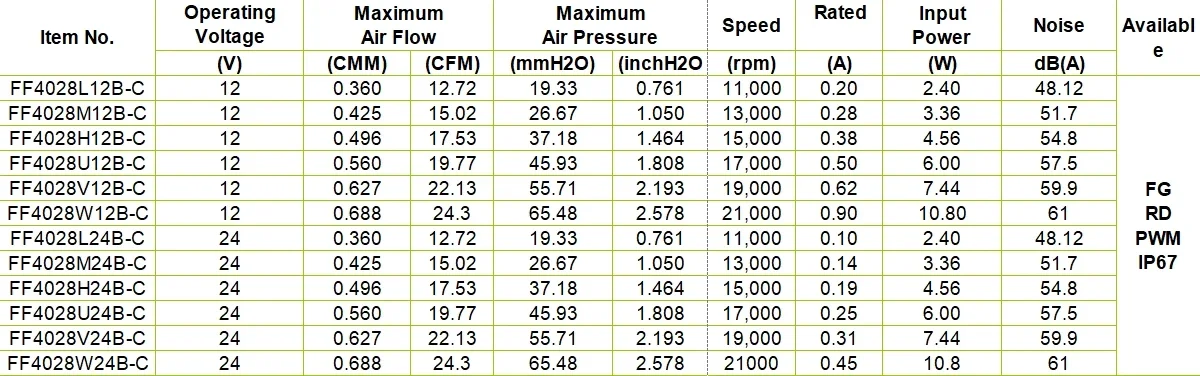

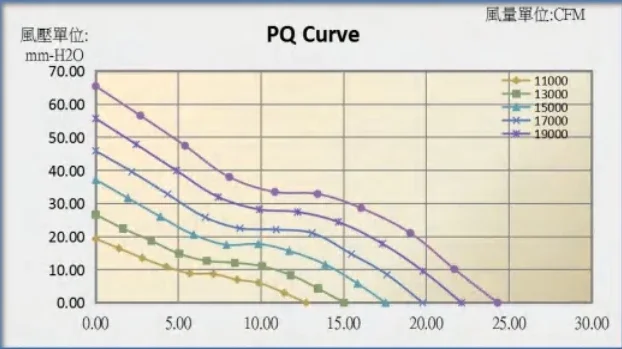

Performance Curve
-
Q: What connector does the cooling fan come with?
A: It can come with any type of connectors you require, be it a multi-pin connector, or a USB connector, or a plug, just let us know your requirements and we will customize for you.
-
Q: I am looking for this fan size but with higher static pressure or airflow, can you make it?
A: Of course we can! Just let us know your desired static pressure, airflow or noise level for your application, and we will customize the fan as close to your requirements as possible.
-
Q：Is there a thermostat available for the cooling fan?
A: Yes it can come with built-in thermostat, however, it is advisable that you use a external thermostat and controller for easier and more flexible control
-
Q: Can this cooling fan withstand high humidity?
A: It is IP53 rating by default, but if you are using it in a high humidity environment, we will have to add a procedure in production of this cooling fan to make it weatherproof, IP67 rating or even IP68 rating, you name it.
-
Q: Do you have an alternative that runs on 230V?
A: Besides those voltages which are states on the product description, these cooling fans can be built for 5V DC & 12V DC & 24V DC & 48V DC & 117VAC & 220V AC & 240V AC, just let us know the voltage you use and we shall be happy to customize for you.
-
Q: Can it come with a variable speed control?
A: Yes it can be custom made with speed control functions with a speed controller ,even the controller with on/off switch.
-
Q: Can I order just one or several fans?
A: well, we don’t really do retail at the moment, we are mainly focused on OEM and ODM. But if you are looking for samples for your project, we shall be happy to customize the samples for you, the sampling normally takes no more than 5 workdays.
-
Q: Can it run almost constantly?
A: Yes the cooling fans are supposed to work 24/7, however, The temp and cleanliness will make a big difference.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial flow fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is Other, DC12V, DC24V, DC48V, DC5V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
