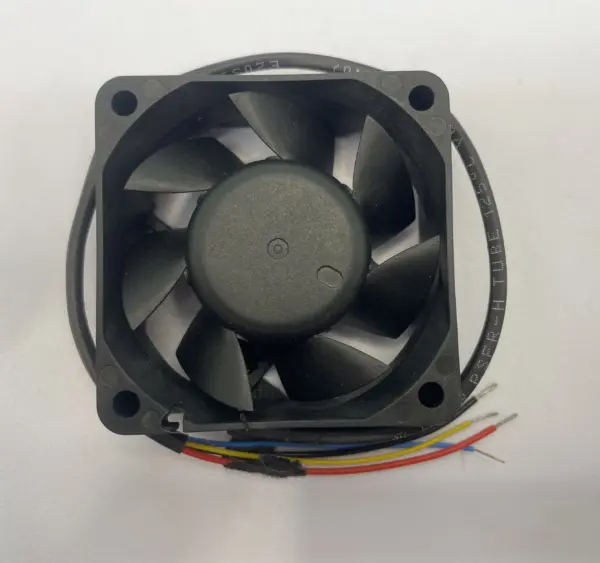

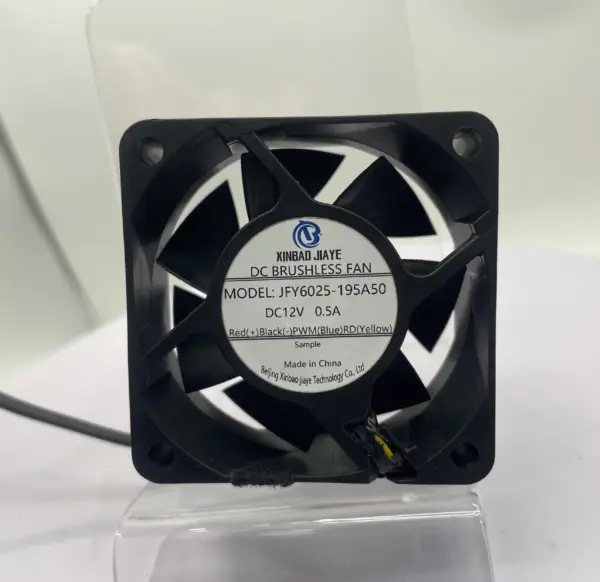

Axial Flow Cooling Fan. Key specification: voltage DC 12V, power source Electric. Ships factory-direct with the manufacturer’s data sheet. Material: PBT. Type: dc cooling fan.
Axial flow cooling fan — voltage DC 12V, power source Electric. The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
This axial flow cooling fan is listed with the manufacturer’s full published specification — voltage DC 12V, power source Electric, material PBT. It is produced by Beijing Xinbao Jiaye Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Flow Cooling Fan
Power Source: Electric
Voltage: DC 12V
Material: PBT
Blade Material: PBT
Speed: 9500rpm
Warranty: 1 Year
Technical Specifications
Voltage
DC 12V
Material
PBT
Speed
9500rpm
Mounting Type
Free Standing
Type
dc cooling fan
Warranty
1 Year
Power Source
Electric
Blade Material
PBT
Bearing Type
TWO BALL BEARING
Customized Support
ODM, OBM
After-Sales Service Provided
Online support
Place Of Origin
Beijing, China
Selling Units
Single item
Product Description

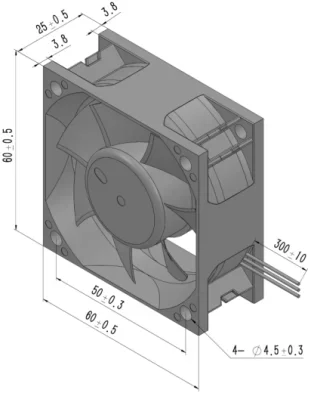

Outline dimension drawing

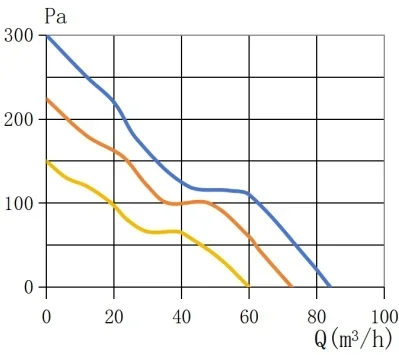

Airflow Characteristic Curve
Application areas
Our products are widely used in aviation, ships, drones, air purifiers, communication equipment, LED lights, medical equipment, printers, projectors, power modules, various electronic equipment, new energy vehicles, etc.

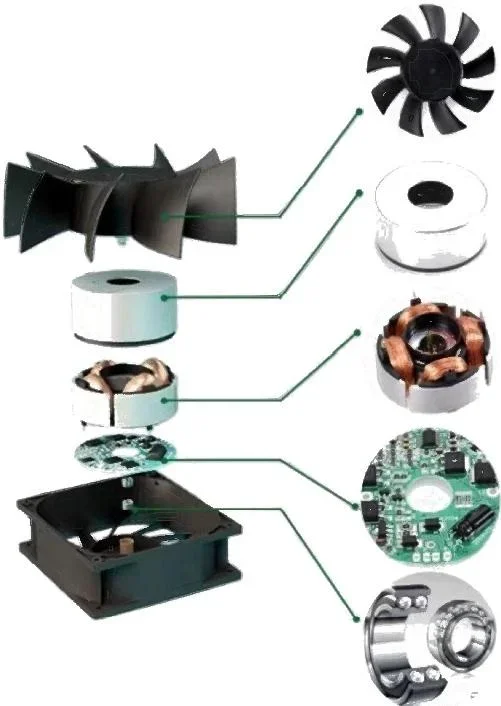

Fan detail disassembly drawing
Fan disassembly drawing
Integrated heat dissipation
PBT glass fiber material so that the fan is not easy to deform strong wind, mute effect is better
Motor housing
Stamping made of high-quality materials to ensure the stability of the fan at high speed
High efficiency and energy saving
The coil is made of pure copper wire and Baosteel material. The operating temperature of the click is greatly reduced. and lower current, thereby increasing the fan’s Stability
PCB Circuit Board
The combination of glass fiber board and domestic chip makes the whole Fan power consumption is small and stable performance
Beijing Xinbao Jiaye Technology Co., Ltd. is a company specializing in the production and sales of DC axial fans, blowers, centrifugal/AC fans, heat dissipation modules, and uniform temperature boards. The company has engaged in the military field for many years of design team, with research and development capabilities. The production of fans is mainly based on the DC DC military-grade fans carried out by the GJB7246, the AC AC military-grade fan series carried out by the GJB1423 and the AC/DC industrial-grade cooling fans of GB/ T 40206. The company has always adhered to: science and technology as the leading, quality assurance, reputation as the first business purpose.
Our Professional Test Equipment

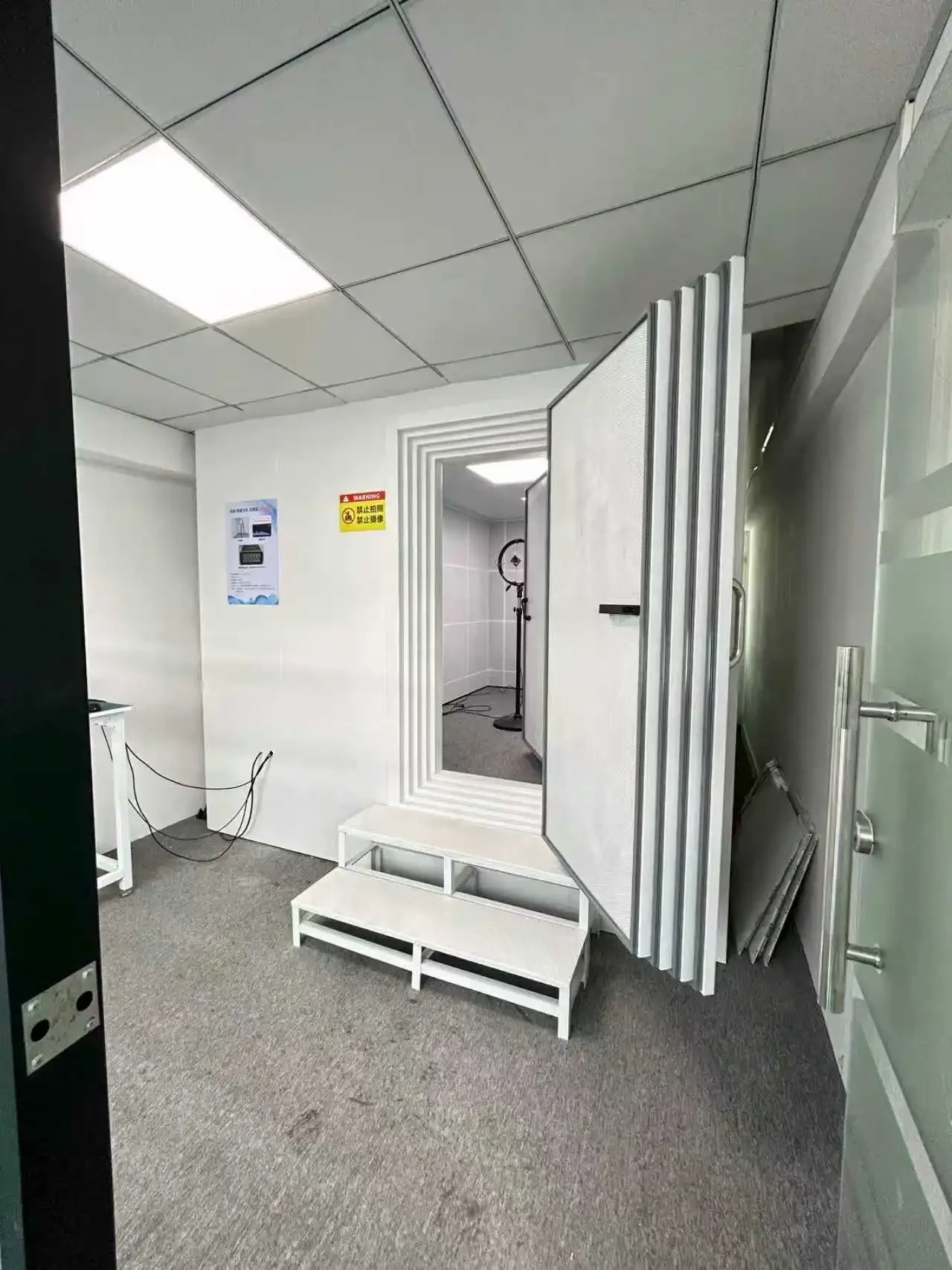

Noise Room
The finished fan will be put into this room to test the noise level

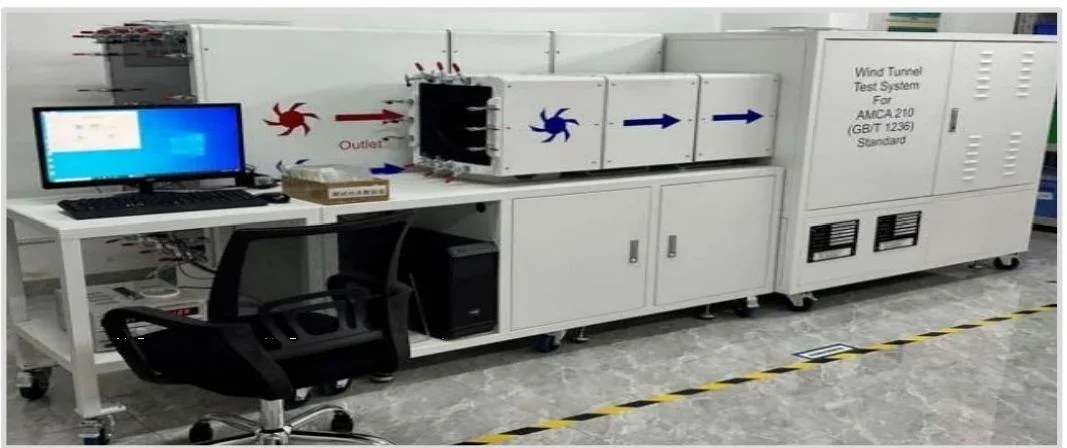

wind tunnel
Test the precise airflow and air pressure of the fan

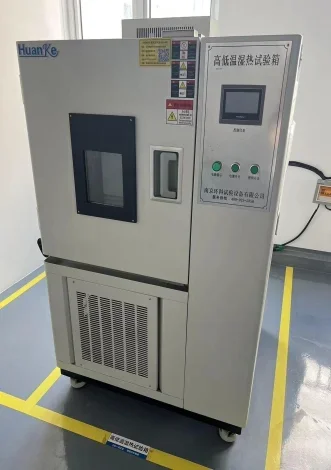

High and low temperature test machine
We can test whether the fan can work at high or low temperature by putting the fan in it, Temperature range: -40 degrees to 100 degrees, and test the fan life at different temperatures
Packaging and Transportation
FAQ
1. What is a DC axial fan?
DC fans typically operate at 5V, 12V, 24V, and 48V. The role of the DC motor is to attract and repel the permanent magnets in the motor. Blowing along the fan axis or parallel to the blade axis to create a variable and stable airflow. Standard sizes for DC axial fans include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm, 120mm, 172mm, and 254mm.
2. How to choose a DC fan? You need to consider the following points:
-Hydraulic bearing fan: life expectancy is 40000 hours,
-Ball bearing fan: The life expectancy is 50000 hours or more.
Frequently Asked Questions
What is the minimum order quantity for this axial flow cooling fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial flow cooling fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is DC 12V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
