This axial flow fan is listed with the manufacturer’s full published specification — voltage 24/48 V, power source Electric, material Metal. It is produced by ACTIVA INC.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Flow Fan
- Power Source: Electric
- Voltage: 24/48 V
- Material: Metal
- Blade Material: Metal
- Speed: 2750RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 24/48 V |
|---|---|
| Material | Metal |
| Speed | 2750RPM |
| Mounting Type | Industrial Equipment |
| Type | High-Temperature Axial Fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | Metal |
| Bearing Type | Ball Bearing |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Place Of Origin | Taiwan, China |
| Selling Units | Single item |
| Single Package Size | 30X30X10 cm |
| Single Gross Weight | 2.500 kg |
Product descriptions from the supplier

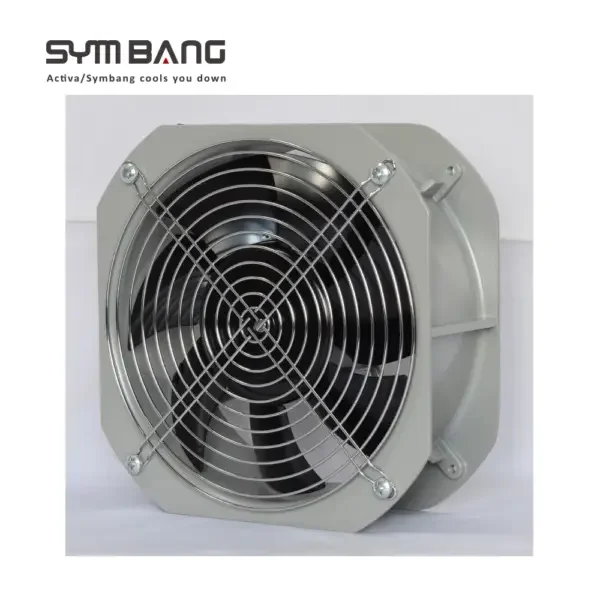

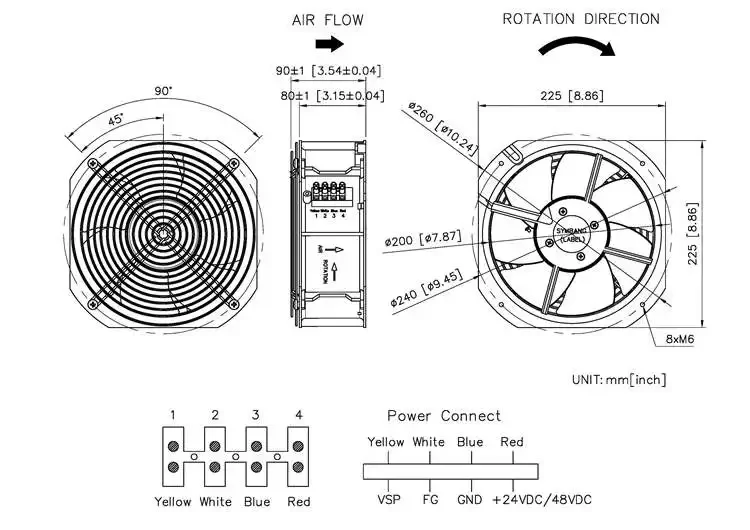

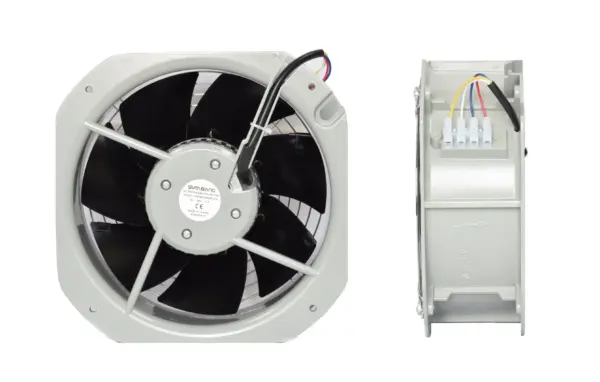

D22580M-PB 225*80mm Industrial Axial Flow Fan for 24V & 48V Applications
| HOUSING | Aluminum Die Casting |
| IMPELLER | Metal |
| BEARING | Ball |
| OPERATING TEMPERATURE | -25°C to + 60°C |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 minute |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| WEIGHT | 2.34 kg |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP44 (Special IP Rating On Request) |
| Model No. |
RATED VOLTAGE (V) |
RATED CURRENT (A) |
INPUT POWER (W) |
SPEED (RPM) |
MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A)@1M | ||
| inchH2O | mmH2O | CFM | m3/min | ||||||
| D22580V24HBM-PB | 24 | 2.2 | 53 | 2750 | 0.94 | 23.8 | 677 | 19.16 | 60 |
| D22580V48HBM-PB | 48 | 1.1 | 53 | 2750 | 0.94 | 23.8 | 677 | 19.16 | 60 |
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:

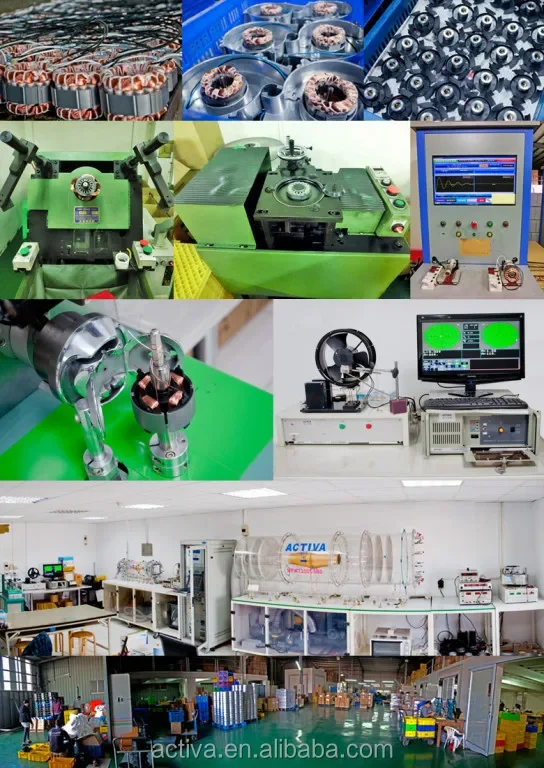

Our factory:
Our certificate:
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this axial flow fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 24/48 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This axial flow fan is produced by ACTIVA INC.. Browse the full ACTIVA INC. range on HVACR Nexus.
See more in Axial Flow Fans on HVACR Nexus.
