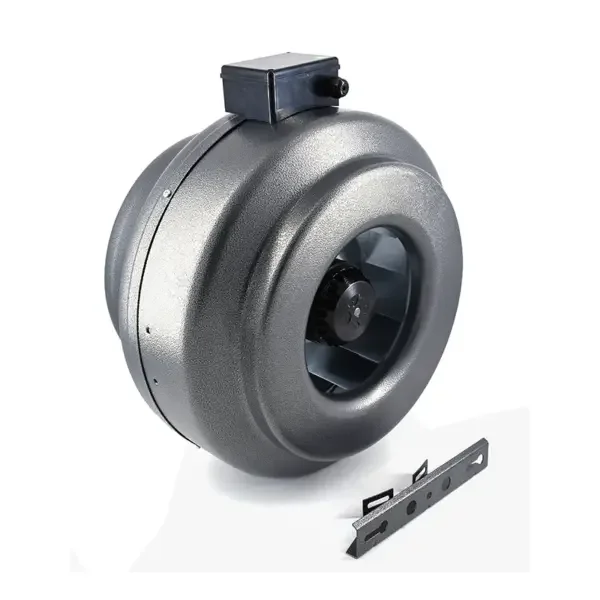

The type duct inline fan listed here carries 110V/220V, blade material ABS/Galvanized steel, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
This type duct inline fan is listed with the manufacturer’s full published specification — voltage 110V/220V, blade material ABS/Galvanized steel, warranty 1 Year. It is produced by Zhongshan Aden Environmental Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

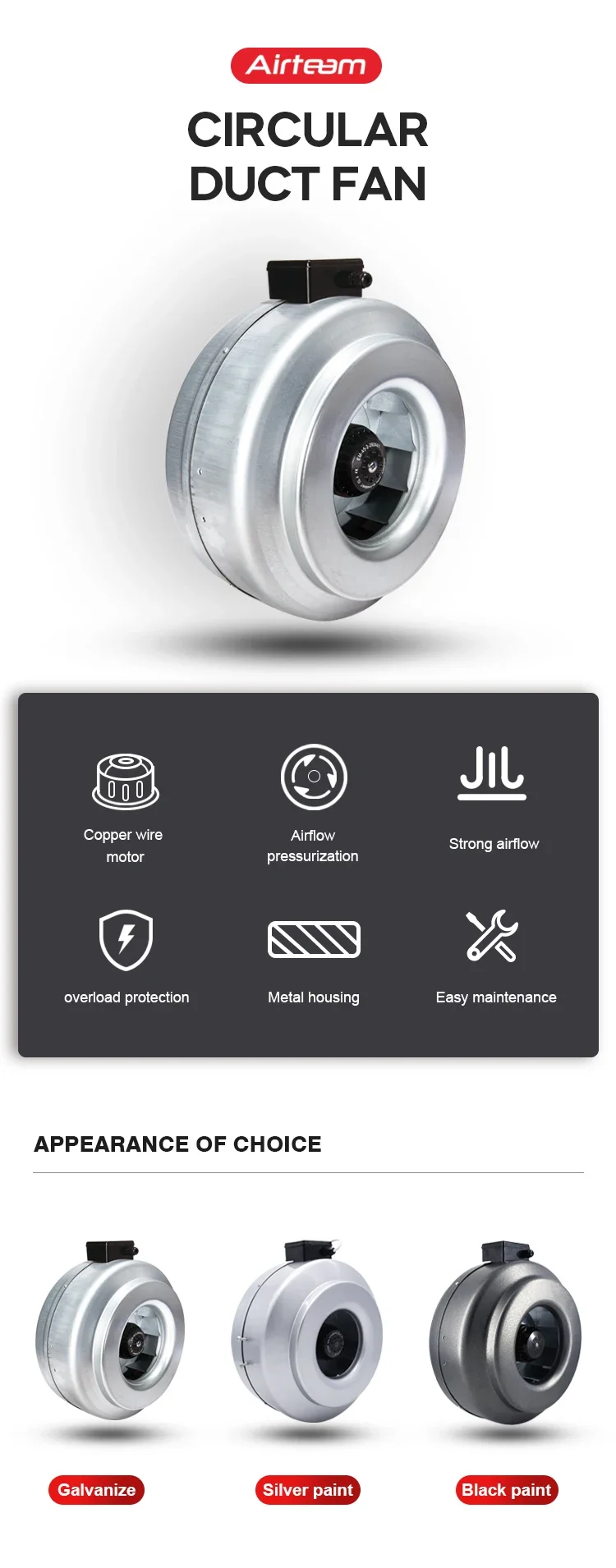

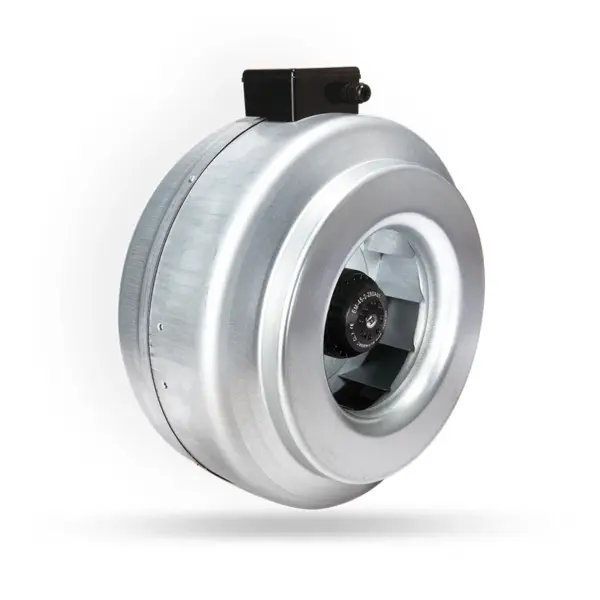

Key Features of This Type Duct Inline Fan
- Model Number: ADR10M-25A/B, ADR12M-35A/B, ADR15M-45A/B, ADR16M-45A/B, ADR20M-46A/B, ADR25M-66A/B, ADR31M-66A/B
- Voltage: 110V/220V

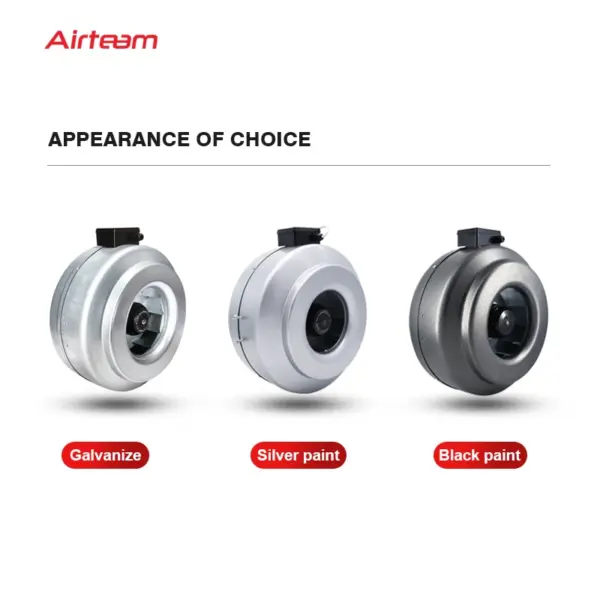

- Blade Material: ABS/Galvanized steel
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Single Package Size: 37X7X25 cm

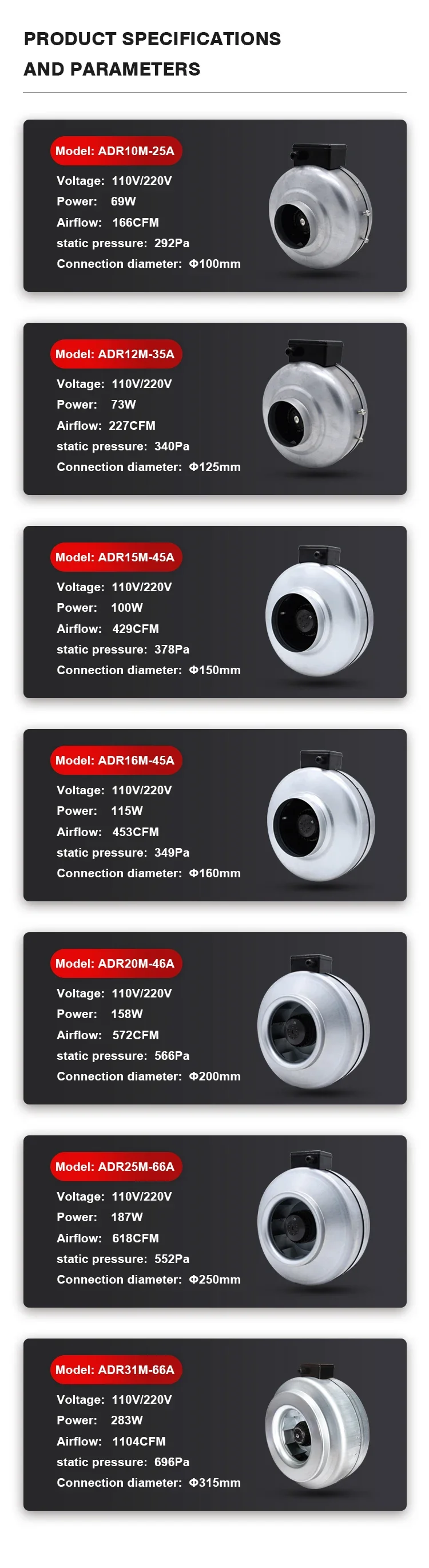

Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 110V/220V |
| Blade Material | ABS/Galvanized steel |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Model Number | ADR10M-25A/B, ADR12M-35A/B, ADR15M-45A/B, ADR16M-45A/B, ADR20M-46A/B, ADR25M-66A/B, ADR31M-66A/B |
| Place Of Origin | Guangdong, China |
| Brand Name | ADEN |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Frequency | 50Hz/60Hz |
| Static Pressure | 205~696Pa |
| Selling Units | Single item |
| Single Package Size | 37X7X25 cm |
| Single Gross Weight | 4.500 kg |
|
Size
|
100mm~315mm
|
|

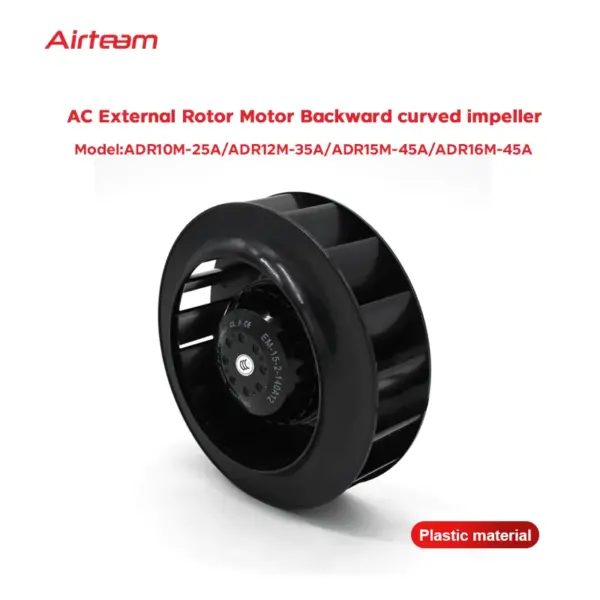

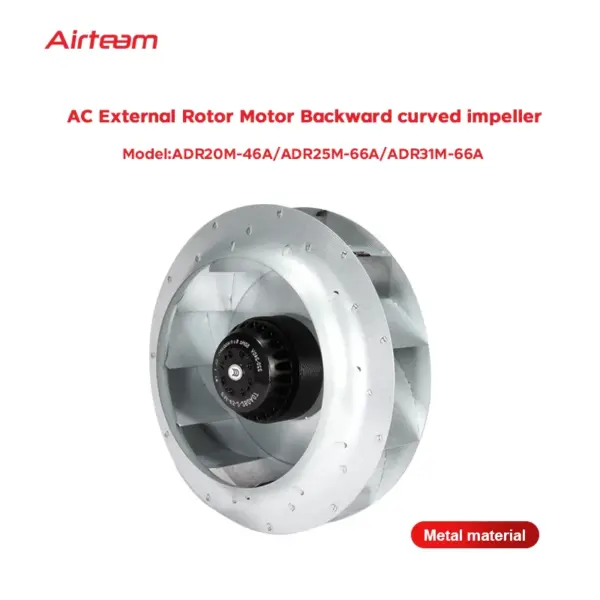

Blade
|
Backward curved type
|
|
Bearing
|
Maintenance free ball bearing
|
|
Level of protection
|
IP44
|
|
Insulation class
|
F
|
|
Protection
|
Resettable thermal protection, will disconnect power when the product is at abnormal high temperature
|
|
Operating temperature range
|
-30℃~+60℃
|
|
Features
|
* High pressure
* High air volume
* Long life span
|
|

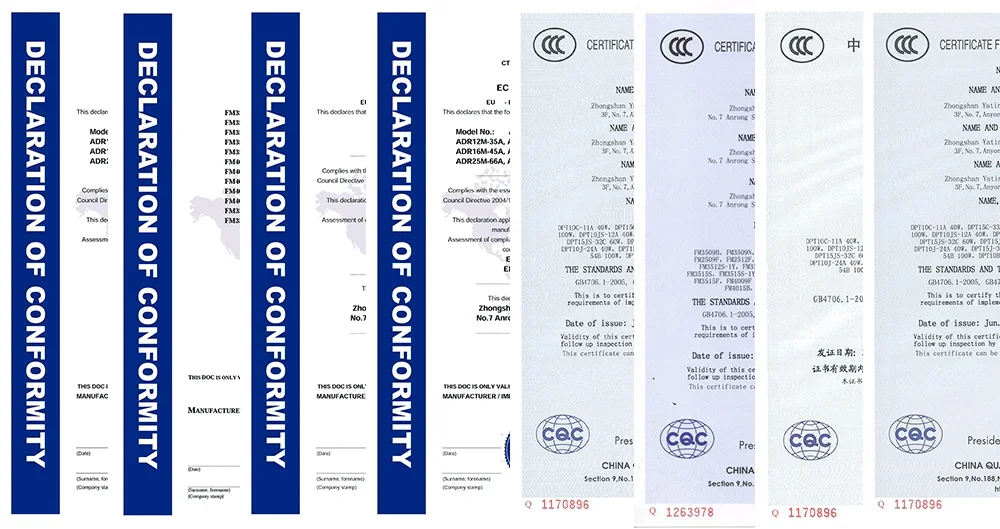

Standards of the product followed
|
GB12350 & EN60335-1
|
|
Material of blade
|
Plastics/Metal
|
|
Bearing
|
Maintenance free ball bearing
|
|
Materials of motor magnets
|
High strength enamelled wire QZ-2 180℃, Silicon Steel
|
|
Protection
|
This motor is equipped with the overheated protection function, cut off temperature is between 150-160℃ and reset temperature is between 90-120℃
|
|
Level of protection
|
IP44
|
|
Insulation class
|
F
|
|
Type of application
|
S1
|
|
Installation Mode
|
Horizontal DN/Vertical
|
|
Operating temperature range
|
-30℃~+60℃
|
|
Operating humidity range
|
0%~95% RH (No rime or condensation with the ambient)
|
|
Atmospheric pressure range
|
80~110Kpa
|
|
Packaging
|
Carton/EPS packaging
|
|
Fan life
|
The designed lifespan of the fan is 40000 hours assuming the fan is running at rated voltage, rated load and 40℃ environmental temperature
|
A : Yes, we offer customization service.
Q : What is your monthly production capacity?

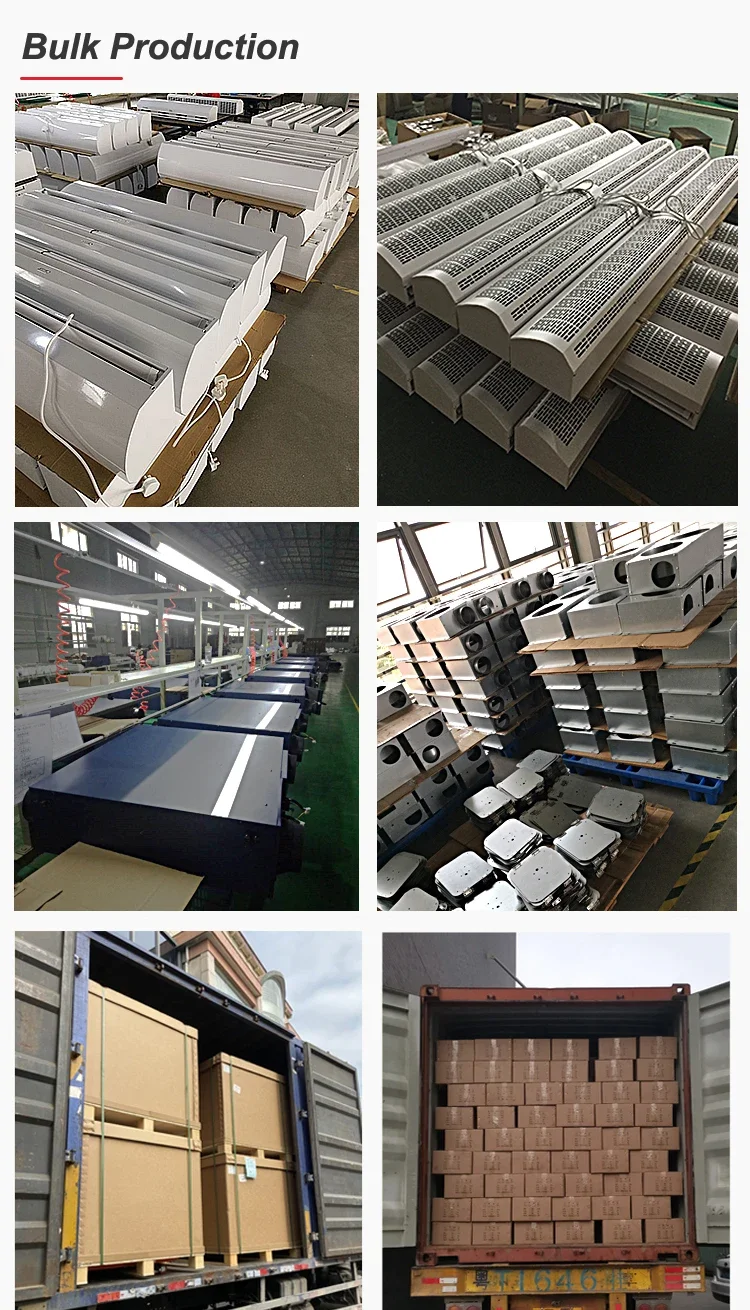

A : Our factory production capacity is 50,000 sets per month.
Q : What is your minimum order quantity?
A : Normally MOQ 100pcs, but we also accept small sample order for quality clients.
Q : Can I get a sample for quality check?
A : Of course!
Q : How soon is the lead time?
A : For sample order, 3-5 days if in-stock. For bulk order, 15-25 days.
Q : How can you guarantee the quality?
A : Complete inspection before delivery. And we take responsibility according to our wholesome after-sales support system.
Q : What are your terms of payment?
A : Generally, 30% T/T in advance, 70% balance before shipment.
Frequently Asked Questions
What is the minimum order quantity for this type duct inline fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this type duct inline fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 110V/220V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.

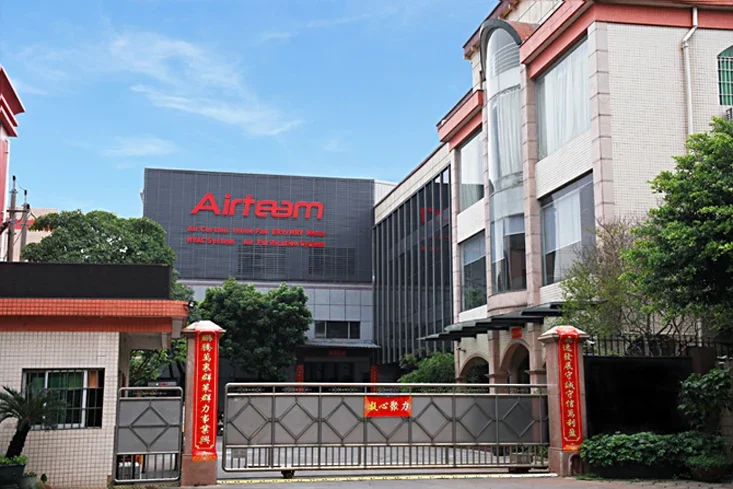

About the Manufacturer
This type duct inline fan is produced by Zhongshan Aden Environmental Technology Co., Ltd.. Browse the full Zhongshan Aden Environmental Technology Co., Ltd. range on HVACR Nexus.
