This plastic centrifugal duct fan is listed with the manufacturer’s full published specification — voltage 380V/3Ph/50Hz, power source type Corded Electric, blade material Plastic. It is produced by Hangzhou Meansoon Ventilation Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Plastic Centrifugal Duct Fan
- Model Number: MACF-160-F2T-VF
- Power Source Type: Corded Electric
- Voltage: 380V/3Ph/50Hz
- Material: Stainless Steel, Plastic, Aluminum Alloy, Copper
- Blade Material: Plastic
- Noise Level: 82dBA
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Power Source Type | Corded Electric |
| Noise Level | 82dBA |
| Voltage | 380V/3Ph/50Hz |
| Material | Stainless Steel, Plastic, Aluminum Alloy, Copper |
| Speed | 2800RPM |
| Blade Material | Plastic |
| Customized Support | OEM |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Duct Diameter | 6in |
| Model Number | MACF-160-F2T-VF |
| Selling Units | Single item |
| Single Package Size | 49X50X58 cm |
| Single Gross Weight | 26.000 kg |
Product descriptions from the supplier

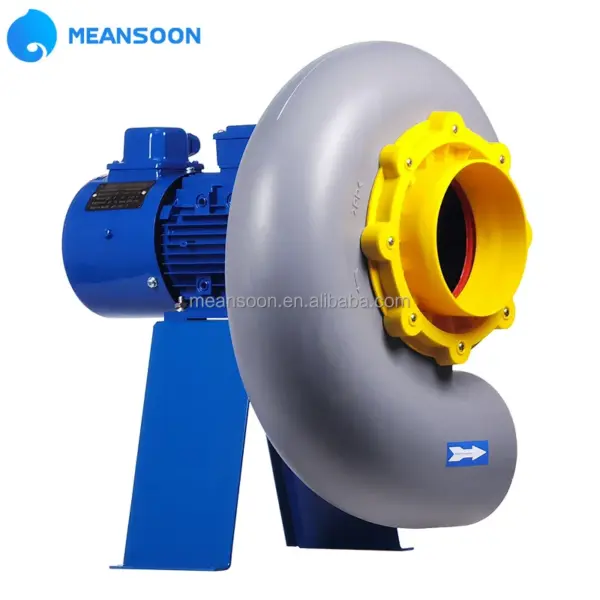

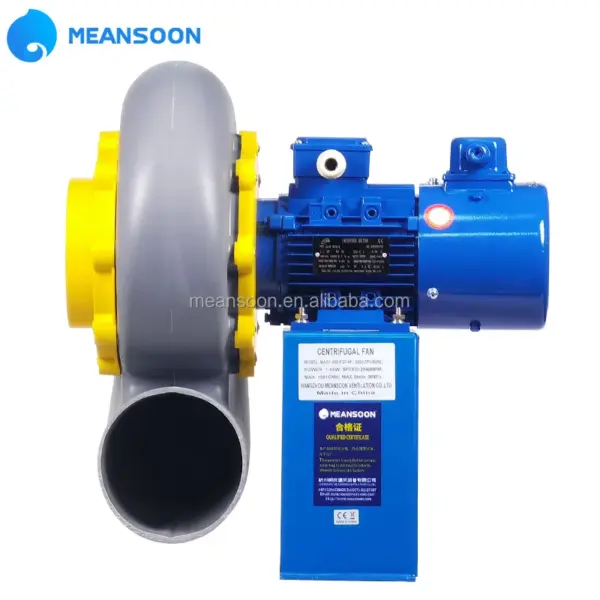

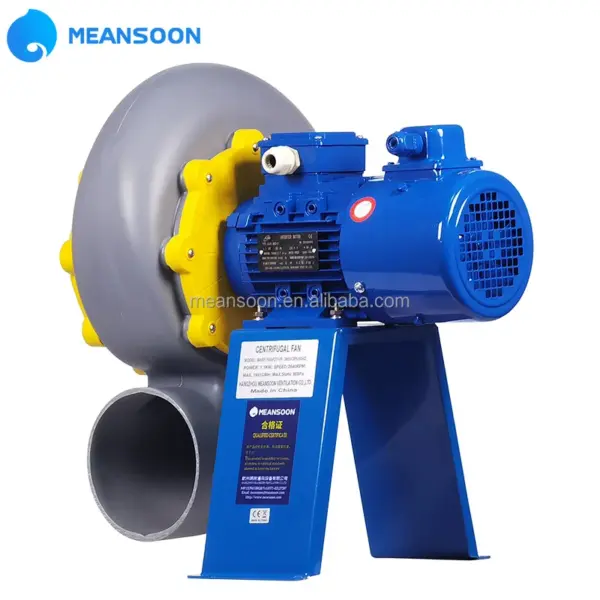

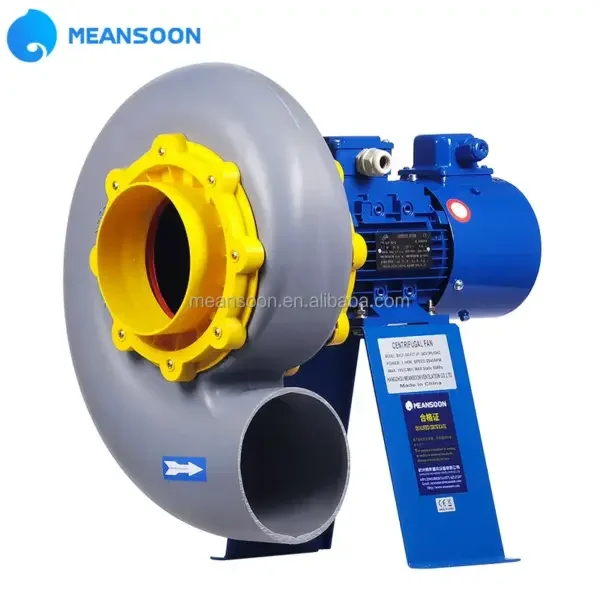

MACF-160-F2T-VF PP plastic centrifugal fan for corrosive air ventilation
GENERAL DESCRIPTION
Meansoon PP Centrifugal Fan is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum temperature of 60 degree celsius.
Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid, Sulphurous acid, Nitric acid, Nitrous acid, Hydrofluoric Acid, Boris Acid, Hydrocyanic Acid, Hydrochloric acid. Ammonia, Soda, Ethanol, Potassium hydroxide, Methanol, Propane, Formol, Benzene, Formaldehyde.
APPLICATION
The MACF series PP Centrifugal Fan provides good characteristics of low noise and high efficiency, which often are applied in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory, mold factory, Electronic workshop and metallurgy for exhaust ventilation.

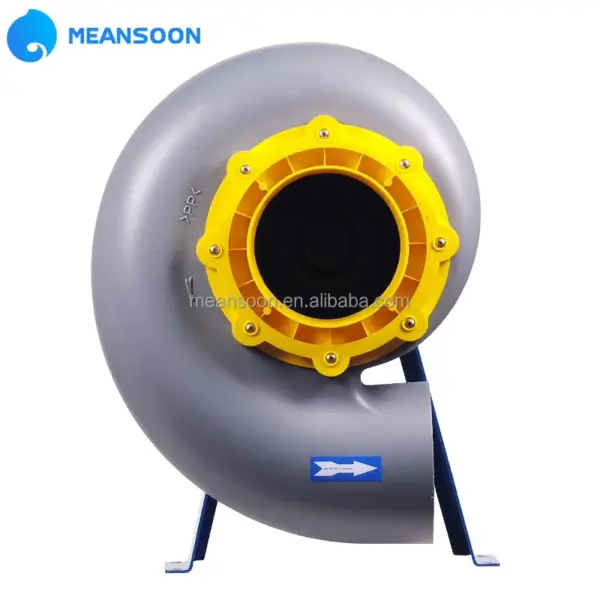

VOLUTE
The volute is made of polypropylene (PP) plastic.

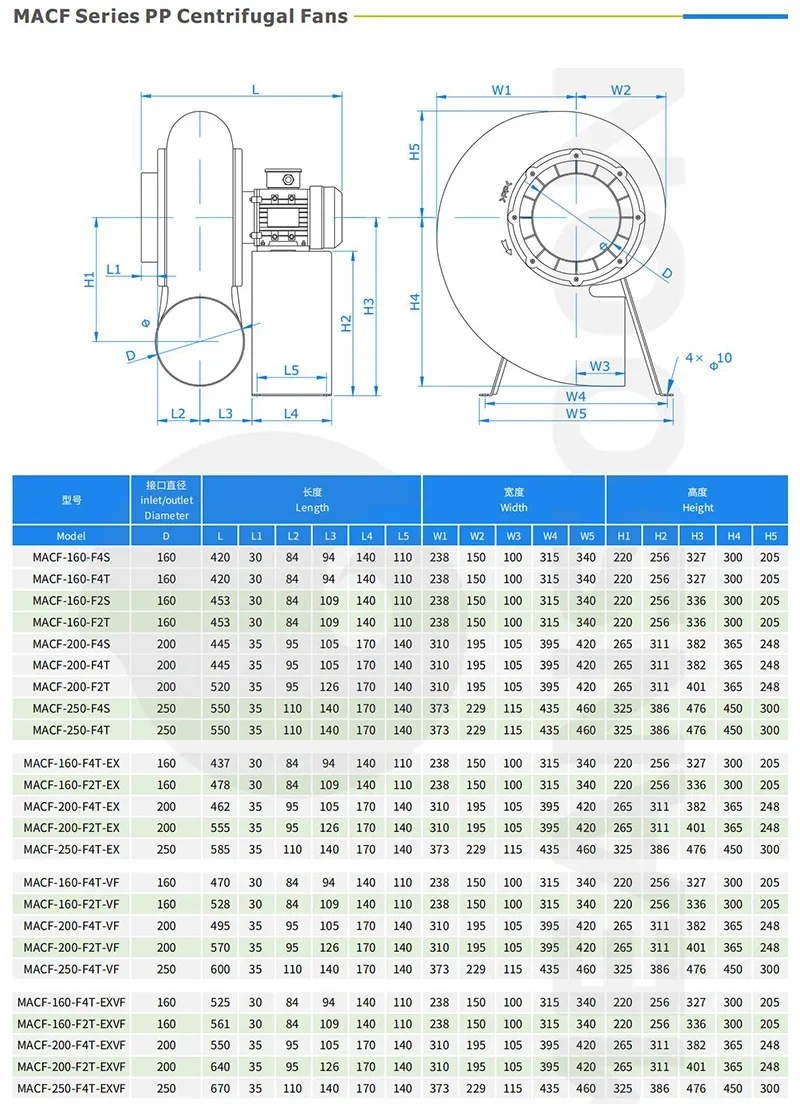

Inlet/outlet are round with standard size: 200, 250, 300, which are good for plastic duct connection.
IMPELLER
The forward curved impeller is integrally formed from fiberglass reinforced polypropylene (PP) and strengthened by ultrasonic welding of circular ring.

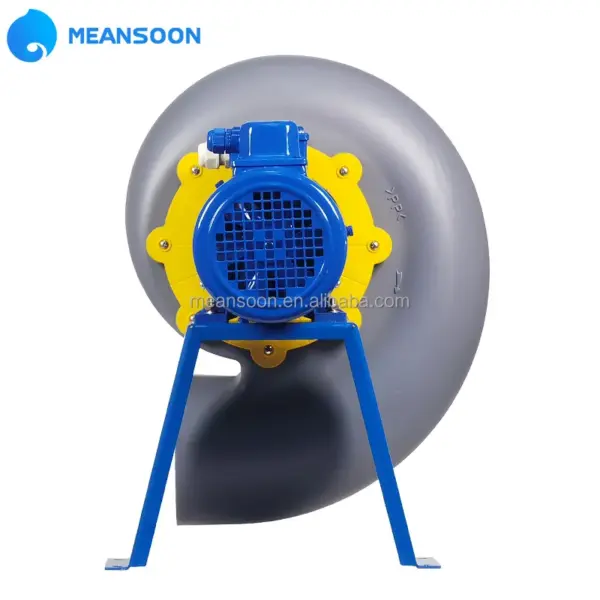

MOTOR

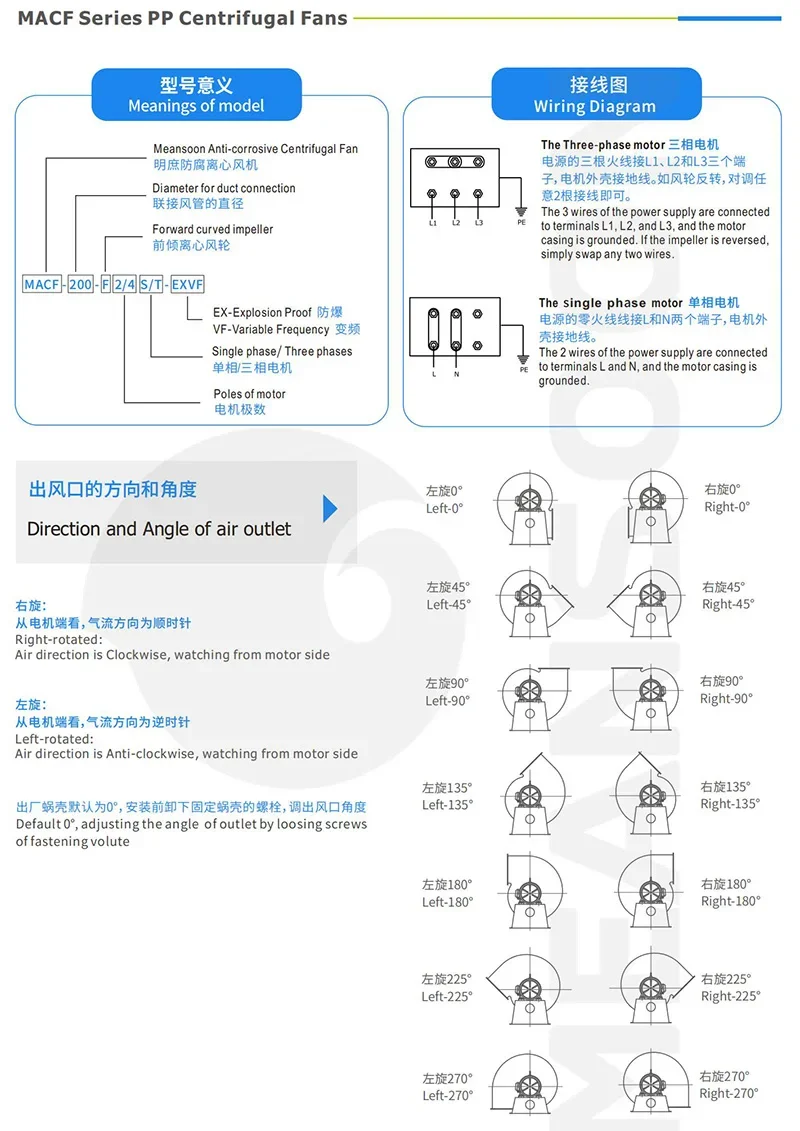

Direct driving, asynchronous, single or three phase, IP54/PI55, class B/F, B34 shape in 2-pole and 4-pole execution. Single speed: three phase 380 V-50/60Hz, single phase 220V-50/60Hz. Explosion proof versions in accordance with CNEX Directive for three-phase models is available. Motor is outside the airstream. we can provide Variable-frequency motors, driving by VDF.
MOTOR STAND
Metal stand is constructed of epoxy coated in blue, made of steel sheet.
Frequently Asked Questions
What is the minimum order quantity for this plastic centrifugal duct fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this plastic centrifugal duct fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380V/3Ph/50Hz. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
