This mpcf-250-b2t-vf duct fan is published with the manufacturer’s full specification — 380V/3Ph/50Hz, blade material Plastic. Quantity and destination market determine the final price — tell us both for a firm quote.
This mpcf-250-b2t-vf duct fan is listed with the manufacturer’s full published specification — voltage 380V/3Ph/50Hz, blade material Plastic, type Backward Curved Blade Radial Fan. It is produced by Hangzhou Meansoon Ventilation Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Mpcf-250-B2t-Vf Duct Fan
- Model Number: MPCF-250-B2T-VF
- Voltage: 380V/3Ph/50Hz
- Blade Material: Plastic
- Speed: 2800 RPM
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Voltage | 380V/3Ph/50Hz |
|---|---|
| Blade Material | Plastic |
| Speed | 2800 RPM |
| Mounting | Duct Fan |
| Type | Backward Curved Blade Radial Fan |
| Customized Support | OEM |
| After-Sales Service Provided | Online support |
| Warranty | 1 Year |
| Place Of Origin | Zhejiang, China |
| Brand Name | MEANSOON |
| Model Number | MPCF-250-B2T-VF |
| Product Name | chemical resistant exhaust fan |
| Selling Units | Single item |
| Single Package Size | 62X57X80 cm |
| Single Gross Weight | 40.000 kg |
Product descriptions from the supplier

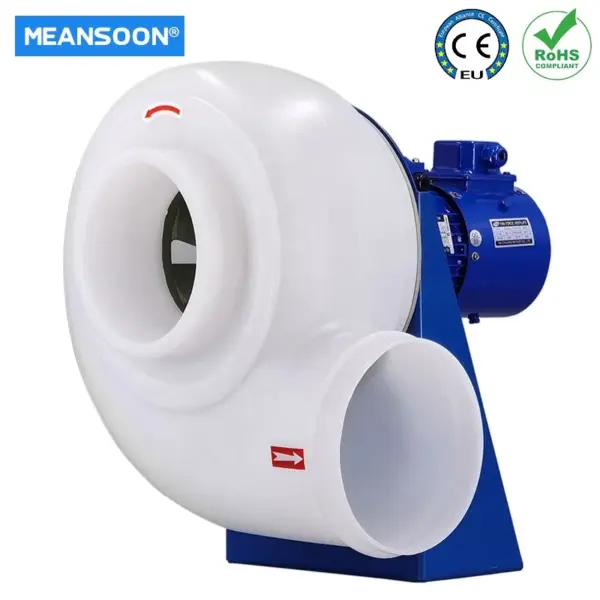

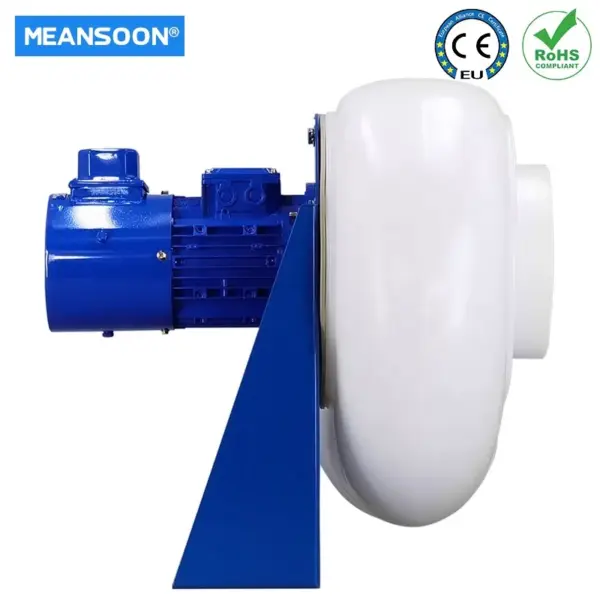

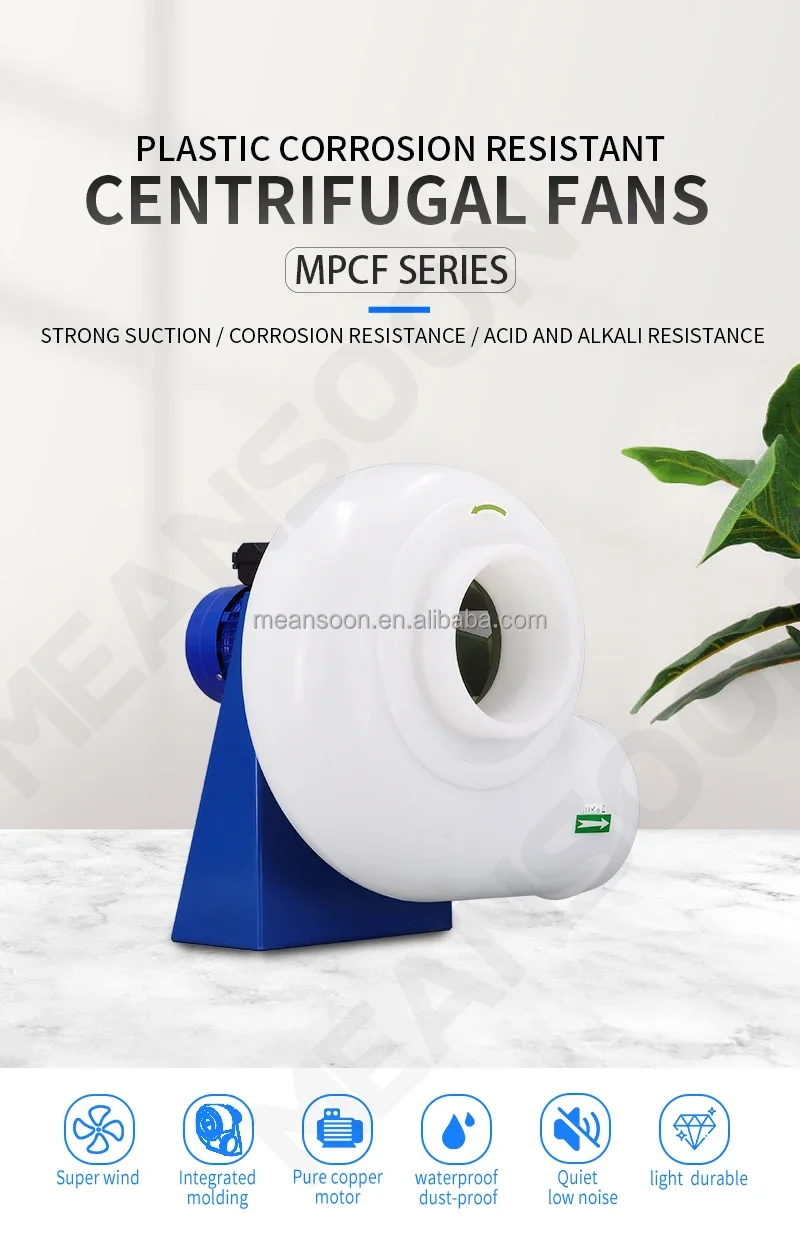

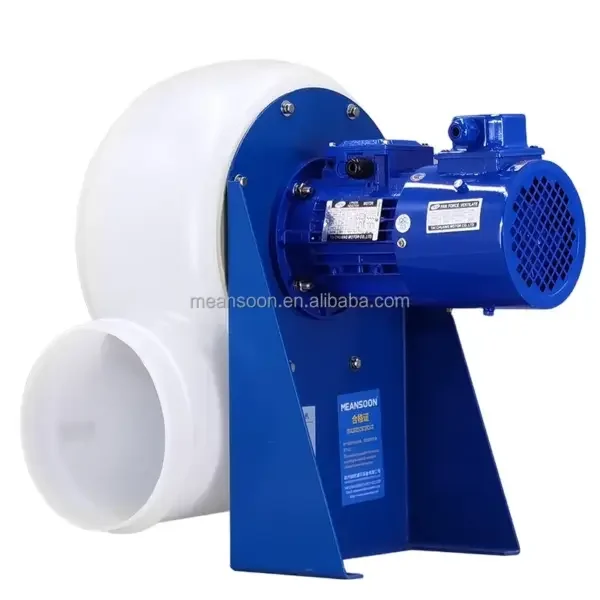

Product Name: Variable frequency plastic Chemical resistant exhaust fan
Model: MPCF-250-B2T-VF

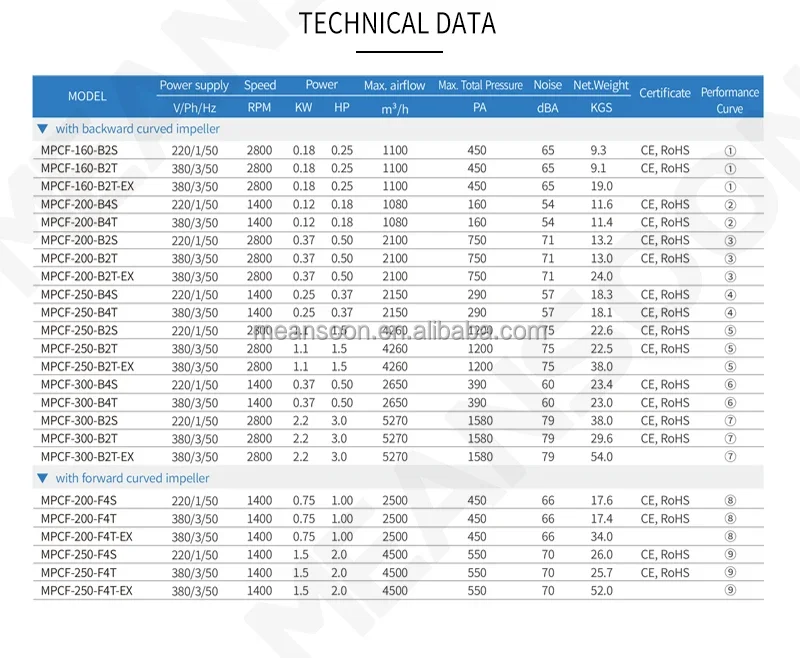

Specification
| 1 | Materials | PP impeller + PE spiral case+100% Copper motor |
| 2 | Color | white spiral case + blue motor+ blue bracket |
| 3 | Diameter of intlet | Φ240 |
| 4 | Diameter of outlet | Φ240 |
| 5 | Power | 1100W |
| 6 | Power supply | 380V/3Ph/10~50Hz available |

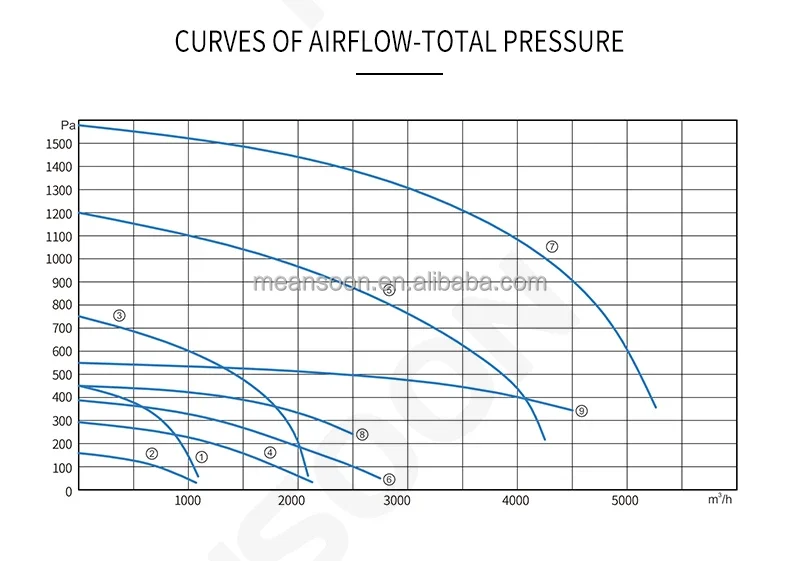

| 7 | Max Airflow | 4260 CMH ( Cubic Meters per Hour ) |
| 8 | Max Pressure | 1200 Pa |
| 9 | Net weight | 25 KGS |
| 10 | Gross Weight | 28KGS |
| 11 | Packing details | 1 carton for 1 peice, Carton Size: 58*60*67CM |
| 12 | MOQ | 1 Piece |
| 13 | LOGO | Please send me your design, we can print it on fan |
| 14 | OEM accepted | Yes |
| 15 | Sample time | normal 5 days/ special 15 days |

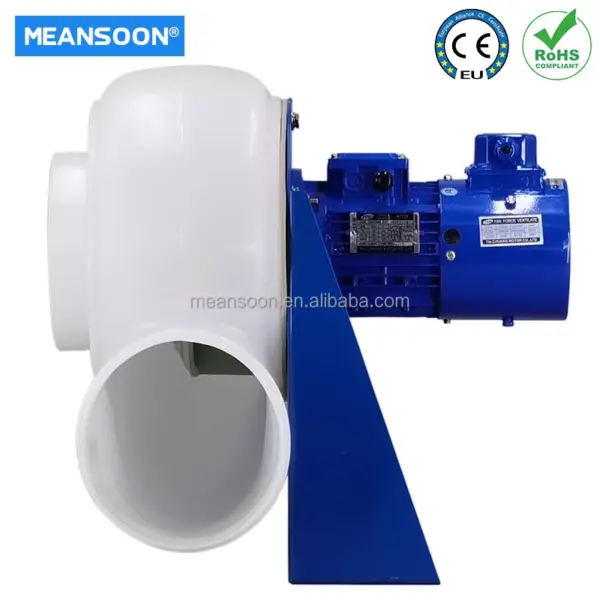

| 16 | Certification Availalbe | CE, ROHS |
| 17 | Production capacity | 1000 per month |
| 18 | Payment items | 100% payment before manufacture <5000USD 30% as deposit, 70% before shipment > 5000USD |
GENERAL DESCRIPTION
Variable frequency plastic Chemical resistant exhaust fan is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum emperature of 60ºC.
Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid, Sulphurous acid, Nitric acid, Nitrous acid, Hydrofluoric Acid, Boris Acid, Hydrocyanic Acid, Hydrochloric acid. Ammonia, Soda, Ethanol, Potassium hydroxide, Methanol, Propane, Formol, Benzene, Formaldehyde.
APPLICATION
The MPCF series of Variable frequency plastic Chemical resistant exhaust fan with backward curved impeller provide good characteristics of low noise and high efficiency, which often are applied in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory, muould factory, Electronic workshop and metallurgy for exhaust ventilation.

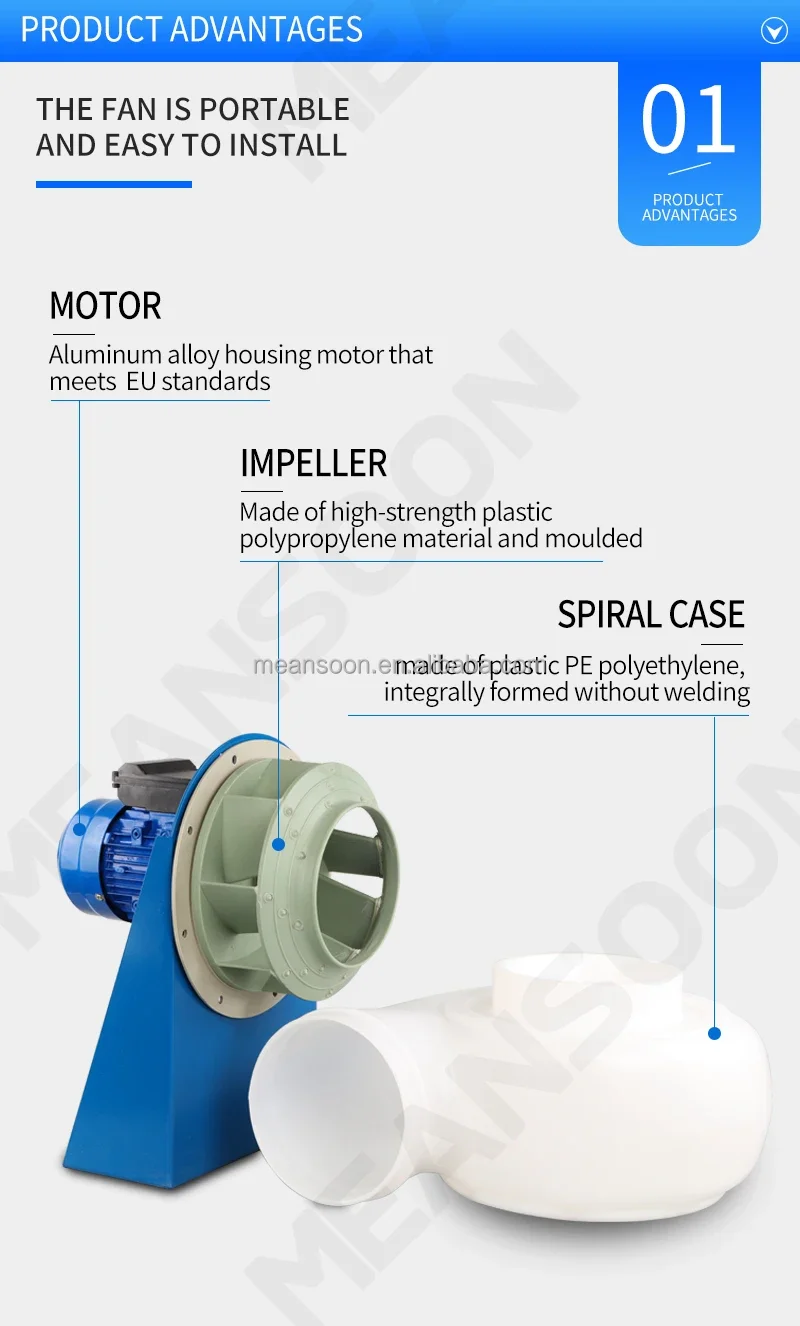

SPIRAL CASES

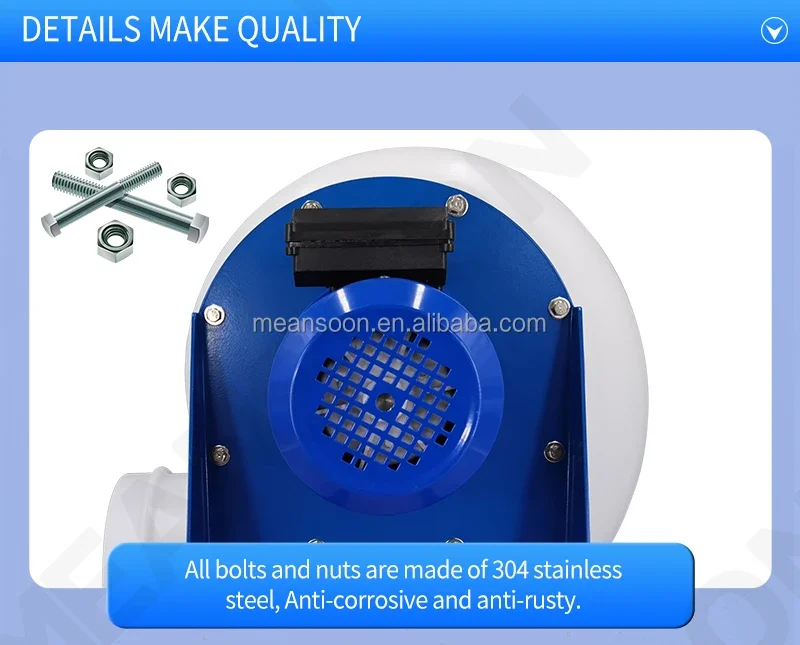

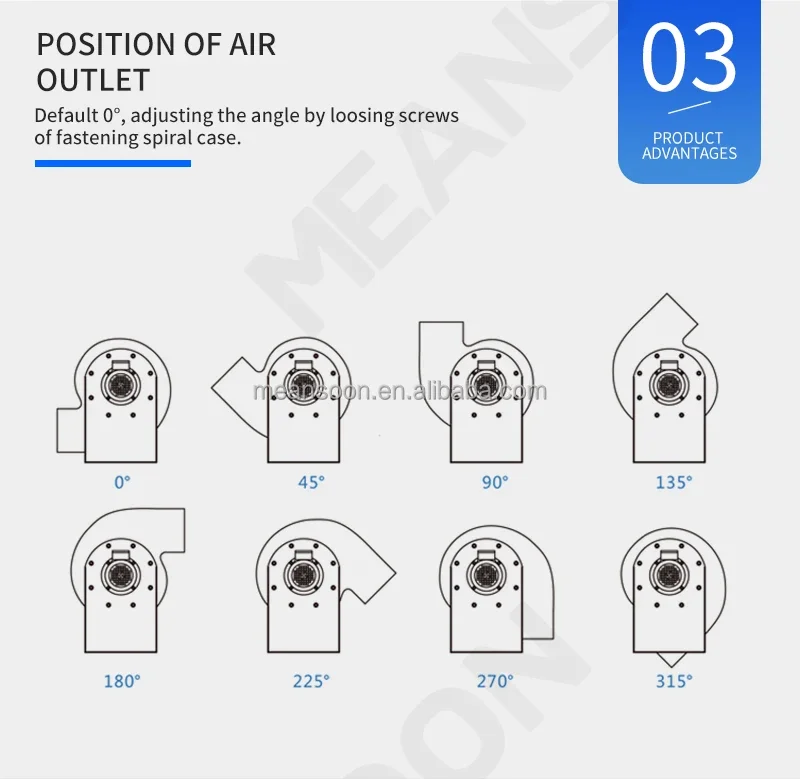

The spiral case is made of polyethylene(PE) plastic. Reversible and rotable to any the 8 standard discharge positions by 45°increments. All fan is with mounting bolts and nuts in 304 stainless steel.

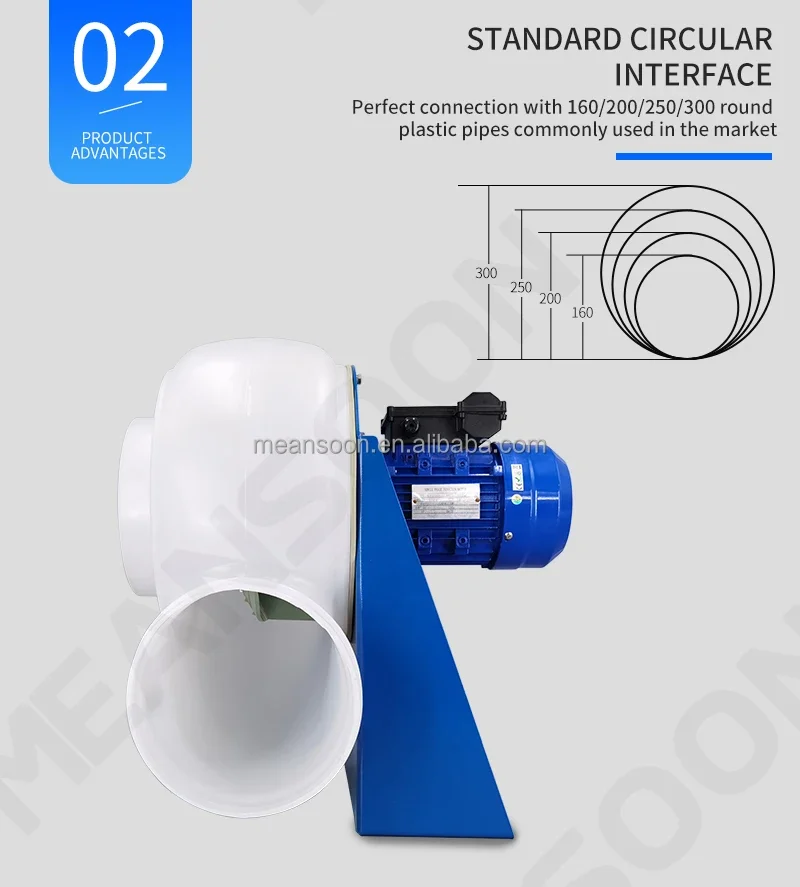

Inlet/outlet are round with standard size: 160, 200, 250, 300, which are good for plastic duct connection.
IMPELLERS
The impellers with backwrod curved blades are high efficiency made of polypropylene(PP) plastic are balanced dynamically
on balancing standard G2,5 according to DIN ISO 1940.

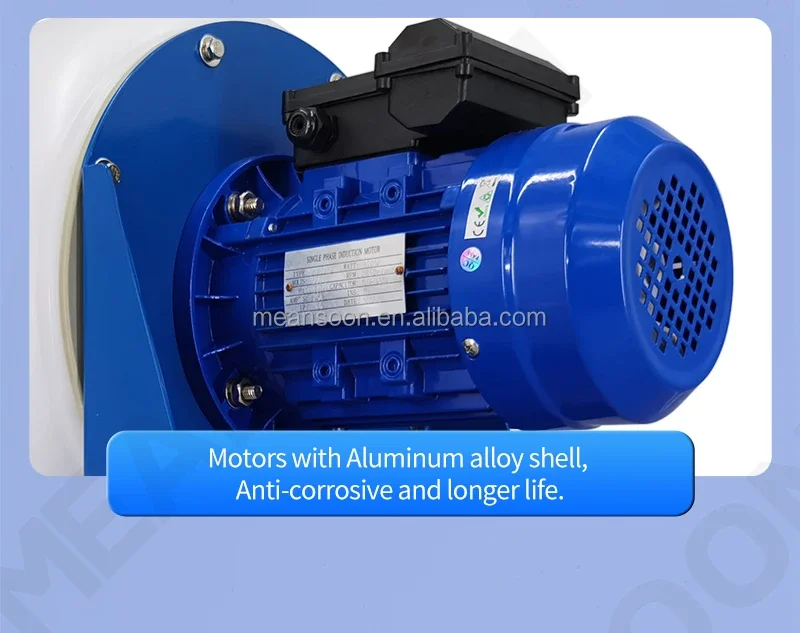

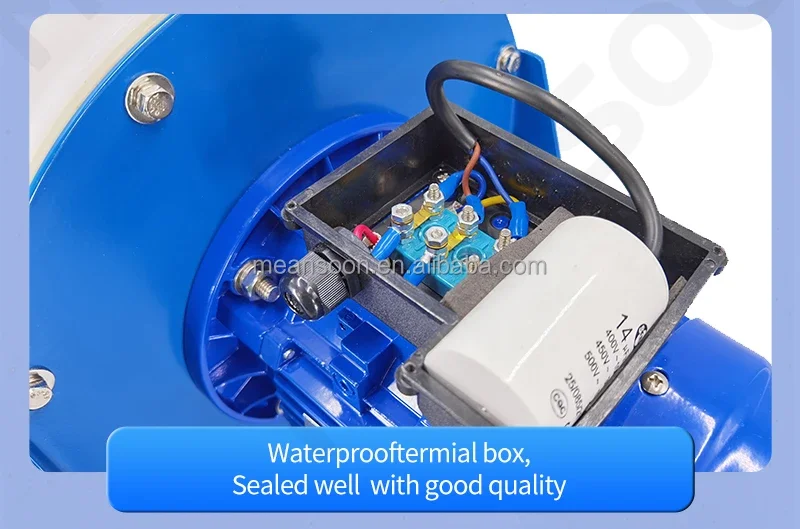

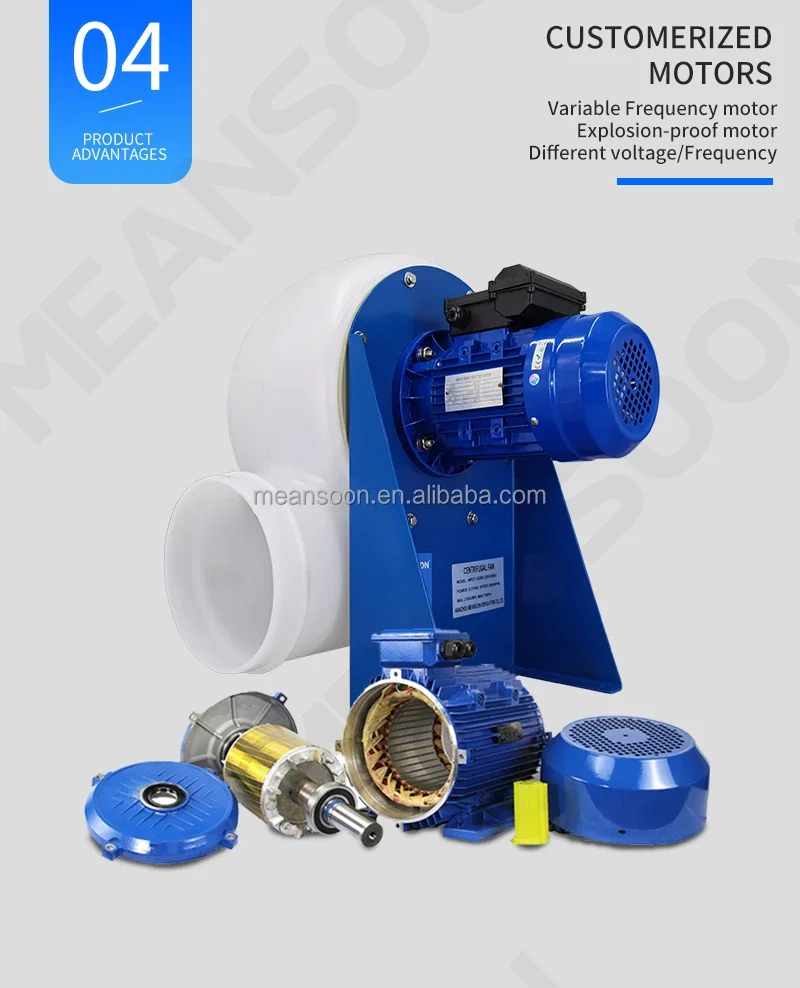

MOTORS

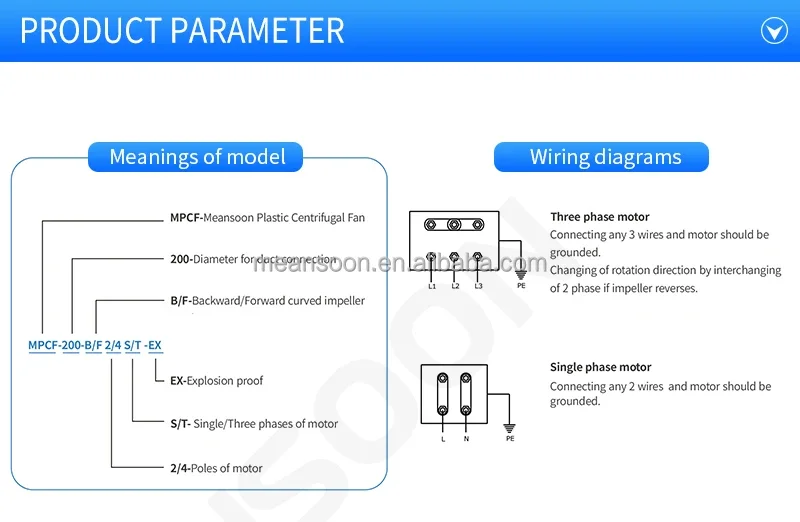

Direct driving, asynchronous, single or three phase, IP55, class F, B5 shape in 2-pole and
4-pole execution. Single speed: three phase 380 V-50/60Hz, single phase 220V-50/60Hz. Explosion proof versions in accordance with ATEX Directive for three phase models is available. . Motor is outside the airstream. All motors speed adjustable by variable frequency inverter drive.
MOTOR SUPPORT
metal stand constructed of epoxy coated in blue.
Sample charge
We already show the 1 piece price on the price list, and freight shoud be calculated as actual weight.
Advantages
1.Low MOQ: It can meet your need very well.
2.OEM Accepted : We can produce as your demands .
3.Good Service : We treat clients as friend.
4.Good Quality :We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Order Guide
We take great pride in our work and in the wide variety of products that we offer. We are
experienced in servicing the Asia market, European market and Africa market .Please be aware that
our production lead times depend on specific items and item quantities. Our success has been based
on our understanding of the demands. That’s why we always ensure that every order is delivered on time.
Check below for more information on placing an order
| 1 | Inquiry- You get professional quatation |
| 2 | Customer confirm the prices, Lead time, Technical demands, Payment item etc. |
| 3 | We send the Proforma Invoice with meansoon signature |
| 4 | Customer make the payment for deposit and send us bank receipt (bank slip) |
| 5 | we tell customer received payment, and arrange production and inform the estimated time |
| 6 | Close to the end production, we inform custoer to make payment for balance |
| 7 | Customer let their forwarder contact us to deliver the products for shipment. |
| 8 | we provide all documents to customer for Customs Clearance, and other documents customer demands. |
| 9 | Order can be finished when Customer received the goods, satisfied with them. |
| 10 | Please feedback to us about quality, service, market feedback, suggestion, and we can do better |
Frequently Asked Questions
What is the minimum order quantity for this mpcf-250-b2t-vf duct fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this mpcf-250-b2t-vf duct fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380V/3Ph/50Hz. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
