This fume hood exhaust fan is listed with the manufacturer’s full published specification — voltage 220V/1Ph/50Hz, power source type Corded Electric, blade material Plastic. It is produced by Hangzhou Meansoon Ventilation Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Fume Hood Exhaust Fan
- Model Number: MPCF-160-B2S
- Power Source Type: Corded Electric
- Voltage: 220V/1Ph/50Hz
- Material: Stainless Steel, Plastic, Aluminum Alloy, Copper
- Blade Material: Plastic
- Noise Level: 65dBA

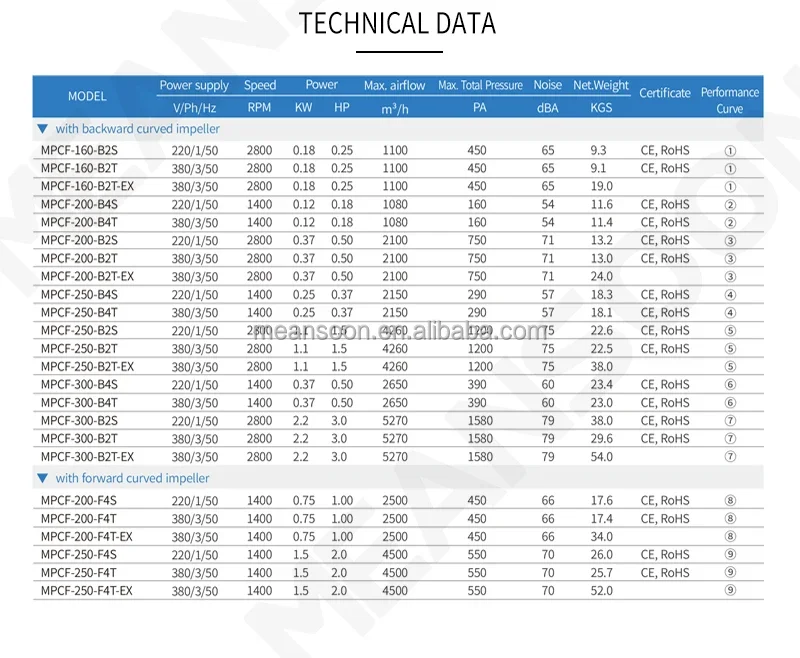

Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Power Source Type | Corded Electric |
| Noise Level | 65dBA |
| Voltage | 220V/1Ph/50Hz |
| Material | Stainless Steel, Plastic, Aluminum Alloy, Copper |
| Speed | 2800RPM |
| Blade Material | Plastic |
| Customized Support | OEM |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Duct Diameter | 160 |
| Model Number | MPCF-160-B2S |
| Selling Units | Single item |
| Single Package Size | 45X44X42 cm |
| Single Gross Weight | 10.710 kg |
Product descriptions from the supplier

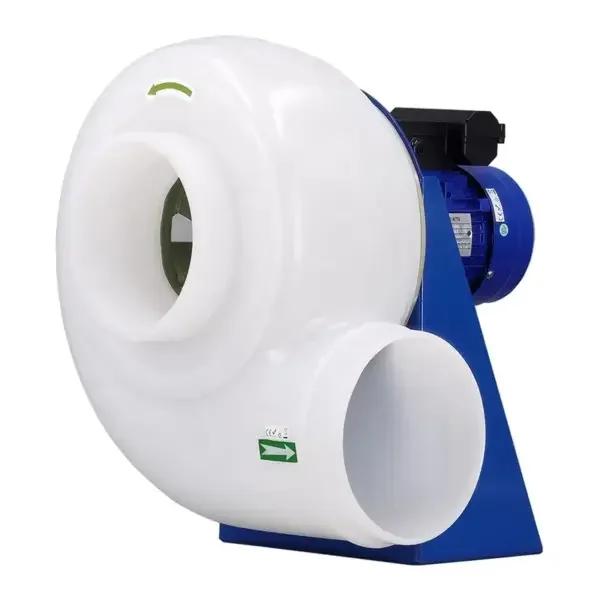

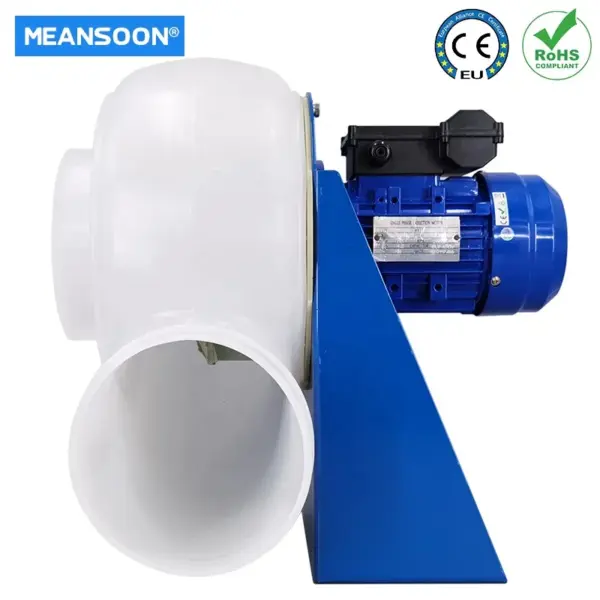

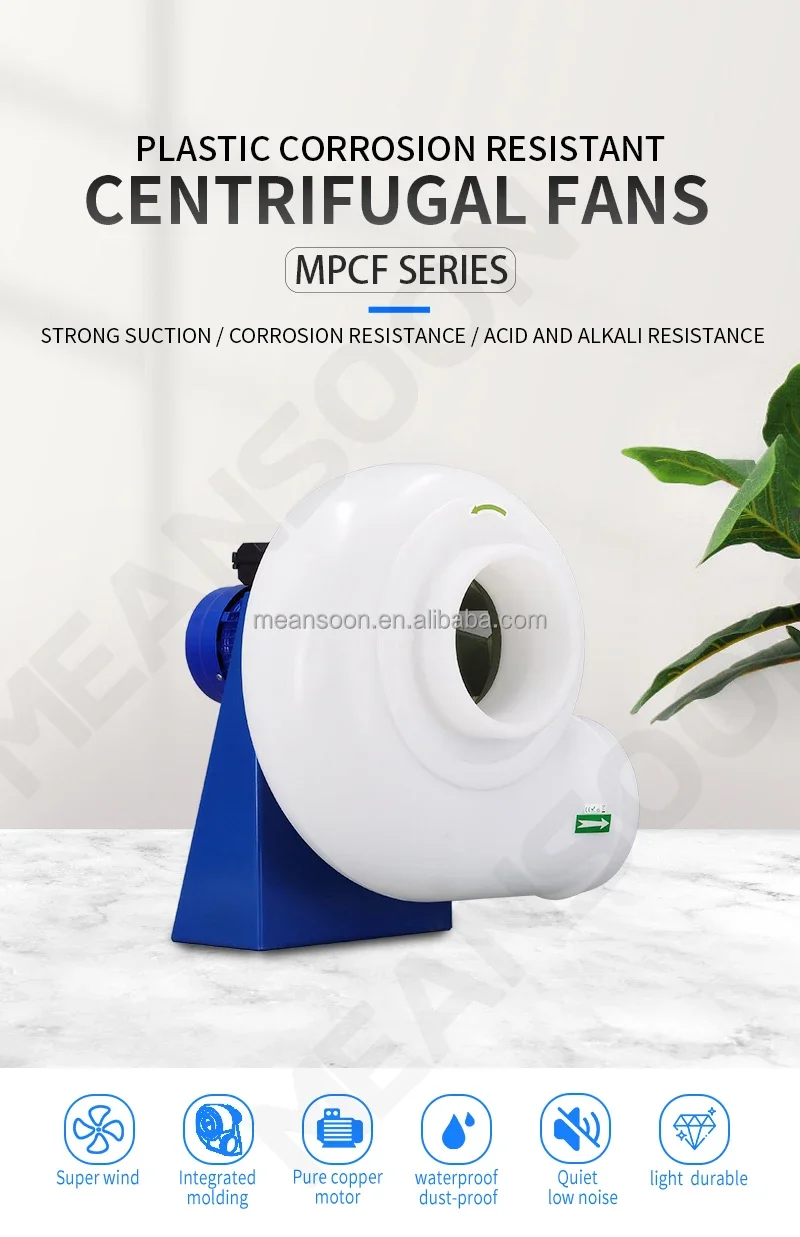

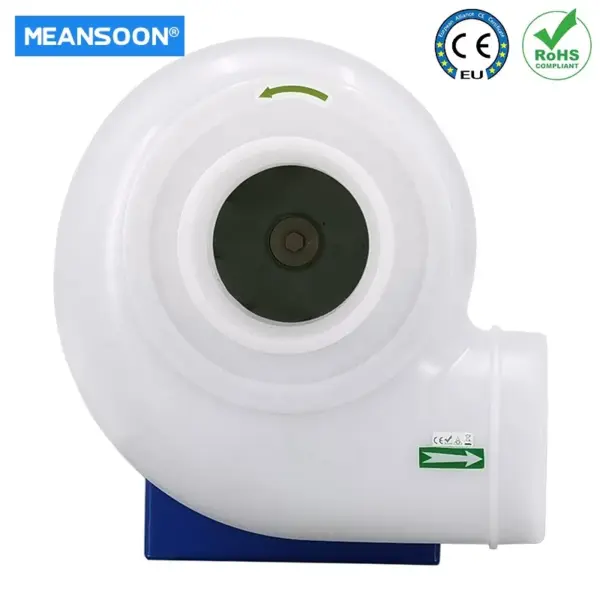

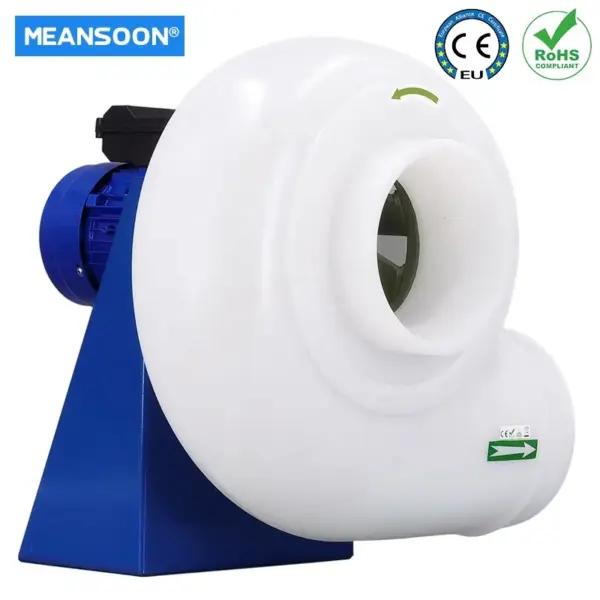

MPCF-160-B2S Plastic PP chemical anti-corrosive laboratory fume hood exhaust fans
Hangzhou Meansoon Ventilation Co.,Ltd. is a professional corrosion resistant fans manufacturer since 2015, we mainly supply fume hood exhaust fan, lab exhaust fan, laboratory exhaust fan, fume hood fan, fume hood blower, lab fan, chemical exhaust fan, chemical resistant exhaust fan, PP blower, corrosion resistant exhaust fan, plastic centrifugal fan, fume hood exhaust blower. We have export to more than 30 countries so far.
Meansoon Ventilation is a recognised leader of chemical, corrosive and explosive resistant fans from China. With extensive experience in the field of fume extraction systems, Meansoon Ventilation offers a comprehensive line of High-quality corrosion-resistant polypropylene centrifugal fans and blowers perfect for Laboratories, Chemical plants, Hospitals, Natatoriums, Industrial processes, Water treatment plants, hospitals and any other Chemical and corrosive environment. And Chemical Corrosion explosion Resistant fans blowers Solutions for Industrial, Commercial, and Laboratory Facilities.
GENERAL DESCRIPTION
Plastic lab fume cupboard ventilating fan is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum emperature of 60 degrees celsuis.
Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid, Sulphurous acid, Nitric acid, Nitrous acid, Hydrofluoric Acid, Boris Acid, Hydrocyanic Acid, Hydrochloric acid. Ammonia, Soda, Ethanol, Potassium hydroxide, Methanol, Propane, Formol, Benzene, Formaldehyde.
APPLICATION
The MPCF series of Plastic lab fume cupboard ventilating fan with backward curved impeller provide good characteristics of low noise and high efficiency, which often are applied in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory, muould factory, Electronic workshop and metallurgy for exhaust ventilation.

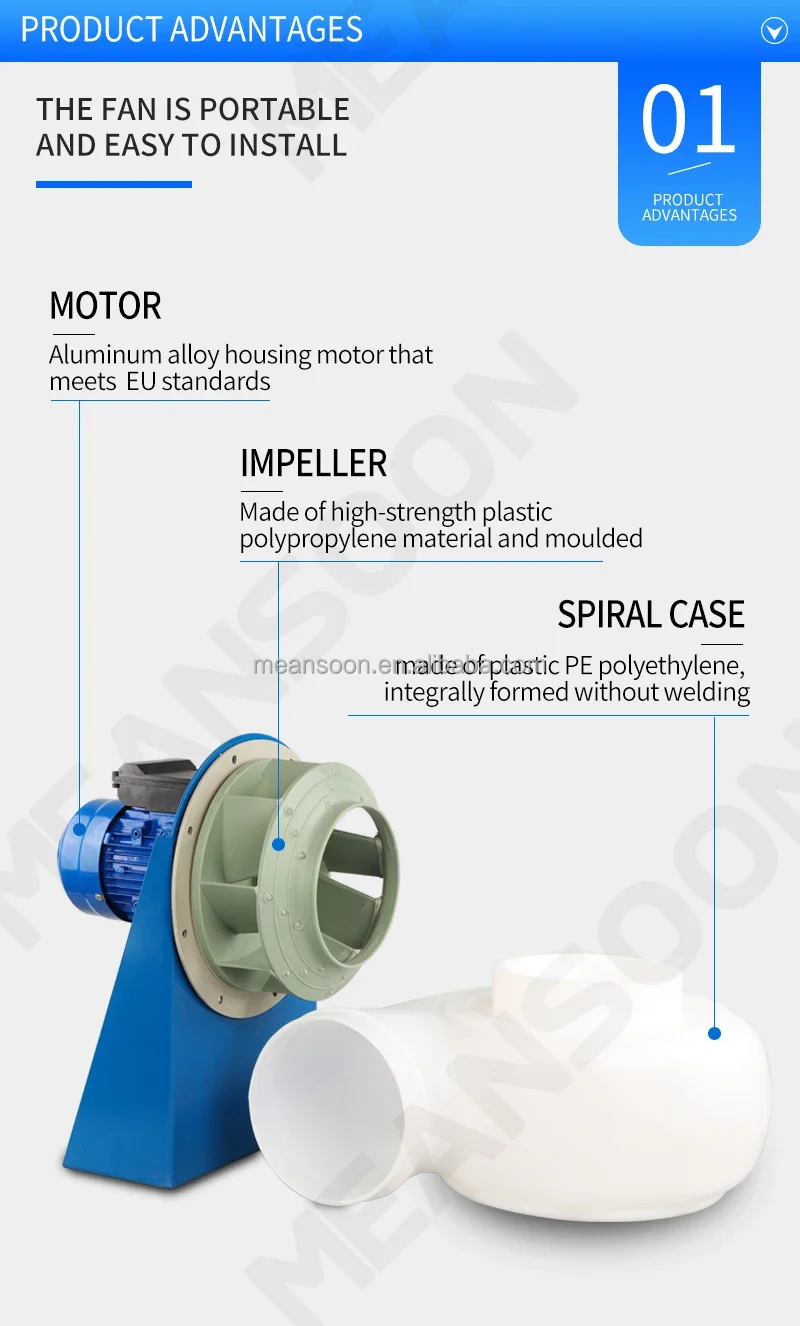

SPIRAL CASES (VOLUTE)

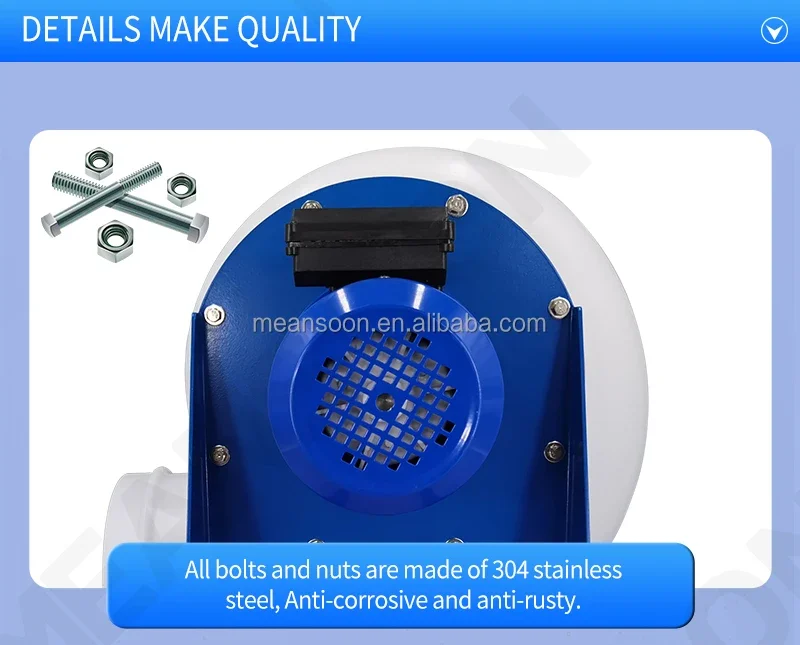

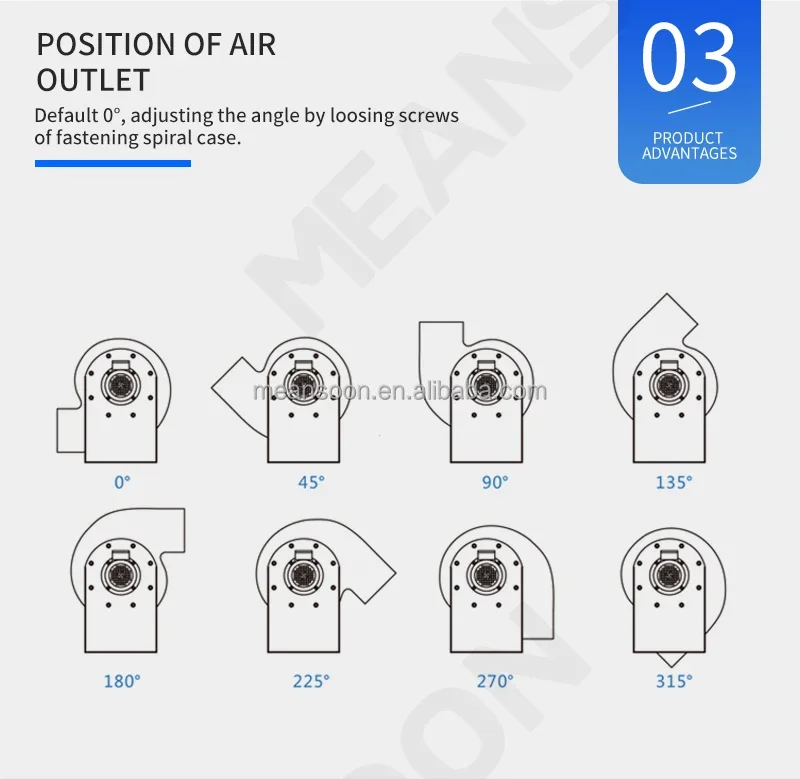

The volute is made of polyethylene(PE) plastic. Reversible and rotable to any the 8 standard discharge positions by 45°increments. All fan is with mounting bolts and nuts in 304 stainless steel.

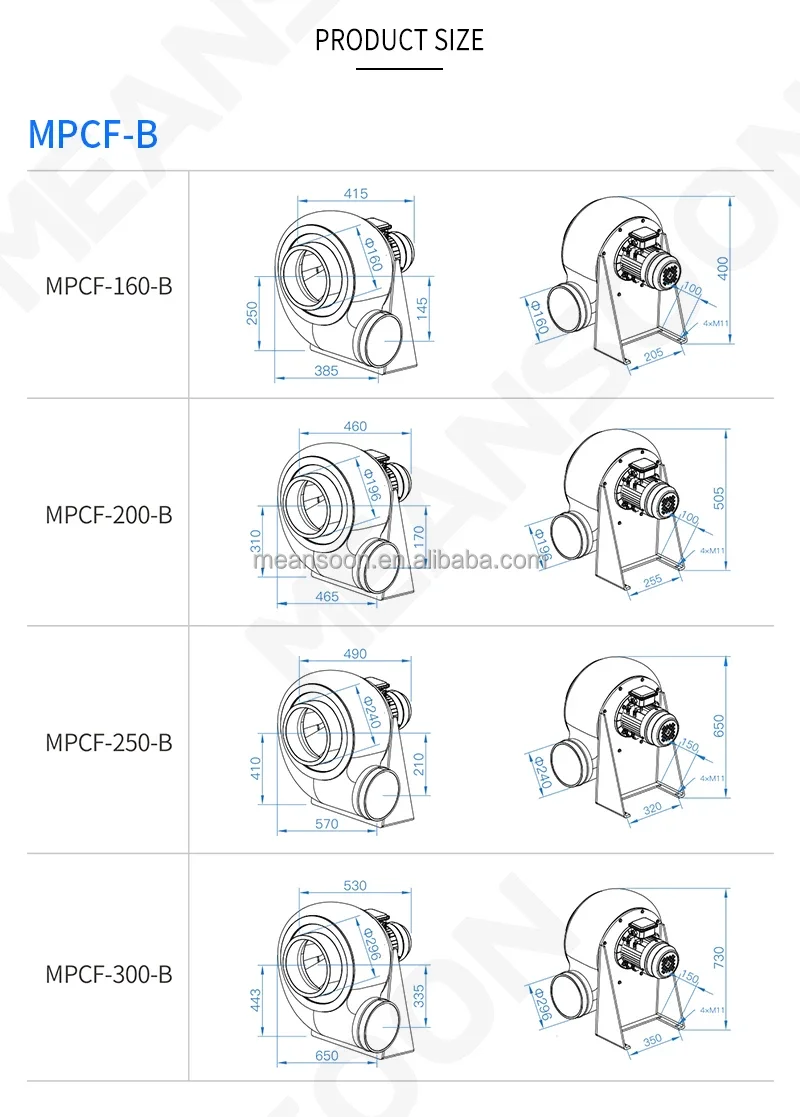

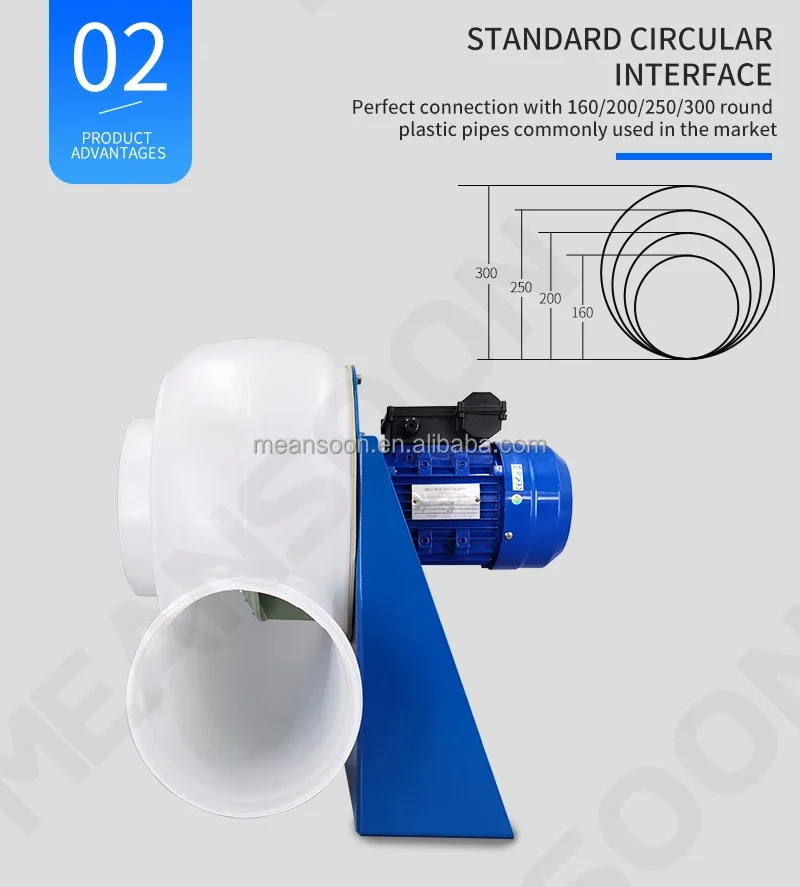

Inlet/outlet are round with standard size: 160, 200, 250, 300, which are good for plastic duct connection.
IMPELLERS/BLADES
The impellers/blades with backwrod curved blades are high efficiency made of polypropylene(PP) plastic are balanced dynamically
on balancing standard G2,5 according to DIN ISO 1940.
MOTORS

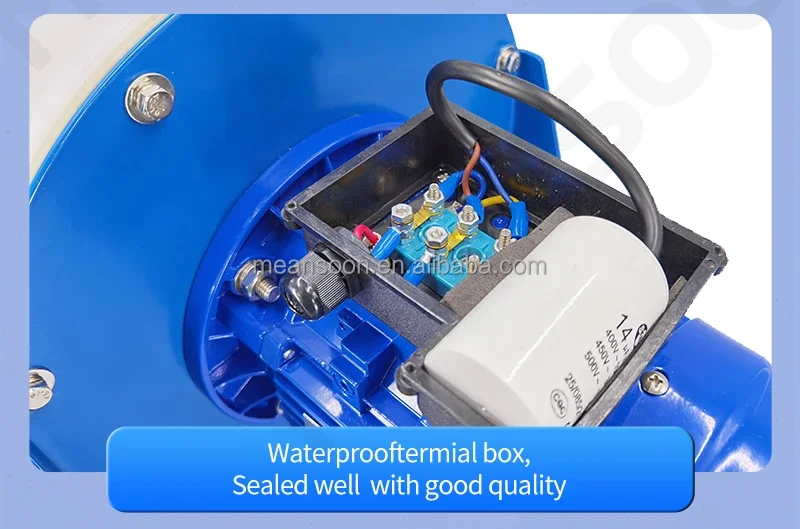

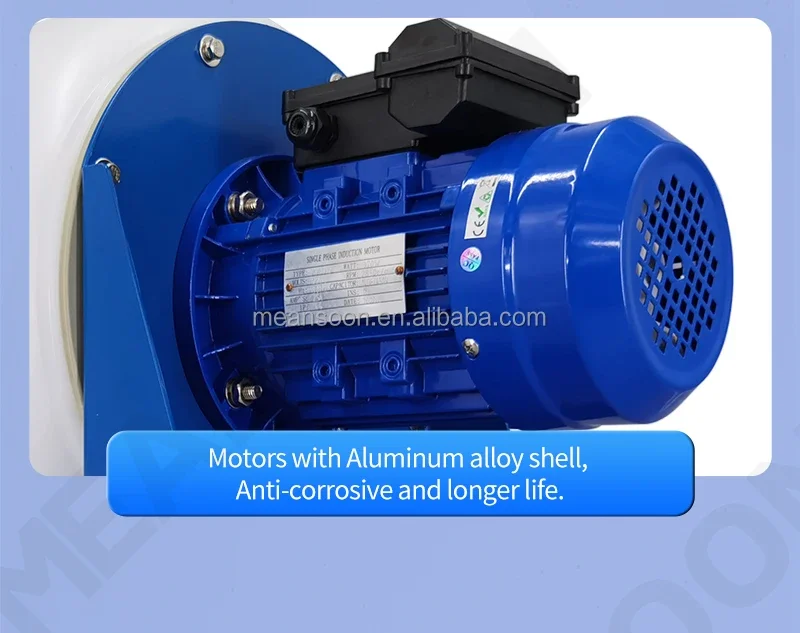

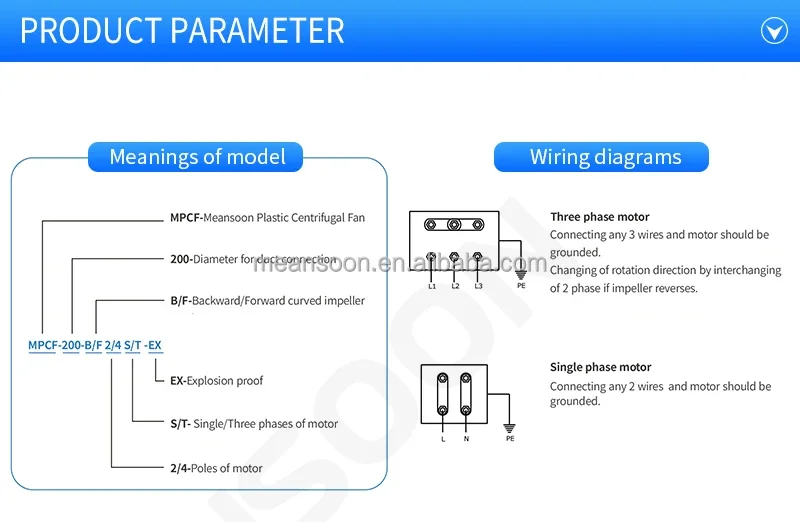

Direct driving, asynchronous, single or three phase, IP54, class B, B5 shape in 2-pole and 4-pole execution. Single speed: three phase 380 V-50/60Hz, single phase 220V-50/60Hz. Explosion proof versions in accordance with ATEX Directive for three phase models is available. . Motor is outside the airstream. All motors speed adjustable by variable frequency inverter drive.
MOTOR SUPPORT

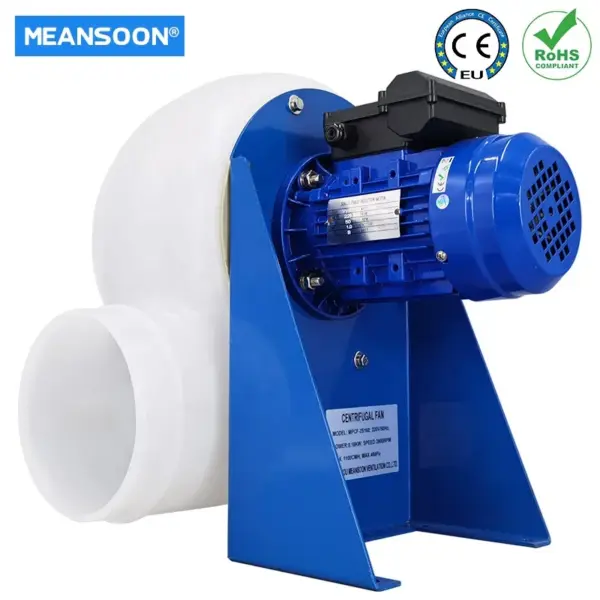

metal stand constructed of epoxy coated in blue, made of steel sheet.
Frequently Asked Questions
What is the minimum order quantity for this fume hood exhaust fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this fume hood exhaust fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220V/1Ph/50Hz. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
