The electric heater listed here carries voltage Other, Custom, power source Electric, Electric, documented exactly as the manufacturer publishes it. Made by HK ALI BROTHER TECHNOLOGY LIMITED (3 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Electric Heater
- Power Source: Electric, Electric
- Voltage: Other, Custom
- Material: Alloy
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Type: Band Heater, Band Heater
Technical Specifications
| Type | Band Heater, Band Heater |
|---|---|
| Power Source | Electric, Electric |
| Voltage | Other, Custom |
| Material | Alloy |
| Core Components | Other |
| Key Selling Points | Customized |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Guangdong, China |
| Brand Name | Alixd |
| Dimension(L*W*H) | Custom |
| Size | Any size is available |
| MOQ | one piece |
| Wattage | Custom |
| Thcikness | 1.5mm(standard) 4.5mm/6mm/7.5mm |
| Supply Mode | Manufacturers |
| Marketing Mode | Direct selling |
| Packaging Details | Carton |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 3.0 kg |
| Supply Ability | 2000 pieces per Week |
Product Details

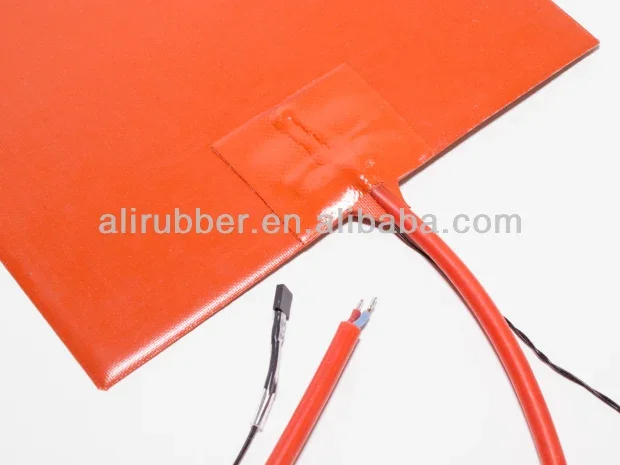

12 Volt Silicon Electric Heater Blanket
300*300mm, 12v 270w
Our heaters are made of fiberglass cloth impregnated with silicone rubber, which together provide great strength and flexibility. A wire heating element is then vulcanized between two layers of silicone rubber, forming a durable yet very flexible heat blanket that is resistant to moisture, chemicals, acids and many industrial solvents.
| Model No. | Length & Width inches(mm) | Voltage | Wattage | Mountings |
| Alixd-H-1 | 6 × 6 (152.4 × 152.4mm) | 12 | 50 | Adhesive |
| Alixd-H-2 | 8 × 8 (203.2 × 203.2mm) | 12 | 165 | Adhesive, Thermistor 100K |
| Alixd-H-3 | 12 × 12 (304.8 × 304.8mm ) | 24 | 350 | Adhesive, Thermistor 100K |
| Alixd-H-4 | Dia 6.3(160mm) | 12 | 120 | Adhesive, Thermistor 100K |
| Alixd-H-5 | 39.37 × 39.37(1000 × 1000mm) | 110 | 4000 | Digital Temperature Controller |
| Alixd-H-6 | 6.1 × 39.37(155 × 1000mm) | 220 | 650 | Plug |
| Alixd-H-7 | 35.4 × 70.87(900 × 1800mm) | 380 | 7000 | Digital Temperature Controller |
| Alixd-H-8 | 39.37 × 118.11(1000 × 3000mm) | 415 | 13000 | Digital Temperature Controller Box |
If you can't find your size in the aboe form, please contact with me.The max width is 1200mm, and no limit for length.
| Product | Model NO. | Material | Hardness | |
| Silicone Heater | XD-H-1561 | Orange High Temperature Silicone | 60±3 | |
| Shape | Data | |||
| Size: mm | Rated Voltage | Customize | ||
 | Rated Wattage | 00.07-1/cm2 | ||
| Static Resistance | Customize | |||
| Max Temperature can bear | 250C | |||
| Max Used Temperature | 180-200C | |||
| Compressive Strength | ≥3KV | |||
| Insulation Resistance | ≥100MΩ | |||
| Tensile Strength | ≥8.0Mpa/M2 | |||
| Elongation at Break | ≥4% | |||
| Length: Customize | Cable | 300mm(standard) | Peel Strength | ≥2500N/M2 |
| Width: Customize | Specification of the cable | AWG22 | Compressive Stress | >15kg/cm2 |

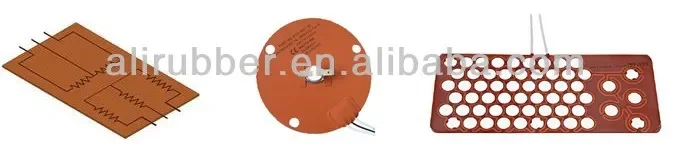

Due to the flexibility in circuit design of silicone rubber heaters, multiple heating circuits can be designed to accommodate dual voltage and multiple zones. On dual voltage heaters, three leads, including a common in a different color, are provided for wiring the heater in series for the higher voltage and parallel for the lower voltage. 120/240 Vac or 240/480 Vac can be achieved. Multiple circuit areas can be zoned to achieve different heating effects. Three-phase circuits can also be designed for high current applications.
Thermistor 100K:

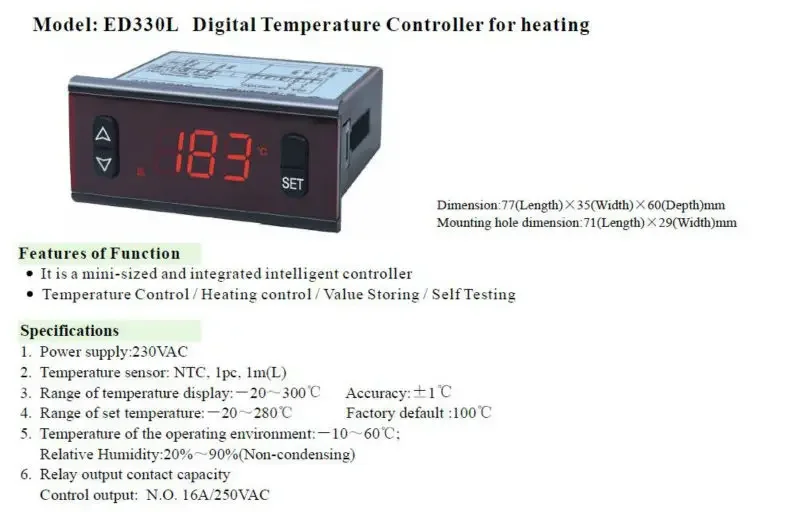

Digital Temperature Controller:
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $15 / piece
- 100–999 piece: US $13 / piece
- 1000+ piece: US $10 / piece
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric heater be supplied for my local voltage?
The standard configuration is Other, Custom. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by HK ALI BROTHER TECHNOLOGY LIMITED. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full HK ALI BROTHER TECHNOLOGY LIMITED range on HVACR Nexus.
