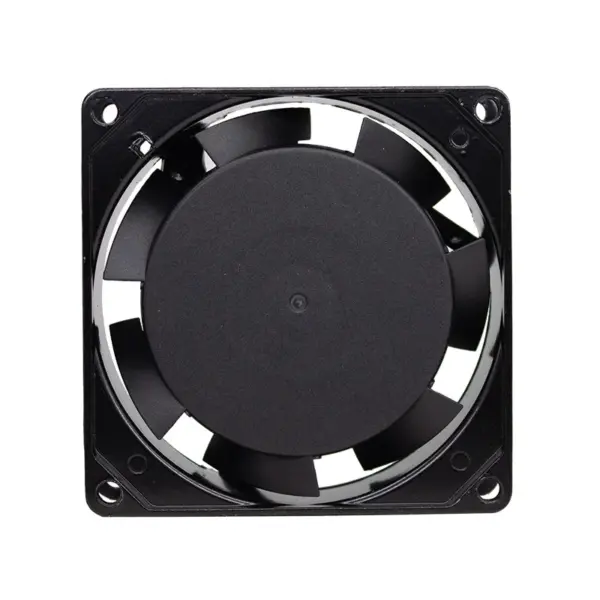

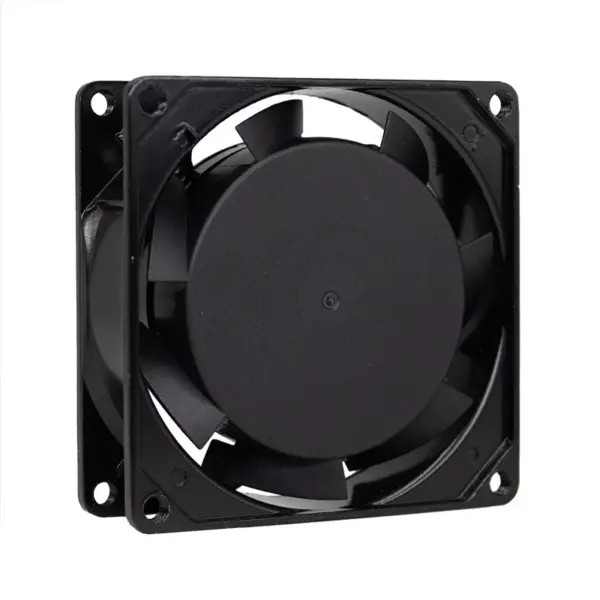

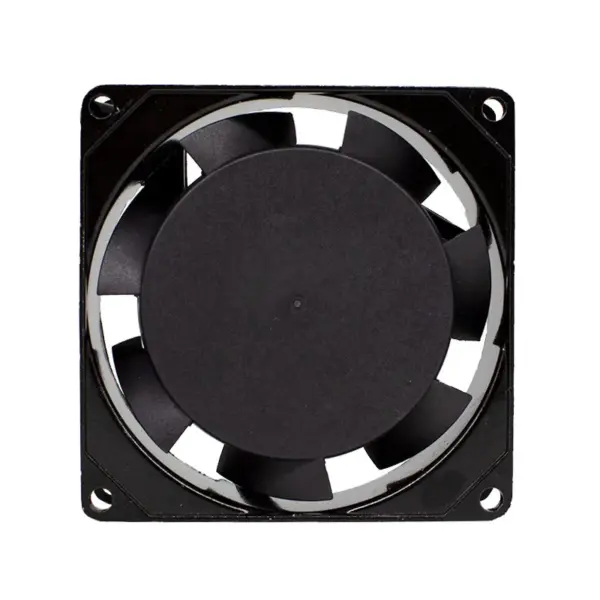

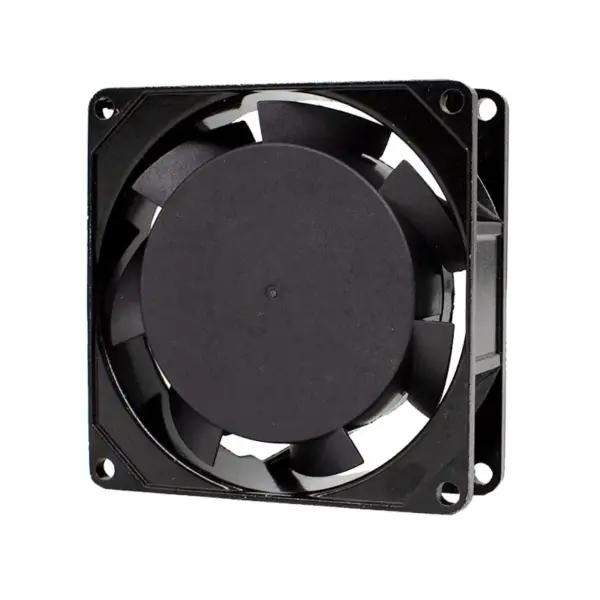

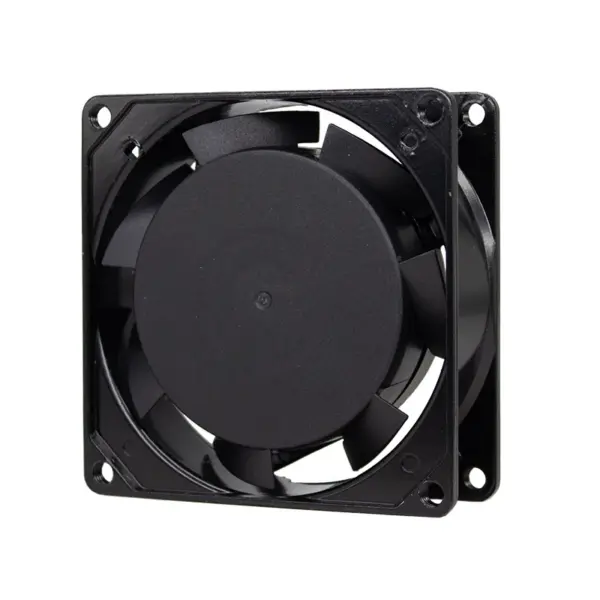

This axial fan is listed with the manufacturer’s full published specification — voltage 110 V, 220 V, 380 V, power source Electric, material Aluminum Alloy. It is produced by Henan Youchuang Electrical Equipment Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Axial Fan

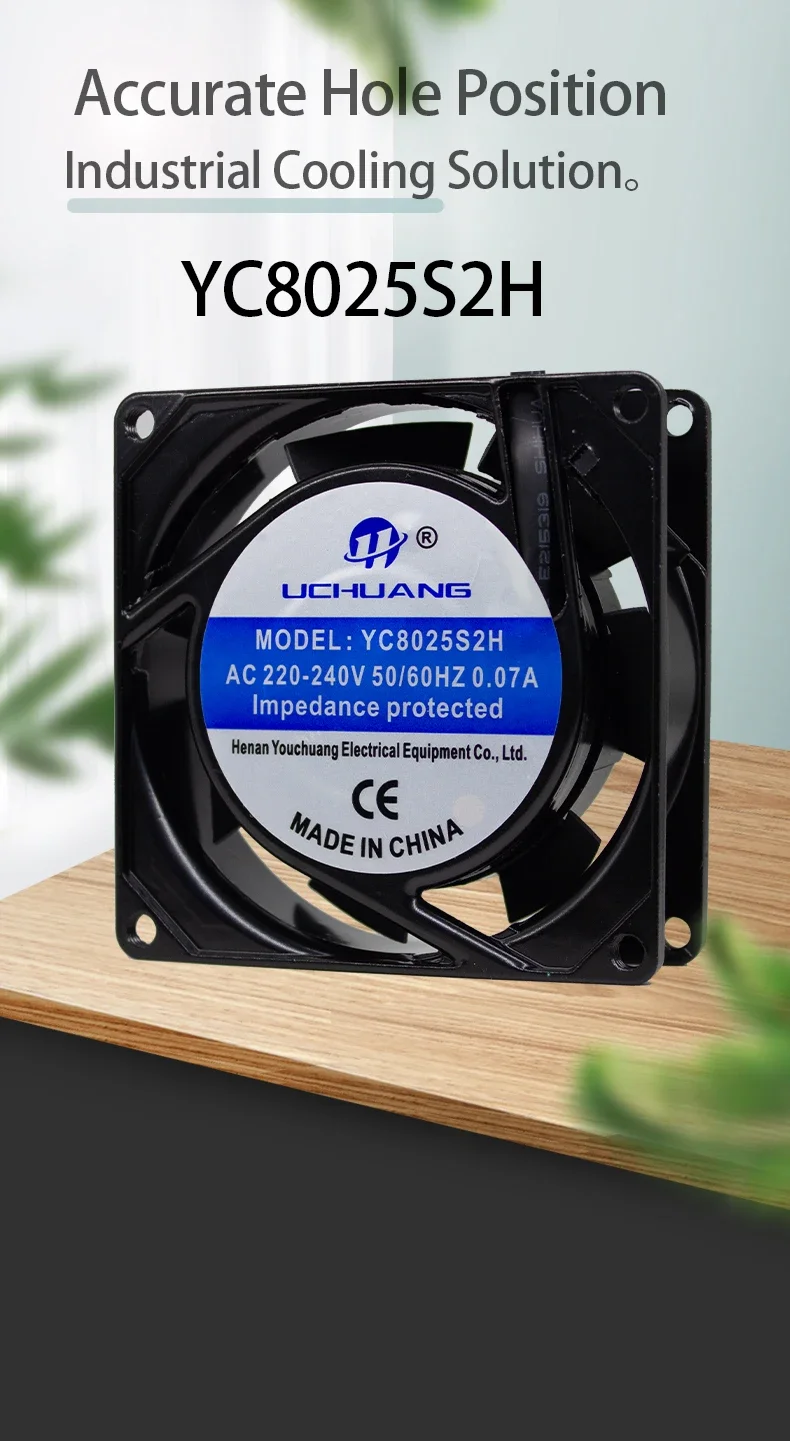

- Model Number: YC8025B1H/YC8025B2H/YC8025B3H
- Power Source: Electric
- Voltage: 110 V, 220 V, 380 V
- Material: Aluminum Alloy
- Blade Material: PBT
- Speed: 2500 RPM
Technical Specifications
| Voltage | 110 V, 220 V, 380 V |
|---|---|
| Material | Aluminum Alloy |
| Speed | 2500 RPM |
| Type | ac axial fan |
| Power Source | Electric |
| Blade Material | PBT |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM |
| Brand Name | UCHUANG |
| Model Number | YC8025B1H/YC8025B2H/YC8025B3H |
| Place Of Origin | Henan, China |
| Selling Units | Single item |
|

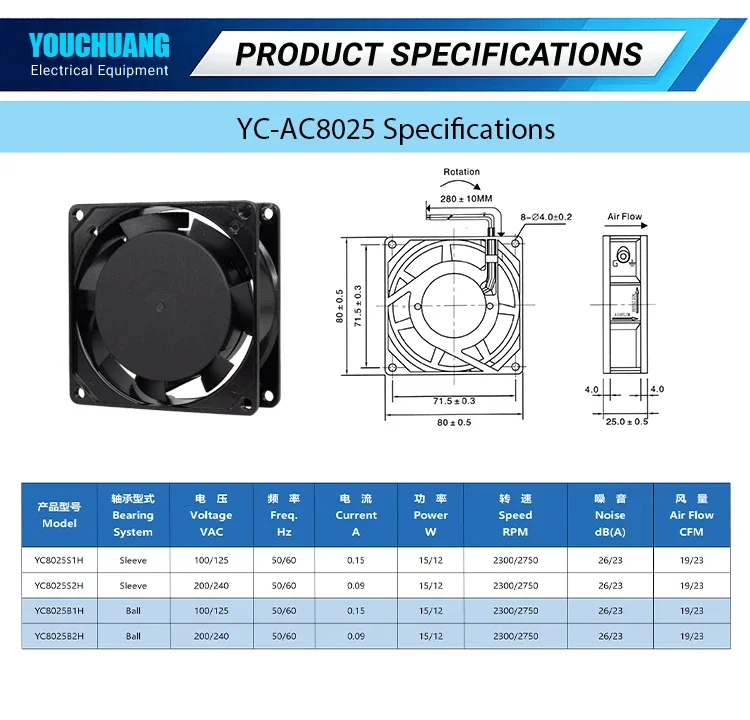

Type
|
AC Axial Flow Fan
|
|
Model
|
YC8025
|
|

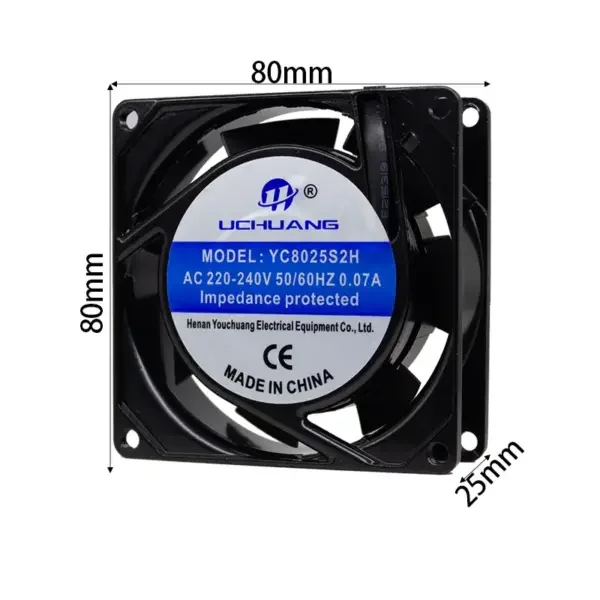

Dimensions
|
80mm x 80mm x 25mm
|
|
Rated Voltage
|
110V / 220V / 380V
|
|
Bearing Type
|
Sleeve bearing / Ball bearing
|
|
Air Flow
|
19~23 CFM
|
|
Connector
|
2 Wire (without connector)
|
|
Motor Type
|
Shaded Pole Motor
|
|
Applications
|
Telecommunications industry, industrial equipment, electrical cabinets, air purification, network equipment, welding
equipment,household appliances, medical equipment, mechanical automation, new energy vehicles,etc. |

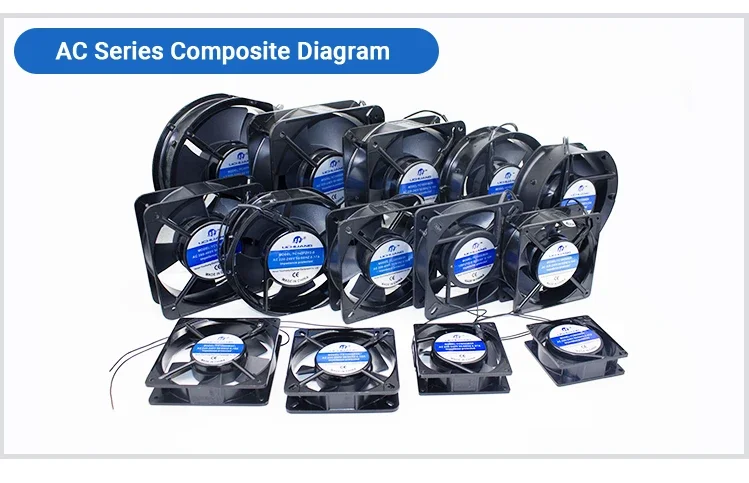

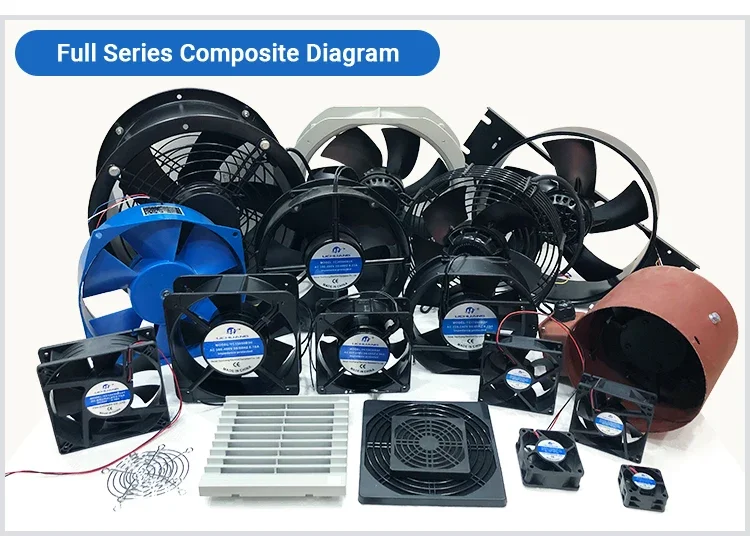

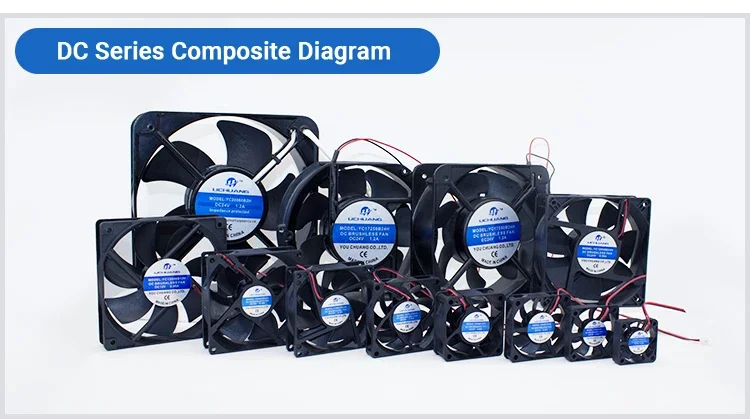

Fan Series ( 60X60X38MM~220X220X60MM)
|
Model
|
Size (MM)
|
Air Flow ( CFM)
|
Model
|
Size (MM)
|
Air Flow ( CFM)
|
|
YC8025
|
80X80X25
|
18~24
|
YC15050
|
150X150X50
|
150~170
|
|
YC8038
|
80X80X38
|
20~28
|
YC17238
|
172X150X38
|
160~190
|
|
YC9225
|
92X92X25
|
21~30
|
YC17250
|
172X150X50
|
150~170
|
|
YC9238
|
92X92X38
|
35~46
|
YC17251
|
172X51
|
150~170
|
|
YC11025
|
110X110X25
|
33~45
|
YC18060
|
180X180X60
|
330~350
|
|
YC12025
|
120X120X25
|
50~66
|
YC20060
|
200X200X60
|
330~350
|
|
YC12038
|
120X120X38
|
66~90
|
YC22060
|
220X60
|
330~350
|
|
YC13532
|
135X135X32
|
95~110
|
YC150FZY
|
158X60
|
190~230
|
|
YC13538
|
135X135X38
|
95~110
|
YC200FZY
|
210X70
|
410~470
|

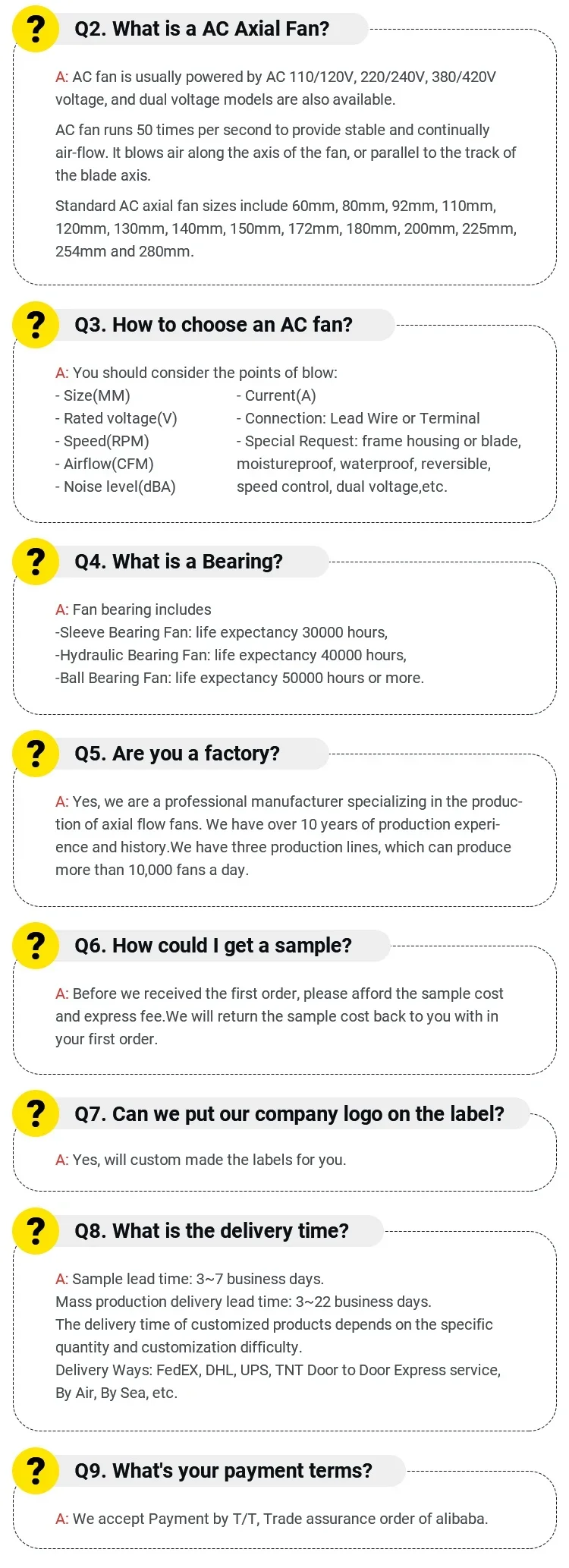

Frequently Asked Questions
What is the minimum order quantity for this axial fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Can it be built for my local voltage?
The standard specification is 110 V, 220 V, 380 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
