This radial fan is listed with the manufacturer’s full published specification — voltage 110V/220V/380V, power source type Corded Electric, material Cast Iron. It is produced by Taizhou Qiou Mechanical And Electrical Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Radial Fan
- Model Number: DF 250W
- Power Source Type: Corded Electric
- Voltage: 110V/220V/380V
- Material: Cast Iron
- Blade Material: Steel
- Noise Level: 40 dB and above
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Power Source Type | Corded Electric |
| Noise Level | 40 dB and above |
| Voltage | 110V/220V/380V |
| Material | Cast Iron |
| Blade Material | Steel |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Model Number | DF 250W |
| Place Of Origin | Zhejiang, China |
| Brand Name | QIOU |
| Selling Units | Single item |
| Single Package Size | XX cm |
Product descriptions from the supplier

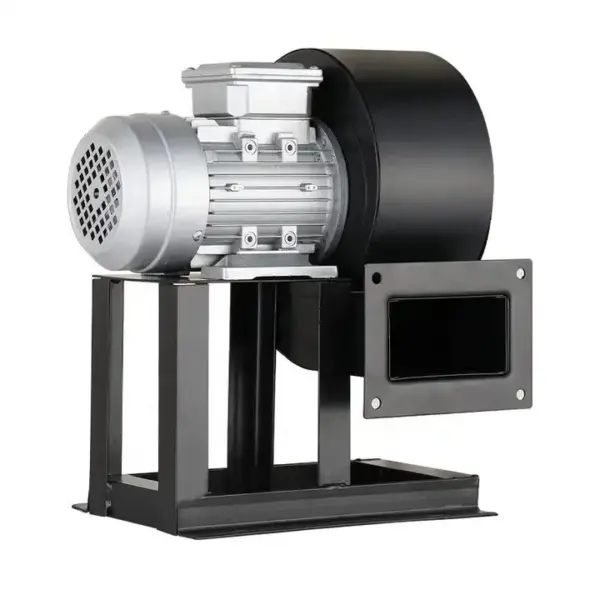

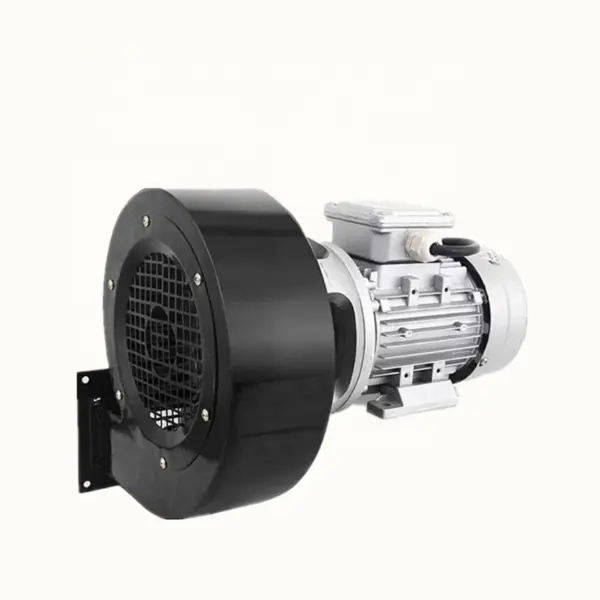

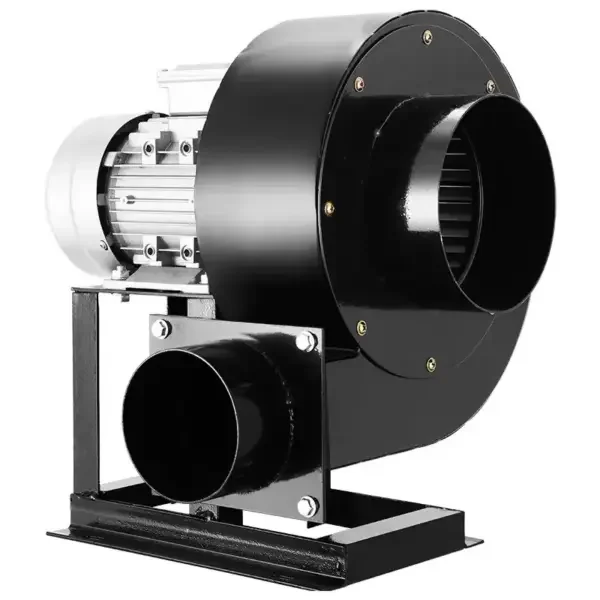

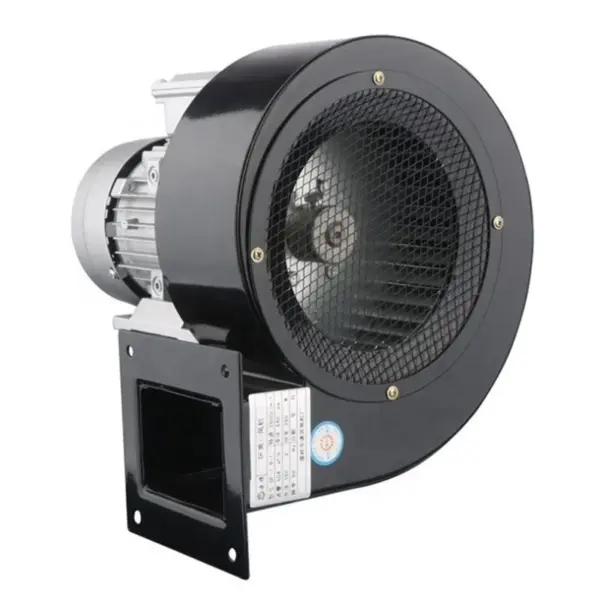

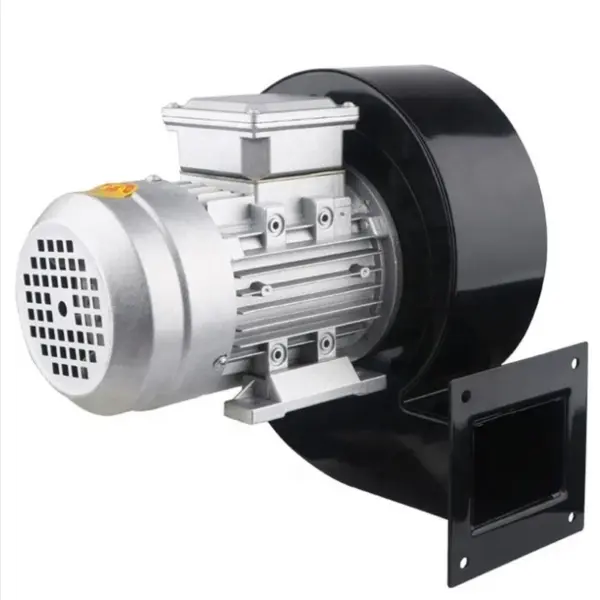

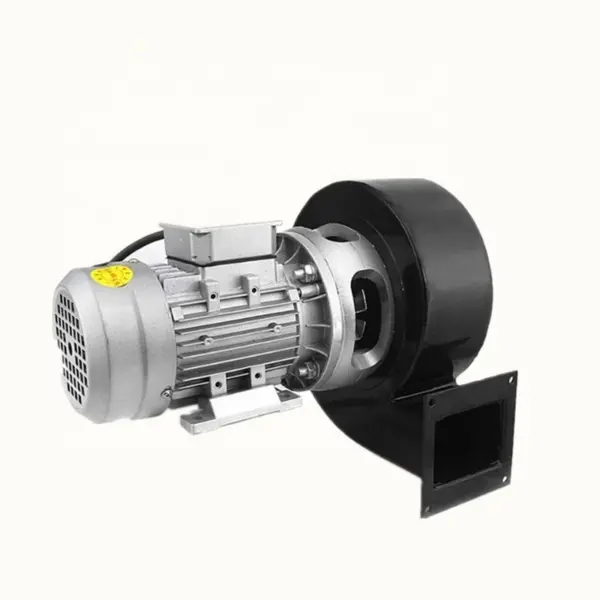

High Efficiency Small Power Forward Impeller Spiral Filter Air Centrifugal Blower Fan

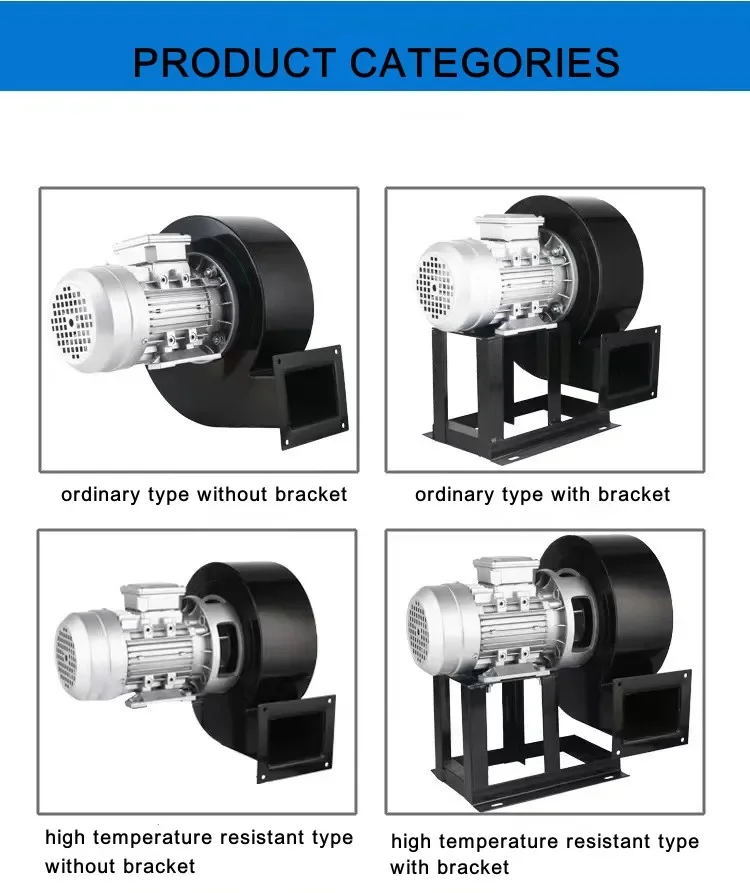

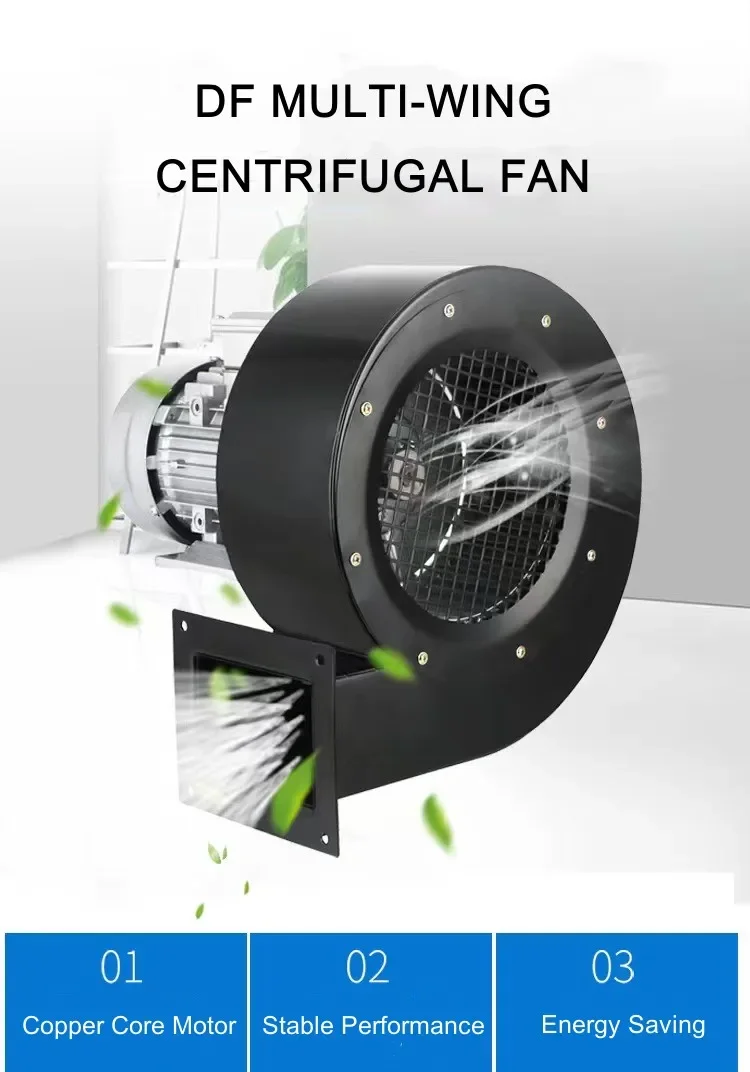

DF series multi-wing low noise centrifugal fans are low-noise,high-efficiency,large-flow ,low-vibration ,long-life span ,removable foot ,flexible mounting fans,they are novally designed,small area occupy,easy to install and using,they can meet the requirements of modern environment protection.They are ideal equipments for air exhausting and dust-removal,air ocndition in high-grade buildings,hotels,factories and mines vessels,basement etc.
1.Low noise,high efficiency,large air volume,high pressure,low vibration,long life,removable foot,flexible installation.

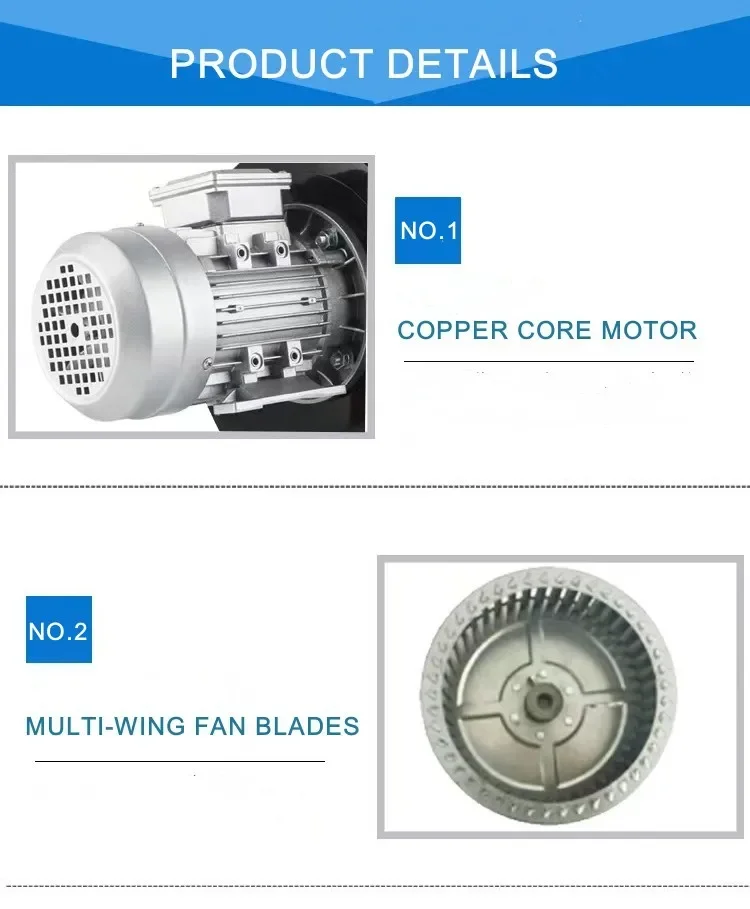

2.Fan impeller automatic punch blanking,mechanical insertion,after dynamic balance strict correction,reduce vibration,stable operation,durable.

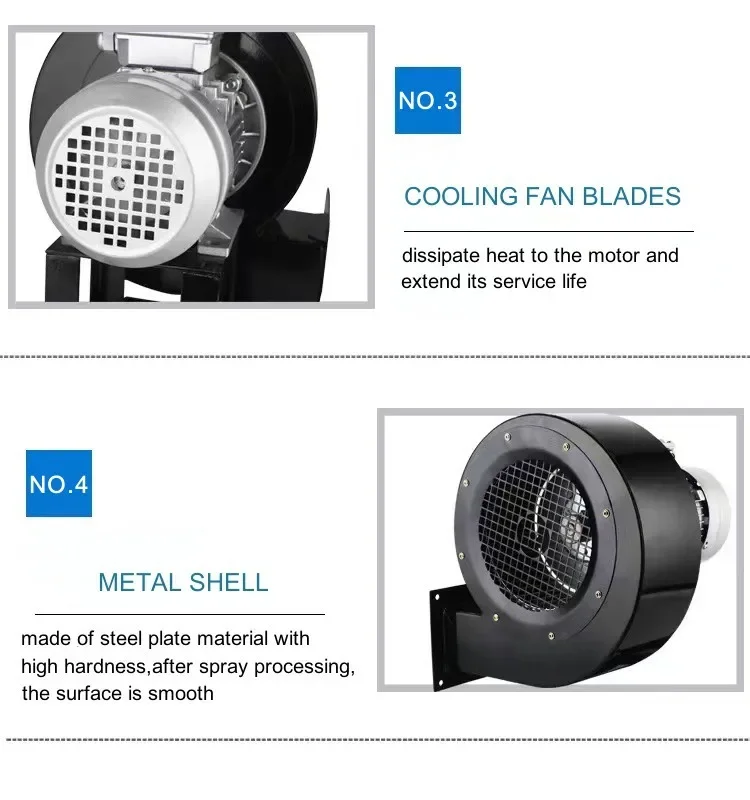

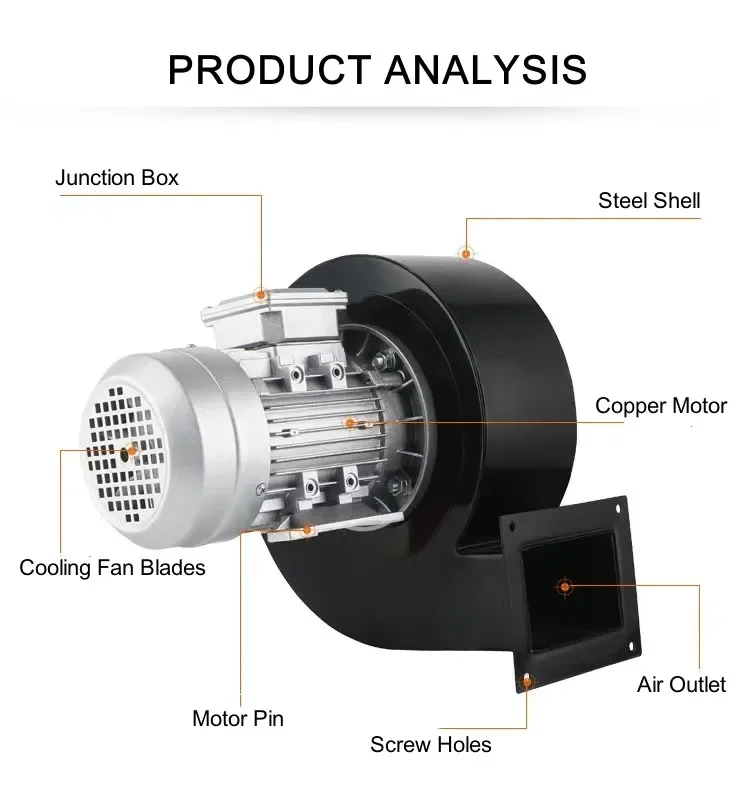

3.Y2 aluminum alloy die-casting materail is used in the motor,which greatly reduces weight,achieves lightweight,convenient installation and beautiful appearance.

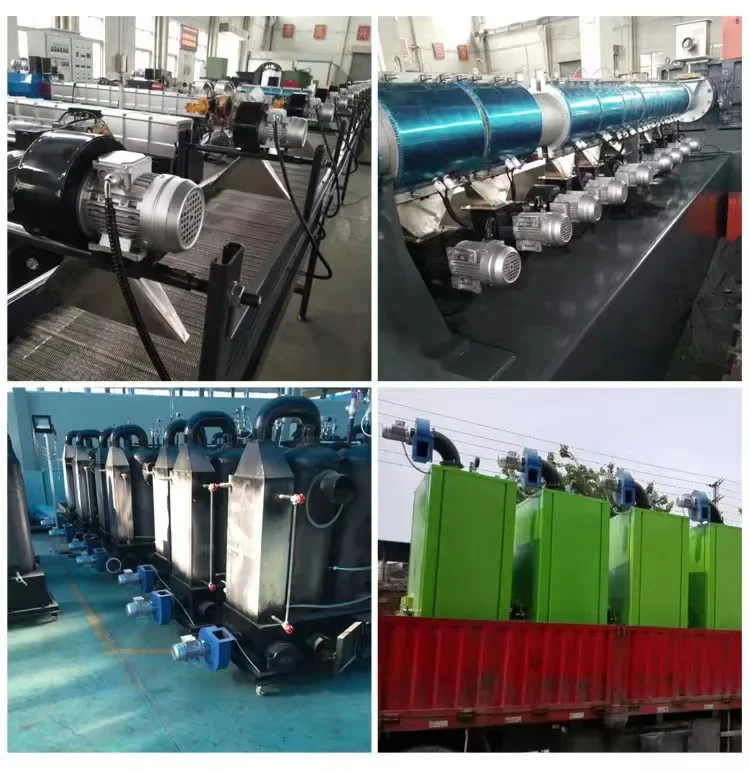

4.Widely used in telecommunications,power,electricity,electronics,geology,coal mines,ships,papermaking and other related industries.
5.Particlarly suitable for printing,plastics,packaging,film blowing,drying,cooling and other machinery and general ventilation.

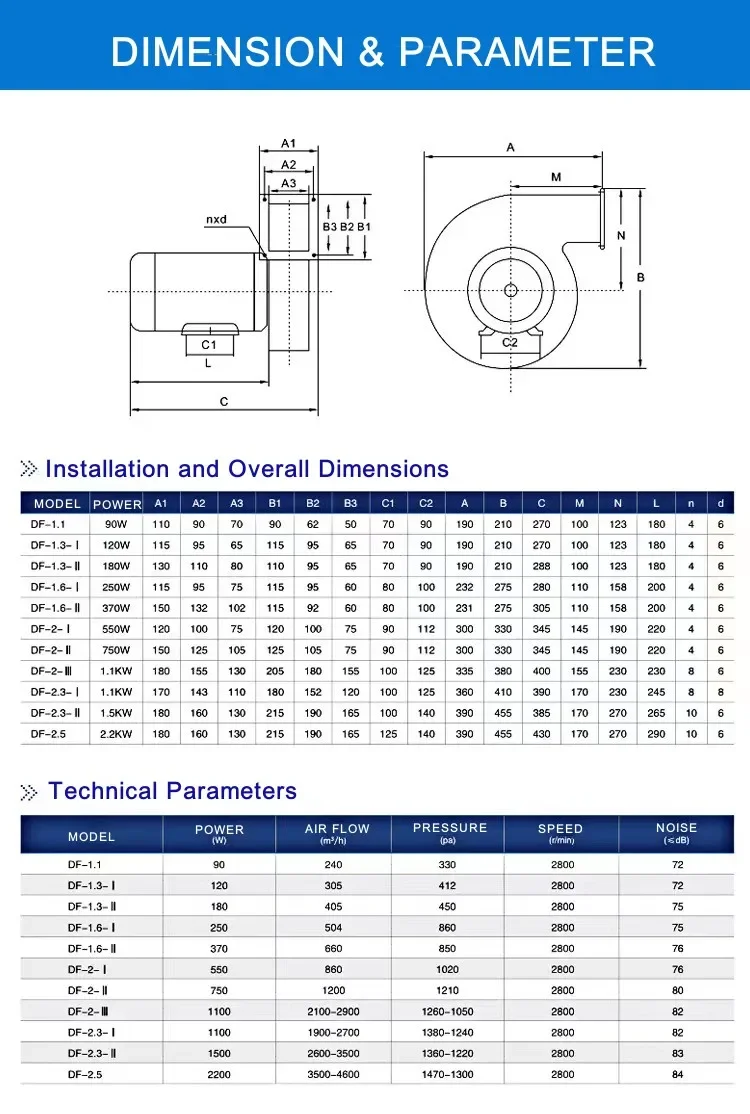

Main Parameter
| Model | Power (W) | Voltage | Frequency (Hz) | Speed (r/min) | Air Flow (m3/h) | Pressure (Pa) | Noise(dBA) |
| DF-1.3-I | 120W | 220/380 | 50 | 2800 | 305 | 412 | 72 |
| DF-1.3-II | 180W | 220/380 | 50 | 2800 | 405 | 450 | 75 |
| DF-1.6-I | 250W | 220/380 | 50 | 2800 | 504 | 860 | 75 |
| DF-1.6-II | 370W | 220/380 | 50 | 2800 | 660 | 850 | 76 |
| DF-2-I | 550W | 220/380 | 50 | 2800 | 860 | 1020 | 76 |
| DF-2-II | 750W | 220/380 | 50 | 2800 | 1200 | 1210 | 80 |
| DF-2-III | 1.1KW | 220/380 | 50 | 2800 | 1900-2700 | 1380-1240 | 82 |
| DF-2.5-I | 1.5KW | 220/380 | 50 | 2800 | 2600-3500 | 1360-1220 | 83 |
| DF-2.5-II | 2.2KW | 220/380 | 50 | 2800 | 3300-4000 | 1470-1300 | 84 |
| DF-2.5-III | 3KW | 220/380 | 50 | 2800 | 3900-4600 | 2050-1860 | 87 |
| DF-2.8-I | 4KW | 380 | 50 | 2800 | 4500-5400 | 2120-1830 | 90 |
| DF-2.8-II | 5.5KW | 380 | 50 | 2800 | 5000-6000 | 2360-2010 | 95 |
Q: How about the quality guarantee period?
R: One year.
Q: What tests do your products need to go through?
A: Air pressure flow test – Flame retardant test of plastic shell – High temperature resistance test – Low temperature test -Noise test – Stacked – Water proof – Drop destructive test.
Q: Can you provide samples?
A: After price confirmed, you can require for samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable.
Q: Do you accept OEM or ODM orders?
A: Yes, we accept OEM and ODM from customers.
Q: How long is your delivery time?
A: Small quantity is around 5-7 working days after receiving the prepayment. Large quantity orders need to negotiate the delivery time.
Q: How are you going to ship my order?
A: Usually, for sample order we will ship by express like EMS, DHL, FedEx, UPS, special-line logistic. For bulk order, we will ship by sea or air to your destination sea port or airport.
If you have own freight forwarder, we can deliver the goods to them as well.
Q: When can I get the quotation?
R:We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on other chat tools or call us directly.
Q : What are your terms of payment?
A : Generally, 30% T/T in advance, 70% balance before shipment.The common way is by T/T.
Frequently Asked Questions
What is the minimum order quantity for this radial fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this radial fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 110V/220V/380V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
