This off grid solar air conditioner is published with the manufacturer’s full specification — capacity 12000/18000/24000, model number solar air conditioner. Send your target quantity and destination for a firm quotation with current lead times.

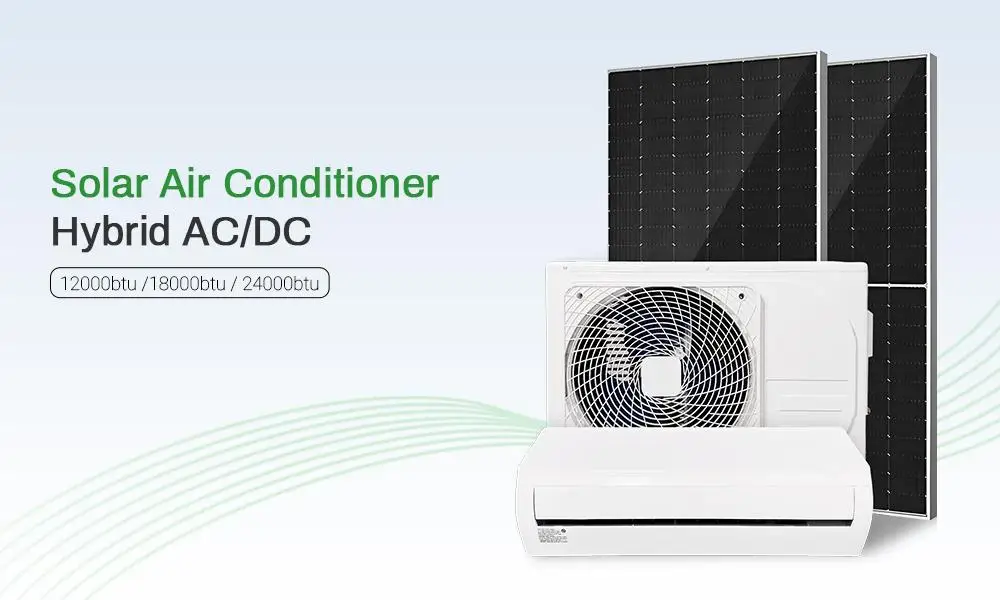

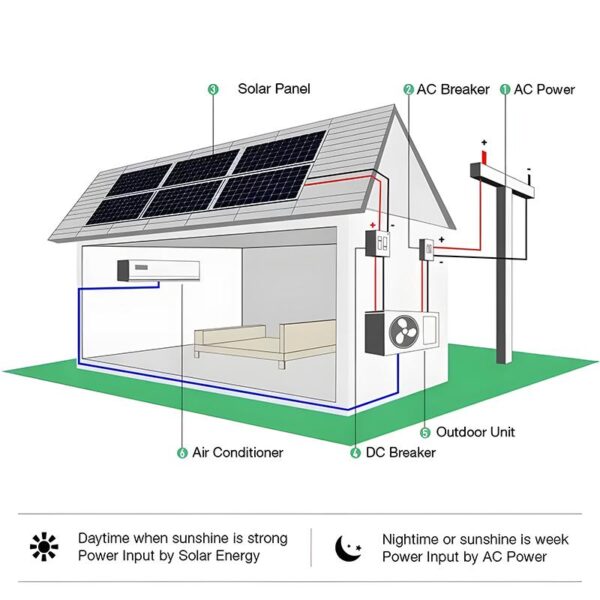

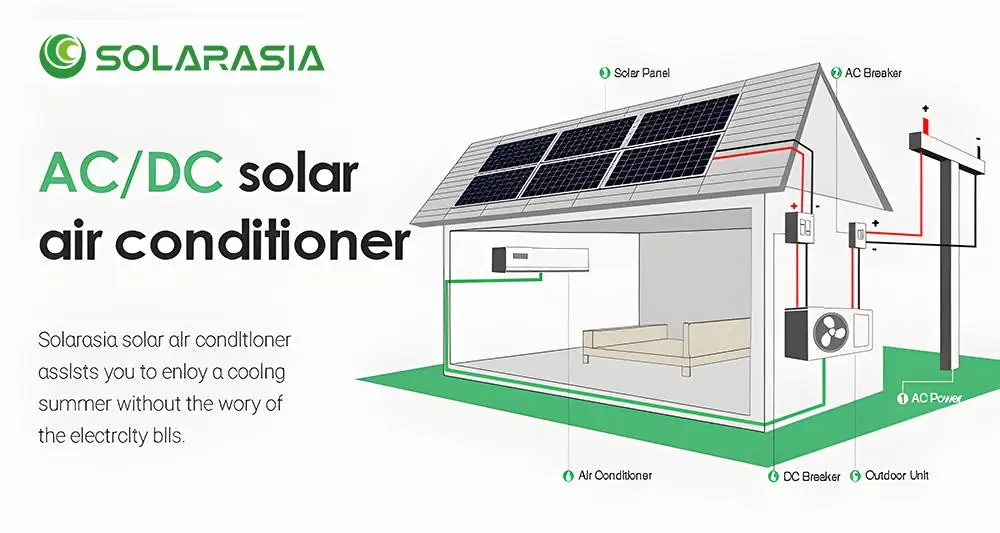

This off grid solar air conditioner is a true DC 48V split system, meaning panel output drives the compressor directly rather than passing through an inverter and losing 10-15 percent on the way. The hybrid AC/DC design falls back to mains after dark. EER reaches 12.75 on DC input against 3.75 on AC, which shows how much the conversion stage normally costs. Capacities from 12000 to 24000 BTU, cooling and heating.
Key Features of This Off Grid Solar Air Conditioner
- Model Number: solar air conditioner
- Capacity (Btu): 12000/18000/24000
- Place Of Origin: Anhui, China
- Application: Hotel, Household
- Single Package Size: 92X29X36 cm
- Single Gross Weight: 12.500 kg
Technical Specifications
| Capacity (Btu) | 12000/18000/24000 |
|---|---|
| Place Of Origin | Anhui, China |
| Brand Name | solarasia |
| Model Number | solar air conditioner |
| EER | 3.75/12.75 |
| Product Name | Solar Air Conditioner |
| Cooling/Heating | Cooling/Heating |
| Application | Hotel, Household |
| Indoor Unit(Dimension) | 840x205x295mm |
| Outdoor Unit(Dimension) | 802x564x323mm |
| Selling Units | Single item |
| Single Package Size | 92X29X36 cm |
| Single Gross Weight | 12.500 kg |
|
DC48V off grid Solar Air Conditioner
|
||||||||||||
|
Model
|
DGWA1-DC48V-09K
|
DGWA1-DC48V-12K
|
DGWA1-DC48V-18K
|
DGWA1-DC48V-24K
|
||||||||
|
Climate Type
|
Tropical≤58
|
T1/T3
|
T1/T3
|
T1/T3
|
T1/T3
|
|||||||
|
Power supply
|
Battery
|
DC
|
DC48V(46-58V）
|
DC48V(46-58V)
|
DC48V(46-58V)
|
DC48V(46-58V)
|
||||||
|
Rated Cooling
|
Capacity
(T1)
|
W
|
2600(1000-3400)
|
3510(1000-3700)
|
5070(1200-5250)
|
6450(2500-7000)
|
||||||
|
BTU
|
9000(3400-11600)
|
12000(3400-12600)
|
17300(4100-18000)
|
22000(8500-23900)
|
||||||||
|
Power input(T1)
|
W
|
680(180-1060)
|
980(200-1200)
|
1450(220-1780)
|
1840(450-2230)
|
|||||||
|
Rated Heating
|
Capacity
|
W
|
2900(800-3050)
|
3900(1000-4100)
|
5250(1200-5500)
|
7000(2000-7350)
|
||||||
|
Power input
|
W
|
830(160-950)
|
1130(180-1280)
|
1400220-1830)
|
2050(390-2350)
|
|||||||
|
T1 EER(W/W) /(BTU/W)
|
/
|
3.90/13.20
|
3.60/12.25
|
3.50/11.8
|
3.50/11.85
|
|||||||
|
COP(W/W) /(BTU/W)
|
/
|
3.50/11.90
|
3.45/11.75
|
3.75/12.80
|
3.40/11.70
|
|||||||
|
Dehumidification capacity
|
L/h
|
1.0
|
1.3
|
1.7
|
2.5
|
|||||||
|
Compressor
|
Model
|
/
|
ASK89D53UEZ
|
ASN98D22UFZ
|
WHP05600
|
5RD198
|
||||||
|
Tyре
|
/
|
Rotary inverter
|
Rotary inverter
|
2xRotary inverter
|
2xRotary Inverter
|
|||||||
|
Brand
|
/
|
GMCC
|
GMCC
|
HIGHLY
|
Panasonic
|
|||||||
|
Indoor fan motor
|
Model
|
BLDC 15W
|
BLDC 15W
|
BLDC 45W
|
BLDC 45W
|
|||||||
|
Indoor noise level (Turbo)
|
dB(A)
|
40
|
42.5
|
46
|
50
|
|||||||
|
Indoor unit
|
Dimension(W*H*D)
|
mm
|
840x205x295
|
840x205x295
|
1080x330x237
|
1080x330x237
|
||||||
|
Packing (W*H*D)
|
mm
|
920x290x360
|
920x290x360
|
1140x300x382
|
1140x300x382
|
|||||||
|
NetGross weight
|
kg
|
9.0/12.5
|
9.0/12.5
|
15.0/18.5
|
15.0/18.5
|
|||||||
|
Outdoor fan motor
|
Model
|
/
|
BLDC 40W
|
BLDC 40W
|
BLDC 55W
|
BLDC 75W
|
||||||
|
Outdoor coil
|
a.Number of rows
|
/
|
1
|
2
|
2
|
2
|
||||||
|
Outdoor noise level
|
dB(A)
|
51
|
52
|
55
|
58
|
|||||||
|
Outdoor unit
|
Dimension(W*H*D)
|
mm
|
802x564x323
|
802x564x323
|
802x564x323
|
900x700x337
|
||||||
|
Packing (W*H*D)
|
mm
|
910x622x405
|
910x622x405
|
910x622x405
|
1006x755x418
|
|||||||
|
Net/Gross weight
|
kg
|
28.0/32.0
|
32.0/36.0
|
36.0/40.0
|
51/56
|
|||||||
|
Refrigerant Type
|
/
|
R410a
|
R410a
|
R410a
|
R410a
|
|||||||
Frequently Asked Questions
What is the minimum order quantity for this off grid solar air conditioner?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
