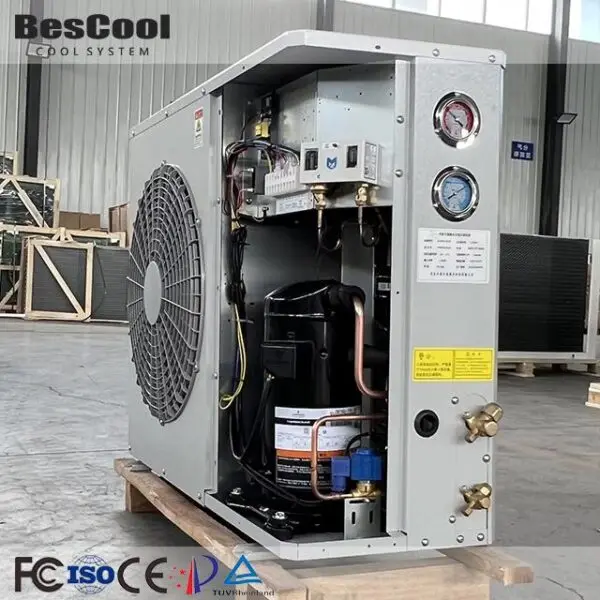

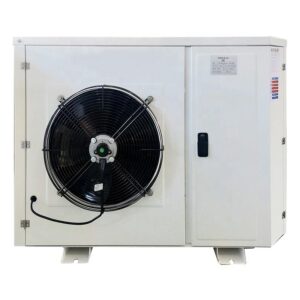

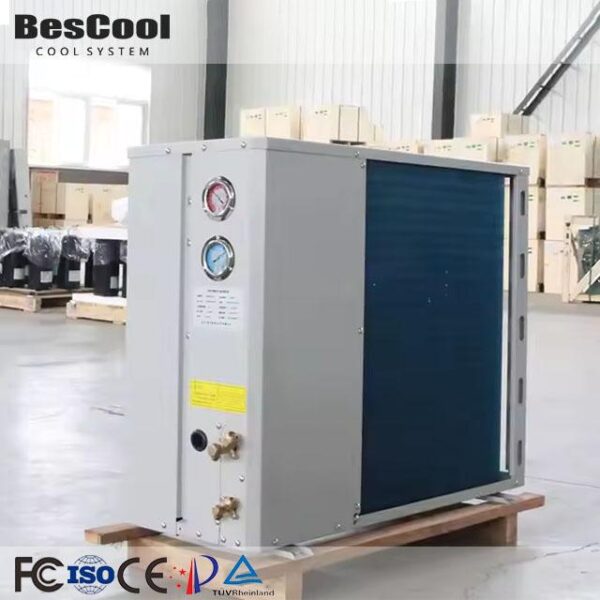

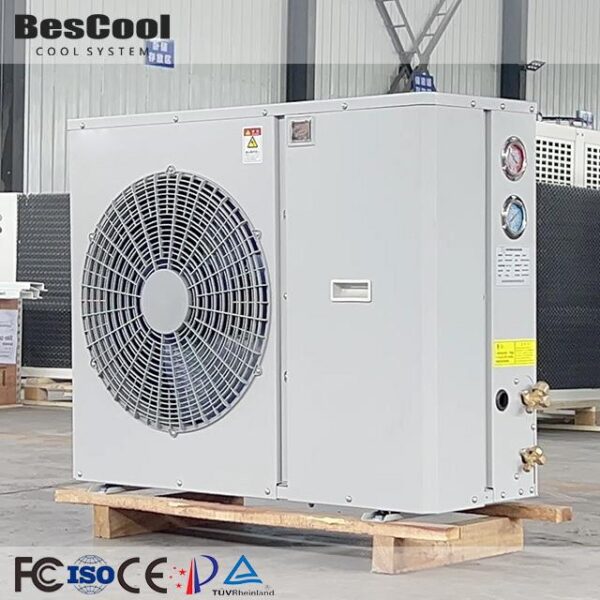

A multi-compressor box condensing unit stages capacity rather than running one large compressor on and off, which holds cold room temperature far more steadily and cuts start-up current dramatically. It also means a single compressor failure degrades performance instead of stopping the room entirely. Capacities from 2HP to 6HP across -25C to 5C on R404a, in a weather-protected L-type box on 220V or 380V.
Key Features of This Box Condensing Unit
- Voltage: 220v/380v
- Cooling Capacity: 2-6hp
- Refrigerant: R404a
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Compressor Type: Scroll
Technical Specifications
| Cooling Capacity | 2-6hp |
|---|---|
| Temperature | -25℃-5℃ |
| Compressor Brand | Bescool |

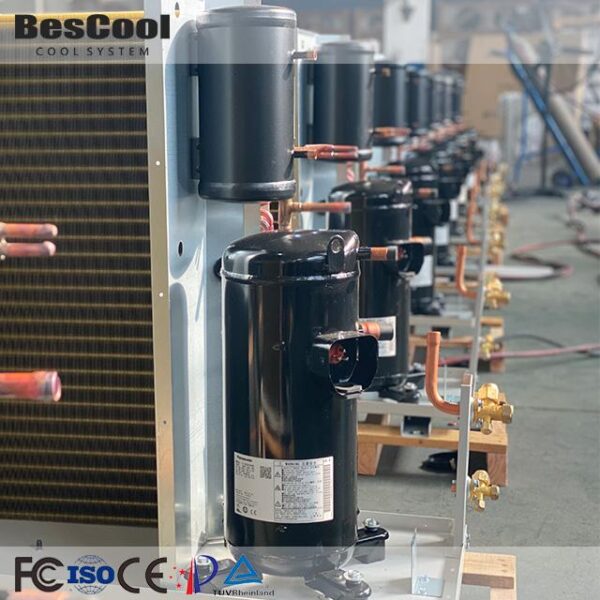

| Compressor Type | Scroll |
| Key Selling Points | Eco-Friendly, High-Accuracy, Competitive Price, High Productivity, Energy Saving, Low Maintenance Cost |
| Voltage | 220v/380v |
| Warranty | 1 Year |

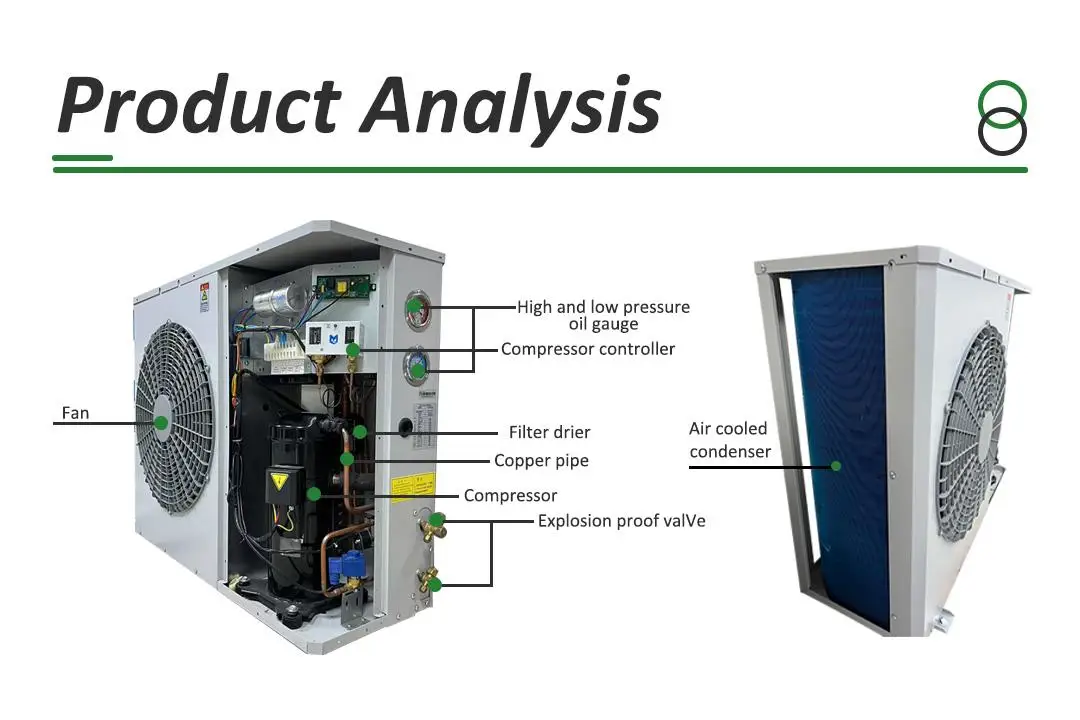

| Core Components | Motor, Pressure Vessel, condenser |
| Video Outgoing-Inspection | Provided |
| Refrigerant | R404a |
| Place Of Origin | Guangdong, China |
| Weight (KG) | 80 |
| Selling Units | Single item |
| Single Package Size | 101X44X122 cm |
| Single Gross Weight | 80.000 kg |
|

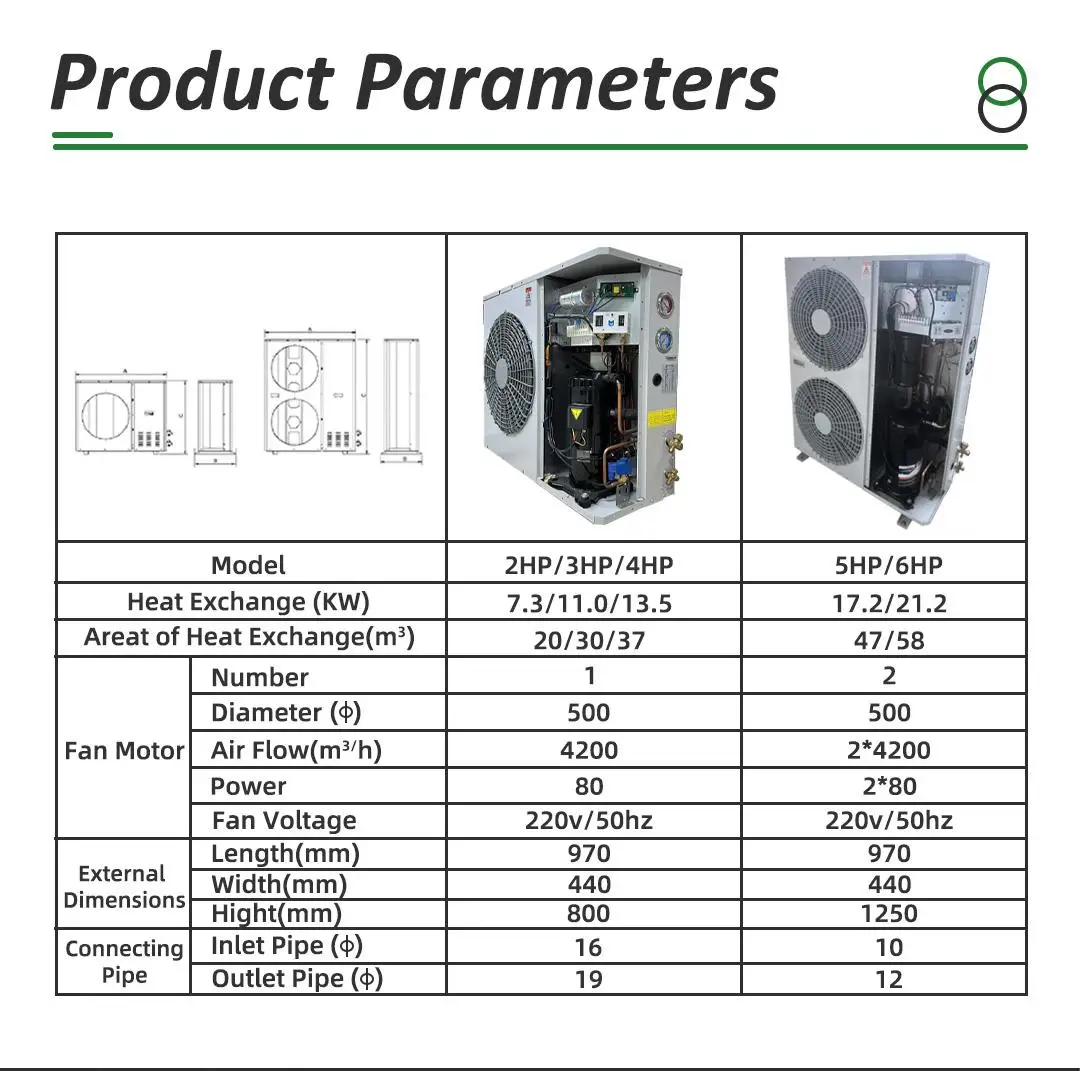

Model
|
2H P/3HP/4HP
|
5HP/6HP
|
||
|
Heat Exchange (KM)
|
7.3/11.0/13.5
|
17.2/21.2
|
||
|
Areat of Heat Exchange(m3)
|
20/30/37
|
47/58
|
||
|
Fan Motor
|
Number
|
1
|
2
|
|
|
Diameter（Φ）
|
500
|
500
|
||
|
Air Flow(m3/h)
|
4200
|
2*4200
|
||
|
Power(W)
|
80
|
2*80
|
||
|
Fan Voltage
|
220v/50hz
|
220v/50hz
|
||
|

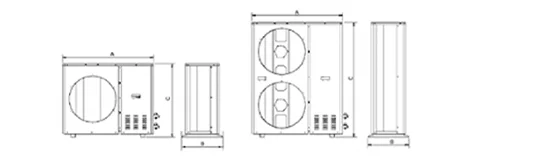

External Dimensions
|
Length(mm)
|
970
|
970
|
|
|
Width(mm)
|
440
|
440
|
||
|
Hight(mm)
|
800
|
1250
|
||
|
Connecting Pipe
|
Inlet Pipe(Φ)
|
16
|
19
|
|
|
Outlet Pipe(Φ)
|
10
|
12
|
||
Frequently Asked Questions
What is the minimum order quantity for this box condensing unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this box condensing unit?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220v/380v. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
