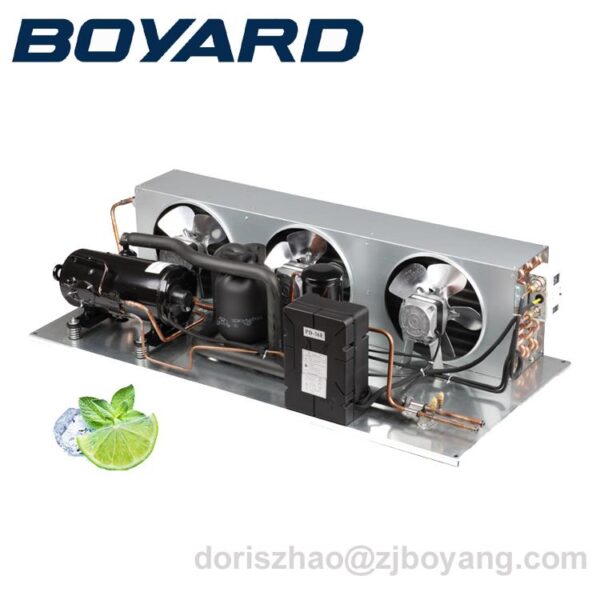

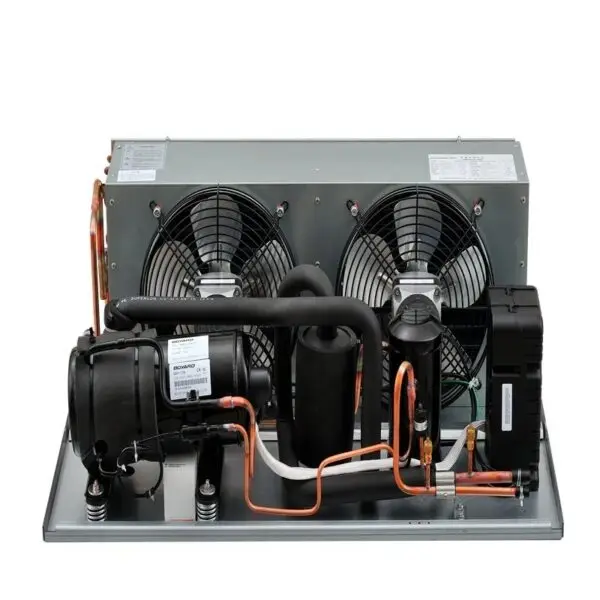

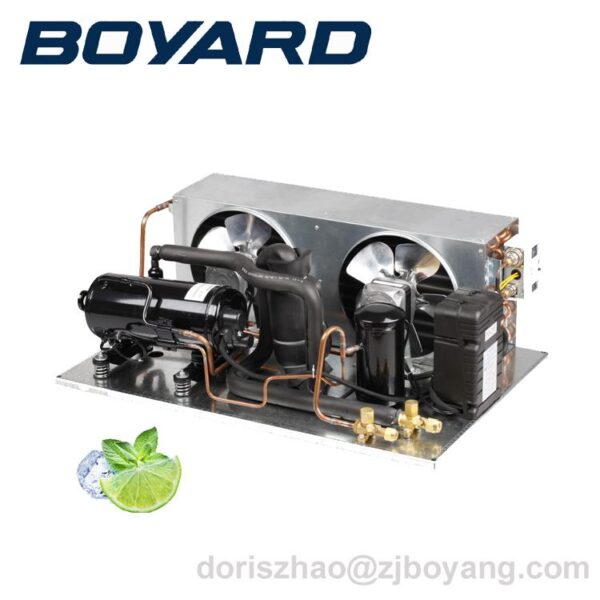

Rotary compressor condensing unit — 220V~240V/50HZ, 0.5 HP~3HP. The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
This rotary compressor condensing unit is built for R448A and R449A, the lower-GWP blends replacing R404A in commercial refrigeration — buying an R404A-only unit today is buying a retrofit later. Rotary compressors are compact and quiet, which suits wall-mounted commercial refrigerators in customer-facing spaces. 0.5HP to 3HP with evaporating temperatures from -5C down to -40C, on 220-240V/50Hz at 30kg.
Key Features of This Rotary Compressor Condensing Unit
- Power Supply: 220V~240V/50HZ
- Capacity: 0.5 HP~3HP
- Refrigerant: R404A, R449A
- Warranty: 1 Year
- Place Of Origin: China
- Single Package Size: 73X56X37 cm
Technical Specifications
| Warranty | 1 Year |
|---|---|
| Video Outgoing-Inspection | Provided |
| Place Of Origin | China |
| Weight (KG) | 30 |
| Refrigerant | R404A, R449A |
| Power Supply | 220V~240V/50HZ |
| Capacity | 0.5 HP~3HP |
| Evaporating Temp. | -5 degree to -40 degree |
| Packaging Details | Standard export packing |
| Selling Units | Single item |
| Single Package Size | 73X56X37 cm |
| Single Gross Weight | 40.000 kg |
freezer parts R22 R404A monoblock style refrigeration units for trucks for dry ice refrigerator bar cabinet refrigerator
spare parts for cold room r22 r404a frozen refrigeration unit for van for refrigerators and freezers freezer room
Refrigerated Truck parts r22 r404a van monoblock refrigeration unit for bottom freezer refrigerator vehicle refrigeration
r404a lanhai mini compressor type condensator unit for commercial retail refrigerator island display cooler
r22 r404a horizontal compressor water dispenser condensing unit for display bread showcase refrigerated display island case
r404a r22 refrigerating compressor marine condensing unit for supermarket showcase cold condensed milk food coold room
r404a r22 outdoor cold room condenser unit replace carrier condensing unit for chest freezer refrigerator cooler for meat frozen food
refrigeration parts r22 r404a lanhai compressor type condensing unit for french door bottom freezer refrigerator
r22 r404a freezer compressor air condensing units for commercial refrigerator brands open top island freezer
r22 r404a refrigeration kompressors condensing unit replace copeland condensing unit for refrigerator cooling system coold room

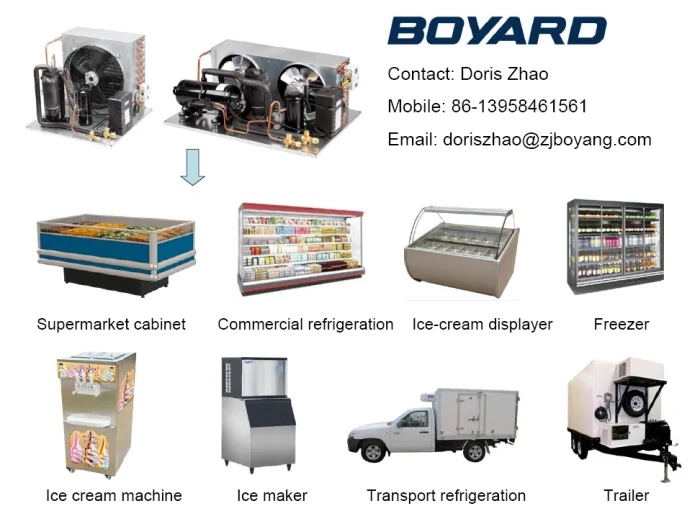

Application:
- Commercial freezing refrigeration equipment
- Supermarket freezer, showcase, cabinet
- Cook room equipment
- Storage cold room, cool room, freezing room
- Transport Refrigeration system
- Ice maker, ice cream machine
- Mik cooler, Milk cooling tank
- Compact Size
- Low height conpact size
- High reliability
- High efficiency
|
MODEL |
HQHD-13K |
HQHD-16K |
HQHD-23K |
HQHD-30K |
HQHD-36K |
|
|
NOMINAL INPUT(W) |
720 |
900 |
1280 |
1500 |
1730 |
|
|
POWER SUPPLY |
SINGLE PHASE: 220V-240V/50Hz |
|||||
|
REFRIGERANT MAX.(KG) |
R404A(1.2) |
R404A(1.5) |
R404A(2.0) |
R404A(3.0) |
R404A(3.0) |
|
|
START-UP CURRENT (A) |
20 |
27 |
38 |
42 |
50 |
|
|
MAX. RUNNING CURRENT (A) |
4.0 |
5.0 |
7.0 |
8.5 |
10.0 |
|
|
EVAP. TEMP. RANGE (℃) |
-40~0 |
|||||
|
AMBIENT TEMP. (℃) |
-7~43 |
|||||
|
REFRIGERATION CAPACITY |
EVAP. TEMP.(℃) |
REFRIGERATION CAPACITY: W(Kcal/h) |
||||
|
-40 |
504(433) |
630(542) |
850(731) |
1200(1032) |
1250(1075) |
|
|
-35 |
654(562) |
820(705) |
1104(949) |
1506(1295) |
1604(1379) |
|
|
-30 |
807(694) |
950(817) |
1240(1066) |
1803(1551) |
2030(1746) |
|
|
-25 |
975(839) |
1203(1035) |
1565(1346) |
2200(1892) |
2560(2202) |
|
|
-20 |
1190(1023) |
1430(1230) |
1890(1625) |
2604(2239) |
3050(2623) |
|
|
-15 |
1430(1230) |
1705(1466) |
2130(1832) |
2950(2537) |
3500(3010) |
|
|
-10 |
1790(1539) |
2050(1763) |
2460(2116) |
3560(3062) |
4230(3638) |
|
|
-5 |
2130(1830) |
2340(2012) |
2827(2431) |
3911(3363) |
5000(4300) |
|

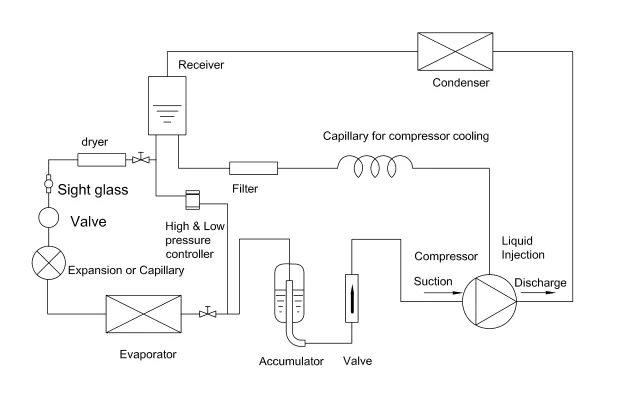

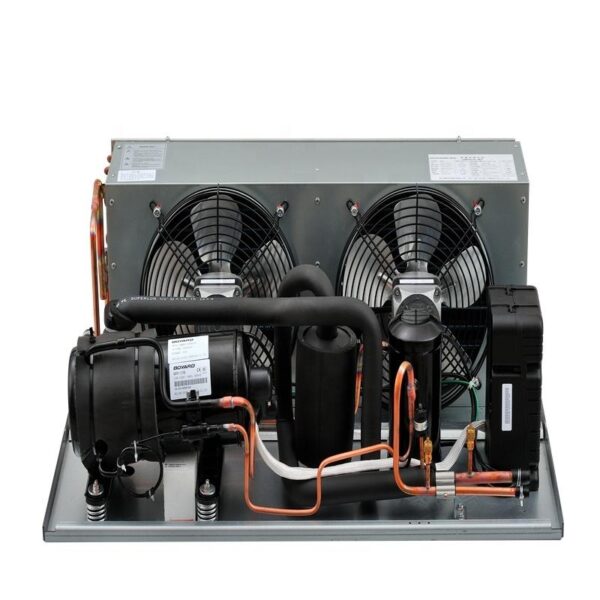

Refrigeration system with boyard refrigeration compressor:
1. What is the MOQ?
The MOQ is 1 piece.
2. What is the delivery time?
10days after payment for sample order, and 25days for bulk order.
3. What is the shipping port?
NINGBO or SHANGHAI port.
4. What is the payment method?
We can accept T/T, Western Union, Paypal, L/C, etc.
5. What is our main product?
- Small DC 12V/24V/48V compressor
- Rotary compressor for caravan air conditioner, home air conditioner
- Refrigeration compressor & Condensing unit for commercial refrigeration & transport refrigeration
- DC 12V/24V/48V/72V/312V compressor
Sample order:

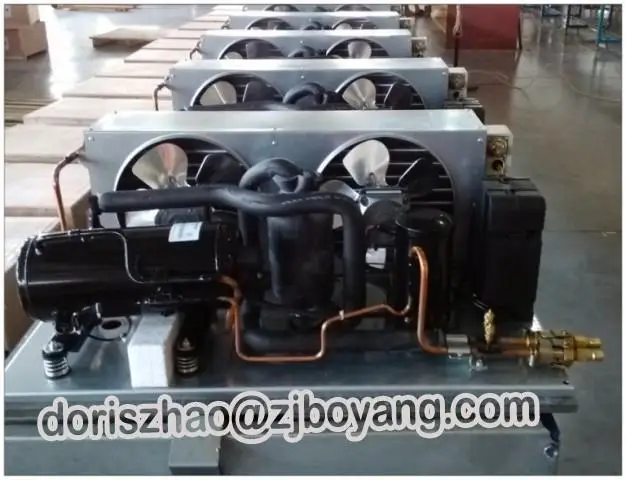

Each condensing unit was packaged in one non-fumigated wooden box.
Delivery time: Generally we have samples on stock. We can deliver as soon as receiving the payment.
Large order:
The condensing unit will be packaged in one non-fumigated wooden box. One 20 feet container can load 120 to 150 PCS.

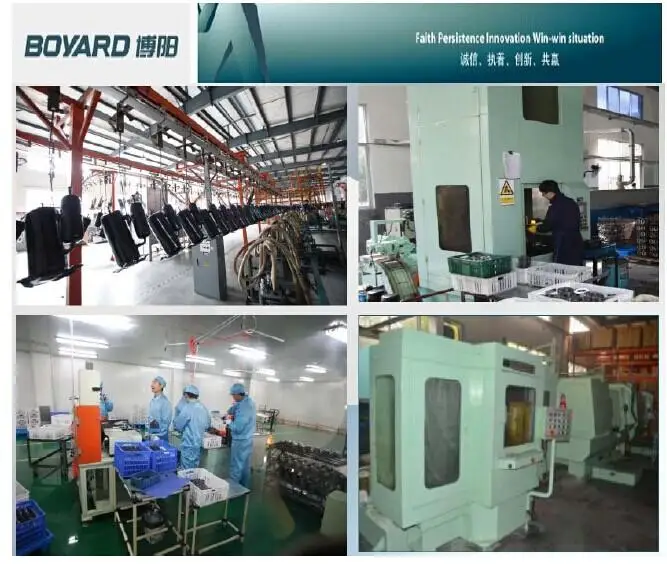

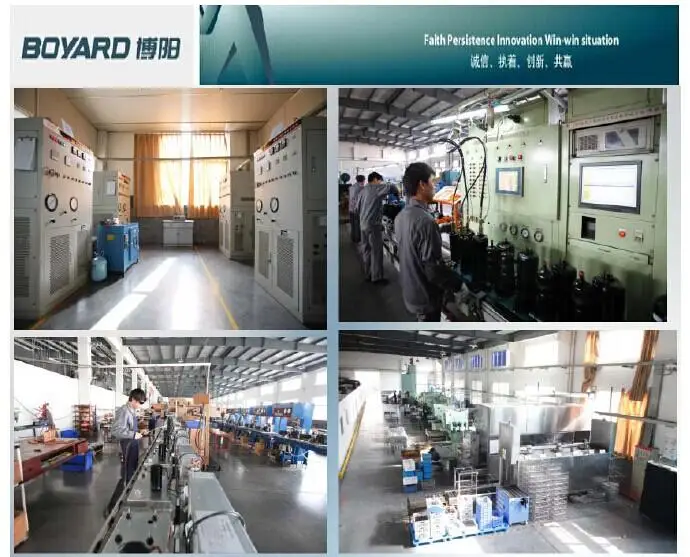

Company founded: in 2006
Company size: 33,000 square meters
Building area: 20,000 square meters
Staff: 250~300 numbers
Certification: CCC, CE, RoHS, REACH
Production Capacity: 500,000 units per year
Market share: International market 48.26%, domestic market 51.74%
Samples: there’s a charge for the sample and shipping cost, but if you have quantity in the future, the sample fee will be deducted from next payment.
Warranty: we have one year warranty for manufacturer.
Technical support: We have professional technical department and R&D centre, if you have any questions, feel free to ask.
Frequently Asked Questions
What is the minimum order quantity for this rotary compressor condensing unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this rotary compressor condensing unit?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220V~240V/50HZ. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
