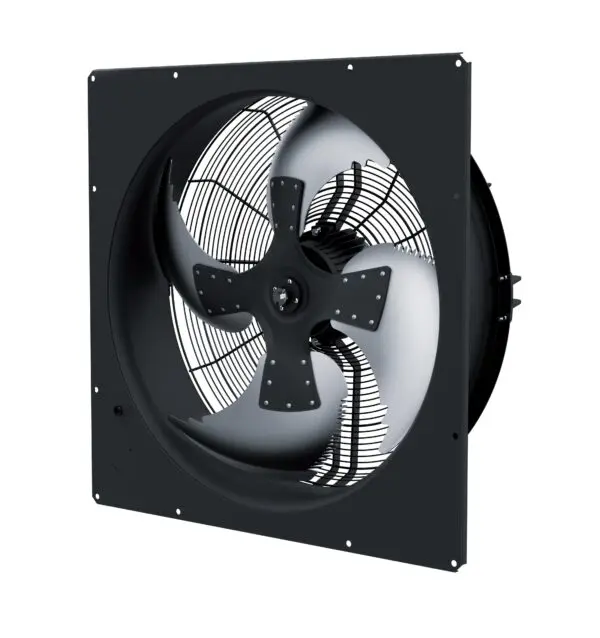

A condenser axial fan is the component that determines both the noise a refrigeration unit makes and how much capacity it holds on a hot day. Aluminium alloy blades with an electrophoresis-treated aluminium motor housing resist the outdoor corrosion that seizes cheaper steel fans, and hydraulic bearings run quieter than ball. Sizes from 630mm to 1000mm on 380V three phase for condensers, freezer units and heat pumps.
Key Features of This Condenser Axial Fan
- Power Source: Electric
- Voltage: 380 V
- Material: Aluminum Alloy
- Blade Material: Aluminum Alloy
- Rotating Speed: 950r/min
- Warranty: 1 Year
Technical Specifications
| Voltage | 380 V |
|---|---|
| Material | Aluminum Alloy |
| Type | ac axial fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | Aluminum Alloy |
| Bearing Type | hydraulic bearing |
| After-Sales Service Provided | Online support |
| Place Of Origin | Fujian, China |
| Motor Housing | Premium aluminum alloy / electrophoresis |
| Fan Blades | Premium aluminum alloy / electrophoresis |
| Rotating Speed | 950r/min |
| Selling Units | Single item |

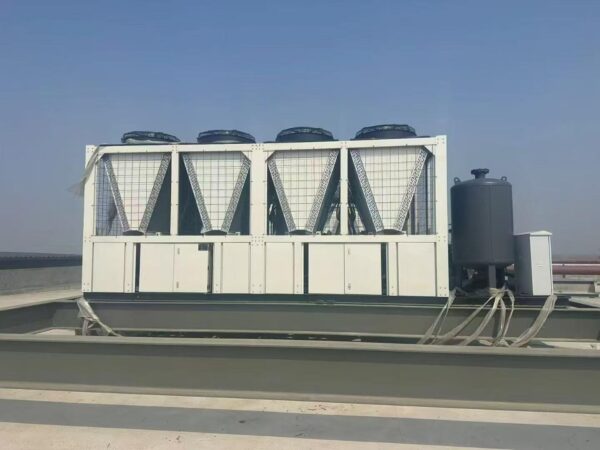

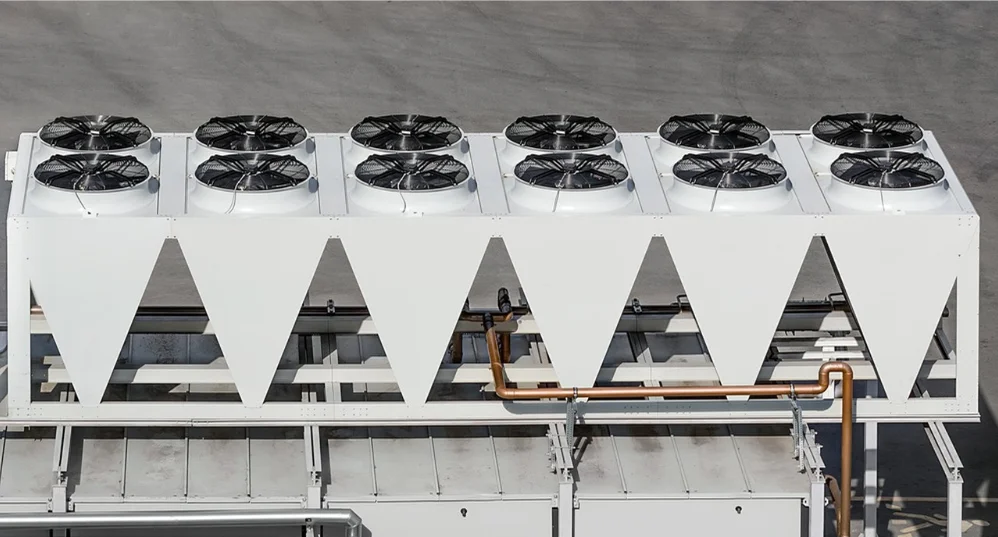

APPLICATION FIELD

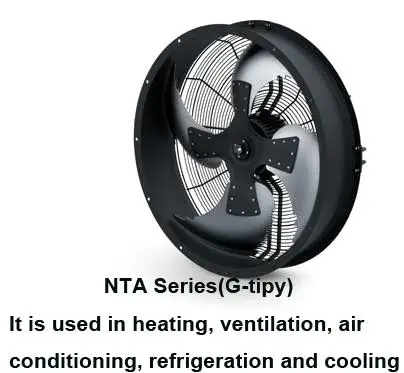

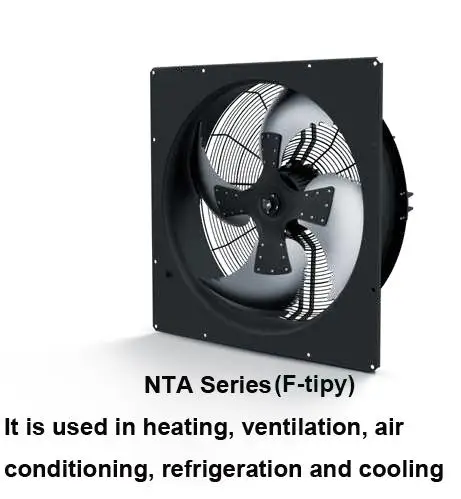

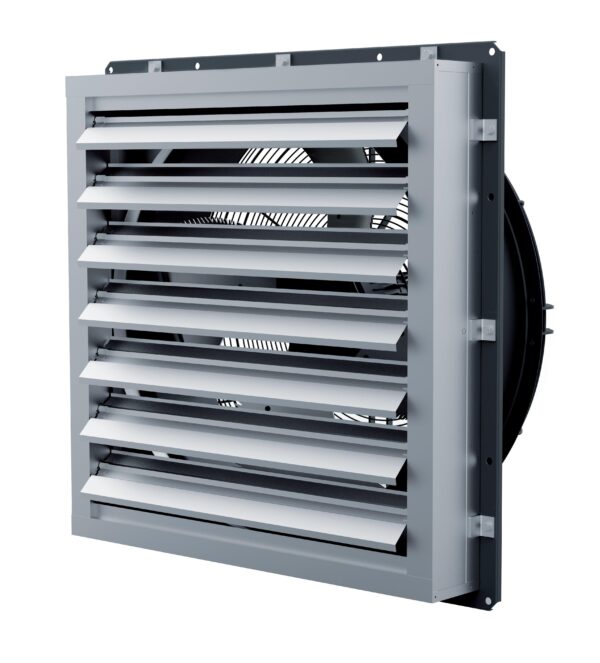

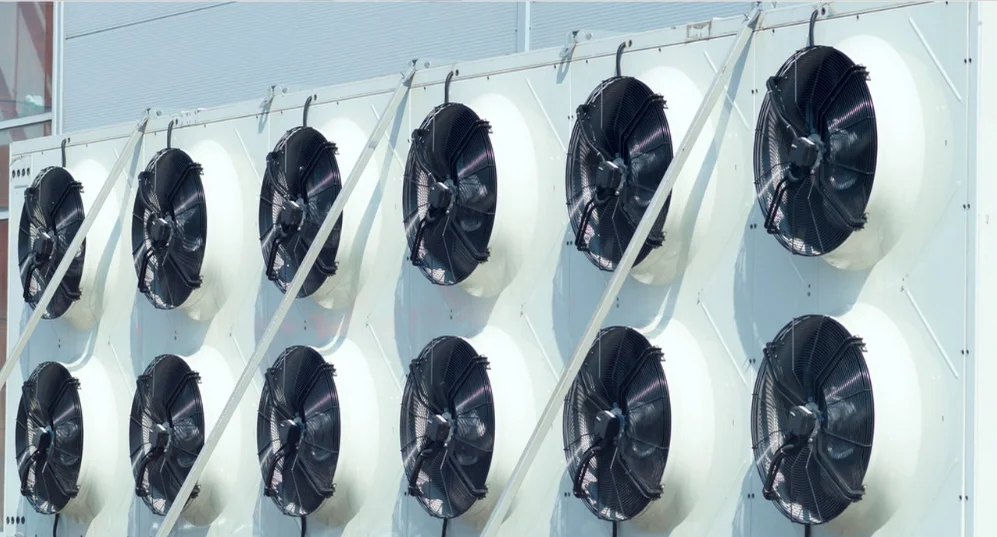

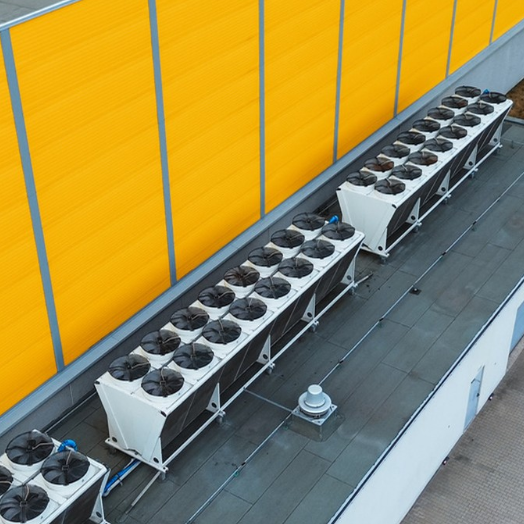

The NTA/TZA series silent axial flow fans are widely used in heating, ventilation, air conditioning, cooling and other fields. According to the structure and purpose of different devices, the following fixing methods can be provided: square panel fixing (F-type), circular duct fixing (G-type), and square panel ixing with swing blades at the front end (FB type); Adapt to various complex work environment requirements.
|
Model
|
Rotational Speed (RPM)
|
Air flow（CMH)
|
Power(kW)
|
Voltage（V）
|
Static pressure（pa）
|
Frequency（Hz）
|

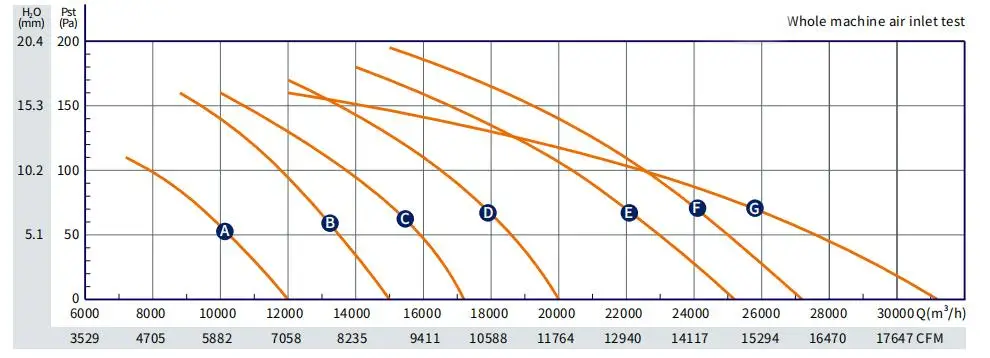

Curve
|
|
NTA710-6
|
950
|
13000
|
0.75
|
380
|
150
|
50
|
B
|
|
NTA760-6
|
950
|
15500
|
0.9
|
380
|
160
|
50
|
C
|
|
NTA800-6
|
960
|
18000
|
1.1
|
380
|
170
|
50
|
D
|
|
NTA850-6
|
960
|
22000
|
1.5
|
380
|
180
|
50
|
E
|
|
NTA900-6
|
960
|
23500
|
1.8
|
380
|
190
|
50
|
F
|
|
NTA1000-8
|
715
|
25000
|
1.8
|
380
|
150
|
50
|
G
|

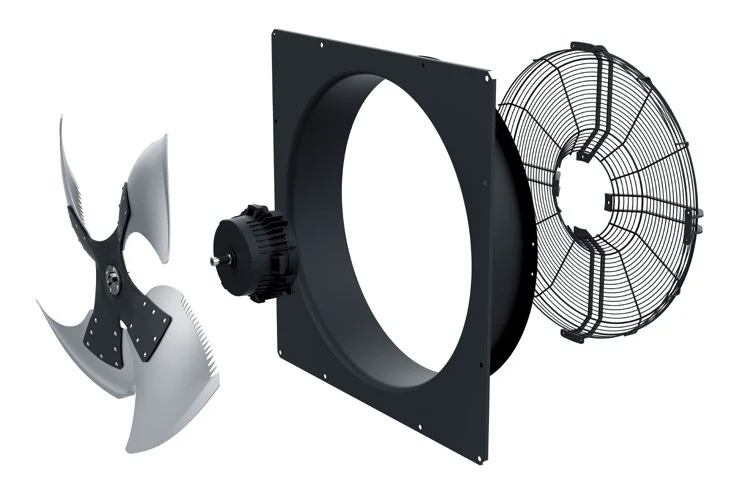

• Motor casing: High quality aluminum alloy/electrophoretic coating
• Blade: High quality aluminum alloy/electrophoretic (can be matched with high-strength and lightweight composite materials)
• Wheel hub: galvanized plate wheel hub+electrostatic spraying/electrophoresis
• Air duct: galvanized sheet+electrostatic spraying/electrophoresis
• Mesh cover: high-quality steel wire+electrostatic spraying/electrophoresis
• Humidity: ≤ 98%
• Insulation level: H
• Protection level: IP66
• Work system: S1
• Altitude: ≤ 1000m
• Applicable environment:- 40℃ ~+60℃
• Distance between fan and radiator ≥ 0.3 times the outer diameter of the impeller
• Fan inlet distance ≥ impeller outer diameter
• Fan outlet distance ≥ 1.5 times the outer diameter of the impeller
The wind blade design adopts a curved swept toothed tail wing, combined with bionics and aerodynamic principles, effectively cutting and combing the airlow, thereby reducing noise.

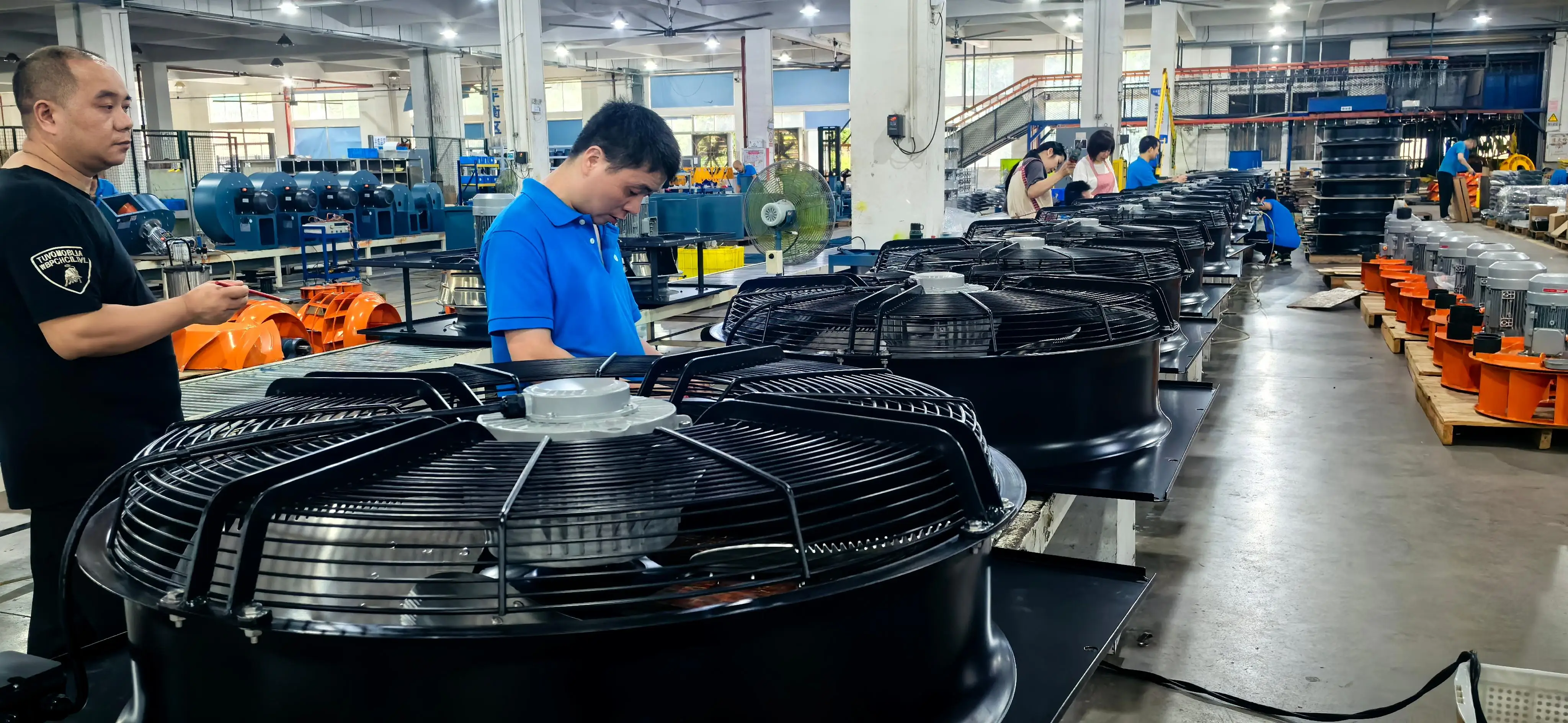

TWO MOTOR SCHEMES
NTA(AC): Adopting AC asynchronous motor
Protection method: with thermal protection

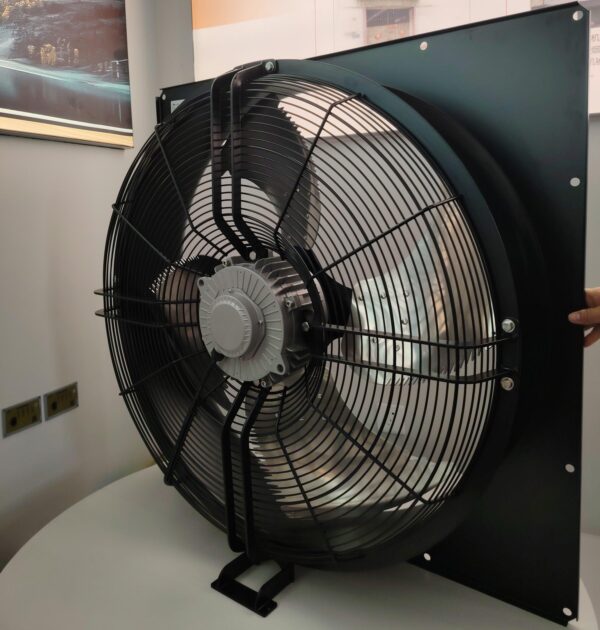

The motor protection level is IP66, and the mesh cover prevents external foreign objects from entering, improving the reliability and service life of the fan.

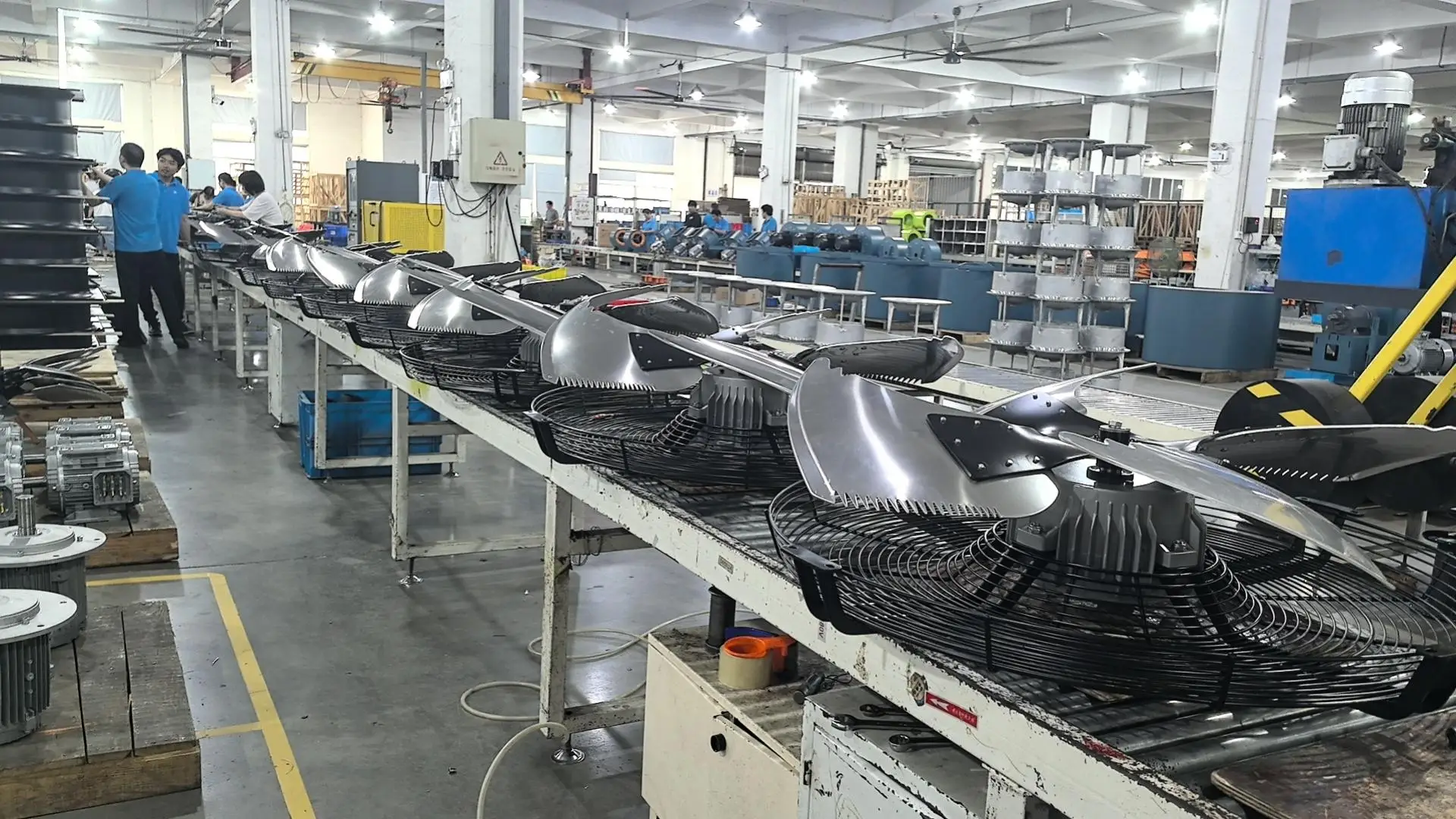

DIRECT INSTALLATION

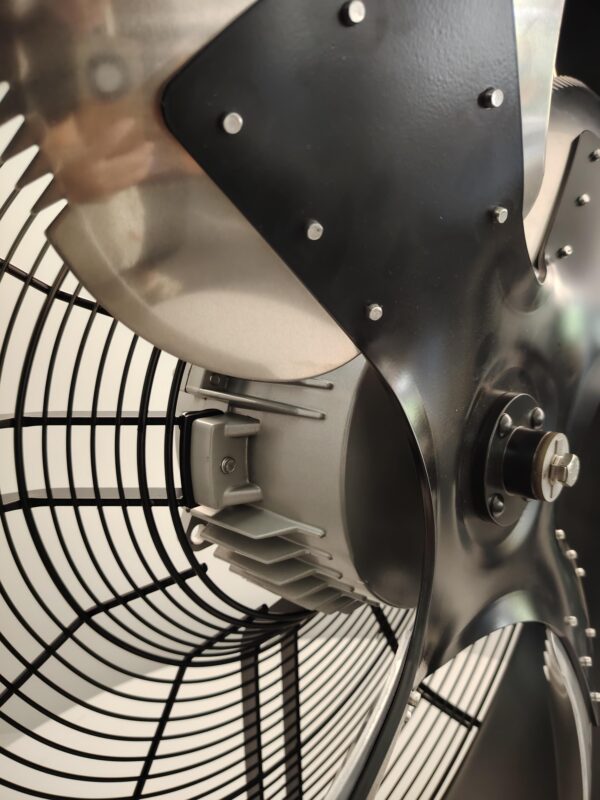

The motor is directly connected to the fan blades, reducing energy loss in the transmission process and improving efficiency. More compact structure and easier installation.
Variable pole dual speed: 6/4,8/6,10/8,12/8
Our axial flow fans adopt an innovative airfoil blade design and low-noise, space-saving motor technology, ensuring smooth and powerful airflow delivery, extremely low operating noise, and higher energy efficiency ratio. These systems are particularly suitable for places requiring continuous quiet ventilation, with significant optimization in energy consumption and noise levels compared to traditional ventilation solutions.
