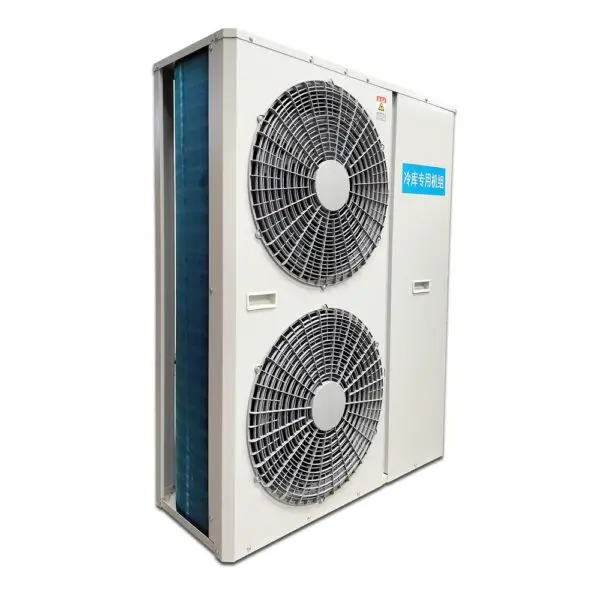

R32 is the refrigerant regulation is steering European commercial refrigeration towards, with roughly a third the global warming potential of R404A, and an all-in-one condensing unit built for it from the start avoids a retrofit later. Bitzer or Emerson scroll compressor covering -20C through 35C, with an unusually broad voltage range from 110V to 440V and a two-year warranty.
Key Features of This All-In-One Condensing Unit
- Model Number: tj0803
- Voltage: 440~380v/220~230v/110v
- Refrigerant: R22,R404A or others
- Warranty: 2 Years
- Place Of Origin: Henan, China
- Compressor Type: Scroll
Technical Specifications
| Temperature | -20-8c, 8-18c, 18-20c, 20-25c, 25-30c, 30-35c |
|---|---|
| Compressor Brand | Bitzer/Emerson |
| Compressor Type | Scroll |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, Energy Saving |
| Voltage | 440~380v/220~230v/110v |
| Warranty | 2 Years |

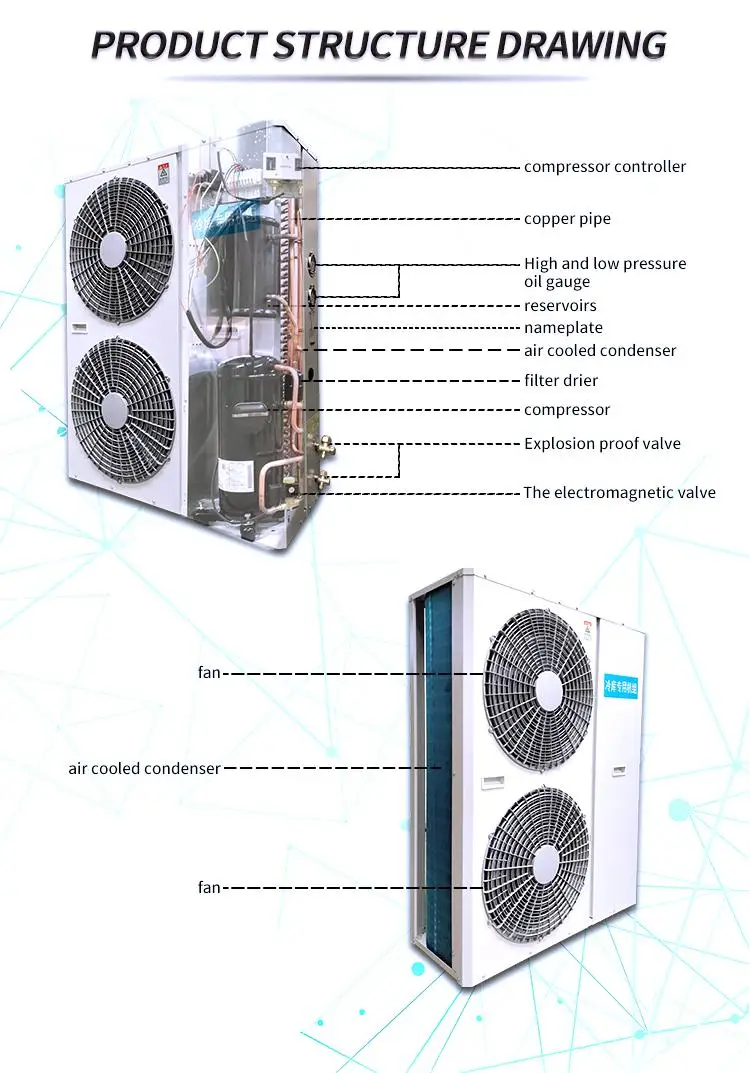

| Core Components | Pressure Vessel, Motor, Other, Bearing, PLC |
| Video Outgoing-Inspection | Provided |
| Refrigerant | R22,R404A or others |
| Place Of Origin | Henan, China |
| Weight (KG) | 50 |
| Model Number | tj0803 |
| Selling Units | Single item |
| Single Package Size | 70X32X56 cm |
| Single Gross Weight | 40.000 kg |
2023 European New Product R32 All-in-One Heat Pump Air Conditioner Air to Water Warmepumpe
| R22 MEDIUM/HIGH BACK PRESSURE 50Hz | ||||||||
| MODEL | AOS-2HP | AOS-3HP | AOS-3HP | AOS-3.5HP | AOS-4HP | AOS-SHP | AOS-6HP | AOS-7HP |
| HORSE POWER | 2HP | 3HP | 3HP | 3.5HP | 4HP | 5HP | 6HP | 7HP |
| NOMINALCAPACITY | 3200 | 5000 | 5000 | 6000 | 7000 | 8000 | 8800 | 9200 |
| DISPLACEMENT | 44 | 58.2 | 74 | 90.2 | 112.5 | 124.4 | 134.8 | |
| OUTLINE SIZE | 700×320×560 | 955x365x800 | 955x365x1250 | |||||
| GROSS WEIGHT(kg) | 82 | 92 | 92 | 93 | 93 | 125 | 127 | 130 |
| (kg) NET WEIGHT |
80 | 86 | 86 | 87 | 87 | 118 | 120 | 123 |
| PIPE(mm) | INφ 16 OUTφ 10 | INφ19 OUTφ12 | ||||||
| FANSIZE(mm) | 1Ad.450mm | 1Ad.450mm | 2Ad.450mm | |||||
| POWER SUPPLY | 220-240V-50Hz | 380V3-50Hz | ||||||
| REFRIGERANT | R22 | |||||||
| OIL | SUNISO3GS SUNISO4GS | |||||||
| NOISE(dB)(at 1m) | 56 | 57 | 57 | 57 | 58 | 62 | 63 | 64 |
| REFRIGERANTCHARGE(kg) | 2-2.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 | 3-4 | 5.5-6.5 | 6-7 | 6.5-7.5 |
| REFRIGERATION VOLUME(m³) | 25 | 40 | 40 | 45 | 50 | 70 | 80 | 90 |
| REFERENCE EVAPORATING(m²) |
20-25 | 25-30 | 25-30 | 35 | 25-35 | 30-45 | 40-48 | 40-55 |
| R404A MEDIUM/HIGH BACK PRESSURE 50Hz | ||||||||
| MODEL | AOS-2HP | AOS-3HP | AOS-3HP | A0S-3.5P | A0S-4HP | AOS-5HP | A0S-6HP | A0S-7HP. |
| HORSE POWER | 2HP | 3HP | 3HP | 3.5HP | 4HP | 5H | 6HP | 7HP |
| NOMINAL CAPACITY |
3200 | 5000 | 5000 | 6000 | 7000 | 8000 | 8800 | 9200 |
| DISPLACEMENT | 44 | 58.2 | 74 | 90.2 | 112.5 | 124.4 | 134.8 | |
| OUTLINE SIZE | 700×320×560 | 955x365x800 | 55x365x1250 | |||||
| (kg) GROSS WEIGHT |
82 | 92 | 92 | 93 | 93 | 125 | 127 | 130 |
| (kg) NET WEIGHT |
80 | 86 | 86 | 87 | 87 | 118 | 120 | 123 |
| PIPE(mm) | INφ16OUTφ 10 | INφ19OUTφ12 | ||||||
| FAN SIZE(mm) |
1Ad.400mm | 1Ad.450mm | 2Ad.450ms | |||||
| POWER SUPPLY | 220-240V-50Hz | 380V3-50Hz | ||||||
| REFRIGERANT | R404A | |||||||
| OIL | RL-32H | |||||||
| NOISE(dB)(at 1m) | 56 | 57 | 57 | 57 | 58 | 62 | 62 | 64 |
| REFRIGERANTCHARGE(kg) | 2-2.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 | 3-4 | 5.5-6.5 | 6-7 | 6.5-7.5 |
| REFRIGERANT COOL VOLUME(m³) | 25 | 40 | 40 | 45 | 50 | 70 | 80 | 90 |
| EFFRENCE EVAPORATING(m²) |
20-25 | 25-30 | 25-30 | 35 | 25-35 | 30-45 | 40-48 | 40-55 |
Frequently Asked Questions
What is the minimum order quantity for this all-in-one condensing unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this all-in-one condensing unit?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 440~380v/220~230v/110v. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.

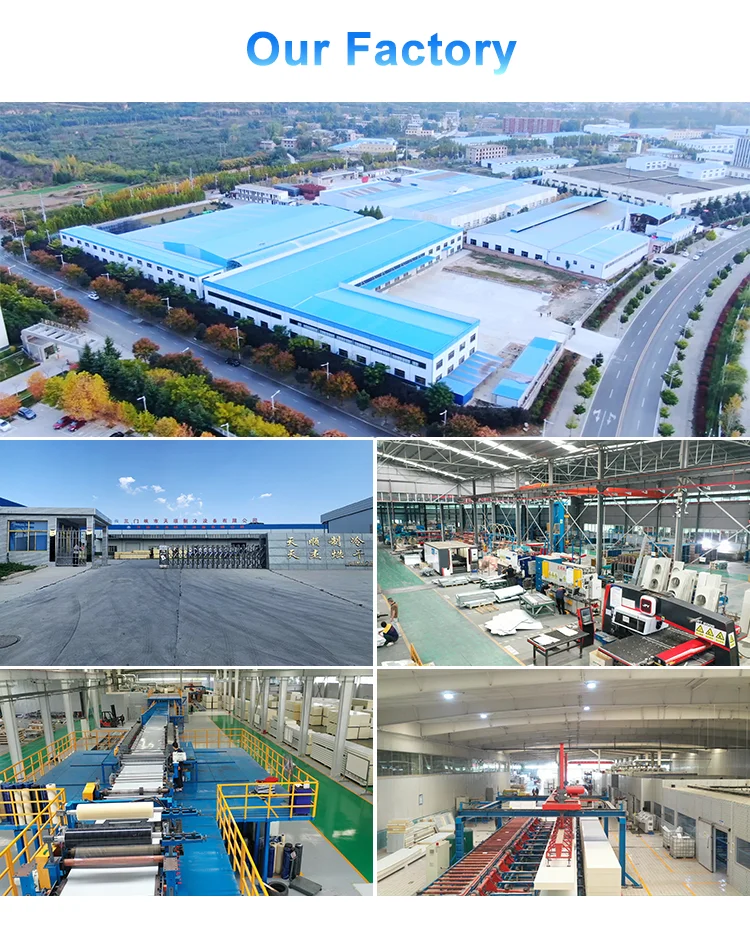

About the Manufacturer
This all-in-one condensing unit is produced by Sanmenxia Tianshun Refrigeration Equipment Co., Ltd.. Browse the full Sanmenxia Tianshun Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
