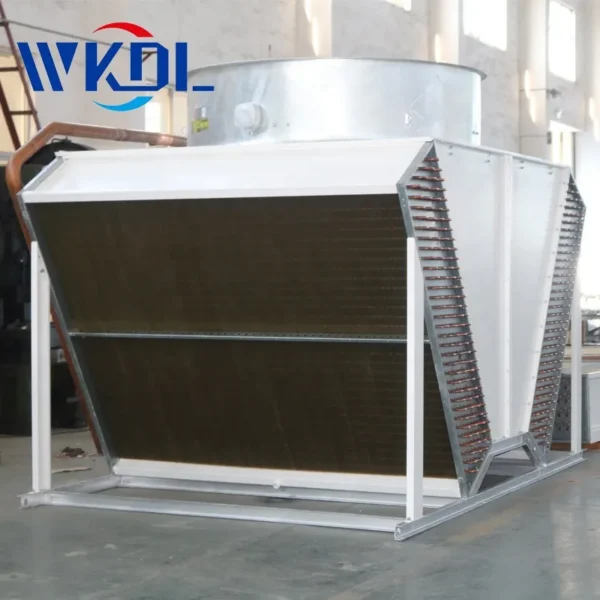

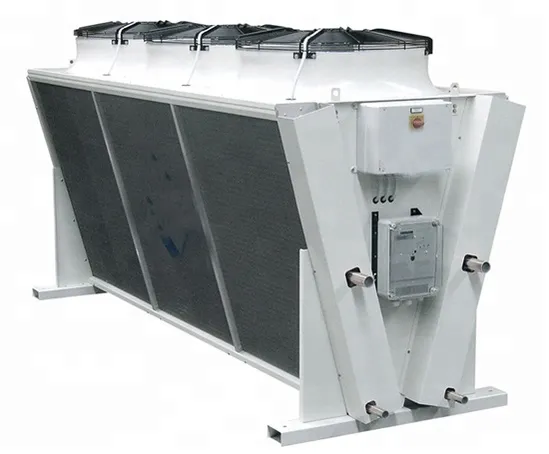

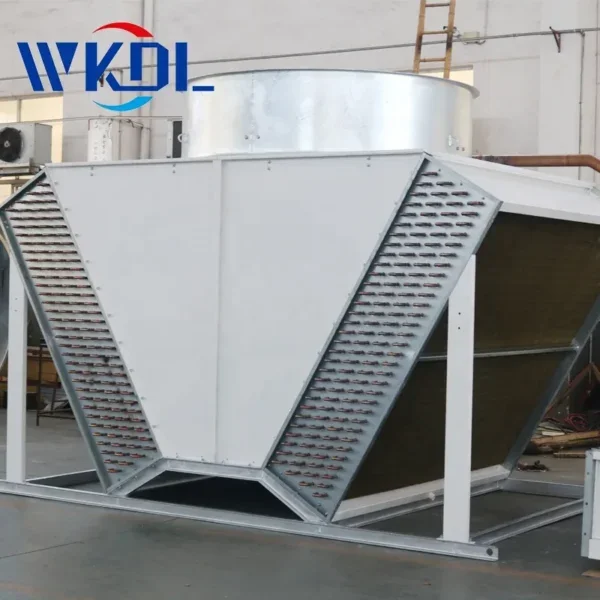

The adiabatic cooler listed here carries 200 Kw, type Fan Coil Unit, documented exactly as the manufacturer publishes it. Made by Jiangsu Victory Hot-Cooling Technology Co., Ltd. (11 years on the platform, typical reply ≤12h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Adiabatic Cooler
- Cooling Capacity: 200 Kw
- Tube Material: Copper
- Fin Material: Aluminum
- Casing Material: Galvanized Steel with white paint
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Mounting Type | Floor Standing |
| Key Selling Points | High Productivity |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 500 KG(1102.31lb) |
| Brand Name | WKDL |
| Dimension(L*W*H) | 250*200*80 |
| After-Sales Service Provided | No overseas service provided |
| Tube Material | Copper |
| Fin Material | Aluminum |
| Fin Pitch | 2.1mm |
| Casing Material | Galvanized Steel with white paint |
| Cooling Capacity | 200 Kw |
| Selling Units | Single item |
| Single Package Size | 250X220X120 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Adiabatic dry cooler provide a smart way to take advantage of free cooling when surrounding temperature allows for it. They are made with cross-fin copper tubes or stainless steel tube and corrugated aluminum fins, resulting in a combination of compact dimensions and high capacity.
Dry cooler can be easily integrated with liquid-cooled plate heat exchangers, especially in free cooling systems.
Adiabatic dry coolers were designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. In order for dry cooler to work, the air temperature needs to be cooler than water in the system. To cool the system liquid, hot process liquid flows through the dry cooler tubes. The liquid is then cooled by the relatively cold ambient air that is forced through the coil.
The core of our air heat exchangers is the fin coil, built from a circuit of interconnected tube serpentines and fins to increase the heat exchanging surface.
  |  |
 |  |
Application scenarios

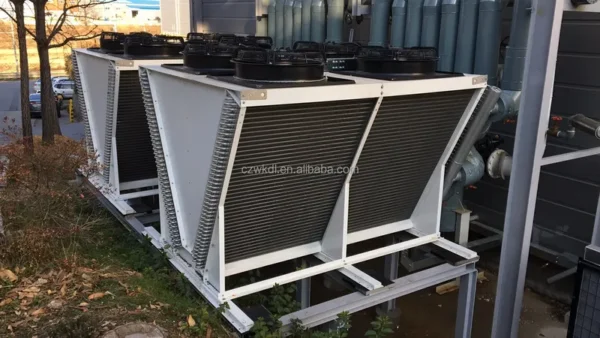

Dry coolers are used in multiple buildings types and applications throughout the HVAC industry, including the following:
Data centers
Office buildings
Hospitals/medical office buildings
Industrial/process systems
Heat transfer/recuperation
Power generation
Induction cooling
Steel Industry — Electrical Arc Furnace / induction furnace cooling
Refinery & petrochemicals — Reactor column cooling
Rubber — Roller cooling
Independent Power Stations — Cooling of engine jacket water, lube oil and inter-stage cooler
Plastics — Cooling of injection molding machine
Textiles — Condensation of process vapour
Refrigeration / Air conditioning — as condenser for air cooled chillers
Power Industry — Turbine lube oil cooler / turbine intercooler
We offer tailor made service. If you any non standard model requirement, send us your requirement, we could calculate with software for you.
Our heat exchange coil has been exported to USA, Canada, UK, Germany, Switzerland,New Zealand, Russia,Australia, South Africa etc.
 | Fin Fin material:ALMG, epoxy coated, copper, 304 and 316 stainless steel, aluminum etc. Fin Pitch: 4.5mm, 7mm, 10mm, 12mm and more (tailor made) We have different fin types for choice, if you need special type, we can open mould and tailor made for you. |
 | High Efficiency Tube Material: Copper Tuber OD: 5/8'' Inside type: Inner grooved tube Advantages: Increase inside heat exchange areas of tube and intensity of refrigerant. At least 15% heat transfer efficiency increased. |
 |
High Strength Tube Material: 304 or 316L stainless steel Tube OD: 5/8'', 19mm Test pressure: 5.0Mpa Expanding pressure: 40Mpa Advantages: Running more safety, Better corrosion resistance, Good welding quality. |
 | Axial Fan Blade material: Aluminum or stainless steel or Nylon Casing material: Stainless steel or Galvanized steel Motor voltage: According customer's requirement Bearing: NSK or SKF Protection Grade: IP55 Original: China good brand /Ziehl-abegg |
| EC Fan Blade material: Coated steel or Aluminum Grille material: Coated steel or Stainless steel Advantages: Lower noise, Large air volume,Saving room space, Energy efficiency Erp2015 Original: Germany Ziehl-abegg. |
Our evaporator coil can be tailored made according to customer’s exact requirement. We can calculate cooling capacity based on your specification with the software, which is from Germany.
Advantage of WKDL Adiabatic Dry Cooler
1. Modular designs of dry cooler helps in space optimization
2. High efficient fin to tube heat exchanger
3. Zero water wastage : as it is closed loop operation and now water evaporation
4. Negligible maintenance cost : as water treatment, makeup water and replacement of fills are not required.
5. No periodic cleaning requirement
6. Separates process side from any contamination due to closed loop system
7. Casing made of galvanzied steel, enhanced corrosion resistance.
FAQ
1.Do you offer tailor made service ?
Yes, we can custom made according to your special requirements.
2.What is your delivery time?
20—30days.
3.What are the payment terms?
30% T/T before production and balance before shipment
4.What is your warranty?
One year for the whole unit.
5.What is the valid time of the quotation?
One month.
6.Can we do our OEM logo?
Yes,we can do OEM logo for you.
7.Can you do our country plug?
Yes,we can do the plug according to your request without extra cost.
Jiangsu Victory Hot-Cooling Technology is a Manufacture + Technical Design company with over 15 years experience.
Our main products are as below :
* Heat exchange coil in all types
* Evaporator & air cooler ; condenser
* Evaporative condenser / cooling tower
 |  |
| Semi finished product production workshop | |
 |  |
| Finished product assembly workshop | |
Contact: Lucy Zhang
wechat / whatsapp: 0086 15961187579

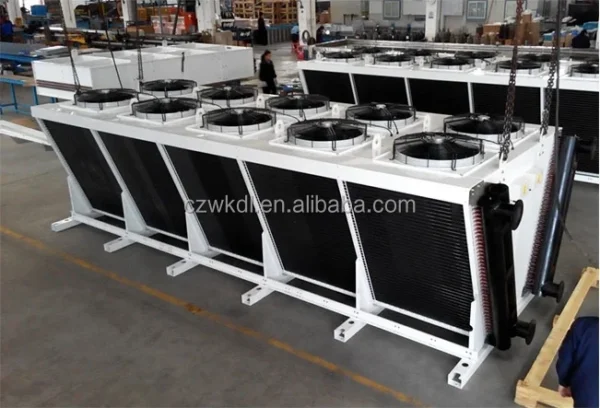

Production Process
 |  |
| Punching fins | Perforated tube |
 |  |
| Hydraulic expansion tube | Stainless steel automatic welding |
 |  |
| Test water and maintain pressure | laser cutting |
 |  |
| BendBend | Final assembly |
|
| Size | Depends on evaporator size |
| Weight | 50kg-500kg | |

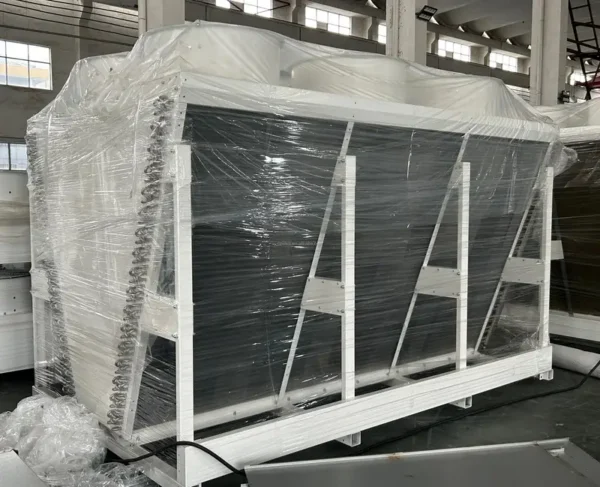

| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too heavy,we will use PE film for packing or pack it according to customers special request. |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $2500 / set
- 10+ set: US $1200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this adiabatic cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Victory Hot-Cooling Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu Victory Hot-Cooling Technology Co., Ltd. range on HVACR Nexus.
