Key specification for this adjustable height bldc motor: 24W(0.03hp), material Plastic. Everything below is reproduced from the factory data sheet. Made by Zhongshan Moment Technology Co. Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Adjustable Height Bldc Motor
- Model Number: FS30-2
- Power (W): 24W(0.03hp)
- Power Source: Electric
- Material: Plastic
- Noise Level: Up to 29 dB
- Wind Speed: 8 speeds
Technical Specifications
| Application | Office, Household, Commercial, Hotel |
|---|---|
| Blade Diameter | 300 mm(11.81in) |
| Power (W) | 24W(0.03hp) |
| Wind Speed | 8 speeds |
| Noise Level | Up to 29 dB |
| Oscillation | Oscillating |
| Motor | Brushless Motor, BLDC Motor |
| Energy Efficiency Rating | Class A+++ |
| Power Source | Electric |
| Type | Air Cooling Fan |
| Control Type | Remote Control |
| Material | Plastic |
| Number Of Blades | Two layers, seven leaves |
| Timer | Yes |
| Remote Control | Yes |
| App-Controlled | No |
| Adjustable Height | Yes |
| Operating Language | English |
| Warranty | 1 Year |
| After-Sales Service Provided | 1 Year |
| Packaging Types | Corrugated Box |
| Private Mold | Yes |
| Feature | Remote Control, Oscillating, Adjustable Height, Timer |
| Place Of Origin | Guangdong, China |
| Brand Name | OEM |
| Model Number | FS30-2 |
| Maximum Wind Speed | ≥6m/s |
| Net Weight | 2.5 kg |
| Remote Control Range | >5 m; angle >60° |
| Vertical Oscillation | 100° manual |
| Rated Parameters | DC24V, 24W |
| Operating Noise | ≤52.6dB at 30cm after 5 min; 12.8dB at lowest speed |
| Product Dimensions | 340*330*615-950 mm |
| Packaging Dimensions | 496*178*355 mm |
| Automatic Head Shake | 30°/60°/90°/120° auto oscillation |
| Selling Units | Single item |
| Single Package Size | 49.6X17.8X35.5 cm |
| Single Gross Weight | 3.5 kg |

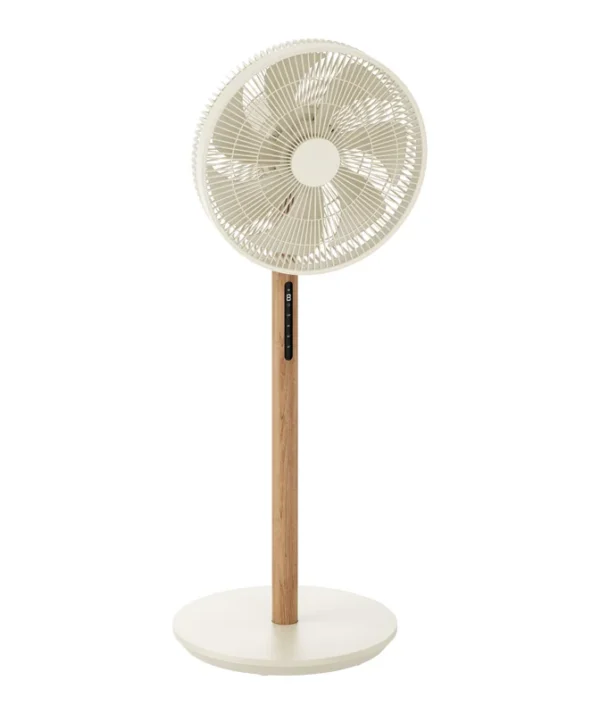

Product Details
- 300mm fan head with double-layer
- 7-blade design Maximum air speed: ≥6m/s
- 8 adjustable speed settings 30° / 60° / 90° / 120° automatic left-right oscillation with stepper-motor angle control Up to 100° manual up-down tilt

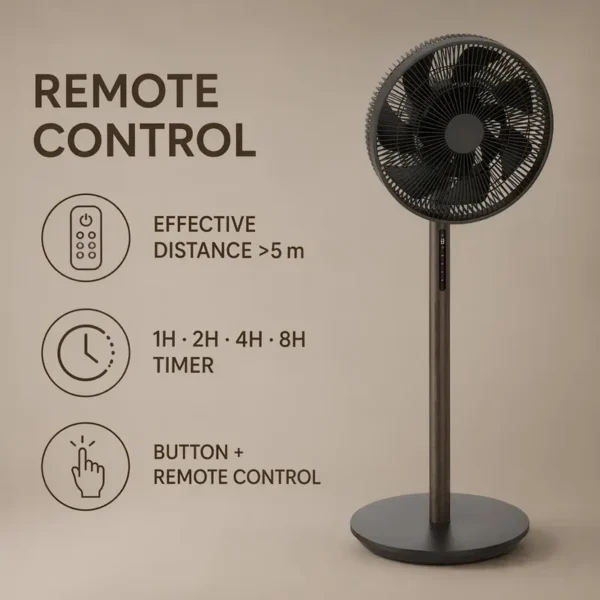

- Remote control distance: >5m Push-button and remote-control operation 1H / 2H / 4H / 8H timer settings
- Lowest-speed noise: 12.8dB at 30cm test distance DC24V system;
- rated power: 24W;

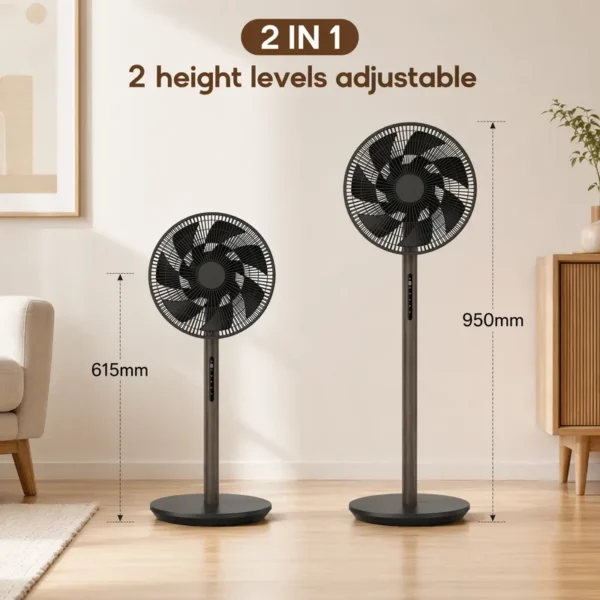

- standby power: ≤1W Height adjustable from 615mm to 950mm
Technical specifications | ||
Item | Specification | |
Model | FS30-2 | |
Product type | Pedestal fan / floor fan | |
Color | Black+Wood Grain | |
Housing and blade material | ABS | |
Pole material | ABS with wood-grain appearance | |
Product dimensions | 340 × 330 × 615–950mm | |
Blade diameter | 300mm | |
Net weight | 2.5kg | |
Rated input | DC24V | |
Rated power | 24W | |
Power range | 4–23W, including oscillation | |
Standby power | ≤1W | |
Motor speed | 1090 ±30r/min | |
Maximum air speed | ≥6m/s | |
Noise level | ≤52.6dB after 5 minutes, measured 30cm in front of the product; lowest speed:12.8dB | |
Speed settings | 8 speeds | |
Automatic left-right oscillation | 30° / 60° / 90° / 120° | |
Manual up-down tilt | 100° | |
Timer | 1H / 2H / 4H / 8H | |
Remote control | Effective distance >5m; angle >60° | |
Adapter input | 100–240V, 50/60Hz | |
Adapter output | DC24V, 1.0A | |
Exposed adapter cable length | 1.5m including connector | |
Electrical protection class | Class III | |
Operating environment | 0–39°C | |
Design life | Button life ≥10,000 presses; product life ≥5 years | |
RoHS | Complies with GB/T 26572-2011 restricted-substance requirements | |
Applicable standards | GB4706.1 GB4706.27 GB4343.1 GB17625.1 | |
Package information | ||
Item | Details | |
Carton material | BC corrugated board | |
Packing dimensions | 496 × 178 × 355mm | |
Gross weight | 3.5kg | |

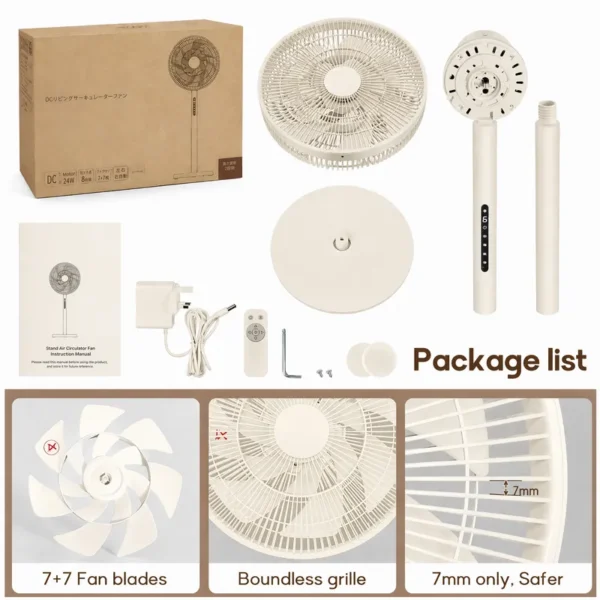

In the box | Fan ×1; power adapter ×1; remote control ×1; user manual ×1; screwdriver ×1; accessory card ×1 | |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–999 piece: US $23 / piece
- 1000–2999 piece: US $22 / piece
- 3000+ piece: US $21 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this adjustable height bldc motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
